Daewoo DWR-C60WN User manual

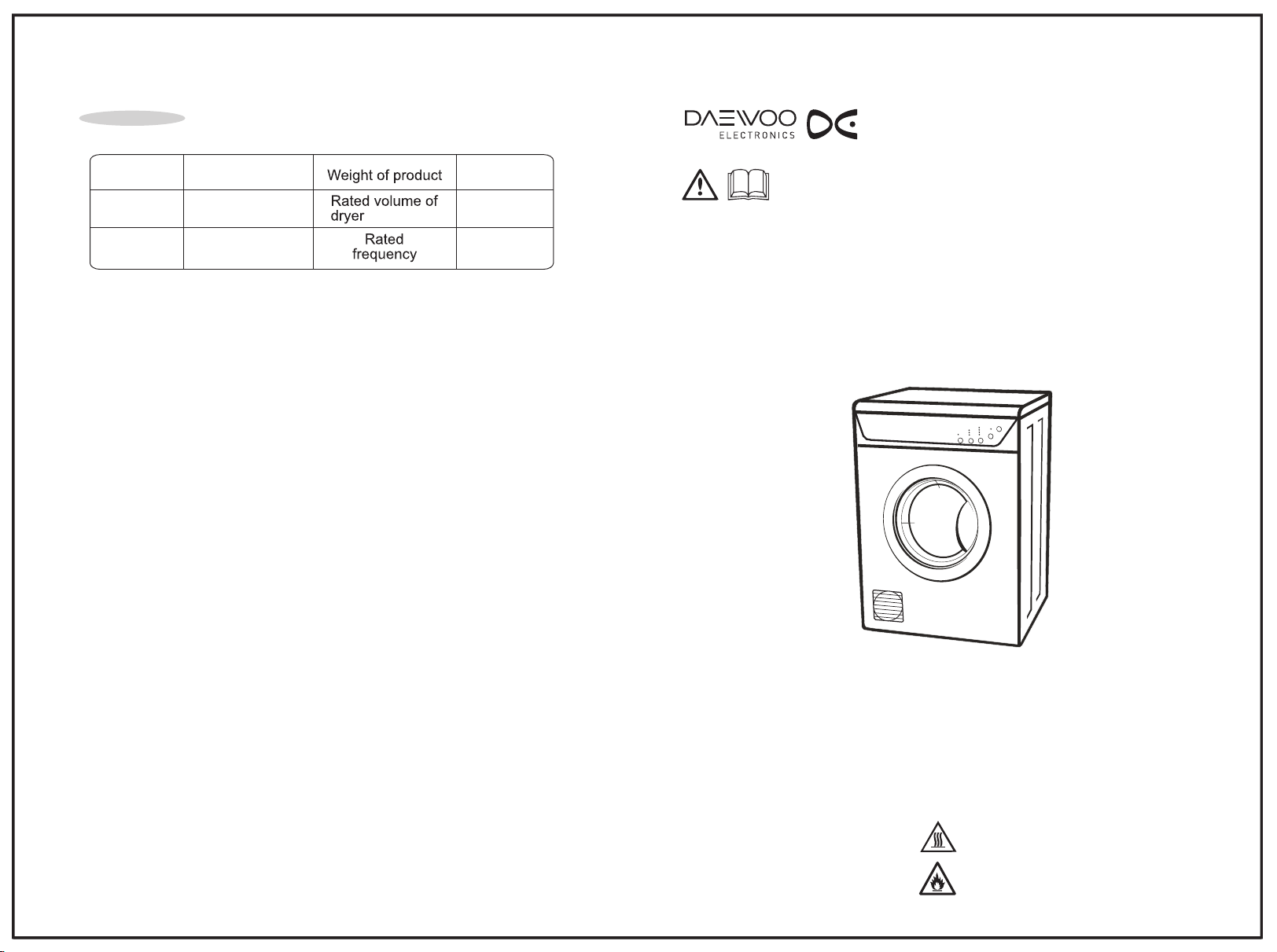

Specifications
Dimension
WxHxD (mm)
Rated input
power
Ratedn voltage
595×840×530(mm)
1700W
220-240V～50Hz
6.0Kg
(Dry clothes)
32 Kg
Instruction Manual
Tumble Dryer
CAUTION: HOT SURFACE!
Before using your tumble dryer, please read this
manual carefully and keep it for future reference.
CAUTION: RISK OF FIRE!
Model: DWR-C60WN

1)Unique and luxury design: Design is according to front
loading washing machine with unique appearance.
2)Micro Control: Simple and convenient operation with the
help of PCB board.
3)Big size door window: See the procedure of drying clearly
through this window.
0
4)Open the door with 180 : It is very convenient to put
clothes in and out with 1800angle opening range.
5)Compact instruction: Suitable capacity and unique
outlook with anti-dust, anti-humidity, anti shake, long life
and low noise design.
6)The tumble dryer is not to be used if industrial chemicals
have been used for cleaning.
7)The lint trap has to be cleaned frequently.
8)Lint must not to be allowed to accumulate around the
tumble dryer.
9)Adequate ventilation has to be provided to avoid the back
flow of gases into the room from appliance burning other
fuels, including open fires.
10
Troubleshooting
Instruction for Wall Mounting
2. When Using
)Do not dry unwashed items in the tumble dryer.
11)Items that have been soiled with substance such as
cooking oil, acetone, alcohol, petrol, kerosene, spot
removers, turpentine, waxes and wax removers should
be washed in hot water with a extra amount of detergent
before being dried in the tumble dryer.
12)Items such as foam rubber (latex form), shower caps,
waterproof textiles, rubber backed articles and clothes
or pillows fitted with foam rubber pads should not be dried
in the tumble dryer.

17)The appliance must not be install behind a lockable
door,a sliding door or a door with a hinge on the opposite
side to that of the tumble dryer. In such a way that a full
opening of the tumble dryer door is restricted.
18)Oil-affected items can ignite spontaneously, especially
when exposed to heat sources such as in a tumble dryer.
The items become warm, causing an oxidation reaction
in the oil. Oxidation creates heat. If the heat cannot
escape, the items can become hot enough to catch fire.
Piling, stacking or storing oil-affected items can prevent
heat from escaping and so create a fire hazard.
19)If it is unavoidable that fabrics that contain vegetable
or cooking oil of have been contaminated by hair care
products be placed in a tumble dryer they should first be
washed in hot water with extra detergent-this will
reduce, but not eliminate, the hazard.
20)The appliance should not be overturned during normal
use or maintenance.
21)Remove all objects from pockets such as lighters and
matches.
13)Fabric softeners, or similar products, should be used
as specified by the fabric softener instructions.
14)The final part of a tumble dryer cycle occurs without
heat (cool down cycle) to ensure that the items are left
at a temperature the ensure that the items will not be
damaged.
15)WARNING: never stop a tumble dryer before the end
of the drying cycle unless all items are quickly removed
and spread out so that the heat is dissipated.
16)The exhaust air must not be discharged into a flue
which is used for exhausting fumes from appliance
burning gas or other fuels.
22)This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way
and understand the hazards involved. Children shall not
play with the appliance. Cleaning and user maintenance
shall not be made by children without supervision.
23)For appliances with ventilation openings in the base,
that a carpet must not obstruct the opening.
24)If the power cable is damaged, it must be replaced by
the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
25)This appliance is for indoor use only.
26)The openings must not be obstructed by a carpet.
27)Children of less than 3 years should be kept away
unless continuously supervised.
28)WARNING: The appliance must not be supplied
through an external switching device, such as a timer,
or connected to a circuit that is regularly switched on
and off by a utility.

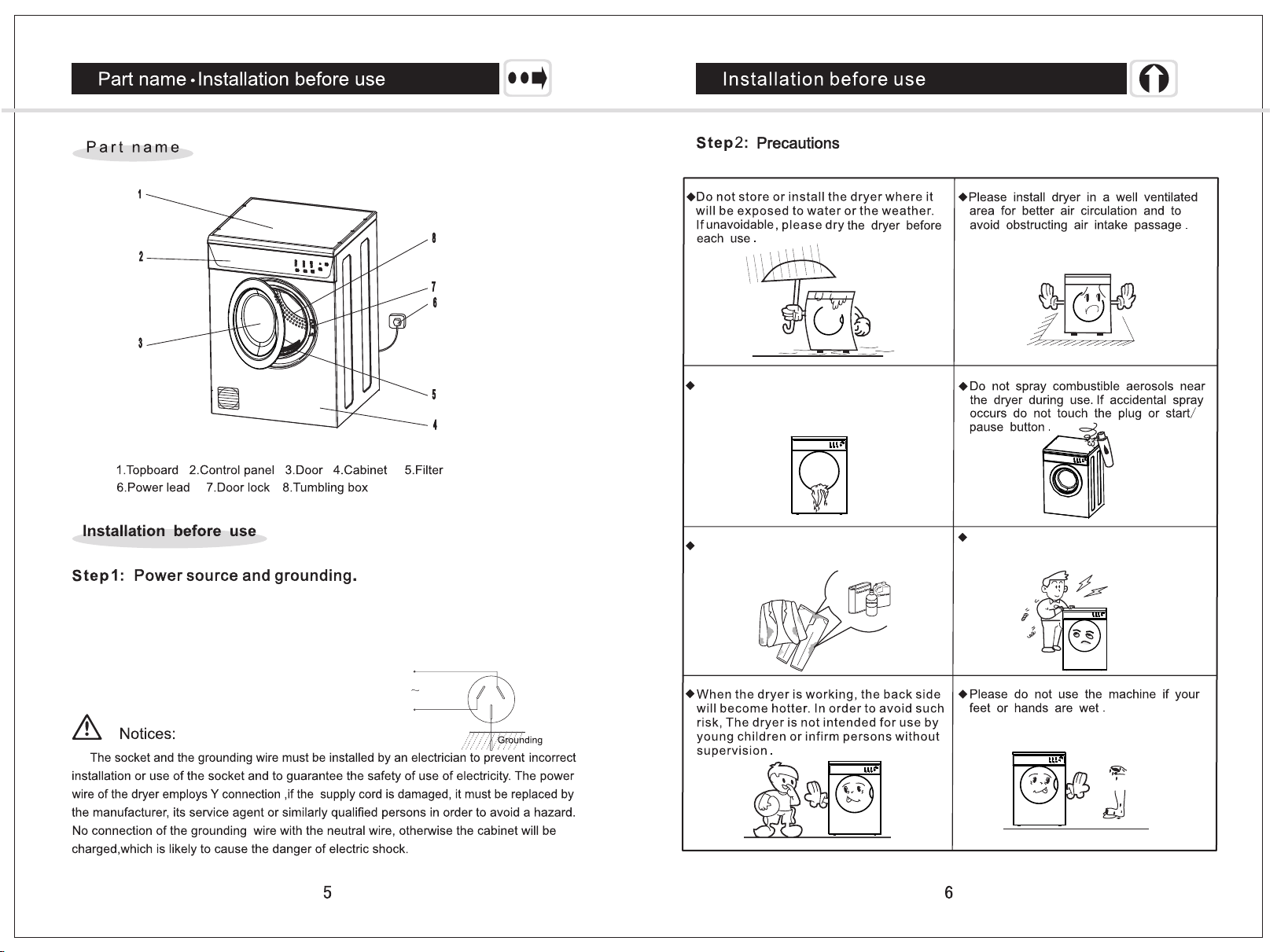

The dryer employs alternative current with the rated voltage and frequency. When the
voltage fluctuates between 10% of rated voltage, the dryer can work normally. A special
power socket for the dryer is better to be set beside the dryer for convenience and safety.
The method of connection of the socket is as the figure below.
It is not allowed to dry clothes containing
combustible cleanser, gasoline etc.
Do not operate this dryer if it is damaged,
malfunctioning, partially disassembled
or has missing or broken parts.
To avoid problems from wet clothes
and minimize risk, spin-dry items before
placing them inside the dryer.

If the dryer is not placed horizontally (the lean angels
is no more than 2 ) , the dryer will operate unbalanced
and will be more likely to fail.
Do not place the back of dryer near curtain or somewhere it can catch an
object in the wind.

Clothes have to be washed and spin-dried before putting in the dryer.
Put the same kind of clothes to dry together.
For better drying results, turn the clothes inside out before drying it.
Sort your clothes into loads that take a similar time to dry e.g.
Heavier items from light items.
Please check the clothes after washing. No unwashed textiles should
be dried.
For faster results put clothes with 1/ 2- 2/3 the capacity of the inner
tube for drying, because drying needs space to make clothes
circulate evenly.
To avoid creased, rough or static electricity on clothes, do not over dry.
When drying expensive or little clothes (<1. 5kg) it is better to add
several towels whose fibers wont fall off easily, this will help dry
the clothes more evenly.

Cold air function circulates cold air for 10 minutes at the end of program. This ensures
that the items are left at a temperature, and that the items will not be damaged Crease
Guard adds an extra 30 seconds after the program to shake clothes in order to protect
against creasing.
Crease Guard means after programming, it adds extra 30 seconds of one-way running
to shake clothes in order to protect against creasing.
The inside temperature and humidity will not affect drying time.
Check the label attached on clothes and choose the right temperature and time
according to the explanation.
The few clothes below 2. 0kg shall be selected with " extra dry"program and "full"
heat for drying.
Accumulated dust, fiber&debris will affect the air circulation inside the
dryer and this will cause longer drying times. It is advise to clean the filter
and inner tube after each use.
Make sure to cut off the power before Cleaning
Make sure open the front door for aeration after
cleaning the inner tube
The lint filter is located at the door opening.
Remove the lint filter and open it out.
do not rinse by water directly
do not neutral scour wipes
do not use gasoline and alcohol wipes
If the filter is cleaned by damp cloth
or in the water. please install after it is fully
dried.
Use wiping cloth to clean filter.
At the end of program, buzzer rings to remind you to take out clothes
from dryer.
8. Clean filter, cabinet and inner tub.
7. Take out the Plug
6. End of Program

Troubleshooting
Dryer doesn't start
The sound of dryer when running can be caused by:
Doesn't dry
Dryer too full
Check with a qualified electrician to
exchange the temperature fuse
Clean air intake and exhaust, and check
for obstructions. (eg. Curtain)
Troubleshooting
Air bumping: When drying, machine will generate steam which will
come out from exhaust pipe. This will cause bumping with the
bottom of the inner tub.

When using :

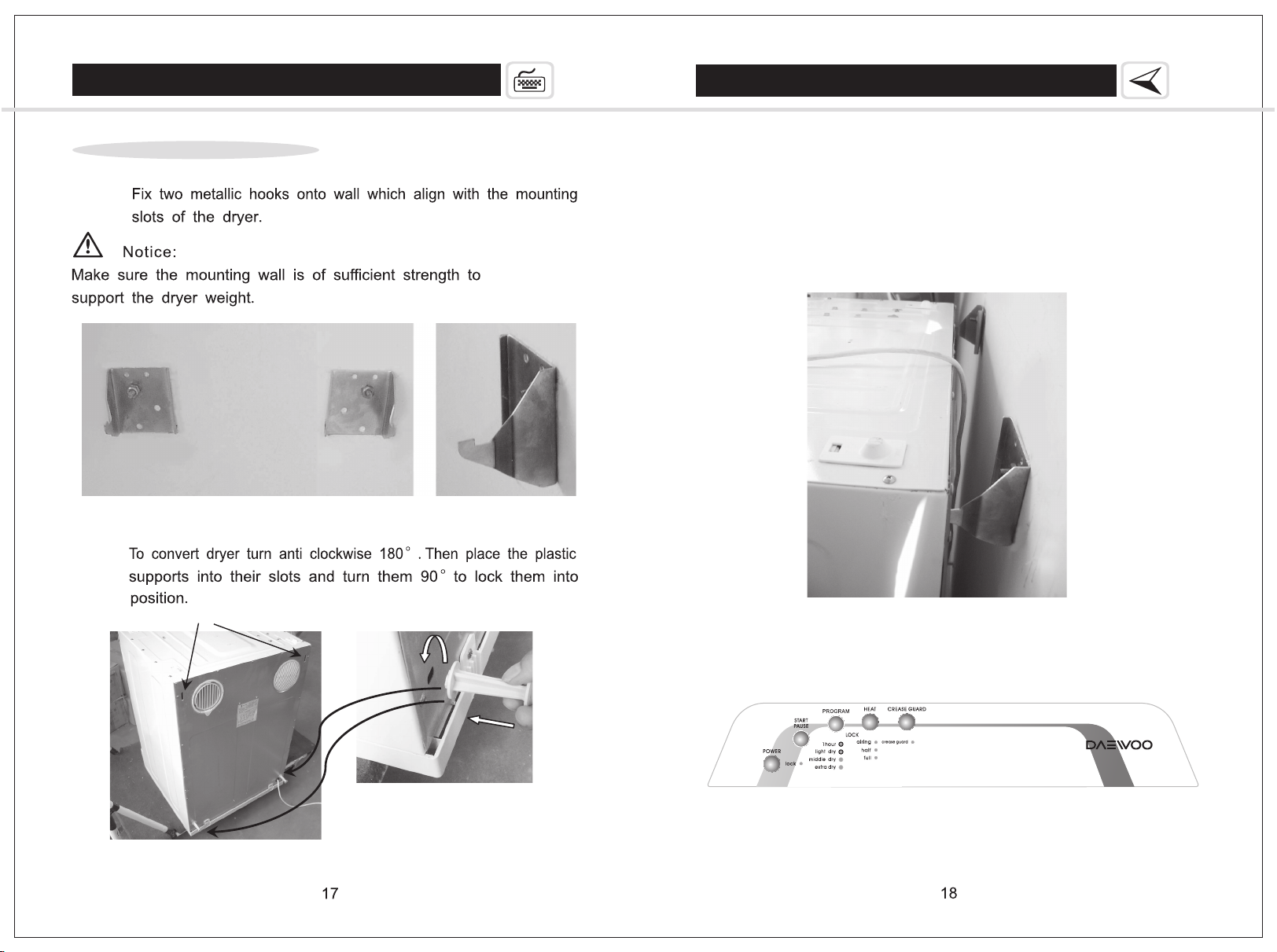

Instruction for Wall Mounting
slots
Instruction for Wall Mounting Instruction for Wall Mounting
Carefully raise the dryer and hang it onto the metallic hooks.
Slowly let the weight be onto the hooks and let the plastic
supports rest against the wall.
Warning: The dryer weight is 32kg. Please obtain assistance.
Step 4: Replace the panel sticker with the inverted panel sticker included.
Step 3:
Step 1:
Step 2:
