Daewoo DRHT-630 User manual

Service Manual
DVB-T DVD RECORDER
MODEL : DRHT-630
March. 2007
DRHT-630 _SVC 2007.3.19 2:24 PM ˘ ` a mac001 1200DPI 90LPI

PRODUCT SPECIFICATION ...............................................................................................2
BOM LIST.............................................................................................................................3

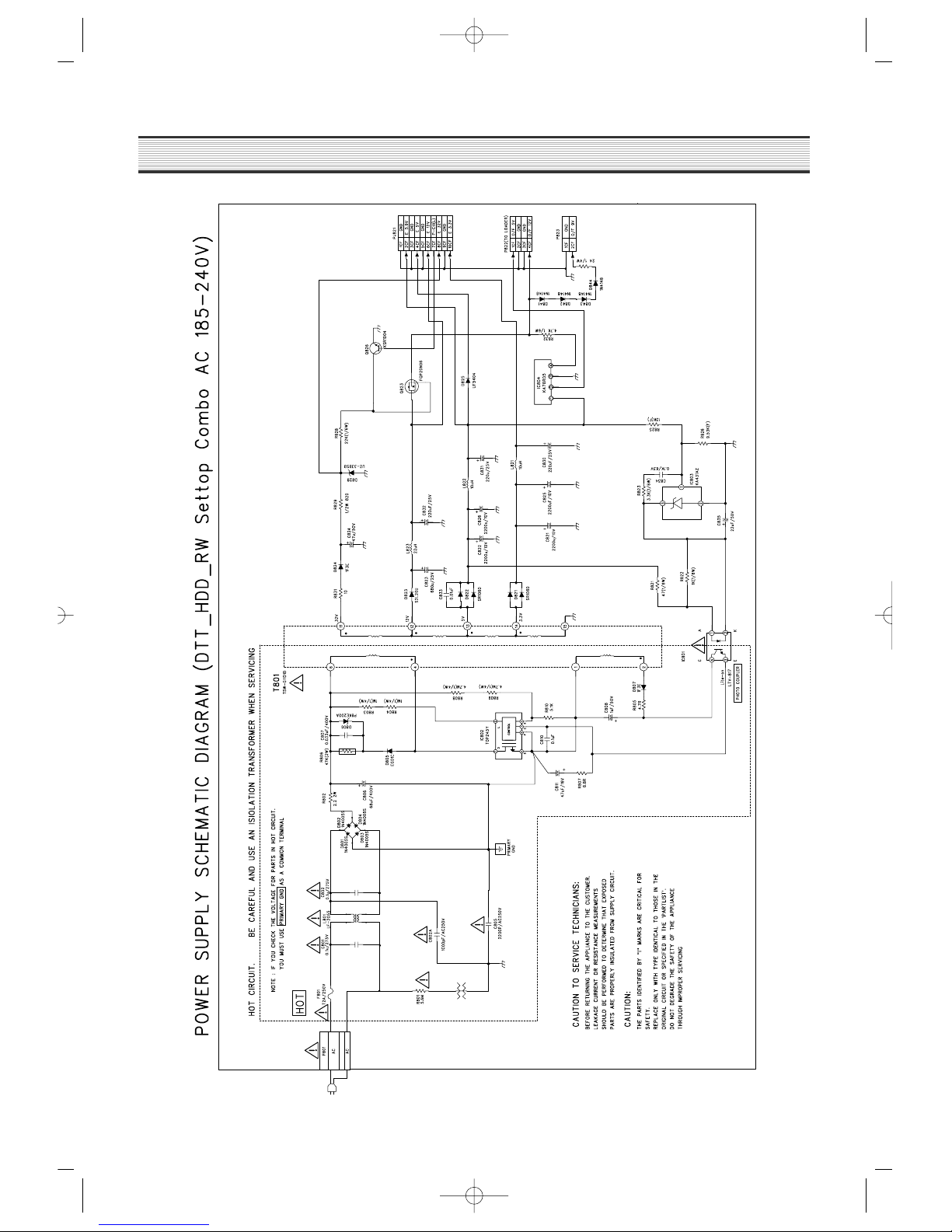

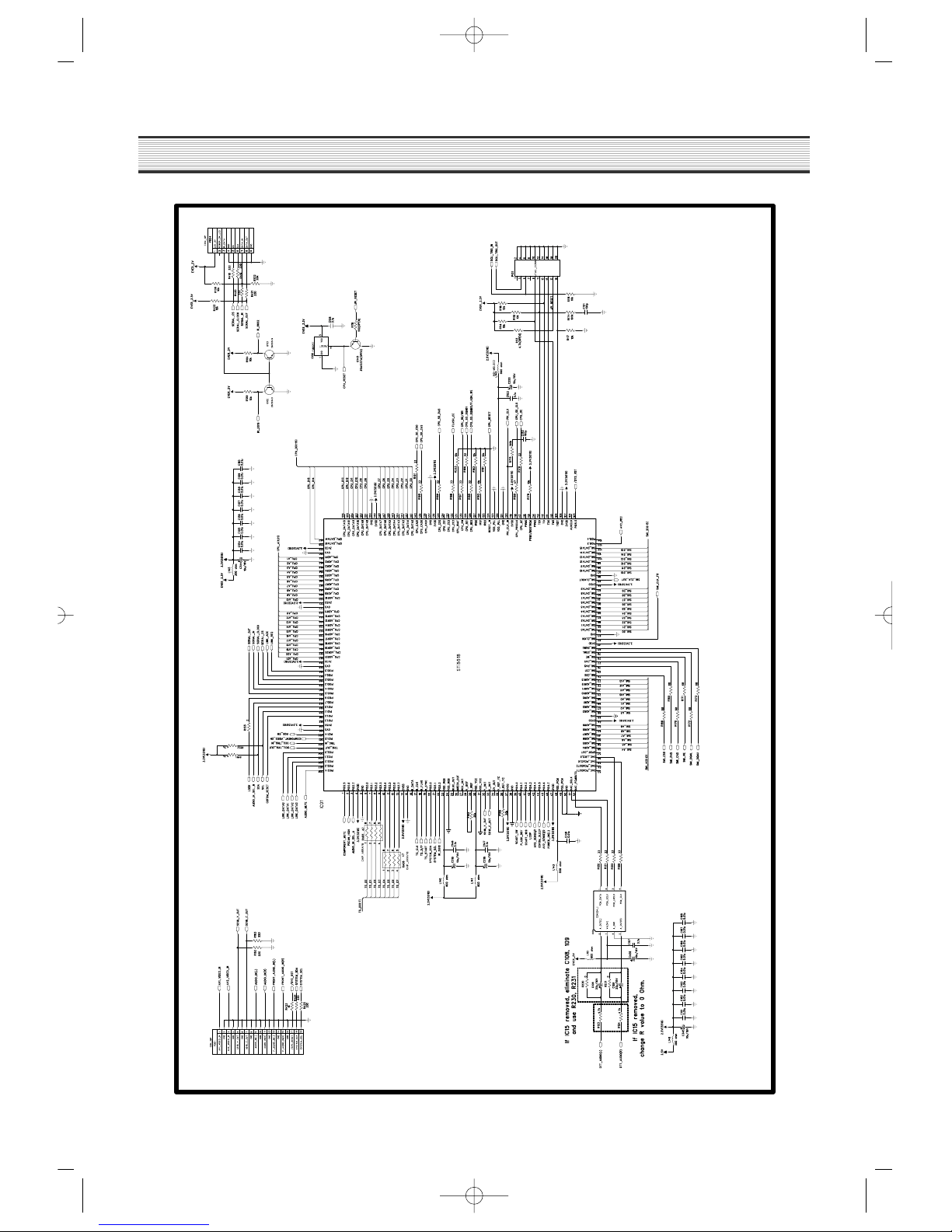

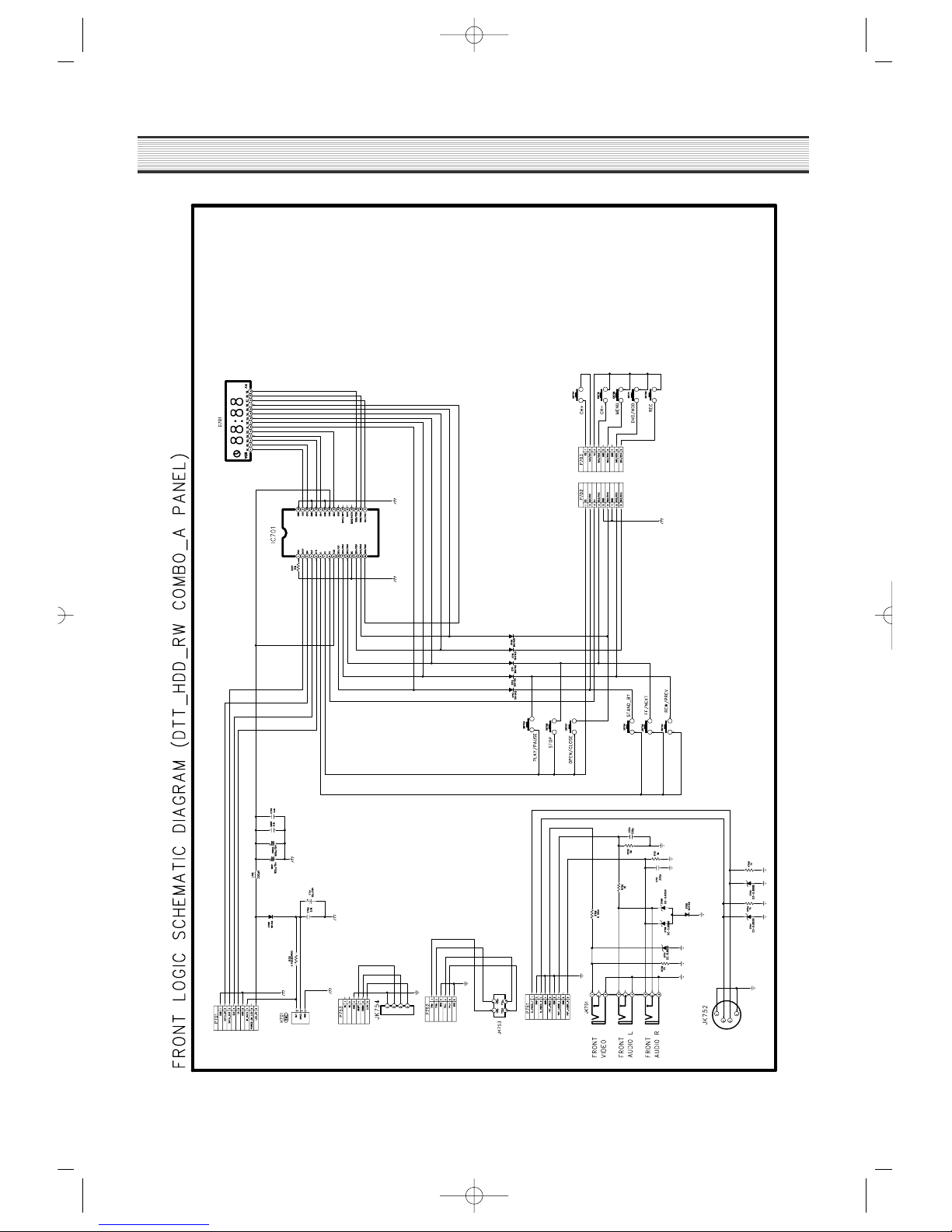

SCHEMATIC DIAGRAM ......................................................................................................16
EXPLODED VIEW................................................................................................................31
PCB CIRCUIT BOARD ........................................................................................................37
1
CONTENTS
DRHT-630 _SVC 2007.3.19 2:24 PM ˘ ` 1 mac001 1200DPI 90LPI

2
Product Specification
General
Recording
Outputs
Inputs
Accessories
Powerrequirements 220–240V~,50/60Hz
Powerconsumption 42W
Dimensions(approx.) 435x55x353mm(wxhxd)
Mass(approx.) Net:4.3kg Gross:5.6kg
Operatingtemperature 41°Fto95°F(5°Cto35°C)
Operatinghumidity 5%to90%
Signalsystem PALColour
Recordingformats DVD VideoRecording, DVD-VIDEO
Recordablediscs DVD±R, DVD±RW
Recordabletime [DVD](Approx.) 1hour (HQmode), 2hours (SPmode), 4hours (EPmode), 6hours (SLP mode)
Video recording format
Samplingfrequency 27MHz
Compressionformat MPEG 2
Audio recording format
Samplingfrequency 48kHz
Compressionformat MPEG1 Layer2
Videooutput Video outputterminal, 1.0Vp-p, unbalanced,RGB output(75Ωin load,R :0.7Vp-p, G: 0.7Vp-p,B :
0.7Vp-p)
Audiooutput Audiooutput terminal(2kinds), 2Vrms(DVD) Analog audiooutput :2.0Vrms,Digital audiooutput :
coaxial,optical
S-Videooutput 1.0Vp-p, 75ΩunbalancedMini DIN4-pin x1, C: 0.286Vp-p,75Ω
ComponentVideo output/ProgressiveScan (Y)1.0Vp-p, 75Ohm, negative sync,RCA jackX 1, (Pb)/(Pr)0.7Vp-p, 75ohm ,RCA jack X2
HDMIoutput HDMI 1.0compliant transmitter
Outputs576p and576i
AntennaIn/Out U/V-mixed; 75Ωunbalanced
VideoIn 1.0 Vp-p,unbalanced
AudioIn -8.8 dBm
DVIN 4pin (i.LINK/IEEE1394 standard)
USBIN USB 1.1
RF cable ........................................................................... 1
Remote control ................................................................ 1
Batteries .......................................................................... 2
DVD Specifications
Frequencyresponse DVD (PCM48 kHz):8 Hzto 22kHz,CD: 8Hz to20 kHz
VideoS/N More than60 dB
AudioS/N More than90 dB
Harmonicdistortion Less than0.04%
Dynamicrange More than90 dB
Resolution Over500 lines(HQ Recording)
HDD Specifications
Capacity 106GB(1platter)
RPM 7200RPM
StartTime 8 sec( 15sec max
Stoptime 12 sec( 20sec max)
HDDRecording Capacity(160GB) (Approx.) HQ: 9.5Mbps, 32Hr,SP :5.1Mbps, 66Hr,EP :2.5 Mbps,128Hr,SLP :1.7 Mbps,195Hr(80GB)
(Approx.)HQ: 9.5Mbps, 16Hr,SP :5.1Mbps, 33Hr,EP :2.5 Mbps,64Hr,SLP :1.7 Mbps,97Hr
Frequencyrange 20Hz to20 KHz
VideoS/N Over 60dB
AudioS/N Over 90dB
ResolutionOver 500 lines(HQ Recording)
DRHT-630 _SVC 2007.3.19 2:29 PM ˘ ` 2 mac001 1200DPI 90LPI

3
BOM LIST
✐ CAUTION :In this Service Manual, some parts can be changed for improving their
performance without notice in the parts list. So, if you need the latest parts
information, please refer to PPL(Parts Price List)in Service information
Center(http://svc.dwe.co.kr)
LOC PART CODE PART NAME PART DESC REMARK
01 PVACPSP590 ACCESSROYAS DN-M11D1T-VH(BATT&CABLE „ «)
DP01 97P95600P0 MANUALOWNERS UKMODEL
DP02 97P881RP10 CABLERF PAL1.0M
DP03 97P0424100 COVERACCESSORY LD-PET0.05
DP04 486A716202 BATTERY AAA1.5V(SUPERGARD)
02 PVPKCPE613 PACKINGAS DG-M21D1D-HB
CP01 97P4936200 PAD EPS
CP02 97P4820000 POLYBAGFOR SET 1030*650*T0.5PEFOAM
CP03 97P5060520 BOXCARTON COLOR(505X452X136)
CP04 47P4502208 LABELSERIALA PAPER(52X12X1EA)
CP05 6520010020 STAPPLE M20
03 PVMCASP612 CHASSISMAINAS DTBH-L3A1PH-AG
A002 97P93A02P0 LABEL SPEC PAPER(44X30X1EA)
A040 97P0488310 TOPCOVER PCMT0.5
A041 7173300852 SCREWTAPPTITE TT2BIN3X8 MFZNBK 3CR
A050 97P0488404 COVERBACK SECCT0.6
A051 7173300852 SCREWTAPPTITE TT2BIN3X8 MFZNBK 3CR
A060 97P0488202 COVERBOTTOM SECCT0.8
A061 7173300851 SCREWTAPPTITE TT2BIN3X8 MFZN3CR
A062 97P4220000 CUSHIONLEG EVAT=2.0
AJ01A 7173300852 SCREWTAPPTITE TT2BIN3X8 MFZNBK 3CR
AJ02A 7174300851 SCREWTAPPTITE TT2RND3X8 MFZN3CR
AP01A 7174300851 SCREWTAPPTITE TT2RND3X8 MFZN3CR
AZ01A 7174300851 SCREWTAPPTITE TT2RND3X8 MFZN3CR
AZ04A 7174300851 SCREWTAPPTITE TT2RND3X8 MFZN3CR
AZ04B 97P4603400 CLAMPWIRE EGIT0.6+PVCTUBE L=70MM
D100 97P1RA2PA0 TRANSMITTERREMOCON VR-FA2P
HD01 97P0D005H0 HDD WD1600BB-55RDA0160G2M
HD01A 97P2448700 BRACKETHDD SECCT1.0
HD01B 97P2627700 DAMPERHDD BUTHYL,¥10
HD01C 97P3121250 SCREWDAMPERTAPPTITE TT2 3X14WAS SPECIAL3CR
HD01D 7043350651 SCREWMACHINE BINM3.5*63CR
M01 97PP351103 PANELFRONTAS DTBD-LN21PA,HIPS(HB),USB,DV
M01A 7174300851 SCREWTAPPTITE TT2RND3X8 MFZN3CR
M200 97QD021610 TOTALDVD DDW-806S-D
M200A 7171260651 SCREWTAPPTITE TT2PAN2.6X6 MFZN3CR
P603A 97P885X271 CONNAS 4H-4H(2.5-5.08)470MM
P702 97P8101000 MOTORFAN RDM5015S(50X50X15)12V 5000 RPMALLSLEEVE
P702A 7173500852 SCREWTAPPTITE TT2BIN5X8 MFZNBK 3CR
P822A 97P885X270 CONNAS 4H-4H(2.5-5.08)130MMTUBE
PC05A 97P885X277 CONNAS 40H-40H260MM5P-8L
PC06A 97P885X277 CONNAS 40H-40H260MM5P-8L
PW01 97P69PY50B CORDPOWERAS UKKKP-660 YH3961.7MTUBE STOP50
Z001 PVMPMSP612 PCBMAINMANUALAS DTBH-L3A1PH-AG
AM01 2193100801 SOLDERWIRE SN:PB=63:373PI(NOFLUX)
AM02 2193011100 SOLDERWIRE 60SNA1.2D
AM03 2291050312 FLUXSOLVENT S-3000
LOC PART CODE PART NAME PART DESC REMARK
AM04 2291050623 FLUXSOLDERLF SV-PBF-304P(0.823)
AM05 2291140501 WAXCOVER
AM06 97P93B2101 LABELCD(PCB) PAPER(13X25)ALLMODEL
AM07 97P93HD003 LABELPGMHDD 13X25STBHDD_MAIN_1.0.9.518C.BIN
D830 DS2L20U F DIODE S2L20U4004P15
JK101 97P6318630 JACKDOUBLESCART DSAM-0320RASHIELD
JK102 97P6318540 JACKPIN YPJ611D6PANG TYPE
JK103 97Q6316200 JACKDIN DUAE-9619
JK104 97P0S03000 JACKSENSOROPTIC VST5B-12M
P301 97P62G08EK CONNFFC GF102-19S-TS19PST
P301A 97P88F021S CABLEFFC 1.0K19P 150MMAL
P302 97P62G08ER CONN FFC GF102-25S-TS25P ST
P302A 97P88F022S CABLEFFC 1.0K25P 220MM
P501 97P62G08EK CONNFFC GF102-19S-TS19PST
P501A 97P88F030S CABLEFFC 1.0K19P 260MM
P601 97P62Y17AA CONNWAFER YW025-10ST PLUG2.5MM
P603 97P62A09A4 CONN WAFER 440052-4PLUG4P 2.5
P604 97P62G08E9 CONNFFC GF102-09S-TS 09PST
PJ602 97P885X275 CONNAS 9H-9S110MM
RF01 97P7624300 TUNERDIGITAL TD1344AL/IHP-2
RF01A 97P88S0003 CONNSHIELD 10X5X3N-C
Z0011 PVMPJ2P612 MAINCHIPTOPAS DTBH-L3A1PH-AG
C106 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
C107 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
C114 HCQK270JBA C CHIPCERA 50VCH27PF J1608
C115 HCQK270JBA C CHIPCERA 50VCH27PF J1608
C116 HCBK103KBA CCHIP CERA 50VX7R0.01MF K1608
C119 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
C120 HCQK101JBA C CHIPCERA 50V CH100PFJ 1608
C121 HCQK101JBA C CHIPCERA 50V CH100PFJ 1608
C122 HCFK154ZCA CCHIPCERA Y5V50V0.15MF Z2012
C123 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
C124 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
C125 HCQK220JBA C CHIPCERA 50V CH22PFJ 1608
C126 HCQK220JBA C CHIPCERA 50V CH22PFJ 1608
C127 HCQK430JCA CCHIP CERA 50VCH43PF J2012
C128 HCQK430JCA CCHIP CERA 50VCH43PF J2012
C129 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
C130 HCBK103KBA CCHIP CERA 50VX7R0.01MF K1608
C131 HCBK103KBA CCHIP CERA 50VX7R0.01MF K1608
C132 HCBK103KBA CCHIP CERA 50VX7R0.01MF K1608
C133 HCBK103KBA CCHIP CERA 50VX7R0.01MF K1608
C134 HCBK103KBA CCHIP CERA 50VX7R0.01MF K1608
C135 HCBK103KBA CCHIP CERA 50VX7R0.01MF K1608
C136 HCBK103KBA CCHIP CERA 50VX7R0.01MF K1608
C137 HCBK103KBA CCHIP CERA 50VX7R0.01MF K1608
C138 HCBK103KBA CCHIP CERA 50VX7R0.01MF K1608
DRHT-630 _SVC 2007.3.19 2:24 PM ˘ ` 3 mac001 1200DPI 90LPI

BOM LIST
4
LOC PART CODE PART NAME PART DESC REMARK
C139 HCBK103KBA CCHIP CERA 50VX7R0.01MF K1608
C140 HCBK103KBA CCHIP CERA 50VX7R0.01MF K1608
C141 HCBK103KBA CCHIP CERA 50VX7R0.01MF K1608
C142 HCBK103KBA CCHIP CERA 50VX7R0.01MF K1608
C143 HCBK103KBA CCHIP CERA 50VX7R0.01MF K1608
C144 HCBK103KBA CCHIP CERA 50VX7R0.01MF K1608
C145 HCBK103KBA CCHIP CERA 50VX7R0.01MF K1608
C146 HCBK103KBA CCHIP CERA 50VX7R0.01MF K1608
C147 HCFH104ZBA C CHIPCERA 25V Y5V0.1MFZ 1608
C148 HCFH104ZBA C CHIPCERA 25V Y5V0.1MFZ 1608
C149 HCBK103KBA CCHIP CERA 50VX7R0.01MF K1608
C151 HCQK101JBA C CHIPCERA 50V CH100PFJ 1608
C152 HCQK101JBA C CHIPCERA 50V CH100PFJ 1608
C153 HCFH104ZBA C CHIPCERA 25V Y5V0.1MFZ 1608
C154 HCBK103KBA CCHIP CERA 50VX7R0.01MF K1608
C155 HCBK103KBA CCHIP CERA 50VX7R0.01MF K1608
C156 HCBK103KBA CCHIP CERA 50VX7R0.01MF K1608
C157 HCBK103KBA CCHIP CERA 50VX7R0.01MF K1608
C158 HCBK103KBA CCHIP CERA 50VX7R0.01MF K1608
C159 HCBK103KBA CCHIP CERA 50VX7R0.01MF K1608
C160 HCBK103KBA CCHIP CERA 50VX7R0.01MF K1608
C161 HCBK103KBA CCHIP CERA 50VX7R0.01MF K1608
C162 HCBK103KBA CCHIP CERA 50VX7R0.01MF K1608
C163 HCBK103KBA CCHIP CERA 50VX7R0.01MF K1608
C164 HCBK103KBA CCHIP CERA 50VX7R0.01MF K1608
C165 HCBK103KBA CCHIP CERA 50VX7R0.01MF K1608
C166 HCBK103KBA CCHIP CERA 50VX7R0.01MF K1608
C167 HCBK103KBA CCHIP CERA 50VX7R0.01MF K1608
C168 HCBK103KBA CCHIP CERA 50VX7R0.01MF K1608
C169 HCQK101JBA C CHIPCERA 50V CH100PFJ 1608
C170 HCQK101JBA C CHIPCERA 50V CH100PFJ 1608
C171 HCFH104ZBA C CHIPCERA 25V Y5V0.1MFZ 1608
C172 HCFH104ZBA C CHIPCERA 25V Y5V0.1MFZ 1608
C173 HCFH104ZBA C CHIPCERA 25V Y5V0.1MFZ 1608
C174 HCFH104ZBA C CHIPCERA 25V Y5V0.1MFZ 1608
C175 HCFH104ZBA C CHIPCERA 25V Y5V0.1MFZ 1608
C176 HCFH104ZBA C CHIPCERA 25V Y5V0.1MFZ 1608
C177 HCFH104ZBA C CHIPCERA 25V Y5V0.1MFZ 1608
C178 HCFH104ZBA C CHIPCERA 25V Y5V0.1MFZ 1608
C179 HCFH104ZBA C CHIPCERA 25V Y5V0.1MFZ 1608
C180 HCFH104ZBA C CHIPCERA 25V Y5V0.1MFZ 1608
C181 HCFH104ZBA C CHIPCERA 25V Y5V0.1MFZ 1608
C182 HCFH104ZBA C CHIPCERA 25V Y5V0.1MFZ 1608
C183 HCFH104ZBA C CHIPCERA 25V Y5V0.1MFZ 1608
C184 HCFH104ZBA C CHIPCERA 25V Y5V0.1MFZ 1608
C185 HCFH104ZBA C CHIPCERA 25V Y5V0.1MFZ 1608
C186 HCFF105ZBA CCHIP CERA 16VY5V1MF Z1608
C187 HCBK103KBA CCHIP CERA 50VX7R0.01MF K1608
C209 HCBK104KBA CCHIP CERA 50VX7R0.1MF K1608
C210 HCQK100JBA C CHIPCERA 50V CH10PFJ 1608
C212 HCQK181JBA C CHIPCERA 50V CH180PFJ 1608
C213 HCQK181JBA C CHIPCERA 50V CH180PFJ 1608
C214 HCQK181JBA C CHIPCERA 50V CH180PFJ 1608
C215 HCQK181JBA C CHIPCERA 50V CH180PFJ 1608
C216 HCQK181JBA C CHIPCERA 50V CH180PFJ 1608
LOC PART CODE PART NAME PART DESC REMARK
C217 HCQK181JBA C CHIPCERA 50V CH180PFJ 1608
C218 HCQK181JBA C CHIPCERA 50V CH180PFJ 1608
C226 HCBK102KBA CCHIP CERA 50VX7R1000PF K1608
C227 HCBK102KBA CCHIP CERA 50VX7R1000PF K1608
C228 HCBK102KBA CCHIP CERA 50VX7R1000PF K1608
C229 HCBK102KBA CCHIP CERA 50VX7R1000PF K1608
C230 HCBK102KBA CCHIP CERA 50VX7R1000PF K1608
C231 HCBK102KBA CCHIP CERA 50VX7R1000PF K1608
C232 HCBK102KBA CCHIP CERA 50VX7R1000PF K1608
C233 HCBK102KBA CCHIP CERA 50VX7R1000PF K1608
C235 HCFH104ZBA C CHIPCERA 25V Y5V0.1MFZ 1608
C236 HCFH104ZBA C CHIPCERA 25V Y5V0.1MFZ 1608
C245 HCFH104ZBA C CHIPCERA 25V Y5V0.1MFZ 1608
C247 HCFH104ZBA C CHIPCERA 25V Y5V0.1MFZ 1608
C252 HCQK271JBA C CHIPCERA 50V CH270PFJ 1608
C253 HCQK271JBA C CHIPCERA 50V CH270PFJ 1608
C255 HCBK822KBA CCHIP CERA 50VX7R8200PF K1608
C256 HCBK822KBA CCHIP CERA 50VX7R8200PF K1608
C261 HCFH104ZBA C CHIPCERA 25V Y5V0.1MFZ 1608
C279 HCFH104ZBA C CHIPCERA 25V Y5V0.1MFZ 1608
C301 HCFH104ZBA C CHIPCERA 25V Y5V0.1MFZ 1608
C302 HCFH104ZBA C CHIPCERA 25V Y5V0.1MFZ 1608
C303 HCFH104ZBA C CHIPCERA 25V Y5V0.1MFZ 1608
C304 HCFH104ZBA C CHIPCERA 25V Y5V0.1MFZ 1608
C305 HCFH104ZBA C CHIPCERA 25V Y5V0.1MFZ 1608
C306 HCFH104ZBA C CHIPCERA 25V Y5V0.1MFZ 1608
C311 HCBK103KBA CCHIP CERA 50VX7R0.01MF K1608
C312 HCQK471JBA C CHIPCERA 50V CH470PFJ 1608
C331 HCFH104ZBA C CHIPCERA 25V Y5V0.1MFZ 1608
C341 HCFF105ZBA CCHIP CERA 16VY5V1MF Z1608
C351 HCFH104ZBA C CHIPCERA 25V Y5V0.1MFZ 1608
C502 HCFH104ZBA C CHIPCERA 25V Y5V0.1MFZ 1608
C504 HCFH104ZBA C CHIPCERA 25V Y5V0.1MFZ 1608
C505 HCBK103KBA CCHIP CERA 50VX7R0.01MF K1608
C506 HCBK103KBA CCHIP CERA 50VX7R0.01MF K1608
C507 HCFH104ZBA C CHIPCERA 25V Y5V0.1MFZ 1608
C510 HCFH104ZBA C CHIPCERA 25V Y5V0.1MFZ 1608
C511 HCBK103KBA CCHIP CERA 50VX7R0.01MF K1608
C512 HCFH104ZBA C CHIPCERA 25V Y5V0.1MFZ 1608
C513 HCFH104ZBA C CHIPCERA 25V Y5V0.1MFZ 1608
C514 HCFH104ZBA C CHIPCERA 25V Y5V0.1MFZ 1608
C515 HCBK103KBA CCHIP CERA 50VX7R0.01MF K1608
C516 HCFH104ZBA C CHIPCERA 25V Y5V0.1MFZ 1608
C518 HCFH104ZBA C CHIPCERA 25V Y5V0.1MFZ 1608
C519 HCBK103KBA CCHIP CERA 50VX7R0.01MF K1608
C520 HCFH104ZBA C CHIPCERA 25V Y5V0.1MFZ 1608
C522 HCFH104ZBA C CHIPCERA 25V Y5V0.1MFZ 1608
C523 HCBK103KBA CCHIP CERA 50VX7R0.01MF K1608
C526 HCBK103KBA CCHIP CERA 50VX7R0.01MF K1608
C527 HCFH104ZBA C CHIPCERA 25V Y5V0.1MFZ 1608
C528 HCFH104ZBA C CHIPCERA 25V Y5V0.1MFZ 1608
C529 HCFH104ZBA C CHIPCERA 25V Y5V0.1MFZ 1608
C530 HCBK103KBA CCHIP CERA 50VX7R0.01MF K1608
C531 HCBK103KBA CCHIP CERA 50VX7R0.01MF K1608
C532 HCFH104ZBA C CHIPCERA 25V Y5V0.1MFZ 1608
DRHT-630 _SVC 2007.3.19 2:24 PM ˘ ` 4 mac001 1200DPI 90LPI

5
BOM LIST
LOC PART CODE PART NAME PART DESC REMARK
C533 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
D124 DRLS4148-B DIODE CHIP RLS4148TE-113415
D126 DBZTB5R6SB DIODECHIP ZENER BZT52-B5V6S0.2W
D127 DBZTB5R6SB DIODECHIP ZENER BZT52-B5V6S0.2W
D128 DBZTB5R6SB DIODECHIP ZENER BZT52-B5V6S0.2W
D129 DBZTB5R6SB DIODECHIP ZENER BZT52-B5V6S0.2W
D130 DBZTB5R6SB DIODECHIP ZENER BZT52-B5V6S0.2W
D831 DZ02W13VBB DIODECHIPZENER KDZ13V RTK
D836 DRLS4148-B DIODE CHIP RLS4148TE-113415
F501 HFEACM201A FCHIPEMI 90OHMACM 2012
F502 HFEACM201A FCHIPEMI 90OHMACM 2012
F503 HFEACM201A FCHIPEMI 90OHMACM 2012
F504 HFEACM201A FCHIPEMI 90OHMACM 2012
IC01 1ST15518BQ ICCHIP DECODER STI5518BQCL208PINPQFP
IC02 1N2A2656PQ ICCHIP SDRAM N2A265-6P(4X16) 166MHZ54PINTSOP TRAY
IC03 1N2A2656PQ ICCHIP SDRAM N2A265-6P(4X16) 166MHZ54PINTSOP TRAY
IC04 1ES29LV17Q IC CHIPFLASH ES29LV160ET-70TGI16M48PIN TSOPTRAY
IC05 1WJCE6353E IC CHIP COFDM DEMODULATOR WJCE6353SLPG564PINLQFPREEL
IC06 1G1184ADJE IC CHIPREGULATOR G1184-ADJTG1U ADJVOL4A TO-263-5REEL
IC07 1G9171863C ICCHIPREGULATOR G9117-18T63U 1.8VSOT-223
IC08 1AZ809NSTB ICCHIP RESET AZ809NSTR-EI2.93VSOT23-3 REEL
IC09 1CS4334KSC IC CHIPAUDIO DAC CS4334-KSZR 8PINSOICREEL
IC10 1HEF4052BD ICCHIP SW HEF4052B
IC11 1LA73054-E ICCHIPVIDEO DRIVER LA73054 6 CHANNELY/C-MAX7/14MHZLPF36PIN
IC12 1K1A4558F- ICAMP KIA4558F
IC13 1SN74HCU0D IC CHIPHEX INVERTER SN74HCU04DR(SO14) 14PIN
IC14 1SP6650EUC IC CHIPREGULATOR SP6650EU-L MSOP10PINPB-FREE REEL
IC22 1G9173363C ICCHIPREGULATOR G9117-33T63U 3.3VSOT-223
IC501 19030CTU-Q ICCHIPHDMI SIL9030CTU 112MHZ80PINTQFP TRAY
IC502 TFDC6301N- FETCHIP FDC6301N(AM3902N)SOT-6
IC503 1G9171863C ICCHIPREGULATOR G9117-18T63U 1.8VSOT-223
IC504 1G9173363C ICCHIPREGULATOR G9117-33T63U 3.3VSOT-223
JK501 97P62M1519 CONNHDMISMD 47151-10020.5MMRA FLANGE
L101 HLB601M05A L CHIPBEAD 600OHMMMZ 1608S
L102 HLB601M05A L CHIPBEAD 600OHMMMZ 1608S
L103 HLB601M05A L CHIPBEAD 600OHMMMZ 1608S
L104 HLB601M05A L CHIPBEAD 600OHMMMZ 1608S
L105 HLB601M05A L CHIPBEAD 600OHMMMZ 1608S
L108 HLB301MT1B LCHIP BEAD 2.0X1.2X0.9MM2A300OHM
L117 HLB601M05A L CHIPBEAD 600OHMMMZ 1608S
L118 HLB601M05A L CHIPBEAD 600OHMMMZ 1608S
L119 HLB601M05A L CHIPBEAD 600OHMMMZ 1608S
L120 HLB601M05A L CHIPBEAD 600OHMMMZ 1608S
L121 HRFS000-BA R CHIP 1/16 0 OHM1608
L122 HRFS000-BA R CHIP 1/16 0 OHM1608
L123 HRFS000-BA R CHIP 1/16 0 OHM1608
L124 HRFS000-BA R CHIP 1/16 0 OHM1608
L127 HLB601M05A L CHIPBEAD 600OHMMMZ 1608S
L128 HLB601M05A L CHIPBEAD 600OHMMMZ 1608S
L129 HLB601M05A L CHIPBEAD 600OHMMMZ 1608S
L130 HLB601M05A L CHIPBEAD 600OHMMMZ 1608S
L131 HLB601M05A L CHIPBEAD 600OHMMMZ 1608S
L132 HLB601M05A L CHIPBEAD 600OHMMMZ 1608S
L133 HLB601M05A L CHIPBEAD 600OHMMMZ 1608S
L134 HLB601M05A L CHIPBEAD 600OHMMMZ 1608S
LOC PART CODE PART NAME PART DESC REMARK
L136 HLB601M05A L CHIPBEAD 600OHMMMZ 1608S
L137 HLB601M05A L CHIPBEAD 600OHMMMZ 1608S
L140 HLB601M05A L CHIPBEAD 600OHMMMZ 1608S
L141 HLB601M05A L CHIPBEAD 600OHMMMZ 1608S
L142 HLB601M05A L CHIPBEAD 600OHMMMZ 1608S
L143 HLB601M05A L CHIPBEAD 600OHMMMZ 1608S
L145 HLB301MT1B LCHIP BEAD 2.0X1.2X0.9MM2A300OHM
L146 HLB301MT1B LCHIP BEAD 2.0X1.2X0.9MM2A300OHM
L203 HRFS000-BA R CHIP 1/16 0 OHM1608
L210 HLB601M05A L CHIPBEAD 600OHMMMZ 1608S
L502 HLX1210001 BEADCHIP TB201209Z121
L503 HLX1210001 BEADCHIP TB201209Z121
L504 HLX1210001 BEADCHIP TB201209Z121
L505 HLX1210001 BEADCHIP TB201209Z121
Q102 T2SC5343SF TRCHIP T2SC2412KB-DAGSOT-23
Q103 T2SC5343SF TRCHIP T2SC2412KB-DAGSOT-23
Q104 T2SC5343SF TRCHIP T2SC2412KB-DAGSOT-23
Q105 T2SA1037KB TRCHIP 2SA1037AKT146-R
Q106 T2SC5343SF TRCHIP T2SC2412KB-DAGSOT-23
Q109 T2SA1037KB TRCHIP 2SA1037AKT146-R
Q110 T2SC5343SF TRCHIP T2SC2412KB-DAGSOT-23
Q111 T2SC5343SF TRCHIP T2SC2412KB-DAGSOT-23
Q112 T2SC5343SF TRCHIP T2SC2412KB-DAGSOT-23
Q113 T2SC5343SF TRCHIP T2SC2412KB-DAGSOT-23
Q114 T2SC5343SF TRCHIP T2SC2412KB-DAGSOT-23
Q115 T2SC5343SF TRCHIP T2SC2412KB-DAGSOT-23
Q116 T2SC5343SF TRCHIP T2SC2412KB-DAGSOT-23
Q117 T2SC5343SF TRCHIP T2SC2412KB-DAGSOT-23
Q118 T2SC5343SF TRCHIP T2SC2412KB-DAGSOT-23
Q119 T2SC5343SF TRCHIP T2SC2412KB-DAGSOT-23
Q120 T2SC5343SF TRCHIP T2SC2412KB-DAGSOT-23
Q121 T2SC5343SF TRCHIP T2SC2412KB-DAGSOT-23
Q122 T2SA1037KB TRCHIP 2SA1037AKT146-R
Q123 T2SA1037KB TRCHIP 2SA1037AKT146-R
Q124 TKSR1104-B TR CHIP KSR1104
Q125 T2SC5343SF TRCHIP T2SC2412KB-DAGSOT-23
Q126 T2SC5343SF TRCHIP T2SC2412KB-DAGSOT-23
Q127 T2SC5343SF TRCHIP T2SC2412KB-DAGSOT-23
Q128 T2SA1037KB TRCHIP 2SA1037AKT146-R
Q129 TKSR1104-B TR CHIP KSR1104
Q130 TKSR1104-B TR CHIP KSR1104
Q132 T2SA1037KB TRCHIP 2SA1037AKT146-R
Q142 T2SA1037KB TRCHIP 2SA1037AKT146-R
Q143 T2SA1037KB TRCHIP 2SA1037AKT146-R
Q201 T2SC5343SF TRCHIP T2SC2412KB-DAGSOT-23
Q202 T2SC5343SF TRCHIP T2SC2412KB-DAGSOT-23
Q301 T2SA1037KB TRCHIP 2SA1037AKT146-R
Q302 T2SA1037KB TRCHIP 2SA1037AKT146-R
Q303 T2SA1037KB TRCHIP 2SA1037AKT146-R
Q304 T2SA1037KB TRCHIP 2SA1037AKT146-R
Q351 T2SC5343SF TRCHIP T2SC2412KB-DAGSOT-23
Q501 T2SC2412KB TRCHIP 2SC2412K-T146-BR
Q821 TAM20N06-C FETCHIP AM20N06
Q822 TAM20N06-C FETCHIP AM20N06
Q824 TAM20N06-C FETCHIP AM20N06
DRHT-630 _SVC 2007.3.19 2:24 PM ˘ ` 5 mac001 1200DPI 90LPI

6
BOM LIST
LOC PART CODE PART NAME PART DESC REMARK
Q825 TKSR1104-B TR CHIP KSR1104
Q827 TKSR1104-B TR CHIP KSR1104
R101 HRFS750JBA RCHIP 1/16 75OHMJ 1608
R102 HRFS750JBA RCHIP 1/16 75OHMJ 1608
R103 HRFS750JBA RCHIP 1/16 75OHMJ 1608
R104 HRFS750JBA RCHIP 1/16 75OHMJ 1608
R105 HRFS131JBA RCHIP 1/16 130OHMJ 1608
R106 HRFS391JBA RCHIP 1/16 390OHMJ 1608
R108 HRFS330JBA RCHIP 1/16 33OHMJ 1608
R110 HRFS750JBA RCHIP 1/16 75OHMJ 1608
R111 HRFS000-BA RCHIP 1/16 0 OHM1608
R114 HRFS103JBA RCHIP 1/16 10KOHMJ 1608
R115 HRFS103JBA RCHIP 1/16 10KOHMJ 1608
R116 HRFS103JBA RCHIP 1/16 10KOHMJ 1608
R117 HRFS103JBA RCHIP 1/16 10KOHMJ 1608
R118 HRFS103JBA RCHIP 1/16 10KOHMJ 1608
R120 HRFS330JBA RCHIP 1/16 33OHMJ 1608
R121 HRFS330JBA RCHIP 1/16 33OHMJ 1608
R122 HRFS330JBA RCHIP 1/16 33OHMJ 1608
R127 HRFS102JBA RCHIP 1/16 1KOHMJ 1608
R128 HRFS102JBA RCHIP 1/16 1KOHMJ 1608
R130 HRFS103JBA RCHIP 1/16 10KOHMJ 1608
R131 HRFS474JBA RCHIP 1/16 470KOHMJ 1608
R132 HRFS474JBA RCHIP 1/16 470KOHMJ 1608
R133 HRFS474JBA RCHIP 1/16 470KOHMJ 1608
R134 HRFS474JBA RCHIP 1/16 470KOHMJ 1608
R135 HRFS103JBA RCHIP 1/16 10KOHMJ 1608
R136 HRFS103JBA RCHIP 1/16 10KOHMJ 1608
R137 HRFS105JBA RCHIP 1/16 1MOHMJ 1608
R138 HRFS101JBA RCHIP 1/16 100OHMJ 1608
R139 HRFS101JBA RCHIP 1/16 100OHMJ 1608
R140 HRFS000-BA RCHIP 1/16 0 OHM1608
R141 HRFS102JBA RCHIP 1/16 1KOHMJ 1608
R142 HRFS102JBA RCHIP 1/16 1KOHMJ 1608
R143 HRFS101JBA RCHIP 1/16 100OHMJ 1608
R144 HRFS472JBA RCHIP 1/16 4.7KOHMJ 1608
R145 HRFS472JBA RCHIP 1/16 4.7KOHMJ 1608
R146 HRFS470JBA RCHIP 1/16 47OHMJ 1608
R147 HRFS472JBA RCHIP 1/16 4.7KOHMJ 1608
R148 HRFS472JBA RCHIP 1/16 4.7KOHMJ 1608
R149 HRFS101JBA RCHIP 1/16 100OHMJ 1608
R150 HRFS101JBA RCHIP 1/16 100OHMJ 1608
R151 HRFS472JBA RCHIP 1/16 4.7KOHMJ 1608
R152 HRFS472JBA RCHIP 1/16 4.7KOHMJ 1608
R154 HRFS000-BA RCHIP 1/16 0 OHM1608
R155 HRFS000-BA RCHIP 1/16 0 OHM1608
R156 HRFS101JBA RCHIP 1/16 100OHMJ 1608
R157 HRFS101JBA RCHIP 1/16 100OHMJ 1608
R158 HRFS472JBA RCHIP 1/16 4.7KOHMJ 1608
R159 HRFS103JBA RCHIP 1/16 10KOHMJ 1608
R162 HRFS221JBA RCHIP 1/16 220OHMJ 1608
R163 HRFS221JBA RCHIP 1/16 220OHMJ 1608
R164 HRFS103JBA RCHIP 1/16 10KOHMJ 1608
R165 HRFS203JBA RCHIP 1/16 20KOHMJ 1608
R166 HRFS203JBA RCHIP 1/16 20KOHMJ 1608
LOC PART CODE PART NAME PART DESC REMARK
R167 HRFS000-BA RCHIP 1/16 0 OHM1608
R168 HRFS680JBA RCHIP 1/16 68OHMJ 1608
R169 HRFS680JBA RCHIP 1/16 68OHMJ 1608
R170 HRFS680JBA RCHIP 1/16 68OHMJ 1608
R171 HRFS680JBA RCHIP 1/16 68OHMJ 1608
R172 HRFS680JBA RCHIP 1/16 68OHMJ 1608
R173 HRFS680JBA RCHIP 1/16 68OHMJ 1608
R174 HRFS104JBA RCHIP 1/16 100KOHMJ 1608
R175 HRFS104JBA RCHIP 1/16 100KOHMJ 1608
R176 HRFS103JBA RCHIP 1/16 10KOHMJ 1608
R177 HRFS103JBA RCHIP 1/16 10KOHMJ 1608
R178 HRFS103JBA RCHIP 1/16 10KOHMJ 1608
R179 HRFS330JBA RCHIP 1/16 33OHMJ 1608
R180 HRFS470JBA RCHIP 1/16 47OHMJ 1608
R181 HRFS103JBA RCHIP 1/16 10KOHMJ 1608
R182 HRFS103JBA RCHIP 1/16 10KOHMJ 1608
R183 HRFS103JBA RCHIP 1/16 10KOHMJ 1608
R184 HRFS560JBA RCHIP 1/16 56OHMJ 1608
R185 HRFS330JBA RCHIP 1/16 33OHMJ 1608
R186 HRFS330JBA RCHIP 1/16 33OHMJ 1608
R187 HRFS330JBA RCHIP 1/16 33OHMJ 1608
R188 HRFS330JBA RCHIP 1/16 33OHMJ 1608
R189 HRFS330JBA RCHIP 1/16 33OHMJ 1608
R190 HRFS330JBA RCHIP 1/16 33OHMJ 1608
R191 HRFS330JBA RCHIP 1/16 33OHMJ 1608
R193 HRFS560JBA RCHIP 1/16 56OHMJ 1608
R194 HRFS104JBA RCHIP 1/16 100KOHMJ 1608
R195 HRFS103JBA RCHIP 1/16 10KOHMJ 1608
R197 HRFS104JBA RCHIP 1/16 100KOHMJ 1608
R198 HRFS103JBA RCHIP 1/16 10KOHMJ 1608
R199 HRFS103JBA RCHIP 1/16 10KOHMJ 1608
R200 HRFS103JBA RCHIP 1/16 10KOHMJ 1608
R201 HRFS103JBA RCHIP 1/16 10KOHMJ 1608
R202 HRFS472JBA RCHIP 1/16 4.7KOHMJ 1608
R203 HRFS472JBA RCHIP 1/16 4.7KOHMJ 1608
R204 HRFS123JBA RCHIP 1/16 12KOHMJ 1608
R205 HRFS123JBA RCHIP 1/16 12KOHMJ 1608
R206 HRFS330JBA RCHIP 1/16 33OHMJ 1608
R207 HRFS391JBA RCHIP 1/16 390OHMJ 1608
R208 HRFS101JBA RCHIP 1/16 100OHMJ 1608
R210 HRFS102JBA RCHIP 1/16 1KOHMJ 1608
R211 HRFS750JBA RCHIP 1/16 75OHMJ 1608
R212 HRFS103JBA RCHIP 1/16 10KOHMJ 1608
R214 HRFS102JBA RCHIP 1/16 1KOHMJ 1608
R215 HRFS103JBA RCHIP 1/16 10KOHMJ 1608
R216 HRFS000-BA RCHIP 1/16 0 OHM1608
R218 HRFS102JBA RCHIP 1/16 1KOHMJ 1608
R219 HRFS102JBA RCHIP 1/16 1KOHMJ 1608
R220 HRFS102JBA RCHIP 1/16 1KOHMJ 1608
R221 HRFS102JBA RCHIP 1/16 1KOHMJ 1608
R222 HRFS203JBA RCHIP 1/16 20KOHMJ 1608
R223 HRFS000-BA RCHIP 1/16 0 OHM1608
R225 HRFS102JBA RCHIP 1/16 1KOHMJ 1608
R229 HRFS102JBA RCHIP 1/16 1KOHMJ 1608
R235 HRFS222JBA RCHIP 1/16 2.2KOHMJ 1608
DRHT-630 _SVC 2007.3.19 2:24 PM ˘ ` 6 mac001 1200DPI 90LPI

7
BOM LIST
LOC PART CODE PART NAME PART DESC REMARK
R236 HRFS103JBA RCHIP 1/16 10KOHMJ 1608
R237 HRFS103JBA RCHIP 1/16 10KOHMJ 1608
R238 HRFS103JBA RCHIP 1/16 10KOHMJ 1608
R239 HRFS102JBA RCHIP 1/16 1KOHMJ 1608
R240 HRFS103JBA RCHIP 1/16 10KOHMJ 1608
R241 HRFS103JBA RCHIP 1/16 10KOHMJ 1608
R242 HRFS103JBA RCHIP 1/16 10KOHMJ 1608
R243 HRFS103JBA RCHIP 1/16 10KOHMJ 1608
R244 HRFS104JBA RCHIP 1/16 100KOHMJ 1608
R245 HRFS104JBA RCHIP 1/16 100KOHMJ 1608
R246 HRFS104JBA RCHIP 1/16 100KOHMJ 1608
R247 HRFS104JBA RCHIP 1/16 100KOHMJ 1608
R248 HRFS104JBA RCHIP 1/16 100KOHMJ 1608
R249 HRFS104JBA RCHIP 1/16 100KOHMJ 1608
R250 HRFS104JBA RCHIP 1/16 100KOHMJ 1608
R251 HRFS104JBA RCHIP 1/16 100KOHMJ 1608
R252 HRFS102JBA RCHIP 1/16 1KOHMJ 1608
R253 HRFS102JBA RCHIP 1/16 1KOHMJ 1608
R254 HRFS102JBA RCHIP 1/16 1KOHMJ 1608
R255 HRFS102JBA RCHIP 1/16 1KOHMJ 1608
R256 HRFS102JBA RCHIP 1/16 1KOHMJ 1608
R257 HRFS102JBA RCHIP 1/16 1KOHMJ 1608
R258 HRFS472JBA RCHIP 1/16 4.7KOHMJ 1608
R260 HRFS103JBA RCHIP 1/16 10KOHMJ 1608
R261 HRFS472JBA RCHIP 1/16 4.7KOHMJ 1608
R262 HRFS472JBA RCHIP 1/16 4.7KOHMJ 1608
R263 HRFS472JBA RCHIP 1/16 4.7KOHMJ 1608
R264 HRFS103JBA RCHIP 1/16 10KOHMJ 1608
R265 HRFS104JBA RCHIP 1/16 100KOHMJ 1608
R266 HRFS222JBA RCHIP 1/16 2.2KOHMJ 1608
R267 HRFS103JBA RCHIP 1/16 10KOHMJ 1608
R268 HRFS472JBA RCHIP 1/16 4.7KOHMJ 1608
R269 HRFS102JBA RCHIP 1/16 1KOHMJ 1608
R270 HRFS472JBA RCHIP 1/16 4.7KOHMJ 1608
R271 HRFT102JCA RCHIP 1/10 1KOHMJ 2012
R272 HRFS103JBA RCHIP 1/16 10KOHMJ 1608
R273 HRFS822JBA RCHIP 1/16 8.2KOHMJ 1608
R274 HRFS330JBA RCHIP 1/16 33OHMJ 1608
R277 HRFS103JBA RCHIP 1/16 10KOHMJ 1608
R278 HRFS103JBA RCHIP 1/16 10KOHMJ 1608
R279 HRFS103JBA RCHIP 1/16 10KOHMJ 1608
R280 HRFS102JBA RCHIP 1/16 1KOHMJ 1608
R281 HRFS102JBA RCHIP 1/16 1KOHMJ 1608
R282 HRFS102JBA RCHIP 1/16 1KOHMJ 1608
R283 HRFS102JBA RCHIP 1/16 1KOHMJ 1608
R284 HRFS474JBA RCHIP 1/16 470KOHMJ 1608
R285 HRFS474JBA RCHIP 1/16 470KOHMJ 1608
R286 HRFS474JBA RCHIP 1/16 470KOHMJ 1608
R287 HRFS474JBA RCHIP 1/16 470KOHMJ 1608
R288 HRFS203JBA RCHIP 1/16 20KOHMJ 1608
R289 HRFS103JBA RCHIP 1/16 10KOHMJ 1608
R290 HRFS103JBA RCHIP 1/16 10KOHMJ 1608
R291 HRFS103JBA RCHIP 1/16 10KOHMJ 1608
R292 HRFS103JBA RCHIP 1/16 10KOHMJ 1608
R293 HRFS222JBA RCHIP 1/16 2.2KOHMJ 1608
LOC PART CODE PART NAME PART DESC REMARK
R294 HRFS103JBA RCHIP 1/16 10KOHMJ 1608
R295 HRFS102JBA RCHIP 1/16 1KOHMJ 1608
R296 HRFS103JBA RCHIP 1/16 10KOHMJ 1608
R297 HRFS103JBA RCHIP 1/16 10KOHMJ 1608
R298 HRFS203JBA RCHIP 1/16 20KOHMJ 1608
R299 HRFS103JBA RCHIP 1/16 10KOHMJ 1608
R304 HCQK101JBA C CHIPCERA 50V CH100PFJ 1608
R307 HRFS101JBA RCHIP 1/16 100OHMJ 1608
R308 HRFS101JBA RCHIP 1/16 100OHMJ 1608
R309 HRFS221JBA RCHIP 1/16 220OHMJ 1608
R310 HRFS221JBA RCHIP 1/16 220OHMJ 1608
R311 HRFS221JBA RCHIP 1/16 220OHMJ 1608
R315 HRFS750JBA RCHIP 1/16 75OHMJ 1608
R316 HRFS750JBA RCHIP 1/16 75OHMJ 1608
R317 HRFS750JBA RCHIP 1/16 75OHMJ 1608
R318 HRFS000-BA RCHIP 1/16 0 OHM1608
R320 HRFS750JBA RCHIP 1/16 75OHMJ 1608
R333 HRFS103JBA RCHIP 1/16 10KOHMJ 1608
R351 HRFS750JBA RCHIP 1/16 75OHMJ 1608
R352 HRFS750JBA RCHIP 1/16 75OHMJ 1608
R361 HRFS472JBA RCHIP 1/16 4.7KOHMJ 1608
R410 HRFS104JBA RCHIP 1/16 100KOHMJ 1608
R412 HRFS100JBA RCHIP 1/16W 10OHMJ 1608
R413 HRFS104JBA RCHIP 1/16 100KOHMJ 1608
R416 HRFS104JBA RCHIP 1/16 100KOHMJ 1608
R417 HRFS104JBA RCHIP 1/16 100KOHMJ 1608
R418 HRFS331JBA RCHIP 1/16 330OHMJ 1608
R419 HRFS331JBA RCHIP 1/16 330OHMJ 1608
R420 HRFS331JBA RCHIP 1/16 330OHMJ 1608
R421 HRFS331JBA RCHIP 1/16 330OHMJ 1608
R422 HRFS103JBA RCHIP 1/16 10KOHMJ 1608
R423 HRFS102JBA RCHIP 1/16 1KOHMJ 1608
R424 HRFS331JBA RCHIP 1/16 330OHMJ 1608
R425 HRFS331JBA RCHIP 1/16 330OHMJ 1608
R501 HRFS101JBA RCHIP 1/16 100OHMJ 1608
R502 HRFS220JBA RCHIP 1/16W 22OHMJ 1608
R503 HRFS220JBA RCHIP 1/16W 22OHMJ 1608
R504 HRFS220JBA RCHIP 1/16W 22OHMJ 1608
R505 HRTS8E220J RCHIPARRAY 1/168P22 OHMJ3216
R506 HRTS8E220J RCHIPARRAY 1/168P22 OHMJ3216
R507 HRFS101JBA RCHIP 1/16 100OHMJ 1608
R508 HRFS220JBA RCHIP 1/16W 22OHMJ 1608
R510 HRFS472JBA RCHIP 1/16 4.7KOHMJ 1608
R512 HRFS472JBA RCHIP 1/16 4.7KOHMJ 1608
R513 HRFS472JBA RCHIP 1/16 4.7KOHMJ 1608
R514 HRFS472JBA RCHIP 1/16 4.7KOHMJ 1608
R515 HRFS220JBA RCHIP 1/16W 22OHMJ 1608
R516 HRFS220JBA RCHIP 1/16W 22OHMJ 1608
R517 HRFS472JBA RCHIP 1/16 4.7KOHMJ 1608
R518 HRFS471JBA RCHIP 1/16 470OHMJ 1608
R519 HRFS102JBA RCHIP 1/16 1KOHMJ 1608
R520 HRFS103JBA RCHIP 1/16 10KOHMJ 1608
R521 HRFS000-BA RCHIP 1/16 0 OHM1608
R522 HRFS220JBA RCHIP 1/16W 22OHMJ 1608
R523 HRFS220JBA RCHIP 1/16W 22OHMJ 1608
DRHT-630 _SVC 2007.3.19 2:24 PM ˘ ` 7 mac001 1200DPI 90LPI

LOC PART CODE PART NAME PART DESC REMARK
R524 HRFS472JBA RCHIP 1/16 4.7KOHMJ 1608
R526 HRFS220JBA RCHIP 1/16W 22OHMJ 1608
R534 HRFS103JBA RCHIP 1/16 10KOHMJ 1608
R820 HRFS472JBA RCHIP 1/16 4.7KOHMJ 1608
R822 HRFS000-BA RCHIP 1/16 0 OHM1608
R824 HRFS223JBA RCHIP 1/16 22KOHMJ 1608
R827 HRFS223JBA RCHIP 1/16 22KOHMJ 1608
R830 HRFS472JBA RCHIP 1/16 4.7KOHMJ 1608
R833 HRFS223JBA RCHIP 1/16 22KOHMJ 1608
R834 HRFS471JBA RCHIP 1/16 470OHMJ 1608
RA05 HRTS8E470J RCHIPARRAY 1/168P47 OHMJ3216
RA06 HRTS8E470J RCHIPARRAY 1/168P47 OHMJ3216
U001 97P65534MA PCBMAIN 251X126.5(251X268.5/2)K2V
V501 DEGA10603A VARISTORCHIP EGA10603VOLTAGE 12V
V502 DEGA10603A VARISTORCHIP EGA10603VOLTAGE 12V
V503 DEGA10603A VARISTORCHIP EGA10603VOLTAGE 12V
V504 DEGA10603A VARISTORCHIP EGA10603VOLTAGE 12V
V505 DEGA10603A VARISTORCHIP EGA10603VOLTAGE 12V
V506 DEGA10603A VARISTORCHIP EGA10603VOLTAGE 12V
V507 DEGA10603A VARISTORCHIP EGA10603VOLTAGE 12V
V508 DEGA10603A VARISTORCHIP EGA10603VOLTAGE 12V
X001 5XJ27R00SE CRYSTALQUARTZSMD HC-49/S-S 27.000MHZ20PF30PPM
X002 5XJ20R48SC CRYSTALQUARTZ SMD HC-49/S-S20.480MHZ30PF 20PPM
Z0012 PVMPJRP612 PCBMAINRADIAL AS DTBH-L3A1PH-AG
C101 CEXF1A471V CELECTRO 10VRSS470MF (8X11.5)TP
C102 CEXF1A471V CELECTRO 10VRSS470MF (8X11.5)TP
C103 CEXF1A471V CELECTRO 10VRSS470MF (8X11.5)TP
C104 CEXF1A471V CELECTRO 10VRSS470MF (8X11.5)TP
C110 CEXF1C470A CELECTRO 16V RSM47MF(5X7) TP
C111 CEXF1C470A CELECTRO 16V RSM47MF(5X7) TP
C112 CEXF1C470A CELECTRO 16V RSM47MF(5X7) TP
C201 CEXF1C470A CELECTRO 16V RSM47MF(5X7) TP
C202 CEXF1C470A CELECTRO 16V RSM47MF(5X7) TP
C203 CEXF1C470A CELECTRO 16V RSM47MF(5X7) TP
C204 CEXF1C470A CELECTRO 16V RSM47MF(5X7) TP
C205 CEXF1C470A CELECTRO 16V RSM47MF(5X7) TP
C206 CEXF1C470A CELECTRO 16V RSM47MF(5X7) TP
C207 CEXF1C100A CELECTRO 16V RSM10MF5X7
C208 CEXF1C100A CELECTRO 16V RSM10MF5X7
C220 CEXF1C470A CELECTRO 16V RSM47MF(5X7) TP
C221 CEXF1C470A CELECTRO 16V RSM47MF(5X7) TP
C222 CEXF1C470A CELECTRO 16V RSM47MF(5X7) TP
C223 CEXF1C470A CELECTRO 16V RSM47MF(5X7) TP
C224 CEXF1C100A CELECTRO 16V RSM10MF5X7
C225 CEXF1C100A CELECTRO 16V RSM10MF5X7
C234 CEXF1C100A CELECTRO 16V RSM10MF5X7
C250 CEXF1C220A CELECTRO 16V RSM22MF(5X7)
C251 CEXF1C220A CELECTRO 16V RSM22MF(5X7)
C278 CEXF1C470A CELECTRO 16V RSM47MF(5X7) TP
C307 CEXF1C101A CELECTRO 16V RSM100MF6X7 TP
C308 CEXF1A471V CELECTRO 10VRSS470MF (8X11.5)TP
C309 CEXF1A471V CELECTRO 10VRSS470MF (8X11.5)TP
C310 CEXF1A471V CELECTRO 10VRSS470MF (8X11.5)TP
C313 CEXF1C101V CELECTRO 16V RSS100MF(6.3X11) TP
C314 CEXF1C101V CELECTRO 16V RSS100MF(6.3X11) TP
LOC PART CODE PART NAME PART DESC REMARK
C315 CEXF1C100A CELECTRO 16V RSM10MF5X7
C316 CEXF1A471V CELECTRO 10VRSS470MF (8X11.5)TP
C317 CEXF1A471V CELECTRO 10VRSS470MF (8X11.5)TP
C318 CEXF1C100A CELECTRO 16V RSM10MF5X7
C319 CEXF1C100A CELECTRO 16V RSM10MF5X7
C320 CEXF1C100A CELECTRO 16V RSM10MF5X7
C321 CEXF1C100A CELECTRO 16V RSM10MF5X7
C322 CEXF1C100A CELECTRO 16V RSM10MF5X7
C330 CEXF1C220A CELECTRO 16V RSM22MF(5X7)
C344 CEXF1C100A CELECTRO 16V RSM10MF5X7
C345 CEXF1C100A CELECTRO 16V RSM10MF5X7
C352 CEXF1A471V CELECTRO 10VRSS470MF (8X11.5)TP
C406 CEXF1C101V CELECTRO 16V RSS100MF(6.3X11) TP
C407 CEXF1C101V CELECTRO 16V RSS100MF(6.3X11) TP
C409 CEXF1C100A CELECTRO 16V RSM10MF5X7
C416 CEXF1A471V CELECTRO 10VRSS470MF (8X11.5)TP
C435 CEXF1C101V CELECTRO 16V RSS100MF(6.3X11) TP
C501 CEXF1C221V CELECTRO 16V RSS220MF(8X11.5) TP
C503 CEXF1C221V CELECTRO 16V RSS220MF(8X11.5) TP
C508 CEXF1C470A CELECTRO 16V RSM47MF(5X7) TP
C509 CEXF1C221V CELECTRO 16V RSS220MF(8X11.5) TP
C517 CEXF1C470A CELECTRO 16V RSM47MF(5X7) TP
C521 CEXF1C470A CELECTRO 16V RSM47MF(5X7) TP
C524 CEXF1C470A CELECTRO 16V RSM47MF(5X7) TP
C525 CEXF1C470A CELECTRO 16V RSM47MF(5X7) TP
C601 CEXF1C101V CELECTRO 16V RSS100MF(6.3X11) TP
C825 CEXF1A471V CELECTRO 10VRSS470MF (8X11.5)TP
C841 CEXF1A471V CELECTRO 10VRSS470MF (8X11.5)TP
C842 CEXF1A471V CELECTRO 10VRSS470MF (8X11.5)TP
C843 CEXF1A471V CELECTRO 10VRSS470MF (8X11.5)TP
C844 CEXF1A471V CELECTRO 10VRSS470MF (8X11.5)TP
L126 5CPX220J2T COILPEAKING 22UH(RED-BLK)
L201 5CPX100J2T COILPEAKING 10UH(BRN-BLK)
L202 5CPX331J2T COILPEAKING 330UH(ORAN-BRN)
L301 5CPX100J2T COILPEAKING 10UH(BRN-BLK)
L303 5CPX100J2T COILPEAKING 10UH(BRN-BLK)
L410 56C220K686 COILCHOKE 22UHK 27.5X0.4D
L501 5CPX331J2T COILPEAKING 330UH(ORAN-BRN)
Q820 TZTC3205Y- TR KTC3205Y(2236Y)
R312 RN01B751JS RMETAL FILM 1W750 OHMJ SMALL
R313 RN01B751JS RMETAL FILM 1W750 OHMJ SMALL
R314 RN01B751JS RMETAL FILM 1W750 OHMJ SMALL
R319 RN01B750JS RMETAL FILM 1W75 OHMJ SMALL
Z003 PVLAMSP608 PCBLOGICMANUALAS DTBH-L3A1PH-AG
AL01 2193100802 SOLDERWIRE LFC5-W3.0(SN-0.5CU-0.01P)
AL02 2193011610 SOLDERWIRE LFC-107(1.0MM)
AL03 2291050312 FLUXSOLVENT S-3000
AL04 2291050623 FLUXSOLDERLF SV-PBF-304P(0.823)
AL05 2291140501 WAXCOVER
G701 DSDGM21D1D LEDDISPLAY DGM21D1D
GS701 97P88S0009 CONNSHIELD 12X5X10N-C
GS702 97P88S0009 CONNSHIELD 12X5X10N-C
H701 10RC356HF6 ICUNITR/RECEIVER ORC-356HF6
JK751 97P6316800 JACKPIN DPSE-9966
JK752 97P6318440 JACKDIN DUSE-0018
8
BOM LIST
DRHT-630 _SVC 2007.3.19 2:24 PM ˘ ` 8 mac001 1200DPI 90LPI

9
BOM LIST
LOC PART CODE PART NAME PART DESC REMARK
JK753 97P62S09F4 CONNWAFER RV-ST4D-F16N-D164P(1394 ST-DIP)
JK754 97P62Z10X4 CONNUSB USB4PST
P701 97P62G09E9 CONNFFC GF106-09S-LS 09PRA
P701A 97P88F016S CABLEFFC 1.0R09P 300MM
P702 97P62G09E9 CONNFFC GF106-09S-LS 09PRA
P703 97P62G09E9 CONNFFC GF106-09S-LS 09PRA
P703A 97P88F031S CABLEFFC 1.0K9P 30MM
P751 97P62A24B9 CONN WAFER 440055-9RAPLUG 9P
P751A 97P885X274 CONNAS 9H-9H350MMSHIELD
P752 97P62A24B6 CONN WAFER 440055-6RAPLUG 6P
P752A 97P885X272 CONNAS 6H-6H350MM(SHIELD)
P753 97P62A24B6 CONN WAFER 440055-6RAPLUG 6P
P753A 97P885X273 CONNAS 6H-6H350MM(NONSHIELD)
Z0031 PVLAJ1P608 PCBLOGICCHIP AS DTBH-L3A1PH-AG
C721 HCQK331JBA C CHIPCERA 50V CH330PFJ 1608
C724 HCQK331JBA C CHIPCERA 50V CH330PFJ 1608
C752 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
C799 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
C902 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
D756 DBZTB5R6SB DIODECHIP ZENER BZT52-B5V6S0.2W
D759 DBZTB5R6SB DIODECHIP ZENER BZT52-B5V6S0.2W
D760 DRLS4148-B DIODE CHIP RLS4148TE-113415
IC701 1ETK6201-P ICCHIPDRIVER ETK620132PINSOP TYPE
R701 HRFS513JBA RCHIP 1/16 51KOHMJ 1608
R731 HRFS105JBA RCHIP 1/16 1MOHMJ 1608
R732 HRFS102JBA RCHIP 1/16 1KOHMJ 1608
R733 HRFS105JBA RCHIP 1/16 1MOHMJ 1608
Z0032 PVLAJRP608 PCBLOGICRADIALAS DTBH-L3A1PH-AG
C751 CEXF1C101A CELECTRO 16V RSM100MF6X7 TP
C901 CEXF1C101A CELECTRO 16V RSM100MF6X7 TP
C901A CEXF1C101A CELECTRO 16V RSM100MF6X7 TP
L702 5CPX331J2T COILPEAKING 330UH(ORAN-BRN)
SW701 5S50101Z90 SWTACT THVV502GDA
SW702 5S50101Z90 SWTACT THVV502GDA
SW703 5S50101Z90 SWTACT THVV502GDA
SW704 5S50101Z90 SWTACT THVV502GDA
SW705 5S50101Z90 SWTACT THVV502GDA
SW706 5S50101Z90 SWTACT THVV502GDA
SW707 5S50101Z90 SWTACT THVV502GDA
SW708 5S50101Z90 SWTACT THVV502GDA
SW709 5S50101Z90 SWTACT THVV502GDA
SW710 5S50101Z90 SWTACT THVV502GDA
SW711 5S50101Z90 SWTACT THVV502GDA
Z0033 PVLAJAP608 PCBLOGIC AXIALAS DTBH-L3A1PH-AG
AL31 2TM14006LB TAPEMASKING 3M#2326.0X2000M
AL31A 2TM110620R TAPEMASKING SI-600NRED
AL31B 2TM1106200 TAPE MASKING SI-600N
D708 DZN4148 - DIODE 1N4148 AUTO52MM
D710 DZN4148 - DIODE 1N4148 AUTO52MM
D711 DZN4148 - DIODE 1N4148 AUTO52MM
D712 DZN4148 - DIODE 1N4148 AUTO52MM
D713 DZN4148 - DIODE 1N4148 AUTO52MM
D751 DZUZ5R6BSB DIODEZENER UZ-5.6BSB(5.46-5.70V)
D754 DZUZ5R6BSB DIODEZENER UZ-5.6BSB(5.46-5.70V)
D755 DZUZ5R6BSB DIODEZENER UZ-5.6BSB(5.46-5.70V)
LOC PART CODE PART NAME PART DESC REMARK
D798 DZN4148 - DIODE 1N4148 AUTO52MM
JP701 85801065GY WIRE COPPER AWG22 1/0.65TINCOATING
JP702 85801065GY WIRE COPPER AWG22 1/0.65TINCOATING
JP703 85801065GY WIRE COPPER AWG22 1/0.65TINCOATING
JP704 85801065GY WIRE COPPER AWG22 1/0.65TINCOATING
JP705 85801065GY WIRE COPPER AWG22 1/0.65TINCOATING
JP706 85801065GY WIRE COPPER AWG22 1/0.65TINCOATING
JP707 85801065GY WIRE COPPER AWG22 1/0.65TINCOATING
JP708 85801065GY WIRE COPPER AWG22 1/0.65TINCOATING
JP709 85801065GY WIRE COPPER AWG22 1/0.65TINCOATING
JP710 85801065GY WIRE COPPER AWG22 1/0.65TINCOATING
JP711 85801065GY WIRE COPPER AWG22 1/0.65TINCOATING
JP712 85801065GY WIRE COPPER AWG22 1/0.65TINCOATING
JP713 85801065GY WIRE COPPER AWG22 1/0.65TINCOATING
JP714 85801065GY WIRE COPPER AWG22 1/0.65TINCOATING
JP715 85801065GY WIRE COPPER AWG22 1/0.65TINCOATING
JP716 85801065GY WIRE COPPER AWG22 1/0.65TINCOATING
JP717 85801065GY WIRE COPPER AWG22 1/0.65TINCOATING
JP718 85801065GY WIRE COPPER AWG22 1/0.65TINCOATING
JP719 85801065GY WIRE COPPER AWG22 1/0.65TINCOATING
JP720 85801065GY WIRE COPPER AWG22 1/0.65TINCOATING
JP721 85801065GY WIRE COPPER AWG22 1/0.65TINCOATING
JP722 85801065GY WIRE COPPER AWG22 1/0.65TINCOATING
JP724 85801065GY WIRE COPPER AWG22 1/0.65TINCOATING
R735 RD-AZ750J- RCARBON FILM 1/675OHMJ
R754 RD-AZ750J- RCARBON FILM 1/675OHMJ
R755 RD-AZ750J- RCARBON FILM 1/675OHMJ
R756 85801065GY WIRE COPPER AWG22 1/0.65TINCOATING
UL01 97P65529UA PCBUNION 330X246X1.6T/5
Z004 PVMGMSP612 PCBMPEGMANUALAS DTBH-L3A1PH-AG
AA01 97P93HD004 LABELPGMHDD 13X25STBHDD_MPEG_1.0.1.D55D.BIN
AG06 97P93B2101 LABELCD(PCB) PAPER(13X25)ALLMODEL
PC05 97P62A0539 CONNWAFER 2-440091-52.54MM 39PIM
PC06 97P62A0539 CONNWAFER 2-440091-52.54MM 39PIM
Z0041 PVMGJ1P612 PCBMPEGCHIP AS DTBH-L3A1PH-AG
AMB1 2193220007 SOLDERCREAM RMA915463SN/37PB,#325
CA01 HCEKF100MC CCHIPELECTRO MV16V10MF D4.0XH5.2
CA02 HCEKF100MC CCHIPELECTRO MV16V10MF D4.0XH5.2
CA04 HCEKF100MC CCHIPELECTRO MV16V10MF D4.0XH5.2
CA05 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CA06 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CA07 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CA08 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CA09 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CA10 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CA12 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CA18 HCBK223KBA C CHIPCERA 50V X7R0.022MFK 1608
CA19 HCBK223KBA C CHIPCERA 50V X7R0.022MFK 1608
CA51 HCQK180JBA CCHIPCERA 50VCH18PF J1608
CA52 HCQK180JBA CCHIPCERA 50VCH18PF J1608
CC04 HCEMF470MD CCHIPELECTRO MV16V47MF D6.3XH5.2
CC07 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CC10 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CC12 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CC18 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
DRHT-630 _SVC 2007.3.19 2:24 PM ˘ ` 9 mac001 1200DPI 90LPI

LOC PART CODE PART NAME PART DESC REMARK
CC21 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CC22 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CD04 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CD05 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CD08 HCEKK109MC CCHIPELECTRO MV50V1MF D4.0XH5.2
CD09 HCEKF100MC CCHIP ELECTRO MV16V10MF D4.0XH5.2
CD10 HCBK102KBA C CHIPCERA 50V X7R1000PFK 1608
CD11 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CD12 HCBK103KBA C CHIPCERA 50V X7R0.01MFK 1608
CD13 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CD14 HCBK102KBA C CHIPCERA 50V X7R1000PFK 1608
CD15 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CD16 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CD18 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CD20 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CD21 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CD22 HCBK102KBA C CHIPCERA 50V X7R1000PFK 1608
CD23 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CD55 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CD56 HCBK103KBA C CHIPCERA 50V X7R0.01MFK 1608
CM01 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CM02 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CM03 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CM04 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CM06 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CM08 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CM10 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CM12 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CM13 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CM14 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CM18 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CM19 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CM23 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CM24 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CM29 HCBK103KBA C CHIPCERA 50V X7R0.01MFK 1608
CM30 HCBK103KBA C CHIPCERA 50V X7R0.01MFK 1608
CM31 HCBK103KBA C CHIPCERA 50V X7R0.01MFK 1608
CM33 HCBK103KBA C CHIPCERA 50V X7R0.01MFK 1608
CM45 HCBK102KBA C CHIPCERA 50V X7R1000PFK 1608
CM46 HCBK102KBA C CHIPCERA 50V X7R1000PFK 1608
CM49 HCEKF100MC CCHIPELECTRO MV 16V10MFD4.0XH5.2
CM52 HCEKF100MC CCHIPELECTRO MV 16V10MFD4.0XH5.2
CM53 HCEKF100MC CCHIPELECTRO MV 16V10MFD4.0XH5.2
CM55 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CM57 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CM58 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CM59 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CM60 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CM61 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CM62 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CM63 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CM64 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CM65 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CM66 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CM67 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
LOC PART CODE PART NAME PART DESC REMARK
CM68 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CM69 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CM70 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CM71 HCBK102KBA C CHIPCERA 50V X7R1000PFK 1608
CM72 HCBK102KBA C CHIPCERA 50V X7R1000PFK 1608
CM73 HCBK102KBA C CHIPCERA 50V X7R1000PFK 1608
CM74 HCBK102KBA C CHIPCERA 50V X7R1000PFK 1608
CM75 HCBK102KBA C CHIPCERA 50V X7R1000PFK 1608
CM76 HCBK102KBA C CHIPCERA 50V X7R1000PFK 1608
CM77 HCBK102KBA C CHIPCERA 50V X7R1000PFK 1608
CM78 HCBK102KBA C CHIPCERA 50V X7R1000PFK 1608
CM79 HCBK102KBA C CHIPCERA 50V X7R1000PFK 1608
CM80 HCBK102KBA C CHIPCERA 50V X7R1000PFK 1608
CM81 HCBK102KBA C CHIPCERA 50V X7R1000PFK 1608
CM83 HCBK102KBA C CHIPCERA 50V X7R1000PFK 1608
CM84 HCBK102KBA C CHIPCERA 50V X7R1000PFK 1608
CM86 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CM87 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CM88 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CM89 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CM90 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CM91 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CM92 HCEKF100MC CCHIPELECTRO MV 16V10MFD4.0XH5.2
CN01 HCQK200JBA CCHIPCERA 50VCH20PF J 1608
CN02 HCQK200JBA CCHIPCERA 50VCH20PF J 1608
CN03 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CN04 HCBK103KBA C CHIPCERA 50V X7R0.01MFK 1608
CN06 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CN07 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CN08 HCBK103KBA C CHIPCERA 50V X7R0.01MFK 1608
CN09 HCEKF100MC CCHIP ELECTRO MV16V10MF D4.0XH5.2
CN10 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CN11 HCBK102KBA C CHIPCERA 50V X7R1000PFK 1608
CN12 HCBK102KBA C CHIPCERA 50V X7R1000PFK 1608
CN13 HCBK102KBA C CHIPCERA 50V X7R1000PFK 1608
CN14 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CN15 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CN16 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CN17 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CN18 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CN19 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CN20 HCEKF100MC CCHIP ELECTRO MV16V10MF D4.0XH5.2
CN21 HCEKF100MC CCHIP ELECTRO MV16V10MF D4.0XH5.2
CN22 HCBK103KBA C CHIPCERA 50V X7R0.01MFK 1608
CN23 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CN24 HCBK103KBA C CHIPCERA 50V X7R0.01MFK 1608
CN25 HCBK103KBA C CHIPCERA 50V X7R0.01MFK 1608
CN26 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CN27 HCBK102KBA C CHIPCERA 50V X7R1000PFK 1608
CN28 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CN30 HCBK102KBA C CHIPCERA 50V X7R1000PFK 1608
CN31 HCBK102KBA C CHIPCERA 50V X7R1000PFK 1608
CN32 HCBK103KBA C CHIPCERA 50V X7R0.01MFK 1608
CN33 HCBK103KBA C CHIPCERA 50V X7R0.01MFK 1608
CN34 HCEKF100MC CCHIP ELECTRO MV16V10MF D4.0XH5.2
10
BOM LIST
DRHT-630 _SVC 2007.3.19 2:24 PM ˘ ` 10 mac001 1200DPI 90LPI

11
BOM LIST
LOC PART CODE PART NAME PART DESC REMARK
CN35 HCEKF100MC C CHIPELECTRO MV16V 10MFD4.0XH5.2
CN36 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CN37 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CN38 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CN39 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CN40 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CN41 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CN42 HCBK102KBA C CHIPCERA 50V X7R1000PFK 1608
CN43 HCBK102KBA C CHIPCERA 50V X7R1000PFK 1608
CN44 HCBK102KBA C CHIPCERA 50V X7R1000PFK 1608
CN45 HCBK103KBA C CHIPCERA 50V X7R0.01MFK 1608
CN46 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CN47 HCEKF100MC CCHIP ELECTRO MV16V10MF D4.0XH5.2
CN48 HCEKF100MC CCHIP ELECTRO MV16V10MF D4.0XH5.2
CN49 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CN50 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CN51 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CN53 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CN54 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CN55 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CN56 HCEKF100MC CCHIP ELECTRO MV16V10MF D4.0XH5.2
CN58 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CN59 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CN60 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CV01 HCBK473KBA C CHIPCERA 50V X7R0.047MFK 1608
CV09 HCQK240JBA CCHIPCERA 50VCH24PF J1608
CV10 HCQK240JBA CCHIPCERA 50VCH24PF J1608
CV11 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CV12 HCEKF100MC CCHIPELECTRO MV16V10MF D4.0XH5.2
CV14 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CV15 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CV17 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CV18 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CV19 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CV24 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CV25 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CV26 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
DN01 DRLS4148-B DIODE CHIP RLS4148TE-113415
DN02 DRLS4148-B DIODE CHIP RLS4148TE-113415
ICD51 1TPS2052-C ICCHIPDUAL POWERSW TPS2052DR SOIC8PINREEL
LA01 HLX1210001 BEADCHIP TB201209Z121
LA02 HLX1210001 BEADCHIP TB201209Z121
LA03 HLX1210001 BEADCHIP TB201209Z121
LC62 HRFT000-CA RCHIP 1/100 OHM2012
LC63 HRFT000-CA RCHIP 1/100 OHM2012
LC65 HRFT000-CA RCHIP 1/100 OHM2012
LM01 HRFS000-BA RCHIP 1/16 0OHM1608
LM02 HRFS000-BA RCHIP 1/16 0OHM1608
LN01 HRFT000-CA RCHIP 1/100 OHM2012
LN02 HRFT000-CA RCHIP 1/100 OHM2012
LN03 HRFT000-CA RCHIP 1/100 OHM2012
LN04 HRFT000-CA RCHIP 1/100 OHM2012
LN05 HRFT000-CA RCHIP 1/100 OHM2012
LV16 HRFT000-CA RCHIP 1/100 OHM2012
LV17 HRFT000-CA RCHIP 1/100 OHM2012
LOC PART CODE PART NAME PART DESC REMARK
RA01 HRFS479JBA RCHIP 1/16 4.7OHMJ 1608
RA02 HRFS103JBA RCHIP 1/16 10K OHMJ1608
RA03 HRFS472JBA RCHIP 1/16 4.7K OHMJ1608
RA04 HRFS472JBA RCHIP 1/16 4.7K OHMJ1608
RA05 HRFS472JBA RCHIP 1/16 4.7K OHMJ1608
RA19 HRFS220JBA RCHIP 1/16W 22OHMJ 1608
RA20 HRFS220JBA RCHIP 1/16W 22OHMJ 1608
RA21 HRFS220JBA RCHIP 1/16W 22OHMJ 1608
RA22 HRFS220JBA RCHIP 1/16W 22OHMJ 1608
RA51 HRFS101JBA RCHIP 1/16 100 OHMJ1608
RA54 HRFS101JBA RCHIP 1/16 100 OHMJ1608
RA56 HRFS101JBA RCHIP 1/16 100 OHMJ1608
RC13 HRTS8E330J RCHIPARRAY 1/168P33 OHMJ3216
RC14 HRTS8E330J RCHIPARRAY 1/168P33 OHMJ3216
RC15 HRTS8E330J RCHIPARRAY 1/168P33 OHMJ3216
RC16 HRTS8E330J RCHIPARRAY 1/168P33 OHMJ3216
RC17 HRTS8E330J RCHIPARRAY 1/168P33 OHMJ3216
RC18 HRTS8E330J RCHIPARRAY 1/168P33 OHMJ3216
RC19 HRTS8E330J RCHIPARRAY 1/168P33 OHMJ3216
RC20 HRTS8E330J RCHIPARRAY 1/168P33 OHMJ3216
RC21 HRTS8E330J RCHIPARRAY 1/168P33 OHMJ3216
RC22 HRTS8E330J RCHIPARRAY 1/168P33 OHMJ3216
RC24 HRFS330JBA RCHIP 1/16 33 OHMJ1608
RC25 HRFS330JBA RCHIP 1/16 33 OHMJ1608
RC27 HRFS820JBA RCHIP 1/16 82 OHMJ1608
RC30 HRFS000-BA RCHIP 1/16 0OHM1608
RC31 HRFS103JBA RCHIP 1/16 10K OHMJ1608
RC52 HRFS222JBA RCHIP 1/16 2.2K OHMJ1608
RC56 HRFS121JBA RCHIP 1/16 120 OHMJ1608
RC57 HRFS121JBA RCHIP 1/16 120 OHMJ1608
RD02 HRFS101JBA RCHIP 1/16 100 OHMJ1608
RD04 HRFS472JBA RCHIP 1/16 4.7K OHMJ1608
RD10 HRFS103JBA RCHIP 1/16 10K OHMJ1608
RD11 HRFS103JBA RCHIP 1/16 10K OHMJ1608
RD14 HRFS682FBA RCHIP 1/166.8KOHM F1608
RD15 HRFS913FBA RCHIP 1/1691KOHM F1608
RD63 HRFS103JBA RCHIP 1/16 10K OHMJ1608
RD64 HRFS000-BA RCHIP 1/16 0OHM1608
RD65 HRFS103JBA RCHIP 1/16 10K OHMJ1608
RH04 HRFS101JBA RCHIP 1/16 100 OHMJ1608
RH05 HRFS101JBA RCHIP 1/16 100 OHMJ1608
RH08 HRFS101JBA RCHIP 1/16 100 OHMJ1608
RH09 HRFS103JBA RCHIP 1/16 10K OHMJ1608
RM02 HRTS8E510J RCHIPARRAY 1/168P51 OHMJ3216
RM06 HRTS8E510J RCHIPARRAY 1/168P51 OHMJ3216
RM08 HRTS8E510J RCHIPARRAY 1/168P51 OHMJ3216
RM09 HRTS8E220J RCHIPARRAY 1/168P22 OHMJ3216
RM12 HRTS8E220J RCHIPARRAY 1/168P22 OHMJ3216
RM13 HRTS8E220J RCHIPARRAY 1/168P22 OHMJ3216
RM16 HRFS510JBA RCHIP 1/16 51OHMJ 1608
RM19 HRFS220JBA RCHIP 1/16W 22OHMJ 1608
RM21 HRFS220JBA RCHIP 1/16W 22OHMJ 1608
RM22 HRTS8E220J RCHIPARRAY 1/168P22 OHMJ3216
RM29 HRFS510JBA RCHIP 1/16 51OHMJ 1608
RM31 HRFS510JBA RCHIP 1/16 51OHMJ 1608
DRHT-630 _SVC 2007.3.19 2:24 PM ˘ ` 11 mac001 1200DPI 90LPI

LOC PART CODE PART NAME PART DESC REMARK
RM34 HRFS510JBA RCHIP 1/1651 OHMJ1608
RM35 HRFS510JBA RCHIP 1/16 51OHMJ 1608
RM38 HRFS510JBA RCHIP 1/16 51OHMJ 1608
RM39 HRFS510JBA RCHIP 1/16 51OHMJ 1608
RM40 HRTS8E510J RCHIPARRAY 1/168P51 OHMJ3216
RM41 HRTS8E510J RCHIPARRAY 1/168P51 OHMJ3216
RM42 HRTS8E510J RCHIPARRAY 1/168P51 OHMJ3216
RM43 HRTS8E510J RCHIPARRAY 1/168P51 OHMJ3216
RM48 HRTS8E510J RCHIPARRAY 1/168P51 OHMJ3216
RM49 HRTS8E510J RCHIPARRAY 1/168P51 OHMJ3216
RM52 HRFS103JBA RCHIP 1/16 10K OHMJ1608
RM54 HRFS000-BA RCHIP 1/16 0OHM1608
RM56 HRFS472JBA RCHIP 1/16 4.7K OHMJ1608
RM58 HRFS000-BA RCHIP 1/16 0OHM1608
RM60 HRFS000-BA RCHIP 1/16 0OHM1608
RM61 HRFS220JBA RCHIP 1/16W 22OHMJ 1608
RM62 HRFS220JBA RCHIP 1/16W 22OHMJ 1608
RN01 HRFS220JBA RCHIP 1/16W 22OHMJ 1608
RN02 HRFS220JBA RCHIP 1/16W 22OHMJ 1608
RN03 HRFS220JBA RCHIP 1/16W 22OHMJ 1608
RN04 HRFS220JBA RCHIP 1/16W 22OHMJ 1608
RN06 HRFS220JBA RCHIP 1/16W 22OHMJ 1608
RN07 HRFS220JBA RCHIP 1/16W 22OHMJ 1608
RN12 HRFS220JBA RCHIP 1/16W 22OHMJ 1608
RN19 HRFS472JBA RCHIP 1/16 4.7K OHMJ1608
RN24 HRFT122FBA RCHIP 1/101.2KOHM F1608
RN25 HRFS103JBA RCHIP 1/16 10K OHMJ1608
RN26 HRFS103JBA RCHIP 1/16 10K OHMJ1608
RN27 HRFS103JBA RCHIP 1/16 10K OHMJ1608
RN28 HRFS103JBA RCHIP 1/16 10K OHMJ1608
RN29 HRFS103JBA RCHIP 1/16 10K OHMJ1608
RN30 HRFS103JBA RCHIP 1/16 10K OHMJ1608
RN32 HRFS103JBA RCHIP 1/16 10K OHMJ1608
RN34 HRFS103JBA RCHIP 1/16 10K OHMJ1608
RN39 HRFS103JBA RCHIP 1/16 10K OHMJ1608
RN40 HRFS103JBA RCHIP 1/16 10K OHMJ1608
RN42 HRFS103JBA RCHIP 1/16 10K OHMJ1608
RN45 HRFS103JBA RCHIP 1/16 10K OHMJ1608
RN49 HRFS103JBA RCHIP 1/16 10K OHMJ1608
RN53 HRFS220JBA RCHIP 1/16W 22OHMJ 1608
RN54 HRFS220JBA RCHIP 1/16W 22OHMJ 1608
RV17 HRFS101JBA RCHIP 1/16 100 OHMJ1608
RV31 HRFS151JBA RCHIP 1/16 150 OHMJ1608
RV32 HRFS151JBA RCHIP 1/16 150 OHMJ1608
RV33 HRFS151JBA RCHIP 1/16 150 OHMJ1608
RV34 HRFS151JBA RCHIP 1/16 150 OHMJ1608
RV35 HRFS151JBA RCHIP 1/16 150 OHMJ1608
RV36 HRFS151JBA RCHIP 1/16 150 OHMJ1608
Z0042 PVMGJ2P612 PCBMPEGCHIP TOPAS DTBH-L3A1PH-AG
AMA1 2193220007 SOLDERCREAM RMA9154 63SN/37PB,#325
CA03 HCEKK109MC CCHIPELECTRO MV50V1MF D4.0XH5.2
CA11 HCEPF331ME CCHIP ELECTRO MVG16V330MF MD8XH10
CA13 HCEKF100MC CCHIPELECTRO MV16V10MF D4.0XH5.2
CA14 HCEKF100MC CCHIPELECTRO MV16V10MF D4.0XH5.2
CA15 HCEKF100MC CCHIPELECTRO MV16V10MF D4.0XH5.2
LOC PART CODE PART NAME PART DESC REMARK
CA16 HCEKF100MC C CHIPELECTRO MV16V 10MFD4.0XH5.2
CA17 HCEKF100MC CCHIPELECTRO MV16V10MF D4.0XH5.2
CA42 HCEMF470MD CCHIPELECTRO MV16V47MF D6.3XH5.2
CC01 HCQK220JBA CCHIPCERA 50VCH22PF J1608
CC02 HCQK220JBA CCHIPCERA 50VCH22PF J1608
CC05 HCEJD221MD C CHIPELECTRO MVG 10V220MFM D8XH6.3
CC06 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CC08 HCEJD221MD C CHIPELECTRO MVG 10V220MFM D8XH6.3
CC09 HCEJD221MD C CHIPELECTRO MVG 10V220MFM D8XH6.3
CC11 HCEJD221MD C CHIPELECTRO MVG 10V220MFM D8XH6.3
CC13 HCEJD221MD C CHIPELECTRO MVG 10V220MFM D8XH6.3
CC14 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CC15 HCEPF331ME C CHIPELECTRO MVG 16V330MFM D8XH10
CC16 HCEEF101MD CCHIP ELECTRO MV16V100MF M6.3DX5.7H
CC17 HCEJD221MD C CHIPELECTRO MVG 10V220MFM D8XH6.3
CC19 HCEPF331ME C CHIPELECTRO MVG 16V330MFM D8XH10
CC20 HCEJD221MD C CHIPELECTRO MVG 10V220MFM D8XH6.3
CC23 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CC29 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CD01 HCQK270JBA CCHIPCERA 50VCH27PF J1608
CD02 HCQK240JBA CCHIPCERA 50VCH24PF J1608
CD03 HCQK560JBA CCHIPCERA 50VCH56PF J1608
CD06 HCQK221JBA CCHIPCERA 50VCH220PF J1608
CD07 HCBF224KBA CCHIPCERA 16VX7R0.22MF K1608
CD17 HCEMF470MD CCHIPELECTRO MV16V47MF D6.3XH5.2
CD19 HCEMF470MD CCHIPELECTRO MV16V47MF D6.3XH5.2
CD51 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CD52 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CD54 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CM05 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CM07 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CM09 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CM11 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CM15 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CM16 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CM17 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CM20 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CM21 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CM22 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CM25 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CM27 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CM28 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CM32 HCBK103KBA C CHIPCERA 50V X7R0.01MFK 1608
CM34 HCBK103KBA C CHIPCERA 50V X7R0.01MFK 1608
CM35 HCBK103KBA C CHIPCERA 50V X7R0.01MFK 1608
CM36 HCBK103KBA C CHIPCERA 50V X7R0.01MFK 1608
CM37 HCBK103KBA C CHIPCERA 50V X7R0.01MFK 1608
CM38 HCBK103KBA C CHIPCERA 50V X7R0.01MFK 1608
CM39 HCBK102KBA C CHIPCERA 50V X7R1000PFK 1608
CM40 HCBK102KBA C CHIPCERA 50V X7R1000PFK 1608
CM41 HCBK102KBA C CHIPCERA 50V X7R1000PFK 1608
CM42 HCBK102KBA C CHIPCERA 50V X7R1000PFK 1608
CM43 HCBK102KBA C CHIPCERA 50V X7R1000PFK 1608
CM44 HCBK102KBA C CHIPCERA 50V X7R1000PFK 1608
CM47 HCEJD221MD CCHIPELECTRO MVG 10V220MFM D8XH6.3
12
BOM LIST
DRHT-630 _SVC 2007.3.19 2:24 PM ˘ ` 12 mac001 1200DPI 90LPI

LOC PART CODE PART NAME PART DESC REMARK
CM50 HCEKF100MC C CHIPELECTRO MV16V 10MFD4.0XH5.2
CM51 HCEKF100MC CCHIPELECTRO MV 16V10MFD4.0XH5.2
CM54 HCEKF100MC CCHIPELECTRO MV 16V10MFD4.0XH5.2
CM56 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CM82 HCBK102KBA C CHIPCERA 50V X7R1000PFK 1608
CM85 HCBK102KBA C CHIPCERA 50V X7R1000PFK 1608
CM93 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CN05 HCEEF101MD CCHIP ELECTRO MV16V100MF M6.3DX5.7H
CN29 HCBK102KBA C CHIPCERA 50V X7R1000PFK 1608
CV04 HCBK473KBA C CHIPCERA 50V X7R0.047MFK 1608
CV05 HCBK473KBA C CHIPCERA 50V X7R0.047MFK 1608
CV08 HCBK473KBA C CHIPCERA 50V X7R0.047MFK 1608
CV13 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CV16 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CV20 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CV21 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CV22 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CV23 HCEEF101MD CCHIPELECTRO MV16V100MF M6.3DX5.7H
CV29 HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
CV34 HCBK473KBA C CHIPCERA 50V X7R0.047MFK 1608
CV35 HCBK473KBA C CHIPCERA 50V X7R0.047MFK 1608
CV36 HCBK473KBA C CHIPCERA 50V X7R0.047MFK 1608
CV38 HCEKF100MC CCHIPELECTRO MV16V10MF D4.0XH5.2
CV39 HCEKF100MC CCHIPELECTRO MV16V10MF D4.0XH5.2
CV40 HCEKF100MC CCHIPELECTRO MV16V10MF D4.0XH5.2
DV01 DBZTB5R6SB DIODE CHIPZENER BZT52-B5V6S 0.2W
IC01A HCFH104ZBA CCHIPCERA 25VY5V0.1MF Z1608
ICA01 1CS5340CZD ICCHIPAUDIOADC CS5340-CZZRLEADFREE 16PINTSSOP
ICA02 1CS4344CZD ICCHIPAUDIODAC CS4344-CZZRLEADFREE 10PINTSSOP
ICC01 1G1184ADJE ICCHIPREGULATOR G1184-ADJTG1UADJ VOL4ATO-263-5 REEL
ICC02 1G1184ADJE ICCHIPREGULATOR G1184-ADJTG1UADJ VOL4ATO-263-5 REEL
ICD01 1TSB41AB1E IC CHIP1EEE1394 TSB41AB1PHPR48PIN PQFPTYPEREEL
ICM01 1K4H51163Q ICCHIP DDRSDRAM K4H511638C-UC/LB332MX16166MHZ66PIN
TSOP-2TRAY
ICM02 1K4H51163Q ICCHIP DDRSDRAM K4H511638C-UC/LB332MX16166MHZ66PIN
TSOP-2TRAY
ICM03 1G2995F1UC IC CHIPDDRREGUATOR G2995F1UAV1N=PV1N=2.5VSOP-8L
ICM06 1LVC16373E ICCHIPTRANSPARENT SN74LVC16373ADGGR48PINTSSOP-DGGR
ICM07 1ES29LV32Q ICCHIPFLASH ES29LV320DT-80RTG132M48PINTSOP TRAY
ICN01 1DMN8652-Q IC CHIPCODEC DMN8652HDD DVDRECPROCESS BGA
PACKAGE308PIN
ICV01 1SAA7115HQ ICCHIP VIDEODECODER SAA7115AHLLQFP 100PINTRAY
LA11 HRFS000-BA R CHIP 1/16 0 OHM1608
LA35 HRFS000-BA R CHIP 1/16 0 OHM1608
LA36 HRFS000-BA R CHIP 1/16 0 OHM1608
LC60 HRFT000-CA RCHIP 1/100 OHM2012
LC64 HRFT000-CA RCHIP 1/100 OHM2012
LC67 HRFT000-CA RCHIP 1/100 OHM2012
LC68 HRFT000-CA RCHIP 1/100 OHM2012
LD01 HFEACM321B FCHIPEMI 80OHMACM 3225
LD02 HFEACM321B FCHIPEMI 80OHMACM 3225
LD03 HRFT000-CA RCHIP 1/100 OHM2012
LD51 HRFS000-BA RCHIP 1/16 0 OHM1608
LD52 HRFS000-BA RCHIP 1/16 0 OHM1608
LOC PART CODE PART NAME PART DESC REMARK
LD55 HRFS000-BA RCHIP 1/16 0OHM 1608
LD56 HRFS000-BA RCHIP 1/16 0 OHM1608
LM03 HRFS000-BA RCHIP 1/16 0OHM1608
LV01 HRFS000-BA R CHIP 1/16 0 OHM1608
LV02 HRFS000-BA R CHIP 1/16 0 OHM1608
LV03 HRFS000-BA R CHIP 1/16 0 OHM1608
LV04 HRFS000-BA R CHIP 1/16 0 OHM1608
LV05 HRFS000-BA R CHIP 1/16 0 OHM1608
LV06 HRFS000-BA R CHIP 1/16 0 OHM1608
LV31 HRFS000-BA R CHIP 1/16 0 OHM1608
LV32 HRFS000-BA R CHIP 1/16 0 OHM1608
LV33 HRFS000-BA R CHIP 1/16 0 OHM1608
LV34 HRFS000-BA R CHIP 1/16 0 OHM1608
PC02 97P62Y36B9 CONN WAFERSMD 20022WS-09C PLUGSTSMD
PD01 97P62Y36B6 CONN WAFERSMD 20022WS-06C PLUGSTSMD
PD51 97P62Y36B6 CONN WAFERSMD 20022WS-06C PLUGSTSMD
PH01 97P62K06EK CONNFFCSMD SCB-2219-M-2SMDST1.0
PV01 97P62K06ER CONNFFC SMD SCB-2225SMD
PV02 97P62Y36B9 CONN WAFERSMD 20022WS-09C PLUGSTSMD
PV04 97P62K06EK CONNFFCSMD SCB-2219-M-2 SMDST1.0
RA06 HRFS220JBA RCHIP 1/16W 22OHMJ 1608
RA07 HRFS220JBA RCHIP 1/16W 22OHMJ 1608
RA08 HRFS220JBA RCHIP 1/16W 22OHMJ 1608
RA09 HRFS220JBA RCHIP 1/16W 22OHMJ 1608
RA11 HRFS681JBA RCHIP 1/16 680 OHMJ1608
RA12 HRFS242JBA RCHIP 1/16 2.4K OHMJ1608
RA13 HRFS681JBA RCHIP 1/16 680 OHMJ1608
RA14 HRFS242JBA RCHIP 1/16 2.4K OHMJ1608
RA15 HRFS000-BA RCHIP 1/16 0OHM1608
RA16 HRFS000-BA RCHIP 1/16 0OHM1608
RA57 HRFS101JBA RCHIP 1/16 100 OHMJ1608
RC01 HRFS472JBA RCHIP 1/16 4.7K OHMJ1608
RC02 HRFS103JBA RCHIP 1/16 10K OHMJ1608
RC03 HRFS103JBA RCHIP 1/16 10K OHMJ1608
RC04 HRFS681JBA RCHIP 1/16 680 OHMJ1608
RC05 HRFS000-BA RCHIP 1/16 0OHM1608
RC06 HRFS820JBA RCHIP 1/16 82 OHMJ1608
RC07 HRFS820JBA RCHIP 1/16 82 OHMJ1608
RC08 HRFS820JBA RCHIP 1/16 82 OHMJ1608
RC09 HRFS330JBA RCHIP 1/16 33 OHMJ1608
RC10 HRFS330JBA RCHIP 1/16 33 OHMJ1608
RC11 HRFS330JBA RCHIP 1/16 33 OHMJ1608
RC12 HRFS330JBA RCHIP 1/16 33 OHMJ1608
RC23 HRFS330JBA RCHIP 1/16 33 OHMJ1608
RC26 HRFS330JBA RCHIP 1/16 33 OHMJ1608
RC28 HRFS820JBA RCHIP 1/16 82 OHMJ1608
RC29 HRFS820JBA RCHIP 1/16 82 OHMJ1608
RC32 HRFS103JBA RCHIP 1/16 10K OHMJ1608
RC33 HRFS472JBA RCHIP 1/16 4.7K OHMJ1608
RC34 HRFS681JBA RCHIP 1/16 680 OHMJ1608
RC35 HRFS000-BA RCHIP 1/16 0OHM1608
RC53 HRFS000-BA RCHIP 1/16 0OHM1608
RC54 HRFS271JBA RCHIP 1/16 270 OHMJ1608
RC55 HRFS121JBA RCHIP 1/16 120 OHMJ1608
13
BOM LIST
DRHT-630 _SVC 2007.3.19 2:24 PM ˘ ` 13 mac001 1200DPI 90LPI

LOC PART CODE PART NAME PART DESC REMARK
RC59 HRFS103JBA RCHIP 1/16 10KOHM J1608
RC60 HRFS000-BA R CHIP 1/16 0OHM 1608
RD01 HRFS510JBA RCHIP 1/16 51OHMJ 1608
RD03 HRFS220JBA RCHIP 1/16W 22OHMJ 1608
RD06 HRFS103JBA RCHIP 1/16 10K OHMJ1608
RD07 HRFS681JBA RCHIP 1/16 680 OHMJ1608
RD08 HRFS681JBA RCHIP 1/16 680 OHMJ1608
RD09 HRFS681JBA RCHIP 1/16 680 OHMJ1608
RD12 HRFS102JBA RCHIP 1/16 1K OHMJ1608
RD13 HRFS102JBA RCHIP 1/16 1K OHMJ1608
RD16 HRT5629FBA RCHIP 1/10 56.2OHMF 1608
RD17 HRT5629FBA RCHIP 1/10 56.2OHMF 1608
RD18 HRT5629FBA RCHIP 1/10 56.2OHMF 1608
RD19 HRT5629FBA RCHIP 1/10 56.2OHMF 1608
RD20 HRFS512FBA RCHIP 1/16 5.1KOHMF 1608
RD51 HRFS153JBA RCHIP 1/16 15K OHMJ1608
RD52 HRFS153JBA RCHIP 1/16 15K OHMJ1608
RD53 HRFS153JBA RCHIP 1/16 15K OHMJ1608
RD54 HRFS153JBA RCHIP 1/16 15K OHMJ1608
RD55 HRFS220JBA RCHIP 1/16W 22OHMJ 1608
RD56 HRFS220JBA RCHIP 1/16W 22OHMJ 1608
RD57 HRFS220JBA RCHIP 1/16W 22OHMJ 1608
RD58 HRFS220JBA RCHIP 1/16W 22OHMJ 1608
RH01 HRTS8E220J RCHIPARRAY 1/168P22 OHMJ3216
RH02 HRTS8E220J RCHIPARRAY 1/168P22 OHMJ3216
RH03 HRFS220JBA RCHIP 1/16W 22OHMJ 1608
RH06 HRFS220JBA RCHIP 1/16W 22OHMJ 1608
RH07 HRFS220JBA RCHIP 1/16W 22OHMJ 1608
RM01 HRTS8E510J RCHIPARRAY 1/168P51 OHMJ3216
RM03 HRTS8E510J RCHIPARRAY 1/168P51 OHMJ3216
RM04 HRTS8E510J RCHIPARRAY 1/168P51 OHMJ3216
RM05 HRTS8E510J RCHIPARRAY 1/168P51 OHMJ3216
RM07 HRTS8E510J RCHIPARRAY 1/168P51 OHMJ3216
RM10 HRTS8E220J RCHIPARRAY 1/168P22 OHMJ3216
RM11 HRTS8E220J RCHIPARRAY 1/168P22 OHMJ3216
RM14 HRFS510JBA RCHIP 1/16 51OHMJ 1608
RM15 HRFS510JBA RCHIP 1/16 51OHMJ 1608
RM17 HRFS510JBA RCHIP 1/16 51OHMJ 1608
RM18 HRFS220JBA RCHIP 1/16W 22OHMJ 1608
RM20 HRFS220JBA RCHIP 1/16W 22OHMJ 1608
RM23 HRFS220JBA RCHIP 1/16W 22OHMJ 1608
RM24 HRFS510JBA RCHIP 1/16 51OHMJ 1608
RM25 HRFS510JBA RCHIP 1/16 51OHMJ 1608
RM26 HRFS510JBA RCHIP 1/16 51OHMJ 1608
RM27 HRFS510JBA RCHIP 1/16 51OHMJ 1608
RM28 HRFS510JBA RCHIP 1/16 51OHMJ 1608
RM30 HRFS510JBA RCHIP 1/16 51OHMJ 1608
RM32 HRFS510JBA RCHIP 1/16 51OHMJ 1608
RM33 HRFS510JBA RCHIP 1/16 51OHMJ 1608
RM36 HRFS510JBA RCHIP 1/16 51OHMJ 1608
RM37 HRFS510JBA RCHIP 1/16 51OHMJ 1608
RM44 HRTS8E510J RCHIPARRAY 1/168P51 OHMJ3216
RM45 HRTS8E510J RCHIPARRAY 1/168P51 OHMJ3216
RM46 HRTS8E510J RCHIPARRAY 1/168P51 OHMJ3216
LOC PART CODE PART NAME PART DESC REMARK
RM47 HRTS8E510J R CHIPARRAY 1/168P51 OHMJ 3216
RM50 HRTS8E510J RCHIPARRAY 1/168P51 OHMJ3216
RM51 HRTS8E510J RCHIPARRAY 1/168P51 OHMJ3216
RN05 HRFS220JBA RCHIP 1/16W 22OHMJ 1608
RN08 HRFS220JBA RCHIP 1/16W 22OHMJ 1608
RN09 HRFS220JBA RCHIP 1/16W 22OHMJ 1608
RN10 HRFS220JBA RCHIP 1/16W 22OHMJ 1608
RN11 HRFS220JBA RCHIP 1/16W 22OHMJ 1608
RN33 HRFS103JBA RCHIP 1/16 10K OHMJ1608
RN35 HRFS103JBA RCHIP 1/16 10K OHMJ1608
RN36 HRFS103JBA RCHIP 1/16 10K OHMJ1608
RN37 HRFS103JBA RCHIP 1/16 10K OHMJ1608
RN38 HRFS103JBA RCHIP 1/16 10K OHMJ1608
RN41 HRFS103JBA RCHIP 1/16 10K OHMJ1608
RN43 HRFS103JBA RCHIP 1/16 10K OHMJ1608
RN44 HRFS103JBA RCHIP 1/16 10K OHMJ1608
RN46 HRFS103JBA RCHIP 1/16 10K OHMJ1608
RN47 HRFS103JBA RCHIP 1/16 10K OHMJ1608
RN48 HRFS103JBA RCHIP 1/16 10K OHMJ1608
RN50 HRFS103JBA RCHIP 1/16 10K OHMJ1608
RN51 HRFS103JBA RCHIP 1/16 10K OHMJ1608
RN52 HRFS103JBA RCHIP 1/16 10K OHMJ1608
RV10 HRFS151JBA RCHIP 1/16 150 OHMJ1608
RV11 HRFS151JBA RCHIP 1/16 150 OHMJ1608
RV12 HRFS151JBA RCHIP 1/16 150 OHMJ1608
RV15 HRFS820JBA RCHIP 1/16 82 OHMJ1608
RV18 HRTS8E330J RCHIPARRAY 1/168P33 OHMJ3216
RV19 HRTS8E330J RCHIPARRAY 1/168P33 OHMJ3216
RV22 HRFS103JBA RCHIP 1/16 10K OHMJ1608
RV23 HRFS220JBA RCHIP 1/16W 22OHMJ 1608
RV25 HRFS101JBA RCHIP 1/16 100 OHMJ1608
RV26 HRFS101JBA RCHIP 1/16 100 OHMJ1608
RV41 HRFS000-BA R CHIP 1/16 0OHM 1608
RV42 HRFS000-BA R CHIP 1/16 0OHM 1608
RV43 HRFS000-BA R CHIP 1/16 0OHM 1608
UG01 97P65534ZA PCBMPEG 124.5X145(249X145/2)K4V
XD01 5XJ24R57SE CRYSTALQUARTZ HC-49/S24.576MHZ16PF 30PPM
XN01 5XJ13R50SE CRYSTALQUARTZSMD HC-49/S-S 13.50MHZ18PF30PPM
XV01 5XJ24R57SE CRYSTALQUARTZ HC-49/S24.576MHZ16PF 30PPM
Z008 PVPWMSP590 PCBPOWER MANUALAS DN-M11D1T-VH
C801 CL2EE3104M CLINEACROSS AC 275V0.1MF MPCX2335M
C802 CL2EE3104M CLINEACROSS AC 275V0.1MF MPCX2335M
C802A CH1TFE102M CCERAAC 4.0KV1000PF MADAC250V
C805 CH1TFE222M C CERAAC 4.0KV2200PFM ADAC250V
C806 CEXE2G680E C ELECTRO 400VRM 68MF(16X25)
C821 CEXE1A222X CELECTRO 10V RF2200MF(12.5X20) TP
C822 CEXE1A222X CELECTRO 10V RF2200MF(12.5X20) TP
C823 CEXK1E681L C ELECTRO 25V680UFKXL
C825 CEXE1A222X CELECTRO 10V RF2200MF(12.5X20) TP
C826 CEXE1A222X CELECTRO 10V RF2200MF(12.5X20) TP
D806 DP6KE200A- DIODETVS P6KE200A
D821 DSR1060 - DIODE SCHOTTKY SR1060TO-22060V 10A
D822 DSR1060 - DIODE SCHOTTKY SR1060TO-22060V 10A
D823 DS2L20U F DIODE S2L20U4004P15
14
BOM LIST
DRHT-630 _SVC 2007.3.19 2:24 PM ˘ ` 14 mac001 1200DPI 90LPI

15
BOM LIST
LOC PART CODE PART NAME PART DESC REMARK
D825 DUF5404LS- DIODE UF5404L-5702400V 3A
I802 1T0P245YNP ICPOWER SWITCH TOP245YNPBFREE TO-220-7C
I802A 97Q4400202 RADIATORTR AL
I802B 7174300851 SCREWTAPPTITE TT2RND3X8 MFZN3CR
IC801 1LTV817MDW IC PHOTOCOUPLER LVT-817M-DW
IC804 1K1A78R05A ICREGULATOR K1A78R05AP15.0V 1.0ATO-220
L801 5PLF2055 FILTERLINE LF-2055
L821 58C0000132 COILCHOKE CH-100W
L822 58C0000132 COILCHOKE CH-100W
P801 97P62Y04X4 CONN WAFER YW3964PNC
P822 97P62A09A4 CONN WAFER 440052-4PLUG4P 2.5
P823 97P62Y42A2 CONN WAFER YMW025-02RST2.5MM
PJ821 97P885X206 CONNAS 10H-10S60MM
Q823 TFQP20N06- FET FQP20N06
R802 RW02B229J- RWIREWOUND 2W2.2 OHMJ
R806 RS02F473JS RM-OXIDEFILM 2W47KOHM JSMALL
T801 57M8282500 TRANSSMPS TSW-G11D1D
Z0081 PVPWJRP590 PCB POWERRADIAL AS DN-M11D1T-VH
C807 CMXL2G333K CMYLAR 400V MEU0.033MFK
C808 CEXF1H109A CELECTRO 50V RSM1MF(4X7) TP
C810 CMXL1J104K C MYLAR MEU63V0.1MF K
C811 CEXF1C470A CELECTRO 16V RSM47MF(5X7) TP
C824 CEXF1H470V CELECTRO 50V RSS47MF(6.3X11) TP
C830 CEXF1E221V CELECTRO 25VRSS220MF (8X11.5)TP
C831 CEXF1E221V CELECTRO 25VRSS220MF (8X11.5)TP
C832 CEXF1E221V CELECTRO 25VRSS220MF (8X11.5)TP
C833 CMXM2A103J CMYLAR 100V0.01MF J(TP)
C834 CMXL1J104K C MYLAR MEU63V0.1MF K
C835 CEXF1H220V CELECTRO 50V RSS22MF(5X11) TP
F801 5FWPS2022L FUSE WIDETL250V 2ACASE
IC803 1KA431AZ ICREGULATOR KA431AZ1% TO-92
L823 56C220K686 COILCHOKE 22UHK 27.5X0.4D
Q826 TZSR1004 TR KSR1004(AUTO)
Z0082 PVPWJAP590 POWER AXIALAUTO AS DN-M11D1T-VH
AP31 2TM14006LB TAPEMASKING 3M#2326.0X2000M
AP31A 2TM110620R TAPEMASKING SI-600NRED
AP31B 2TM1106200 TAPE MASKING SI-600N
D801 DZN4005S DIODE IN4005S1A600V
D802 DZN4005S DIODE IN4005S1A600V
D803 DZN4005S DIODE IN4005S1A600V
D804 DZN4005S DIODE IN4005S1A600V
D805 DHER108S DIODE HER108SA-405TYPE
LOC PART CODE PART NAME PART DESC REMARK
D807 DZF1T4 DIODEFR F1T4400V 1A1.2VF R-1
D824 DZF1T4 DIODEFR F1T4400V 1A1.2VF R-1
D828 DZUZ33BSB- DIODEZENER UZ-33BSB(30.32-31.38V)
D841 DZN4148 - DIODE 1N4148 AUTO52MM
D842 DZN4148 - DIODE 1N4148 AUTO52MM
D843 DZN4148 - DIODE 1N4148 AUTO52MM
D844 DZN4148 - DIODE 1N4148 AUTO52MM
D845 DZN4148 - DIODE 1N4148 AUTO52MM
D846 85801065GY WIRE COPPER AWG22 1/0.65TINCOATING
JP801 85801065GY WIRE COPPER AWG22 1/0.65TINCOATING
JP802 85801065GY WIRE COPPER AWG22 1/0.65TINCOATING
JP821 85801065GY WIRE COPPER AWG22 1/0.65TINCOATING
JP822 85801065GY WIRE COPPER AWG22 1/0.65TINCOATING
JP823 85801065GY WIRE COPPER AWG22 1/0.65TINCOATING
JP824 85801065GY WIRE COPPER AWG22 1/0.65TINCOATING
JP825 85801065GY WIRE COPPER AWG22 1/0.65TINCOATING
JP826 85801065GY WIRE COPPER AWG22 1/0.65TINCOATING
JP827 85801065GY WIRE COPPER AWG22 1/0.65TINCOATING
JP829 85801065GY WIRE COPPER AWG22 1/0.65TINCOATING
JP830 85801065GY WIRE COPPER AWG22 1/0.65TINCOATING
JP831 85801065GY WIRE COPPER AWG22 1/0.65TINCOATING
JP832 85801065GY WIRE COPPER AWG22 1/0.65TINCOATING
JP833 85801065GY WIRE COPPER AWG22 1/0.65TINCOATING
R801 RC-2Z565KP RCARBONCOMP 1/25.6MOHM K
R803 RD-4Z105JS RCARBON FILM 1/41MOHMJSMALL
R804 RD-4Z105JS RCARBON FILM 1/41MOHMJSMALL
R805 RD-AZ479J- RCARBON FILM 1/64.7OHMJ
R807 RD-AZ689J- RCARBON FILM 1/66.8OHMJ
R808 RD-4Z475JS RCARBON FILM 1/44.7MOHMJSMALL
R809 RD-4Z475JS RCARBON FILM 1/44.7MOHMJSMALL
R810 RD-AZ512J- RCARBON FILM 1/65.1KOHMJ
R821 RD-AZ470J- RCARBON FILM 1/647OHMJ
R822 RD-AZ102J- RCARBON FILM 1/61KOHMJ
R823 RD-AZ332J- RCARBON FILM 1/63.3KOHMJ
R825 RN-AZ1302F R METALFILM 1/613KOHM F
R826 RN-AZ9531F R METALFILM 1/69.53KOHM F
R828 RD-AZ223J- RCARBON FILM 1/622KOHMJ
R829 RD-2Z821JS RCARBON FILM 1/2820OHMJSMALL
R831 RD-2Z100JS RCARBON FILM 1/210OHMJSMALL
R832 RD-AZ472J- RCARBON FILM 1/64.7KOHMJ
U800 97P65508PA PCB POWER 169X94(199X330/4)D1B
DRHT-630 _SVC 2007.3.19 2:24 PM ˘ ` 15 mac001 1200DPI 90LPI

16
SCHEMATIC DIAGRAM
DRHT-630 _SVC 2007.3.19 2:24 PM ˘ ` 16 mac001 1200DPI 90LPI

17
SCHEMATIC DIAGRAM
DRHT-630 _SVC 2007.3.19 2:24 PM ˘ ` 17 mac001 1200DPI 90LPI

18
SCHEMATIC DIAGRAM
DRHT-630 _SVC 2007.3.19 2:24 PM ˘ ` 18 mac001 1200DPI 90LPI

19
SCHEMATIC DIAGRAM
DRHT-630 _SVC 2007.3.19 2:24 PM ˘ ` 19 mac001 1200DPI 90LPI
