Automatic Ice Maker
User’s Manual
Be sure ice maker is standing upright 24 hours prior to plug-in.
Model: DIM-70, DIM-120

1
TABLE OF CONTENTS
Page
ICE MAKER SAFETY...............................................................................................................2
IMPORTANT SAFEGUARDS...................................................................................................3 - 5
TECHNICAL INFORMATION................................................................................................. 5
INTRODUCTION...................................................................................................................... 6
COMPONENT LOCATIONS.....................................................................................................7
ICE MAKER INSTALLATION................................................................................................. 8 - 16
Unpacking.................................................................................................................... 8
Location Requirements................................................................................................ 9
Electrical Requirements................................................................................................10 - 11
Leveling the Ice Maker................................................................................................. 11
Water Supply and Drain Connections......................................................................... 12-13
Installation Types......................................................................................................... 14-15
OPERATION.............................................................................................................................. 15 - 18
Final Checklist before Operation................................................................................. 15
Operating Method........................................................................................................ 16
How the Machine Makes Ice........................................................................................16-17
Normal Sounds.............................................................................................................17-18
Preparing the Ice Maker for Long Storage...................................................................18
CLEANING AND MAINTENANCE........................................................................................ 18-27
Exterior Cleaning......................................................................................................... 1921
Condenser Cleaning..................................................................................................... 20
Interior Cleaning.......................................................................................................... 20
Ice Making System Cleaning....................................................................................... 23
Control Box..................................................................................................................25
Major function..............................................................................................................26
TROUBLESHOOTING..............................................................................................................27-30
We reserve the right to make changes in specifications and design without
prior notice.

2
ICE MAKER SAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your
appliance. Always read and obey all safety messages.
This is the Safety Alert Symbol. This symbol alerts you to
potential hazards that can kill or injure you and others. All
safety messages will follow the Safety Alert Symbol and
either the words "DANGER", "WARNING" or
"CAUTION".
Danger means that failure to heed this
safety statement may result in severe
personal injury or death.
Warning means that failure to heed
this safety statement may result in
extensive product damage, serious
personal injury, or death.
Caution means that failure to heed
this safety statement may result in
minor or moderate personal injury, or
property or equipment damage.
All safety messages will alert you to what the potential hazard is, tell you how to
reduce the chance of injury, and let you know what can happen if the instructions
are not followed.

3
IMPORTANT SAFEGUARDS
Before the ice maker is used, it must be properly positioned and
installed as described in this manual, so read the manual carefully. To
reduce the risk of fire, electrical shock or injury when using the ice
maker, follow basic precautions, including the following:
zPlug into a grounding outlet, do not use an adapter, and do not use an extension
cord.
zIt is recommended that a separate circuit, serving only your ice maker, be
provided. Use receptacles that cannot be turned off by a switch or pull chain.
zDo not connect or disconnect the electric plug when your hands are wet.
zNever clean ice maker parts with flammable fluids. These fumes can create a fire
hazard or explosion. And do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance. The fumes can create a
fire hazard or explosion.
zBefore proceeding with cleaning and maintenance operations, make sure the
power line of the unit is disconnected and the water line is shut off
(EXCEPTION: ice maker system’s cleaning).
zReplace all panels before operating after servicing or maintenance.
zUnplug the ice maker or disconnect power before cleaning or servicing. Failure to
do so can result in electrical shock or death.
zDo not attempt to repair or replace any part of your ice maker unless it is
specifically recommended in this manual. All other servicing should be referred
to a qualified technician.
zWhen you disassemble the front cover, don’t overexert, or the leads connected
with the power switch can be torn down.
zUse two or more people to move and install ice maker. Failure to do so can result
in back or other injury.
zTo ensure proper ventilation for your ice maker, the front of the unit must be
completely unobstructed. Choose a well-ventilated area with temperatures above
13℃and below 32℃. This unit MUST be installed in an area protected from the
elements, such as wind, rain, water spray or drips.
zThe ice maker should not be located next to ovens, grills or other sources of high
heat.
zThe ice maker must be installed with all electrical, water and drain connections in
accordance with state and local codes.A standard electrical supply (115VAC,
60Hz,15A), properly grounded in accordance with the National Electrical Code

4
and local codes and ordinances is required.
zDo not kink or pinch the power supply cord between the ice maker and cabinet.
zThe appliance is to be connected to the water mains using new hose-set and that
old hose-sets should not be reused.
zIf the supply cord is damaged, it must be replaced by the manufacturer, its service
agent or similar qualified person in order to avoid a hazard.
zThe plug must be accessible after installation.
zAll horizontal runs of drain lines must have a fall of 2cm per meter.
zIt is important for the ice maker to be leveled in order to work properly. You may
need to make several adjustments to level it.
zAll installations must be in accordance with local plumbing code requirements.
zMake certain that the pipes are not pinched or kinked or damaged during
installation.
zCheck for leaks after water line and drain line connection.
zNever allow children to operate, play with or crawl inside the ice maker.
zAlthough the unit has been tested at the factory, due to long-term transit and
storage, the first batch of cubes must be discarded.
zNever turn the water supply tap off when the ice maker is working.
zIf the ice maker will not be used for a long time, before the next use it must be
thoroughly cleaned. Follow carefully any instructions provided for cleaning or
use of sanitizing solution. Do not leave any solution inside the ice maker after
cleaning.
zDO NOT touch the condenser fins. The condenser fins are sharp and can be easily
damaged.
zDO NOT use solvent-based cleaning agents or abrasives on the interior. These
cleaners may transmit taste to the ice cubes, or damage or discolor the interior.
zThe ice machine cleaner contains acids. DO NOT use or mix with any other
solvent-based cleaner products. Use rubber gloves to protect hands. Carefully
read the material safety instructions on the container of the ice machine cleaner.
zDo not use this apparatus for other than its intended purpose.
SAVE THESE INSTRUCTIONS
Electrical Connection
For personal safety, this appliance must be properly grounded. The power cord of
this appliance is equipped with a grounding plug that mates with a standard
grounding wall outlet to minimize the possibility of electric shock hazard from the
appliance. Have the wall outlet and circuit checked by a qualified electrician to
make sure the outlet is properly grounded. When a standard 2-prong wall outlet is
encountered, it is your responsibility and obligation to have it replaced with a
properly grounding wall outlet. The ice maker should always be plugged into its
own individual electrical outlet which has a voltage rating that matches the rating
label on the appliance. This provides the best performance and also prevents

5
overloading house wiring circuits which could cause a fire hazard from overheated
wires. Never unplug your ice maker by pulling on the power cord. Always grip the
plug firmly and pull straight out from the outlet. Repair or replace immediately all
power cords that have become frayed or otherwise damaged. Do not use a cord that
shows cracks or abrasion damage along its length or at either end. When moving
the ice maker, be careful not to damage the power cord.
Extension Cord
Because of potential safety hazards under certain conditions, it is strongly
recommended that you do not use an extension cord with this ice maker.
IMPORTANT SAFETY INSTRUCTIONS
WARNING: To reduce the risk of fire, electric shock, or injury
when using your ice maker, follow these basic precautions:
zPlug into a grounding wall outlet.
zDo not remove grounding prong.
zDo not use an adapter.
zDo not use an extension cord.
zDisconnect power before cleaning.
zDisconnect power before servicing.
zReplace all panels before
operating.
zUse two or more people to move
and install ice maker.
SAVE THESE INSTRUCTION
TECHNICAL INFORMATION
Model DIM-70 DIM-120
Rated Power 115VAC~60Hz 115VAC~60Hz
Ice-making rated current 6.7A 7.5A
Ice-harvst rated current 11.2A 11.8A
Refrigerant R134a/6.88oz R134a/9.92oz
High Side Pressure 320psi 320psi
Low Side Pressure 120psi 120psi
Max hydraulic pressure 0.5Mpa 0.5Mpa
Width*depth*height 424*536*827 561*536*827
Ice-making capacity 65 lbs/day* 110 lbs/day*
Unit weight 42kg 46kg

6
The technical data and performance index listed above should be used for reference
only. They are subject to change.
*The actual quantity of ice produced per day can vary with room and water
conditions.
INTRODUCTION
AZ series Ice Maker finds wide application in households, bars, restaurants, hotels,
supermarkets, etc. It produces crystal-clear, gourmet cube ice, and offers
convenience for homeowners and hotel guests. An insulated ice storage bin is built
into the ice maker.
This user's manual is intended as a resource for persons installing, using and
servicing the AZ series. It contains valuable information on safety and maintenance.
My company strongly recommends that this manual be kept in a place where it can
be accessed when needed.
The ice maker is designed and manufactured according to the highest standards of
safety and performance.
My company assumes no liability or responsibility of any kind for products
manufactured that have been altered in any way, including the use of any parts
and/or other components not specifically approved by my company. My company
reserves the right to make design changes and/or improvements at any time.
Specifications and designs are subject to change without notice.
Evaporat or sensor
Condenser sensor
Ice full sensor
E
N
LPower swi t ch
B
C
P
Ci r cui t Di a
g
ra
m
Fan motor
Pump
Compressor
Gas Val ve
Wa t e r V a l v e

7

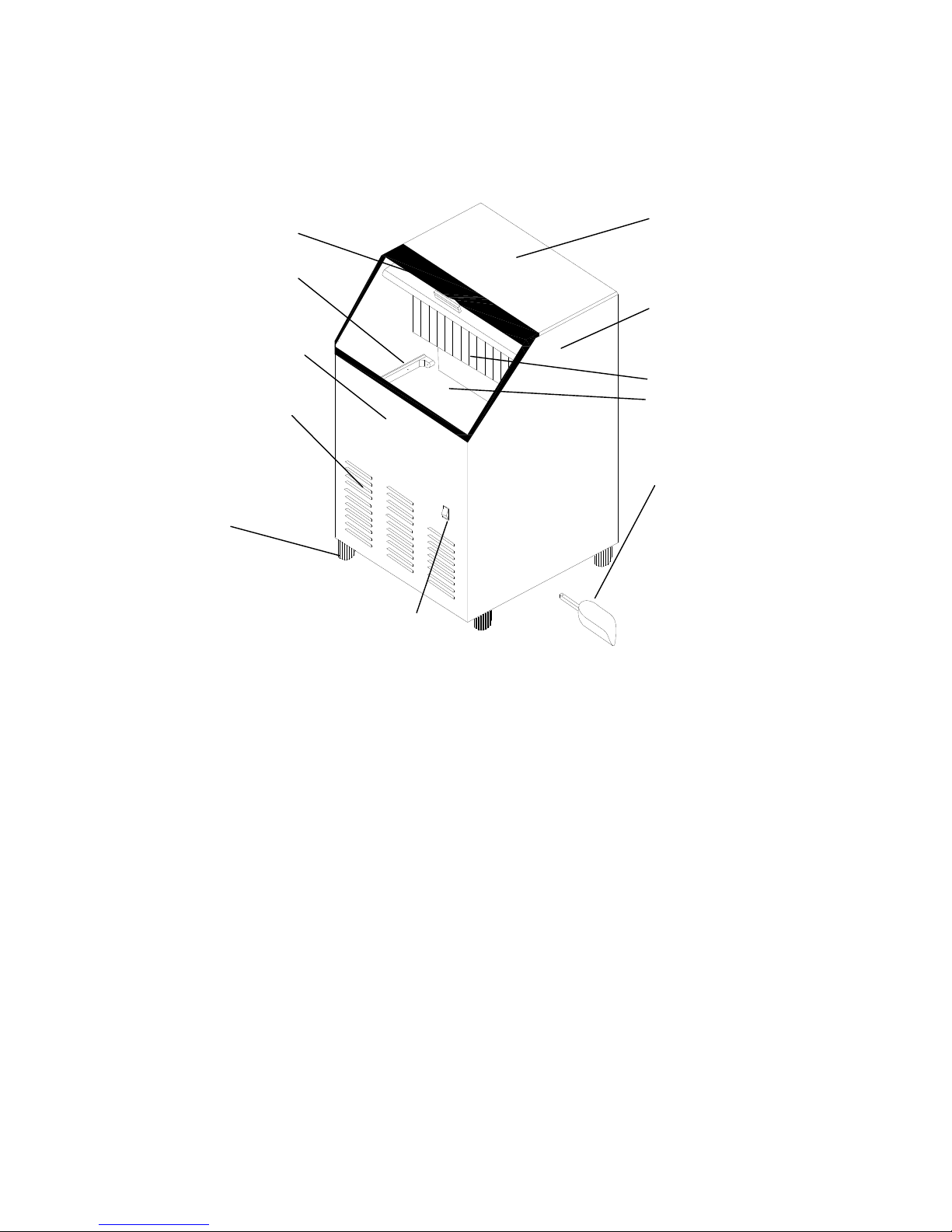

COMPONENT LOCATIONS
Top panel
Side panel
Water bin
Ice-storage bin
Ice scoop
Control box
(behind Front
cover
)
Front cover
Door
Ventilation
louvers
Roller
Power switch
Ice cube full sensor

8
ICEMAKER I
ICE MAKER INSTALLATION
Unpacking
Remove packaging materials
IMPORTANT: Do not remove any permanent instruction labels or the data label
on your ice maker.
Remove tape and glue from your ice maker before using.
•To remove any remaining tape or glue, rub the area briskly with your thumb.
Tape or glue residue can also be easily removed by rubbing a small amount of
liquid dish soap over the adhesive with your fingers. Wipe with warm water
and dry.
•Do not use sharp instruments, rubbing alcohol, flammable fluids, or abrasive
cleaners to remove tape or glue. These products can damage the surface of
your ice maker.
Cleaning before use
After you remove all of the packaging materials, clean the inside of your ice
maker before using it. See "Interior cleaning" in the Cleaning and Maintenance
section.
Excessive Weight Hazard
Use two or more people to move and install ice maker. Failure to
do so can result in back or other injury.

9
Location Requirements
To ensure proper ventilation for your ice maker, the front of the unit must be
completely unobstructed. Allow at least 150 mm clearance at rear, and 40 mm
at top and sides for proper air circulation. The installation should allow the ice
maker to be pulled forward for servicing if necessary.
When installing the ice maker under a counter, follow the recommended spacing
dimensions shown. Place electrical and water supplies and drain fixtures in the
recommended locations as shown.
Choose a well-ventilated area with temperatures above 13℃and below 32℃.
This unit MUST be installed in an area protected from the elements, such as wind,
rain, water spray or drips.
The unit should not be located next to ovens, grills or other sources of high heat.
Installation of the ice maker requires a cold water supply inlet of 19mm O.D.
soft copper tubing with a shut-off valve. A gravity-drain system provided with the
unit can be used.
(NOTE: Runoff water can also be drained into a sink via a pump – not included –
when a gravity drain is not available.)
The ice maker requires a continuous water supply with pressure between 0.1Mpa
and 0.5Mpa. The temperature of the water feeding into the ice maker should be
between 5℃and 25℃ for proper operation.

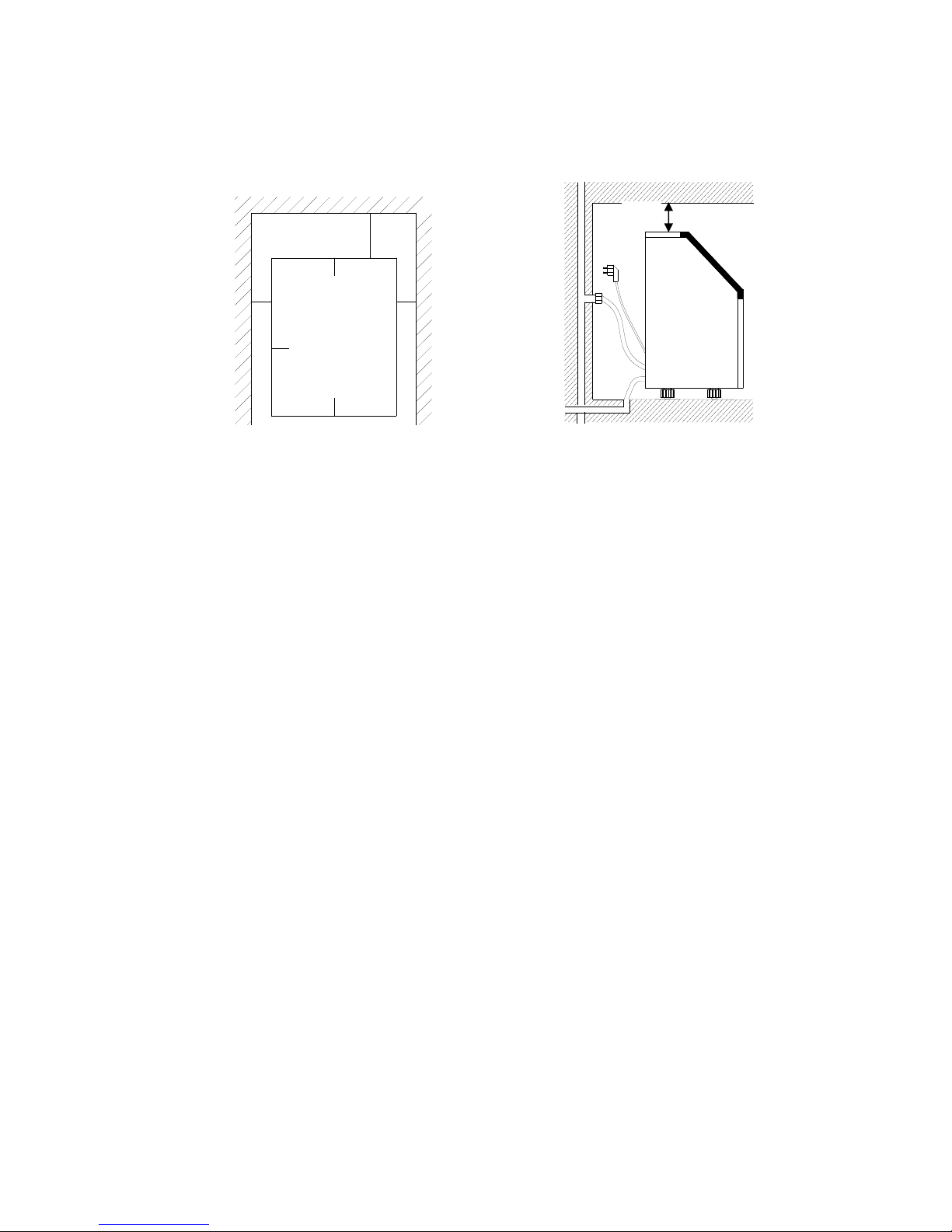

Installation clearance
top view (1:10) (mm) Side view (mm)
Rear of unit
Front of unit
Side
40 40
150
40
40
