USER'S MANUAL
DAV100A
High pressure washer

1
INDEX
1. SAFETY INSTRUCTIONS ........................................................................................................................ 2
2. SAFETY REGULATION ............................................................................................................................ 3
3. SCOPE OF APPLICATION ...................................................................................................................... 3
4. OPERATION RULES ................................................................................................................................ 4
5. MAINTENANCE ..................................................................................................................................... 10
6. TECHNICAL CHARACTERISTICS ........................................................................................................ 11
7. PROBLEM SOLVING ............................................................................................................................. 12
8. CAUTIONS
............................................................................................................................................. 13
9. NAMES OF COMPONENTS
................................................................................................................. 14
10. ASSEMBLING OF COMPONENTS ..................................................................................................... 15
11. OPERATION STARTING UP ................................................................................................................ 15
12. OPERATION METHOD ........................................................................................................................ 16
13. CLEANING AND REPLACING COMPONENTS ................................................................................. 17
14. PROBLEMS SOLVING ......................................................................................................................... 18
15. TECHNICAL PARAMETERS AND CIRCUIT DIAGRAM .................................................................... 19
WARRANTY ............................................................................................................................................... 20

1. SAFETY INSTRUCTIONS
Read all instructions before using this appliance and save the operation instruction
WARNING: when using this product, basic precaution should always be followed, including the
following:
1. Don’t use the appliance without reading the instruction sheet.
2. Risk of injection or injury do not direct discharge stream at persons.
3. It is recommended that the electric supply to this appliance should include either a residual current
Device that interrupt the supply if the leakage current to earth exceeds 30 ma for 30 ms or a device
Which will prove the earth circuit.
4. Do not use the appliance within the range of persons unless they wear protective clothing.
5. High-pressure jets can be dangerous if subject to misuse. The jet must not be directed at persons,
Animals, electrical equipment or the appliance itself.
6. Don’t direct the jet against yourself or others in order to clean clothes or foot-wear.
7. Disconnect from the electrical power supply before carrying out user maintenance.
8. High-pressure cleaners shall not be used by children or untrained personnel.
9. To ensure the appliance safety，use only original spare parts from the manufacturer or approved by
The manufacturer
10. High-pressure hoses fittings and couplings are important for the safety of the appliance. Use only
Hoses, fittings and couplings recommended by the manufacturer.
11. Don’t use the appliance if a supply cord or important parts of the appliance are damaged, e.G.
Safety
De vices, high-pressure hoses, trigger gun.
12. Inadequate extension cords can be dangerous.
13. If an extension cord is used, the plug and socket must be of watertight construction.
14. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a
Similarly qualified person in order to avoid a hazard.
15. To reduce the risk of injury, close supervision is necessary when a product is used near children
16. Know how to stop the product and release pressure quickly, be thoroughly familiar with the controls.
17. Stay alert-watch what you are doing.
18. Do not operate the product when fatigued or under the influence of alcohol or drugs.
19. Keep operating area clear of all persons.
20. Do not overreach or stand on unstable support. Keep good footing and balance at all times.
21. Follow the maintenance instructions specified in the manual.
22. This product shall only be connected to a power supply receptacle produced by a ground fault
circuit.
Interrupter
23. Always wear protective clothing and safety glasses. Loose particles and other debris may be
Propelled at high speed by the water jet. Wear ear protectors.
24. The electric supply connection shall be made by a qualified electrician and comply with iec 60364-1
25. This appliance has been designed for use with the cleaning agent supplied or recommended by the
manufacturer. The use of other cleaning agents or chemicals may adversely affect the safety of the
appliance.
26. If an H05VV-F or H05V2V2-F supply cord is used, the appliance must be used at or above 0°C.
2
EN

2. SAFETY REGULATION
1. Read each contents of the manual before operation: abide this safety regulation to avoid any accident
or damage.
2. Check to make sure that the cleaner’s voltage conforms to that of the power source (220-240VAC),
and bearing current intensity of the transmission line is not less than 10A. According to this regulation,
the protective switch must be installed.
3. Cut off the power while the cleaner is not in operation.
4. Sure not to use the cleaner in the rain, and water is not allowed to spray on the machine to avoid
damage of the insulation.
5. Keep the power wires away from the heat source and sharp knife etc. so as to avoid damage.
6. Never insert or pull up the plug with wet hand, or trying to move the machine.
7. A damaged high-pressure hose must be replaced immediately. Only use hoses and connections
recommended by the manufacturer.
8. Keep this machine away from concentrated acid, dissolvent and flammable, explosive materials such
as hot oil, petrol and acetone etc.
9. Never jam the gun trigger in position during operation.
10. There is no adjustable safety valve, when the water pressure is enough, the safety valve will be
opened automatically.
3. SCOPE OF APPLICATION
1. Use the appliance to clean various kinds of vehicles, such as cars、motors and bicycles etc.
2. Clean the outer wall of buildings、ground and garden etc.
Working principle and structural characteristics
1. Working principle
The motor directly drives the gear shaft of the plunger pump. The sloping cam plate changes the turning
movement of the gear shaft into the reciprocation. When the plunger moves back, the water outlet valve
closes and forms a vacuum. And the water inlet valve opens, water goes into the cylinder through it;
when the plunger moves forward，the water inlet valve closes and the water pressure in the cylinder
increases. When the water outlet valve opens and the high-pressure water will be transported to the
hose.
3

2. Structural characteristics
2.1 As the sing-phase series motor chosen to directly drive the 3-cylinder axial plunger pump by the
gear，the cleaner is compact in structure, small in size, artistic in appearance and reliable in
operation.
2.2 As the cleaner is light, it’s rather convenient in moving.
2.3 The pump of the cleaner has the function of automatic unloading. When the spray gun trigger
closes,the unload valve opens, and the water flows back to the suction side of the pump, so the cleaner
has the feature of low consumption of water and electricity.
2.4 Use the NO.46 machine oil and the high-temperature lubricating oil in the pump.
4. OPERATION RULES
1. Preparation
1.1 If, on unpacking the unit, you discover damage has been caused during transportation, please con-
tact your dealer.
1.2 Check to make sure that the packing list and the information paper are correct, then conserve it.
1.3 Check whether the voltage shown on the rating plate corresponds to that of the power source
(220-240 V AC), the current carrying capacity of the circuit should not be less than 10A.
1.4 The electric protective switch must be installed for the safety operation
1.5 Open the accessory bag and install the big wheels into the machine (see figure 1).

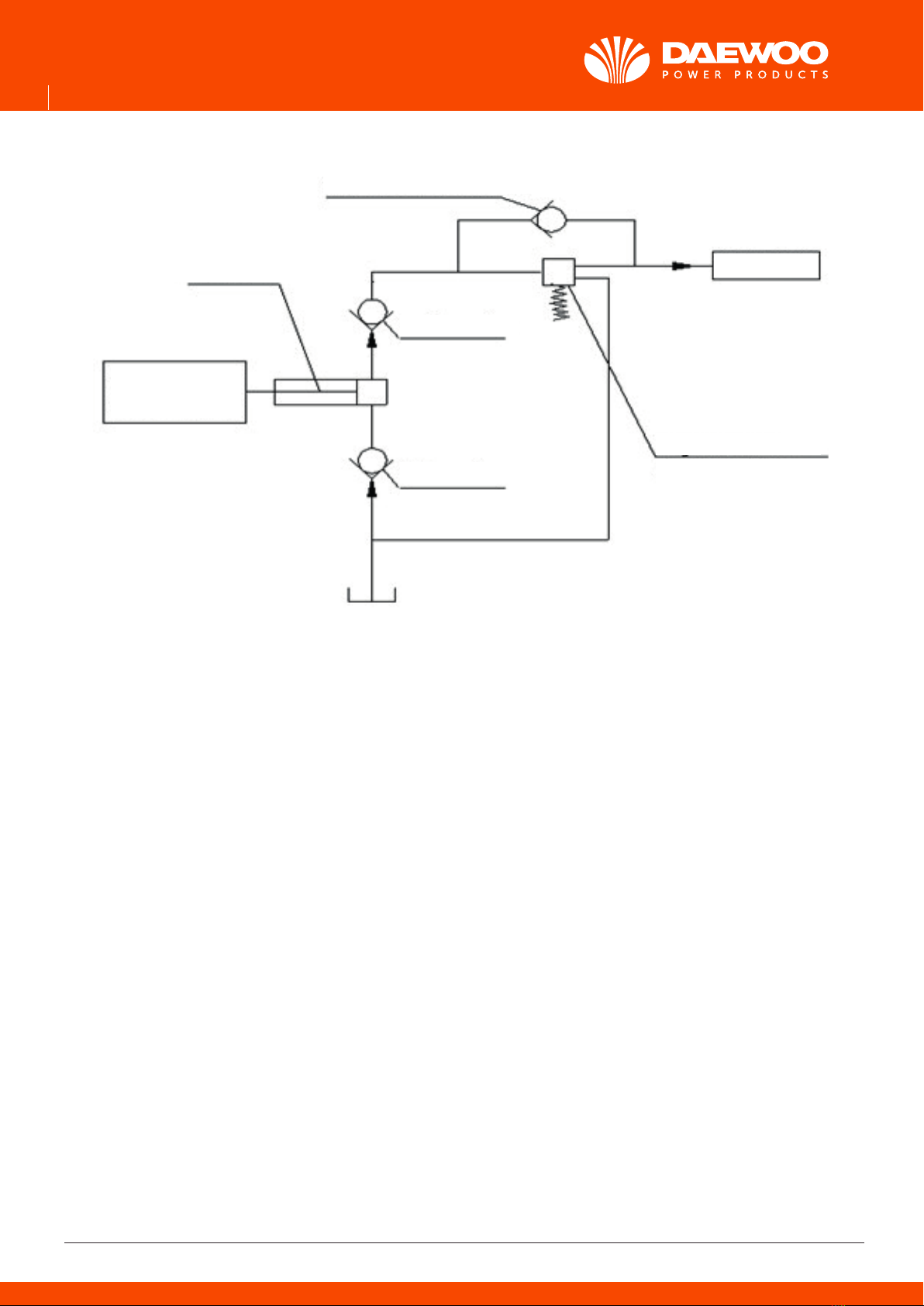

UNIDERECTIONAL VALVE
PLUNGER
OUTLET VALVE
INLET VALVE
WORKING PRINCIPLE
ADJUST OVERFLOW
SAFETY VALVE
SPRAY GUN
SINGLE PHASE
SERIES MOTOR
4
EN

O
I
先将大滚轮装上
1.6 Insert the wheel cap into the big wheel by pointing the hook of wheel cap at the hole of wheel.
(see figure 2 and 3)
O
I
Figure 2
Figure 1
AC220-240V
FIRSTLY INSTALL
BIG WHEELS
5

轮盖钩子对上滚轮沟槽
POINTING THE HOOK
OF WHEEL CAP AT THE
SLOT OF BIG WHEEL
1.7 Revolve the inlet male connector into the inlet hose, and tighten!
O
I
1.8 Insert the holster into the accessory stand after machine steady.
O
I
AC220-240V
Figure 3
Figure 5
Figure 4
6
EN

2. OPERATION
2.1 Spray units connect: Push the lance into the trigger grip handle and twist it to secure it as shown in
figures 2.
2.2 Insert quick connector of high pressure hose into lance, lock the latch, and wear the high pressure
sheath.
2.3 Connect the water supply hose to the connector. The water supply hose is not provided in the pack.
O
I
INSERT INTO THE BLACK QUICK CONNECTOR
RUNNING WATER
HIGH PRESSURE HOSE
INSERT
OPEN
LOCK
LOCK
Figure 8
Figure 7
Figure 6
PUSHTWIST
7

Figure 9
Figure 10
2.2 Insert pump-end connector of high pressure hose into aluminum exit and fasten the nut.
2.4 Turn the water supply on, making sure that the tap is fully open. See figure 5
WARNING: The temperature of the incoming water must not exceed 40°C.
3. Use high pressure washer to wash objects
3.1 Connect the water supply and the power source, then turn on the power switch of the cleaner and
the gun trigger, as air has been exhausted, the cleaner is ready for operation.
O
I
O
I
RUNING WATER
INSERT INTO THE ALUMINUM CONNECTOR
GUN
8
EN

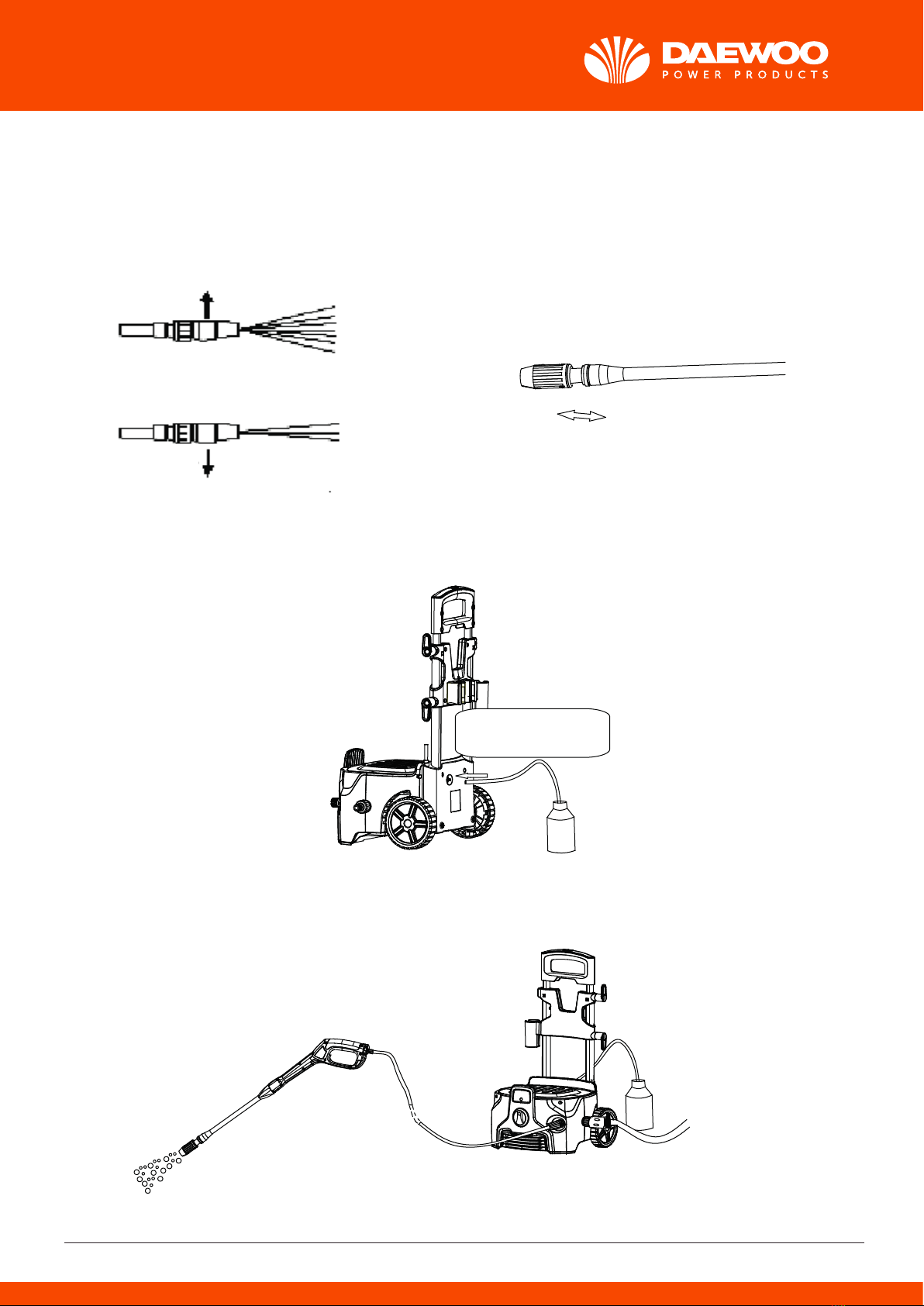

3.2 The lance has an adjustable nozzle to allow you to vary the width of the spray. To adjust the width of
the spray, move the nozzle as shown in figure 4.
LOW
HIGH
Twist
TWIST
TWIST
WIDE SPRAY
TIGHT BEAM
3.3 Insert the detergent hose into the detergent connector to the place. Put the other end of hose into
the detergent filled with concocted soap lye by completely submerged.
SOAP
将洗液软管插到机器吸液接头上
I
NSERT THE DETERGENT HOS
E
INTO THE INLET CONNECTOR
Figure 13
Figure 12
Figure 11
3.4 Low pressure mode: pull forward the gun head: At that mode, pump can pull out the detergent. High
pressure mode: pull backward the gun head
O
I
LOW PRESSURE
SOAP
English
WATER
9

3.5 During the cleaning, the distance between the nozzle and the object surface to be cleaned should
not be too far, normally not more than 30cm, as the impulsive force decreases with the increase of the
distance.
*. You should hold the gun trigger firmly during the cleaning.
*. The safety value doesn’t control the gun during operation, but only prevents it from opening uninten-
tionally.
*. Spraying the human beings or electric equipment is forbidden.
*. Don’t place the power wire on the road so as to avoid breaking the wire.
*. The nozzles used in the cleaner are supplied by our factory.
3.6 After the cleaning is finished, open the trigger, switch off the pump and unplug the power cable from
the mains. Close the water inlet and detach the appliance from the water connection. Pull the trigger
until there is no more pressure in the appliance, and secured the trigger with safety button against
unintentional opening.

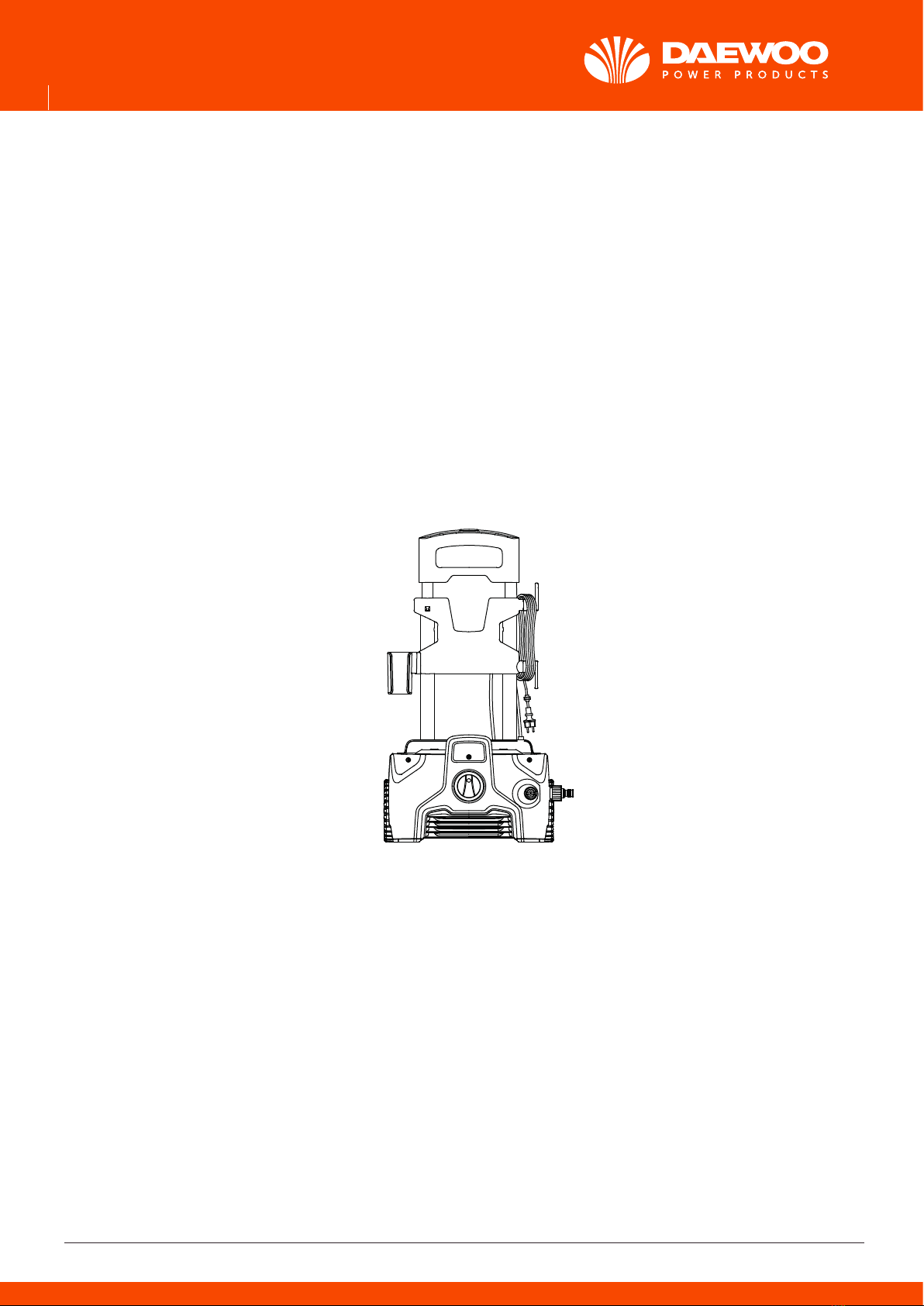

3.7 After operating ,you may put the lance and the trigger gun into the gun holder.
3.8 Wires can be winded evenly on the wire hook after using. Wire hook can be rotated 360 degree, for
the convenience of removing wires in next use.
5. MAINTENANCE
1. Monthly or as required, maintenance the appliance
1.1 Clean the nozzle. Remove dirt from the nozzle hole with a needle and rinse it with water from the
front.
1.2 Clean the strainer in the water connection. It can be easily removed with flat-nosed pliers.
2. Winter protection
Frost will destroy an appliance that has not been completely emptied of water. The correct method is to
separate the inlet hose from the water supply system. Turn on the cleaner to run for about 30 seconds
for water extraction. Remove the high-pressure plastic hose to exhaust the remaining water in it. The
appliance had better be stored in a warm room.
EN
10

6. TECHNICAL CHARACTERISTICS
HIGH PRESSURE WASHER
Voltage/Frequency: 230V ~ 50 Hz
Power: 1700 W
Rated pressure: 9 mPa
Max pressure: 13 mPa
Rated flow: 300 L/h
Max flow: 400 L/h
Pressure hose: 5 m
Cable length: 5 m
VACUUM CLEANER
Power: 700 W
Vacuum tank capacity: 10 L
Vacuum hose: 1.2 m
Cable length: 3 m
11

7. PROBLEM SOLVING
Problem Causes Solution
Appliance doesn’t
work.
1. No power or condition in
the socket is not good.
2. The connector cable is
damaged.
1. Check the power source
and the socket to see if th
e
plug connected.
2. Change the cable.
Appliancedoesn’t
reach operational
pressure.
1. The double nozzle is wor
n
cut.
2. Air exists in the hose.
3. The in let hose leaks or
blockage.
4. The inlet or outlet value is
damaged.
5. The sealed ring of the
plunger is damaged.
6. The O -ring of the unload
valve is damaged.
7. Pump seat leaks.
1. Change the double nozzle
.
2. Start the motor, turn on
the spray nozzle and fill
the inlet hose with water
to exhaust air.
3. Clean or Change the inlet
hose.
4. Change the valves.
5. Change the sealed ring.
6. Change the O-ring.
7. change the pump seat.
The pump leaks.
1. The sealed ring is
damaged.
2. The bolt work loose.
1. Change the sealed ring.
2. Tighten the bolt.
No water flows or
flow rate too low.
1. The new pump doesn’t
take in water.
2. Dirt exists in the pump.
3. The inlet or outlet valve is
damaged.
1. Switch on, and open the
gun trigger valve, then fill
water into the inlet hose
so as to exhaust air, plac
e
the inl et hose into water
tank.
2. Remove the dirt.
3. Change the valve.
If any problems are encountered that are not covered above, refer to qualified service personnel.
EN
12

VACUUM
8. CAUTIONS
Please don’t use the vacuum cleaner to absorb cement, gypsum powder, wall powder and other fine
granules, otherwise it is possible to arouse the filter of the vacuum cleaner being blocked, the motor
being burnt and other defects; in case the above-mentioned fine granules are excessively absorbed,
please clean the filter timely.
Please don’t forcefully bend, tread on and draw the hose, and please don’t continue to use the hose
after it has been broken and damaged.
While using the vacuum cleaner, please don’t let hair balls, big paper balls and other objects be
absorbed into the suction inlet, suction pipe or hose, otherwise the motor defects will be aroused. In
case such objects have been absorbed, please stop the cleaner and unplug timely to clear off them. In
case of absorbing rather much water, it is necessary to absorb in several times; when the sound of
water limiting ball is heard, please empty the water from the bucket and then go on using the cleaner.
Otherwise it is possible to cause the motor to become short circuited and make the motor burnt.
Please don’t put the vacuum cleaner too close to a heat source and other high-temperature objects,
lest its plastic components should be deformed to make an impact on its operation performance.
When pour the water out of the bucket, please don’t put the vacuum cleaner upside down, lest the
water should flow from the bucket into the motor to arouse its being short-circuited.In case you want to
clean or repair and suspend the use of the vacuum cleaner, please pull the plug off; while unplugging,
please grasp the plug itself, and don’t draw the power cord.
While cleaning the vacuum cleaner, please use the rags containing water or neutral detergent, and don’t
use gasoline, banana oil, etc., otherwise the cracks or color fading of the casing will be led to.
13

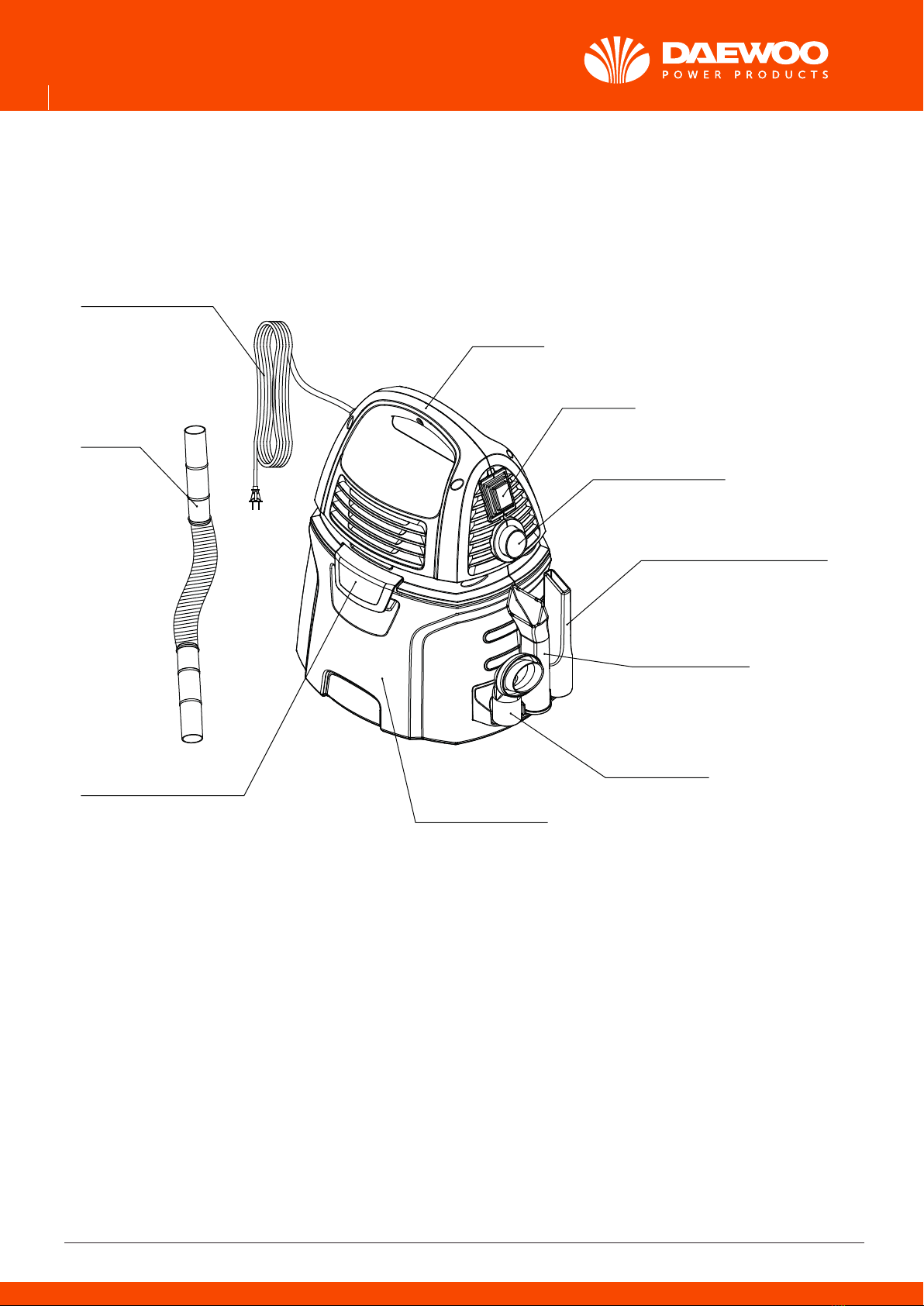

9. NAMES OF COMPONENTS
VACUUN PORT
FLAT ABSORBING TUBE
CAR NOZZLE
DUSTING BRUSH
SWITCH
HANDLE
POWER CORD & PLUG
HOSE
LOCKING CATCH
BUCKET BODY
EN
14

10. ASSEMBLING OF COMPONENTS
Connection of hose with vacuum cleaner
• Grasp the hose and insert it into the vacuum port or blow port of the vacuum cleaner with force, so as
to ensure a firm connection
• If you want to take the hose off, it is necessary to hold the handle of the vacuum cleaner with one
hand,then houd the hose with another one to pull it out.
Connection of hose with accessories
• While connecting the hose with Flat absorbing tube,Dusting Brush,Car Nozzle, please rotate them to
and fro while inserting them in with force, so as to ensure a firm connection.
Assembling and dismantling of bucket body
• Grasp the handle of the upper cover to put it in the bucket body, with the two locking catches aimed
correctly at the locking positions, then it will be okay to press it tight.
• If you want to dismantle bucket body, it is necessary to open the locking catches with the hand, and at
the same time hold the handle of the upper cover to lift the upper cover and it will be okay.
Assembling and dismantling of filter
1. Extend the retainer band around the plastic posts on the lid.
2. Remove filter bag off the filter cage.
3. Place the replacement filter on the filter cage until open end touches bottom of lid.
4. Release the retainer band from the plastic post on the lid, holding the filter bag secure to the lid.
5. Make sure the retainer band is positioned on the filter bag covering the black printed line.
11. OPERATION STARTING UP
Introduction to functions
The Vacuum cleaner has two functions of dry absorbing and wet absorbing.
• Dry absorbing: Assemble the water ball chamber and filter in the main body assembly, then have the
hose with Flat absorbing tube, Dusting Brush,(or without it) provided, and turn on the power supply
switch it is possible to work, to realize the ordinary dust absorbing function of the vacuum cleaner.
• Wet absorbing: Assemble the water ball chamber and filter in the main body assembly, then have the
hose with Flat absorbing tub , Car Nozzle (or without it), and turn on the power supply switch it is possi-
ble to absorb the water pools, wet dirt and dust from the floor, or to absorb the water accumulated in pit
out of poor drainage and water from unmovable containers and so on.
15

Dry absorbing
• Configure the vacuum cleaner in dry absorbing status in conformity to the Table of Component Confi-
guration.
• It is possible to carry out floor or carpet dust absorbing with a floor brush; on occasion of a place with
corners of gaps, it is possible to use a flat absorbing tube to carry out the dust absorbing; and on an
ornamented surface it is possible to use a hairbrush (put it over the flat absorbing tube) to carry out the
dust absorbing.
Table of Component Configuration for Different Work Modes
Placing of vacuum cleaner in work
• This cleaner has flexible universal rollers assembled on, it must be put on a level place in work. (This
cleaner uses a 3m long power cord and a 1.2m long hose, for the purpose of having a suitable place to
put).
• While working on a level ground, it is allowed to bring the vacuum cleaner into movement with the
hose.
Control of absorbing force
• In the operation course, if the floor brush is difficult to move because it absorbs the carpet or the floor
due to too strong an absorbing force, it is possible to slide the blowing rate adjusting block on the
handle to change the absorbing rate of the vacuum cleanser. Moving the blowing rate adjusting block
with the thumb will cause the opening to be exposed more, and the absorbing force will become less.
Storage
• After the dry absorbing operation of the vacuum cleaner, it is necessary to clear the bucket body
timely; after its wet absorbing operation, it is necessary to clean the bucket body, and dry it by airing to
prepare it for next operation.
• After the use of the vacuum cleaner is finished, please coil up the power cord and insert it into the
handle, then lean it against a wall to place it stably, and insert the long adapter tube into the accessory
latch hook matched with the dust bucket.
Configuration
Work mode
Filter
Hose
Flat
absorbing
tub
Car
Nozzle
Dusting
Brush
Dry type carpet and
floor dust absorbing
√ √ √ √
Dry type furniture dust
absorbing
√ √ √ √
Absorbing
accumulated water
√ √ √ √
Absorbing pools of
water and wet dust
√ √ √ √
12. OPERATION METHOD
Wet absorbing
• Before absorbing accumulated water or pools of water, configure the vacuum cleaner in wet absorbing
status in conformity to the Table of Component Configuration. (It is possible to assemble the flat absor-
bing tube in conformity to requirements)
• During wet absorbing, when the water level inside the bucket body reaches a certain height, the small
ball in the water limiting chamber will close the air inlet of the motor; at that time though the motor is still
working, yet the vacuum cleaner refuses to absorb water any longer, and thus to protect the motor.
When the small ball moves, a sound of “puff” will be heard, and the motor works in muffled sound; then
it is the time to prepare for cleaner stopping; before stopping the cleaner, it is necessary to raise the
absorbing tube and turn its inlet upward and then turn off the power supply switch, lest the water inside
the tube flow back to the ground.
• While emptying the water from the bucket body, raise the main body assembly with one hand, and
loosen the two locking catches with the other hand, then empty the water from the bucket.
Attention: Before the water emptying operation, the power source plug must be pulled out; when the
main body of the vacuum cleaner is being taken off, the main body shall not be placed upside down.
13. CLEANING AND REPLACING COMPONENTS
During absorbing water from a container, when the water level is higher than the vacuum cleaner and the
water volume is larger than the bucket volume capacity, it is necessary to carry out the absorbing in
several times. Once the small ball acts, it is necessary to raise the absorbing pipe immediately, otherwi-
se the water will flow into the bucket body automatically, which will lead to the absorbing of excessive
water.
• Clean the water limiting ball frequently, to ensure the small ball’s cleanness and the structure’s free
movement.
• After the water absorbing is completed, please clean the filter and bucket body and dry them by airing
timely for the next operation.
EN
16

Dry absorbing
• Configure the vacuum cleaner in dry absorbing status in conformity to the Table of Component Confi-
guration.
• It is possible to carry out floor or carpet dust absorbing with a floor brush; on occasion of a place with
corners of gaps, it is possible to use a flat absorbing tube to carry out the dust absorbing; and on an
ornamented surface it is possible to use a hairbrush (put it over the flat absorbing tube) to carry out the
dust absorbing.
Wet absorbing
• Before absorbing accumulated water or pools of water, configure the vacuum cleaner in wet absorbing
status in conformity to the Table of Component Configuration. (It is possible to assemble the flat absor-
bing tube in conformity to requirements)
• During wet absorbing, when the water level inside the bucket body reaches a certain height, the small
ball in the water limiting chamber will close the air inlet of the motor; at that time though the motor is still
working, yet the vacuum cleaner refuses to absorb water any longer, and thus to protect the motor.
When the small ball moves, a sound of “puff” will be heard, and the motor works in muffled sound; then
it is the time to prepare for cleaner stopping; before stopping the cleaner, it is necessary to raise the
absorbing tube and turn its inlet upward and then turn off the power supply switch, lest the water inside
the tube flow back to the ground.
• While emptying the water from the bucket body, raise the main body assembly with one hand, and
loosen the two locking catches with the other hand, then empty the water from the bucket.
Attention: Before the water emptying operation, the power source plug must be pulled out; when the
main body of the vacuum cleaner is being taken off, the main body shall not be placed upside down.
13. CLEANING AND REPLACING COMPONENTS
During absorbing water from a container, when the water level is higher than the vacuum cleaner and the
water volume is larger than the bucket volume capacity, it is necessary to carry out the absorbing in
several times. Once the small ball acts, it is necessary to raise the absorbing pipe immediately, otherwi-
se the water will flow into the bucket body automatically, which will lead to the absorbing of excessive
water.
• Clean the water limiting ball frequently, to ensure the small ball’s cleanness and the structure’s free
movement.
• After the water absorbing is completed, please clean the filter and bucket body and dry them by airing
timely for the next operation.
17

EN
14. PROBLEMS SOLVING
• Before entrusting a repair department with the repair, please check the following points first.
Possible causes Removal methods
Check the power plug to see if it is firmly
inserted in the socket.
Check the power socket to see if it is
powered.
Check the power switch of the vacuum
cleaner to see if it is turned on.
Insert the plug in the socket again.
Make it sure that the power
socket is powered.
Turn on the switch.
Check the hose to see if they’ve been
blocked .
Check the bucket body to see if it is filled
with dust.
Check the upper cover to see if it is closed.
Check the filter to see if it is blocked.
Remove the blocking objects
timely.
Clear the dust off the bucket body.
Clean the filter.
The filter is too dirty or it is wet
The bucket body is full of water
The water limiting ball has sealed the
suction inlet.
Clean the filter and dry it by airing
or take it off.
Empty the water from inside the
bucket.
• In case the power cord is damaged, because it needs special-purpose tools for its repairing, so it must
be replaced by the repair point appointed by the manufacturer, and users are kindly requested not to
replace it by themselves.
• Before cleaning and repairing the vacuum cleaner, it is necessary to pull the plug out of the power
socket.
In wet
absorbing,
the cleaner
refuses to
absorb water.
Absorbing
force is
weakened.
Motor
refuses
to rotate.
18

15. TECHNICAL PARAMETERS AND CIRCUIT DIAGRAM
Technical Parameters
Kind of power supply Single phase AC
power supply
Rated input power
Rated voltage Maximum vacuum degree 16 KPa
Rated power Noise 90dB (A)
110 - 220 V
50 - 60 Hz
Circuit Diagram of Model VC-CW1003 Dry and Wet Double
- Purpose Bucket Type Vacuum Cleaner
选用
蓝
褐
(According to
each country
standars)
700 W
AC220~240/50HZ KND2-12/2
0,22 UF C
Q
MOTOR
TMP
19
