USER'S MANUAL
DAX140-2100G
High pressure washer
Water inlet screen
The water inlet lter must be inspected regularly, so as to avoid blockage and restriction in the water
supply to the pump (Fig. 5).
Using detergent
Add detergent to the container. Set the Adjustable Spray Wand at low pressure position. Trigger gun
to spray detergent.
7. GUN SAFETY DEVICE
Whenever you use the high pressure washer, we suggest you grip the in the right position, with one
hand on the handle and the other on the lance, When you stop the machine it is necessary to use
the safety lock placed on the gun in order to avoid accidental.
8. CLEANING PIN INSTRUCTION
• Using included tip cleaner, or an unfolded paper clip, insert wire into the nozzle hole and move
back and forth until debris is dislodged.
• Remove additional debris by back-ushing water through the nozzle. To do this, place end of a
garden hose (with water running) to the end of nozzle for 30-60 seconds.
3. SAFETY REGULATIONS
WARNING: Read all the instructions before using the machine.
WARNING: Machines shall not be used by children. Children should be supervised to ensure that
they do not play with the machine. This machine is not intended for use by persons (including chil-
dren) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge
WARNING: The electrical supply connection shall be made by a qualied person and comply with
IEC 60364-1. The electric supply to this machine should include either a residual current device that
will interrupt the supply if the leakage current to earth exceeds 30 mA for 30 ms or a device that will
prove the earth circuit.
WARNING: The machine is intended to be used at a temperature above o degree. (Only for machine
with power cord of H05VV-F).
WARNING: The operating method to be followed in the event of accident (e.g. contact with deter-
gents: rinse with an abundance of clean water) or breakdown to prevent unsafe situations.
WARNING: This machine has been designed for use with the cleaning agent supplied or recommen-
ded by the manufacturer. The use of other cleaning agents or chemicals may adversely affect the
safety of the machine.
WARNING: Recommend the operator to wear ear protectors.
WARNING: Do not use the machine within range of persons unless they wear protective clothing.
WARNING: Do not direct the jet against yourself or others in order to clean clothes or foot-wear.
WARNING: Risk of explosion-Do not spray ammable liquids.
WARNING: High pressure hoses, ttings and couplings are important for the safety of the machine.
Use only hosed, ttings and couplings recommended by the manufacturer. WARNING: To ensure
machine safety, use only original spare parts from the manufacturer or approved by the manufactu-
rer.
WARNING: Water that has own through backow preventers is considered to the non-potable.
WARNING: The machine shall be disconnected from its power source by removing the plug from
the socket-outlet during cleaning or maintenance and when replacing the machine to another func-
tion.
WARNING: Observe a distance of at least 30cm when using the jet to clean painted surfaces to
avoid damaging paintwork.
WARNING: Do not use the machine if a supply cord or important parts of the machine are damaged,
e.g. safety devices, high pressure hoses, trigger gun.
WARNING: If an extension cord is used, the plug and socket must be of watertight construction.
WARNING: Inadequate extension cords can be dangerous. If an extension cord is used, it shall be
suitable for outdoor use, and the connection has to be kept dry and off the ground. It is recommen-
ded that this is accomplished by means of a cord reel which keeps the socket at least 60mm above
the ground.
WARNING: In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this
appliance must not be supplied through an external switching device, such as a timer, or connected
to a circuit that is regularly switched on and off by the utility.
The machine is not intended to be connected to the potable water mains.
WARNING: To ensure the machine safety, please only use original spare parts
(including nozzle) from the manufacturer or approved by the manufacturer. Do not use
the machine before you changed them if they are damaged.
WARNING: Be care of the danger of the kickback force on the spray assembly when
opening the trigger gun and grasp the gun with hands rmly.
WARNING: To reduce the risk of injury, close supervision is necessary when a machine is used near
children. High-pressure cleaner shall not be used by children or untrained person. WARNING: Know
how to stop the machine and bleed pressures quickly. Be thoroughly familiar with the controls.
WARNING: Stay alert and watch what you are doing.
WARNING: Do not operate the machine when fatigued or under the inuence of alcohol or drugs.
WARNING: Keep operating area clear of all persons.
WARNING: Do not overreach or stand on unstable support. Keep good footing and balance at all
times.
WARNING: Follow the maintenance instructions specied in the manual.
WARNING: This machine must be grounded. If it has malfunction or breakdown, grounding provides
a path of least resistance for electric current to reduce the risk of electric shock. The plug must be
plugged into an appropriate outlet that is properly installed and grounded in accordance with all
local codes and ordinances. The rating voltage (V/Hz) of the machine has to be in compliance with
the local power supplying voltage.
WARNING: Check with a qualied electrician or service personnel if you are in doubt as to whether
the outlet is properly grounded. Do not modify the plug provided with the machine. If it will not t
the outlet, have a proper outlet installed by a qualied electrician. Do not use any type of adapter
with this machine.
WARNING: Use only 3-wire extension cords that have 3-prong grounding-type plugs and 3-pole
cord connectors that accept the plug from the machine. Use only extension cords that are intended
for outdoor use and the socket must be of watertight construction. These extension cords are
identied by a marking "Acceptable for use with outdoor machines; store indoors while not in use."
Use only extension cords having an electrical rating not less than the rating of the machine. Do not
use damaged extension cords. Examine extension cord before using and replace if damaged.
Inadequate extension cords can be dangerous. Do not abuse extension cord and do not yank on
any cord to disconnect. Keep cord away from heat and sharp edges. Always disconnect the exten-
sion cord from the receptacle before disconnecting the machine from the extension cord.
WARNING: To reduce the risk of electrocution, don’t start and run the machine in the rain or storm.
Keep all connections dry and off the ground. Do not touch plug with wet hands. It is strictly prohibi-
ted to let water leak into the machine.
WARNING: When the machine is turned on, the interior pumps start and continue to run even if the
pressure wand trigger has not been depressed. Running the machine for more than 3 minutes
without depressing the pressure wand trigger could cause heat damage to the motor and pumps,
Please do not leave the machine running unattended or unused for more than 3 minutes.
WARNING: When the machine is running, please maintain a constant water supply. Without water
circulation will damage the sealing rings of the machine.
WARNING: It is necessary to turn on the spray lance within one or two minutes after the machine
has been started. Otherwise, the temperature of the circulating water within the machine will soon
rise to a critical point, which will cause damage to the sealing rings inside the machine. WARNING:
Don’t start and run the machine in a place excessively cold so as to prevent the machine from the
freezing current.
WARNING: This machine has been designed for only using cleaning water, do not use corrosive
chemicals.
WARNING: Use cleaning agent supplied or recommend by the manufacturer.
WARNING: High-pressure jets can be dangerous if subject to misuse.
The jet must not be directed at persons, animals, live electrical equipment or the
machine itself. Pressure washers should not be pointed at tire walls, as it may be
possible to damage them.
WARNING: Do not direct the jet against yourself or others in order to clean clothes or footwear.
WARNING: Disconnect from the electrical power supply before carrying out user maintenance. If the
mains cable is damaged it must be replaced by the manufacturer, or its service agent or similarly
qualied person to avoid a hazard.
WARNING: Do not use the machine if a supply cord or important parts are damaged, e.g. safety
devices, high pressure hoses, trigger gun.
WARNING: Be aware of the recoil caused by the water jet when the machine is switched on.
WARNING: When the machine is moving and installing, the machine must be in at. When moving
the machine, pulling the handle to move it.
WARNING:Connect to the water supply. The machines are not suitable for connection to portable
water mains. Connect the machine to the water supply. (It can be a water container). Make sure the
inlet water pressure keeps between 0.01MPa and 0.4MPa.The inlet pipe should at least 5 M long. Do
not use the pipe if the pipe is damaged. If you want connect this machine to portable water mains,
you must install a backow preventer in the water pipe to prevent dirty water ow back to the drin-
king water system. The backow preventer shall comply with EN 60335-2-79 ANNEX AA.
4. OPERATING INSTRUCTIONS
This unit is to be connected to a cold water source ONLY.
The motor of this pressure washer will NOT run. It will only operate when the trigger is squeezed.
• Connect the outlet hose to the washer and connect the spray gun to the outlet hose.
• Connect nozzle and nozzle extension.
• Check gauze lter is clear of any blockage.
• Connect the water supply hose.
• Check that the hose has no kinks in it.
• Turn on water and check for leaks.
• Depress trigger to allow air to be expelled though the pump and hoses, lock trigger.

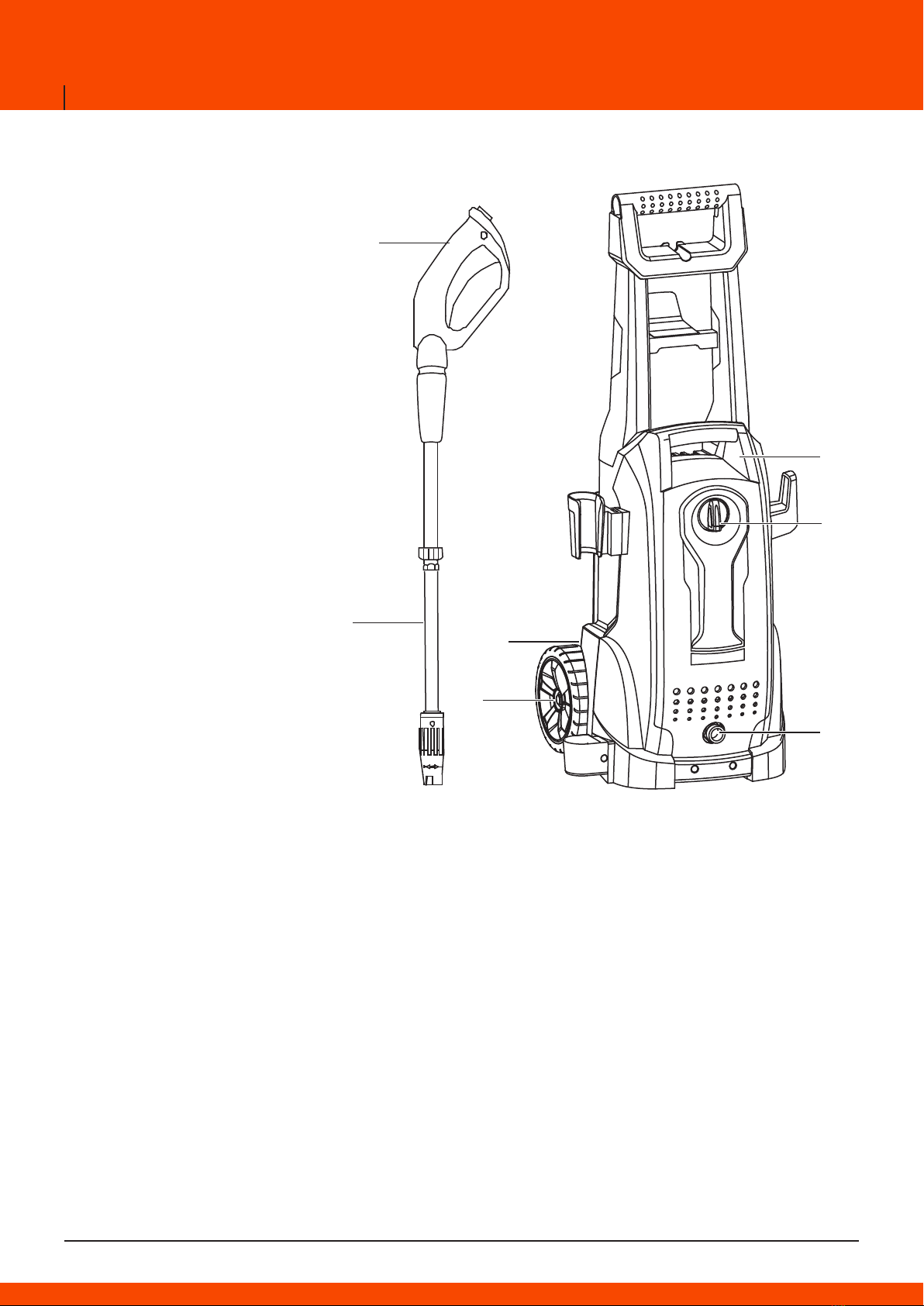

1. OVERVIEW
1. Water inlet
2. ON/OFF switch
3. High pressure washer
4. Water outlet (backside)
5. Mobile adapter bracket with wheel
6. Adjustable Spray Wand
7. Gun
2. APPLICATION
The high pressure washer is a highly specialized multifunctional machine with exceptionally reliable
safety assurance, which may be used to wash and clean cars, bikes and other outdoor equipment
or garden patios, green houses etc.
Helpful Hints for Getting Started Automatic ON/OFF:
The motor on this pressure washer does not run continuously. It only runs when the trigger of the
spray gun is squeezed. After following the start up procedures in this manual, turn the pressure
washer ON and squeeze the trigger for activation. See “Operating Instruction” section in this manual
for further details.
Bleeding the gun
It is very important to bleed the gun before using the pressure washer. Squeeze the trigger to allow
any air that is trapped inside of the unit and hose to escape. Continue to squeeze trigger until a
steady stream of water comes from the nozzle. (This process may take up to 2 minutes). See “Ope-
rating Instructions” section for this process.
• Plug in machine and turn on switch.
• Unlock trigger and use the pressure washer.
5. SHUT DOWN
1. Turn off the motor(push switch to the off position).
2. Unplug the unit from the power source.
3. Turn off the water supply.
4. Press the trigger of the gun to depressurize the system.
5. Disconnect the garden hose from the pressure washer.
6. Wipe all surfaces of the unit with a damp clean cloth.
7. Engage the gun safety lock.
CAUTION: ALWAYS turn off the unit’s motor BEFORE turning off the unit’s water supply. Serious
damage could occur to the motor if the unit is run without water.
CAUTION: NEVER disconnect the high-pressure discharge hose from the machine while the system
is still pressurized. To depressurize the unit, turn off the motor, turn off the water supply and
squeeze the trigger 2-3 times.

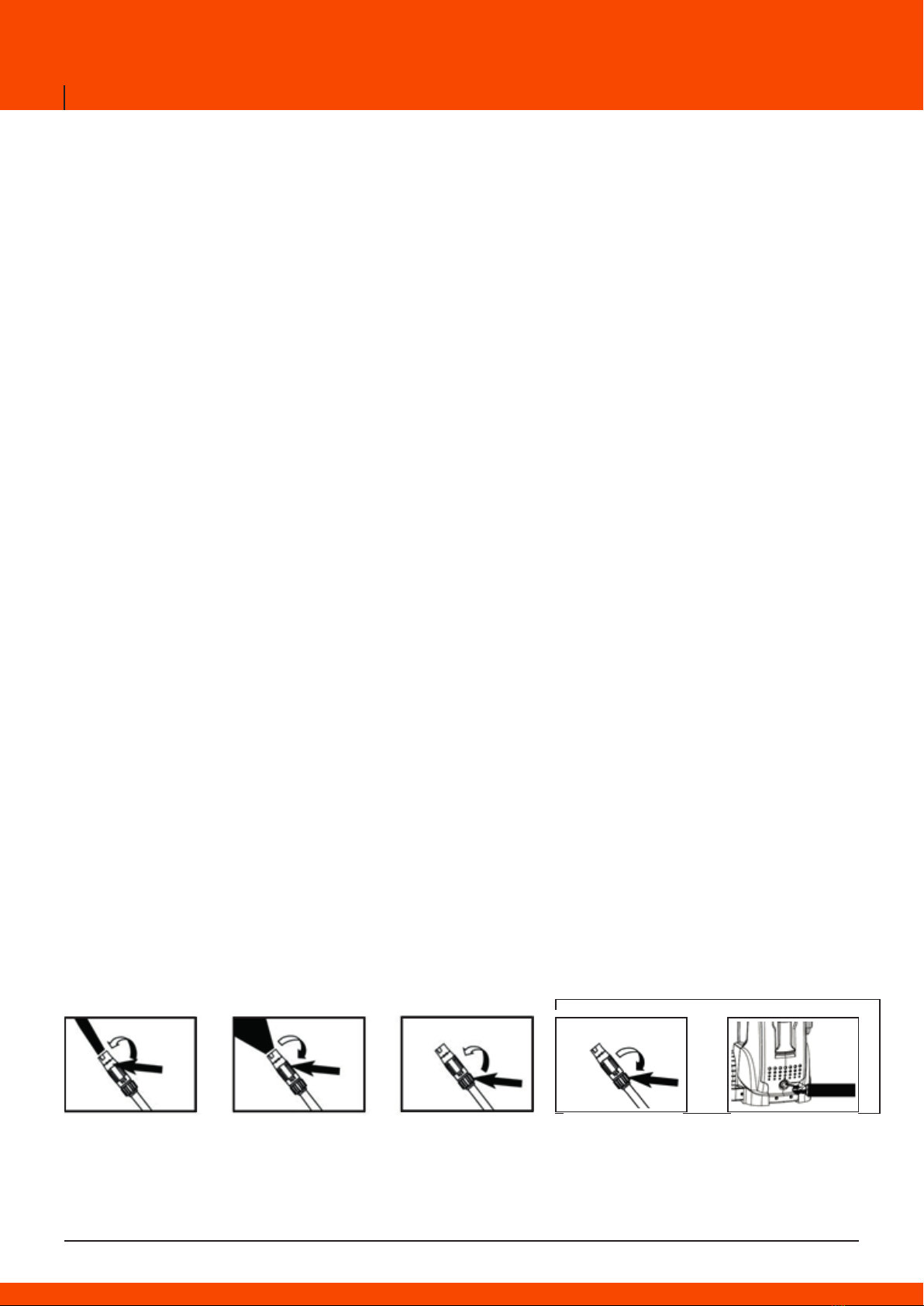

6. ADJUSTABLE SPRAY NOZZLE
Turn off the spray lance rst, hold the rear part of spray nozzle, then turn the front part of spray
nozzle clockwise, Water may be sprayed out from the spray nozzle in fan shapes (Fig. 2); Turn the
front part of spray nozzle anti-clockwise, water may be sprayed out from the spray nozzle linearly
(Fig. 1).
CAUTION: Water should be sprayed out from the spray nozzle in fan shapes (Fig. 2), when cleaning
the car or other vehicle.
Low/High pressure adjustable lance
Using high pressure:
Please make sure the trigger released and there is not any water spraying. then turn the rear part of
spray nozzle wither shins (Fig. 4). Squeeze the trigger, the gun will spray water with high pressure.
Using low pressure
Please make sure the trigger released and there is not any water spraying. then turn the rear part of
spray nozzle clockwise (Fig. 3). Squeeze the trigger, the gun will spray water with low pressure.
CAUTION: Selection of high or low pressure by turning action. The selection of the pressure must be
carried out with the gun in closed position.
INDEX
1
.OVERVIEW ............................................................................................................................................... 3
2
.APPLICATION .......................................................................................................................................... 3
3
.SAFETY REGULATIONS ....................................................................................................................... 4
4
.OPERATING INSTRUCTIONS ................................................................................................................ 6
5
.SHUT DOWN ............................................................................................................................................ 7
6
.ADJUSTABLE SPRAY NOZZLE ............................................................................................................... 7
7
.GUN SAFETY DEVICE ............................................................................................................................. 8
8
.CLEANING PIN INSTRUCTION .............................................................................................................. 8
9
.POSSIBLE PROBLEM AND SOLUTION ................................................................................................ 9
10
.ELECTRICAL DIAGRAM ...................................................................................................................... 10
11. INSTALLATION, ELECTRICAL AND WATER CONNECTIONS
......................................................... 10
12. INSPECTION AND MAINTENANCE
................................................................................................... 11
13. TECHNICAL SPECIFICATIONS
.......................................................................................................... 11
14. EXPLODED VIEW AND SPARE PART LIST
..................................................................................... 12
WARRANTY ................................................................................................................................................. 1
2
Water inlet screen
The water inlet lter must be inspected regularly, so as to avoid blockage and restriction in the water
supply to the pump (Fig. 5).
Using detergent
Add detergent to the container. Set the Adjustable Spray Wand at low pressure position. Trigger gun
to spray detergent.
7. GUN SAFETY DEVICE
Whenever you use the high pressure washer, we suggest you grip the in the right position, with one
hand on the handle and the other on the lance, When you stop the machine it is necessary to use
the safety lock placed on the gun in order to avoid accidental.
8. CLEANING PIN INSTRUCTION
• Using included tip cleaner, or an unfolded paper clip, insert wire into the nozzle hole and move
back and forth until debris is dislodged.
• Remove additional debris by back-ushing water through the nozzle. To do this, place end of a
garden hose (with water running) to the end of nozzle for 30-60 seconds.
3. SAFETY REGULATIONS
WARNING: Read all the instructions before using the machine.
WARNING: Machines shall not be used by children. Children should be supervised to ensure that
they do not play with the machine. This machine is not intended for use by persons (including chil-
dren) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge
WARNING: The electrical supply connection shall be made by a qualied person and comply with
IEC 60364-1. The electric supply to this machine should include either a residual current device that
will interrupt the supply if the leakage current to earth exceeds 30 mA for 30 ms or a device that will
prove the earth circuit.
WARNING: The machine is intended to be used at a temperature above o degree. (Only for machine
with power cord of H05VV-F).
WARNING: The operating method to be followed in the event of accident (e.g. contact with deter-
gents: rinse with an abundance of clean water) or breakdown to prevent unsafe situations.
WARNING: This machine has been designed for use with the cleaning agent supplied or recommen-
ded by the manufacturer. The use of other cleaning agents or chemicals may adversely affect the
safety of the machine.
WARNING: Recommend the operator to wear ear protectors.
WARNING: Do not use the machine within range of persons unless they wear protective clothing.
WARNING: Do not direct the jet against yourself or others in order to clean clothes or foot-wear.
WARNING: Risk of explosion-Do not spray ammable liquids.
WARNING: High pressure hoses, ttings and couplings are important for the safety of the machine.
Use only hosed, ttings and couplings recommended by the manufacturer. WARNING: To ensure
machine safety, use only original spare parts from the manufacturer or approved by the manufactu-
rer.
WARNING: Water that has own through backow preventers is considered to the non-potable.
WARNING: The machine shall be disconnected from its power source by removing the plug from
the socket-outlet during cleaning or maintenance and when replacing the machine to another func-
tion.
WARNING: Observe a distance of at least 30cm when using the jet to clean painted surfaces to
avoid damaging paintwork.
WARNING: Do not use the machine if a supply cord or important parts of the machine are damaged,
e.g. safety devices, high pressure hoses, trigger gun.
WARNING: If an extension cord is used, the plug and socket must be of watertight construction.
WARNING: Inadequate extension cords can be dangerous. If an extension cord is used, it shall be
suitable for outdoor use, and the connection has to be kept dry and off the ground. It is recommen-
ded that this is accomplished by means of a cord reel which keeps the socket at least 60mm above
the ground.
WARNING: In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this
appliance must not be supplied through an external switching device, such as a timer, or connected
to a circuit that is regularly switched on and off by the utility.
The machine is not intended to be connected to the potable water mains.
WARNING: To ensure the machine safety, please only use original spare parts
(including nozzle) from the manufacturer or approved by the manufacturer. Do not use
the machine before you changed them if they are damaged.
WARNING: Be care of the danger of the kickback force on the spray assembly when
opening the trigger gun and grasp the gun with hands rmly.
WARNING: To reduce the risk of injury, close supervision is necessary when a machine is used near
children. High-pressure cleaner shall not be used by children or untrained person. WARNING: Know
how to stop the machine and bleed pressures quickly. Be thoroughly familiar with the controls.
WARNING: Stay alert and watch what you are doing.
WARNING: Do not operate the machine when fatigued or under the inuence of alcohol or drugs.
WARNING: Keep operating area clear of all persons.
WARNING: Do not overreach or stand on unstable support. Keep good footing and balance at all
times.
WARNING: Follow the maintenance instructions specied in the manual.
WARNING: This machine must be grounded. If it has malfunction or breakdown, grounding provides
a path of least resistance for electric current to reduce the risk of electric shock. The plug must be
plugged into an appropriate outlet that is properly installed and grounded in accordance with all
local codes and ordinances. The rating voltage (V/Hz) of the machine has to be in compliance with
the local power supplying voltage.
WARNING: Check with a qualied electrician or service personnel if you are in doubt as to whether
the outlet is properly grounded. Do not modify the plug provided with the machine. If it will not t
the outlet, have a proper outlet installed by a qualied electrician. Do not use any type of adapter
with this machine.
WARNING: Use only 3-wire extension cords that have 3-prong grounding-type plugs and 3-pole
cord connectors that accept the plug from the machine. Use only extension cords that are intended
for outdoor use and the socket must be of watertight construction. These extension cords are
identied by a marking "Acceptable for use with outdoor machines; store indoors while not in use."
Use only extension cords having an electrical rating not less than the rating of the machine. Do not
use damaged extension cords. Examine extension cord before using and replace if damaged.
Inadequate extension cords can be dangerous. Do not abuse extension cord and do not yank on
any cord to disconnect. Keep cord away from heat and sharp edges. Always disconnect the exten-
sion cord from the receptacle before disconnecting the machine from the extension cord.
WARNING: To reduce the risk of electrocution, don’t start and run the machine in the rain or storm.
Keep all connections dry and off the ground. Do not touch plug with wet hands. It is strictly prohibi-
ted to let water leak into the machine.
WARNING: When the machine is turned on, the interior pumps start and continue to run even if the
pressure wand trigger has not been depressed. Running the machine for more than 3 minutes
without depressing the pressure wand trigger could cause heat damage to the motor and pumps,
Please do not leave the machine running unattended or unused for more than 3 minutes.
WARNING: When the machine is running, please maintain a constant water supply. Without water
circulation will damage the sealing rings of the machine.
WARNING: It is necessary to turn on the spray lance within one or two minutes after the machine
has been started. Otherwise, the temperature of the circulating water within the machine will soon
rise to a critical point, which will cause damage to the sealing rings inside the machine. WARNING:
Don’t start and run the machine in a place excessively cold so as to prevent the machine from the
freezing current.
WARNING: This machine has been designed for only using cleaning water, do not use corrosive
chemicals.
WARNING: Use cleaning agent supplied or recommend by the manufacturer.
WARNING: High-pressure jets can be dangerous if subject to misuse.
The jet must not be directed at persons, animals, live electrical equipment or the
machine itself. Pressure washers should not be pointed at tire walls, as it may be
possible to damage them.
WARNING: Do not direct the jet against yourself or others in order to clean clothes or footwear.
WARNING: Disconnect from the electrical power supply before carrying out user maintenance. If the
mains cable is damaged it must be replaced by the manufacturer, or its service agent or similarly
qualied person to avoid a hazard.
WARNING: Do not use the machine if a supply cord or important parts are damaged, e.g. safety
devices, high pressure hoses, trigger gun.
WARNING: Be aware of the recoil caused by the water jet when the machine is switched on.
WARNING: When the machine is moving and installing, the machine must be in at. When moving
the machine, pulling the handle to move it.
WARNING:Connect to the water supply. The machines are not suitable for connection to portable
water mains. Connect the machine to the water supply. (It can be a water container). Make sure the
inlet water pressure keeps between 0.01MPa and 0.4MPa.The inlet pipe should at least 5 M long. Do
not use the pipe if the pipe is damaged. If you want connect this machine to portable water mains,
you must install a backow preventer in the water pipe to prevent dirty water ow back to the drin-
king water system. The backow preventer shall comply with EN 60335-2-79 ANNEX AA.
4. OPERATING INSTRUCTIONS
This unit is to be connected to a cold water source ONLY.
The motor of this pressure washer will NOT run. It will only operate when the trigger is squeezed.
• Connect the outlet hose to the washer and connect the spray gun to the outlet hose.
• Connect nozzle and nozzle extension.
• Check gauze lter is clear of any blockage.
• Connect the water supply hose.
• Check that the hose has no kinks in it.
• Turn on water and check for leaks.
• Depress trigger to allow air to be expelled though the pump and hoses, lock trigger.
1. OVERVIEW
1. Water inlet
2. ON/OFF switch
3. High pressure washer
4. Water outlet (backside)
5. Mobile adapter bracket with wheel
6. Adjustable Spray Wand
7. Gun
2. APPLICATION
The high pressure washer is a highly specialized multifunctional machine with exceptionally reliable
safety assurance, which may be used to wash and clean cars, bikes and other outdoor equipment
or garden patios, green houses etc.
Helpful Hints for Getting Started Automatic ON/OFF:
The motor on this pressure washer does not run continuously. It only runs when the trigger of the
spray gun is squeezed. After following the start up procedures in this manual, turn the pressure
washer ON and squeeze the trigger for activation. See “Operating Instruction” section in this manual
for further details.
Bleeding the gun
It is very important to bleed the gun before using the pressure washer. Squeeze the trigger to allow
any air that is trapped inside of the unit and hose to escape. Continue to squeeze trigger until a
steady stream of water comes from the nozzle. (This process may take up to 2 minutes). See “Ope-
rating Instructions” section for this process.
• Plug in machine and turn on switch.
• Unlock trigger and use the pressure washer.
5. SHUT DOWN
1. Turn off the motor(push switch to the off position).
2. Unplug the unit from the power source.
3. Turn off the water supply.
4. Press the trigger of the gun to depressurize the system.
5. Disconnect the garden hose from the pressure washer.
6. Wipe all surfaces of the unit with a damp clean cloth.
7. Engage the gun safety lock.
CAUTION: ALWAYS turn off the unit’s motor BEFORE turning off the unit’s water supply. Serious
damage could occur to the motor if the unit is run without water.
CAUTION: NEVER disconnect the high-pressure discharge hose from the machine while the system
is still pressurized. To depressurize the unit, turn off the motor, turn off the water supply and
squeeze the trigger 2-3 times.
6. ADJUSTABLE SPRAY NOZZLE
Turn off the spray lance rst, hold the rear part of spray nozzle, then turn the front part of spray
nozzle clockwise, Water may be sprayed out from the spray nozzle in fan shapes (Fig. 2); Turn the
front part of spray nozzle anti-clockwise, water may be sprayed out from the spray nozzle linearly
(Fig. 1).
CAUTION: Water should be sprayed out from the spray nozzle in fan shapes (Fig. 2), when cleaning
the car or other vehicle.
Low/High pressure adjustable lance
Using high pressure:
Please make sure the trigger released and there is not any water spraying. then turn the rear part of
spray nozzle wither shins (Fig. 4). Squeeze the trigger, the gun will spray water with high pressure.
Using low pressure
Please make sure the trigger released and there is not any water spraying. then turn the rear part of
spray nozzle clockwise (Fig. 3). Squeeze the trigger, the gun will spray water with low pressure.
CAUTION: Selection of high or low pressure by turning action. The selection of the pressure must be
carried out with the gun in closed position.
EN
3
5
1
2
3
Water inlet screen
The water inlet lter must be inspected regularly, so as to avoid blockage and restriction in the water
supply to the pump (Fig. 5).
Using detergent
Add detergent to the container. Set the Adjustable Spray Wand at low pressure position. Trigger gun
to spray detergent.
7. GUN SAFETY DEVICE
Whenever you use the high pressure washer, we suggest you grip the in the right position, with one
hand on the handle and the other on the lance, When you stop the machine it is necessary to use
the safety lock placed on the gun in order to avoid accidental.
8. CLEANING PIN INSTRUCTION
• Using included tip cleaner, or an unfolded paper clip, insert wire into the nozzle hole and move
back and forth until debris is dislodged.
• Remove additional debris by back-ushing water through the nozzle. To do this, place end of a
garden hose (with water running) to the end of nozzle for 30-60 seconds.
3. SAFETY REGULATIONS
WARNING: Read all the instructions before using the machine.
WARNING: Machines shall not be used by children. Children should be supervised to ensure that
they do not play with the machine. This machine is not intended for use by persons (including chil-
dren) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge
WARNING: The electrical supply connection shall be made by a qualied person and comply with
IEC 60364-1. The electric supply to this machine should include either a residual current device that
will interrupt the supply if the leakage current to earth exceeds 30 mA for 30 ms or a device that will
prove the earth circuit.
WARNING: The machine is intended to be used at a temperature above o degree. (Only for machine
with power cord of H05VV-F).
WARNING: The operating method to be followed in the event of accident (e.g. contact with deter-
gents: rinse with an abundance of clean water) or breakdown to prevent unsafe situations.
WARNING: This machine has been designed for use with the cleaning agent supplied or recommen-
ded by the manufacturer. The use of other cleaning agents or chemicals may adversely affect the
safety of the machine.
WARNING: Recommend the operator to wear ear protectors.
WARNING: Do not use the machine within range of persons unless they wear protective clothing.
WARNING: Do not direct the jet against yourself or others in order to clean clothes or foot-wear.
WARNING: Risk of explosion-Do not spray ammable liquids.
WARNING: High pressure hoses, ttings and couplings are important for the safety of the machine.
Use only hosed, ttings and couplings recommended by the manufacturer. WARNING: To ensure
machine safety, use only original spare parts from the manufacturer or approved by the manufactu-
rer.
WARNING: Water that has own through backow preventers is considered to the non-potable.
WARNING: The machine shall be disconnected from its power source by removing the plug from
the socket-outlet during cleaning or maintenance and when replacing the machine to another func-
tion.
WARNING: Observe a distance of at least 30cm when using the jet to clean painted surfaces to
avoid damaging paintwork.
WARNING: Do not use the machine if a supply cord or important parts of the machine are damaged,
e.g. safety devices, high pressure hoses, trigger gun.
WARNING: If an extension cord is used, the plug and socket must be of watertight construction.
WARNING: Inadequate extension cords can be dangerous. If an extension cord is used, it shall be
suitable for outdoor use, and the connection has to be kept dry and off the ground. It is recommen-
ded that this is accomplished by means of a cord reel which keeps the socket at least 60mm above
the ground.
WARNING: In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this
appliance must not be supplied through an external switching device, such as a timer, or connected
to a circuit that is regularly switched on and off by the utility.
The machine is not intended to be connected to the potable water mains.
WARNING: To ensure the machine safety, please only use original spare parts
(including nozzle) from the manufacturer or approved by the manufacturer. Do not use
the machine before you changed them if they are damaged.
WARNING: Be care of the danger of the kickback force on the spray assembly when
opening the trigger gun and grasp the gun with hands rmly.
WARNING: To reduce the risk of injury, close supervision is necessary when a machine is used near
children. High-pressure cleaner shall not be used by children or untrained person. WARNING: Know
how to stop the machine and bleed pressures quickly. Be thoroughly familiar with the controls.
WARNING: Stay alert and watch what you are doing.
WARNING: Do not operate the machine when fatigued or under the inuence of alcohol or drugs.
WARNING: Keep operating area clear of all persons.
WARNING: Do not overreach or stand on unstable support. Keep good footing and balance at all
times.
WARNING: Follow the maintenance instructions specied in the manual.
WARNING: This machine must be grounded. If it has malfunction or breakdown, grounding provides
a path of least resistance for electric current to reduce the risk of electric shock. The plug must be
plugged into an appropriate outlet that is properly installed and grounded in accordance with all
local codes and ordinances. The rating voltage (V/Hz) of the machine has to be in compliance with
the local power supplying voltage.
WARNING: Check with a qualied electrician or service personnel if you are in doubt as to whether
the outlet is properly grounded. Do not modify the plug provided with the machine. If it will not t
the outlet, have a proper outlet installed by a qualied electrician. Do not use any type of adapter
with this machine.
WARNING: Use only 3-wire extension cords that have 3-prong grounding-type plugs and 3-pole
cord connectors that accept the plug from the machine. Use only extension cords that are intended
for outdoor use and the socket must be of watertight construction. These extension cords are
identied by a marking "Acceptable for use with outdoor machines; store indoors while not in use."
Use only extension cords having an electrical rating not less than the rating of the machine. Do not
use damaged extension cords. Examine extension cord before using and replace if damaged.
Inadequate extension cords can be dangerous. Do not abuse extension cord and do not yank on
any cord to disconnect. Keep cord away from heat and sharp edges. Always disconnect the exten-
sion cord from the receptacle before disconnecting the machine from the extension cord.
WARNING: To reduce the risk of electrocution, don’t start and run the machine in the rain or storm.
Keep all connections dry and off the ground. Do not touch plug with wet hands. It is strictly prohibi-
ted to let water leak into the machine.
WARNING: When the machine is turned on, the interior pumps start and continue to run even if the
pressure wand trigger has not been depressed. Running the machine for more than 3 minutes
without depressing the pressure wand trigger could cause heat damage to the motor and pumps,
Please do not leave the machine running unattended or unused for more than 3 minutes.
WARNING: When the machine is running, please maintain a constant water supply. Without water
circulation will damage the sealing rings of the machine.
WARNING: It is necessary to turn on the spray lance within one or two minutes after the machine
has been started. Otherwise, the temperature of the circulating water within the machine will soon
rise to a critical point, which will cause damage to the sealing rings inside the machine. WARNING:
Don’t start and run the machine in a place excessively cold so as to prevent the machine from the
freezing current.
WARNING: This machine has been designed for only using cleaning water, do not use corrosive
chemicals.
WARNING: Use cleaning agent supplied or recommend by the manufacturer.
WARNING: High-pressure jets can be dangerous if subject to misuse.
The jet must not be directed at persons, animals, live electrical equipment or the
machine itself. Pressure washers should not be pointed at tire walls, as it may be
possible to damage them.
WARNING: Do not direct the jet against yourself or others in order to clean clothes or footwear.
WARNING: Disconnect from the electrical power supply before carrying out user maintenance. If the
mains cable is damaged it must be replaced by the manufacturer, or its service agent or similarly
qualied person to avoid a hazard.
WARNING: Do not use the machine if a supply cord or important parts are damaged, e.g. safety
devices, high pressure hoses, trigger gun.
WARNING: Be aware of the recoil caused by the water jet when the machine is switched on.
WARNING: When the machine is moving and installing, the machine must be in at. When moving
the machine, pulling the handle to move it.
WARNING:Connect to the water supply. The machines are not suitable for connection to portable
water mains. Connect the machine to the water supply. (It can be a water container). Make sure the
inlet water pressure keeps between 0.01MPa and 0.4MPa.The inlet pipe should at least 5 M long. Do
not use the pipe if the pipe is damaged. If you want connect this machine to portable water mains,
you must install a backow preventer in the water pipe to prevent dirty water ow back to the drin-
king water system. The backow preventer shall comply with EN 60335-2-79 ANNEX AA.
4. OPERATING INSTRUCTIONS
This unit is to be connected to a cold water source ONLY.
The motor of this pressure washer will NOT run. It will only operate when the trigger is squeezed.
• Connect the outlet hose to the washer and connect the spray gun to the outlet hose.
• Connect nozzle and nozzle extension.
• Check gauze lter is clear of any blockage.
• Connect the water supply hose.
• Check that the hose has no kinks in it.
• Turn on water and check for leaks.
• Depress trigger to allow air to be expelled though the pump and hoses, lock trigger.
1. OVERVIEW
1. Water inlet
2. ON/OFF switch
3. High pressure washer
4. Water outlet (backside)
5. Mobile adapter bracket with wheel
6. Adjustable Spray Wand
7. Gun
2. APPLICATION
The high pressure washer is a highly specialized multifunctional machine with exceptionally reliable
safety assurance, which may be used to wash and clean cars, bikes and other outdoor equipment
or garden patios, green houses etc.
Helpful Hints for Getting Started Automatic ON/OFF:
The motor on this pressure washer does not run continuously. It only runs when the trigger of the
spray gun is squeezed. After following the start up procedures in this manual, turn the pressure
washer ON and squeeze the trigger for activation. See “Operating Instruction” section in this manual
for further details.
Bleeding the gun
It is very important to bleed the gun before using the pressure washer. Squeeze the trigger to allow
any air that is trapped inside of the unit and hose to escape. Continue to squeeze trigger until a
steady stream of water comes from the nozzle. (This process may take up to 2 minutes). See “Ope-
rating Instructions” section for this process.
7
6
4
• Plug in machine and turn on switch.
• Unlock trigger and use the pressure washer.
5. SHUT DOWN
1. Turn off the motor(push switch to the off position).
2. Unplug the unit from the power source.
3. Turn off the water supply.
4. Press the trigger of the gun to depressurize the system.
5. Disconnect the garden hose from the pressure washer.
6. Wipe all surfaces of the unit with a damp clean cloth.
7. Engage the gun safety lock.
CAUTION: ALWAYS turn off the unit’s motor BEFORE turning off the unit’s water supply. Serious
damage could occur to the motor if the unit is run without water.
CAUTION: NEVER disconnect the high-pressure discharge hose from the machine while the system
is still pressurized. To depressurize the unit, turn off the motor, turn off the water supply and
squeeze the trigger 2-3 times.
6. ADJUSTABLE SPRAY NOZZLE
Turn off the spray lance rst, hold the rear part of spray nozzle, then turn the front part of spray
nozzle clockwise, Water may be sprayed out from the spray nozzle in fan shapes (Fig. 2); Turn the
front part of spray nozzle anti-clockwise, water may be sprayed out from the spray nozzle linearly
(Fig. 1).
CAUTION: Water should be sprayed out from the spray nozzle in fan shapes (Fig. 2), when cleaning
the car or other vehicle.
Low/High pressure adjustable lance
Using high pressure:
Please make sure the trigger released and there is not any water spraying. then turn the rear part of
spray nozzle wither shins (Fig. 4). Squeeze the trigger, the gun will spray water with high pressure.
Using low pressure
Please make sure the trigger released and there is not any water spraying. then turn the rear part of
spray nozzle clockwise (Fig. 3). Squeeze the trigger, the gun will spray water with low pressure.
CAUTION: Selection of high or low pressure by turning action. The selection of the pressure must be
carried out with the gun in closed position.
4
Water inlet screen
The water inlet lter must be inspected regularly, so as to avoid blockage and restriction in the water
supply to the pump (Fig. 5).
Using detergent
Add detergent to the container. Set the Adjustable Spray Wand at low pressure position. Trigger gun
to spray detergent.
7. GUN SAFETY DEVICE
Whenever you use the high pressure washer, we suggest you grip the in the right position, with one
hand on the handle and the other on the lance, When you stop the machine it is necessary to use
the safety lock placed on the gun in order to avoid accidental.
8. CLEANING PIN INSTRUCTION
• Using included tip cleaner, or an unfolded paper clip, insert wire into the nozzle hole and move
back and forth until debris is dislodged.
• Remove additional debris by back-ushing water through the nozzle. To do this, place end of a
garden hose (with water running) to the end of nozzle for 30-60 seconds.
3. SAFETY REGULATIONS
WARNING: Read all the instructions before using the machine.
WARNING: Machines shall not be used by children. Children should be supervised to ensure that
they do not play with the machine. This machine is not intended for use by persons (including chil-
dren) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge
WARNING: The electrical supply connection shall be made by a qualied person and comply with
IEC 60364-1. The electric supply to this machine should include either a residual current device that
will interrupt the supply if the leakage current to earth exceeds 30 mA for 30 ms or a device that will
prove the earth circuit.
WARNING: The machine is intended to be used at a temperature above o degree. (Only for machine
with power cord of H05VV-F).
WARNING: The operating method to be followed in the event of accident (e.g. contact with deter-
gents: rinse with an abundance of clean water) or breakdown to prevent unsafe situations.
WARNING: This machine has been designed for use with the cleaning agent supplied or recommen-
ded by the manufacturer. The use of other cleaning agents or chemicals may adversely affect the
safety of the machine.
WARNING: Recommend the operator to wear ear protectors.
WARNING: Do not use the machine within range of persons unless they wear protective clothing.
WARNING: Do not direct the jet against yourself or others in order to clean clothes or foot-wear.
WARNING: Risk of explosion-Do not spray ammable liquids.
WARNING: High pressure hoses, ttings and couplings are important for the safety of the machine.
Use only hosed, ttings and couplings recommended by the manufacturer. WARNING: To ensure
machine safety, use only original spare parts from the manufacturer or approved by the manufactu-
rer.
WARNING: Water that has own through backow preventers is considered to the non-potable.
WARNING: The machine shall be disconnected from its power source by removing the plug from
the socket-outlet during cleaning or maintenance and when replacing the machine to another func-
tion.
WARNING: Observe a distance of at least 30cm when using the jet to clean painted surfaces to
avoid damaging paintwork.
WARNING: Do not use the machine if a supply cord or important parts of the machine are damaged,
e.g. safety devices, high pressure hoses, trigger gun.
WARNING: If an extension cord is used, the plug and socket must be of watertight construction.
WARNING: Inadequate extension cords can be dangerous. If an extension cord is used, it shall be
suitable for outdoor use, and the connection has to be kept dry and off the ground. It is recommen-
ded that this is accomplished by means of a cord reel which keeps the socket at least 60mm above
the ground.
WARNING: In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this
appliance must not be supplied through an external switching device, such as a timer, or connected
to a circuit that is regularly switched on and off by the utility.
The machine is not intended to be connected to the potable water mains.
WARNING: To ensure the machine safety, please only use original spare parts
(including nozzle) from the manufacturer or approved by the manufacturer. Do not use
the machine before you changed them if they are damaged.
WARNING: Be care of the danger of the kickback force on the spray assembly when
opening the trigger gun and grasp the gun with hands rmly.
WARNING: To reduce the risk of injury, close supervision is necessary when a machine is used near
children. High-pressure cleaner shall not be used by children or untrained person. WARNING: Know
how to stop the machine and bleed pressures quickly. Be thoroughly familiar with the controls.
WARNING: Stay alert and watch what you are doing.
WARNING: Do not operate the machine when fatigued or under the inuence of alcohol or drugs.
WARNING: Keep operating area clear of all persons.
WARNING: Do not overreach or stand on unstable support. Keep good footing and balance at all
times.
WARNING: Follow the maintenance instructions specied in the manual.
WARNING: This machine must be grounded. If it has malfunction or breakdown, grounding provides
a path of least resistance for electric current to reduce the risk of electric shock. The plug must be
plugged into an appropriate outlet that is properly installed and grounded in accordance with all
local codes and ordinances. The rating voltage (V/Hz) of the machine has to be in compliance with
the local power supplying voltage.
WARNING: Check with a qualied electrician or service personnel if you are in doubt as to whether
the outlet is properly grounded. Do not modify the plug provided with the machine. If it will not t
the outlet, have a proper outlet installed by a qualied electrician. Do not use any type of adapter
with this machine.
WARNING: Use only 3-wire extension cords that have 3-prong grounding-type plugs and 3-pole
cord connectors that accept the plug from the machine. Use only extension cords that are intended
for outdoor use and the socket must be of watertight construction. These extension cords are
identied by a marking "Acceptable for use with outdoor machines; store indoors while not in use."
Use only extension cords having an electrical rating not less than the rating of the machine. Do not
use damaged extension cords. Examine extension cord before using and replace if damaged.
Inadequate extension cords can be dangerous. Do not abuse extension cord and do not yank on
any cord to disconnect. Keep cord away from heat and sharp edges. Always disconnect the exten-
sion cord from the receptacle before disconnecting the machine from the extension cord.
WARNING: To reduce the risk of electrocution, don’t start and run the machine in the rain or storm.
Keep all connections dry and off the ground. Do not touch plug with wet hands. It is strictly prohibi-
ted to let water leak into the machine.
WARNING: When the machine is turned on, the interior pumps start and continue to run even if the
pressure wand trigger has not been depressed. Running the machine for more than 3 minutes
without depressing the pressure wand trigger could cause heat damage to the motor and pumps,
Please do not leave the machine running unattended or unused for more than 3 minutes.
WARNING: When the machine is running, please maintain a constant water supply. Without water
circulation will damage the sealing rings of the machine.
WARNING: It is necessary to turn on the spray lance within one or two minutes after the machine
has been started. Otherwise, the temperature of the circulating water within the machine will soon
rise to a critical point, which will cause damage to the sealing rings inside the machine. WARNING:
Don’t start and run the machine in a place excessively cold so as to prevent the machine from the
freezing current.
WARNING: This machine has been designed for only using cleaning water, do not use corrosive
chemicals.
WARNING: Use cleaning agent supplied or recommend by the manufacturer.
WARNING: High-pressure jets can be dangerous if subject to misuse.
The jet must not be directed at persons, animals, live electrical equipment or the
machine itself. Pressure washers should not be pointed at tire walls, as it may be
possible to damage them.
WARNING: Do not direct the jet against yourself or others in order to clean clothes or footwear.
WARNING: Disconnect from the electrical power supply before carrying out user maintenance. If the
mains cable is damaged it must be replaced by the manufacturer, or its service agent or similarly
qualied person to avoid a hazard.
WARNING: Do not use the machine if a supply cord or important parts are damaged, e.g. safety
devices, high pressure hoses, trigger gun.
WARNING: Be aware of the recoil caused by the water jet when the machine is switched on.
WARNING: When the machine is moving and installing, the machine must be in at. When moving
the machine, pulling the handle to move it.
WARNING:Connect to the water supply. The machines are not suitable for connection to portable
water mains. Connect the machine to the water supply. (It can be a water container). Make sure the
inlet water pressure keeps between 0.01MPa and 0.4MPa.The inlet pipe should at least 5 M long. Do
not use the pipe if the pipe is damaged. If you want connect this machine to portable water mains,
you must install a backow preventer in the water pipe to prevent dirty water ow back to the drin-
king water system. The backow preventer shall comply with EN 60335-2-79 ANNEX AA.

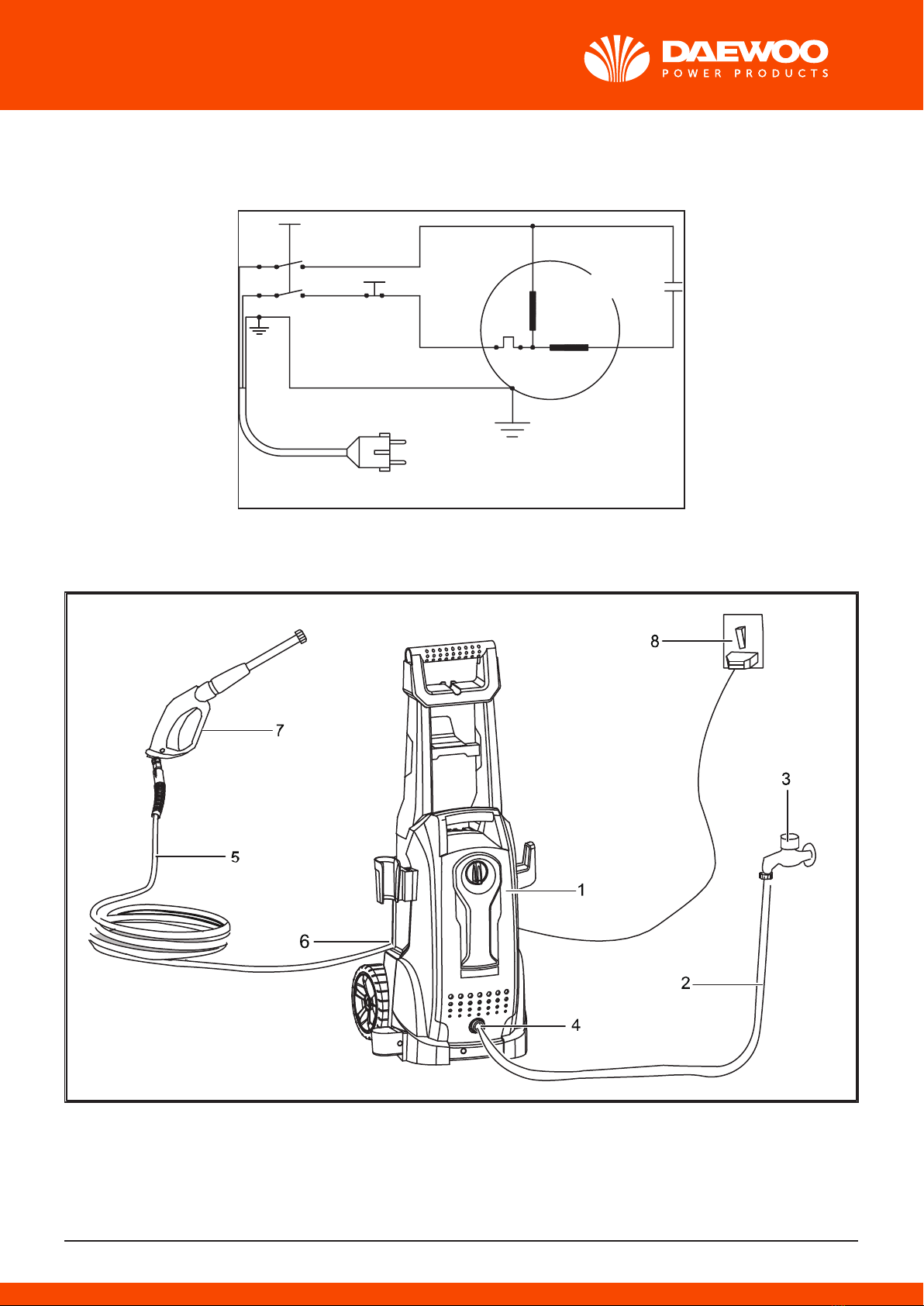

4. OPERATING INSTRUCTIONS
This unit is to be connected to a cold water source ONLY.
The motor of this pressure washer will NOT run. It will only operate when the trigger is squeezed.
• Connect the outlet hose to the washer and connect the spray gun to the outlet hose.
• Connect nozzle and nozzle extension.
• Check gauze lter is clear of any blockage.
• Connect the water supply hose.
• Check that the hose has no kinks in it.
• Turn on water and check for leaks.
• Depress trigger to allow air to be expelled though the pump and hoses, lock trigger.
1. OVERVIEW
1. Water inlet
2. ON/OFF switch
3. High pressure washer
4. Water outlet (backside)
5. Mobile adapter bracket with wheel
6. Adjustable Spray Wand
7. Gun
2. APPLICATION
The high pressure washer is a highly specialized multifunctional machine with exceptionally reliable
safety assurance, which may be used to wash and clean cars, bikes and other outdoor equipment
or garden patios, green houses etc.
Helpful Hints for Getting Started Automatic ON/OFF:
The motor on this pressure washer does not run continuously. It only runs when the trigger of the
spray gun is squeezed. After following the start up procedures in this manual, turn the pressure
washer ON and squeeze the trigger for activation. See “Operating Instruction” section in this manual
for further details.
Bleeding the gun
It is very important to bleed the gun before using the pressure washer. Squeeze the trigger to allow
any air that is trapped inside of the unit and hose to escape. Continue to squeeze trigger until a
steady stream of water comes from the nozzle. (This process may take up to 2 minutes). See “Ope-
rating Instructions” section for this process.
• Plug in machine and turn on switch.
• Unlock trigger and use the pressure washer.
5. SHUT DOWN
1. Turn off the motor(push switch to the off position).
2. Unplug the unit from the power source.
3. Turn off the water supply.
4. Press the trigger of the gun to depressurize the system.
5. Disconnect the garden hose from the pressure washer.
6. Wipe all surfaces of the unit with a damp clean cloth.
7. Engage the gun safety lock.
CAUTION: ALWAYS turn off the unit’s motor BEFORE turning off the unit’s water supply. Serious
damage could occur to the motor if the unit is run without water.
CAUTION: NEVER disconnect the high-pressure discharge hose from the machine while the system
is still pressurized. To depressurize the unit, turn off the motor, turn off the water supply and
squeeze the trigger 2-3 times.
6. ADJUSTABLE SPRAY NOZZLE
Turn off the spray lance rst, hold the rear part of spray nozzle, then turn the front part of spray
nozzle clockwise, Water may be sprayed out from the spray nozzle in fan shapes (Fig. 2); Turn the
front part of spray nozzle anti-clockwise, water may be sprayed out from the spray nozzle linearly
(Fig. 1).
CAUTION: Water should be sprayed out from the spray nozzle in fan shapes (Fig. 2), when cleaning
the car or other vehicle.
Low/High pressure adjustable lance
Using high pressure:
Please make sure the trigger released and there is not any water spraying. then turn the rear part of
spray nozzle wither shins (Fig. 4). Squeeze the trigger, the gun will spray water with high pressure.
Using low pressure
Please make sure the trigger released and there is not any water spraying. then turn the rear part of
spray nozzle clockwise (Fig. 3). Squeeze the trigger, the gun will spray water with low pressure.
CAUTION: Selection of high or low pressure by turning action. The selection of the pressure must be
carried out with the gun in closed position.
EN
5
Water inlet screen
The water inlet lter must be inspected regularly, so as to avoid blockage and restriction in the water
supply to the pump (Fig. 5).
Using detergent
Add detergent to the container. Set the Adjustable Spray Wand at low pressure position. Trigger gun
to spray detergent.
7. GUN SAFETY DEVICE
Whenever you use the high pressure washer, we suggest you grip the in the right position, with one
hand on the handle and the other on the lance, When you stop the machine it is necessary to use
the safety lock placed on the gun in order to avoid accidental.
8. CLEANING PIN INSTRUCTION
• Using included tip cleaner, or an unfolded paper clip, insert wire into the nozzle hole and move
back and forth until debris is dislodged.
• Remove additional debris by back-ushing water through the nozzle. To do this, place end of a
garden hose (with water running) to the end of nozzle for 30-60 seconds.
3. SAFETY REGULATIONS
WARNING: Read all the instructions before using the machine.
WARNING: Machines shall not be used by children. Children should be supervised to ensure that
they do not play with the machine. This machine is not intended for use by persons (including chil-
dren) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge
WARNING: The electrical supply connection shall be made by a qualied person and comply with
IEC 60364-1. The electric supply to this machine should include either a residual current device that
will interrupt the supply if the leakage current to earth exceeds 30 mA for 30 ms or a device that will
prove the earth circuit.
WARNING: The machine is intended to be used at a temperature above o degree. (Only for machine
with power cord of H05VV-F).
WARNING: The operating method to be followed in the event of accident (e.g. contact with deter-
gents: rinse with an abundance of clean water) or breakdown to prevent unsafe situations.
WARNING: This machine has been designed for use with the cleaning agent supplied or recommen-
ded by the manufacturer. The use of other cleaning agents or chemicals may adversely affect the
safety of the machine.
WARNING: Recommend the operator to wear ear protectors.
WARNING: Do not use the machine within range of persons unless they wear protective clothing.
WARNING: Do not direct the jet against yourself or others in order to clean clothes or foot-wear.
WARNING: Risk of explosion-Do not spray ammable liquids.
WARNING: High pressure hoses, ttings and couplings are important for the safety of the machine.
Use only hosed, ttings and couplings recommended by the manufacturer. WARNING: To ensure
machine safety, use only original spare parts from the manufacturer or approved by the manufactu-
rer.
WARNING: Water that has own through backow preventers is considered to the non-potable.
WARNING: The machine shall be disconnected from its power source by removing the plug from
the socket-outlet during cleaning or maintenance and when replacing the machine to another func-
tion.
WARNING: Observe a distance of at least 30cm when using the jet to clean painted surfaces to
avoid damaging paintwork.
WARNING: Do not use the machine if a supply cord or important parts of the machine are damaged,
e.g. safety devices, high pressure hoses, trigger gun.
WARNING: If an extension cord is used, the plug and socket must be of watertight construction.
WARNING: Inadequate extension cords can be dangerous. If an extension cord is used, it shall be
suitable for outdoor use, and the connection has to be kept dry and off the ground. It is recommen-
ded that this is accomplished by means of a cord reel which keeps the socket at least 60mm above
the ground.
WARNING: In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this
appliance must not be supplied through an external switching device, such as a timer, or connected
to a circuit that is regularly switched on and off by the utility.
The machine is not intended to be connected to the potable water mains.
WARNING: To ensure the machine safety, please only use original spare parts
(including nozzle) from the manufacturer or approved by the manufacturer. Do not use
the machine before you changed them if they are damaged.
WARNING: Be care of the danger of the kickback force on the spray assembly when
opening the trigger gun and grasp the gun with hands rmly.
WARNING: To reduce the risk of injury, close supervision is necessary when a machine is used near
children. High-pressure cleaner shall not be used by children or untrained person. WARNING: Know
how to stop the machine and bleed pressures quickly. Be thoroughly familiar with the controls.
WARNING: Stay alert and watch what you are doing.
WARNING: Do not operate the machine when fatigued or under the inuence of alcohol or drugs.
WARNING: Keep operating area clear of all persons.
WARNING: Do not overreach or stand on unstable support. Keep good footing and balance at all
times.
WARNING: Follow the maintenance instructions specied in the manual.
WARNING: This machine must be grounded. If it has malfunction or breakdown, grounding provides
a path of least resistance for electric current to reduce the risk of electric shock. The plug must be
plugged into an appropriate outlet that is properly installed and grounded in accordance with all
local codes and ordinances. The rating voltage (V/Hz) of the machine has to be in compliance with
the local power supplying voltage.
WARNING: Check with a qualied electrician or service personnel if you are in doubt as to whether
the outlet is properly grounded. Do not modify the plug provided with the machine. If it will not t
the outlet, have a proper outlet installed by a qualied electrician. Do not use any type of adapter
with this machine.
WARNING: Use only 3-wire extension cords that have 3-prong grounding-type plugs and 3-pole
cord connectors that accept the plug from the machine. Use only extension cords that are intended
for outdoor use and the socket must be of watertight construction. These extension cords are
identied by a marking "Acceptable for use with outdoor machines; store indoors while not in use."
Use only extension cords having an electrical rating not less than the rating of the machine. Do not
use damaged extension cords. Examine extension cord before using and replace if damaged.
Inadequate extension cords can be dangerous. Do not abuse extension cord and do not yank on
any cord to disconnect. Keep cord away from heat and sharp edges. Always disconnect the exten-
sion cord from the receptacle before disconnecting the machine from the extension cord.
WARNING: To reduce the risk of electrocution, don’t start and run the machine in the rain or storm.
Keep all connections dry and off the ground. Do not touch plug with wet hands. It is strictly prohibi-
ted to let water leak into the machine.
WARNING: When the machine is turned on, the interior pumps start and continue to run even if the
pressure wand trigger has not been depressed. Running the machine for more than 3 minutes
without depressing the pressure wand trigger could cause heat damage to the motor and pumps,
Please do not leave the machine running unattended or unused for more than 3 minutes.
WARNING: When the machine is running, please maintain a constant water supply. Without water
circulation will damage the sealing rings of the machine.
WARNING: It is necessary to turn on the spray lance within one or two minutes after the machine
has been started. Otherwise, the temperature of the circulating water within the machine will soon
rise to a critical point, which will cause damage to the sealing rings inside the machine. WARNING:
Don’t start and run the machine in a place excessively cold so as to prevent the machine from the
freezing current.
WARNING: This machine has been designed for only using cleaning water, do not use corrosive
chemicals.
WARNING: Use cleaning agent supplied or recommend by the manufacturer.
WARNING: High-pressure jets can be dangerous if subject to misuse.
The jet must not be directed at persons, animals, live electrical equipment or the
machine itself. Pressure washers should not be pointed at tire walls, as it may be
possible to damage them.
WARNING: Do not direct the jet against yourself or others in order to clean clothes or footwear.
WARNING: Disconnect from the electrical power supply before carrying out user maintenance. If the
mains cable is damaged it must be replaced by the manufacturer, or its service agent or similarly
qualied person to avoid a hazard.
WARNING: Do not use the machine if a supply cord or important parts are damaged, e.g. safety
devices, high pressure hoses, trigger gun.
WARNING: Be aware of the recoil caused by the water jet when the machine is switched on.
WARNING: When the machine is moving and installing, the machine must be in at. When moving
the machine, pulling the handle to move it.
WARNING:Connect to the water supply. The machines are not suitable for connection to portable
water mains. Connect the machine to the water supply. (It can be a water container). Make sure the
inlet water pressure keeps between 0.01MPa and 0.4MPa.The inlet pipe should at least 5 M long. Do
not use the pipe if the pipe is damaged. If you want connect this machine to portable water mains,
you must install a backow preventer in the water pipe to prevent dirty water ow back to the drin-
king water system. The backow preventer shall comply with EN 60335-2-79 ANNEX AA.
4. OPERATING INSTRUCTIONS
This unit is to be connected to a cold water source ONLY.
The motor of this pressure washer will NOT run. It will only operate when the trigger is squeezed.
• Connect the outlet hose to the washer and connect the spray gun to the outlet hose.
• Connect nozzle and nozzle extension.
• Check gauze lter is clear of any blockage.
• Connect the water supply hose.
• Check that the hose has no kinks in it.
• Turn on water and check for leaks.
• Depress trigger to allow air to be expelled though the pump and hoses, lock trigger.
1. OVERVIEW
1. Water inlet
2. ON/OFF switch
3. High pressure washer
4. Water outlet (backside)
5. Mobile adapter bracket with wheel
6. Adjustable Spray Wand
7. Gun
2. APPLICATION
The high pressure washer is a highly specialized multifunctional machine with exceptionally reliable
safety assurance, which may be used to wash and clean cars, bikes and other outdoor equipment
or garden patios, green houses etc.
Helpful Hints for Getting Started Automatic ON/OFF:
The motor on this pressure washer does not run continuously. It only runs when the trigger of the
spray gun is squeezed. After following the start up procedures in this manual, turn the pressure
washer ON and squeeze the trigger for activation. See “Operating Instruction” section in this manual
for further details.
Bleeding the gun
It is very important to bleed the gun before using the pressure washer. Squeeze the trigger to allow
any air that is trapped inside of the unit and hose to escape. Continue to squeeze trigger until a
steady stream of water comes from the nozzle. (This process may take up to 2 minutes). See “Ope-
rating Instructions” section for this process.
• Plug in machine and turn on switch.
• Unlock trigger and use the pressure washer.
5. SHUT DOWN
1. Turn off the motor(push switch to the off position).
2. Unplug the unit from the power source.
3. Turn off the water supply.
4. Press the trigger of the gun to depressurize the system.
5. Disconnect the garden hose from the pressure washer.
6. Wipe all surfaces of the unit with a damp clean cloth.
7. Engage the gun safety lock.
CAUTION: ALWAYS turn off the unit’s motor BEFORE turning off the unit’s water supply. Serious
damage could occur to the motor if the unit is run without water.
CAUTION: NEVER disconnect the high-pressure discharge hose from the machine while the system
is still pressurized. To depressurize the unit, turn off the motor, turn off the water supply and
squeeze the trigger 2-3 times.
6. ADJUSTABLE SPRAY NOZZLE
Turn off the spray lance rst, hold the rear part of spray nozzle, then turn the front part of spray
nozzle clockwise, Water may be sprayed out from the spray nozzle in fan shapes (Fig. 2); Turn the
front part of spray nozzle anti-clockwise, water may be sprayed out from the spray nozzle linearly
(Fig. 1).
CAUTION: Water should be sprayed out from the spray nozzle in fan shapes (Fig. 2), when cleaning
the car or other vehicle.
Low/High pressure adjustable lance
Using high pressure:
Please make sure the trigger released and there is not any water spraying. then turn the rear part of
spray nozzle wither shins (Fig. 4). Squeeze the trigger, the gun will spray water with high pressure.
Using low pressure
Please make sure the trigger released and there is not any water spraying. then turn the rear part of
spray nozzle clockwise (Fig. 3). Squeeze the trigger, the gun will spray water with low pressure.
CAUTION: Selection of high or low pressure by turning action. The selection of the pressure must be
carried out with the gun in closed position.
6
Water inlet screen
The water inlet lter must be inspected regularly, so as to avoid blockage and restriction in the water
supply to the pump (Fig. 5).
Using detergent
Add detergent to the container. Set the Adjustable Spray Wand at low pressure position. Trigger gun
to spray detergent.
7. GUN SAFETY DEVICE
Whenever you use the high pressure washer, we suggest you grip the in the right position, with one
hand on the handle and the other on the lance, When you stop the machine it is necessary to use
the safety lock placed on the gun in order to avoid accidental.
8. CLEANING PIN INSTRUCTION
• Using included tip cleaner, or an unfolded paper clip, insert wire into the nozzle hole and move
back and forth until debris is dislodged.
• Remove additional debris by back-ushing water through the nozzle. To do this, place end of a
garden hose (with water running) to the end of nozzle for 30-60 seconds.
3. SAFETY REGULATIONS
WARNING: Read all the instructions before using the machine.
WARNING: Machines shall not be used by children. Children should be supervised to ensure that
they do not play with the machine. This machine is not intended for use by persons (including chil-
dren) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge
WARNING: The electrical supply connection shall be made by a qualied person and comply with
IEC 60364-1. The electric supply to this machine should include either a residual current device that
will interrupt the supply if the leakage current to earth exceeds 30 mA for 30 ms or a device that will
prove the earth circuit.
WARNING: The machine is intended to be used at a temperature above o degree. (Only for machine
with power cord of H05VV-F).
WARNING: The operating method to be followed in the event of accident (e.g. contact with deter-
gents: rinse with an abundance of clean water) or breakdown to prevent unsafe situations.
WARNING: This machine has been designed for use with the cleaning agent supplied or recommen-
ded by the manufacturer. The use of other cleaning agents or chemicals may adversely affect the
safety of the machine.
WARNING: Recommend the operator to wear ear protectors.
WARNING: Do not use the machine within range of persons unless they wear protective clothing.
WARNING: Do not direct the jet against yourself or others in order to clean clothes or foot-wear.
WARNING: Risk of explosion-Do not spray ammable liquids.
WARNING: High pressure hoses, ttings and couplings are important for the safety of the machine.
Use only hosed, ttings and couplings recommended by the manufacturer. WARNING: To ensure
machine safety, use only original spare parts from the manufacturer or approved by the manufactu-
rer.
WARNING: Water that has own through backow preventers is considered to the non-potable.
WARNING: The machine shall be disconnected from its power source by removing the plug from
the socket-outlet during cleaning or maintenance and when replacing the machine to another func-
tion.
WARNING: Observe a distance of at least 30cm when using the jet to clean painted surfaces to
avoid damaging paintwork.
WARNING: Do not use the machine if a supply cord or important parts of the machine are damaged,
e.g. safety devices, high pressure hoses, trigger gun.
WARNING: If an extension cord is used, the plug and socket must be of watertight construction.
WARNING: Inadequate extension cords can be dangerous. If an extension cord is used, it shall be
suitable for outdoor use, and the connection has to be kept dry and off the ground. It is recommen-
ded that this is accomplished by means of a cord reel which keeps the socket at least 60mm above
the ground.
WARNING: In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this
appliance must not be supplied through an external switching device, such as a timer, or connected
to a circuit that is regularly switched on and off by the utility.
The machine is not intended to be connected to the potable water mains.
WARNING: To ensure the machine safety, please only use original spare parts
(including nozzle) from the manufacturer or approved by the manufacturer. Do not use
the machine before you changed them if they are damaged.
WARNING: Be care of the danger of the kickback force on the spray assembly when
opening the trigger gun and grasp the gun with hands rmly.
WARNING: To reduce the risk of injury, close supervision is necessary when a machine is used near
children. High-pressure cleaner shall not be used by children or untrained person. WARNING: Know
how to stop the machine and bleed pressures quickly. Be thoroughly familiar with the controls.
WARNING: Stay alert and watch what you are doing.
WARNING: Do not operate the machine when fatigued or under the inuence of alcohol or drugs.
WARNING: Keep operating area clear of all persons.
WARNING: Do not overreach or stand on unstable support. Keep good footing and balance at all
times.
WARNING: Follow the maintenance instructions specied in the manual.
WARNING: This machine must be grounded. If it has malfunction or breakdown, grounding provides
a path of least resistance for electric current to reduce the risk of electric shock. The plug must be
plugged into an appropriate outlet that is properly installed and grounded in accordance with all
local codes and ordinances. The rating voltage (V/Hz) of the machine has to be in compliance with
the local power supplying voltage.
WARNING: Check with a qualied electrician or service personnel if you are in doubt as to whether
the outlet is properly grounded. Do not modify the plug provided with the machine. If it will not t
the outlet, have a proper outlet installed by a qualied electrician. Do not use any type of adapter
with this machine.
WARNING: Use only 3-wire extension cords that have 3-prong grounding-type plugs and 3-pole
cord connectors that accept the plug from the machine. Use only extension cords that are intended
for outdoor use and the socket must be of watertight construction. These extension cords are
identied by a marking "Acceptable for use with outdoor machines; store indoors while not in use."
Use only extension cords having an electrical rating not less than the rating of the machine. Do not
use damaged extension cords. Examine extension cord before using and replace if damaged.
Inadequate extension cords can be dangerous. Do not abuse extension cord and do not yank on
any cord to disconnect. Keep cord away from heat and sharp edges. Always disconnect the exten-
sion cord from the receptacle before disconnecting the machine from the extension cord.
WARNING: To reduce the risk of electrocution, don’t start and run the machine in the rain or storm.
Keep all connections dry and off the ground. Do not touch plug with wet hands. It is strictly prohibi-
ted to let water leak into the machine.
WARNING: When the machine is turned on, the interior pumps start and continue to run even if the
pressure wand trigger has not been depressed. Running the machine for more than 3 minutes
without depressing the pressure wand trigger could cause heat damage to the motor and pumps,
Please do not leave the machine running unattended or unused for more than 3 minutes.
WARNING: When the machine is running, please maintain a constant water supply. Without water
circulation will damage the sealing rings of the machine.
WARNING: It is necessary to turn on the spray lance within one or two minutes after the machine
has been started. Otherwise, the temperature of the circulating water within the machine will soon
rise to a critical point, which will cause damage to the sealing rings inside the machine. WARNING:
Don’t start and run the machine in a place excessively cold so as to prevent the machine from the
freezing current.
WARNING: This machine has been designed for only using cleaning water, do not use corrosive
chemicals.
WARNING: Use cleaning agent supplied or recommend by the manufacturer.
WARNING: High-pressure jets can be dangerous if subject to misuse.
The jet must not be directed at persons, animals, live electrical equipment or the
machine itself. Pressure washers should not be pointed at tire walls, as it may be
possible to damage them.
WARNING: Do not direct the jet against yourself or others in order to clean clothes or footwear.
WARNING: Disconnect from the electrical power supply before carrying out user maintenance. If the
mains cable is damaged it must be replaced by the manufacturer, or its service agent or similarly
qualied person to avoid a hazard.
WARNING: Do not use the machine if a supply cord or important parts are damaged, e.g. safety
devices, high pressure hoses, trigger gun.
WARNING: Be aware of the recoil caused by the water jet when the machine is switched on.
WARNING: When the machine is moving and installing, the machine must be in at. When moving
the machine, pulling the handle to move it.
WARNING:Connect to the water supply. The machines are not suitable for connection to portable
water mains. Connect the machine to the water supply. (It can be a water container). Make sure the
inlet water pressure keeps between 0.01MPa and 0.4MPa.The inlet pipe should at least 5 M long. Do
not use the pipe if the pipe is damaged. If you want connect this machine to portable water mains,
you must install a backow preventer in the water pipe to prevent dirty water ow back to the drin-
king water system. The backow preventer shall comply with EN 60335-2-79 ANNEX AA.
4. OPERATING INSTRUCTIONS
This unit is to be connected to a cold water source ONLY.
The motor of this pressure washer will NOT run. It will only operate when the trigger is squeezed.
• Connect the outlet hose to the washer and connect the spray gun to the outlet hose.
• Connect nozzle and nozzle extension.
• Check gauze lter is clear of any blockage.
• Connect the water supply hose.
• Check that the hose has no kinks in it.
• Turn on water and check for leaks.
• Depress trigger to allow air to be expelled though the pump and hoses, lock trigger.
1. OVERVIEW
1. Water inlet
2. ON/OFF switch
3. High pressure washer
4. Water outlet (backside)
5. Mobile adapter bracket with wheel
6. Adjustable Spray Wand
7. Gun
2. APPLICATION
The high pressure washer is a highly specialized multifunctional machine with exceptionally reliable
safety assurance, which may be used to wash and clean cars, bikes and other outdoor equipment
or garden patios, green houses etc.
Helpful Hints for Getting Started Automatic ON/OFF:
The motor on this pressure washer does not run continuously. It only runs when the trigger of the
spray gun is squeezed. After following the start up procedures in this manual, turn the pressure
washer ON and squeeze the trigger for activation. See “Operating Instruction” section in this manual
for further details.
Bleeding the gun
It is very important to bleed the gun before using the pressure washer. Squeeze the trigger to allow
any air that is trapped inside of the unit and hose to escape. Continue to squeeze trigger until a
steady stream of water comes from the nozzle. (This process may take up to 2 minutes). See “Ope-
rating Instructions” section for this process.
• Plug in machine and turn on switch.
• Unlock trigger and use the pressure washer.
5. SHUT DOWN
1. Turn off the motor(push switch to the off position).
2. Unplug the unit from the power source.
3. Turn off the water supply.
4. Press the trigger of the gun to depressurize the system.
5. Disconnect the garden hose from the pressure washer.
6. Wipe all surfaces of the unit with a damp clean cloth.
7. Engage the gun safety lock.
CAUTION: ALWAYS turn off the unit’s motor BEFORE turning off the unit’s water supply. Serious
damage could occur to the motor if the unit is run without water.
CAUTION: NEVER disconnect the high-pressure discharge hose from the machine while the system
is still pressurized. To depressurize the unit, turn off the motor, turn off the water supply and
squeeze the trigger 2-3 times.
6. ADJUSTABLE SPRAY NOZZLE
Turn off the spray lance rst, hold the rear part of spray nozzle, then turn the front part of spray
nozzle clockwise, Water may be sprayed out from the spray nozzle in fan shapes (Fig. 2); Turn the
front part of spray nozzle anti-clockwise, water may be sprayed out from the spray nozzle linearly
(Fig. 1).
CAUTION: Water should be sprayed out from the spray nozzle in fan shapes (Fig. 2), when cleaning
the car or other vehicle.
Low/High pressure adjustable lance
Using high pressure:
Please make sure the trigger released and there is not any water spraying. then turn the rear part of
spray nozzle wither shins (Fig. 4). Squeeze the trigger, the gun will spray water with high pressure.
Using low pressure
Please make sure the trigger released and there is not any water spraying. then turn the rear part of
spray nozzle clockwise (Fig. 3). Squeeze the trigger, the gun will spray water with low pressure.
CAUTION: Selection of high or low pressure by turning action. The selection of the pressure must be
carried out with the gun in closed position.
EN
7
Water inlet screen
The water inlet lter must be inspected regularly, so as to avoid blockage and restriction in the water
supply to the pump (Fig. 5).
Using detergent
Add detergent to the container. Set the Adjustable Spray Wand at low pressure position. Trigger gun
to spray detergent.
7. GUN SAFETY DEVICE
Whenever you use the high pressure washer, we suggest you grip the in the right position, with one
hand on the handle and the other on the lance, When you stop the machine it is necessary to use
the safety lock placed on the gun in order to avoid accidental.
8. CLEANING PIN INSTRUCTION
• Using included tip cleaner, or an unfolded paper clip, insert wire into the nozzle hole and move
back and forth until debris is dislodged.
• Remove additional debris by back-ushing water through the nozzle. To do this, place end of a
garden hose (with water running) to the end of nozzle for 30-60 seconds.
3. SAFETY REGULATIONS
WARNING: Read all the instructions before using the machine.
WARNING: Machines shall not be used by children. Children should be supervised to ensure that
they do not play with the machine. This machine is not intended for use by persons (including chil-
dren) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge
WARNING: The electrical supply connection shall be made by a qualied person and comply with
IEC 60364-1. The electric supply to this machine should include either a residual current device that
will interrupt the supply if the leakage current to earth exceeds 30 mA for 30 ms or a device that will
prove the earth circuit.
WARNING: The machine is intended to be used at a temperature above o degree. (Only for machine
with power cord of H05VV-F).
WARNING: The operating method to be followed in the event of accident (e.g. contact with deter-
gents: rinse with an abundance of clean water) or breakdown to prevent unsafe situations.
WARNING: This machine has been designed for use with the cleaning agent supplied or recommen-
ded by the manufacturer. The use of other cleaning agents or chemicals may adversely affect the
safety of the machine.
WARNING: Recommend the operator to wear ear protectors.
WARNING: Do not use the machine within range of persons unless they wear protective clothing.
WARNING: Do not direct the jet against yourself or others in order to clean clothes or foot-wear.
WARNING: Risk of explosion-Do not spray ammable liquids.
WARNING: High pressure hoses, ttings and couplings are important for the safety of the machine.
Use only hosed, ttings and couplings recommended by the manufacturer. WARNING: To ensure
machine safety, use only original spare parts from the manufacturer or approved by the manufactu-
rer.
WARNING: Water that has own through backow preventers is considered to the non-potable.
WARNING: The machine shall be disconnected from its power source by removing the plug from
the socket-outlet during cleaning or maintenance and when replacing the machine to another func-
tion.
WARNING: Observe a distance of at least 30cm when using the jet to clean painted surfaces to
avoid damaging paintwork.
WARNING: Do not use the machine if a supply cord or important parts of the machine are damaged,
e.g. safety devices, high pressure hoses, trigger gun.
WARNING: If an extension cord is used, the plug and socket must be of watertight construction.
WARNING: Inadequate extension cords can be dangerous. If an extension cord is used, it shall be
suitable for outdoor use, and the connection has to be kept dry and off the ground. It is recommen-
ded that this is accomplished by means of a cord reel which keeps the socket at least 60mm above
the ground.
WARNING: In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this
appliance must not be supplied through an external switching device, such as a timer, or connected
to a circuit that is regularly switched on and off by the utility.
The machine is not intended to be connected to the potable water mains.
WARNING: To ensure the machine safety, please only use original spare parts
(including nozzle) from the manufacturer or approved by the manufacturer. Do not use
the machine before you changed them if they are damaged.
WARNING: Be care of the danger of the kickback force on the spray assembly when
opening the trigger gun and grasp the gun with hands rmly.
WARNING: To reduce the risk of injury, close supervision is necessary when a machine is used near
children. High-pressure cleaner shall not be used by children or untrained person. WARNING: Know
how to stop the machine and bleed pressures quickly. Be thoroughly familiar with the controls.
WARNING: Stay alert and watch what you are doing.
WARNING: Do not operate the machine when fatigued or under the inuence of alcohol or drugs.
WARNING: Keep operating area clear of all persons.
WARNING: Do not overreach or stand on unstable support. Keep good footing and balance at all
times.
WARNING: Follow the maintenance instructions specied in the manual.
WARNING: This machine must be grounded. If it has malfunction or breakdown, grounding provides
a path of least resistance for electric current to reduce the risk of electric shock. The plug must be
plugged into an appropriate outlet that is properly installed and grounded in accordance with all
local codes and ordinances. The rating voltage (V/Hz) of the machine has to be in compliance with
the local power supplying voltage.
WARNING: Check with a qualied electrician or service personnel if you are in doubt as to whether
the outlet is properly grounded. Do not modify the plug provided with the machine. If it will not t
the outlet, have a proper outlet installed by a qualied electrician. Do not use any type of adapter
with this machine.
WARNING: Use only 3-wire extension cords that have 3-prong grounding-type plugs and 3-pole
cord connectors that accept the plug from the machine. Use only extension cords that are intended
for outdoor use and the socket must be of watertight construction. These extension cords are
identied by a marking "Acceptable for use with outdoor machines; store indoors while not in use."
Use only extension cords having an electrical rating not less than the rating of the machine. Do not
use damaged extension cords. Examine extension cord before using and replace if damaged.
Inadequate extension cords can be dangerous. Do not abuse extension cord and do not yank on
any cord to disconnect. Keep cord away from heat and sharp edges. Always disconnect the exten-
sion cord from the receptacle before disconnecting the machine from the extension cord.
WARNING: To reduce the risk of electrocution, don’t start and run the machine in the rain or storm.
Keep all connections dry and off the ground. Do not touch plug with wet hands. It is strictly prohibi-
ted to let water leak into the machine.
WARNING: When the machine is turned on, the interior pumps start and continue to run even if the
pressure wand trigger has not been depressed. Running the machine for more than 3 minutes
without depressing the pressure wand trigger could cause heat damage to the motor and pumps,
Please do not leave the machine running unattended or unused for more than 3 minutes.
WARNING: When the machine is running, please maintain a constant water supply. Without water
circulation will damage the sealing rings of the machine.
WARNING: It is necessary to turn on the spray lance within one or two minutes after the machine
has been started. Otherwise, the temperature of the circulating water within the machine will soon
rise to a critical point, which will cause damage to the sealing rings inside the machine. WARNING:
Don’t start and run the machine in a place excessively cold so as to prevent the machine from the
freezing current.
WARNING: This machine has been designed for only using cleaning water, do not use corrosive
chemicals.
WARNING: Use cleaning agent supplied or recommend by the manufacturer.
WARNING: High-pressure jets can be dangerous if subject to misuse.
The jet must not be directed at persons, animals, live electrical equipment or the
machine itself. Pressure washers should not be pointed at tire walls, as it may be
possible to damage them.
WARNING: Do not direct the jet against yourself or others in order to clean clothes or footwear.
WARNING: Disconnect from the electrical power supply before carrying out user maintenance. If the
mains cable is damaged it must be replaced by the manufacturer, or its service agent or similarly
qualied person to avoid a hazard.
WARNING: Do not use the machine if a supply cord or important parts are damaged, e.g. safety
devices, high pressure hoses, trigger gun.
WARNING: Be aware of the recoil caused by the water jet when the machine is switched on.
WARNING: When the machine is moving and installing, the machine must be in at. When moving
the machine, pulling the handle to move it.
WARNING:Connect to the water supply. The machines are not suitable for connection to portable
water mains. Connect the machine to the water supply. (It can be a water container). Make sure the
inlet water pressure keeps between 0.01MPa and 0.4MPa.The inlet pipe should at least 5 M long. Do
not use the pipe if the pipe is damaged. If you want connect this machine to portable water mains,
you must install a backow preventer in the water pipe to prevent dirty water ow back to the drin-
king water system. The backow preventer shall comply with EN 60335-2-79 ANNEX AA.
4. OPERATING INSTRUCTIONS
This unit is to be connected to a cold water source ONLY.
The motor of this pressure washer will NOT run. It will only operate when the trigger is squeezed.
• Connect the outlet hose to the washer and connect the spray gun to the outlet hose.
• Connect nozzle and nozzle extension.
• Check gauze lter is clear of any blockage.
• Connect the water supply hose.
• Check that the hose has no kinks in it.
• Turn on water and check for leaks.
• Depress trigger to allow air to be expelled though the pump and hoses, lock trigger.
1. OVERVIEW
1. Water inlet
2. ON/OFF switch
3. High pressure washer
4. Water outlet (backside)
5. Mobile adapter bracket with wheel
6. Adjustable Spray Wand
7. Gun
2. APPLICATION
The high pressure washer is a highly specialized multifunctional machine with exceptionally reliable
safety assurance, which may be used to wash and clean cars, bikes and other outdoor equipment
or garden patios, green houses etc.
Helpful Hints for Getting Started Automatic ON/OFF:
The motor on this pressure washer does not run continuously. It only runs when the trigger of the
spray gun is squeezed. After following the start up procedures in this manual, turn the pressure
washer ON and squeeze the trigger for activation. See “Operating Instruction” section in this manual
for further details.
Bleeding the gun
It is very important to bleed the gun before using the pressure washer. Squeeze the trigger to allow
any air that is trapped inside of the unit and hose to escape. Continue to squeeze trigger until a
steady stream of water comes from the nozzle. (This process may take up to 2 minutes). See “Ope-
rating Instructions” section for this process.
• Plug in machine and turn on switch.
• Unlock trigger and use the pressure washer.
5. SHUT DOWN
1. Turn off the motor(push switch to the off position).
2. Unplug the unit from the power source.
3. Turn off the water supply.
4. Press the trigger of the gun to depressurize the system.
5. Disconnect the garden hose from the pressure washer.
6. Wipe all surfaces of the unit with a damp clean cloth.
7. Engage the gun safety lock.
CAUTION: ALWAYS turn off the unit’s motor BEFORE turning off the unit’s water supply. Serious
damage could occur to the motor if the unit is run without water.
CAUTION: NEVER disconnect the high-pressure discharge hose from the machine while the system
is still pressurized. To depressurize the unit, turn off the motor, turn off the water supply and
squeeze the trigger 2-3 times.
6. ADJUSTABLE SPRAY NOZZLE
Turn off the spray lance rst, hold the rear part of spray nozzle, then turn the front part of spray
nozzle clockwise, Water may be sprayed out from the spray nozzle in fan shapes (Fig. 2); Turn the
front part of spray nozzle anti-clockwise, water may be sprayed out from the spray nozzle linearly
(Fig. 1).
CAUTION: Water should be sprayed out from the spray nozzle in fan shapes (Fig. 2), when cleaning
the car or other vehicle.
Low/High pressure adjustable lance
Using high pressure:
Please make sure the trigger released and there is not any water spraying. then turn the rear part of
spray nozzle wither shins (Fig. 4). Squeeze the trigger, the gun will spray water with high pressure.
Using low pressure
Please make sure the trigger released and there is not any water spraying. then turn the rear part of
spray nozzle clockwise (Fig. 3). Squeeze the trigger, the gun will spray water with low pressure.
CAUTION: Selection of high or low pressure by turning action. The selection of the pressure must be
carried out with the gun in closed position.
8
Water inlet screen
The water inlet lter must be inspected regularly, so as to avoid blockage and restriction in the water
supply to the pump (Fig. 5).
Using detergent
Add detergent to the container. Set the Adjustable Spray Wand at low pressure position. Trigger gun
to spray detergent.
7. GUN SAFETY DEVICE
Whenever you use the high pressure washer, we suggest you grip the in the right position, with one
hand on the handle and the other on the lance, When you stop the machine it is necessary to use
the safety lock placed on the gun in order to avoid accidental.
8. CLEANING PIN INSTRUCTION
• Using included tip cleaner, or an unfolded paper clip, insert wire into the nozzle hole and move
back and forth until debris is dislodged.
• Remove additional debris by back-ushing water through the nozzle. To do this, place end of a
garden hose (with water running) to the end of nozzle for 30-60 seconds.
3. SAFETY REGULATIONS
WARNING: Read all the instructions before using the machine.
WARNING: Machines shall not be used by children. Children should be supervised to ensure that
they do not play with the machine. This machine is not intended for use by persons (including chil-
dren) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge
WARNING: The electrical supply connection shall be made by a qualied person and comply with
IEC 60364-1. The electric supply to this machine should include either a residual current device that
will interrupt the supply if the leakage current to earth exceeds 30 mA for 30 ms or a device that will
prove the earth circuit.
WARNING: The machine is intended to be used at a temperature above o degree. (Only for machine
with power cord of H05VV-F).
WARNING: The operating method to be followed in the event of accident (e.g. contact with deter-
gents: rinse with an abundance of clean water) or breakdown to prevent unsafe situations.
WARNING: This machine has been designed for use with the cleaning agent supplied or recommen-
ded by the manufacturer. The use of other cleaning agents or chemicals may adversely affect the
safety of the machine.
WARNING: Recommend the operator to wear ear protectors.
WARNING: Do not use the machine within range of persons unless they wear protective clothing.
WARNING: Do not direct the jet against yourself or others in order to clean clothes or foot-wear.
WARNING: Risk of explosion-Do not spray ammable liquids.
WARNING: High pressure hoses, ttings and couplings are important for the safety of the machine.
Use only hosed, ttings and couplings recommended by the manufacturer. WARNING: To ensure
machine safety, use only original spare parts from the manufacturer or approved by the manufactu-
rer.
WARNING: Water that has own through backow preventers is considered to the non-potable.
WARNING: The machine shall be disconnected from its power source by removing the plug from
the socket-outlet during cleaning or maintenance and when replacing the machine to another func-
tion.
WARNING: Observe a distance of at least 30cm when using the jet to clean painted surfaces to
avoid damaging paintwork.
WARNING: Do not use the machine if a supply cord or important parts of the machine are damaged,
e.g. safety devices, high pressure hoses, trigger gun.
WARNING: If an extension cord is used, the plug and socket must be of watertight construction.
WARNING: Inadequate extension cords can be dangerous. If an extension cord is used, it shall be
suitable for outdoor use, and the connection has to be kept dry and off the ground. It is recommen-
ded that this is accomplished by means of a cord reel which keeps the socket at least 60mm above
the ground.
WARNING: In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this
appliance must not be supplied through an external switching device, such as a timer, or connected
to a circuit that is regularly switched on and off by the utility.
The machine is not intended to be connected to the potable water mains.
WARNING: To ensure the machine safety, please only use original spare parts
(including nozzle) from the manufacturer or approved by the manufacturer. Do not use
the machine before you changed them if they are damaged.
WARNING: Be care of the danger of the kickback force on the spray assembly when
opening the trigger gun and grasp the gun with hands rmly.
WARNING: To reduce the risk of injury, close supervision is necessary when a machine is used near
children. High-pressure cleaner shall not be used by children or untrained person. WARNING: Know
how to stop the machine and bleed pressures quickly. Be thoroughly familiar with the controls.
WARNING: Stay alert and watch what you are doing.
WARNING: Do not operate the machine when fatigued or under the inuence of alcohol or drugs.
WARNING: Keep operating area clear of all persons.
WARNING: Do not overreach or stand on unstable support. Keep good footing and balance at all
times.
WARNING: Follow the maintenance instructions specied in the manual.
WARNING: This machine must be grounded. If it has malfunction or breakdown, grounding provides
a path of least resistance for electric current to reduce the risk of electric shock. The plug must be
plugged into an appropriate outlet that is properly installed and grounded in accordance with all
local codes and ordinances. The rating voltage (V/Hz) of the machine has to be in compliance with
the local power supplying voltage.
WARNING: Check with a qualied electrician or service personnel if you are in doubt as to whether
the outlet is properly grounded. Do not modify the plug provided with the machine. If it will not t
the outlet, have a proper outlet installed by a qualied electrician. Do not use any type of adapter
with this machine.
WARNING: Use only 3-wire extension cords that have 3-prong grounding-type plugs and 3-pole
cord connectors that accept the plug from the machine. Use only extension cords that are intended
for outdoor use and the socket must be of watertight construction. These extension cords are
identied by a marking "Acceptable for use with outdoor machines; store indoors while not in use."
Use only extension cords having an electrical rating not less than the rating of the machine. Do not
use damaged extension cords. Examine extension cord before using and replace if damaged.
Inadequate extension cords can be dangerous. Do not abuse extension cord and do not yank on
any cord to disconnect. Keep cord away from heat and sharp edges. Always disconnect the exten-
sion cord from the receptacle before disconnecting the machine from the extension cord.
WARNING: To reduce the risk of electrocution, don’t start and run the machine in the rain or storm.
Keep all connections dry and off the ground. Do not touch plug with wet hands. It is strictly prohibi-
ted to let water leak into the machine.
WARNING: When the machine is turned on, the interior pumps start and continue to run even if the
pressure wand trigger has not been depressed. Running the machine for more than 3 minutes
without depressing the pressure wand trigger could cause heat damage to the motor and pumps,
Please do not leave the machine running unattended or unused for more than 3 minutes.
WARNING: When the machine is running, please maintain a constant water supply. Without water
circulation will damage the sealing rings of the machine.
WARNING: It is necessary to turn on the spray lance within one or two minutes after the machine
has been started. Otherwise, the temperature of the circulating water within the machine will soon
rise to a critical point, which will cause damage to the sealing rings inside the machine. WARNING:
Don’t start and run the machine in a place excessively cold so as to prevent the machine from the
freezing current.
WARNING: This machine has been designed for only using cleaning water, do not use corrosive
chemicals.
WARNING: Use cleaning agent supplied or recommend by the manufacturer.
WARNING: High-pressure jets can be dangerous if subject to misuse.
The jet must not be directed at persons, animals, live electrical equipment or the
machine itself. Pressure washers should not be pointed at tire walls, as it may be
possible to damage them.
WARNING: Do not direct the jet against yourself or others in order to clean clothes or footwear.
WARNING: Disconnect from the electrical power supply before carrying out user maintenance. If the
mains cable is damaged it must be replaced by the manufacturer, or its service agent or similarly
qualied person to avoid a hazard.
WARNING: Do not use the machine if a supply cord or important parts are damaged, e.g. safety
devices, high pressure hoses, trigger gun.
WARNING: Be aware of the recoil caused by the water jet when the machine is switched on.
WARNING: When the machine is moving and installing, the machine must be in at. When moving
the machine, pulling the handle to move it.
WARNING:Connect to the water supply. The machines are not suitable for connection to portable
water mains. Connect the machine to the water supply. (It can be a water container). Make sure the
inlet water pressure keeps between 0.01MPa and 0.4MPa.The inlet pipe should at least 5 M long. Do
not use the pipe if the pipe is damaged. If you want connect this machine to portable water mains,
you must install a backow preventer in the water pipe to prevent dirty water ow back to the drin-
king water system. The backow preventer shall comply with EN 60335-2-79 ANNEX AA.
4. OPERATING INSTRUCTIONS
This unit is to be connected to a cold water source ONLY.
The motor of this pressure washer will NOT run. It will only operate when the trigger is squeezed.
• Connect the outlet hose to the washer and connect the spray gun to the outlet hose.
• Connect nozzle and nozzle extension.
• Check gauze lter is clear of any blockage.
• Connect the water supply hose.
• Check that the hose has no kinks in it.
• Turn on water and check for leaks.
• Depress trigger to allow air to be expelled though the pump and hoses, lock trigger.
1. OVERVIEW
1. Water inlet
2. ON/OFF switch
3. High pressure washer
4. Water outlet (backside)
5. Mobile adapter bracket with wheel
6. Adjustable Spray Wand
7. Gun
2. APPLICATION
The high pressure washer is a highly specialized multifunctional machine with exceptionally reliable
safety assurance, which may be used to wash and clean cars, bikes and other outdoor equipment
or garden patios, green houses etc.
Helpful Hints for Getting Started Automatic ON/OFF:
The motor on this pressure washer does not run continuously. It only runs when the trigger of the
spray gun is squeezed. After following the start up procedures in this manual, turn the pressure
washer ON and squeeze the trigger for activation. See “Operating Instruction” section in this manual
for further details.
Bleeding the gun
It is very important to bleed the gun before using the pressure washer. Squeeze the trigger to allow
any air that is trapped inside of the unit and hose to escape. Continue to squeeze trigger until a
steady stream of water comes from the nozzle. (This process may take up to 2 minutes). See “Ope-
rating Instructions” section for this process.
• Plug in machine and turn on switch.
• Unlock trigger and use the pressure washer.
5. SHUT DOWN
1. Turn off the motor(push switch to the off position).
2. Unplug the unit from the power source.
3. Turn off the water supply.
4. Press the trigger of the gun to depressurize the system.
5. Disconnect the garden hose from the pressure washer.
6. Wipe all surfaces of the unit with a damp clean cloth.
7. Engage the gun safety lock.
CAUTION: ALWAYS turn off the unit’s motor BEFORE turning off the unit’s water supply. Serious
damage could occur to the motor if the unit is run without water.
CAUTION: NEVER disconnect the high-pressure discharge hose from the machine while the system
is still pressurized. To depressurize the unit, turn off the motor, turn off the water supply and
squeeze the trigger 2-3 times.
6. ADJUSTABLE SPRAY NOZZLE
Turn off the spray lance rst, hold the rear part of spray nozzle, then turn the front part of spray
nozzle clockwise, Water may be sprayed out from the spray nozzle in fan shapes (Fig. 2); Turn the
front part of spray nozzle anti-clockwise, water may be sprayed out from the spray nozzle linearly
(Fig. 1).
CAUTION: Water should be sprayed out from the spray nozzle in fan shapes (Fig. 2), when cleaning
the car or other vehicle.
Low/High pressure adjustable lance
Using high pressure:
Please make sure the trigger released and there is not any water spraying. then turn the rear part of
spray nozzle wither shins (Fig. 4). Squeeze the trigger, the gun will spray water with high pressure.
Using low pressure
Please make sure the trigger released and there is not any water spraying. then turn the rear part of
spray nozzle clockwise (Fig. 3). Squeeze the trigger, the gun will spray water with low pressure.
CAUTION: Selection of high or low pressure by turning action. The selection of the pressure must be
carried out with the gun in closed position.
Tip cleanerNozzle
EN
9
Water inlet screen
The water inlet lter must be inspected regularly, so as to avoid blockage and restriction in the water
supply to the pump (Fig. 5).
Using detergent
Add detergent to the container. Set the Adjustable Spray Wand at low pressure position. Trigger gun
to spray detergent.
7. GUN SAFETY DEVICE
Whenever you use the high pressure washer, we suggest you grip the in the right position, with one
hand on the handle and the other on the lance, When you stop the machine it is necessary to use
the safety lock placed on the gun in order to avoid accidental.
8. CLEANING PIN INSTRUCTION
• Using included tip cleaner, or an unfolded paper clip, insert wire into the nozzle hole and move
back and forth until debris is dislodged.
• Remove additional debris by back-ushing water through the nozzle. To do this, place end of a
garden hose (with water running) to the end of nozzle for 30-60 seconds.
3. SAFETY REGULATIONS
WARNING: Read all the instructions before using the machine.
WARNING: Machines shall not be used by children. Children should be supervised to ensure that
they do not play with the machine. This machine is not intended for use by persons (including chil-
dren) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge
WARNING: The electrical supply connection shall be made by a qualied person and comply with
IEC 60364-1. The electric supply to this machine should include either a residual current device that
will interrupt the supply if the leakage current to earth exceeds 30 mA for 30 ms or a device that will
prove the earth circuit.
WARNING: The machine is intended to be used at a temperature above o degree. (Only for machine
with power cord of H05VV-F).
WARNING: The operating method to be followed in the event of accident (e.g. contact with deter-
gents: rinse with an abundance of clean water) or breakdown to prevent unsafe situations.
WARNING: This machine has been designed for use with the cleaning agent supplied or recommen-
ded by the manufacturer. The use of other cleaning agents or chemicals may adversely affect the
safety of the machine.
WARNING: Recommend the operator to wear ear protectors.
WARNING: Do not use the machine within range of persons unless they wear protective clothing.
WARNING: Do not direct the jet against yourself or others in order to clean clothes or foot-wear.
WARNING: Risk of explosion-Do not spray ammable liquids.
WARNING: High pressure hoses, ttings and couplings are important for the safety of the machine.
Use only hosed, ttings and couplings recommended by the manufacturer. WARNING: To ensure
machine safety, use only original spare parts from the manufacturer or approved by the manufactu-
rer.
WARNING: Water that has own through backow preventers is considered to the non-potable.
WARNING: The machine shall be disconnected from its power source by removing the plug from
the socket-outlet during cleaning or maintenance and when replacing the machine to another func-
tion.
WARNING: Observe a distance of at least 30cm when using the jet to clean painted surfaces to
avoid damaging paintwork.
WARNING: Do not use the machine if a supply cord or important parts of the machine are damaged,
e.g. safety devices, high pressure hoses, trigger gun.
WARNING: If an extension cord is used, the plug and socket must be of watertight construction.
WARNING: Inadequate extension cords can be dangerous. If an extension cord is used, it shall be
suitable for outdoor use, and the connection has to be kept dry and off the ground. It is recommen-
ded that this is accomplished by means of a cord reel which keeps the socket at least 60mm above
the ground.
WARNING: In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this
appliance must not be supplied through an external switching device, such as a timer, or connected
to a circuit that is regularly switched on and off by the utility.
The machine is not intended to be connected to the potable water mains.
WARNING: To ensure the machine safety, please only use original spare parts
(including nozzle) from the manufacturer or approved by the manufacturer. Do not use
the machine before you changed them if they are damaged.
WARNING: Be care of the danger of the kickback force on the spray assembly when
opening the trigger gun and grasp the gun with hands rmly.
WARNING: To reduce the risk of injury, close supervision is necessary when a machine is used near
children. High-pressure cleaner shall not be used by children or untrained person. WARNING: Know
how to stop the machine and bleed pressures quickly. Be thoroughly familiar with the controls.
WARNING: Stay alert and watch what you are doing.
WARNING: Do not operate the machine when fatigued or under the inuence of alcohol or drugs.
WARNING: Keep operating area clear of all persons.
WARNING: Do not overreach or stand on unstable support. Keep good footing and balance at all
times.
WARNING: Follow the maintenance instructions specied in the manual.
WARNING: This machine must be grounded. If it has malfunction or breakdown, grounding provides
a path of least resistance for electric current to reduce the risk of electric shock. The plug must be
plugged into an appropriate outlet that is properly installed and grounded in accordance with all
local codes and ordinances. The rating voltage (V/Hz) of the machine has to be in compliance with
the local power supplying voltage.
WARNING: Check with a qualied electrician or service personnel if you are in doubt as to whether
the outlet is properly grounded. Do not modify the plug provided with the machine. If it will not t
the outlet, have a proper outlet installed by a qualied electrician. Do not use any type of adapter
with this machine.
WARNING: Use only 3-wire extension cords that have 3-prong grounding-type plugs and 3-pole
cord connectors that accept the plug from the machine. Use only extension cords that are intended
for outdoor use and the socket must be of watertight construction. These extension cords are
identied by a marking "Acceptable for use with outdoor machines; store indoors while not in use."
Use only extension cords having an electrical rating not less than the rating of the machine. Do not
use damaged extension cords. Examine extension cord before using and replace if damaged.
Inadequate extension cords can be dangerous. Do not abuse extension cord and do not yank on
any cord to disconnect. Keep cord away from heat and sharp edges. Always disconnect the exten-
sion cord from the receptacle before disconnecting the machine from the extension cord.
WARNING: To reduce the risk of electrocution, don’t start and run the machine in the rain or storm.
Keep all connections dry and off the ground. Do not touch plug with wet hands. It is strictly prohibi-
ted to let water leak into the machine.
WARNING: When the machine is turned on, the interior pumps start and continue to run even if the
pressure wand trigger has not been depressed. Running the machine for more than 3 minutes
without depressing the pressure wand trigger could cause heat damage to the motor and pumps,
Please do not leave the machine running unattended or unused for more than 3 minutes.
WARNING: When the machine is running, please maintain a constant water supply. Without water
circulation will damage the sealing rings of the machine.
WARNING: It is necessary to turn on the spray lance within one or two minutes after the machine
has been started. Otherwise, the temperature of the circulating water within the machine will soon
rise to a critical point, which will cause damage to the sealing rings inside the machine. WARNING:
Don’t start and run the machine in a place excessively cold so as to prevent the machine from the
freezing current.
WARNING: This machine has been designed for only using cleaning water, do not use corrosive
chemicals.
WARNING: Use cleaning agent supplied or recommend by the manufacturer.
WARNING: High-pressure jets can be dangerous if subject to misuse.
The jet must not be directed at persons, animals, live electrical equipment or the
machine itself. Pressure washers should not be pointed at tire walls, as it may be
possible to damage them.
WARNING: Do not direct the jet against yourself or others in order to clean clothes or footwear.
WARNING: Disconnect from the electrical power supply before carrying out user maintenance. If the
mains cable is damaged it must be replaced by the manufacturer, or its service agent or similarly
qualied person to avoid a hazard.
WARNING: Do not use the machine if a supply cord or important parts are damaged, e.g. safety
devices, high pressure hoses, trigger gun.
WARNING: Be aware of the recoil caused by the water jet when the machine is switched on.
WARNING: When the machine is moving and installing, the machine must be in at. When moving
the machine, pulling the handle to move it.
WARNING:Connect to the water supply. The machines are not suitable for connection to portable
water mains. Connect the machine to the water supply. (It can be a water container). Make sure the
inlet water pressure keeps between 0.01MPa and 0.4MPa.The inlet pipe should at least 5 M long. Do
not use the pipe if the pipe is damaged. If you want connect this machine to portable water mains,
you must install a backow preventer in the water pipe to prevent dirty water ow back to the drin-
king water system. The backow preventer shall comply with EN 60335-2-79 ANNEX AA.
4. OPERATING INSTRUCTIONS
This unit is to be connected to a cold water source ONLY.
The motor of this pressure washer will NOT run. It will only operate when the trigger is squeezed.
• Connect the outlet hose to the washer and connect the spray gun to the outlet hose.
• Connect nozzle and nozzle extension.
• Check gauze lter is clear of any blockage.
• Connect the water supply hose.
• Check that the hose has no kinks in it.
• Turn on water and check for leaks.
• Depress trigger to allow air to be expelled though the pump and hoses, lock trigger.
1. OVERVIEW
1. Water inlet
2. ON/OFF switch
3. High pressure washer
4. Water outlet (backside)
5. Mobile adapter bracket with wheel
6. Adjustable Spray Wand
7. Gun
2. APPLICATION
The high pressure washer is a highly specialized multifunctional machine with exceptionally reliable
safety assurance, which may be used to wash and clean cars, bikes and other outdoor equipment
or garden patios, green houses etc.
Helpful Hints for Getting Started Automatic ON/OFF:
The motor on this pressure washer does not run continuously. It only runs when the trigger of the
spray gun is squeezed. After following the start up procedures in this manual, turn the pressure
washer ON and squeeze the trigger for activation. See “Operating Instruction” section in this manual
for further details.
Bleeding the gun
It is very important to bleed the gun before using the pressure washer. Squeeze the trigger to allow
any air that is trapped inside of the unit and hose to escape. Continue to squeeze trigger until a
steady stream of water comes from the nozzle. (This process may take up to 2 minutes). See “Ope-
rating Instructions” section for this process.
• Plug in machine and turn on switch.
• Unlock trigger and use the pressure washer.
5. SHUT DOWN
1. Turn off the motor(push switch to the off position).
2. Unplug the unit from the power source.
3. Turn off the water supply.
4. Press the trigger of the gun to depressurize the system.
5. Disconnect the garden hose from the pressure washer.
6. Wipe all surfaces of the unit with a damp clean cloth.
7. Engage the gun safety lock.
CAUTION: ALWAYS turn off the unit’s motor BEFORE turning off the unit’s water supply. Serious
damage could occur to the motor if the unit is run without water.
CAUTION: NEVER disconnect the high-pressure discharge hose from the machine while the system
is still pressurized. To depressurize the unit, turn off the motor, turn off the water supply and
squeeze the trigger 2-3 times.
6. ADJUSTABLE SPRAY NOZZLE
Turn off the spray lance rst, hold the rear part of spray nozzle, then turn the front part of spray
nozzle clockwise, Water may be sprayed out from the spray nozzle in fan shapes (Fig. 2); Turn the
front part of spray nozzle anti-clockwise, water may be sprayed out from the spray nozzle linearly
(Fig. 1).
CAUTION: Water should be sprayed out from the spray nozzle in fan shapes (Fig. 2), when cleaning
the car or other vehicle.
Low/High pressure adjustable lance
Using high pressure:
Please make sure the trigger released and there is not any water spraying. then turn the rear part of
spray nozzle wither shins (Fig. 4). Squeeze the trigger, the gun will spray water with high pressure.
Using low pressure
Please make sure the trigger released and there is not any water spraying. then turn the rear part of
spray nozzle clockwise (Fig. 3). Squeeze the trigger, the gun will spray water with low pressure.
CAUTION: Selection of high or low pressure by turning action. The selection of the pressure must be
carried out with the gun in closed position.
Switch off the unit and let the
motor cool for a few minutes.
FAULT
PROBABLE CAUSE
REPAIR
Plug is not well connected or
electric socket is faulty.
The main voltage is
insufficient, lower than
minimum requirement.
The pump is stuck.
Thermal safety switch has tripped
Check plug, socket
Check that the main
voltage is adequate.
Refer to after storage instructions.
Leave the lance open
Fluctuating
Pressure
Pump sucking air.
Valves dirty, worn out or
stuck. Pump seals worn out.
Check that hoses and connections
are airtight.
Clean and replace, or refer to
dealer..
Water leaking
from
the
pump.
Seals worn out.
Check and replace, or refer to
dealer.
The motor
stops
suddenly.
Thermal safety switch has tripped
due to overheating.
Check that the main voltage
corresponds to specifications.
Switch off the unit and let it cool
for a few minutes.
The
pump
doesn’t
reach the
necessary
pressure.
Water inlet filter is clogged.
Pump sucking air from
connections or hoses.
Suction/ delivery valves are
clogged or worn out.
Unloaded valve is stuck.
Lance nozzle incorrect or worn out.
Clean the water inlet filter.
Check that all supply
connections are tight.
Check that the water feeding hose
is not leaking.
Clear or replace valves.
Loosen and re-tighten regulation
screw.
Check and/or replace
When
switched on
the machine
will not start
working.
9. POSSIBLE PROBLEM AND SOLUTION
10
Water inlet screen
The water inlet lter must be inspected regularly, so as to avoid blockage and restriction in the water
supply to the pump (Fig. 5).
Using detergent
Add detergent to the container. Set the Adjustable Spray Wand at low pressure position. Trigger gun
to spray detergent.
7. GUN SAFETY DEVICE
Whenever you use the high pressure washer, we suggest you grip the in the right position, with one
hand on the handle and the other on the lance, When you stop the machine it is necessary to use
the safety lock placed on the gun in order to avoid accidental.
8. CLEANING PIN INSTRUCTION
• Using included tip cleaner, or an unfolded paper clip, insert wire into the nozzle hole and move
back and forth until debris is dislodged.
• Remove additional debris by back-ushing water through the nozzle. To do this, place end of a
garden hose (with water running) to the end of nozzle for 30-60 seconds.
3. SAFETY REGULATIONS
WARNING: Read all the instructions before using the machine.
WARNING: Machines shall not be used by children. Children should be supervised to ensure that
they do not play with the machine. This machine is not intended for use by persons (including chil-
dren) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge
WARNING: The electrical supply connection shall be made by a qualied person and comply with
IEC 60364-1. The electric supply to this machine should include either a residual current device that
will interrupt the supply if the leakage current to earth exceeds 30 mA for 30 ms or a device that will
prove the earth circuit.
WARNING: The machine is intended to be used at a temperature above o degree. (Only for machine
with power cord of H05VV-F).
WARNING: The operating method to be followed in the event of accident (e.g. contact with deter-
gents: rinse with an abundance of clean water) or breakdown to prevent unsafe situations.
WARNING: This machine has been designed for use with the cleaning agent supplied or recommen-
ded by the manufacturer. The use of other cleaning agents or chemicals may adversely affect the
safety of the machine.
WARNING: Recommend the operator to wear ear protectors.
WARNING: Do not use the machine within range of persons unless they wear protective clothing.
WARNING: Do not direct the jet against yourself or others in order to clean clothes or foot-wear.
WARNING: Risk of explosion-Do not spray ammable liquids.
WARNING: High pressure hoses, ttings and couplings are important for the safety of the machine.
Use only hosed, ttings and couplings recommended by the manufacturer. WARNING: To ensure
machine safety, use only original spare parts from the manufacturer or approved by the manufactu-
rer.
WARNING: Water that has own through backow preventers is considered to the non-potable.
WARNING: The machine shall be disconnected from its power source by removing the plug from
the socket-outlet during cleaning or maintenance and when replacing the machine to another func-
tion.
WARNING: Observe a distance of at least 30cm when using the jet to clean painted surfaces to
avoid damaging paintwork.
WARNING: Do not use the machine if a supply cord or important parts of the machine are damaged,
e.g. safety devices, high pressure hoses, trigger gun.
WARNING: If an extension cord is used, the plug and socket must be of watertight construction.
WARNING: Inadequate extension cords can be dangerous. If an extension cord is used, it shall be
suitable for outdoor use, and the connection has to be kept dry and off the ground. It is recommen-
ded that this is accomplished by means of a cord reel which keeps the socket at least 60mm above
the ground.
WARNING: In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this
appliance must not be supplied through an external switching device, such as a timer, or connected
to a circuit that is regularly switched on and off by the utility.
The machine is not intended to be connected to the potable water mains.
WARNING: To ensure the machine safety, please only use original spare parts
(including nozzle) from the manufacturer or approved by the manufacturer. Do not use
the machine before you changed them if they are damaged.
WARNING: Be care of the danger of the kickback force on the spray assembly when
opening the trigger gun and grasp the gun with hands rmly.
WARNING: To reduce the risk of injury, close supervision is necessary when a machine is used near
children. High-pressure cleaner shall not be used by children or untrained person. WARNING: Know
how to stop the machine and bleed pressures quickly. Be thoroughly familiar with the controls.
WARNING: Stay alert and watch what you are doing.
WARNING: Do not operate the machine when fatigued or under the inuence of alcohol or drugs.
WARNING: Keep operating area clear of all persons.
WARNING: Do not overreach or stand on unstable support. Keep good footing and balance at all
times.
WARNING: Follow the maintenance instructions specied in the manual.
WARNING: This machine must be grounded. If it has malfunction or breakdown, grounding provides
a path of least resistance for electric current to reduce the risk of electric shock. The plug must be
plugged into an appropriate outlet that is properly installed and grounded in accordance with all
local codes and ordinances. The rating voltage (V/Hz) of the machine has to be in compliance with
the local power supplying voltage.
WARNING: Check with a qualied electrician or service personnel if you are in doubt as to whether
the outlet is properly grounded. Do not modify the plug provided with the machine. If it will not t
the outlet, have a proper outlet installed by a qualied electrician. Do not use any type of adapter
with this machine.
WARNING: Use only 3-wire extension cords that have 3-prong grounding-type plugs and 3-pole
cord connectors that accept the plug from the machine. Use only extension cords that are intended
for outdoor use and the socket must be of watertight construction. These extension cords are
identied by a marking "Acceptable for use with outdoor machines; store indoors while not in use."
Use only extension cords having an electrical rating not less than the rating of the machine. Do not
use damaged extension cords. Examine extension cord before using and replace if damaged.
Inadequate extension cords can be dangerous. Do not abuse extension cord and do not yank on
any cord to disconnect. Keep cord away from heat and sharp edges. Always disconnect the exten-
sion cord from the receptacle before disconnecting the machine from the extension cord.
WARNING: To reduce the risk of electrocution, don’t start and run the machine in the rain or storm.
Keep all connections dry and off the ground. Do not touch plug with wet hands. It is strictly prohibi-
ted to let water leak into the machine.
WARNING: When the machine is turned on, the interior pumps start and continue to run even if the
pressure wand trigger has not been depressed. Running the machine for more than 3 minutes
without depressing the pressure wand trigger could cause heat damage to the motor and pumps,
Please do not leave the machine running unattended or unused for more than 3 minutes.
WARNING: When the machine is running, please maintain a constant water supply. Without water
circulation will damage the sealing rings of the machine.
WARNING: It is necessary to turn on the spray lance within one or two minutes after the machine
has been started. Otherwise, the temperature of the circulating water within the machine will soon
rise to a critical point, which will cause damage to the sealing rings inside the machine. WARNING:
Don’t start and run the machine in a place excessively cold so as to prevent the machine from the
freezing current.
WARNING: This machine has been designed for only using cleaning water, do not use corrosive
chemicals.
WARNING: Use cleaning agent supplied or recommend by the manufacturer.
WARNING: High-pressure jets can be dangerous if subject to misuse.
The jet must not be directed at persons, animals, live electrical equipment or the
machine itself. Pressure washers should not be pointed at tire walls, as it may be
possible to damage them.
WARNING: Do not direct the jet against yourself or others in order to clean clothes or footwear.
WARNING: Disconnect from the electrical power supply before carrying out user maintenance. If the
mains cable is damaged it must be replaced by the manufacturer, or its service agent or similarly
qualied person to avoid a hazard.
WARNING: Do not use the machine if a supply cord or important parts are damaged, e.g. safety
devices, high pressure hoses, trigger gun.
WARNING: Be aware of the recoil caused by the water jet when the machine is switched on.
WARNING: When the machine is moving and installing, the machine must be in at. When moving
the machine, pulling the handle to move it.
WARNING:Connect to the water supply. The machines are not suitable for connection to portable
water mains. Connect the machine to the water supply. (It can be a water container). Make sure the
inlet water pressure keeps between 0.01MPa and 0.4MPa.The inlet pipe should at least 5 M long. Do
not use the pipe if the pipe is damaged. If you want connect this machine to portable water mains,
you must install a backow preventer in the water pipe to prevent dirty water ow back to the drin-
king water system. The backow preventer shall comply with EN 60335-2-79 ANNEX AA.
4. OPERATING INSTRUCTIONS
This unit is to be connected to a cold water source ONLY.
The motor of this pressure washer will NOT run. It will only operate when the trigger is squeezed.
• Connect the outlet hose to the washer and connect the spray gun to the outlet hose.
• Connect nozzle and nozzle extension.
• Check gauze lter is clear of any blockage.
• Connect the water supply hose.
• Check that the hose has no kinks in it.
• Turn on water and check for leaks.
• Depress trigger to allow air to be expelled though the pump and hoses, lock trigger.
1. OVERVIEW
1. Water inlet
2. ON/OFF switch
3. High pressure washer
4. Water outlet (backside)
5. Mobile adapter bracket with wheel
6. Adjustable Spray Wand
7. Gun
2. APPLICATION
The high pressure washer is a highly specialized multifunctional machine with exceptionally reliable
safety assurance, which may be used to wash and clean cars, bikes and other outdoor equipment
or garden patios, green houses etc.
Helpful Hints for Getting Started Automatic ON/OFF:
The motor on this pressure washer does not run continuously. It only runs when the trigger of the
spray gun is squeezed. After following the start up procedures in this manual, turn the pressure
washer ON and squeeze the trigger for activation. See “Operating Instruction” section in this manual
for further details.
Bleeding the gun
It is very important to bleed the gun before using the pressure washer. Squeeze the trigger to allow
any air that is trapped inside of the unit and hose to escape. Continue to squeeze trigger until a
steady stream of water comes from the nozzle. (This process may take up to 2 minutes). See “Ope-
rating Instructions” section for this process.
• Plug in machine and turn on switch.
• Unlock trigger and use the pressure washer.
5. SHUT DOWN
1. Turn off the motor(push switch to the off position).
2. Unplug the unit from the power source.
3. Turn off the water supply.
4. Press the trigger of the gun to depressurize the system.
5. Disconnect the garden hose from the pressure washer.
6. Wipe all surfaces of the unit with a damp clean cloth.
7. Engage the gun safety lock.
CAUTION: ALWAYS turn off the unit’s motor BEFORE turning off the unit’s water supply. Serious
damage could occur to the motor if the unit is run without water.
CAUTION: NEVER disconnect the high-pressure discharge hose from the machine while the system
is still pressurized. To depressurize the unit, turn off the motor, turn off the water supply and
squeeze the trigger 2-3 times.
6. ADJUSTABLE SPRAY NOZZLE
Turn off the spray lance rst, hold the rear part of spray nozzle, then turn the front part of spray
nozzle clockwise, Water may be sprayed out from the spray nozzle in fan shapes (Fig. 2); Turn the
front part of spray nozzle anti-clockwise, water may be sprayed out from the spray nozzle linearly
(Fig. 1).
CAUTION: Water should be sprayed out from the spray nozzle in fan shapes (Fig. 2), when cleaning
the car or other vehicle.
Low/High pressure adjustable lance
Using high pressure:
Please make sure the trigger released and there is not any water spraying. then turn the rear part of
spray nozzle wither shins (Fig. 4). Squeeze the trigger, the gun will spray water with high pressure.
Using low pressure
Please make sure the trigger released and there is not any water spraying. then turn the rear part of
spray nozzle clockwise (Fig. 3). Squeeze the trigger, the gun will spray water with low pressure.
CAUTION: Selection of high or low pressure by turning action. The selection of the pressure must be
carried out with the gun in closed position.
10. ELECTRICAL DIAGRAM
Switch 1
Switch 2
Black
Working
winding
Start
winding
MOT. 1~
Yellow/Green
Green
RedRed
N 1 2
L 4 5
11. INSTALLATION, ELECTRICAL AND WATER CONNECTIONS
EN
11
1. Pressure cleaner
2. Water supply hose (not include)
3. Water connection
4. Water inlet
5. High pressure tube
6. High-pressure, water outlet
7. Spray gun
8. Power supply
NOTE: The company reserves the right to modify its machine specications without given any
notice; for up to date information please visit our website.
12. INSPECTION & MAINTENANCE
For safety use, make sure every three-months you clean the machine. Before working, make sure
inspect the lter and the nozzle, make sure there is no impurity. After working, make sure there is no
water in the pump and the hose.
If the machine need to be repaired in the guarantee period, please return the machine to the shop.
You need to provide the certicate of purchase in order to repair or get the substitute.
Before Packaging, The machine should be cleaned, then use closed packaging, packaging should
be rm. Store the machine in dry conditions.
For transportation safety. The machine should comply with ISTA.
Meaning of crossed–out wheeled dustbin: Do not dispose of electrical machines as
unsorted municipal waste, use separate collection facilities.
Contact you local government for information regarding the collection systems
available.
If electrical machines are disposed of in landlls or dumps, hazardous substances
can leak into the groundwater and get into the food chain, damaging your health and
well-being.
When replacing old machines with new ones, the retailer will be happy to take back
your old machine for disposal.
13. TECHNICAL SPECIFICATIONS
Motor type: Induction motor
Power: 2100 W
Max pressure: 140 bar
Max ow: 450 L/h
Max. water temperature: 50°C
Power supply cord length: 5 m
Function: Auto-stop system
Accessories: Spray gun with adjustable spray nozzle, 5 m High pressure hose, foam sprayer (Built-in
detergent tank), turbo lance and HPC quick connector.
Water inlet screen
The water inlet lter must be inspected regularly, so as to avoid blockage and restriction in the water
supply to the pump (Fig. 5).
Using detergent
Add detergent to the container. Set the Adjustable Spray Wand at low pressure position. Trigger gun
to spray detergent.
7. GUN SAFETY DEVICE
Whenever you use the high pressure washer, we suggest you grip the in the right position, with one
hand on the handle and the other on the lance, When you stop the machine it is necessary to use
the safety lock placed on the gun in order to avoid accidental.
8. CLEANING PIN INSTRUCTION
• Using included tip cleaner, or an unfolded paper clip, insert wire into the nozzle hole and move
back and forth until debris is dislodged.
• Remove additional debris by back-ushing water through the nozzle. To do this, place end of a
garden hose (with water running) to the end of nozzle for 30-60 seconds.
3. SAFETY REGULATIONS
WARNING: Read all the instructions before using the machine.
WARNING: Machines shall not be used by children. Children should be supervised to ensure that
they do not play with the machine. This machine is not intended for use by persons (including chil-
dren) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge
WARNING: The electrical supply connection shall be made by a qualied person and comply with
IEC 60364-1. The electric supply to this machine should include either a residual current device that
will interrupt the supply if the leakage current to earth exceeds 30 mA for 30 ms or a device that will
prove the earth circuit.
WARNING: The machine is intended to be used at a temperature above o degree. (Only for machine
with power cord of H05VV-F).
WARNING: The operating method to be followed in the event of accident (e.g. contact with deter-
gents: rinse with an abundance of clean water) or breakdown to prevent unsafe situations.
WARNING: This machine has been designed for use with the cleaning agent supplied or recommen-
ded by the manufacturer. The use of other cleaning agents or chemicals may adversely affect the
safety of the machine.
WARNING: Recommend the operator to wear ear protectors.
WARNING: Do not use the machine within range of persons unless they wear protective clothing.
WARNING: Do not direct the jet against yourself or others in order to clean clothes or foot-wear.
WARNING: Risk of explosion-Do not spray ammable liquids.
WARNING: High pressure hoses, ttings and couplings are important for the safety of the machine.
Use only hosed, ttings and couplings recommended by the manufacturer. WARNING: To ensure
machine safety, use only original spare parts from the manufacturer or approved by the manufactu-
rer.
WARNING: Water that has own through backow preventers is considered to the non-potable.
WARNING: The machine shall be disconnected from its power source by removing the plug from
the socket-outlet during cleaning or maintenance and when replacing the machine to another func-
tion.
WARNING: Observe a distance of at least 30cm when using the jet to clean painted surfaces to
avoid damaging paintwork.
WARNING: Do not use the machine if a supply cord or important parts of the machine are damaged,
e.g. safety devices, high pressure hoses, trigger gun.
WARNING: If an extension cord is used, the plug and socket must be of watertight construction.
WARNING: Inadequate extension cords can be dangerous. If an extension cord is used, it shall be
suitable for outdoor use, and the connection has to be kept dry and off the ground. It is recommen-
ded that this is accomplished by means of a cord reel which keeps the socket at least 60mm above
the ground.
WARNING: In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this
appliance must not be supplied through an external switching device, such as a timer, or connected
to a circuit that is regularly switched on and off by the utility.
The machine is not intended to be connected to the potable water mains.
WARNING: To ensure the machine safety, please only use original spare parts
(including nozzle) from the manufacturer or approved by the manufacturer. Do not use
the machine before you changed them if they are damaged.
WARNING: Be care of the danger of the kickback force on the spray assembly when
opening the trigger gun and grasp the gun with hands rmly.
WARNING: To reduce the risk of injury, close supervision is necessary when a machine is used near
children. High-pressure cleaner shall not be used by children or untrained person. WARNING: Know
how to stop the machine and bleed pressures quickly. Be thoroughly familiar with the controls.
WARNING: Stay alert and watch what you are doing.
WARNING: Do not operate the machine when fatigued or under the inuence of alcohol or drugs.
WARNING: Keep operating area clear of all persons.
WARNING: Do not overreach or stand on unstable support. Keep good footing and balance at all
times.
WARNING: Follow the maintenance instructions specied in the manual.
WARNING: This machine must be grounded. If it has malfunction or breakdown, grounding provides
a path of least resistance for electric current to reduce the risk of electric shock. The plug must be
plugged into an appropriate outlet that is properly installed and grounded in accordance with all
local codes and ordinances. The rating voltage (V/Hz) of the machine has to be in compliance with
the local power supplying voltage.
WARNING: Check with a qualied electrician or service personnel if you are in doubt as to whether
the outlet is properly grounded. Do not modify the plug provided with the machine. If it will not t
the outlet, have a proper outlet installed by a qualied electrician. Do not use any type of adapter
with this machine.
WARNING: Use only 3-wire extension cords that have 3-prong grounding-type plugs and 3-pole
cord connectors that accept the plug from the machine. Use only extension cords that are intended
for outdoor use and the socket must be of watertight construction. These extension cords are
identied by a marking "Acceptable for use with outdoor machines; store indoors while not in use."
Use only extension cords having an electrical rating not less than the rating of the machine. Do not
use damaged extension cords. Examine extension cord before using and replace if damaged.
Inadequate extension cords can be dangerous. Do not abuse extension cord and do not yank on
any cord to disconnect. Keep cord away from heat and sharp edges. Always disconnect the exten-
sion cord from the receptacle before disconnecting the machine from the extension cord.
WARNING: To reduce the risk of electrocution, don’t start and run the machine in the rain or storm.
Keep all connections dry and off the ground. Do not touch plug with wet hands. It is strictly prohibi-
ted to let water leak into the machine.
WARNING: When the machine is turned on, the interior pumps start and continue to run even if the
pressure wand trigger has not been depressed. Running the machine for more than 3 minutes
without depressing the pressure wand trigger could cause heat damage to the motor and pumps,
Please do not leave the machine running unattended or unused for more than 3 minutes.
WARNING: When the machine is running, please maintain a constant water supply. Without water
circulation will damage the sealing rings of the machine.
WARNING: It is necessary to turn on the spray lance within one or two minutes after the machine
has been started. Otherwise, the temperature of the circulating water within the machine will soon
rise to a critical point, which will cause damage to the sealing rings inside the machine. WARNING:
Don’t start and run the machine in a place excessively cold so as to prevent the machine from the
freezing current.
WARNING: This machine has been designed for only using cleaning water, do not use corrosive
chemicals.
WARNING: Use cleaning agent supplied or recommend by the manufacturer.
WARNING: High-pressure jets can be dangerous if subject to misuse.
The jet must not be directed at persons, animals, live electrical equipment or the
machine itself. Pressure washers should not be pointed at tire walls, as it may be
possible to damage them.
WARNING: Do not direct the jet against yourself or others in order to clean clothes or footwear.
WARNING: Disconnect from the electrical power supply before carrying out user maintenance. If the
mains cable is damaged it must be replaced by the manufacturer, or its service agent or similarly
qualied person to avoid a hazard.
WARNING: Do not use the machine if a supply cord or important parts are damaged, e.g. safety
devices, high pressure hoses, trigger gun.
WARNING: Be aware of the recoil caused by the water jet when the machine is switched on.
WARNING: When the machine is moving and installing, the machine must be in at. When moving
the machine, pulling the handle to move it.
WARNING:Connect to the water supply. The machines are not suitable for connection to portable
water mains. Connect the machine to the water supply. (It can be a water container). Make sure the
inlet water pressure keeps between 0.01MPa and 0.4MPa.The inlet pipe should at least 5 M long. Do
not use the pipe if the pipe is damaged. If you want connect this machine to portable water mains,
you must install a backow preventer in the water pipe to prevent dirty water ow back to the drin-
king water system. The backow preventer shall comply with EN 60335-2-79 ANNEX AA.
4. OPERATING INSTRUCTIONS
This unit is to be connected to a cold water source ONLY.
The motor of this pressure washer will NOT run. It will only operate when the trigger is squeezed.
• Connect the outlet hose to the washer and connect the spray gun to the outlet hose.
• Connect nozzle and nozzle extension.
• Check gauze lter is clear of any blockage.
• Connect the water supply hose.
• Check that the hose has no kinks in it.
• Turn on water and check for leaks.
• Depress trigger to allow air to be expelled though the pump and hoses, lock trigger.
1. OVERVIEW
1. Water inlet
2. ON/OFF switch
3. High pressure washer
4. Water outlet (backside)
5. Mobile adapter bracket with wheel
6. Adjustable Spray Wand
7. Gun
2. APPLICATION
The high pressure washer is a highly specialized multifunctional machine with exceptionally reliable
safety assurance, which may be used to wash and clean cars, bikes and other outdoor equipment
or garden patios, green houses etc.
Helpful Hints for Getting Started Automatic ON/OFF:
The motor on this pressure washer does not run continuously. It only runs when the trigger of the
spray gun is squeezed. After following the start up procedures in this manual, turn the pressure
washer ON and squeeze the trigger for activation. See “Operating Instruction” section in this manual
for further details.
Bleeding the gun
It is very important to bleed the gun before using the pressure washer. Squeeze the trigger to allow
any air that is trapped inside of the unit and hose to escape. Continue to squeeze trigger until a
steady stream of water comes from the nozzle. (This process may take up to 2 minutes). See “Ope-
rating Instructions” section for this process.
• Plug in machine and turn on switch.
• Unlock trigger and use the pressure washer.
5. SHUT DOWN
1. Turn off the motor(push switch to the off position).
2. Unplug the unit from the power source.
3. Turn off the water supply.
4. Press the trigger of the gun to depressurize the system.
5. Disconnect the garden hose from the pressure washer.
6. Wipe all surfaces of the unit with a damp clean cloth.
7. Engage the gun safety lock.
CAUTION: ALWAYS turn off the unit’s motor BEFORE turning off the unit’s water supply. Serious
damage could occur to the motor if the unit is run without water.
CAUTION: NEVER disconnect the high-pressure discharge hose from the machine while the system
is still pressurized. To depressurize the unit, turn off the motor, turn off the water supply and
squeeze the trigger 2-3 times.
6. ADJUSTABLE SPRAY NOZZLE
Turn off the spray lance rst, hold the rear part of spray nozzle, then turn the front part of spray
nozzle clockwise, Water may be sprayed out from the spray nozzle in fan shapes (Fig. 2); Turn the
front part of spray nozzle anti-clockwise, water may be sprayed out from the spray nozzle linearly
(Fig. 1).
CAUTION: Water should be sprayed out from the spray nozzle in fan shapes (Fig. 2), when cleaning
the car or other vehicle.
Low/High pressure adjustable lance
Using high pressure:
Please make sure the trigger released and there is not any water spraying. then turn the rear part of
spray nozzle wither shins (Fig. 4). Squeeze the trigger, the gun will spray water with high pressure.
Using low pressure
Please make sure the trigger released and there is not any water spraying. then turn the rear part of
spray nozzle clockwise (Fig. 3). Squeeze the trigger, the gun will spray water with low pressure.
CAUTION: Selection of high or low pressure by turning action. The selection of the pressure must be
carried out with the gun in closed position.
12
Water inlet screen
The water inlet lter must be inspected regularly, so as to avoid blockage and restriction in the water
supply to the pump (Fig. 5).
Using detergent
Add detergent to the container. Set the Adjustable Spray Wand at low pressure position. Trigger gun
to spray detergent.
7. GUN SAFETY DEVICE
Whenever you use the high pressure washer, we suggest you grip the in the right position, with one
hand on the handle and the other on the lance, When you stop the machine it is necessary to use
the safety lock placed on the gun in order to avoid accidental.
8. CLEANING PIN INSTRUCTION
• Using included tip cleaner, or an unfolded paper clip, insert wire into the nozzle hole and move
back and forth until debris is dislodged.
• Remove additional debris by back-ushing water through the nozzle. To do this, place end of a
garden hose (with water running) to the end of nozzle for 30-60 seconds.
3. SAFETY REGULATIONS
WARNING: Read all the instructions before using the machine.
WARNING: Machines shall not be used by children. Children should be supervised to ensure that
they do not play with the machine. This machine is not intended for use by persons (including chil-
dren) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge
WARNING: The electrical supply connection shall be made by a qualied person and comply with
IEC 60364-1. The electric supply to this machine should include either a residual current device that
will interrupt the supply if the leakage current to earth exceeds 30 mA for 30 ms or a device that will
prove the earth circuit.
WARNING: The machine is intended to be used at a temperature above o degree. (Only for machine
with power cord of H05VV-F).
WARNING: The operating method to be followed in the event of accident (e.g. contact with deter-
gents: rinse with an abundance of clean water) or breakdown to prevent unsafe situations.
WARNING: This machine has been designed for use with the cleaning agent supplied or recommen-
ded by the manufacturer. The use of other cleaning agents or chemicals may adversely affect the
safety of the machine.
WARNING: Recommend the operator to wear ear protectors.
WARNING: Do not use the machine within range of persons unless they wear protective clothing.
WARNING: Do not direct the jet against yourself or others in order to clean clothes or foot-wear.
WARNING: Risk of explosion-Do not spray ammable liquids.
WARNING: High pressure hoses, ttings and couplings are important for the safety of the machine.
Use only hosed, ttings and couplings recommended by the manufacturer. WARNING: To ensure
machine safety, use only original spare parts from the manufacturer or approved by the manufactu-
rer.
WARNING: Water that has own through backow preventers is considered to the non-potable.
WARNING: The machine shall be disconnected from its power source by removing the plug from
the socket-outlet during cleaning or maintenance and when replacing the machine to another func-
tion.
WARNING: Observe a distance of at least 30cm when using the jet to clean painted surfaces to
avoid damaging paintwork.
WARNING: Do not use the machine if a supply cord or important parts of the machine are damaged,
e.g. safety devices, high pressure hoses, trigger gun.
WARNING: If an extension cord is used, the plug and socket must be of watertight construction.
WARNING: Inadequate extension cords can be dangerous. If an extension cord is used, it shall be
suitable for outdoor use, and the connection has to be kept dry and off the ground. It is recommen-
ded that this is accomplished by means of a cord reel which keeps the socket at least 60mm above
the ground.
WARNING: In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this
appliance must not be supplied through an external switching device, such as a timer, or connected
to a circuit that is regularly switched on and off by the utility.
The machine is not intended to be connected to the potable water mains.
WARNING: To ensure the machine safety, please only use original spare parts
(including nozzle) from the manufacturer or approved by the manufacturer. Do not use
the machine before you changed them if they are damaged.
WARNING: Be care of the danger of the kickback force on the spray assembly when
opening the trigger gun and grasp the gun with hands rmly.
WARNING: To reduce the risk of injury, close supervision is necessary when a machine is used near
children. High-pressure cleaner shall not be used by children or untrained person. WARNING: Know
how to stop the machine and bleed pressures quickly. Be thoroughly familiar with the controls.
WARNING: Stay alert and watch what you are doing.
WARNING: Do not operate the machine when fatigued or under the inuence of alcohol or drugs.
WARNING: Keep operating area clear of all persons.
WARNING: Do not overreach or stand on unstable support. Keep good footing and balance at all
times.
WARNING: Follow the maintenance instructions specied in the manual.
WARNING: This machine must be grounded. If it has malfunction or breakdown, grounding provides
a path of least resistance for electric current to reduce the risk of electric shock. The plug must be
plugged into an appropriate outlet that is properly installed and grounded in accordance with all
local codes and ordinances. The rating voltage (V/Hz) of the machine has to be in compliance with
the local power supplying voltage.
WARNING: Check with a qualied electrician or service personnel if you are in doubt as to whether
the outlet is properly grounded. Do not modify the plug provided with the machine. If it will not t
the outlet, have a proper outlet installed by a qualied electrician. Do not use any type of adapter
with this machine.
WARNING: Use only 3-wire extension cords that have 3-prong grounding-type plugs and 3-pole
cord connectors that accept the plug from the machine. Use only extension cords that are intended
for outdoor use and the socket must be of watertight construction. These extension cords are
identied by a marking "Acceptable for use with outdoor machines; store indoors while not in use."
Use only extension cords having an electrical rating not less than the rating of the machine. Do not
use damaged extension cords. Examine extension cord before using and replace if damaged.
Inadequate extension cords can be dangerous. Do not abuse extension cord and do not yank on
any cord to disconnect. Keep cord away from heat and sharp edges. Always disconnect the exten-
sion cord from the receptacle before disconnecting the machine from the extension cord.
WARNING: To reduce the risk of electrocution, don’t start and run the machine in the rain or storm.
Keep all connections dry and off the ground. Do not touch plug with wet hands. It is strictly prohibi-
ted to let water leak into the machine.
WARNING: When the machine is turned on, the interior pumps start and continue to run even if the
pressure wand trigger has not been depressed. Running the machine for more than 3 minutes
without depressing the pressure wand trigger could cause heat damage to the motor and pumps,
Please do not leave the machine running unattended or unused for more than 3 minutes.
WARNING: When the machine is running, please maintain a constant water supply. Without water
circulation will damage the sealing rings of the machine.
WARNING: It is necessary to turn on the spray lance within one or two minutes after the machine
has been started. Otherwise, the temperature of the circulating water within the machine will soon
rise to a critical point, which will cause damage to the sealing rings inside the machine. WARNING:
Don’t start and run the machine in a place excessively cold so as to prevent the machine from the
freezing current.
WARNING: This machine has been designed for only using cleaning water, do not use corrosive
chemicals.
WARNING: Use cleaning agent supplied or recommend by the manufacturer.
WARNING: High-pressure jets can be dangerous if subject to misuse.
The jet must not be directed at persons, animals, live electrical equipment or the
machine itself. Pressure washers should not be pointed at tire walls, as it may be
possible to damage them.
WARNING: Do not direct the jet against yourself or others in order to clean clothes or footwear.
WARNING: Disconnect from the electrical power supply before carrying out user maintenance. If the
mains cable is damaged it must be replaced by the manufacturer, or its service agent or similarly
qualied person to avoid a hazard.
WARNING: Do not use the machine if a supply cord or important parts are damaged, e.g. safety
devices, high pressure hoses, trigger gun.
WARNING: Be aware of the recoil caused by the water jet when the machine is switched on.
WARNING: When the machine is moving and installing, the machine must be in at. When moving
the machine, pulling the handle to move it.
WARNING:Connect to the water supply. The machines are not suitable for connection to portable
water mains. Connect the machine to the water supply. (It can be a water container). Make sure the
inlet water pressure keeps between 0.01MPa and 0.4MPa.The inlet pipe should at least 5 M long. Do
not use the pipe if the pipe is damaged. If you want connect this machine to portable water mains,
you must install a backow preventer in the water pipe to prevent dirty water ow back to the drin-
king water system. The backow preventer shall comply with EN 60335-2-79 ANNEX AA.
4. OPERATING INSTRUCTIONS
This unit is to be connected to a cold water source ONLY.
The motor of this pressure washer will NOT run. It will only operate when the trigger is squeezed.
• Connect the outlet hose to the washer and connect the spray gun to the outlet hose.
• Connect nozzle and nozzle extension.
• Check gauze lter is clear of any blockage.
• Connect the water supply hose.
• Check that the hose has no kinks in it.
• Turn on water and check for leaks.
• Depress trigger to allow air to be expelled though the pump and hoses, lock trigger.
1. OVERVIEW
1. Water inlet
2. ON/OFF switch
3. High pressure washer
4. Water outlet (backside)
5. Mobile adapter bracket with wheel
6. Adjustable Spray Wand
7. Gun
2. APPLICATION
The high pressure washer is a highly specialized multifunctional machine with exceptionally reliable
safety assurance, which may be used to wash and clean cars, bikes and other outdoor equipment
or garden patios, green houses etc.
Helpful Hints for Getting Started Automatic ON/OFF:
The motor on this pressure washer does not run continuously. It only runs when the trigger of the
spray gun is squeezed. After following the start up procedures in this manual, turn the pressure
washer ON and squeeze the trigger for activation. See “Operating Instruction” section in this manual
for further details.
Bleeding the gun
It is very important to bleed the gun before using the pressure washer. Squeeze the trigger to allow
any air that is trapped inside of the unit and hose to escape. Continue to squeeze trigger until a
steady stream of water comes from the nozzle. (This process may take up to 2 minutes). See “Ope-
rating Instructions” section for this process.
• Plug in machine and turn on switch.
• Unlock trigger and use the pressure washer.
5. SHUT DOWN
1. Turn off the motor(push switch to the off position).
2. Unplug the unit from the power source.
3. Turn off the water supply.
4. Press the trigger of the gun to depressurize the system.
5. Disconnect the garden hose from the pressure washer.
6. Wipe all surfaces of the unit with a damp clean cloth.
7. Engage the gun safety lock.
CAUTION: ALWAYS turn off the unit’s motor BEFORE turning off the unit’s water supply. Serious
damage could occur to the motor if the unit is run without water.
CAUTION: NEVER disconnect the high-pressure discharge hose from the machine while the system
is still pressurized. To depressurize the unit, turn off the motor, turn off the water supply and
squeeze the trigger 2-3 times.
6. ADJUSTABLE SPRAY NOZZLE
Turn off the spray lance rst, hold the rear part of spray nozzle, then turn the front part of spray
nozzle clockwise, Water may be sprayed out from the spray nozzle in fan shapes (Fig. 2); Turn the
front part of spray nozzle anti-clockwise, water may be sprayed out from the spray nozzle linearly
(Fig. 1).
CAUTION: Water should be sprayed out from the spray nozzle in fan shapes (Fig. 2), when cleaning
the car or other vehicle.
Low/High pressure adjustable lance
Using high pressure:
Please make sure the trigger released and there is not any water spraying. then turn the rear part of
spray nozzle wither shins (Fig. 4). Squeeze the trigger, the gun will spray water with high pressure.
Using low pressure
Please make sure the trigger released and there is not any water spraying. then turn the rear part of
spray nozzle clockwise (Fig. 3). Squeeze the trigger, the gun will spray water with low pressure.
CAUTION: Selection of high or low pressure by turning action. The selection of the pressure must be
carried out with the gun in closed position.

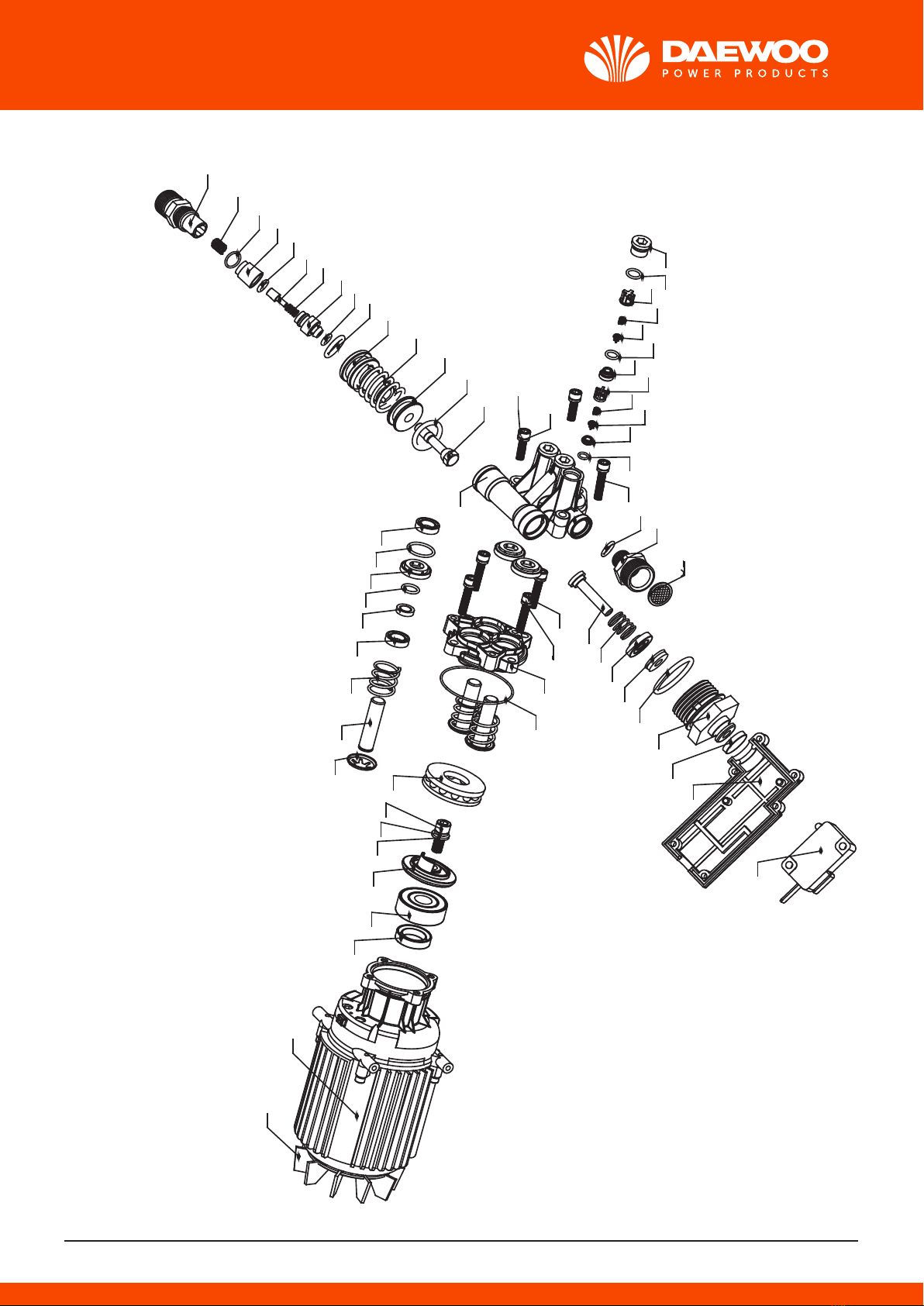

14. EXPLODED VIEW AND SPARE PART LIST
62
61
60
59 58 575655 54
44 43
42
30 19
18
(22)
25
27
28 29
26 (23)
17
20 2122
23
31
32
33
34
35
36
37
38
39
40
41
(18)
53 52 51 50 494847 46 45
16
15
14
13
12
11
10
98
7
654
3
2
1
EN
13
1. Water outlet joint x1
2. Sring 0.5×10×6.5×11.85 x1
3. O-ringφ22×2.4 x1
4. Blocking x1
5. O-ringφ5×1.8 x1
6. Valve core x1
7. Valve core spring x1
8. Jacket x1
9. O-ringφ4.5×1.8 x1
10. O-ringφ16×2.4 x1
11. Piston x1
12. Piston spring x1
13. Valve seat x1
14. O-ringφ15×2.4 x1
15. Valve rod x1
16. Pump head x1
17. Screw Internal hexagonal M6×25 x2
18. Spring washerφ6 x7
19. Screw Internal hexagonal M6×35 x1
20. O-ringφ6.5×1.5 x3
21. Inlet/outlet valve seat x3
22. Inlet/outlet valve core x6
23. Inlet/outlet valve spring 0.3×6.4×6.5×6.3 x6
24. Inlet/outlet valve cap x3
25. Outlet non return valve seat x3
26. O-ringφ8.5×1.8 x3
27. Outlet non return valve cap x3
28. O-ring φ13×1.9 x3
29. Water valve cap x3
30. O-ringφ18×2.4 x1
31. Water Inlet joint x1
32. Strainer x1
33. Switch rod x1
34. Rod spring 1×11.2×5×15.9 x1
35. Connecting nut gasket x1
36. Y-ring 4x11x2.5 x1
37. O-ringφ22×1.9 x1
38. Connecting nut x1
39. Water proof cap of Pressure switch x1
40. Switching around shell x1+1
41. Micro switch x1
42. Screw Internal hexagonal M6×25 x4
43. Pump x1
44. O-ringφ58×2.65 x1
45. Y-ring 12×18×4 x3
46. O-ringφ22×1.9 x3
47. Middle sets x3
48. O-ringφ16×1.9 x3
49. In the interval sets x3
50. Skeleton SEAL 12×20×4 x3
5. Plunger spring x3
52. Plunger x3
53. Plunger clip x3
54. Thrust ball bearings 51107B x1
55. Screw Internal hexagonal M8×20 x1
56. Spring washerφ8 x1
57. Gasketφ8 x1
58. Bearings seat x1
59. Bearings 6302 x1
60. Seal 18x28x5 x1
61. Motor x1
62. Fan x1
WARRANTY DOES NOT COVER
GUARANTEE
The warranty period starts from the date of sale of the products and covers 6 months for all power products.
During the warranty period, free failures caused due to the use of poor-quality materials in the production and manufacturer
workmanship admitted fault are removed. The guarantee comes into force only when warranty card and cutting coupons are
properly lled. The product is accepted for repair in its pure form and full completeness.
• Mechanical damage (cracks, chips, etc.) and damage
caused by exposure to aggressive media, foreign objects
inside the unit and air vents, as well as for damage occurred
as a result of improper storage (corrosion of metal parts);
• Failures caused by overloading or product misuse, use of
the product for other purposes. A sure sign of overload
products is melting or discoloration of parts due to the high
temperature, simultaneous failure of two or more nodes,
teaser on the surfaces of the cylinder and the piston or
destruction of piston rings. Also, the warranty does not
cover failure of the automatic voltage regulator due to
incorrect operation;
• Failure caused by clogging of the fuel and cooling
systems;
• Wearing parts (carbon brushes, belts, rubber seals, oil
seals, shock absorbers, springs, clutches, spark plugs,
mufers, nozzles, pulleys, guide rollers, cables, recoil
starter, chucks, collets, removable batteries, lters and
safety elements, grease, removable devices, equipment,
knives, drills, etc.);
• Electrical cables with mechanical and thermal damage;
• Product opened or repaired by a non-authorized service
center.
• Prevention, care products (cleaning, washing, lubrication,
etc.), installation and conguration of the product;
• Natural wear products (production share);
• Failures caused by using the product for the needs related
to business activities;
• If the warranty card is empty or missing seal (stamp) of the
Seller;
• The absence of the holder's signature on the warranty card.
WARRANTY CARD
Product
Model
Company
Date
of sale
Product
Model
Company
Date
of sale
Product
Model
Company
Date
of sale
The product is in good conditions and fully complete. Read and agree the terms of the warranty.
Product model
Serial number
Username
Date of sale
Company
Client's signature
www.daewoopowerproducts.com
Manufactured under license of Daewoo International Corporation, Korea
Table of contents
Other Daewoo Pressure Washer manuals
Popular Pressure Washer manuals by other brands
Black & Decker
Black & Decker BXPW1800E Original instructions
Briggs & Stratton
Briggs & Stratton Speed Clean Operator's manual
Briggs & Stratton
Briggs & Stratton BPW3000PX manual
Kärcher
Kärcher HD 4.0/50 Pb Cage Operator's manual
Matrix
Matrix HPC 1400 instructions
North Star
North Star M157594J user manual
