Daewoo FR-260 User manual

Service Manual
Refrigerator
Model: FR-260
DAEWOO ELECTRONICS CO., LTD.
S/M No. : FR2600000
✔ Caution
: In this Manual, some parts can be changed for improving, their
performance without notice in the parts list. So, if you need the
latest parts information,please refer to PPL(Parts Price List) in
Service Information Center (http://svc.dwe.co.kr).

CONTENTS
1. Specification 1
2. External view 1
3. Name of parts 2
4. Air flow diagram 3
5. Methods of exchanging main parts 4
6. Trouble shooting procedure 13
7. Cycle refare flow chart 17
8. How to judge cooling cycle problem 18
9. Refrigrant cycle diagram 19
10. Machine room view and part list 20
11. Welding 21
12. Parts list and Exploded views 22

1. SPECIFCATION
Refirgerant R-134a
R-12
Freezer (L)
Refrigertor (L)
TOTAL (L)
Hieght (mm)
Width (mm)
Depth (mm)

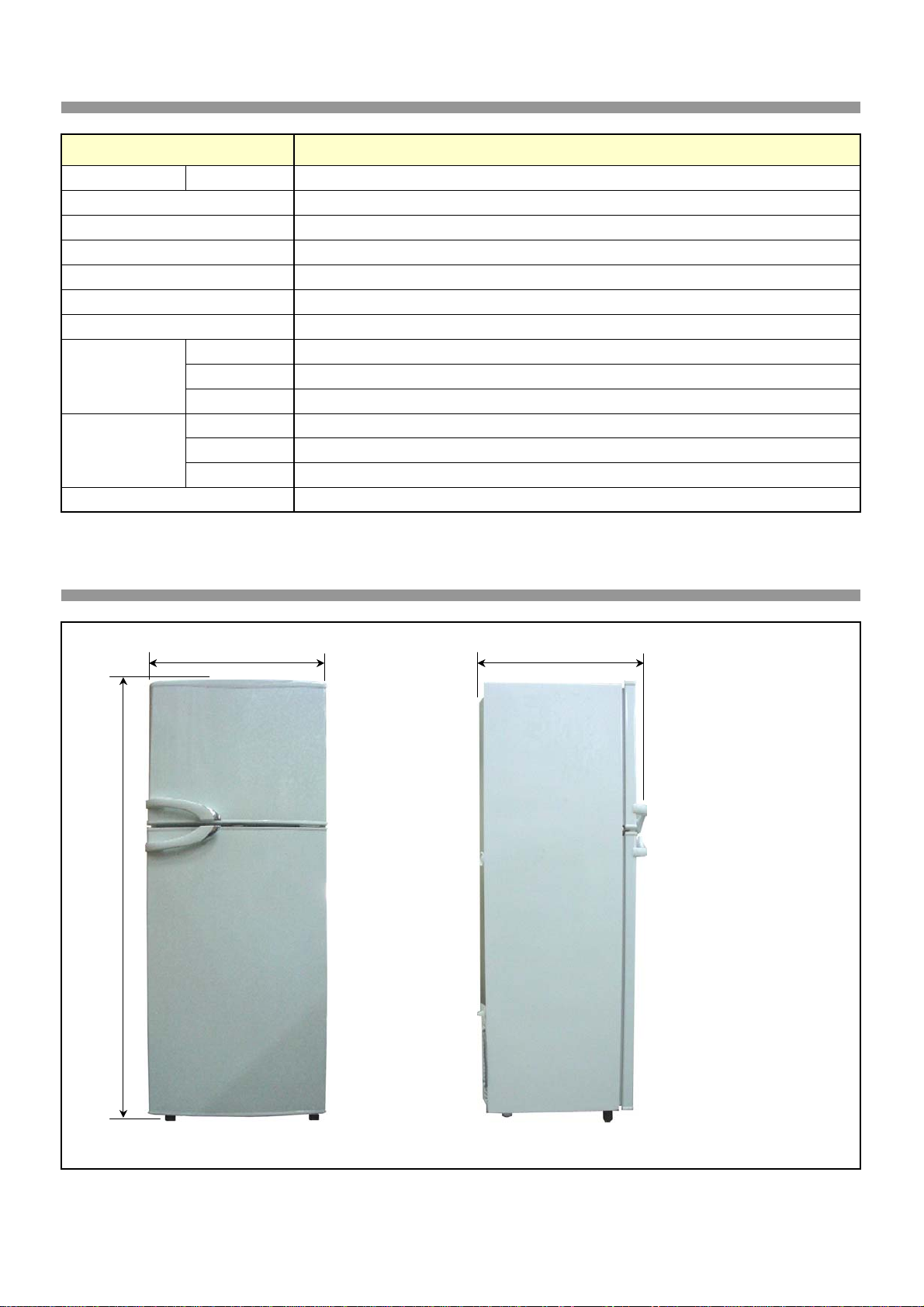

2. EXTERNAL VIEWS
1536
550
625
51/54
Forced Fin-Evaporator Type
Automatic Start & Stop
Adjustable Dial
Capacity
(NET/GROSS)
56/65
160/186
216/251
External
Dimension
Net/GROSS Weight(Kg)
Defrost System
Defrost Operation
Cold Control
Model Name
Cooling System
Refirgeration System
Fan Cooling Convection Type
Air Forced Convection
90g
105g
FR-260
H
(
1536
)
W(550)D(625)
1

3. NAME OF PARTS
FR-260
2

4. AIR FLOW DIAGRAM
FR-260
-16 ~ -18
Do not put ice cream or frozen
food in freezer door pocket to
store for a long team. Opening
and shutting the door can rise
up the temperature.
Freezer door pocket
Do not place food in front of the
duct because it is the trance of
the cold air.
Cold air absobing duct
Temperature is high even if the
pocket is in the middle.
When storing margarine or
cheese for one or two weeks,
make use of the refrigerator
shelf.
Refrigerator door pocket
Do not put in any bottle such as
beer or beverage because it can
be frozen broken.
Freezer room
Suitable in storing fruits or
vegetable.
Wrapping can prevent from
dryness.
Crisper
This model is multi - flow type
which flows out cold air from
each shelf space. The hot air
after making the refrigerator
cold,flows into cooling system
through the front upper part.
Refrigerator room
Do not put food having much
moisture at the middle part of
eash shelf space ("A","B" and
"C" part). It can be frozen
owing to the low temperature.
A
B
C
-16 ~ -18
-17 ~ -19
2 ~ 4
2 ~ 4 1 ~ 3
1 ~ 3
2 ~ 4
2 ~ 3
2 ~ 4
5 ~ 7
3 ~ 5
3 ~ 5
3

5. METHODS OF EXCHANGING MAIN PARTS

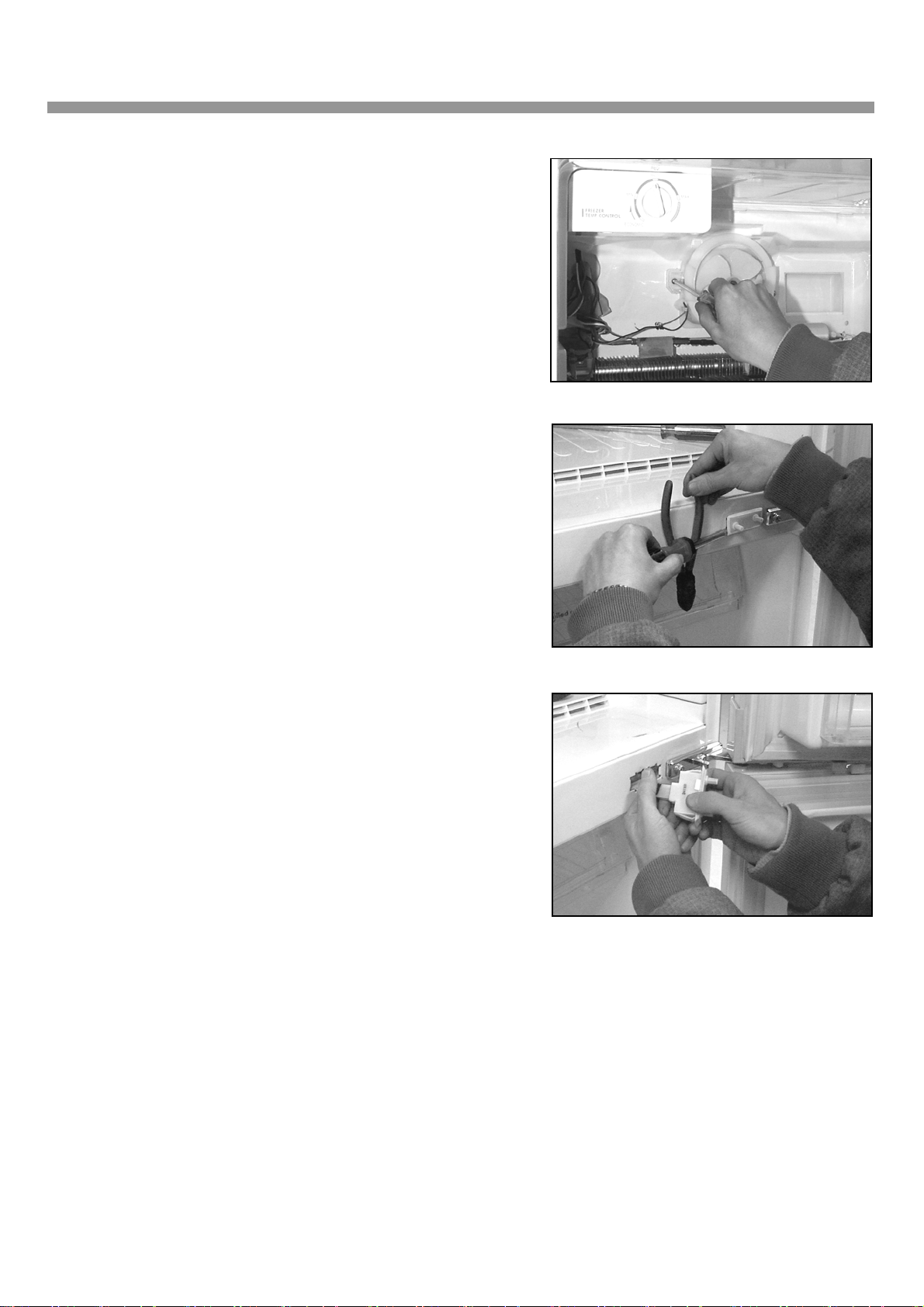

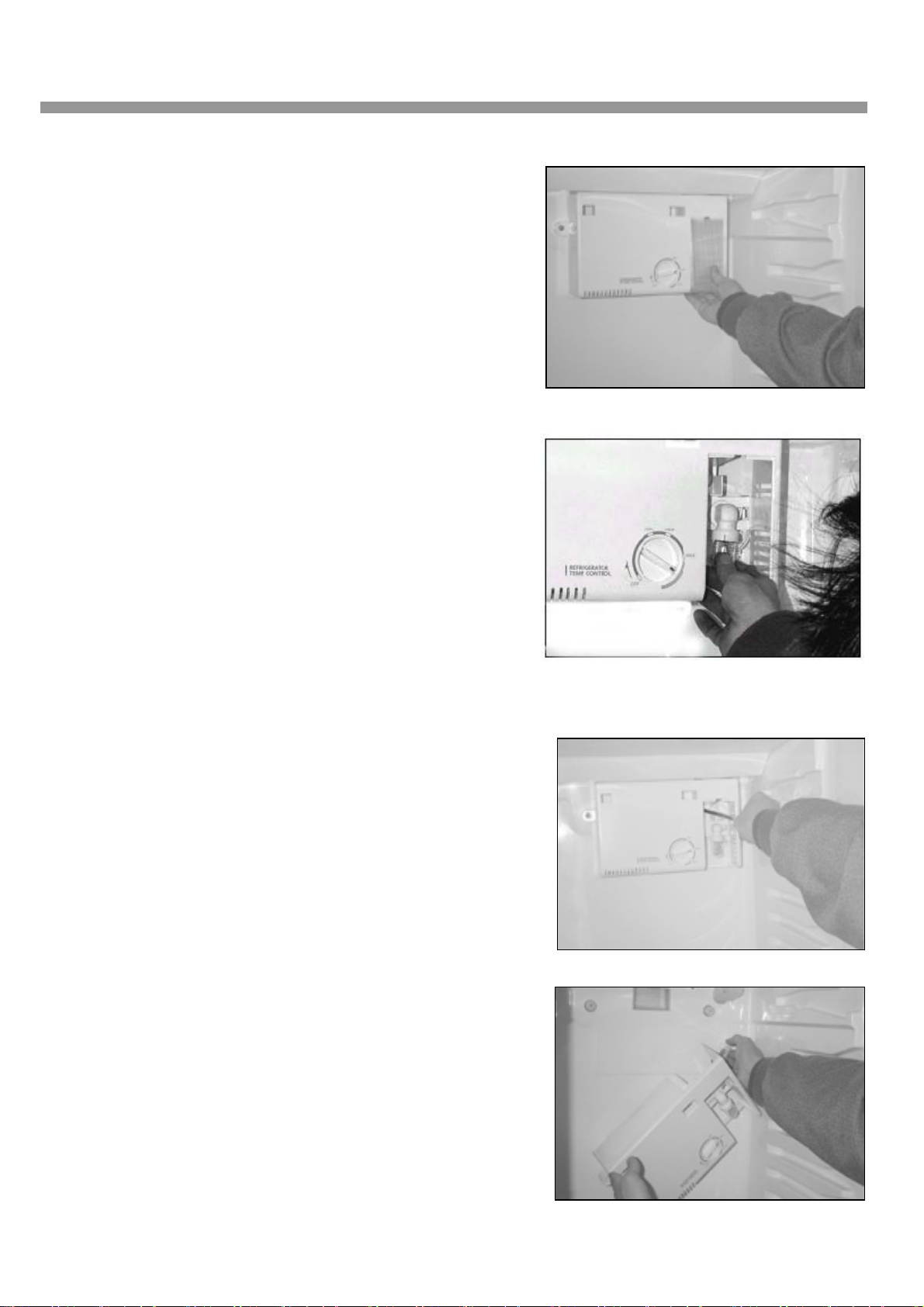

1) Remove knob by pulling
2) Remove the F-louver by pulling forward with inserting
screw driver into the hole of F-louver.
3) Disconnect control box as
3. Louver insulator
1) Remove the louver insulator by pulling forward with case by
hand so as not to break it.
4

Methods of exchanging main parts

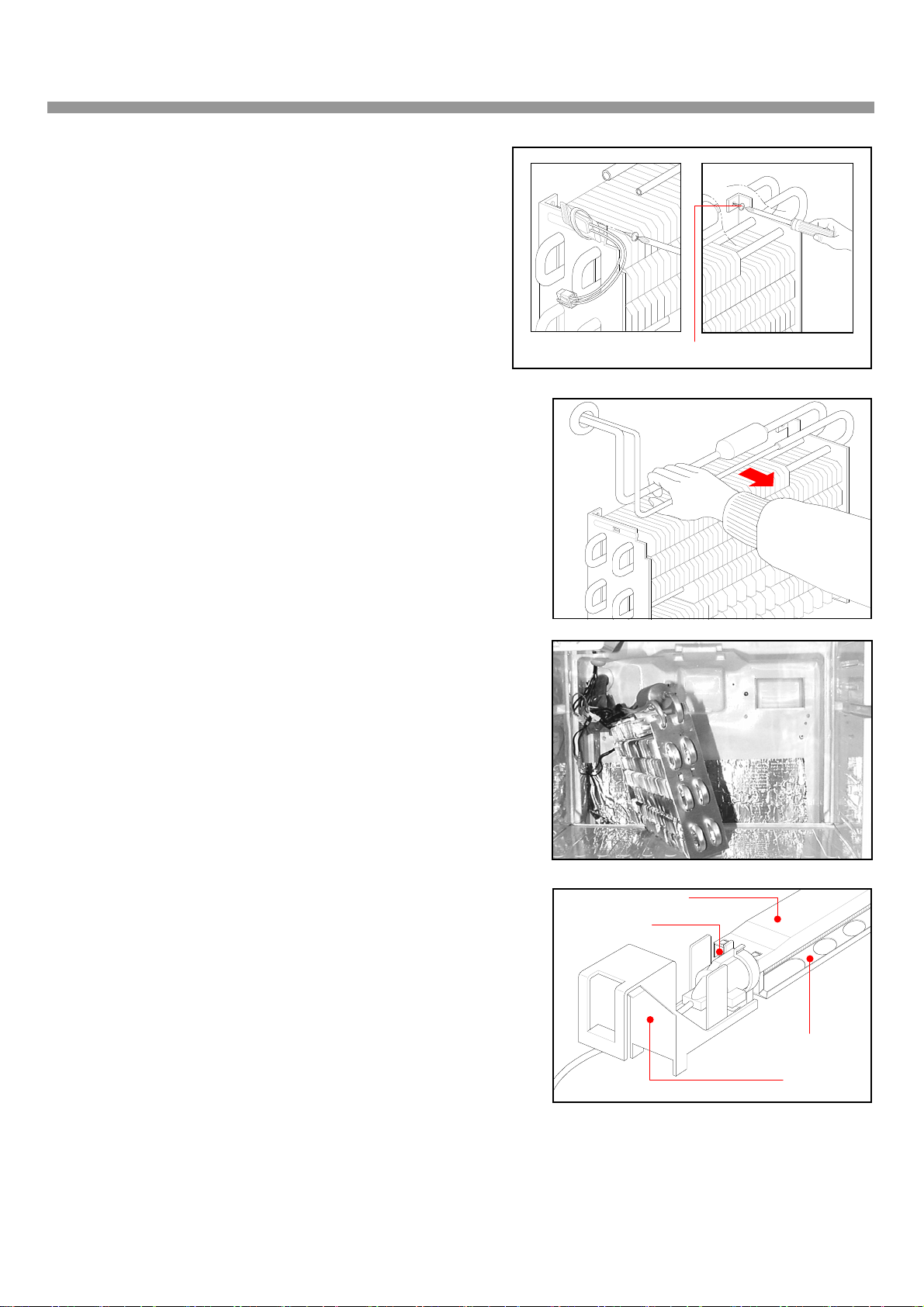

4. Bi-metal
1) Cut off the cable tie.
2) Take out the bimetal.
5. Temperature fuse
1) Remove the temperature fuse out of evaporator pipe by
screw driver.
Bi-metal
Cable tie
Black / Gray Tamp Fuse Fastrner
Tamp Fuse
5

Methods of exchanging main parts
6. Defrost heater
1) Unscrew the one screws securing the evapoator.
2) Pull the accumulator slightly to the arrow direction.
3) Move evaporator forward as the figure and make working
space to remove glass heater whith situates under the bottom
of evaporator.
(This is the same removing procedure as. However, do not
remove the welded points.)
*Take care not to brnd the pipe connrcted to accumulator.
4) Take out the defrost heater from the heater fixure without
removing the heater cover (upper,lower) (Donot apply too
much force on the heater fixture.)
Evaporator fastening screw
Heater cover (Lower)
Heater cover (Upper)
Defrost heater
Heater fixture
6

Methods of exchanging main parts

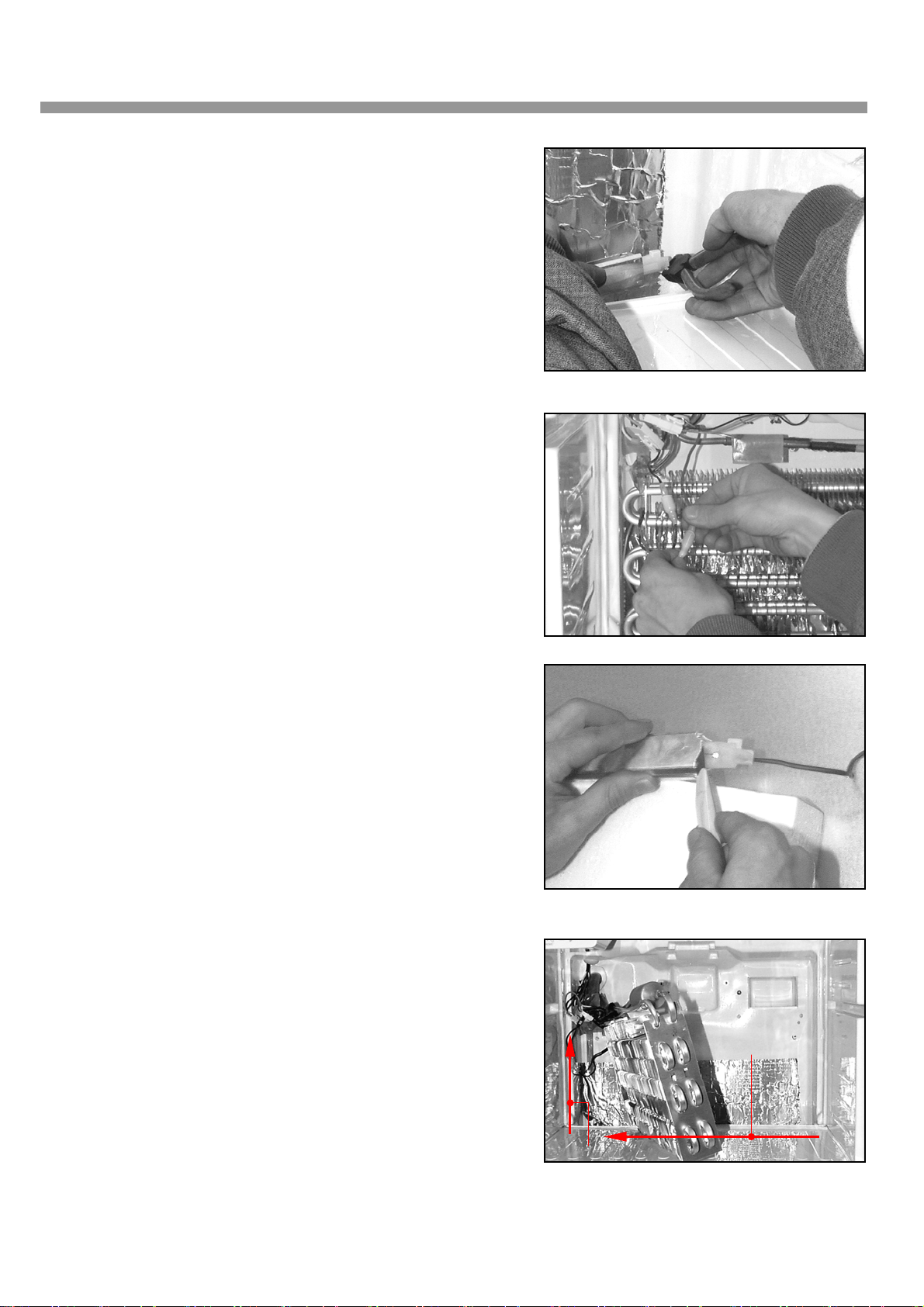

5) Strip the aluminum tape fixing the defrost heater and cut
both of lead wire.
6) Remove two (white and gray) defrost heater terminals among
the lead wires mounted on left wall.
7) Detach the upper and lower part of heater cover from defrost
heater by knife.
8) Assembly procedure after replacing defrost heater.
a.Assemble the upper and lower part of heater cover.
b.Lead wire is arranged as shown in figure.
c.Attach aluminum tape after removing water.
d.When put evaporator, take care not to strip lead wire.
Attach right lead wire
Attach right lead wire
7

Methods of exchanging main parts
7. Evaporator
1) Remove evaporator after removing temperature fuse and
bimetal.
2) Remove two welded points
3) Remove one evaporator fixing screws
4) Extract evaporator forward with minimizing the pipe
deformation after grasping the both sides of evaporator and
pulling accumulator slightly forward.
(This work without fan motor will be easier than with it.)
8

Methods of exchanging main parts

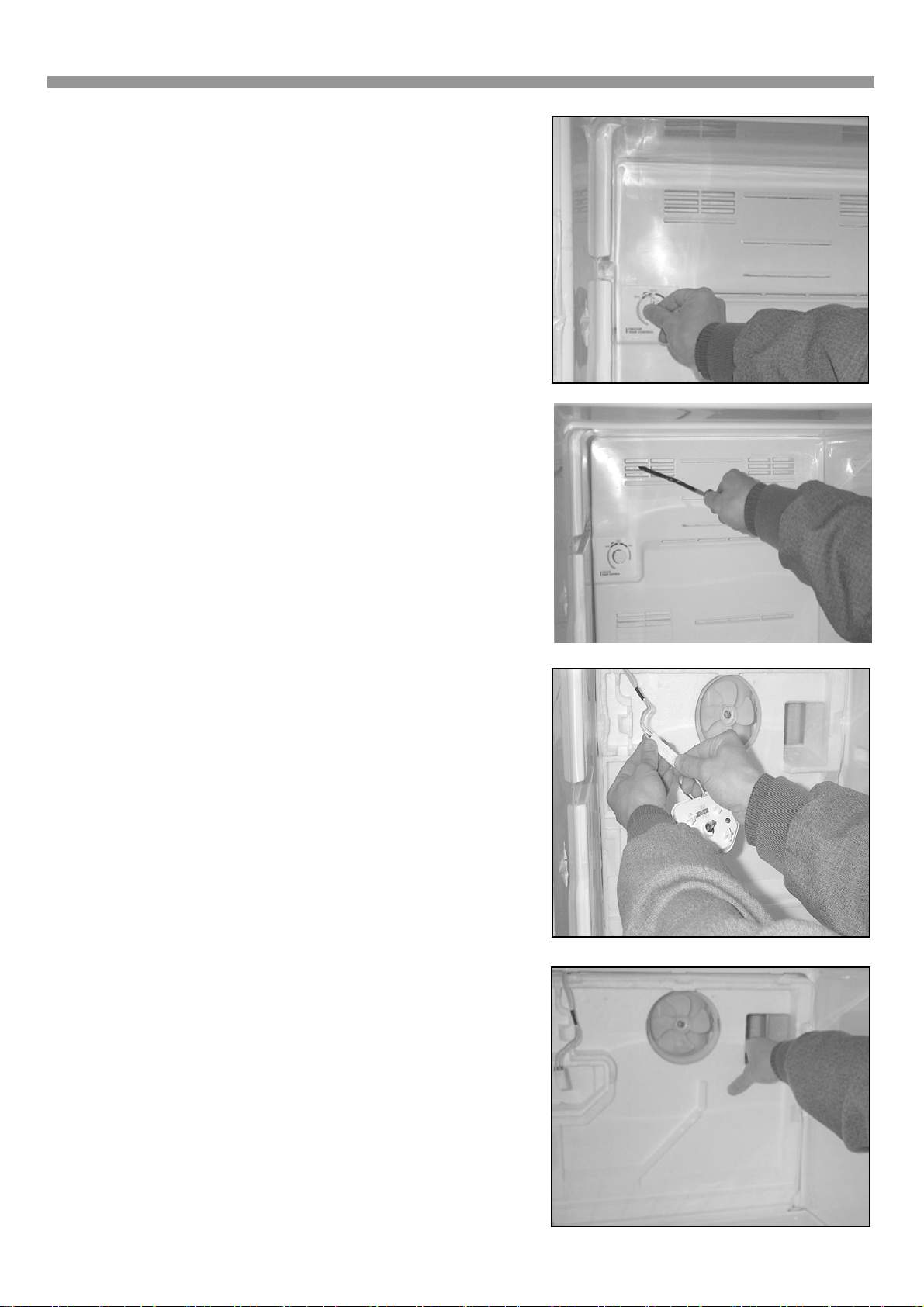

8. Fan motor
1) Dismantle fan motor by removing two screws.
9. Door switch
1) Remove the door switch out of cabinet by inserting "-"
screwdriver to the inside of rubber packing. (Take care no to
damage the rubber packing.)
10. Gasket
1) Detach the gasket after removing screw as shown in figure
9

Methods of exchanging main parts

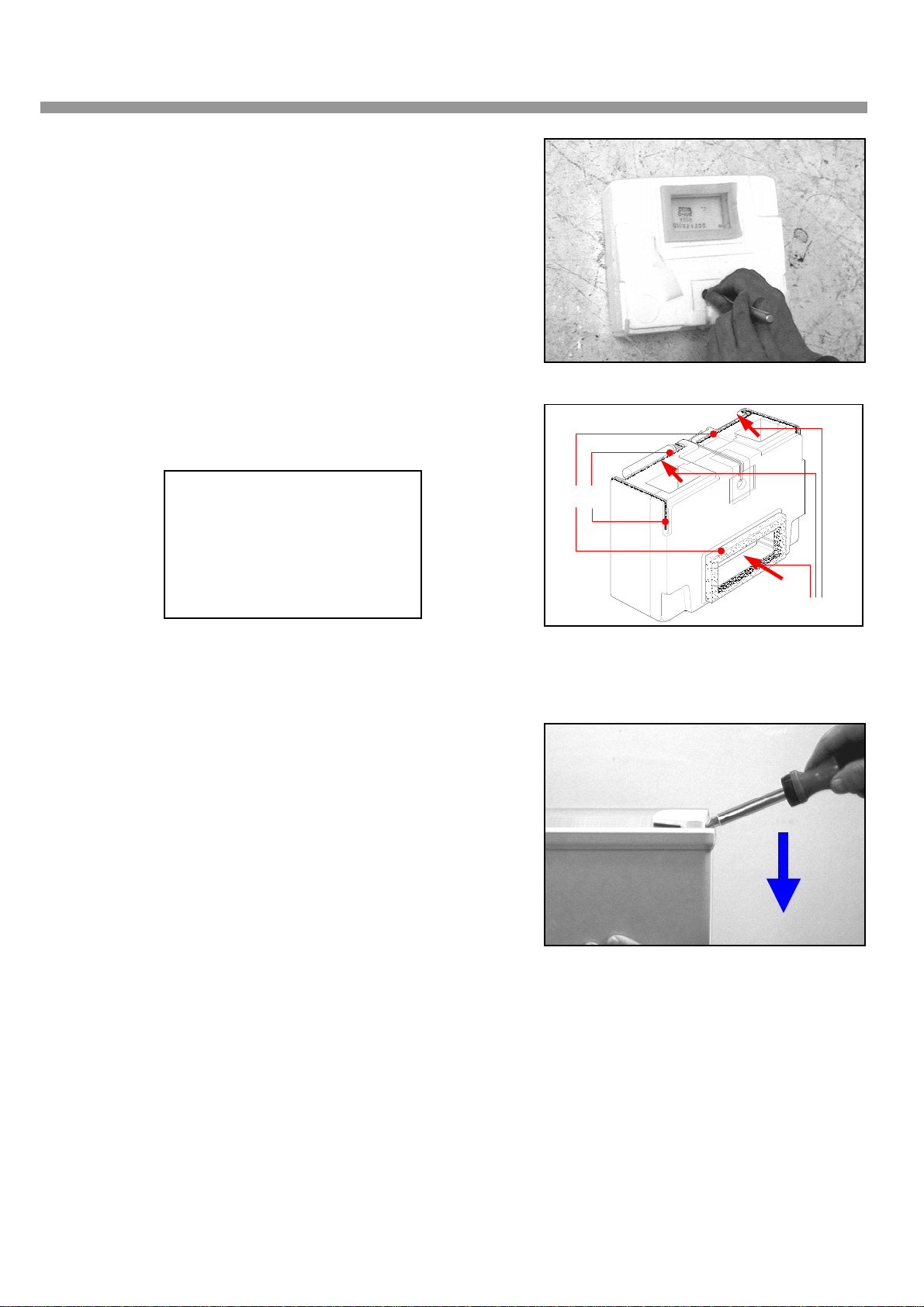

11. R-Damper
1) After pressing both bottom surfaces of shade and pulling
forward
2) To exchange the interior lamp,unscrew the lamp
counterclockwise
3) Unscrew 2 screws
4) Pull forward lightly to detach
5) Detach the housing
10

Methods of exchanging main parts
6) Cut the 2 sealing material attached on the top
7) Separate insulated object A and B by detaching or cutting
the OPP tape
8) Take off the cotton tape covered the R-damper sensor
9) Remove gear by inserting "-" screw driver
11

Methods of exchanging main parts
10) Spread out the R-damper sensor
11) Take out the damper by separating the damper insulated
object A and B
1. Replace the tape or seal to the original
positions.
2. Do not block the cool air discharge duct.
(Possible interruption by tape or seal).
3. Attach the damper sensor in S-shape to the
insulated object for easy assembly.
12. Top Hinge Cover
1) Take of the hinge cover.
Assembly Caution Points
Seal body
Cool air discharge duct
12

6. TROUBLE SHOOTING PROCEDURE
1) NO COOLING
Check point Cause Repairs
Lamp off COMP off Power receptacle Power tailure
Power plug Connection is not good Connect correctly
Cooling cycle Insufficient Replace freezing mixture
COMP on Refrigerant(leak) cycle and/or cabinet
COMP. Clogged by water Replace dryer
Clogged by oil Replace dryer, COMP,
EVA, cabinet, etc.
depend on the measure
Lamp on of being clogged.
COMP Short circuit on coil Replace COMP
COMP off
Fan motor on PTC relay Short circuit on Replace PTC or OL
PTC or OL relay relay
COMP off Dfrosting timer Faulty timer motor or Replace defrosting timer
Fan motor off gear
F-thermo Disconneted Replace F-thermo
Temperature fuse Short circuit on Replace temperature fuse
temperature fuse
■Confirmation procedure on refrigerant insufficient
Repairs
Remove louver and louver insulator from the
Complete leaking freezer. NO frst will be produced at the inlet
of evaporator after passing
. Check for leakage after
approximately 4minute operation of the COMP vacuumming.
1) Frost condition
. Inject proper amount of
Refrigerant insufficient : Frost condition of the inlet pipe is extremely refigerant.
(LEAK or Charge different from the outlet pipe
unsatisfactory) 2) Measurement of the temperature
: When the inside temperature is stable,
a 5℃ temperature difference occurs
between the inlet pipe and outlet pipe
Symptoms
Symptoms Decision
13

TROUBLE SHOOTING PROCEDURE
■Decision for oil-clo
gg
in
g
* First, replace dryer, in oil-discoloration replace the compressor
* If the operation of the compressor is not good, replace the evaporator
■Measurin
g
p
rocedure of coil resistance of com
p
* Measurin
g
location of the coil resistance
Main coil
Terminal box
Auxiliary coil
Auxiliary coil
Common
Common
Main coil
14

TROUBLE SHOOTING PROCEDURE
2) Solutions for other malfuntions

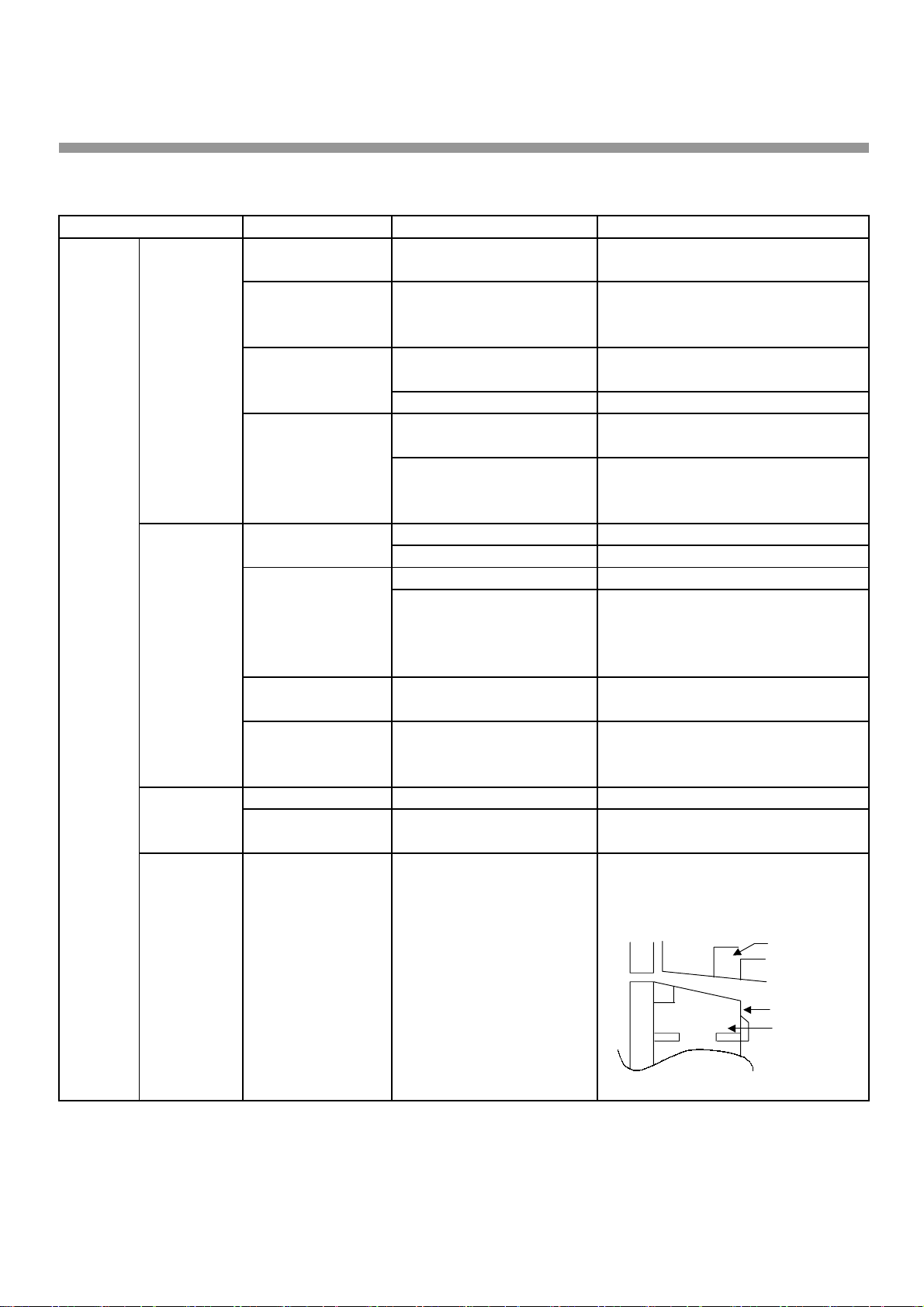

Check point Cause Repairs
Temperature control The control button Set temperature which is suitable
button and dial setting is not proper for the environment temperature
Consumer's Closing an opening Opening and closing of
misuse of door door is too frequent, Close the door
or door is open
Food storage Food has been stored Arrange with proper space
conditions excessively
Hot food has been stored Store food after cooling down
Refrigerator is located Move the efrigerator to a place
under direct sun light or heat away from direct sun light
Location of setting For proper air ventilation, you
Surounding is blocked must leave some space between
Under the refrigerator and the wall
cooling Freezing cycle Gas leak Repair freezing cycle
Compressor defective Replace the compressor
Fan motor defective Replace fan motor
Press two buttons of the door switch,
Operation Fan motor dose not Door switch defective and check the FAM MOTOR rotation.
compressor rotate Check whether the door switch is
is too long working properly or not
F-thermo Faulty thermostat Replace thermostat
Evaporator is Open bimetal Replace bimetal
overfrosted
Frozen food Temp fuse Disconnection Replacement
has thawed Bimetal Fauly bimetal Replace bimetal
occasionally
Cooling of Refrigerator Foods in the egg Suction inlet door liner egg pocket
refrigerating suction inlet pocket has blocked the Do not place foods, which is higher
room is not suction inlet than egg pocket
good
Symptoms
15

TROUBLE SHOOTING PROCEDURE
Check point Cause Repairs
The foods in The wet food is placed in Wet foods shoud be placed far
the refrigerator front of the outlet of the duct away form the outlet
have frozen
Operation Control button Control button is set at Set again to proper position
Over time of the "5" position
cooling compressor F-thermo Faulty F-thermo operationing Replace F-thermo
is too long temperature
Over-cooling Damper thermo Damper thermo malfunction Replace damper thermo
of the The damper thermostat shape Correct by hand
refrigerator and doses not shut
Surrounding The foods in the refrigerator Refer to the instruction manual
temperature may be frozen at the
temperature below of 5.
Dew-forming is F door URT forming Form condition is not good Disassemble the F door liner and
Dew- produced at the and stick sealing material at the
forming both and bottom side of URT forming
side of the F door
Symptoms
16

7. CYCLE REFARE FLOW CHART
NO
YES
.Drain compressor oil and
compare with the standad.
.When cutting the dryer, is gelled
oil attached near?
And check if there is now
clogging at the end of capillary.
.No gelled oil below '4'..Gelled oil up to '5' is generated.
.Make sure to perform concentrated
Nitrogen blow welding.
Service Call
Cycle problem? Usual repair
Gas leak(High/low
pressure sides) Bad compressor (Bad stroke,ejecting) Cycle clogging Bad vacuum degree.
Lack of refrigerant,etc.
Judge by oil color of compressor
Comparing with ASTM standard
color check for gelled oil. Replace cabinet.
Replace compressor.
(Bad compressor)
(Leak in low pressure side)
Replace dryer.
Check degrel of vacuum.
Charge refrigerant.
Air-tight the refrigerant
Check of leak in air-tight portion.
Anticorrosive paint treatment.
Cooling test.
Finish.
17

8. HOW TO JUDGE COOLING CYCLE PROBLEM
Cooling problem
service call
Dial position "cold"
power OK
No problem
Mechanical fan is rotating.
(Only applicable to the model
with mechanism fan)
F-FAN problem. Electrical parts problem
Over charging
* Replace dryer and
recharging.
Bad operation of
* Replace compressor
and dryer.
N
(Only applicable to the model with F-FAN
N
N
N
N
Y
Y
Moisture generated
* Replace dryer and
recharging.
Y
Is compressor rotating?
Is F-FAN rotating?Is F-FAN rotating?
Is evaporator cool?
S/P frost
Is compressor operating
under 180V?
Turn off the power,
warm up evaporator
enterance and
turn on the power,
is evaporator cool?
Power off
Lower pressure side
cut refrigerant exists?
Connect high pressure
side valve
(Measure eject
pressure)
Measure eject pressure
(Above setting valve in
the tangle?)
Y
Y
Clogging
Location of clogging
Judge by compressor
oil color leak in high
presure,
leak in low presure side
N
Y
Bad eject pressure
N
* Replace
compressor
Is F-FAN rotating?
Bad compressor
* Replace
compressor
Y
Electrical
part
program
N
Y
* Replace cycle.
Fllow steps in flowchart
18
