Daewoo ERF-310A Operating and installation instructions

Refrigerators (Combis)
DAEWOO ELECTRONICS CO., LTD.
MODEL : ERF-310M
ERF-310A
ERF-340M
ERF-340A
ERF-370M
ERF-370A
*
*
*
*
*
*
✔ Caution
:
need
In this Manual, some parts can be changed for improving, their
performance without notice in the parts list. So, if you need the
latest parts information,please refer to PPL(Parts Price List) in
Service Information Center(http://svc.dwe.co.kr).

2
1. SPECIFICATIONS
1. Specifications
Model Name ERF-310 ERF-340 ERF-370
Division M A M A M A
Refrigerant(R134a) 150g <– <– <– 160g <–
Cooling system Fan cooling convection
Refrigration system Air forced convection
Defrost system Fin evaporator forced
Defrost operation Automatic start and stop
Cold control Dialing Button Dialing Button Dialing Button
Gross Freezer 93 <– 93 <– 112 <–
Capacity Refrigerator 218 <– 248 <– 251 <–
(l.) Total 311 <– 341 <– 363 <–
External Height 1780 <– 1911 <– 2000 <–
Dimension Width 600 <– <– <– <– <–
(mm) Depth 618 <– <– <– <– <–
Net weight (Kg) 69 <– 75 <– 79 <–
Energy class C grade
Power consumption (kWh/24h) 1.45 1.48 1.5 1.54 1.58 1.62
Freezing capacity (kg/24h) 5 6.5 56.5 67.5
Autonomy (F room) 12 h
Rated input 120 125 120 125 130 135
Lamp rated input (W) 15
Rated voltage AC 230/50 Hz
Note) A: Electronic control type
M: Manual control type
2. Types of the approved safety standards

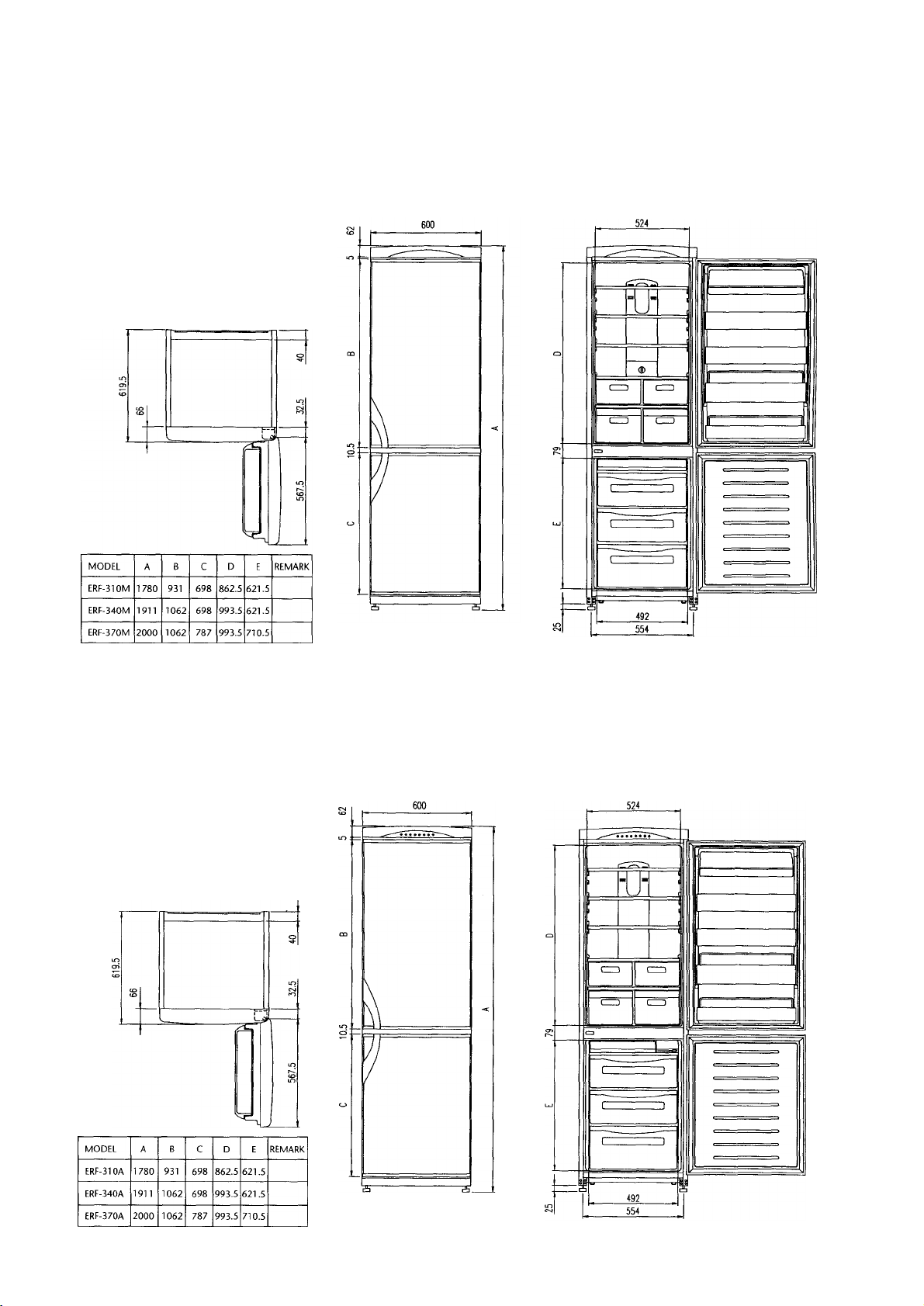

2. EXTERNAL DRAWINGS
1. ERF-310M, 340M, 370M
2. ERF-310A, 340A, 370A
3

4
3. WIRING DIAGRAMS
1. ERF-310M, 340M, 370M
2. ERF-310A, 340A, 370A

4. NAME OF
5
1. ERF-310M, 340M, 370M
1. Removable shelf (ERF-310 series: 2 shelves and
ERF-340,370 series: 3 shelves), glass or crystal
clear plastic depending on model.
2. Light.
3. Multi air-flow duct.
4. Refrigerator and freezer temperature control
knob.
5. Low temperature compartments.
6. Vegetable bin. Two bins or one bin; in case of
one bin item (15) won´t be applied depending
on model.
7. Rating plate. It is attached in the refrigerator
compartment on the left-hand side next to the
vegetable bins.
8. Ice cube tray.
9. Compartment for storing and freezing.
10. Butter pocket.
11. Removable pocket (for egg tray)
12. Egg tray.
13. Removable pocket (not in ERF-310M)
14. Bottle pocket.
Pocket assembled with plastic bottle fixture
(“A” type) or with metal bar (“B” type) depen-
ding on model.
15. R door pocket (depending on model).
16. Adjustable feet.
2. ERF-310A, 340A, 370A
1. Removable shelf (ERF-310 series: 2 shelves and
ERF-340,370 series: 3 shelves), glass or crystal
clear plastic (depending on model).
2. Light.
3. Multi air-flow duct.
4. Refrigerator temperature control.
5. Low temperature compartments.
6. Vegetable bin.
Two bins or one bin; with one bin, item (16)
will not be applied (depending on model).
7. Rating plate. Positioned in the refrigerator com-
partment on the left-hand side next to the
vegetable bins.
8. Ice cube tray.
9. Compartment for storing and freezing.
10. Freezer temperature control.
11. Butter pocket.
12. Removable pocket (for egg tray)
13. Egg tray.
14. Removable pocket (not in ERF-310A).
15. Bottle pocket.
Pocket assembled with plastic bottle fixture
(“A” type) or with metal bar (“B” type) depen-
ding on model.
16. R door pocket (depending on model).
17. Adjustable feet.

6
5. AIR FLOW DIA -
Refrigerator room
Do not place frozen
food near the duct
If may freezze due to
low temperature
Fresh food preserving
case (Chilled case)
Used for storing fish or
meat Case vegetable
Suitable in storing
fruits or vegetable
Wrapping can prevent
from dryness
Freezer room
Do not put it any
bottle such as beer or
beverage because it
can be frozen or
broken
Air circulation in the
freezer compartment
Cold air flow comes
out from the front
hole and comes into
the lower hole in
louver

6. REFRIGERANT CYCLE DIA -
8

9
7. MACHINE ROOM VIEW AND
NO PART NAME NO PART NAME NO PART NAME
1 ASS´Y BOX POWER 9 CASE VAPORI 17 ABSORBER VAPORI CASE
2 BASE COMP. AS 10 HARNESS EARTH 18 COMPRESSOR
3 ASS´Y WI-CON 11 PIPE CHARGE 19 SCREW MACHINE
4 SUCTION PIPE AS 12 HOT PIPE 20 SPECIAL SCREW C.
5 DRYER AS 13 PIPE SUCTION CONN 21 SPECIAL WASHER
6 BASE CAB. 14 CONN. B 22 ABSORBER PIPE B
7 COVER RELAY BOX 15 ABSORBER COMP. 23 ABSORBER PIPE C
8 BAND RELAY 16 FIXTURE COMP.

10
9. COMPONENTS SPECIFICATIONS
1. COMPRESSOR
2.2 OLP
3. RUNNING CAPACITOR
4. AS MOTOR FAN
2. RELAY ASSEMBL Y
2.1 PTC
ERF-310A/M ERF-340A/M ERF-370A/M Remarks
Part name HPL25YG1-5 <– HPL27YG1-5
Part code 39561125R51 <– 39561127R51
Rated voltage 220-240V 50Hz <– <–
Starting type RSIR <– <–
Refrigerant R134 a
ERF-310A/M ERF-340A/M ERF-370A/M Remarks
Part name PTH490D-AS330 <– <–
Part code 3817907000 <– <–
ERF-310A/M ERF-340A/M ERF-370A/M Remarks
Part name 4TM213NHBYY <– 4TM265NHBYY
Part code 3817911200 <– 3817911300
ERF-310A/M ERF-340A/M ERF-370A/M Remarks
Part name MA80040040 <– MA80050040
Specifications 4uF 400VAC <– 5uF 400VAC
Part code 3016400800 <– 3016400810
ERF-310A/M ERF-340A/M ERF-370A/M Remarks
Part name IS-23211DWBFH <– <–
Specifications 2400RPM <– <–
Part code 3015903700 <– <–

Component specifications
11
6. LAMP
7. SWITCH LAMP
8. SOCKET LAMP AS
9. FUSE TEMPERATURE
5. HEATER D AS
ERF-310A/M ERF-340A/M ERF-370A/M Remarks
Part RICA RS6 <– <–
Name CONSONI 16 <– <–
Specifications 230V 230W <– <–
Part code 3012803600 <– <–
ERF-310A/M ERF-340A/M ERF-370A/M Remarks
Type Pygmy <– <–
Specifications 230V 15W <– <–
Part code 3013600700 <– <–
ERF-310A/M ERF-340A/M ERF-370A/M Remarks
Part name 1051 <– <–
Specifications 250V 0.25A <– <–
Part code 3018111500 <– <–
ERF-310A/M ERF-340A/M ERF-370A/M Remarks
Part name 1058 <– <–
Specifications 250V 2A <– <–
Part code 3017903100 <– <–
ERF-310A/M ERF-340A/M ERF-370A/M Remarks
Part name SF76E <– <–
Specifications 250V 15(10)A <– <– 77ºC
Part code 3017200700 <– <–

Component specifications
12
10. SWITCH BI-METAL
11. SWITCH D TIMER
12. THERMOST AT
13. DOWN TRANS AS
14. SENSOR R AS
15. SENSOR D AS
ERF-310M ERF-340M ERF-370M Remarks
Part name 261N <– <–
Specifications 250V 10(3)A <– <–
Part code 3018115600 <– <–
ERF-310M ERF-340M ERF-370M Remarks
Part name TMDE807UC1 <– <–
Specifications 9h 37 min <– <–
Part code 3018115700 <– <–
ERF-310M ERF-340M ERF-370M Remarks
Part name K50-P1530 <– <–
Specifications 250V 6A <– <–
Part code 3018300300 <– <–
ERF-310A ERF-340A ERF-370A Remarks
Part name ERF-310 <– <–
Specifications 230V / 50Hz <– <–
Part code 5EPK041009 <– <–
ERF-310A ERF-340A ERF-370A Remarks
Part name TH310G34GBNR <– <–
Specifications 30 K (AT 0ºC) <– <–
Part code 3014801800 <– <–
ERF-310A ERF-340A ERF-370A Remarks
Part name TH310G34GBNR <– <–
Specifications 30 K (AT 0ºC) <– <–
Part code 3014801700 <– <–

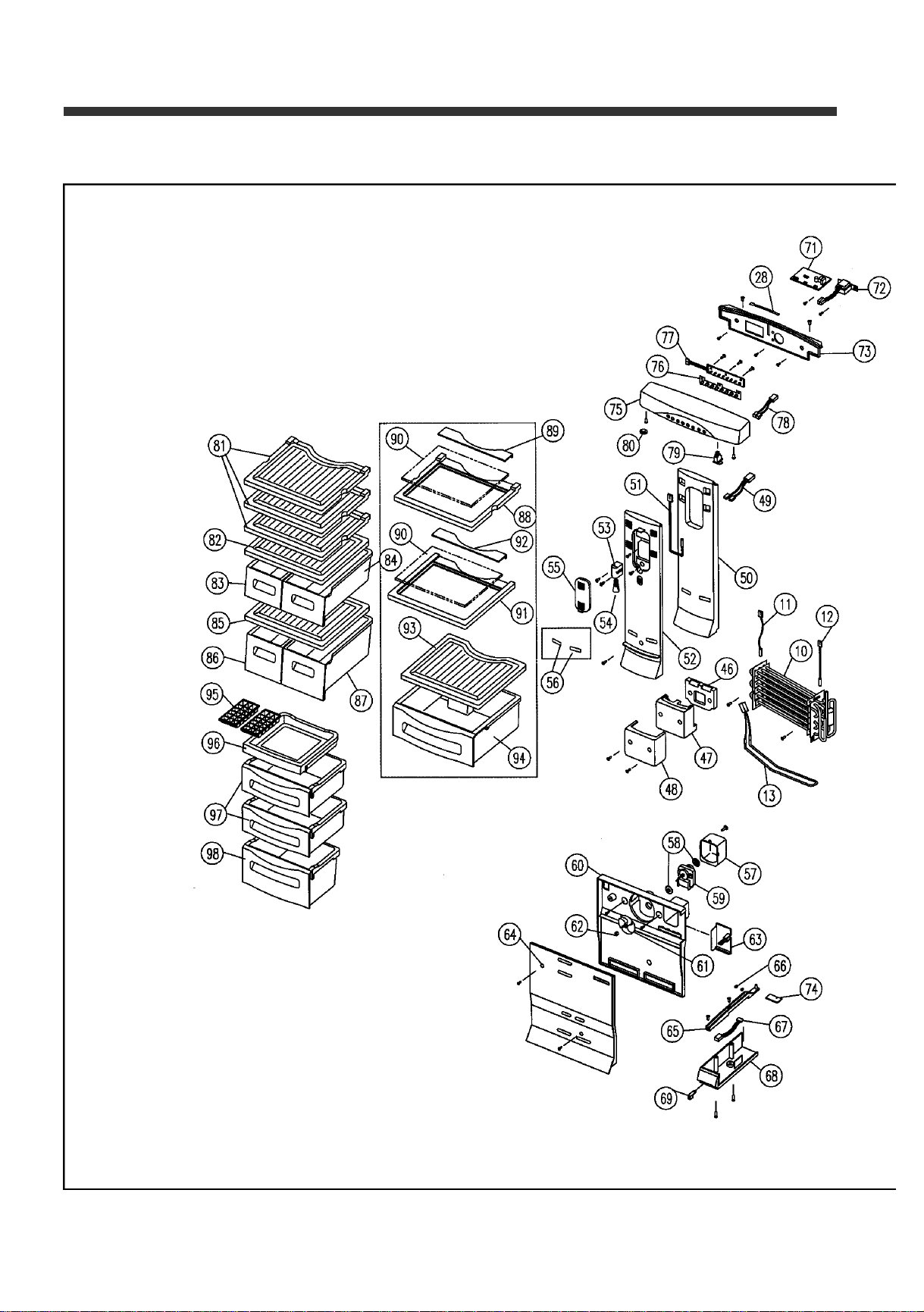

10. EXPLODE DRAWINGS
13

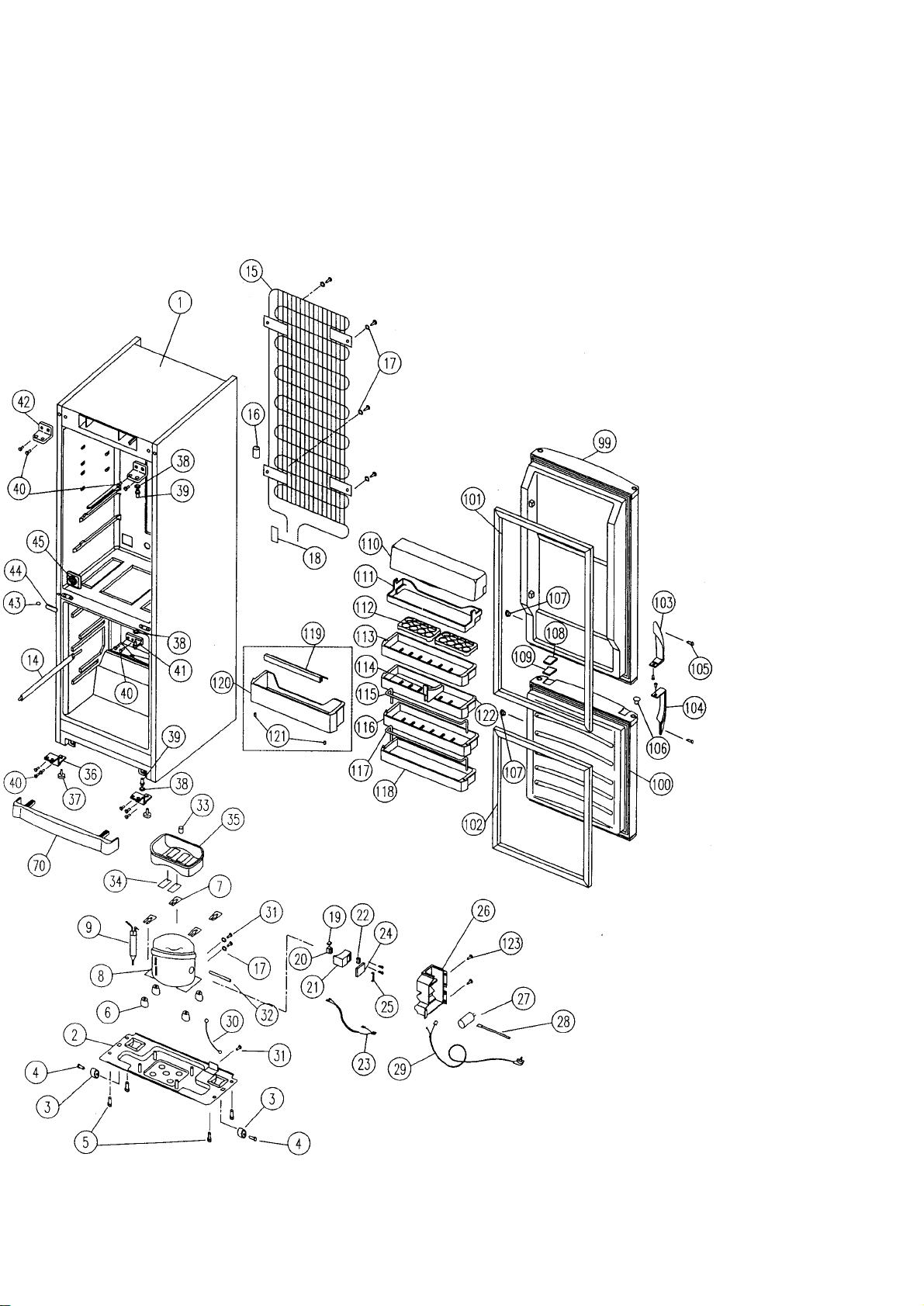

1. ERF-310M, ERF-340M, ERF-370M

14
Explode drawings

15

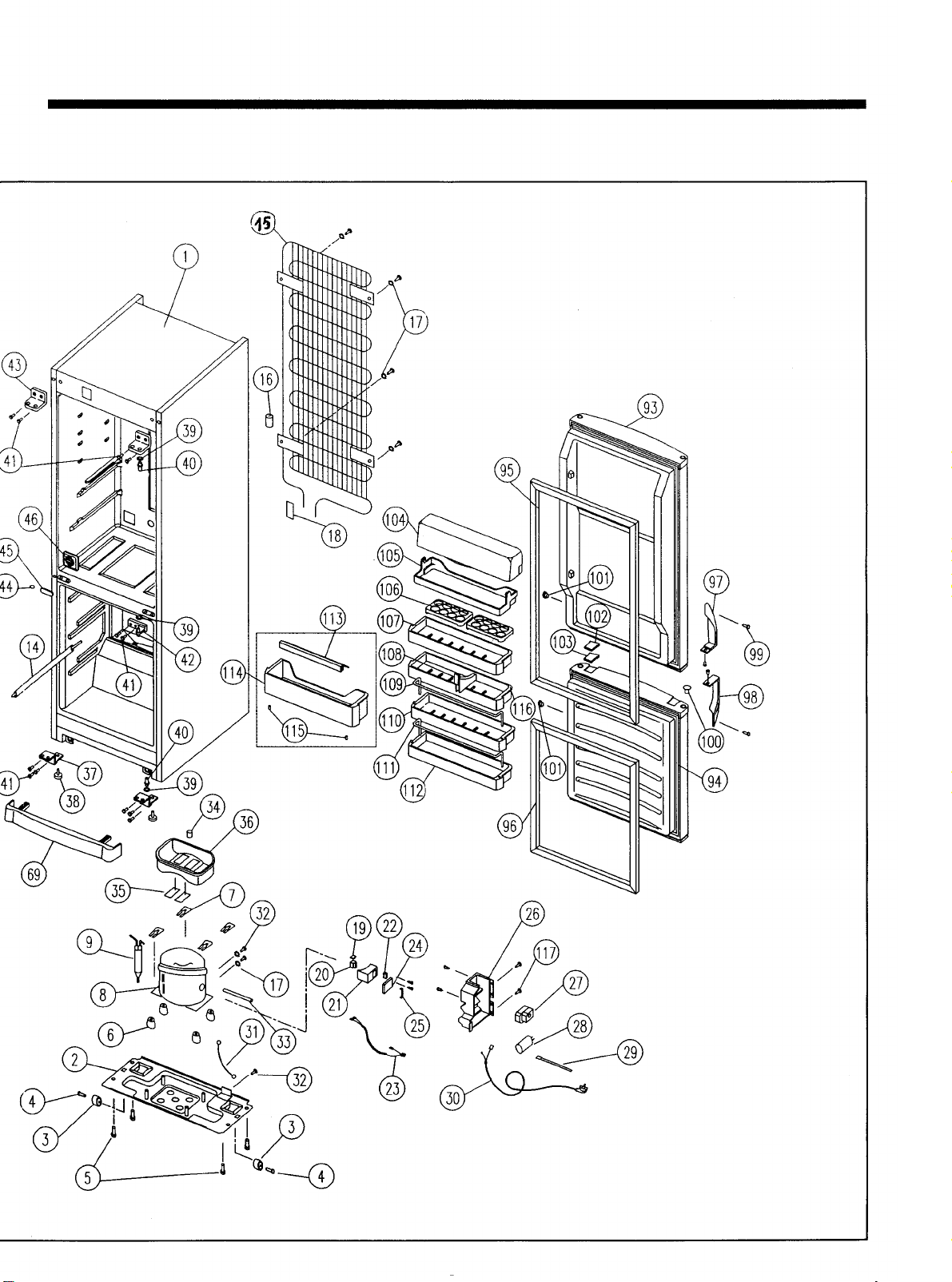

2. ERF-310A, ERF-340A, ERF-370A
Explode drawings

Explode drawings
|
16

11. PART LIST
1. Parts list (M TYPE)
NO PART NAME
PART CODE DESCRIPTION
L
310 340 370
MODEL
REMARK
1
ASSY CAB URT
3010071030 1 - -
3010071040 - 1-
_
_ 3010071050 - - _1 _ _
2
BASE COMP
3010310500 SBHG T1.2 1 1 1
3
CASTER
3016500500 PA-6 2 2 2
_ _
4
SHAFT CASTER 3014903100
__ Ø 6xL40 SW RM10 2 2 2
_
5 SPE CIAL SCREW A 3016004300
_ M6.5xL20 4 4 4
6 A BSORBER COMP 3010101 700
_
NR
4 4 4
_
- D/W COMP
_ FIXTURE CO MP 3012005300
__
SK5+ZN5 -C TO. 8 4 4
4
_
- D/W COMP
8 COMPRESSOR 395611251151 HPL25YG1-5 11 -
- D/W COMP
395611271151
HPL27YG1-5
- - 1 -
D/W COMP
9
DRYER ASS
3016802200 15Gr 1 1 1
1
0
EVA AS
3017003200 _
_
1 1 -
__ 3017004600 - - 1
1 1
FUSE TEMPERATURE 3017200700
250V 1 1 1
1
2
SWITCH BI-METAL 3018115600
250V 5A 1 1 1
__
1 3 HEATER D AS 3012803600 230V 230W
1 1 1
14 PIPE SUC AS 3014418700
_
DCUTI-0 11 1
15 WI-CON ASSY 3010056000
1 1 -
_ _
3010056100 - -
1
16 ABSORBER PIPE C 3010102000 EPDM 2 2 2
17 SPECIAL WASHER 3016004700
_
Ø4.3 STAR 8 8 8
18
ABSORBER PIPE B
3010101900 IIR 1 1 1
1 9
SWITCH P RELAY OIL
3817911200 4TM21 3NHB 1 1 - - D/W COMP
3817911300 4TM265NHB - - 1 - D/W COMP
20
SWITCH P RELAY PTC __ 3817907000
33 (MURADTA)
1 1 1 - D/W COMP
21 RELAY BOX 3810506400
1 1 1 - D/W COMP
22 CABLE CLAMP 3818200300
1 1 1 - D/W COMP
23 HARNESS RELAY 3012717070 1 1
1
24 RELAY BOX COVER 3811401300 1 11 -
D/W COMP
25 RELAY BAND 3816100400 1 1 1
_
- D_/W COMP
26
BOX POWER
3010517201 HIPS 1- 1 1
27 SWITCH DEF TIMER 3018115700 1 1 1
28
CAPACITOR RUNNING
3016400800
4 µF/350VAC
1- 1- -
_
3016400810
5 µF/350VAC
- - 1
29 CABLE TIE
2 2 2
30 CORD POWER AS 3011303900 CP-2 PIN
1 1 1 301_1303910: BS-1363 (U.K.)
31 HARNESS EARTH 3012717010 11
1
32 SCREW MACHINE 7051401065 PAN 4x10 BSNI
3 3 3
33 PIPE CHARGE 3014418200
DCUTI-0Ø6 xT0.6xl00
1 11
- D/W COMP
34 CAP DRAIN HOSE 3010919700 NBR 1 1 1
35 ABSORBER VAPORI CASE 3010102700 II R__ 2 2 2
36
CASE VAPORI (A)
3011115100 AL T0.6 1 1 1 - D/W COMP
37 HINGE *U
3012908200 P/O+ZN T4.0 2 2 2
38 FOOT ADJUSTING AS
3012101800 PP+SPECIAL BOLT 2 2 2
39 SPECIAL WASHER HINGE 3016005500
S20C T1.0 13/7 _2 2 2
40 SHAFT HI 3014903200
2 2 2
41 SPECIAL BOLT C 3016004900
M5xP0.89xL16 SWCH22A 1 2 1 2 12
42 HINGE *M 3012908000 DIE CASTING 1 1
1
43 HINGE *T 3012908100 P/O+ZN T3.2 2 2
2
44 CAP SCREW 3010920200 PE-LE 1 1 1
45
CAP SCREW HOLE
3010920300 HIPS 1 1 1
46 COVER RETURN DUCT 3011433700 HIPS 1 1 1
47
I NSU DAMPER B
3013325400 F-PS 1 1 1
48 I NSU DAMPER A
3013324500
__
F-PS 1 1 1
49 COVER DAMPER
3011433500 HIPS 1 1 1
50 HARNESS LAMP SOCKET 3012719800
1 1 1
51 I NSU MULTI DUCT 3013326810 F-PS 1 - -
3013326910 F-PS -
1 1
52 HARNESS THERMOSTAT 301271 7060 1 1 1
53 THERMOSTAT 3018300300 250V 6A 1 1 1
54 COVER MULTI DUCT 3011434110 HIPS 1 - -
3011434210 HIPS - 1- 1
I
55 SOCKET LAMP AS
3017 903100 1 1 1
56 | LAMP
3013600700 230V 15W 1 1 1
17

Part List
NO PART NAME
PART CODE DESCRIPTION
MODEL
310 340 370
REMARK
57 SPECIAL NUT
3016005400 HEX M10 11 1
58
KNOB R
3013401410 HIPS
1 1 1
59 WINDOW LAMP
3015503300 GP 1 1 1
60 CAP M-DUCT COVER
3010924700 PP 2 22
- WITHOUT C-CASE
61 BRACKET FAN MOTOR 3010615600
PP 1 1 1
62 BUSHING FAN MOTOR 3010901800 NR
2 2 2
63
M
OTOR FAN AS 3015903700 I
S-23211 DWBFH 1 1 1
64
LOUVER F B
3018905500 HIPS
1 1 -
3018905600 HIPS
- - 1
65
FAN
_ 3011801400 ABS
1 1 1
66
FIXTURE F AN RING
3012005400 SUS304 T0.5
1 1 1
67 FLAP F
3017100310 HIPS 11 1
68 LOUVER F A
3018905300 HIPS 11
-
__ 3018905400
HIPS - -
1
69 COVER CAB BRACKET 3011433300
HIPS_ 1 1 1
70 BASE CONTROL PANEL 3010312900
HIPS 1 1 1
71 PANEL CONTROL 3014204810 ABS
1 1 1
72
HARN
ESS LAMP SW 3012717020
1 1 1
73
SWITCH LAMP
3018111500 250V 0.25A
1 1 1
74 CAP CONTROL PANEL A
3010902800 SILICON RUBBER
1 1 1
75 SHELF R
3017813700 GPPS 2 3 3
76 COVER CHILD CASE
3011433200 GPP S 11
1
77 CASE CHILD *L
3011114700 GPPS 11
1 -OPTION
78 CASE CHILD *R
3011115800 GPPS 1 1 1
-OPTION
79 COVER VEGTB CASE (8) 3011434410
GPPS 1 1 1
80
CASE VEGTB*L
3011115010 GPPS
1 1 1
81
CASEVEGTB*R
3011115020 GPPS
1 1 1
82
FRAME R SHELF A
3012200900 ABS
2 3 3 -OPTION
83
__ FRAME R SHELF B
3012201400 ABS
2 3 3 - OPTION
84 SHELF GLASS
3017813800 _ T4.0
3 4 4 -OPTION
85 FRAME C-CASE COVER A
3012201500 ABS
1 1 1 -OPTION
86 FRAME C-CASE COVER B 3012201600
ABS 1 11
-OPTION
87 COVER VEGTB CASE (A) 3011434400
GPPS 1 11
-OPTION
88 CASE VEGTB 3011115000_
GPPS 1 11
-OPTION
89 CASE ICING 3011114900 PP
2 2 2
90
CASE F D
3011115910
HIPS 1 1 1
91 CASE
F B
3011115300 GPPS
2 2 -
CASE F C
3011115400 GPPS
- - 2
92 CASE FA
3011115200 GPPS
1 1 1
93 ASSY R DOOR URT
3010075200 1 - -
3010075210 -
1 1
94 ASSY F DOOR URT
3010075300 1 1 -
3010075310
- - 1
95
__
GASKET R DOOR AS
3012306600 PVC+MAGNET 1 - -
_ 3012306800
PVC+MAGNET - 1 1
96 GASKET F DOOR AS
3012306500 PVC+MAGNET
1 1 -
301 2306700 PVC+MAGNET
- - 1
97 HANDLE 'T
3012610200 PBT
1 1 1
98 HANDLE (*U)
3012610100 PBT
1 1 1
99 SPECIAL SCREW D
3016004810 T2 FLT 4x16 PAINTING
4 4 4
1 00 CAP DOOR BUSHING
3010918300 PP 11 1
101 CAP HANDLE 3010910000
HIPS 2 2 2
102 COVER DOOR CAP *L 3011437000
ABS 1 1 1
103
COVER DOOR CAP *R 3011437010 ABS
1 1 1
104
COVER BUTTER CASE 3011433100 GPPS
1 1 1
105 CASE BUTTER
3011114600 GPPS
1 1 1
106 CASE EGG
3011114800 GPPS
2 2 2
107 POCKER EGG
3019008700 HIPS
1 1 1
108 SUPOT B-POCKET (B)
3015300400 HIPS
1 1 1
109 GUIDE BOTTLE SUPOT (B)
3012508000 Ø5 11 1
110 POCKET BOTTLE (B)
3019009500 HIPS 1 1
1
111
GUIDE BOTTLE SUPOT C 3012508010
Ø5 1 1 1
112
1,_
POCKET R DOOR
113 SUPOT B-POCKET (A)
3019008710
3015303900
HIPS
PE-LD
1
11 11 1
-
OPTION
114 POCKET BOTTLE A
3019008600 HIPS
1 1 1
-OPTION
115 CAP POCKET
3010909900 SILICON RUBBER
2 2 2 -OPTION
116 POCKET BUTTE R
3019008720 HIPS - 1 1
117 I SPECIAL SCREW C
3016004800
2 2 2
18

Part List
2. Parts list (A TYPE)
NO PART NAME PART CODE
DESCRIPTION
310 340 340 370
REMARK
1 ASSY CAB URT 3010071000
1 - -
3010071010 - 1 -
3010071020 - - 1
2 BASE COMP 3010310500 SBHG T1.2 1 1 1
3 CASTER
3016500500 PA-6 2 2 2
4
SHAFT CASTER 3014903100 Ø6xL40 SWRM10 2 2 2
5
SPECIAL SCREW A 3016004300 M6.5xL20 4 4 4
6 ABSORBER COMP 3010101 700 NR 4 4
4 - D/W COMP
7 FIXTURE COMP 3012005300 SK5+ZN5-C T0.8
4 4 4 - D/W COMP
8 COMPRESSOR 395611251151 HPL25YG1-5
1 1 - - D/W COMP
395611271151 HPL27YG1-5
- - 1 - D/W COMP
9 DRYER ASS 3016802200
1 5Gr 1 1 1
10 EVA AS 3017003200
1 1 -
3017004600 1
11
FUSE TEMPERATURE 3017200700 250V 1 1 1
12 SENSOR D AS
3014801700 1 1 1
13
HEATER D AS 3012803600 230V 230W 1 1 1
14
PIPE SUC AS 3014418700 DCUTI-0
1 1 1
1 5
WI-CON ASSY 3010056000 11
-
3010056100
- - 1
16
ABSORBER PIPE C 3010102000
EPDM 2 2 2
1 7 SPECIAL WASHER 3016004700 Ø4.3 STAR
7 7 7
18
ABSORBER PIPE B
3010101900 IIR 1 1 1
1 9
SWITCH P RELAY OL 3817911200 4TM213NHB 1 1 - - D/W COMP
3817911300 4TM265NHB - - 1 - D/W COMP
20
SWITCH P RELAY PTC 3817907000
33 (MURADTA)
1 1 1 -
D/W COMP
21
RELAY BOX 3810506400 1 1 1
-
D/W COMP
22
CABLE CLAMP 3818200300 11
1 - D/W COMP
23
HARNESS RELAY 3012717030
1 1 1
24
RELAY BOX COVER 3811401300
1 1 1 - D/W COMP
25
RELAY BAND 3816100400
1 1 1 - D/W COMP
26
BOX POWER 3010517201
HIPS 1 1 1
27 CAPACITOR RUNNING 3016400800
4 µF/350VAC
1 1 -
3016400810
5 µF/350VAC
- - 1
28 CABLE TIE
2 2 2
29 CORD POWER AS
3011303200 CP-2 PIN 1 1 1 3011303210: 13
5-1363 (U.K.)
30
HARNESS EARTH 3012717010 1 1 1 _
31
SCREW MACHINE 7051401065 PAN 4x10 BSNI 11 1
32
PIPE CHARGE 3014418200
DCUT1-0,Ø6xT0.6x100
1 1 1
- D/W COMP
33
CAP DRAIN HOSE 3010919700 NBR
1 1 1
34
ABSORBER VAPORI CASE 3010102700 II R
2 2 2
35
CASE VAPORI (A) 3011115100 AL TO. 6
1 1 1 - D/W COMP
36 HINGE *U 3012908200
P/O+ZN T4.0 2 2 2
37 FOOT ADJUSTING AS
3012101800 PP+SPECIAL BOLT 2 2 2
38 SPECIAL WASHER HINGE
3016005500 S20C T1.0 13/7 2 2 2
39
SHAFT HI 3014903200 2 2 2
40
SPECIAL BOLT C 3016004900 M5xP0.89xL16 SWCH22A 12 12 12
41
HINGE *M 3012908000 DIE CASTING 1 1 1
42
HINGE *T 3012908100 P/O+ZN T3.2 22
2
43 CAP SCREW 3010920200 PE-LD
1 1 1
44 CAP SCREW HOLE 3010920300 HIPS
1 1 1
45 COVER RETURN DUCT 3011433700
HIPS 1 1 1
46 I NSU DAMPER B 301 3325400
F-PS 1 1 1
47 I NSU DAMPER A 3013324500
F-PS 1 1 1
48 COVER DAMPER
3011433500 HIPS 1 1 1
49 HARNESS LAMP SOCKET
3012719800 1 1 1
50
I NSU MULTI DUCT 301 3326800 F-PS 1 - -
30133 26900 F-PS -
1 1
51 SENSOR R AS 3014801800 11 1
52 COVER MULTI DUCT 3011434100 HIPS
1 - -
3011434200 HIPS -
1 1
53 SOCKET LAMP AS 301 7903100
1 1 1
54 LAMP 3013600700
230V 15W 1 1 1
55 WINDOW LAMP
3015503300 GP 1 1 1
56 CAP M-DUCT COVER
3010924700 PP 2 2 2 - WITHOUT C-CASE
57
BRACKET FAN MOTOR 3010615600 PP 1 1 1
58
BUSHING FAN MOTOR 3010901800 NR 2 2 2
59
MOTOR FAN AS 3015903700 I S-2321 DWBFH 1 1 1

Part List
NO PART NAME PART CODE DESCRIPTION
310 340 370
REMARK
60
LOUVER F B 3018905500 HIPS 1 1 -
3018905600 HIPS - - 1
61 FAN 3011801400 ABS 1 1 1
62 FIXTURE F AN RING 3012005400 SUS304 T0.5 1 1 1
63 _
FLAP CONTROL
301 7100300 HIPS 1 1 1
64 LOUVER F A 3018905300 HIPS 1 1 -
3018905400 HIPS
-
_
-
1 _
65
FLAP LINK 3017100400 HIPS 1 1 1
66
MAGNET CONTROL 301 7500300
2 2 2
67
H ARNESS H ALL PC B 3 012717040 1 1
68
BOX CONTROL 3010516 100 HIPS 1 1 1
69 _
KNOB CONTROL 3013401400 HIPS 1 1 1 _
70 COVER CAB BRACKET 3011433300 HIPS 1 1 1
71 PCB MAIN AS 3014372030 1 1 1
72 TRANS DOWN 5EPK041009 1 1 1
73
BASE CONTROL PANEL 3010312900 HIPS 1 1 1
_
74 PCB HALL S/W AS 3014372230 1 1 1
75
_
PANEL CONTROL 3014204800 ABS
1 1
1
76
WINDOW LED 3015503400 SILICON RUBBER 1 1 1
77 PCB F AS 3014372130 1 1 1
78 HARNESS LAMP SW 3012717020 7 1 1
79
SWITCH LAMP 3018111500 250V 0.25A _ 1 1 1
80
CAP CONTROL PANEL A 3010902800 SILICON RUBBE R 1 1 1
81 SHELF R 3017813700 GPPS 2 3 3
82 COVER CHILD CASE 3011433200 GPPS 1 1 1
83 CASE CHILD *L 3011114700 GPPS _ 1 1 1
84
CASE CHILD *R
3011115800 GPPS 111
85
COVER VEGTB CASE (B) 3011434410 GPPS 1 1 1
86
CASE VEGTB*L 3011115010 GPPS 1 1 1
87 CASEVEGTB*R 3011115020 GPPS 1 1 1
88 FRAME R SHELF A 3012200900 ABS 2 3 3 - OPTION
89
FRAME R SHELF B 3012201400 ABS 2 3 3 - OPTION
90 SHELF GLASS 3017813800 T4.0 3 4 4 - OPTION
91 FRAME C-CASE COVER A 3012201500 ABS 1 1 1 - OPTION
92 FRAME C-CASE COVER B 3012201600 ABS 1 1 1 - OPTION
93 COVER VEGTB CASE (A) 3011434400 GPPS 1 1 1 - OPTION
94 CASE VEGTB 3011115000 GPPS 1 1 1 - OPTION
95 CASE ICING 3011114900 PP 2 2 2
96
CASE F D 3011115900 HIPS 1 1 1
97 CASE F B 3011115300 GPPS 2 2 -
CASE FC 3011115400 GPPS - - 2
98 CASE FA 3011115200 GPPS 1 1 1
99 ASSY R DOOR URT 3010075200 1 - -
100
ASSY F DOOR URT
3010075210
3010075300
3010075310
-
1
-
1
1
-
1
-
1
1 01
102
103
GASKET R DOOR AS
GASKET F DOOR AS
HANDLE 'T
3012306600
3012306800
3012306500
3012306700
3012610200
PVC+MAGNET
PVC+MAGNET
PV C+MA GNET
PVC+MAGNET
PBT
1
-
1
-
1
-
1
1
-
1
-
1
-
11
1 04 HANDLE *U 3012610100 PBT 1 1 1
1 05
1
06
SPECIAL SCREW D
CAP DOOR BUSHING
3016004810
3010918300
T2 FLT 4x16 SUS COATING
PP
4
1
4
1
4
1
1 07
108
CAP HANDLE
COVER DOOR CAP *L
3010910000
3011437000
HIPS
ABS
2
1
2
1
2
1
109
110
111
COVER DOOR CAP *R
COVER BUT TER CA SE
CASE CASE BUTTER
3011437010
3011433100
3011114600
ABS
GPPS
GPPS
1
1
1
1
1
1
111
112 CASE EGG 3011114800 GPPS 2 2 2
113
114
115
POCKET EGG
SUPOT B-POCKET (B)
GUIDE BOTTLE SUPOT B
3019008700
3015300400
3012508000
HIPS
HIPS
Ø5
1
1
1
1
1
1
111
116
117
POCKET BOTTLE (B)
GUIDE BOTTLE SUPOT C
3019009500
3012508010
HIPS
Ø5
1
11 11 1
118 POCKET R DOOR
3019008710 HIPS 1 1 1
119
1 20
121
SUPOT B-POCKET A
POCKET BOTTLE (A)
CAP POCKET
3015303900
3019008600
3010909900
PE-LD
HIPS
SILICON RUBBER
1
1
2
1
1
2
1
1
2
- OPTION
- OPTION
-
OPTION
122 POCKET BUTTER 3019008720 HIPS - 1 1
SPECIAL SCREW C
123
3016004800 2 2 2
43
