Daewoo FR-660N/NT User manual

Service Manual
Refrigerator
Model: FR-580N/NT
FR-660N/NT
DAEWOO ELECTRONICS CO., LTD.
S/M No. : FR580NT010

1.Specification-----------------------------------------------------------------------------------------------1
2.External views---------------------------------------------------------------------------------------------2
3.Wire diagram----------------------------------------------------------------------------------------------4
4.Name of parts----------------------------------------------------------------------------------------------5
5.Air flow diagram------------------------------------------------------------------------------------------6
6.Refrigerant cycle diagram-----------------------------------------------------------------------------7
7.Machine room view and part list--------------------------------------------------------------------8
8. Main components-----------------------------------------------------------------------------------------9
9. Door color specification--------------------------------------------------------------------------------13

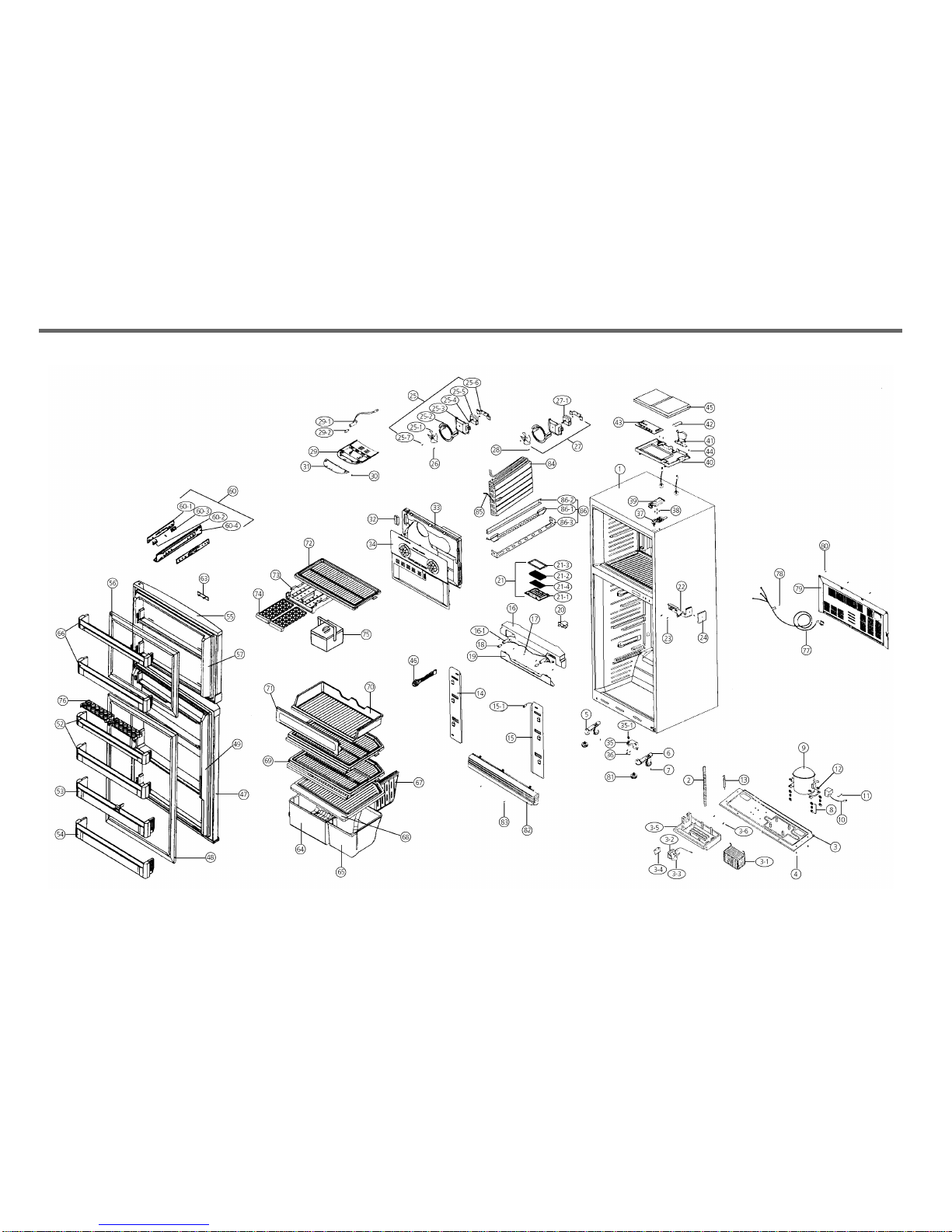

10. Exploded views and parts list -----------------------------------------------------------------------16
11.Electronic function --------------------------------------------------------------------------------------20

1. SPECIFICATION
MODEL NAME FR-580N FR-580NT FR-660N FR-660NT
Refirgerant R12 200g 200g 200g 200g
R134a 160g 160g 160g 160g
Cooling System Fan Cooling Convection
Refrigeration System AirForced Convection
Defrost System FinEvaporatorForced
Defrost Operation Automatic Start& Stop
Cold Control Adjustable Button
Capacity
Freezer 133
 133  147  147 
Refrigerator 337
 337  352  352 
Total470
 470  499  499 
External
Dimension
Height 1784mm 1787mm 1784mm1787mm
Width820mm821mm820mm 821mm
Depth 692mm703mm732mm 743mm
Net Weight 97Kg 101Kg 100Kg 104Kg

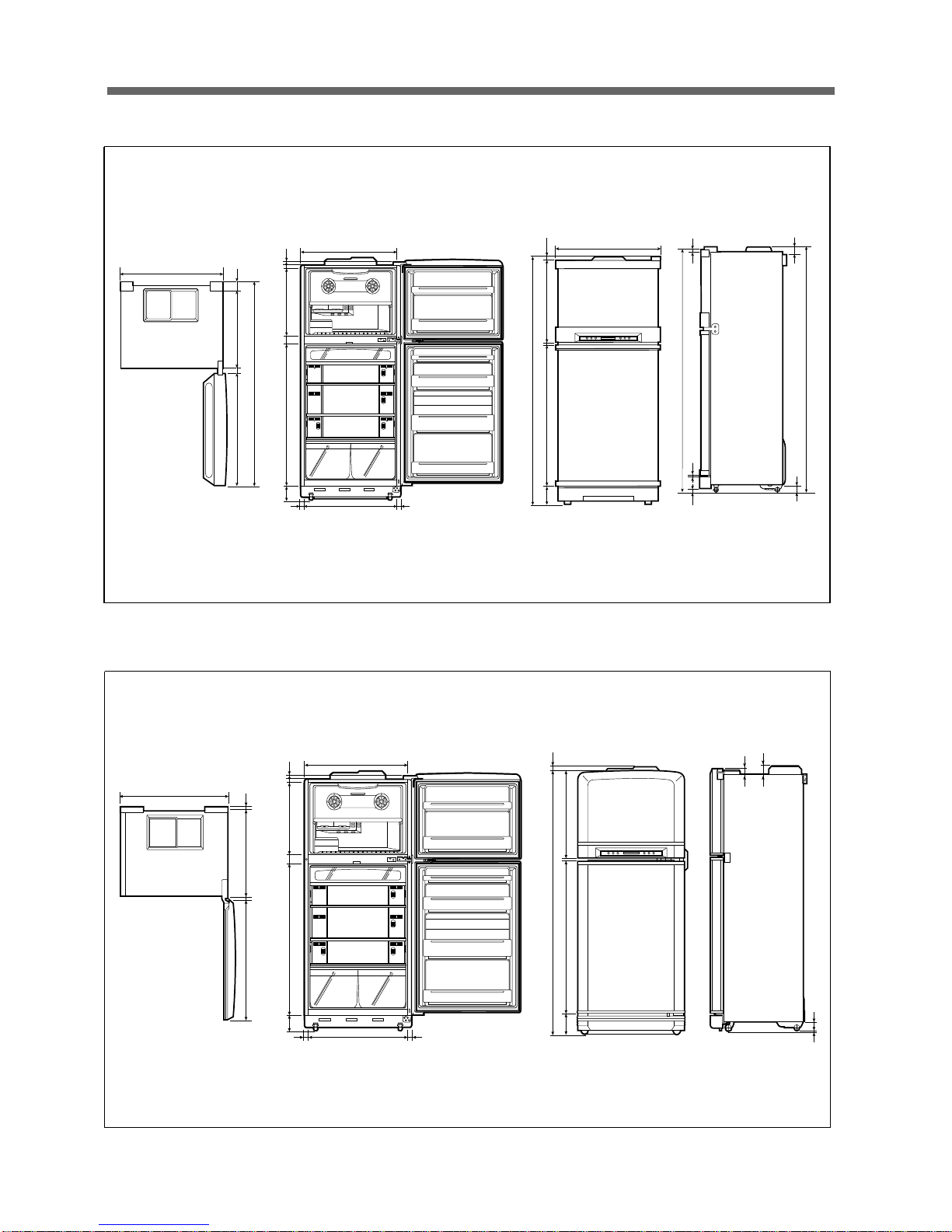

2. EXTERNAL VIEWS
2
1. FR-580N
54.6 1809.5
1784.1 7.512.524.1
3.5 53
810
25.559025820
1460.5
1061.5120.1 1784.1 57014 18.5
820
762 2424
810
2624514621015141.5
2. FR-580NT
762 2424
810
2224514621015141.5
810
25.5
590
21.8
818.4
37
53
54.61.9
1793.5 16
1067 599116.5

3
3. FR-660N
54.6 1809.5
1784.1 7.512.524.1
3.5 53
810
59.459025820
1495
1061.5120.1 1784.1 57014 18.5
820
762 2424
810
2624514621015141.5
4. FR-660NT
762 2424
810
2224514621015141.5
810
25.5
590
21.8
818.4
37
53
54.61.9
1793.5 16
1067 599116.5

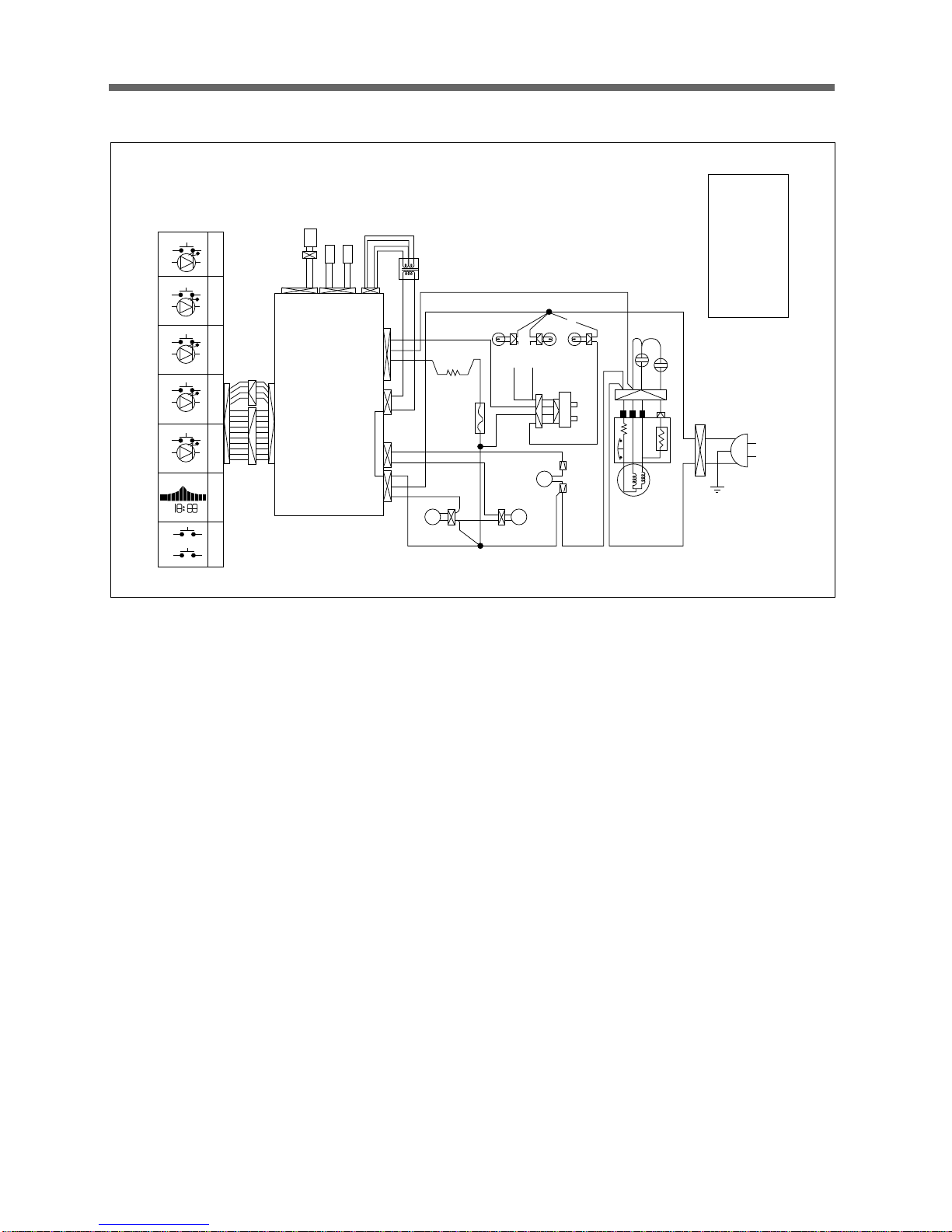

3. WIRE DIAGRAM
4
F
14P
Senso r Senso r Senso r
R1- D1-F-
Door S/W
compressor
defrost
heater
CM
FM
COM
220V
RM
M-PCB PCB TRANS
COM
D
R1
Gr W L P2 G2 L
F-PCB
Gr
R
W
V
BL
PCB TRANS
FM
CM
RM
H
M
Time set Temperature
Display Refrigerator
Temperature Control Quick
refrigerating Quick
Freezing Fuzzy
Freezer
Temperature Control
P
R
BL
Y
L
BL BL BL BL
Compressor
P-relay
BL BL
BL
Gr
Defrost
heater
Refrigerator
lamp Freezer
lamp
BL
Gr
R
R
Y
Yx5Y R
Y
P
1 2 3
ROP
R R
Input
W W
BL
Power pulg
O P
R/C S/C
BLx4
L
L L
Fuse temp
BL
2 1 3 4
DR S/W
Grey
Green
White
Blue
Orange
Pink
Red
Black
Yellow
Violet
Brown
:
:
:
:
:
:
:
:
:
:
:
Gr
G
W
L
O
P
R
BL
Y
V
BR

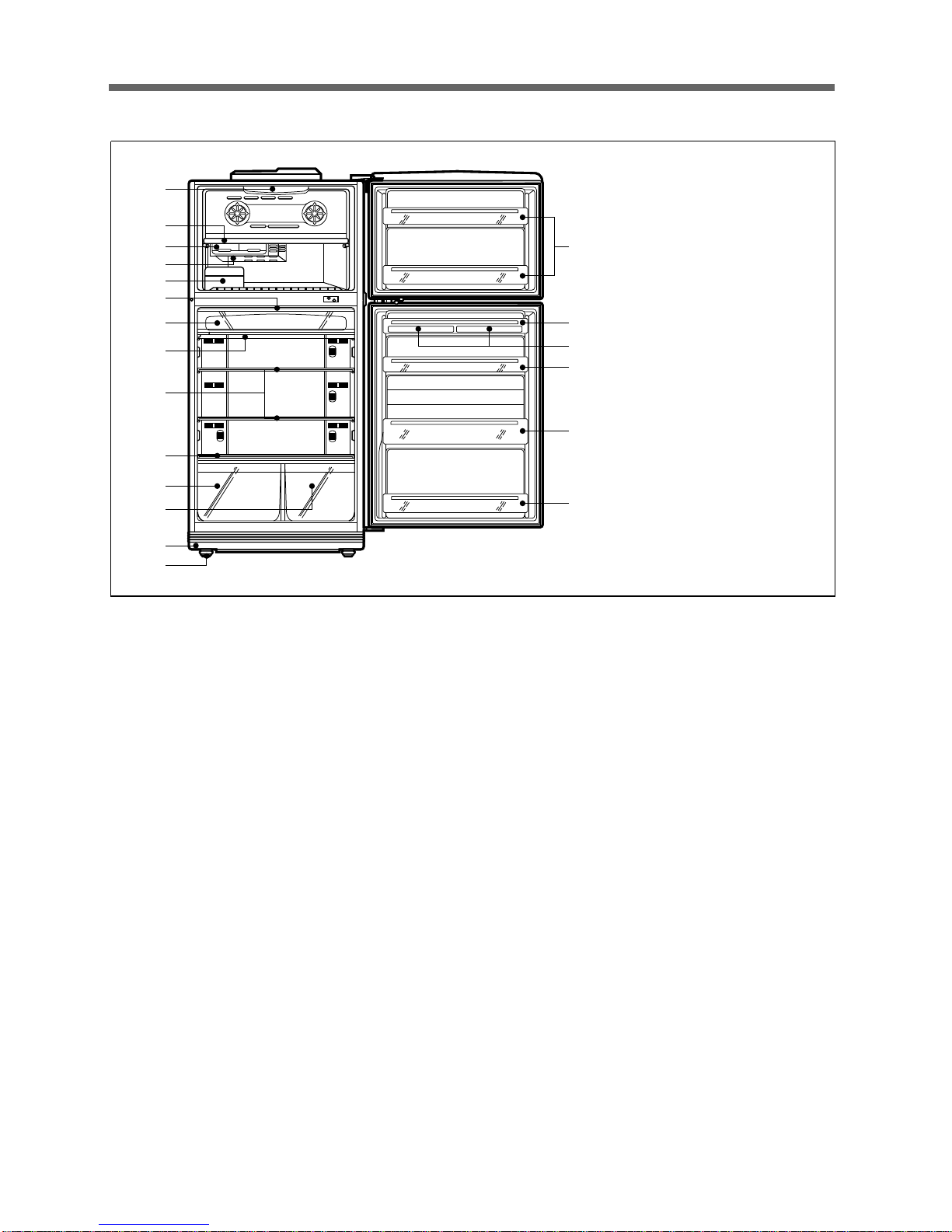

4. NAME OF PARTS
5
1
2
3
4
5
7
6
8
9
10
11
13
14
12
16
15
18
19
20
17
1Freezer Lamp
2Freezer Shelf
3Case Icing
4Guide Icing
5Ice Box
6Chilled Door
7Low Temperature
Doodorant
8Refrigerator Lamp
9Refrigerator Shelf
10 Crisper Cover
11 Criper (A)
12 Criper (B)
13 Front Grille
14 Adjustable Foot
15 Freezer Pocket
16 Egg Pocket
17 Egg Tray
18 Refrigerator Pocket
19 Bottle Pocket
20 Multi Pocket

5. AIR FLOW DIAGRAM
6
-19
-19
-1~1
-19
1~3
1~3
3~5
3~6
Freezer pocket
Please don't put long term storing
items such as ice cream etc.
It might be melted because of
opening the door frequently.
Inlet of cooling air
It should not be blocked with food
etc. as it is the inlet where cooling
air returns.
Chilled room
It is good for the storage of fishes
and meats.
Refrigerator pocket
It is good for the storage of beer
and beverage etc.
Crisper
It is suitable to store vegetable and
fruit.
The moisture panel which is
attached to the cover maintains the
humidity properly.
Vegetable and fruit would be better
to be packed with clean wrap foils.
Multiple outlet of cooling air
Please don't put in vegetable
etc, which contain moisture.
It might be frozen because of
low temperature.
Freezer
Please don't put bottles
such as beer, beverage etc.
It might be broken
because of freezing.

6. REFRIGERANT CYCLE DIAGRAM
7
ACCUM
SUCC.PIPE I-PIPE
EVA. PIPE CON (A)
WI-CON.
PIPE CON (S)
DELIVERY PIPE
COMP
CAPI-TUBE
DRYER AS
HOT-PIPE
C
O
M
P
R
E
S
S
O
R
D
E
L
I
V
E
R
Y
P
I
P
E
H
O
T
P
I
P
E
P
I
P
E
C
O
N
(A)
W
I
C
O
N
P
I
P
E
D
R
Y
E
R
C
A
P
I
L
L
A
R
Y
T
U
B
E
E
V
A
P
O
R
A
T
O
R
A
C
C
U
N
U
L
A
T
O
R
S
U
C
T
I
O
N
P
I
P
E
P
I
P
E
c
o
n
(S)
High pressure Low pressure
✦
§
Welding Specifications
✦
§
Freezing Cycle
¡WELD 5% SILVER
§WELD 35% SILVER

7. MACHINE ROOM VIEW AND PART LIST
8
15
7
16
512
2
14
17
11
6
18
10
4
25
22
9
1
8
19
2124 20233
27
13 26
NO PART NAME NO PART NAME NO PART NAME
1FIXTURE C MOTOR AS 10 DRYER 19 MOTOR C
2PIPE SERVICE 11 PIPE SUCTION AS 20 FAN
3ABSORBER 12 PIPE SUC CONN 21 BOLT SPECIAL
4CABLE TIE 13 BASE COMP AS 22 HOSE DRN B
5COMPRESSOR 14 WASHER SPECIAL 23 CASE VAPORI
6PIPE CONN A 15 SWITCH P-RELAY AS 24 SCREW TAPPING
7PIPE HOT 16 CLAMP BAND RELAY 25 SCREW MACHINE
8PIPE CONN B 17 ABSORBER PIPE B 26 CORD POWER AS
9 PIPE WICON AS 18 ABSORBER PIPE A 27 SCREW TAPPING

9
8. MAIN COMPONENTS
1. COMPRESSOR
2. RELAY ASSSEMBLY
Refrigerant R12
Voltage 100V/50,60Hz 110V/60Hz 115, 120V/60Hz 127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz 240V/50Hz
Comp. model XBL27YE-3 BL27YE-2 SL28YE-5 PL25YE-4 SL28YE-5
Part code X3952127A30 3952127A20 3954128A50 3956125A40 3954128A50
Strating type X CSR CSR RSIR RSCR RSIR
Refrigerant R134a
Voltage 100V/50,60Hz 110V/60Hz 115, 120V/60Hz 127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz 240V/50Hz
Comp. model XHBL27YE-3 XHSL27YE-5 XHSL27YE-5
Part code X3952127G30 X3954128G50 X3954128A50
Strating type X CSR XRSIR XRSIR
Refrigerant R12
Voltage 100V/50,60Hz 110V/60Hz 115, 120V/60Hz 127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz 240V/50Hz
Relay model X444THBZZ-52 276THBYY-52197SHBYY-52276THBYY-52
Part code X 3018111900 3018112500 3018112800 3018113000 3018112800
Refrigerant R134a
Voltage 100V/50,60Hz 110V/60Hz 115, 120V/60Hz 127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz 240V/50Hz
Relay model X783RHBZZ-52 X276THBYY-52 X276THBYY-52
Part code X 3018112700 X3018112800 X3018112800 3018112800
3. RUNNING CAPACITOR
Refrigerant R12
Voltage 100V/50,60Hz 110V/60Hz 115, 120V/60Hz 127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz 240V/50Hz
Spec. X230V/10µF 300V/7µF X350V/5µF XX
Part code X400EL15130 386100400 X400EL15110 XX
Refrigerant R134a
Voltage 100V/50,60Hz 110V/60Hz 115, 120V/60Hz 127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz 240V/50Hz
Spec. X230V/10µF 300V/7µF XXXX
Part code X400EL15130 386100400 XXXX

10
4. STARTING CAPACITOR
5. F-FAN MOTOR
Refrigerant R12
Voltage 100V/50,60Hz 110V/60Hz 115, 120V/60Hz 127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz 240V/50Hz
Spec. X 200V/100µF X350V/25µF
µF
X X
Part code X 3016400100 X400EL16110
290V/50
4124G62020
X X
Refrigerant R134a
Voltage 100V/50,60Hz 110V/60Hz 115, 120V/60Hz 127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz 240V/50Hz
Spec. X 200V/100µF X X X
Part code X 3016400100 X X X
Refrigerant R12, R134a
Voltage 100V/50,60Hz 110V/60Hz 115, 120V/60Hz 127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz 240V/50Hz
Spec.
XORM-1001L1ORM-1001D1ORM-1001B2 ORM-1005B1 ORM-1001H2
IS-3211DWBFN IS-3211DWBFV IS-23211DWBFR IS-23211DWBFJ IS-3211DWBFT
Part code X 3015902520 3015902530 3015902540 3015902510 3015902550
6. R-FAN MOTOR
7. C-FAN MOTOR
8. DEFROST HEATER
Refrigerant R12, R134a
Voltage 100V/50,60Hz 110V/60Hz 115, 120V/60Hz 127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz 240V/50Hz
Spec.
XORM-1002L1ORM-1002D1ORM-1002B2 ORM-1006B1 ORM-1002H2
IS-3211DWBFM IS-3211DWBFU IS-3211DWBFQ IS-23211DWBFE IS-3211DWBFS
Part code X 3015902620 3015902630 3015902640 3015902610 3015902650
Refrigerant R12, R134a
Voltage 100V/50,60Hz 110V/60Hz 115, 120V/60Hz 127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz 240V/50Hz
Spec. X RF111EAC03 RF111SAC03 RF111BAC03 RF111GAC03 RF111HAC03
Part code
X 3015902720 3015902730 3015902740 3015902700 3015902750
Refrigerant R12, R134a
Voltage 100V/50,60Hz 110V/60Hz 115, 120V/60Hz 127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz 240V/50Hz
Spec. X 180W 180W
Part code
X 3010006721 3010006711

11
9. LAMP ASSEMBLY
10. PCB TRANSFORMER
Refrigerant R12, R134a
Voltage 100V/50,60Hz 110V/60Hz 115, 120V/60Hz 127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz 240V/50Hz
Spec. X 120V/15W 240V/15W
Part code
X 3013600010 3013600030
Refrigerant R12, R134a
Voltage 100V/50,60Hz 110V/60Hz 115, 120V/60Hz 127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz 240V/50Hz
Part code
X 5EPK057660 5EPK057621 5EPK057670 5EPK057710 5EPK057680
11. MAIN PCB ASSEMBLY
Refrigerant R12, R134a
Voltage 100V/50,60Hz 110V/60Hz 115, 120V/60Hz 127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz 240V/50Hz
Spec. X N803
Part code X 3014303520 3014302501
12. DRYER
Refrigerant R12 R134a
Spec. 10 g 15 g
Part code 3016802100 3016801211

12
POWER CORD SPECIFICATION
NO SHAPE OF POWER CODE PART CODE DESCRIPTION REMARK
13011315000 CP-2PIN FOR EUROPEAN COUNTRY
2401RA17200 CP-2PIN FOR OTHER COUNTRY
34006D17101 KP-30 FOR AMERICA
4401PD17101 KP-211 FOR JAPAN & TAIWAN
53011300801 BP-3PIN
63011303010 #267 FOR CHILE
73011315310 FOR ISRAEL
83011303050 BS-1363A FOR U.K, MIDDLE ASIA
SINGAPORE & MALAYSIA
93011301200 KP-551/550 FOR CHINA & AUSTRALIA
* Upper power cord’s part code is only for lead wire, without any kinds of terminal or housing.

13
9. DOOR COLOR SPECIFICATION
1. ASSEMBLY URETHAN FREEZER DOOR
1) FR-580N, 660N
2. ASSEMBLY URETHAN REFRIGERATOR DOOR
1) FR-580N, 660N
2) FR-580NT, 660NT
Refrigerant R12 R134a
Color type Dull lamina High glossy Normal PCM High glossyDull lamina High glossy Normal PCM High glossy
sheet lamina sheet bright PCM sheet lamina sheet bright PCM
Part code X X X PWFT005A40 X X X PWFT005A50
Refrigerant R12 R134a
Color type Dull lamina High glossy Normal PCM High glossyDull lamina High glossy Normal PCM High glossy
sheet lamina sheet bright PCM sheet lamina sheet bright PCM
Part code X X X PWFT005A20 X X X PWFT005A30
Refrigerant R12 R134a
Color type Dull lamina High glossy Normal PCM High glossyDull lamina High glossy Normal PCM High glossy
sheet lamina sheet bright PCM sheet lamina sheet bright PCM
Part code X X X PWRT005A40 X X X PWRT005A50
1) FR-580NT, 660NT
Refrigerant R12 R134a
Color type Dull lamina High glossy Normal PCM High glossyDull lamina High glossy Normal PCM High glossy
sheet lamina sheet bright PCM sheet lamina sheet bright PCM
Part code X X X PWRT005A20 X X X PWRT005A30

14

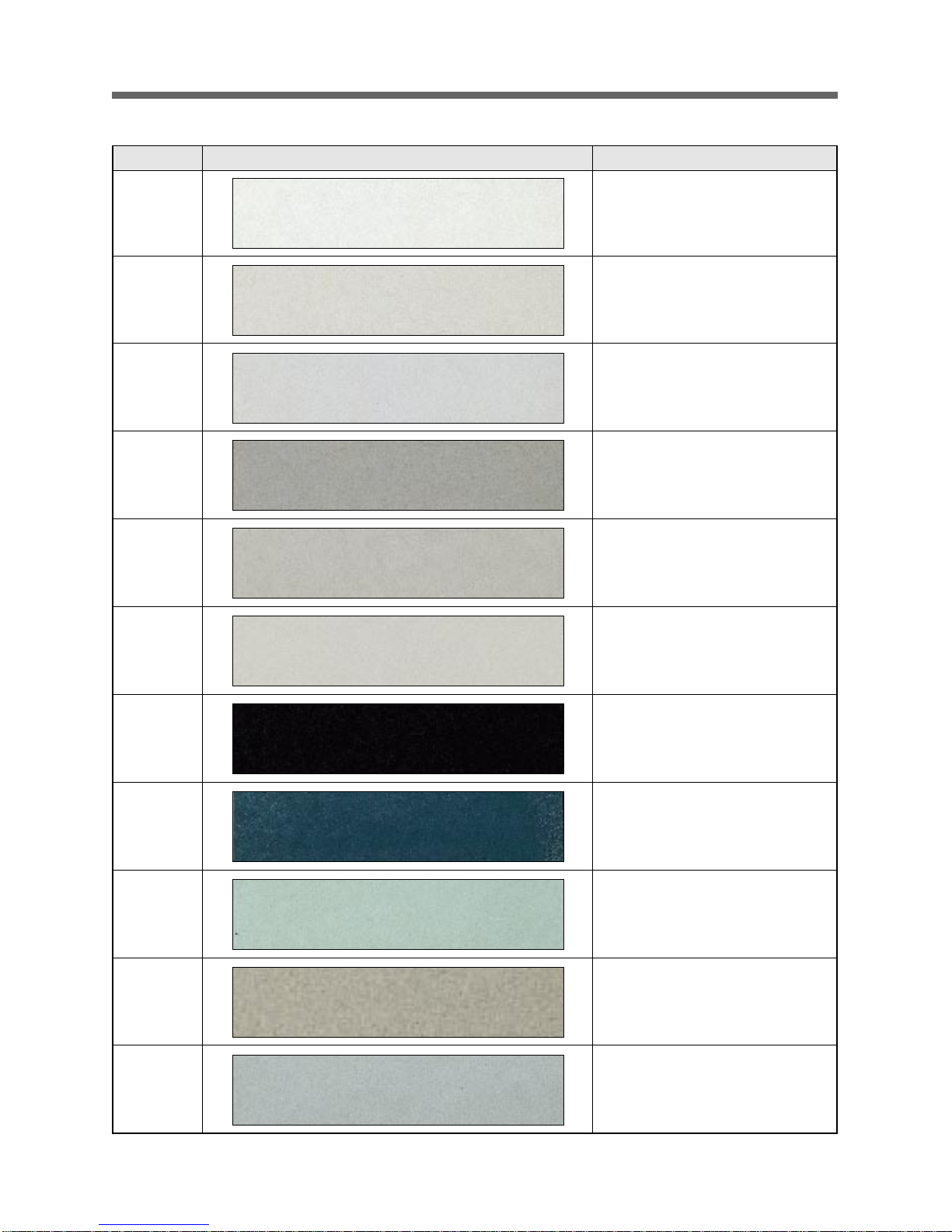

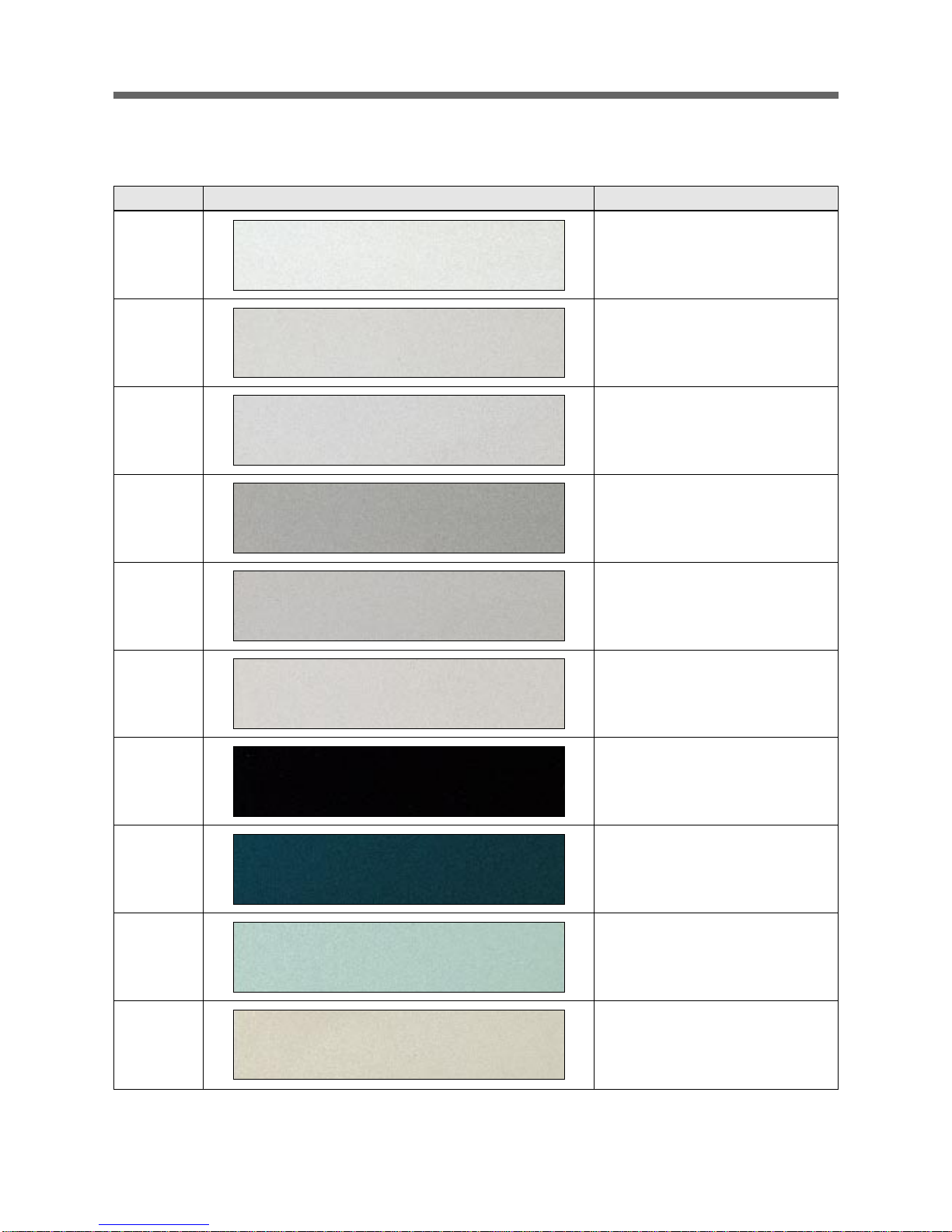

COLOR TABLE
1. PCM type
NO COLOR CHIP COLOR NAME
1P/WITH (WH069)
2'94 L/GRAY (GY158)
3'95 L/GRAY (GY259)
4'94 M/GRAY (GY331)
5'95 M/GRAY (GY335)
6'97 M/GRAY (GY267)
7M. D/GRAY (GY750)
8N/BLUE (BL718)
9MINT GREEN (GN206)
10 '97 BEIGE (BE215)

15
2. Lamina sheet type
NO COLOR CHIP COLOR NAME
1P/WITH (WH069)
2'94 L/GRAY (GY158)
3'95 L/GRAY (GY259)
4'94 M/GRAY (GY331)
5'95 M/GRAY (GY335)
6'97 M/GRAY (GY267)
7M. D/GRAY (GY750)
8N/BLUE (BL718)
9MINT GREEN (GN206)
10 S/GOLD
11 G/GREEN

10. EXPLODED VIEWS AND PARTS LIST
16
1. Exploded views

17
NO PART NAME PART CODE DESCRIPTION Q'ty REMARK
FR-580NT FR-660NT
1ASSY CAB URT 1
2HOSE DRAIN (B) 3013202200 PP 1
3BASE COMP AS 3010309100 1
3-1 PIPE WI-CON AS 3014415500 1
3-2 MOTOR C AS 1REFER TO # 10
3-3 FAN 3011800400 ABS (¿ 110mm) 1
3-4 FIXTURE C MOTOR AS 3012006000 1
3-5 CASE VAPORI 3011111700 PP 1
3-6 SCREW TPPING 7112401211 T1 TRS 412 MFZN 2
4SPECIAL BOLT 3016003300 T2 6.5 x
x
x
20
4
5FOOT *F *L AS 3012700700 1
6FOOT *F *R AS 3012100600 1
7BOLT HEX 3016000700 M615 2
8ABSORBER COMP AS 3010101440 4
9COMPRESSOR 1REFER TO # 9
10 SWITCH P RELAY AS 1REFER TO # 9
11 RELAY BAND 3816100100 SK-5 T0.7 1
12 SPECIAL WASHER 3016002500 SK-5 T0.8 4
13 DRYER AS 1REFER TO # 11
14 ASSY R*S LUVR *L 3010028804 3010028814 1
15 ASSY R*S LUVR *R 3010028822 3010028832 1
15-1 SENSOR R1 AS 3014701140 1
2.Partslist
¥All other parts except the above part list are same as 580NT and 660NT.
The exploded view may be a little different in shapes from the NT standard type.
NO PART NAME PART CODE DESCRIPTION Q'ty REMARK
FR-580N FR-660N
35 ASSY *U HI 30100A0180 1
37 HINGE *T AS 3012907600 1
39 COVER *T HI 3011419900 PP 1
47 ASSY R DR TOTAL 1REFER TO # 13
49 ASSY R DR LINER 3010036020 ABS 1
53 POCKET BOTTLE 3011406901 GP 1
55 ASSY F DR TOTAL 1REFER TO # 13
57 ASSY F DR LINER 3010038720 ABS 1
82 COVER CAB BRKT 3019000801 ABS 1
1) FR-580N, 660N
2) FR-580NT, 660NT

18
NO PART NAME PART CODE DESCRIPTION Q'ty REMARK
FR-580NT FR-660NT
16 DUCT CHILD AS 3010029532 3011128931 1
16-1 SOCKET R LAMP AS 3017900860 1
17 SCREW TAPPING 7112401611 T2 TRS 4 x
x
x
x
x
x
x
x
16 MFZN 3
18 LAMP AS 2 REFER TO # 11
19 WINDOW R 3015501600 3015500800 GPPS 1
20 SWITCH DR 3018100020 2BUTTON/4PIN 1
21 CASE DEO AS 3011101800 1
21-1 CASE DEO AS 3011102501 PP 1
21-2 DEODORANT 3018700600 1
21-3 SEALING DEO 3017714600 F-US 1
21-4 DEODERANT SHEET 3018700700 1
22 HINGE *M AS 30100A0170 SCP-1 T3.2 1
23 SPECIAL BOLT *M 3016001220 6B-1 6 20 4
25 MOTOR F AS 1
25-1 FAN 3011800400 ABS (¿ 110mm) 1
25-2 MOUSE BELL 3018500100 HIPS 1
25-3 COVER MOTOR C 4017Z32233 HIPS 1
25-4 ABSORBER MOTOR 4017Z08430 EPR-B3(H40) 1
25-5 MOTOR F 1 REFER TO # 10
25-6 COVER MOTOR B 4017Z32244 HIPS 1
25-7 FIXTURE FAN 4004Q10060 STS27 1
26 SCREW TAPPING 7112401611 T2 TRS 4 16 MFZN 2
27 MOTOR R AS 1
27-1 MOTOR R 1 REFER TO # 10
28 SCREW TAPPING 7112401611 T2 TRS 4 16 MFZN 2
29 COVER F M/F DUCT A 3011406600 3011414300 ABS 1
29-1 SOCKET *F LAMP AS 3017900820 250V/1A 1
29-2 LAMP AS 1 REFER TO # 11
30 SCREW TAPPING 7112401611 T1 TRS 4 12 MFZN 2
31 WINDOW F 3015500400 GPPS 1
32 BRACKET F SENS 4017Z29010 SCP-1 T3.2 1
33 INSULATOR F LOUVER AS 3013321400 F-PS 1
34 LOUVER F AS 3018903400 PP 1
35 ASSY *U HI 3012900130 1
35-1 WASHER PLAIN 7400108511 PW-1-8.5 1
36 SPECIAL BOLT 3016001201 6B-1 6 20 4
37 HINGE *T AS 3012907800 1
38 SPECIAL BOLT T/U 3016001230 6B-1 6 20 4
39 COVER *T HI 3011417400 PP 1
40 BOX M/PCB 3010511700 PP 1
41 TRANS POWER 1 REFER TO # 11
42 CAPACITOR 1 REFER TO # 9
43 PCB MAIN AS 1 REFER TO # 11
44 SCREW TAPPING 7112401211 T1 TRS 4 12 MFZN 3
45 COVER M/PCB BOX 3011425300 PP 1
