Daewoo FRS-T20FAN User manual

Refrigerator
S/M No: RNU20IB551
- May, 2015
✔ Caution
: In this Manual, some parts can be changed for improving, their
performance without notice in the parts list. So, if you need the
latest parts information,please refer to PPL(Parts Price List) in
Service Information Center
MODEL:FRS-T20FAN

Instruction Manual
REFRIGERATOR-FREEZER
MODEL:FRS-T20FAN

Description of all components
1
12
3 4
56
7 8
9 10
Freezer Door Tray Ice outlet
Freezer Shelf Freezer Drawer
Pulley Ice Maker
Refrigerator Door Tray
Refrigerator Shelf Crisper
Refrigerator Lamp
2
Some features and components of the refrigeratory you bought may not be exactly
the same as the legend here, but in accordance with the packing list in the
refrigeratory. Sorry to any trouble to you.
11
11
Mini bar
1
2
3
4
5
6 7 8
9
10
11
Warning
Warning:connect to potable water supply only.
Data
Rated temperature rise(min)
Size(width/depth/height):mm ----- Net
Rated Power(W)
Net weight
350
902x750x1760
180
114
Ice-maker uninstall and install
Uninstall
Lift the ice-maker up in the ① direction,
and pull it out in the direction ②, then take it out.
Install
Install the ice-maker , push it to the end
in the ① direction.
1
2
1
W1566*H1760*D1055
when the foods need be fast frozen,you’d better make the foods cold first.
Set the freezer’s temp at -24 control position to the quick freezer,
then put the fresh foods.
℃
Overall space required in use(mm)

2
Preparation before use
3
Proper use of refrigerator
Bottom-mounted
decorative cover
Screw
Features
lConstant-temperature preservation technology
The freezer has a specific air delivery and circulation system. It can control temperature
separately, so that the storage temperature is stable and foods can be saved longer.
lPre-cooling before defrosting
It can judge the temperature in the refrigeratory before defrosting and do precooling to
benefit the preserving of the foods with little temperature change in the refrigeratory
before and after defrosting.
lIntelligent defrost
According to actual use frequency and frosting speed, the intelligent defrost is adopted
to save energy.
lUltrathin, supergreat and luxury design
It has ultrathin size, super great volume, and large refrigerator and freezer capabilities.
The refrigerator is made of high-grade tempered glass shelf and provided with a large
fruits and vegetables chamber.
lFluorine-free, frost-free and full air-cooled refrigeration system provides quick
cryogenic refrigeration and quick freezing.
lFunction of automatic default display.
lIt is provided with a condensing unit and a fan for heat emission, so that cooling
effect is preferable and the life span of the compressor is long.
lDoor alarm.
lThe advised storage area for various foods in the refrigerator (see the
Diagram on P1)
lThe glass shelf of the refrigerator: flour-based foods, can, milk, fast food,
dairy products, cooked meat, sausage and so on.
lCrisper: fruits, vegetables and so on.
lStorage box: eggs, butter, cheese and so on.
lRefrigerator door tray: tear-off tins, cans, condiment, drinks and various
bottled foods.
lMini bar: no need to open the refrigeratory's door, just push the bar tightly,
drinks or other foods in the refrigeratory can be taken out from the mini bar.
Freezer
The temperature in the freezer is very low, so that the foods can be stored freshly for a
long time. Therefore, you had better to put the food to be stored long in this place. But,
the storage time on the food package must be observed.
lThe advised storage area for various foods in the freezer (see the Diagram on
P1)
lFreezer door tray (two star level) is used for short-term reservation of food.
lFreezer door tray is used to reserve frozen food.
lFreezer glass shelf is used to reserve frozen food, such as fish, meat, ice
cream and so on.
lThe ice maker is used to make ice.
lFreezer drawer is used to reserve fish, meat and packaged poultry meat.
Warning
lExcept the manners recommended by the manufacturer, no other equipment
and manners can be used to speed up the process of defrost.
lExcept the types recommended by the manufacturer, no other electric appliances
can be used in the food refrigerator.
lR600a refrigerant and cyclopentane foam materials used in CE-BCD512WE-S are
flammable. The waste refrigeratories need to be isolated from fire and cannot be
burnt.
The coming of new refrigeratory
lBefore the use of the refrigeratory, remove all packages, including bottom
cushion and foam pads and rubber belts in the refrigeratory;
lClear the outside and inside of the refrigeratory
with a piece of warm wet rag (little detergent can be
added into the warm water. Clear the refrigeratory with
fresh water at last);
lPrepare a separate two-pole grounding receptacle.
Do not share a multi-socket with other electric appliances.
l The ground wire must be well connected and the
grounding pole of the receptacle should be grounded
reliably.

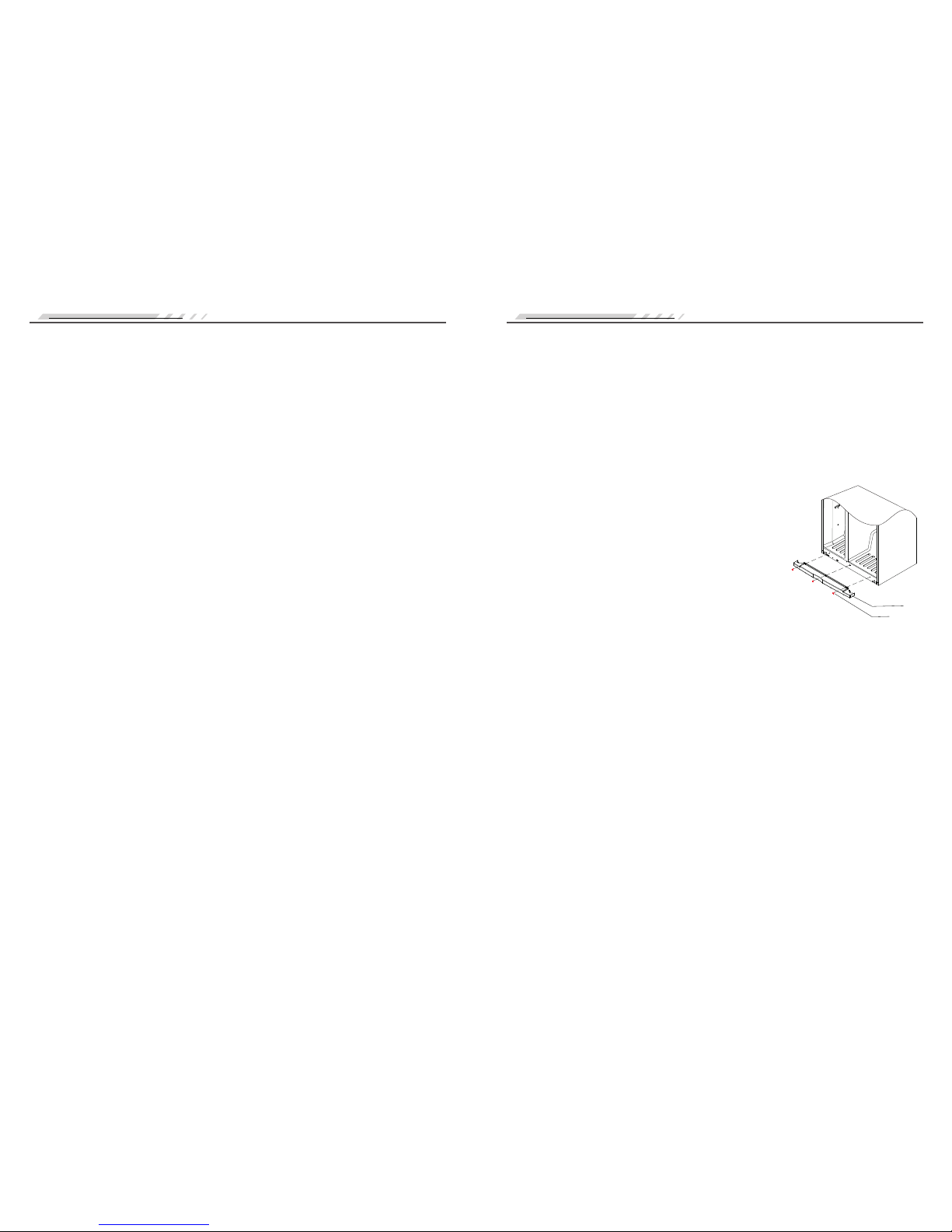

lOpen the door, take out the attachments (the bottom
decorative cover), and three setscrews in the bag of the
Instruction. And install it onto the bottom beam of the refrigeratory. For operation
method, see the right diagram.
Transport and placement of refrigeratory
Transport
lDo no t inve r t, pl a ce hor i zon t ally , sque e ze or sh ock th e
ref rige r ato r y. And t h e dec l inat ion an g le of th e refr i gera tory m u st be
no mo re tha n 4 5 whe n m ovin g .
lWhen moving, do not force too much on the door or top for fear of deformation.
Placement
lPlace the refrigeratory at a well-ventilated place and keep it away from heat and
direct sunshine. Never put it at a damp or watery place, for fear of rusting or
weakening the insulation.
lThe top clearance outside the refrigeratory must be no less than 30cm, and the
clearance from both sides and back to the walls must be no less than 10cm for the
convenience of opening and heat emission.
lPut the refrigeratory on the flat and solid ground. (adjust the adjustable legs to
get balance if unstable).
Standing
lDo not switch on the refrigeratory immediately after vertical placement. Only
switch it on after 6 hours' standing to ensure its proper operation.
Notice
To prevent damage to the power cord and any consequent incidents, the power cord
should not be covered by the refrigeratory or other objects.
Before switching on the refrigeratory, please check carefully whether the voltage

4
Proper use of refrigerator
Begin to use
Make sure the refrigeratory is located properly and stably and understand all safety
considerations.
After unsealing the refrigerator,to fix lower cover on the refrigerator
(If the door rugged，Please refer to the adjustment instructions which locate in the
lower left corner of the right panel of Refrigerator to adjust.)
1. Unpacking (if the door height is uneven, adjust it according to the
adjustment instruction at the lower left corner of the refrigeratory's right side
plate)
After unpacking, install the bottom decoration cover onto the refrigeratory.
2. Switch-on
When switching-on, the refrigeratory enters the state of factory settings
automatically. This refrigeratory has the power-down memory function. After
the first switch-on, the refrigeratory will operate as per the settings at last
power-down.
3. Put foods into refrigeratory.
After electrifying and operation for a period of time (about 3-5 hours in
summer), the inner side of the refrigeratory is fully cool. Then, foods can be put
in and the refrigeratory can be used formally.
Tips: after the temperature setting has been changed or new food has
been put in, the inner temperature of the refrigeratory can reach a balance
after a period of time. And the length of the period is determined by the
ch ang ing o f tem per atu re se tti ng, a mbi ent t emp era tur e, opening
frequency, amount of food in the refrigeratory, etc.
Refrigerator
Though most places in the refrigerator can be kept at
2-8℃ averagely by adjusting temperature setting, the food
in the refrigerator cannot keep fresh for a long time.
Therefore, the refrigerator can only serve to store food in
short term.
Adjustment of shelf
According to the need of the food to be stored, the shelf
can be adjusted to a proper height.
To ease the use or adjustment of the shelf, it is designed
for sliding; when cleaning the glass shelf, please pull
the glass shelf in the direction 1 and whirl it in the
direction 2 at the same time until it is perpendicular to
the original position, and then take it out at 90° in
the direction 3.
Adjustment and cleaning of door tray
Hold two sides of the tray, lift it up in the ① direction, and
pull it out in the direction ②.
After cleaning, install the tray in opposite
directions.
The installation place can be adjusted according to the
height of the food.
1
2
3
1
2
Proper use of refrigerator
5
Operation and precautions for ice maker
Note:
Connection of water pipes: please contact the after-sales Service Department of the Company
or professionals to install to avoid any risk.
Warning!
The water pipes must be connected under the condition of power-off. Electric shock may
cause serious injury or death.
Notices!
The water pipe cannot be used where environmental temperature is under 0℃, Or it may
lead to freezing.
The water pipe cannot be connected to hot water, which may lead to deformation.
The water pipe should be used in the pressure range 30-100psi.
Lower pressure may cause smaller ice pieces and longer water exiting time.
But higher pressure may damage the filter.
The pipe cannot be connected to drinks, alcohol or other liquids except for water.
1.Turn off the water-tap.
2.Connect water pipe onto the water-tap. The water pipe should be long enough
to prevent the drop-off of the water pipe caused by removing of
refrigeratory.
3.Turn off the refrigeratory.
4.Use a connecting pipe to connect the water pipes behind the refrigeratory
and on the water-tap.
5.To prevent the drop-off or leaking of the water pipes, they must be fixed by
fixed pins.
6.Turn on the water tap to check leakage.
7.The refrigeratory is energized an used normally.
<Use of Automatic Ice Maker/ Ice& Water Dispenser>
Notices!
The water pipes are used in the pressure range of 30-100psi.
Water softeners may damage the ice maker and must not be
used.
Please check the ice pieces in the storage box when power-
off above 1h. If the ice pieces are thawing and binding together,
please empty them, because the bound ice pieces may cause
Failure of the ice system.
When the ice pieces in the storage box are binding together, you had better to melt it with warm
water rather than smash and take out them with a sharp tool, which may damage the
refrigeratory.
A. Supply of cold water

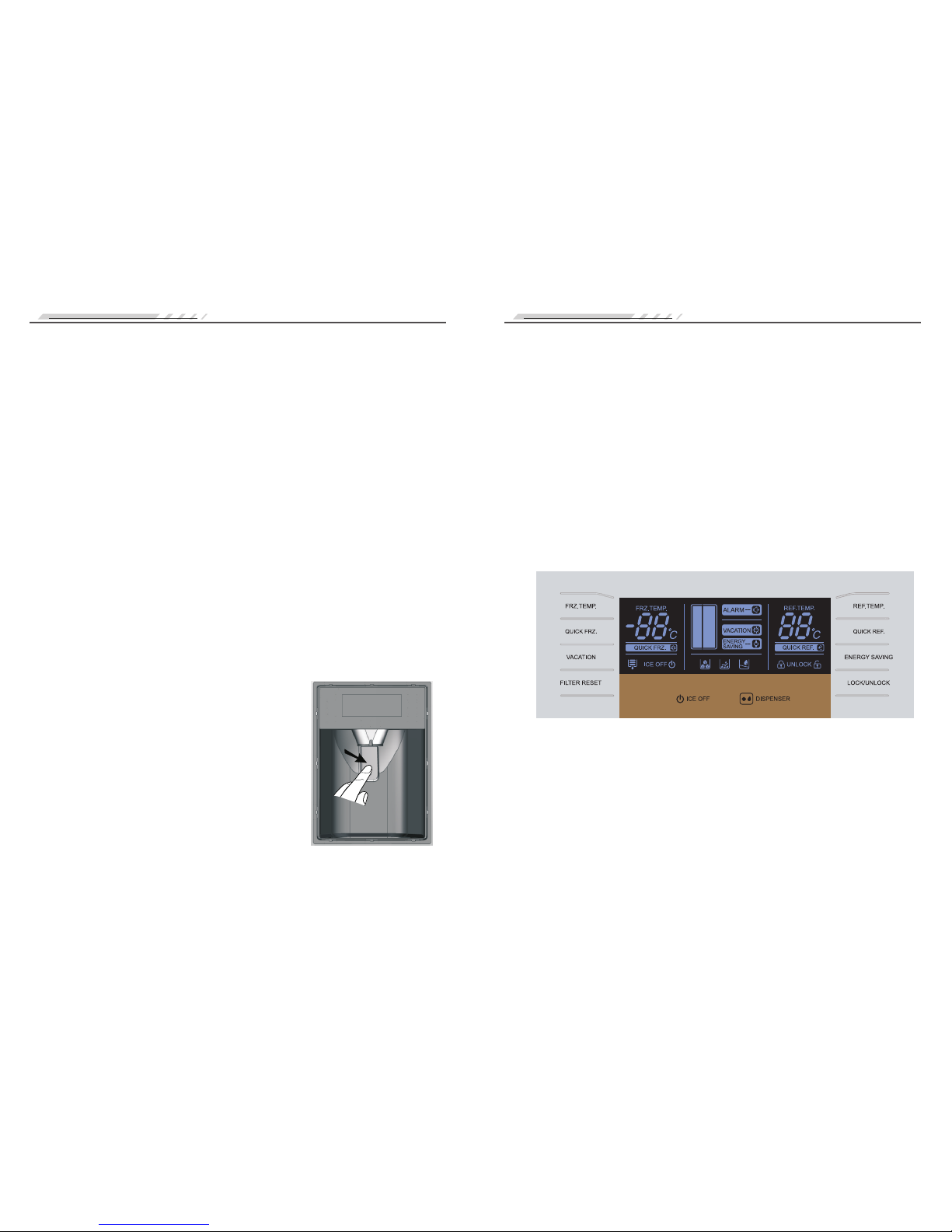

1. Choose the ice/water button on the display board, and make sure the water
indicator turns on.
2. When the water switch plate is pressed by the cup, the cold water comes out.
3. When using the refrigeratory the first time, water does not come out before
the water tank in the refrigerator is filled up. The normal manner to get water is
pushing and holding the switch plate for 2-3 minutes.
4. After the water comes out, please discharge water for about 3 minutes to
purge the air and smell of plastic in the water pipe.
5. When cold water is required, it's better to get some ice before getting water.
6. When getting water, it is normal for noise of valve operation.
Ice maker

Proper use of refrigerator Proper use of refrigerator
[Way to replace the filter]
1.The filter installed in this refrigeratory is refined by NSF42, which can filter the
smell, chlorine and so on in running water.
2.The replacement cycle of the filter is about 6 mouths. When replacement is
needed, the indicator on the display board will turn on. The replacement cycle
may be shortened according to operating environment.
3.With the function of BY-PASS, it can supply water normally without the filter. If
necessary, additional filter can be installed and used out of the refrigeratory
by yourself.
4.During replacement, little water in the connection part may drop out, a container
can be located under it to receive the drops.
5.The filter is installed in the liner of the refrigerator. You can seize the lower bugle
and whirl it leftward to take it out. When it is difficult to take out, you can
detach the lampshade in the refrigerator before detaching the filter.
6.The assembling is in opposite order. Push it upwards and whirl it rightward at the
same time.
Operating instruction for the display and control panel
67
Button setting
When power-on, the refrigeratory will operate in the intelligent mode. The system
automatically sets the refrigerator temperature at 5℃,and that of the freezer at -
18℃.
Refrigerator temperature setting
Function:
A. Set the temperature of the refrigerator in the following range: 02℃- 08℃.
1℃changes every time of pushing.
B. Achieve the turn-on and turn-off of the refrigerator.
Operation:
Temperature adjusting: push the button “REF.TEMP.”, and the icon of the
refrigerator flashes. And push the button once again, to adjust the temperature
(the cycle of the adjustment order is 08-02-08), and the setting comes into effect
after 5 seconds.
B.Operation of automatic ice maker
1.Automatic ice maker operates when the freezer reaches the needed temperature
below 0℃ after a period prescriptive time when the refrigeratory is energized.
Under normal temperature, the time between the refrigeratory's first energizing
and first making of ice is about 6 hours.
2.The ice firstly made after the installation of the refrigeratory shall be thrown away
because of plastic smell and impurities.
3.The time interval of ice making is about 2 hours, and the amount of the ice is
different according to different service conditions.
4.When the ice storage is full, the ice maker will stop automatically, and when the ice
storage is empty, the ice maker will make ice again automatically.
5.The noises for de-icing, motor operation, dropping of ice into the ice storage, and
operation of water supply valve may not happen periodically. They are not errors.
6.Please use the button on/off on the distributor to turn off the ice-making function
when it is not required. The ice maker is sold under ON state. If unnecessary,
please turn off this function timely after installation of the refrigeratory. When the
ice-making function is turned on without connection of waterways, there are
operational noises of water supply valve.
7.When ice piece is smaller than usual in a certain period of time, please verify the
replacement frequency of the filter. When the filter reaches its operation time,
the water supply pressure is lower and the made ice piece is smaller.
8.When cleaning the ice storage box, turn off the ice-making function on the
distributor before detaching the ice storage box.
9.Do not whirl the Auger during reinstallation of the removed ice storage box. After
being whirled, the Auger cannot be assembled and installed normally. It may be
damaged when taking out the ice. Whirl the Auger left and right after it has been
whirled to ensure normal installation.
C.Supply of ice
1.Choose the ice/ water button on the display
board, select entire or crushed ice pieces and
make sure the relevant indicator turns on.
2.Use the container to push and hold the switch
plate to get ice.
3.According to the water supply condition, some
mixed small ice pieces may come out when getting
the entire ice pieces..
4.When crushed ice pieces are required, please
press the container most close to the ice discharging
orifice to prevent the crushed ice from dropping out.
5.When getting ice, the noises of motor, crushing ice
and so on are normal.
6.To protect the motor, the refrigeratory will stop when
the switch plate is pushed for 1 minute or more. Then,
releasing the switch plate and waiting a moment, you
can get ice normally again. When large amount of
entire ice pieces are required, please open the door
Of freezer, take the ice storage box out and use the ice in it.

Proper use of refrigerator Proper use of refrigerator
8 9
Turning off the refrigerator: when the refrigerator is under the ON state, push and
hold the button“REF.TEMP.” for 3 seconds, the refrigerator is turned off with a
beep. When the refrigerator is under the ON state, push and hold the button
“REF.TEMP.” for 3 seconds, the refrigerator is turned on with a beep. Adjust the
temperature to cancel the function of turn-off.
When closing the refrigerator, the icon of the refrigerator turns on. The double
8 shows “- -”, and the relevant icon of the refrigeratory turns off.
Freezer temperature setting
Function:
Set the temperature of the freezer in the following range: -16℃- -24℃. 1℃ changes
every time of pushing.
Operation:
Temperature adjusting: push the button “FRZ.TEMP.” once, and the icon of the
freezer flashes. Push the button again to adjust temperature. (The cycle of the
adjustment order is the present temperature- -16- … …- -24- -16) The setting comes
into effect after 5 seconds of temperature adjusting.
Push the button “VACATION”, "VACATION" icon turn on, to enter the vacation
mode. Push this button again to exit this mode.
The system can close the refrigerator automatically. The refrigerator temperature is
set at -15℃. The closed compartments will not cool. The cooling compartments will
operate at the set temperature.
Energy-saving mode
In the mode of energy saving, the refrigerator and freezer operate at the set
temperature Trs= 7℃ and Trs= -15℃ respectively.
QUICK REF.: push this button, and the indicator of quick cooling flashes, which
indicates the quick-cooling mode. The relevant icons and words flash. Push the
unlock button to confirm it.
QUICK FRZ.: push this button, and the indicator of quick-freeze flashes, which
indicates the quick-freeze mode. The relevant icons and words flash. Push the
unlock button to confirm it.
Push the button “QUCIK FRZ”again when the quick-freeze icon flashes, the quick-
freeze time shown by the freezer changes in the cycle of 6h-8h-12h-24h-48h-exit the
quick-freeze mode. Push the button of “LOCK/UNLOCK” to confirm it and the flash
stops.
Vacation mode
Quick FRZ. function is a design aim to maintain the nutritional value of frozen
food. It can be thoroughly frozen food in the shortest time. If you need frozen a
lot of food in one time, we recommend setting fast freezing feature 12h in
advance, so the freezer could turn to a low temperature, and then put into the
food. At that time, the freezing capability speed up in freezer, frozen foods
quickly and effectively lock the foods’ nutrition.
Unlock
Under the lock state, push and hold the button “LOCK/UNLOCK” for 3
seconds, the display panel unlocks. If time is less than 3 seconds the unlock
icon flashes, which means unlock failed.
Under the unlock state, push and hold the button “LOCK/UNLOCK” for 3
seconds, it will be locked manually, and the lock icon turns on.
Every time the operation button is pushed, it sets off a beep. Do not push any
button after continuous 60 seconds, it will be locked automatically, and the lock
icon turns on.
All operations (except the ice-water selector key and the filter reset key) under
the unlock state are available. Under the lock state, the lock icons flash with
beep alarm when pushing other buttons.
Switch key of ice maker
Choose the switch key of ice maker, push to start ice-making function until the
ice storage box is full, after taking icecube, the ice storage will be filled
automaticlly, and push this button again to cancel the ice-making function.
Key of ice water choosing: (available in the key lock state) push
this button and get water, ice, crushed ice according to the following cycle.
Get water ---- get crushed ice ---- get ice
Reset of the filter
Push and hold the filter reset button for 3 seconds to reset the filter.
Memory of the first energized state after power-down
The controller has the function of power-down memory.
Memory contents:
Mode (quick-freeze time and quick cool time will be retimed after power-up)
The setting temperature of refrigerator and freezer
Accumulation time of defrost (time accuracy: 1h) (if the temperature of the
defrost sensor > 2℃, the defrost time accuracy is 0.)
The first power-up state: the default state (setting temperature: refrigerator 5℃/
Freezer-18℃) (the factory state of the controller)

10
Care and maintenance of the refrigerator
Arrow indicates the
direction of dismantle.
Shade
Lamp base
Shade
11
Cleaning
Clean the dust on the back of the refrigeratory and the floor regularly.
Clean the inner side of the refrigeratory usually to prevent peculiar smell. Please
unplug the power cord during cleaning. Use soft towel and neutral detergent, and
clean it with fresh water at last.
Please do not use the following objects to clean the inner side of the refrigeratory:
●Alkaline or strongly alkaline detergent (may make the liner and plastic
components cracked);
●Soap powder, benzine, banana oil, spirit and so on (may damage the plastic
components);
●Please erase timely stain oil and condiment (may make the plastic components
cracked).
Lamp and its replacement
The parameters of the lamps of refrigerator,
freezer and distributor and the replacement
lamps are direct current (DC) 12V, LED.
When the lamps are replaced:
●Unplug the plug to cut off the power.
●Push and remove the lampshade
according to the direction in the attached
drawing. Remove the screws and the LED lamp.
●Reassemble them in the opposite process.
●Replacement should be done by a professional.
Lamp
Downtime
When the refrigeratory is not used for a long time,
●Turn off the power to prevent electric shock and accidents caused by aging power
cord.
●Clean the inner side of the refrigeratory.
●Open the door for a time, and close it with a small gap after the inner side of the
refrigeratory is dry to prevent bad smell.
Power-off
●Reduce the opening times as much as possible. You had better not to put fresh
food into the refrigeratory.

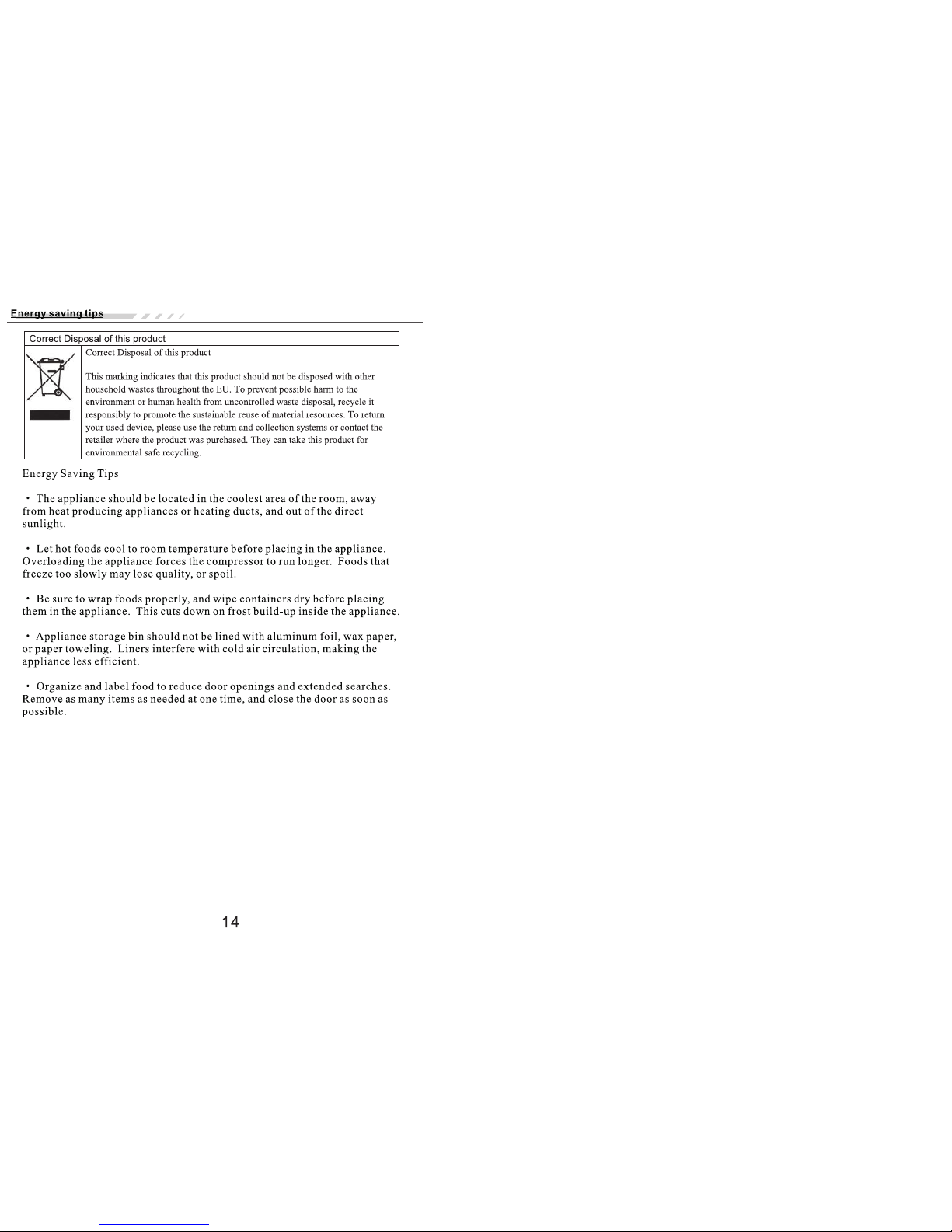

Discard
●Remove the door of the refrigeratory when the waste one is discarded to prevent
the accident that the child is stranded in the refrigeratory.
Announcements
Freezer lamp

12
Simple trouble analyzing and shooting
13
Simple trouble analyzing and shooting
This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the
appliance.
If the supply cord is damaged, it must be replaced by the manufacturer, its service
agent or similarly qualified persons in order to avoid a hazard.
–WARNING: Keep ventilation openings, in the appliance enclosure or in the
built-in structure, clear of obstruction.
–WARNING: Do not use mechanical devices or other means to accelerate the
defrosting process, other than those recommended by the manufacturer.
–WARNING: Do not damage the refrigerant circuit.
–WARNING: Do not use electrical appliances inside the food storage
compartments of the appliance, unless they are of the type recommended by
the manufacturer.
Do not store explosive substances such as aerosol cans with a flammable
propellant in this appliance.
This appliance is intended to be used in household and similar applications such
as
–staff kitchen areas in shops, offices and other working environments;
–farm houses and by clients in hotels, motels and other residential type
environments;
–bed and breakfast type environments;
–catering and similar non-retail applications.
