1. PARTS

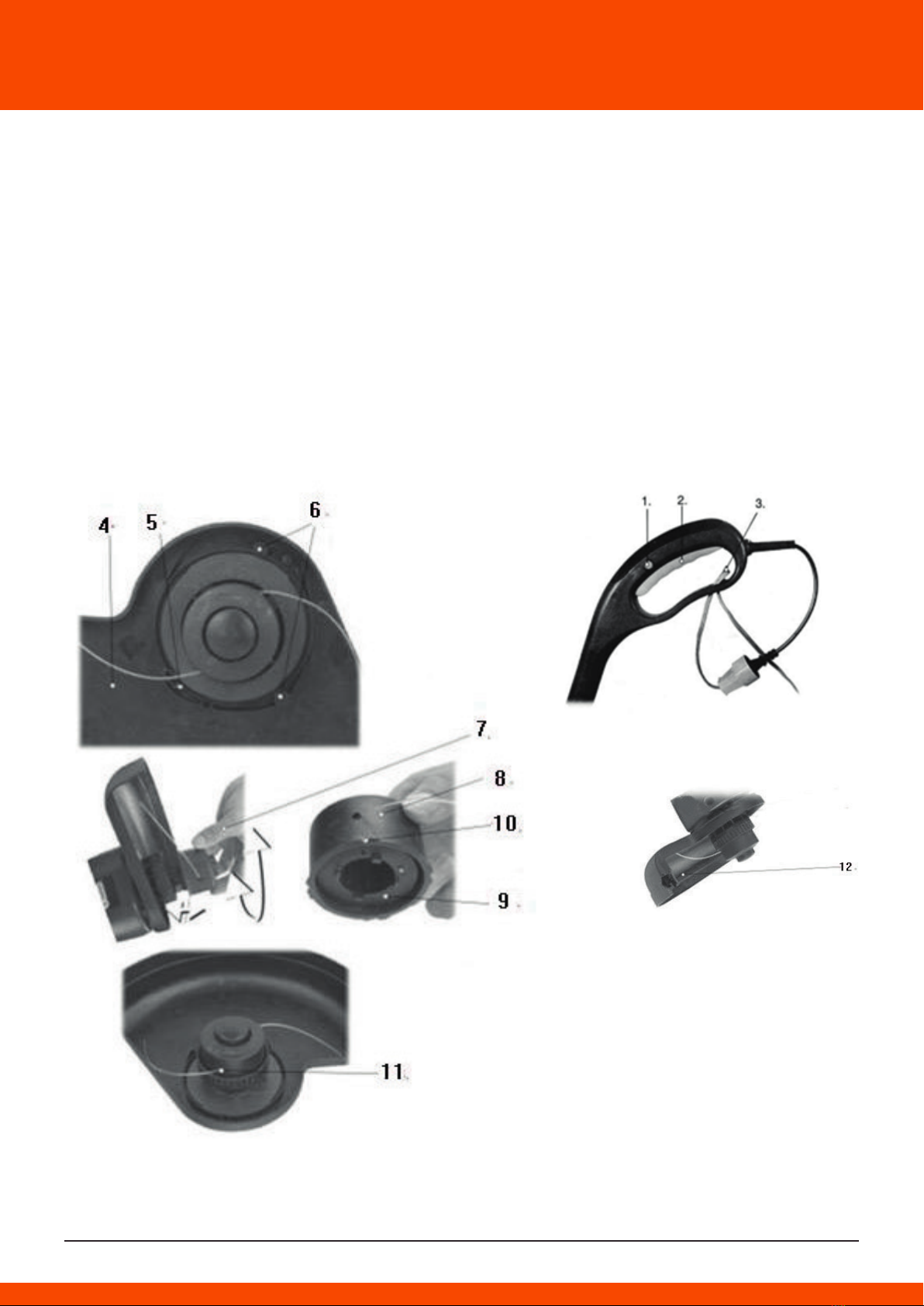

01. security button
02. power switch
03. cable holder
04. rotor guard
05. align hack
06. screw holed to secure rotor guard
07. gripping the wire roll flange
08. wire roll
09. slit to secure wire end
10. wire roll ring with wire lead
11. wire rotor (with 6 notches)
12. wire knife for plastic wire
2. INSTRUCTIONS
Before using the grass trimmer-read this manual carefully along with the separate safety
instructions!
This tool is designed for home usage and is not intended for commercial purposes.
Intended usage
The grass trimmer is intended for trimming grass along edge-stones and otherwise where a lawn
mower cannot reach
New machine
The grass trimmer comes in a compact package.
All must be mounted according to the instructions under mounting below. before the machine can
be used.
Safety instructions
Do not use the grass trimmer if the cord is damaged. Make sure that the rotor guard (4) always is
correctly mounted according to the mounting instructions below.
Use eye and ear protection and rough trousers as leg protection.
Keep proper footing while working and always hold the grass trimmer steady with both hands.
Only use plastic wire according to the machine specifications.
Never use the grass trimmer if raining or in damp conditions.
Keep hands away from rotating wire. Remember that the rotation continues for a while after the
engine has been switched off.
·Make sure that no unprotected people or animals are less than 6m away from the trimming area.
Beware of grovel and dust that may spread from the rotating wire.
Only use an electric cable that is approved for outdoor usage preferably connected over a ground
fault circuit interrupter(GFCI).
Always disconnect the plug from the mains when not in use and do not leave it unprotected from
rain.
3. OPERATION
Before starting the grass trimmer--check that the voltage of the source current corresponds to
that indicated on the machine's specification plate(230 V).
Use the machine only in the manner intended.
Never use the machine if any part of it, electric cord or plug is damaged. Turn the machine off at
once if it starts vibrating.
Use the cable holder(3) to avoid unintentional disconnection.
If the trim wire should tangle or get jammed, switch off the machine immediately.
Starting mechanism
Start the grass trimmer by pressing in the security button (1) and simultaneously press in the
power switch(2).Stop the trimmer by releasing the power switch.
Trimming instructions
Work at a safe distance from other persons or animals (minimum 6m).
Make sure there are no loose objects(e. g. pebbles or sticks) in the area to be trimmed.
Keep maximum RPM rating as the grass trimmer is moved towards the area to be trimmed. If the
RPM rate is significantly reduced, pause the trimming job and carry on when the RPM rate is
again at its maximum.
Try to avoid trimming closer to any hard objects than that the edge of the trimming wire just
reaches its surface to reduce unnecessary wear of the wire.
Wire length
For best trimming performance; keep the trim wire at a length so that it just reaches the wire knife
(4).
Lengthen the wire when it is too short or worn.
Unplug from power mains and turn the trimmer with the trimmer foot upside:
1. Grasp the trimming wire (with a pair of players if necessary) and pull straight upwards so that
the wire exit is moved to the next wire rotor (11), or to the next, until the free wire end is at least 8
cm long.
2. Any excessive wire length will automatically be cut to proper length by the wire knife (12).
Mounting--new package
Rotor guard (4); during trimming, the rotor guard should always be mounted.
1. Hold the rotor guard (4) with the inside upwards and the wire knife (12) in your direction. Lower
the rotor guard over the trimmer foot until it fits properly.
2. Turn the rotor guard 90°clockwise until the align notch fits into its hack (5).
3. Secure the rotor guard with two screws through the screw holes (6).
Shaft; the machine should never be plugged to a power source unless the shaft is properly
mounted.
Mounting—trimming wire
When fitting. See to it that the electric plug is disconnected from the source of current.
Clean all parts with a soft brush before fitting.
1. Turn the trimmer foot facing upwards.
2. Keep the wire rotor still with one hand and grip the wire roll flange (7). Press inwards and turn
counter clockwise until the bayonet lock releases.
3. Carefully remove the soft ring (10).
4. Prepare about 8m of new wire. Remove old wire piece.
5. Guide the new wire through the guide hole of the soft ring, from outside to inside, and secure
the wire in the wire roll slit (9).
6. Fit on the soft ring again and wind up the new wire on the roll by keeping the ring still and rotate
the wire roll counter clockwise.
7. Insert the roll into the wire rotor, press inwards and turn clockwise until the bayonet lock is
secured.
8. Check that the wire exit goes through one of the rotor notches (11) (pull thread upwards).
4. MAINTENANCE
Disconnect the plug from the source of current before any maintenance work is begun.
·Clean the machine regularly with a damp cloth and keep the air intakes free from dust using a
soft brush and a vacuum cleaner.
·Check to see that electric cords, plugs and cables are in good condition and not damaged.
·Keep the machine in a dry, clean and noncorrosive environment, out of the reach of children.
Troubleshooting
The grass trimmer does not start:
·Check to see that all electric cables are correctly connected to the power mains.
·Check to see that no ruse has blown and that the current outlet is supplying current by
connecting an electric lamp.
Environment
To prevent damage to the tool during transportation, its package is designed to be sturdy. The
package is made -as far as possible- of material that can be recycled, such as paper, cardboard
and wood. Since recycling is better for the environment, we recommend that you deposit refuse
for recycling to the extent that you are able.
Remember that your worn-out tools can be recycled-do not throw them in the usual trash bin.
5. TECHNICAL DATA
