Daewoo DWD-M8051 User manual

Service Manual
Washing Machine
Model: DWD-M8051/M8052/M8053
DWD-M1051/M1052/M1053
S/M No. :
✔Caution
: In this Manual, some parts can be changed for improving, their
performance without notice in the parts list. So, if you need the latest
parts information, please refer to PPL(Parts Price List) in Service
Information Center (http://svc.dwe.co.kr).
DAEWOO ELECTRONICS CORP.
http : //svc.dwe.co.kr Feb. 2011
DWDM805101

AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER
AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER
AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER
AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER
AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER
AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER
AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER
AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER
AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER
AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER
WASHING MACHINE
Contents
1. SPECIFICATIONS....................................................................................................................2
2. INSTALLATION ......................................................................................................................3
Removing transit bolts......................................................................................................3
Installation place requirement...........................................................................................3
Location of washer............................................................................................................3
BS Plug Safety Details (For U.K. User)............................................................................4
Connecting inlet hose.......................................................................................................4
Installation of drain hose...................................................................................................5
Level adjustment...............................................................................................................5
3. MAINTENANCE.......................................................................................................................6
Cleaning your washer.......................................................................................................6
Cold condition or Winter storage......................................................................................6
Cleaning the water inlet filter. ...........................................................................................7
Cleaning the drain filter.....................................................................................................7
Cleaning the detergent case.............................................................................................8
Cleaning the washing drum..............................................................................................8

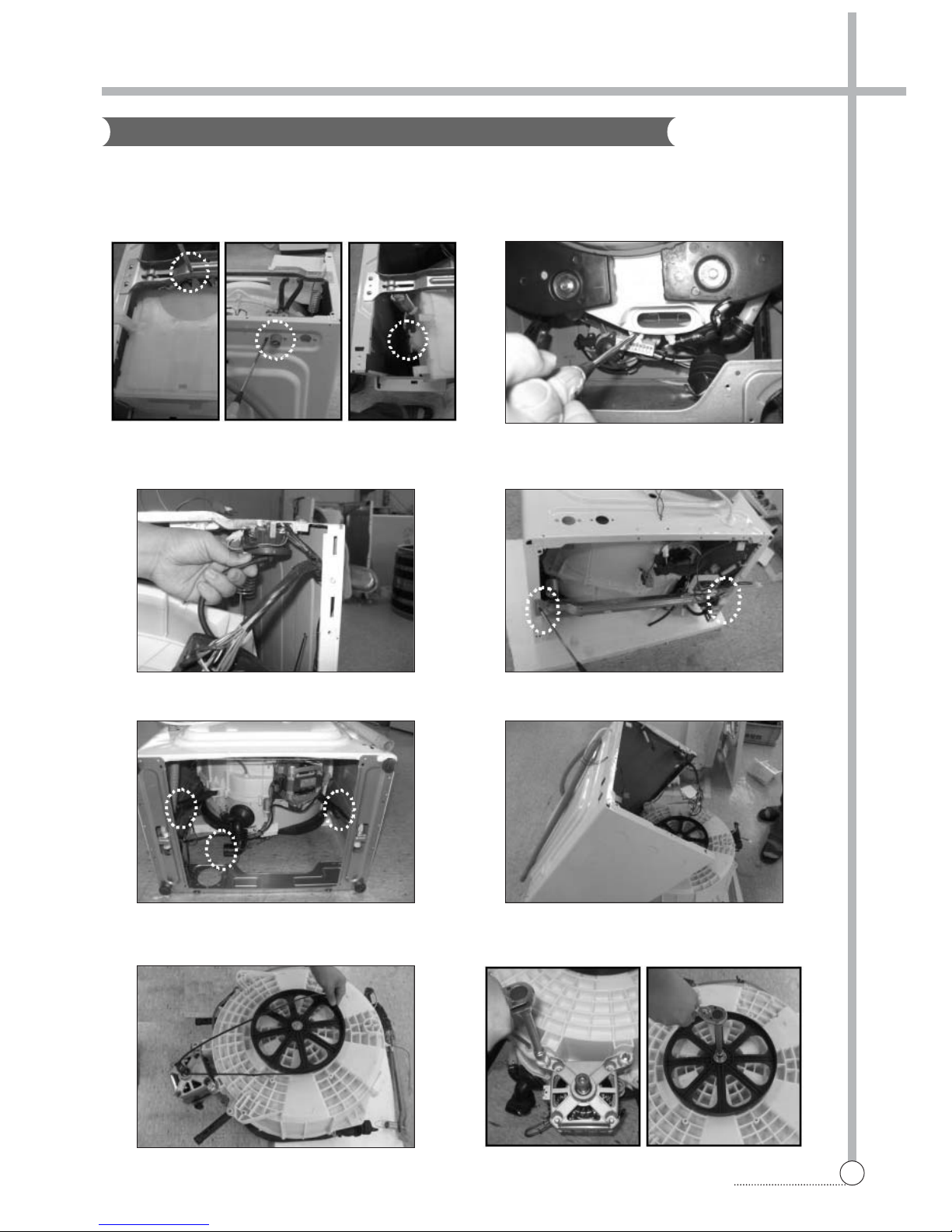

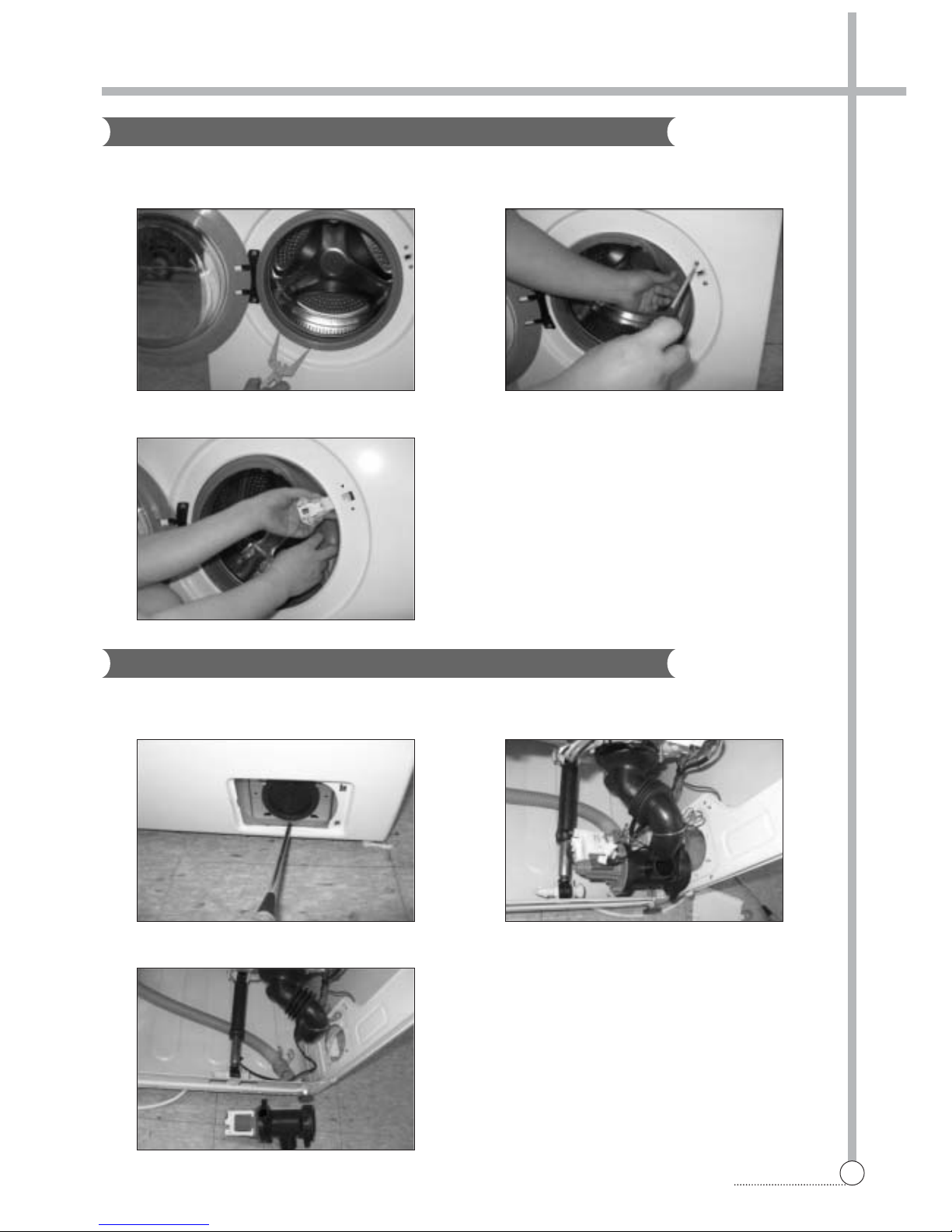

4. DIRECTION FOR DISASSEMBLY .........................................................................................9

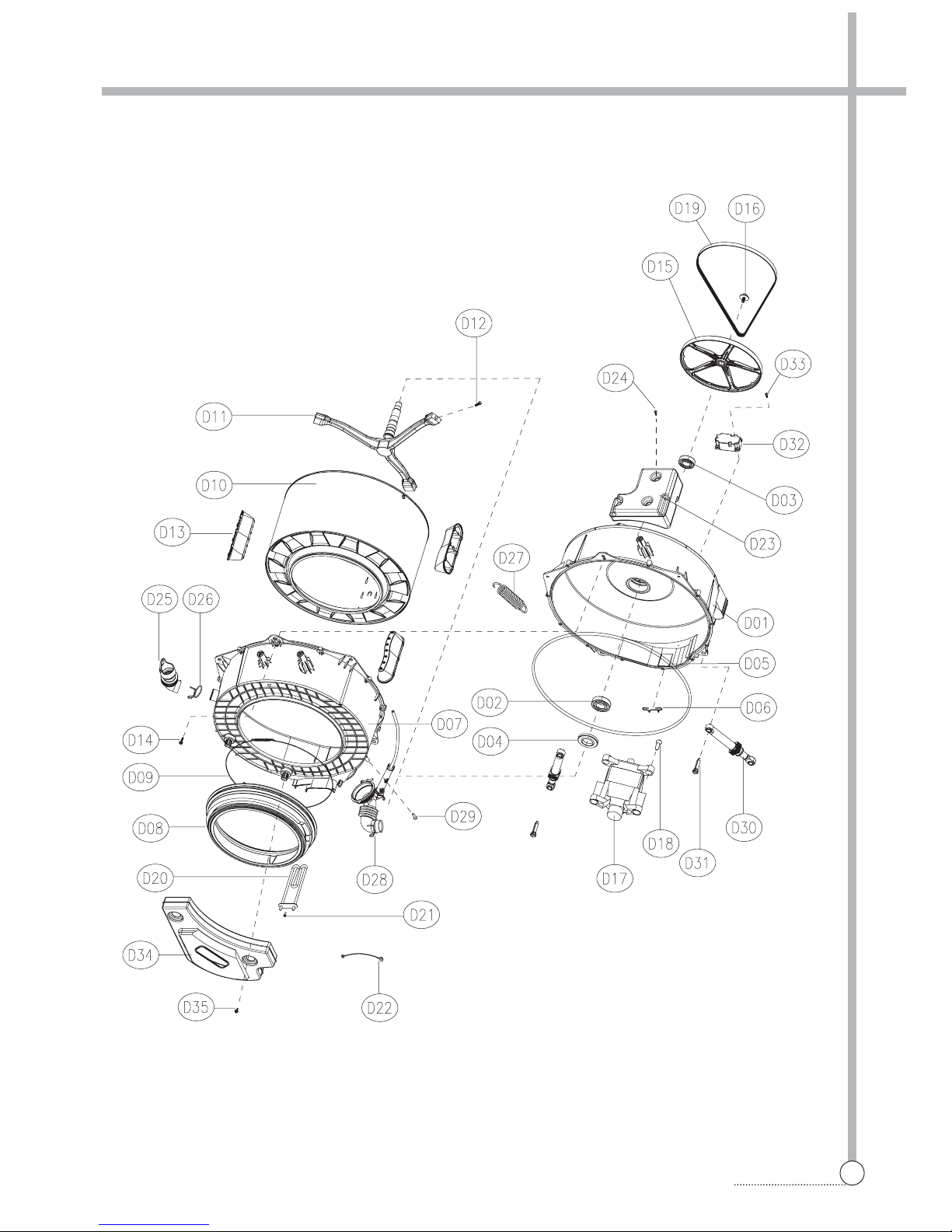

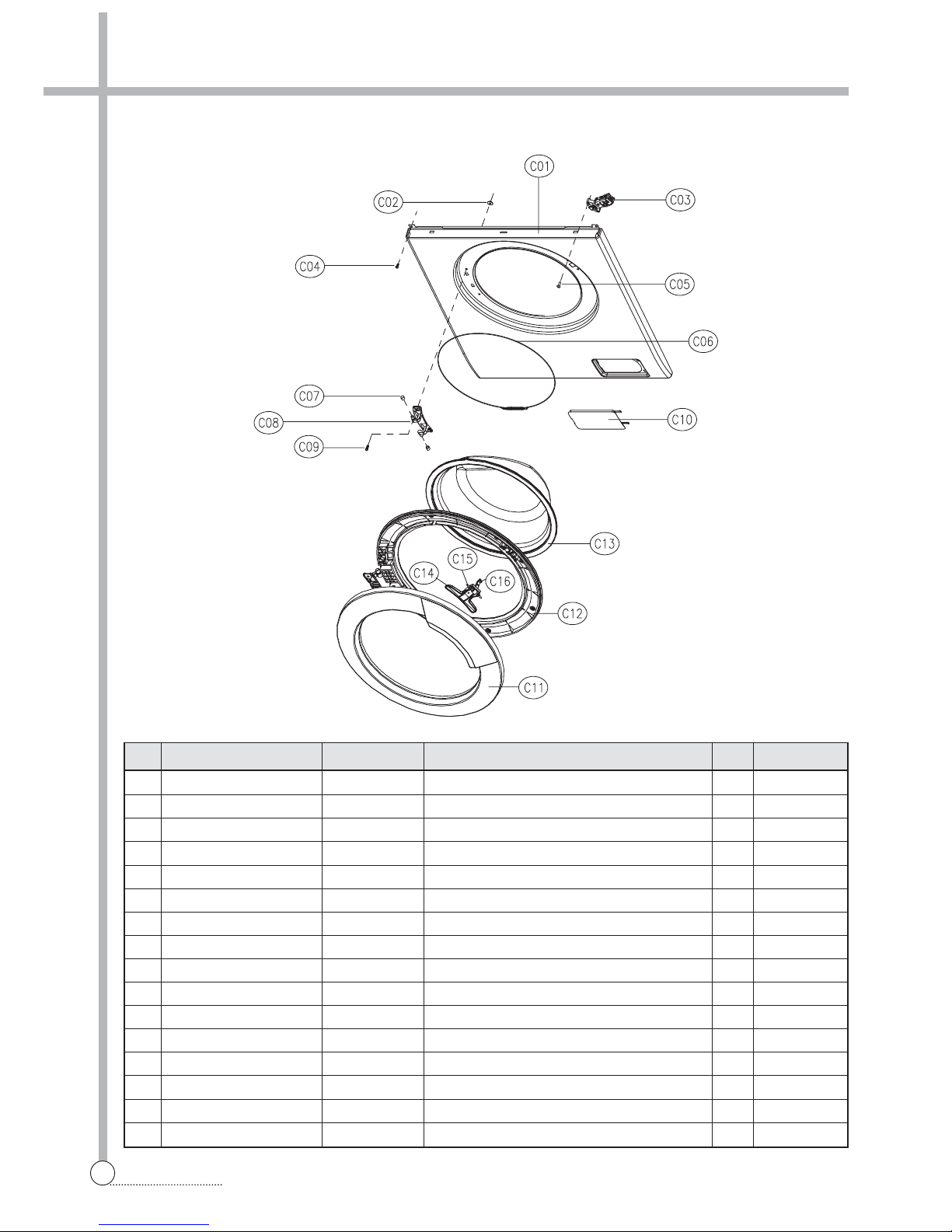

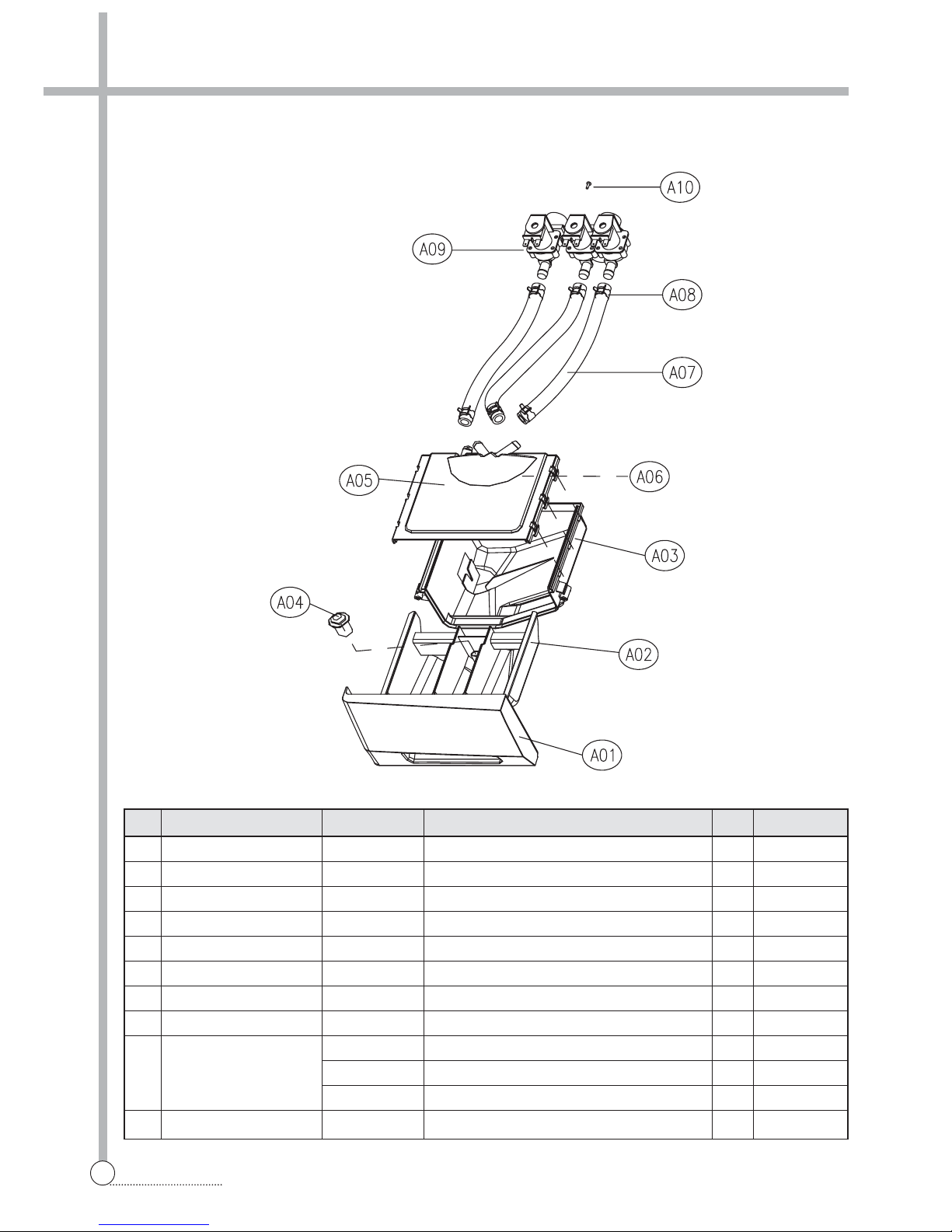

5. EXPLODE VIEW AND PARTS LIST ....................................................................................12

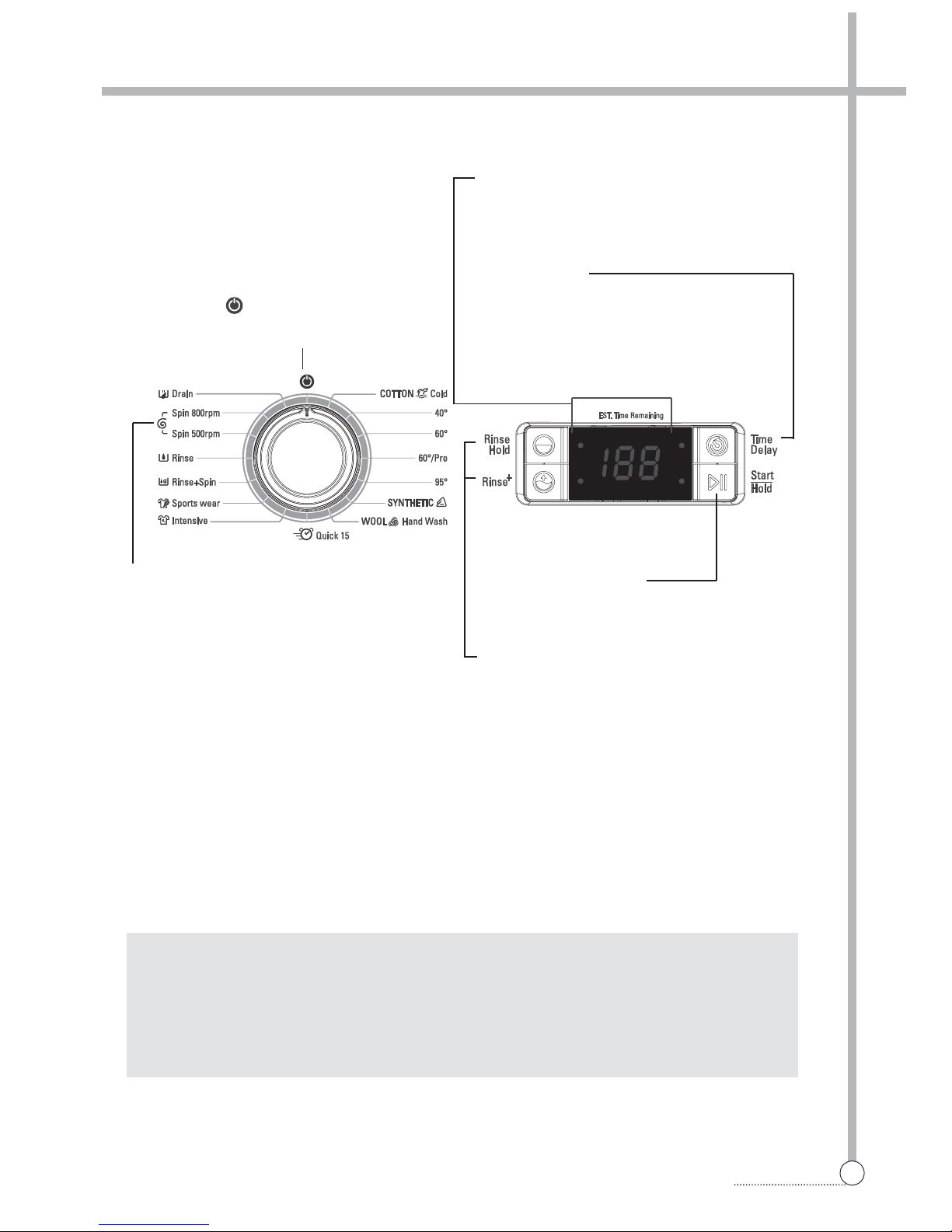

6. FUNCTIONS OF THE CONTROL PANEL............................................................................19
7. FUNCTIONS OF THE CONTROLLER..................................................................................20
8. FUNCTION OF THE CONVENIENT SERVICE.....................................................................22
9. TROUBLESHOOTING GUIDE..............................................................................................23
10. WIRING DIAGRAM .............................................................................................................26

2

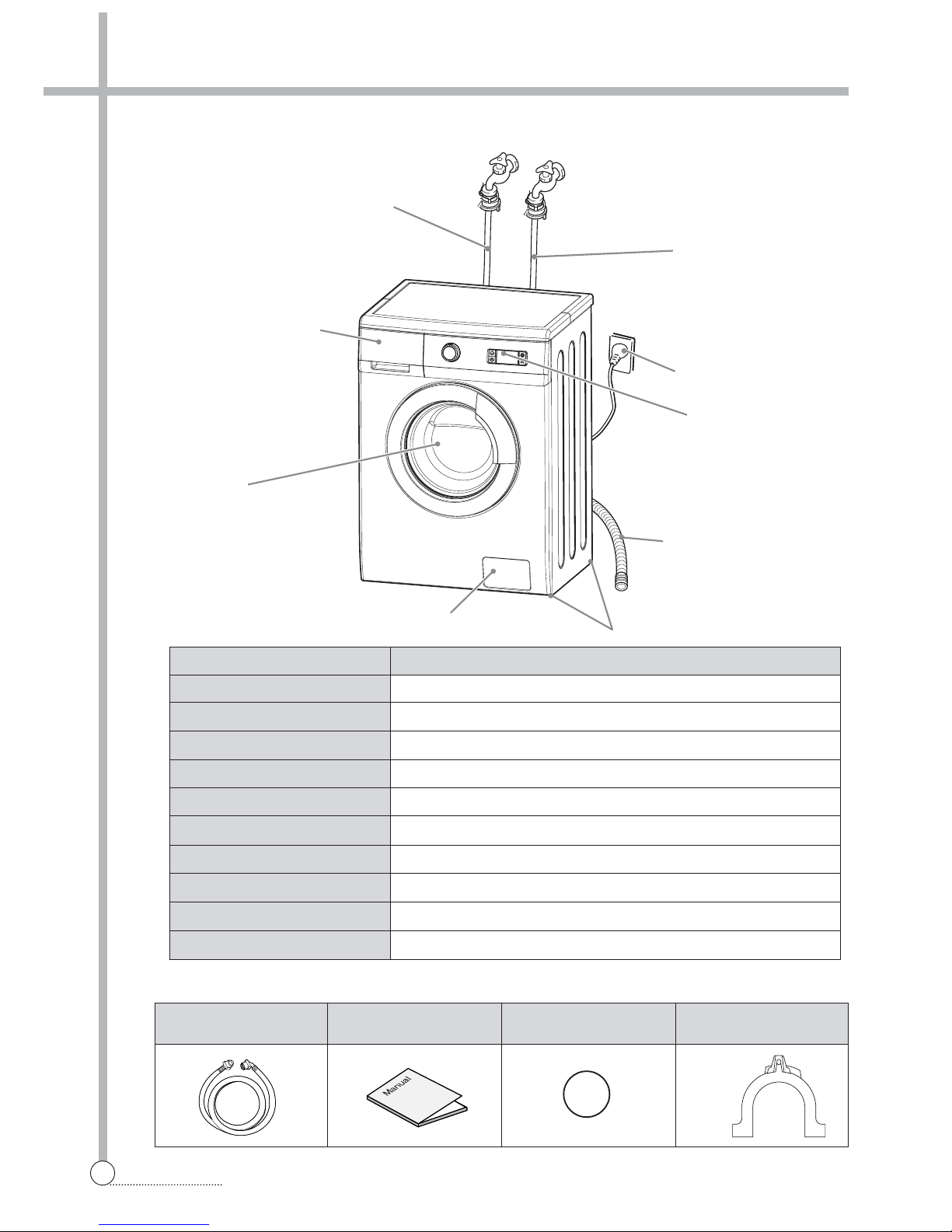

SPECIFICATIONS
1. SPECIFICATIONS
■ Accessories
■ DWD-M805'S/M105'S
Inlet hose
(Cold: 1EA, Hot: 1EA) Manual Sticker holder (3EA) Guide Hose Drain (Option)
ADJUSTABLE LEG
CONTROL PANEL
DOOR
DETERGENT CASE
INLET HOSE(HOT)
(OPTION)
INLET HOSE (COLD)
COVER PUMP
POWER CORD
HOSE DRAIN
A.C 220~240V / 50Hz
2000 W
595 x 507 x 850 (WxDxH)
6 kg
46(Net) / 49(Gross)
42ℓ
500 / 800 (1000)
0.03MPA ~ 0.8MPa (0.3kgf/cm2~ 8kgf/cm2)
0.5 W
1.0 W
MODEL DWD-M805'S / M105'S
Power Source
Power Consumption
Dimension (mm)
Maximum mass of textile (kg)
Unit Weight (kg)
Standard Water Consumption
Spin Speed(RPM)
Operating Water Pressure
Off Mode Power Consumption
Standby Mode Power Consumption

3
2. INSTALLATION
INSTALLATION
■ Removing transit bolts
1. Before operating the washer, remove the transit
bolts(3ea) along with the rubber.
• If the bolts are not removed, it may cause heavy
vibration, noise and malfunction.
2. Unscrew the 3 bolts with the 10mm hex wrench or
spanner or cross-tip screwdriver. Keep the 3 bolts for
a later time.
• When the appliance is transported, transit bolts will
be re-used.
3. Close the holes with sticker holders supplied.
■ Installation place requirement
• Level floor :
Allowable slope between the washer and floor is 1°.
• Electric outlet :
Must be with 1meter of either side of the washer.
Do not overload the outlet with more than one appliance.
• Additional clearance
Clearance between the washer and the wall is required.
(rear : about 10cm, left & right : about 2cm)
In case of built-in installation, the clearance between the top of
the washer and the under of the work-top is required.
(top : about 2cm)
■ Location of washer
Make sure that you have to do everything necessary for correct installation.
Install the washer on a solid and flat floor, if possible, in a corner of the room and the easily accessible place for an
engineer.
• Before placing the washer, if installed on tiles, apply a rubber mat under the adjustable leg.
• The washer must not be installed or stored in rooms below 0°C to avoid any damage from freezing.
• Do not insert pieces of wood, cardboard or similar materials under the adjustable leg to correct any unevenness.
• Do not place laundry products on top of the washer at all times.
• An air circulation around the washer must not be obstructed by carpets, rug etc.
about 10cm
about 2cm

4
INSTALLATION
■ BS Plug Safety Details (For U.K. User)
As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings
identifying the terminals in your plug, proceed as follows:
The wire which is coloured Green and Yellow must be connected to the terminal in the plug which is marked
with the letter E or by the earth symbol or coloured Green or Green and Yellow.
The wire which is coloured Blue must be connected to the terminal witch is marked with the letter N or coloured Black.
The wire which is coloured Brown must be connected to the terminal witch is marked with the letter L or
coloured Red.
If a 13 amp (BS 1363) plug is used, fit a 13amp BS 1362 fuse.
IMPORTANT
THE WIRES IN THIS MAINS LEAD ARE COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE:
GREEN AND YELLOW : EARTH
BLUE : NEUTRAL
BROWN : LIVE
This appliance must be earthed
■ Connecting inlet hose
• The washer should be connected to the water mains using new hose set and old hose sets should not be reused.
• In case of only one water inlet valve, connect the inlet hose to the cold water tap.
• Periodically check the tightness of the inlet hose.
• Make sure that the inlet hose is not kinked or folded and that it is not crushed.
1. Connect the inlet hose
to the water tap tightly. 2. Connect the inlet hose to the water
inlet valve
tightly.

5
INSTALLATION

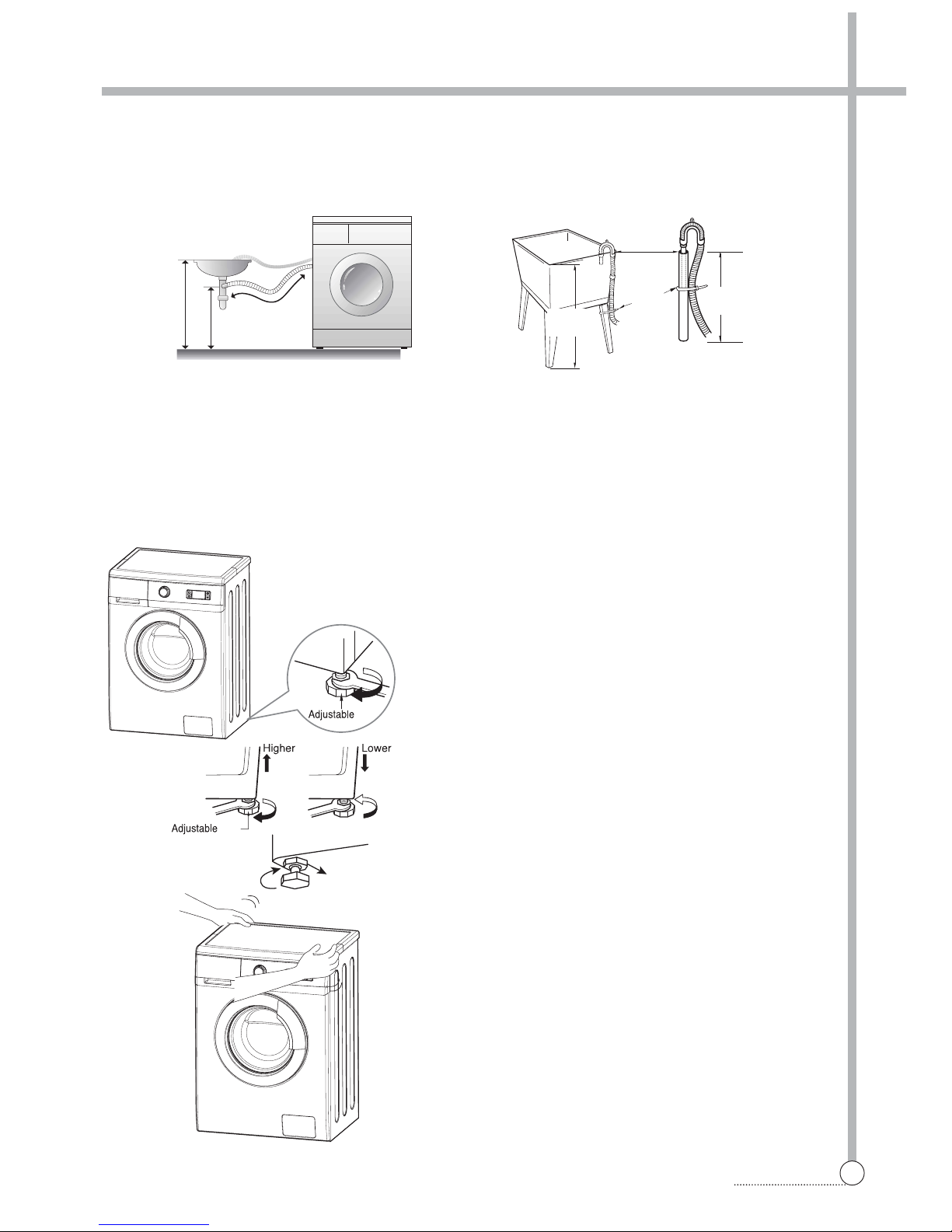

• The level adjustment of the washing machine prevents
excessive noise and vibration.
• If the floor is uneven, adjust the adjustable leg as the
following. (Do not insert pieces of wood etc. under legs.)
• Please check whether there is any gap between four
adjustable legs and the floor.
• Turn adjustable legs by the spanner in order to adjust the level
of the washing machine.
• Make it sure that there is no swaying of the washing machine
and check that the washing machine is even completely.
(use a spirit level or the diagonal check.)
• After the level adjustment is finished, turn fixing nuts up tightly
so that the washing machine maintains the adjustment.
❈ Diagonal Check
When pushing down the edges of the washing machine top
plate diagonally, the machine should not move up and down
at all.
(Please, check both of two directions)
If machine rocks when pushing the machine top plate
diagonally, adjust legs again.
■ Installation of drain hose
• Never forget to install drain hose before operating your washer.
• Open the packing box, and the drain hose is tied at backside of washer.
• If you use the laundry tub, Top of laundry tub must be at least 60cm high and no higher than 100cm from bottom of washer.
• When installing the drain hose to tub(sink), secure it tightly with a string.
• Proper securing of the drain hose will protect the floor from damage due to water leakage.
• When the drain hose is too long, do not force it back into the washer.
This will cause abnormal noise.
■ Level adjustment
leg
leg
Fixing Nut
Laundry tub
max. 100 cm
min. 60 cm
ca. 105 cm
Hose
Retainer
Tie
strap
max. 100 cm
min. 60cm
max. 100 cm
min. 60cm

6
MAINTENANCE
3. MAINTENANCE
❈Before cleaning the washer interior, unplug the electrical power cord to avoid electrical shock hazards.
Proper care of your washer can extend its life. This section explains how to care for your washer
properly and safely.
■ Cleaning your washer
■ Cold condition or Winter storage
Install and store your washer where it will not freeze. Because some water may stay in the hoses, freezing can damage
your washer.
If you store or move your washer during freezing weather, follow these instructions to prevent the damage to the
washer.
1. Turn off the water tap.
2. Disconnect inlet hose(s) from water supply and drain the water from hose(s).
3. Plug the power cord and Open the door.
4. Add about 3ℓof nontoxic antifreeze into the drum. Close the door.
5. Run the washer on spin or drain cycle to drain out all water.
6. Unplug the power cord and open the door to dry the drum interior. Close the door.
7. Dry excessive water of the detergent case.
8. To remove the remaining antifreeze, run the washer on complete cycle using the detergent and without the laundry.
• Clean with warm water and a neutral non
abrasive household detergent.
• Immediately wipe off detergent, bleach and other
spills with a soft and damp cloth or sponge.
• Occasionally wipe off the outside of the
washer to keep its looking like new one.
• Clean with 250ml of chlorine bleach mixed with
500ml of the detergent.
• Open the door of the washer and dry the gasket and
door glass.
• Run the washer complete cycle with hot water.
• If necessary, repeat the process.
Exterior Interior
Do not put sharp or metal object in your washer, or they can damage the finish.
Check all pockets for pins, clips, money, bolts, nuts, etc.
Do not lay these objects in your washer after emptying pockets.

7
MAINTENANCE

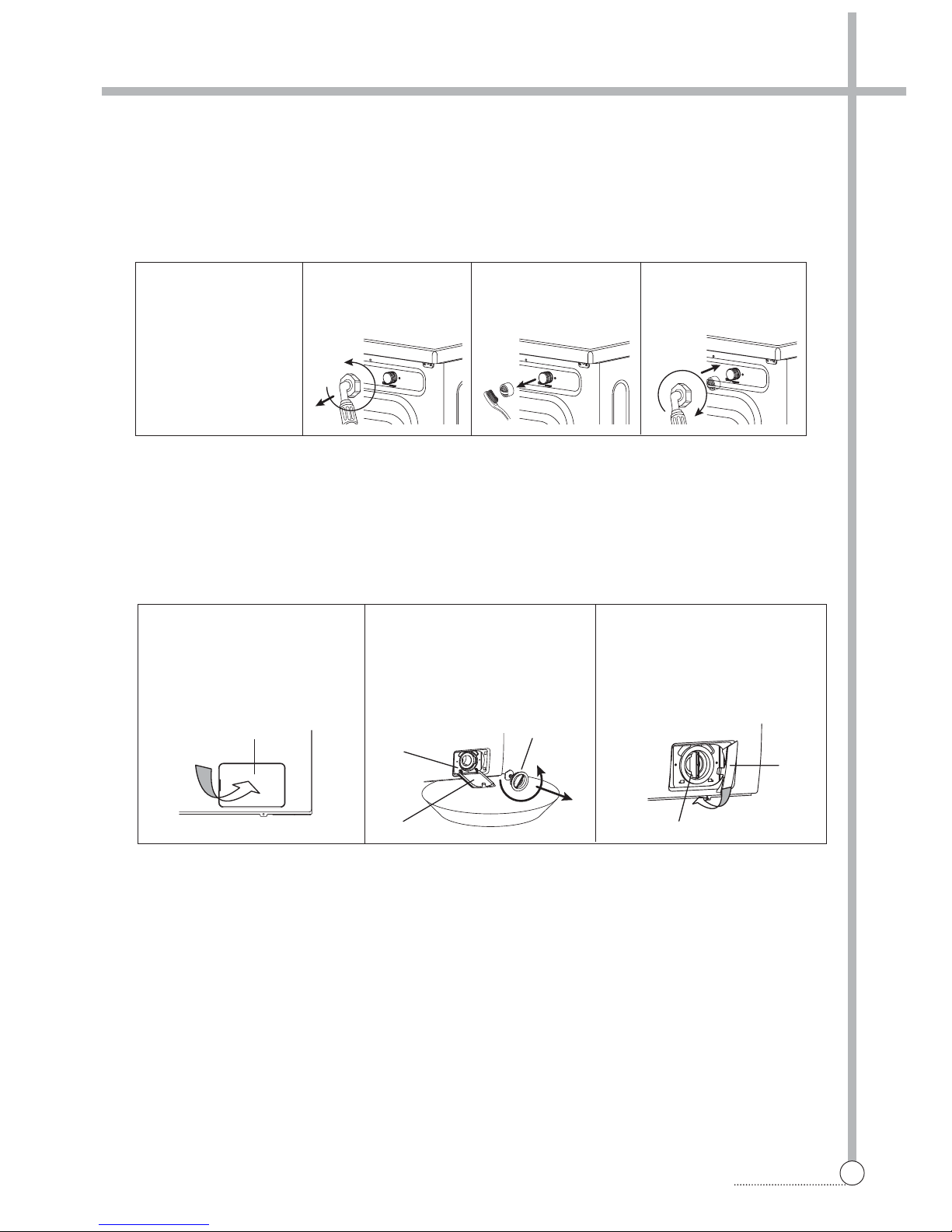

■ Cleaning the water inlet filter.
• “IE” error message (refer to troubleshooting guide) will display when the water does not enter the detergent case.
• If your water is very hard or contains traces of lime deposit, the water inlet filter may become clogged.
And the water leaks from the water inlet.
• It is therefore a good idea to clean it from time to time.
■ Cleaning the drain filter.
• This drain filter is used to screen the foreign stuffs such as threads, coins, pins, buttons etc..
• If the drain filter is not cleaned at proper time(every 10 times of use), drain problem could be caused.
CAUTION : Be careful when draining if the water is hot.
1. Open the cover-pump(1)
by using coin.
Separate the cover-pump(1)
from the washing machine.
2. Install the cover-pump(1) to the
lower frame(2).
Open the pump-filter(3) slowly
and allow the remaining water to
flow into a suitable container.
3. Remove foreign objects
from the pump-filter(3) and
clean the interior.
Close the pump-filter(3) and
replace the cover-pump(1).
1
2
1
3
1
3
1Turn off the water tap. 2Separate the inlet hose. 3Pull out the inlet filter.
Clean the inlet filter with
the brush.
4Connect the inlet hose.

8
MAINTENANCE
■ Cleaning the detergent case.
• In case of residual detergents or fabric softeners have accumulated ;
- It should be cleaned with a jet of running water.
- If necessary, it can be removed completely from the washing machine.
• Detergents can be also accumulate the inside cavity.
In this case, the inside cavity should be cleaned with a brush.
• After cleaning, replace the detergent case and run Rinse cycle without laundry.
■ Cleaning the washing drum.
• If you live in a hard-water area, the limescale may be accumulated in the place where it cannot be seen.
(So, it is not easily removed.)
• The successive accumulation of the scale clogs the washer.
• Although the washing drum is made of stainless steel, specks of rust can be caused by small metal articles (paper
clips, safety pins) which have been left in the drum.
• The washing drum should be cleaned from time to time.
• If you use descaling chemical agents (dyes, bleaches and etc.), make sure they are suitable for washer. (They
may contain chemicals that damages your washer.)
* Remove any spots with a stainless steel cleaning agents. (Do not use steel wool.)
1Pull-out
2Push and pull again
Push point

9
DIRECTION FOR DISASSEMBLY
4. DIRECTION FOR DISASSEMBLY
DOOR LOCK SWITCH
1Open the door and remove the clamp door as. 2Separate the gasket from the cabinet front and remove
two screws.
DRAIN PUMP
3Remove the door lock switch from the cabinet front .
1Separate the cover pump from the cabinet front and
remove screw. 2Lay the right-side of the washer on the floor. And sepa- rate connectors and hose drain from the pump.
3Remove the hose drain o from the pump.

10
DIRECTION FOR DISASSEMBLY
HEATER AND THERMISTOR
1Separate the plate t as from the washer.
(Remove two screws at rear) 2Separate the case detergent as and remove two screws from panel f.
3Separate the panel f as from the washer. 4Separate the cabinet front from the washer.
(Remove the clamp door as and 4 screws)
5Separate connectors from the heater and remove the
nut by using a box wrench. 6Remove the earth terminal and loosen the nut by using a box wrench.
7Pull out the heater from the tub.

11
DIRECTION FOR DISASSEMBLY
UNIVERSAL MOTOR
1Separate the box inlet as from the washer.
(Remove screws and hose inlet) 2Remove the screw of the motor connector. And separate the connector from the tub.
Firstly, you have to do from 1to 5of HEATER AND THERMISTOR DISASSEMBLY.
3Separate the hose air from the sensor pressure. 4Lay the front-side of washer on the floor.
And remove four screws.
5Separate two dampers and the hose drain. 6Lift up the cabinet as.
7Separate the belt. 8Remove two screws from the motor and remove the
screw from the drum using a box wrench.

12
5. EXPLODE VIEW AND PARTS LIST
EXPLODE VIEW AND PARTS LIST
■ BOX INLET AS
A01 CASE HANDLE 36111T2T00 HIPS, D-MT 1
A02 CASE DETERGENT 36111T2V00 PP, D-MT 1
A03 BOX INLET 3617511700 PP 1
A04 CAP SOFTENER 3610907800 PP 1
A05 NOZZLE TOP 3618112000 PP 1
A06 NOZZLE UNDER 3618112100 PP 1
A07 HOSE WATER SUPPLY 3613270900 EPDM ID9.5 OD14.5 2(3) 0.245
A08 CLAMP HOSE 3611205800 100H, ID=13.8 W=10.0 0.9T 4(6)
A09 VALVE INLET 3615414900 220-240 2-WAY PP/BRACKET 1 COLD
3615416820 220-240V.VDE.BITRON.329/349 2WAY 1 COLD(EU)
3615414800 220-240V 1-WAY HOT PP 1 HOT(OPTION)
A10 SCREW TAPPING 7272400811 TT3 TRS 4x8 MFZN 2(4)
No. PART NAME PART CODE SPECIFICATION Q'TY REMARK

13
EXPLODE VIEW AND PARTS LIST
■ PANEL FRONT AS
B01 PANEL F 36142T3900 ABS 1
B02 BUTTON DIAL 3616647500 ABS 1
B03 PCB AS PRPSSWC280 D-MU805 PCB AS(NVDE,DUAL&BB) 1
PRPSSWC281 D-MU805 PCB AS(NVDE,COLD&NB)
PRPSSWC282 D-MU805 PCB AS(NVDE,COLD&BB)
PRPSSWC283 D-MU805 PCB AS(NVDE,DUAL&NB)
PRPSSWC285 D-MU805 PCB AS(VDE,DUAL&BB)
PRPSSWC286 D-MU805 PCB AS(VDE,COLD&NB)
PRPSSWC287 D-MU805 PCB AS(VDE,COLD&BB)
PRPSSWC288 D-MU805 PCB AS(VDE,DUAL&NB)
B04 WINDOW DISPLAY 3615511500 TR-ABS 1
B05 BUTTON FUNCTION 3616647400 ABS 1
No. PART NAME PART CODE SPECIFICATION Q'TY REMARK

14
EXPLODE VIEW AND PARTS LIST
■ CABINET FRONT AS
C01 CABINET F 361081280T SECD T0.7 1
C02 NUR HEX 7S627W50X1 NUT FLANGE M5x0.8P MFZN 2
C03 SWITCH DOOR LOCK 3619047100 DL-LC BITRON-3P 250V16A 1
C04 SCREW TAPPING 3616029950 TTS " S" HEX F/L 4x8 5
C05 SCREW TAPPING 7122401408 T2S TRS 4x14 SUS 2
C06 CLAMP DOOR AS 3611204810 HSW3, D1.4 1
C07 CAP HINGE DOOR 3610916500 POM 4
C08 HINGE DOOR 361290370T ALDC 1
C09 SCREW TAPPING 3616051229 STS430 F/L BOLT(SE) 5x12 2
C10 COVER PUMP 3611428500 HIPS 1
C11 FRAME DOOR O 36122UDS00 ABS 1
C12 FRAME DOOR I 361220870T PP 1
C13 DOOR GLASS 361A11070T GLASS PI300 1
C14 HANDLE DOOR 3612613800 ABS 1
C15 PIN HANDLE 3618200200 SUS304, D3, L48 1
C16 HOOK DOOR 3613101210 ZNDC 5.5K 1
No. PART NAME PART CODE SPECIFICATION Q'TY REMARK

15
EXPLODE VIEW AND PARTS LIST
■ TUB AS

16
EXPLODE VIEW AND PARTS LIST
D01 TUB REAR AS 3618830911 D-MT'S TUB REAR+BEARING HOUSING C/CORE 1
D02 BEARING INNER 3616304700 6205ZZ SHENS 1
D03 BEARING OUTER 3616304800 6204ZZ SHENS 1
D04 WATER SEAL 361A600300 NBR 1
D05 GASKET TUB 3612324100 PI=4.5, L=1650, EPDM 1
D06 FIXTURE HEATER 3612009400 SUS, PI=2 1
D07 TUB FRONT 3618830800 FRPP 10% D-MT805'S 1
D08 GASKET 3612327200 EPDM 3T 1
D09 CLAMP GASKET AS 3611204520 HSW3 1
D10 DRUM SUB AS 361701040T D-MT 1
D11 SPIDER AS 361A301000 D-MU80'S ALDC+SHAFT 1
D12 SPECIAL BOLT 3616063000 STS430 M6*21 SI-LOCK 3
D13 LIFTER WASH 361A401100 PP 1 NON-NANO
361A401110 D-MU80 NANO NANO(OPTION)
D14 SPECIAL SCREW(TUB) 3616062700 SWRCH18A 5.6*30 12
D15 PULLEY 3618434200 ALDC,MT,SERRATION 1
D16 SPECIAL BOLT AS 3616063110 M8X27 S/W P/W SI-LOCK HEX:13 1
D17 UNIT MOTOR UNIVERSAL 36189L5H11 G&J MU12 ,220V 2POLES 38T,TONLON 39T 1
D18
SPECIAL SCREW(MOTOR) 3616062800 SWRCH18A 7.4*25.5 2
D19 BELT V 3616591310 YUNMA 4PJ1134 BUTADIENE RUBBER 1
D20 HEATER WASH 3612803100 230V 1800W.1R4A852002.IRCA FUSE 2EA 1
D21 THERMISTOR WASH 361AAAAB10 R25=1.704K•ÿ, R80=11.981Kߟ 1
D22 HARNESS EARTH 3612794450 UL AWG18 L180 D-MU80 EARTH HEATER 1
D23 BALANCER WEIGHT T 3616111400 PP, INSERT 7KG 1
D24 SPECIAL SCREW 3616029400 SWCH 8.5X30 3
D25 HOSE INLET 3613276500 EPDM 1
D26 CLAMP HOSE I 3611201400 HSW3, D=2.6, MFZN D=38 1
D27 SPRING SUSPENSION 3615116100 K=0.39, L=125 2
D28 HOSE DRAIN AS 3613272310 HOSE DRAIN(EPDM) + AIR TRAP(PP) 1
+ HOSE AIR(ID=4, OD=8, L=560, EPDM)
+ CLAMP AS(ID=81, CIMA)
+ CLAMP HOSE(D=26) + CLAMP HOSE(ID=36)
D29 SCREW TAPPING 7122401411 T2S TRS 4X14 MFZN 1
D30 DAMPER FRICTION 361A700140 70N CIMA ST=170-260 DL=202 1 LEFT
361A700120 120N AKS ST=170-260 DL=197.5 LOW NOISE 1RIGHT
D31 DAMPER PIN 361A700200 AKS D=14.5 2
D32 UNIT BUBBLE PUMP AS 36189L4163 220-240V DBK-240DH RP CUSHION L=420 1 OPTION
D33 SPECIAL SCREW(BUBBLE) 3616007400 T2S TRS 4X10+24 2 OPTION
D34 BALANCET WEIGHT L 3616111500 D-MT'S 4.5KG 1
D35 SPECIAL SCREW(BALANCER) 3616062900 SWRCH18A 8*31 PW 2
No. PART NAME PART CODE SPECIFICATION Q'TY REMARK

17
EXPLODE VIEW AND PARTS LIST
■ CABINET AS

18
EXPLODE VIEW AND PARTS LIST
E01 CABINET 361081WA00 D-MU80 SGCC(GI) 0.7T COLD 1 COLD
361081WA01 D-MU80 SGCC 0.7T COLD+HOT COLD+HOT
E02 FRAME LOWER 36122UDR00 SGCC T=0.6 1
E03 BASE U L 3610394500 SGCC1.2T 1 LEFT
BASE U R 3610394600 SGCC1.2T 1 RIGHT
E04 LEG ADJUST AS 3617703800 FOOT(BUTYL)+SPECIAL NUT(SCP1) 4
+SPECIAL BOLT(10x1.25, 51MM)
3617703811 CHINA, FOOT+SPECIAL NUT(M10x1, 25P) ALTERNATE
E05 HARNESS AS 3612797210 FULL OPTION 1
3612797220 HOT/NON BUBBLE
3612797230 NON HOT/BUBBLE
3612797240 NON HOT/NON BUBBLE
3612797250 NON EMI/FULL OPTION
3612797260 NON EMI/HOT/NON BUBBLE
3612797270 NON EMI/NON HOT/BUBBLE
3612797280 NON EMI/NON HOT/NON BUBBLE
E06 UNIT DRAIN PUMP AS 36189L5K10 220-240V, 50Hz, 30W, AL, NO-HOLE 1
E07 SCREW TAPPING 7112401211 T1 TRS 4*12 MFZN 1
E08 HOSE DRAIN O AS 361326852T L=1800, STRAIGHT TYPE, CLAMP PI=27 1
E09 CLAMP HOSE 3611206410 NYLON, DA-16N, ID21.9 D-MU80 1
E10 SCREW TAPPING 7122401411 T2S TRS 4X14 MFZN 1
E11 PLATE T AS 361454070T D-MT 1
3614540701 SILVER PATTERN D-MU1033 1
E12 SCREW TAPPING 7122401411 T2S TRS 4X14 MFZN 2
E13 CORD POWER AS 3611339630 EU-2PIN H05VV-F 1.0SQ 250V 16A 1.4M 1
E14 SENSOR PRESSURE 3614825320 DL-DW12-H AIR INLET 270 HOOK TYPE 1
E17 SCREW TAPPING 7122401411 T2S TRS 4x14 MFZN 1
E15 FRAME UPPER 36122UDT00 SGCC 1.0T 1
E16 SCREW TAPPING 7122401411 T2S TRS 4X14 MFZN 2 TOP FIX
(FRAME UPPER FIX) 3616029950 TTSS" HEX F/L 4*8 " 2 FRONT FIX
E18 FRAME TOP L 36122UDP00 SGCC T 1.4 1
FRAME TOP R 36122UDQ00 SGCC T 1.4 1
E19 EMI FILTER 3611910910 EMI FILTER DPC DFC-2712D-14A44GW 1
E20 SCREW TAPPING 7122401411 T2S TRS 4x14 MFZN 1
No. PART NAME PART CODE SPECIFICATION Q'TY REMARK

19
6. FUNCTIONS OF THE CONTROL PANEL
FUNCTIONS OF THE CONTROL PANEL
■ D-M805'S/M105'S
Program selector
For switching the washing machine on and off
and for selecting the program.
Can be rotated in both direction.
Even if the program selector rotates while the
program is running, the program is not changed
(except for off ) .
(All program is electronically controlled by PCB)
Indicator light
The respective indicator lights up, when the
required program segment runs or ‘Time
delay’ is selected.
Time delay
To pre-engage time for washing.
As the button is pressed, the delayed time is
repeated as following;
2hours ➝3hours ➝4hours ➝• • •
➝46hours ➝47hours ➝max 48hours
Spin selector
You can select the spin programs (Spin
800rpm(1000rpm)
and Spin 500rpm) by turning the Program
selector.
500rpm of spin velocity is selected
automatically with WOOL/Hand Wash program
in order to protect damage on laundry.
800rpm(1000rpm) of spin velocity is selected
automatically with
COTTON/SYNTHETIC/Quick15'/Intensive/
Sportswear/Rinse+Spin programs.
*Warning
If value of unbalance is extremely high, spin
speed can't reached that r.p.m of selected by
spin selector.
Start/Hold button
For starting the washing cycle.
(program must have been selected)
Button for options
(in addition to the program if required)
Rinse + Extra rinse cycle.
Rinse Hold No final spin cycle.
• Combination of additional option is possible.
• The indicator lamp of the buttons lights up if
options are active.
• Switch off option : Press button again.
Note
By turning right the Program Selector, the program is selected in order of
COTTON COLD ➝COTTON 40° ➝COTTON 60° ➝COTTON 60°/Pre ➝COTTON 95° ➝
SYNTHETIC ➝WOOL/Hand Wash ➝Quick 15' ➝Intensive ➝Sportswear ➝Rinse+Spin ➝
Rinse ➝Spin 500rpm ➝Spin 800rpm(1000rpm) ➝Drain ➝OFF ➝COTTON COLD ➝COTTON
40° ➝•••
