PFH600N Housing User's Manual
Version 1.0.1

i
Table of Contents
1GENERAL INTRODUCTION ..............................................................................1
1.1 Overview .................................................................................................................................................1
1.2 Features ..................................................................................................................................................1
1.3 Dimensions.............................................................................................................................................1
2HOUSING INSTALLATION INSTRUCTION GUIDE ...........................................2
2.1 Lock/Unlock Housing ............................................................................................................................2
2.2 Camera Installation ...............................................................................................................................2
3BRACKET INSTALLATION GUIDE ....................................................................4
APPENDIX 1 SPECIFICATIONS ...............................................................................5
APPENDIX 2 TOXIC OR HAZARDOUS MATERIALS OR ELEMENTS ....................6

ii
Welcome
Thank you for purchasing our housing!
Please read the following safeguards and warnings carefully before you install or use the
product!

iii
Important Safeguards and Warnings
1．Electrical safety
All installation and operation here should conform to your local electrical safety codes.
We assume no liability or responsibility for all the fires or electrical shock caused by improper
handling or installation.
2．Transportation security
Heavy stress, violent vibration or water splash are not allowed during transportation, storage and
installation.
3．Installation
Do not apply power to the housing before completing installation.
Do not place objects on the housing.
4．Qualified engineers needed
All the examination and repair work should be done by the qualified service engineers.
We are not liable for any problems caused by unauthorized modifications or attempted repair.
5．Environment
The housing should be installed in a cool, dry place away from direct sunlight, inflammable,
explosive substances and etc.
Please keep sound ventilation.
6. Accessories
Be sure to use all the accessories recommended by manufacturer.
Before installation, please open the package and check all the components are included.
Contact your local retailer ASAP if something is broken in your package.

1
1General Introduction
1.1 Overview
The PFH600N housing (“housing”) adopts all-weather compact design. It can install camera and
lens of various dimensions. It has built-in camera mounting plate. The IP66 compliance is
suitable for various environments.
1.2 Features
Compact design, concealed cable exit.
ASA weather resistant material
Fully-enclosed design, IP66 compliance.
Optional installation modes and brackets.
Suitable for cameras, block camera of various dimension.
1.3 Dimensions

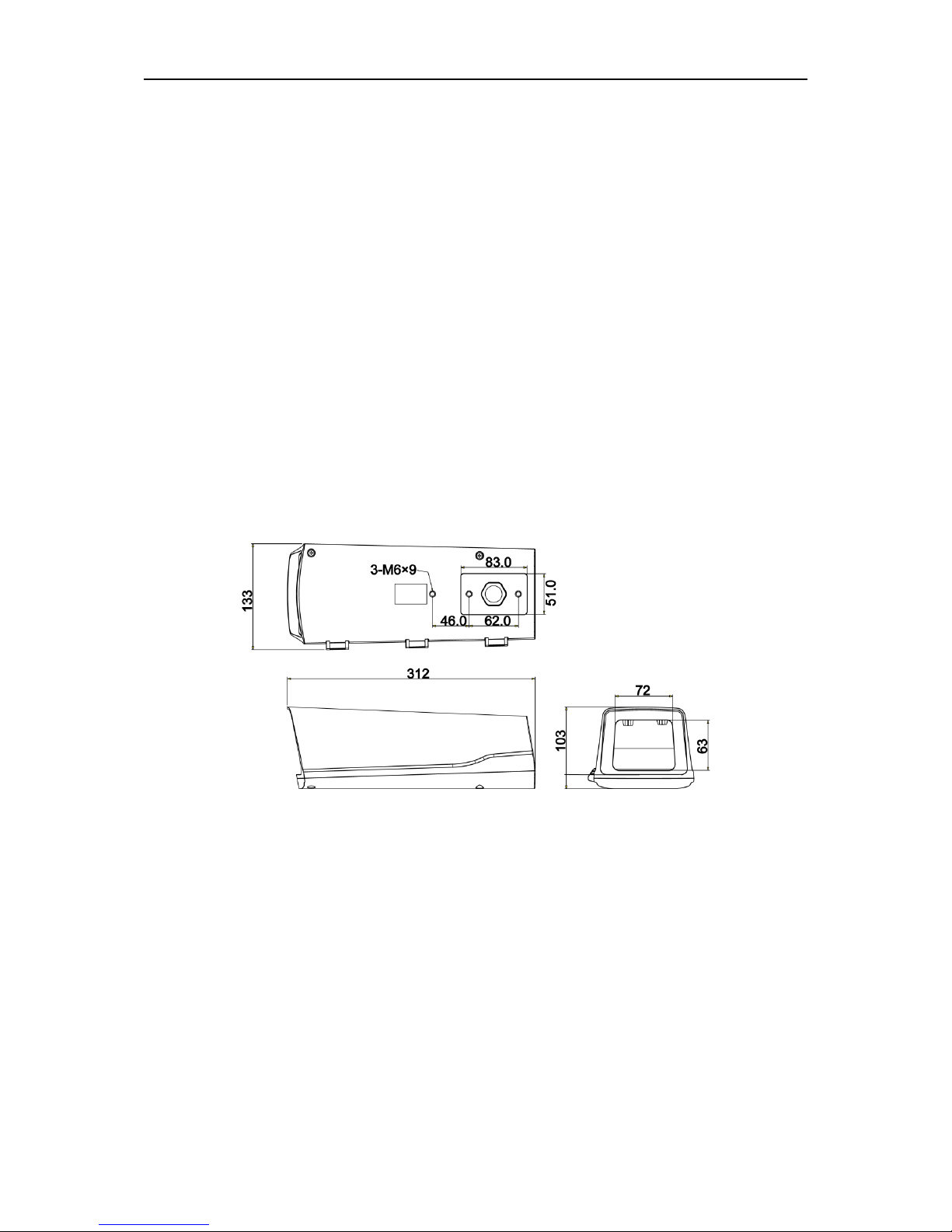

The dimension of PFH600N is shown as below. The unit is mm. See Figure 1-1.
Figure 1-1

2
2Housing Installation Instruction Guide
2.1 Lock/Unlock Housing
You can use screwdriver to fix or loosen the two M4 cross pan head screws on both sides of the
housing to lock or unlock the housing. See Figure 2-1.
Figure 2-1
2.2 Camera Installation
Step 1: Take the camera bracket from the housing.
Step 2: Fix the camera on the camera bracket. See Figure 2-2
Step 3: Secure the camera bracket on the case. See Figure 2-3
Note
The camera lens shall be as near as to the front end of the bracket (Recommended distance is
1-2mm.) in case it affect the lens view angle. See figure 2-4.
Figure 2-2

3
Figure 2-3
Figure 2-4
Note:
The distance between lens face and camera fixing hole has to be longer than 60mm, but shorter
than 130mm.

4
3Bracket Installation Guide
Installation Steps:
Step 1: Pull the cable through the inside of the bracket.
Step 2: Put the waterproof joint on the cables and then secure it firmly on the housing.
Step 3: Secure the bracket on the housing with M6 screws.
Note:
The waterproof joint can be installed according to Figure 3-2.
The bracket is not included in the housing basic configuration, please purchase separately if
you want to use.
Figure 3-1
Figure 3-2

5
Appendix 1 Specifications
Product Model
DH-PFH600N
Dimension
312mm×133mm×103mm
Camera Max Dimension
211mm×73mm×78mm
Window Area
63mm×72mm
Weight
0.7Kg
Material
ASA, PC
Protection Level
IP66
Installation Environments
Indoor/Outdoor
Working Temperature
-30℃～+60℃
Working Humidity
＜90%，no condensation

6
Appendix 2 Toxic or Hazardous Materials or Elements
Component
Name
Toxic or Hazardous Materials or Elements
Pb
Hg
Cd
Cr VI
PBB
PBDE
Sheet Metal
○
○
○
○
○
○
Plastic Parts
○
○
○
○
○
○
PCB
○
○
○
○
○
○
Connection
Cable
○
○
○
○
○
○
Accessories
○
○
○
○
○
○
Note
O: Indicates that the concentration of the hazardous substance in all homogeneous materials in
the parts is below the relevant threshold of the SJ/T11363-2006 standard.
X: Indicates that the concentration of the hazardous substance of at least one of all
homogeneous materials in the parts is above the relevant threshold of the SJ/T11363-2006
standard. During the environmental-friendly use period (EFUP) period, the toxic or hazardous
substance or elements contained in products will not leak or mutate so that the use of these
(substances or elements) will not result in any severe environmental pollution, any bodily injury or
damage to any assets. The consumer is not authorized to process such kind of substances or
elements, please return to the corresponding local authorities to process according to your local
government statutes.
Note
This manual is for reference only. Slight difference may be found in the user
interface.
All the designs and software here are subject to change without prior written
notice.
All trademarks and registered trademarks mentioned are the properties of their
respective
owners.
If there is any uncertainty or controversy, please refer to the final explanation of us.
Please visit our website or contact your local service engineer for more
information.
