Car Phone installation guide
Generic

This document and all the information herein are confidential, and the exclusive
property of Dai Telecom. Do not copy, distribute or disclose this material without
prior permission from Dai Telecom.
Page 2 of 21
Revision History:
Author
Action
Rev.
Date
Vadim Zukovsky
Initial draft
1
12/01/2011
Vadim Zukovsky
Final
2
13/01/2011
Vadim Zukovsky
Updated with diagram
3
02/01/2011

This document and all the information herein are confidential, and the exclusive
property of Dai Telecom. Do not copy, distribute or disclose this material without
prior permission from Dai Telecom.
Page 3 of 21
Table of Content:
1Carphone kit ............................................................................................................ 4
2Installation Diagram................................................................................................. 6
3Carphone layout ...................................................................................................... 7
Preplanned Accessory Positioning ............................................................................ 8
 Plan Phone and Cradle Positions 8
 Plan the Microphone’s Position 9
 Plan the Speaker’s Position 9
Installing the Cradle and Phone .............................................................................. 10
5.1 Where to Position (Reminder) 10
 Installing the Cradle and Phone 11
 Installing the Microphone 12
 Installing the Speaker 14
5.5 Installing the Electrical Connections 15
 Installing the Voltage Cable 16
 Installing the Antenna 17

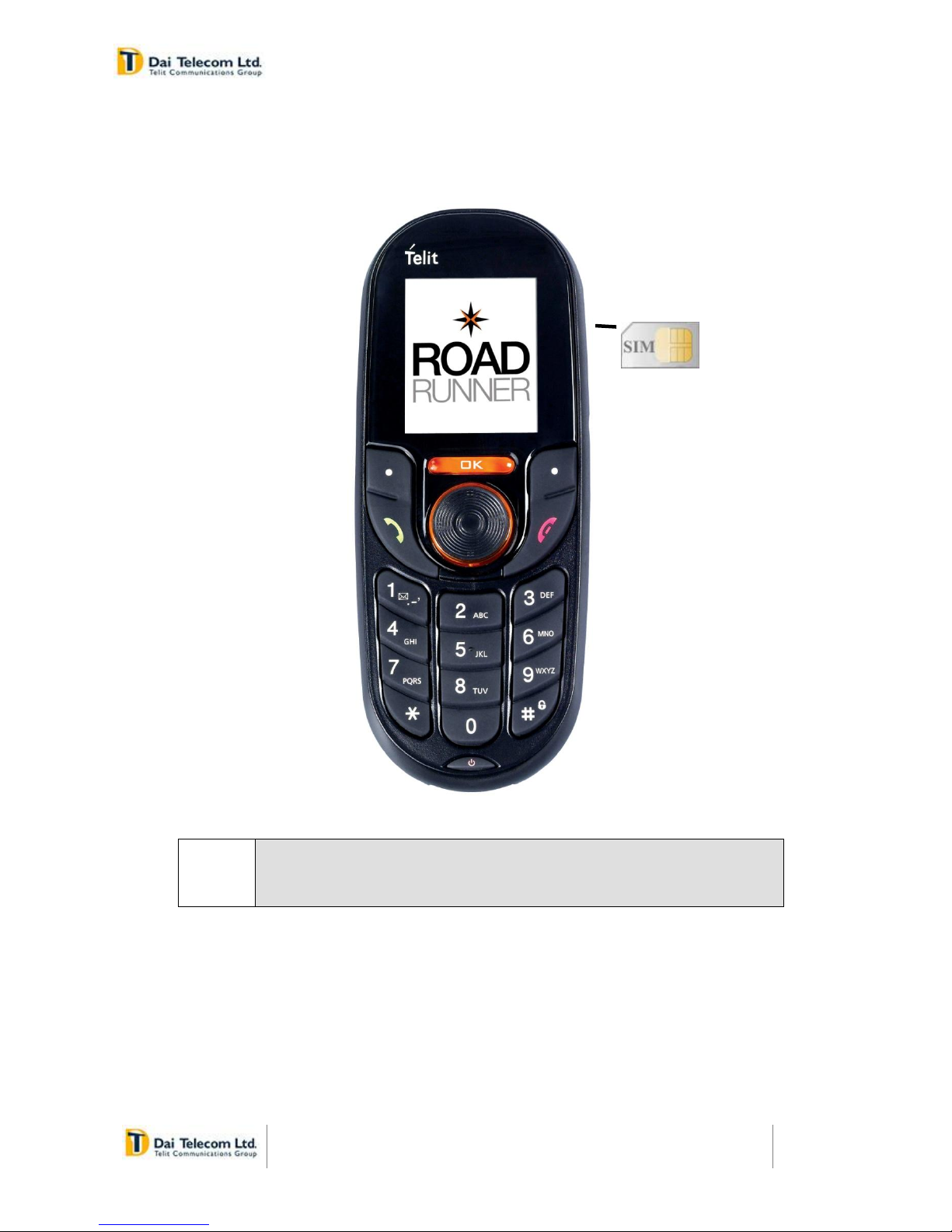

 Installing the SIM card 19
6Trouble Shooting ................................................................................................... 20
Appendix ............................................................................................................... 21

This document and all the information herein are confidential, and the exclusive
property of Dai Telecom. Do not copy, distribute or disclose this material without
prior permission from Dai Telecom.
Page 4 of 21

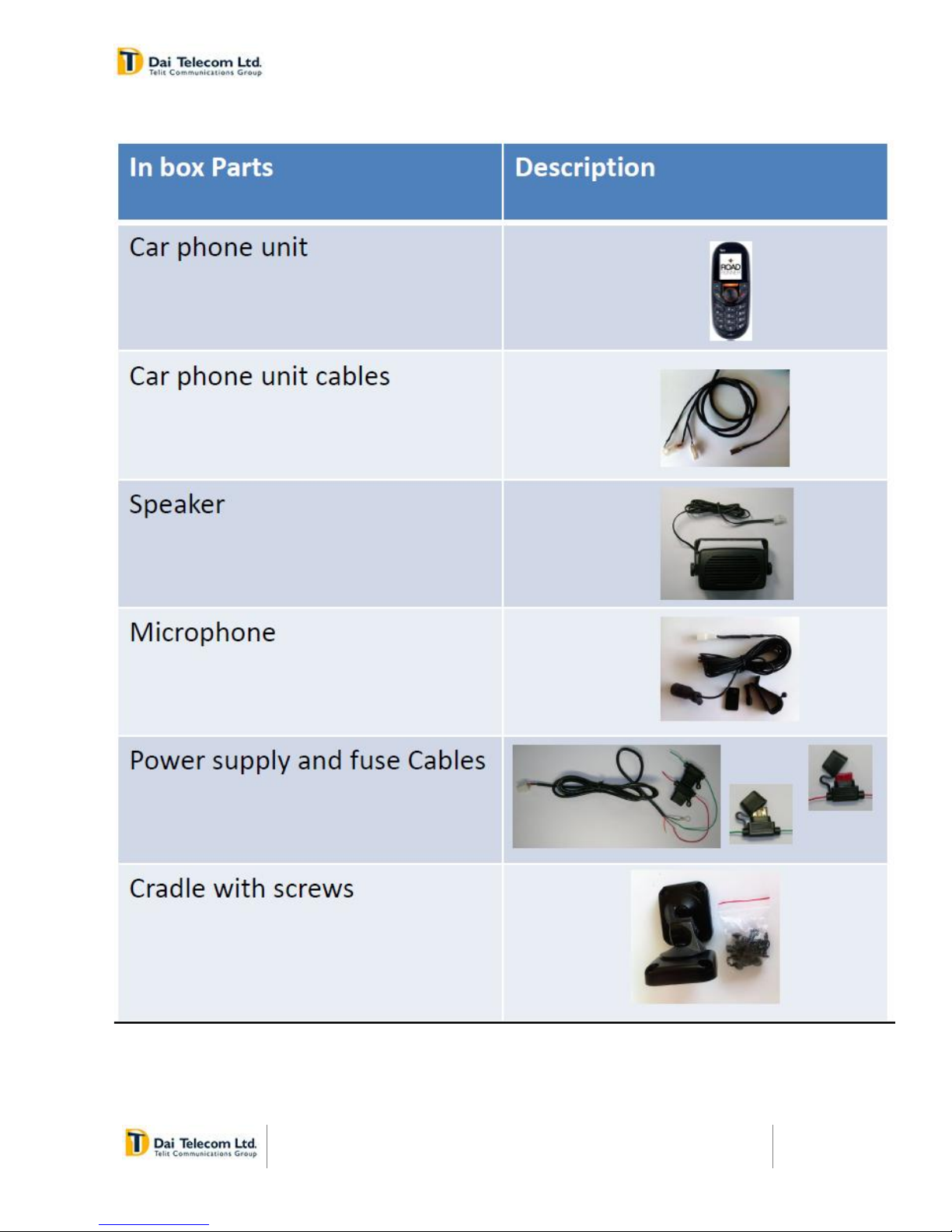

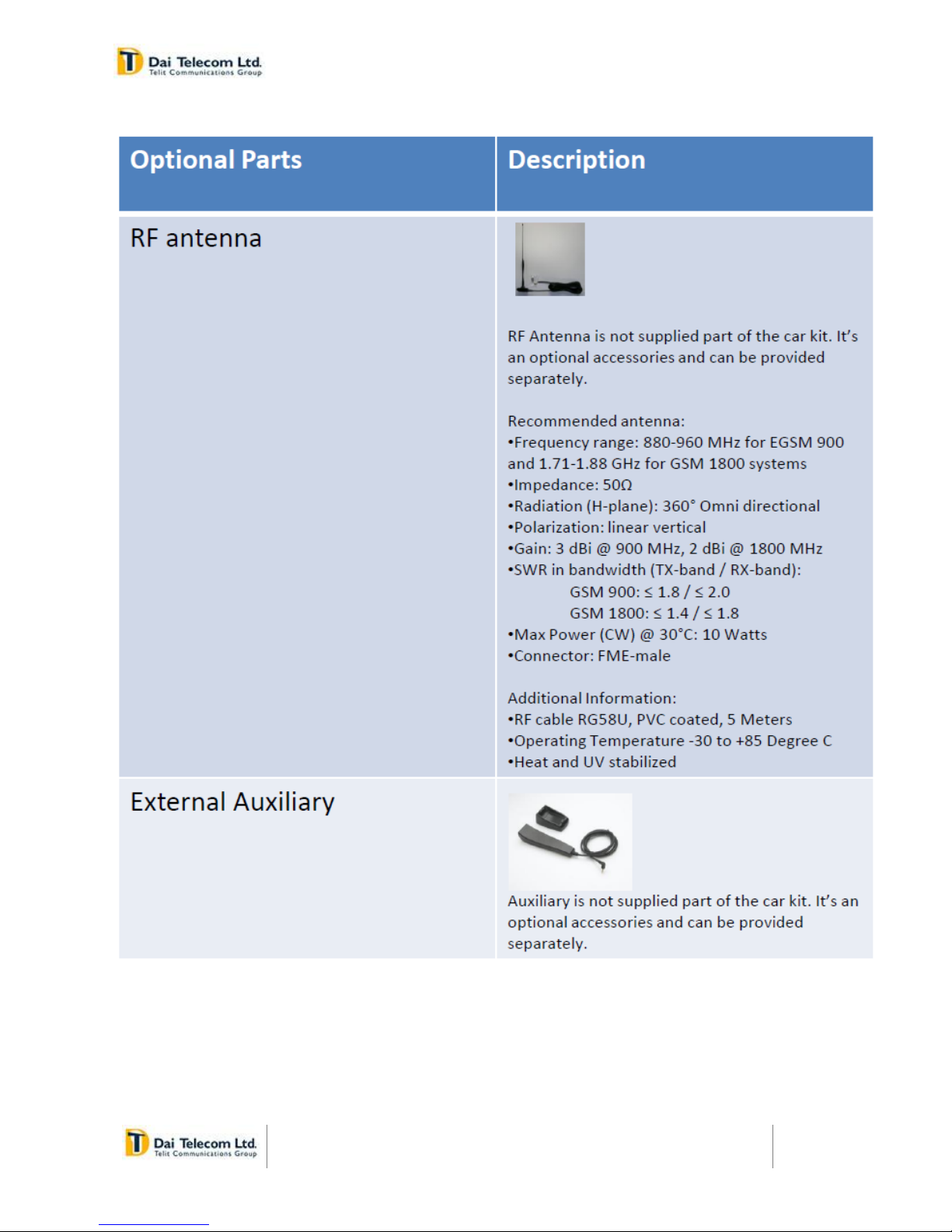

1Carphone kit

This document and all the information herein are confidential, and the exclusive
property of Dai Telecom. Do not copy, distribute or disclose this material without
prior permission from Dai Telecom.
Page 5 of 21

This document and all the information herein are confidential, and the exclusive
property of Dai Telecom. Do not copy, distribute or disclose this material without
prior permission from Dai Telecom.
Page 6 of 21
2Installation Diagram

This document and all the information herein are confidential, and the exclusive
property of Dai Telecom. Do not copy, distribute or disclose this material without
prior permission from Dai Telecom.
Page 7 of 21
3Carphone layout

This document and all the information herein are confidential, and the exclusive
property of Dai Telecom. Do not copy, distribute or disclose this material without
prior permission from Dai Telecom.
Page 8 of 21
4Preplanned Accessory Positioning
Positioning of all accessories must be planned in advance before installation begins.
Ensure that no wire braids go through locations where Phone accessories are to
be installed.
Ensure that any parts of the handsfree Phone will not interfere with the vehicle or
its accessories’ operation.

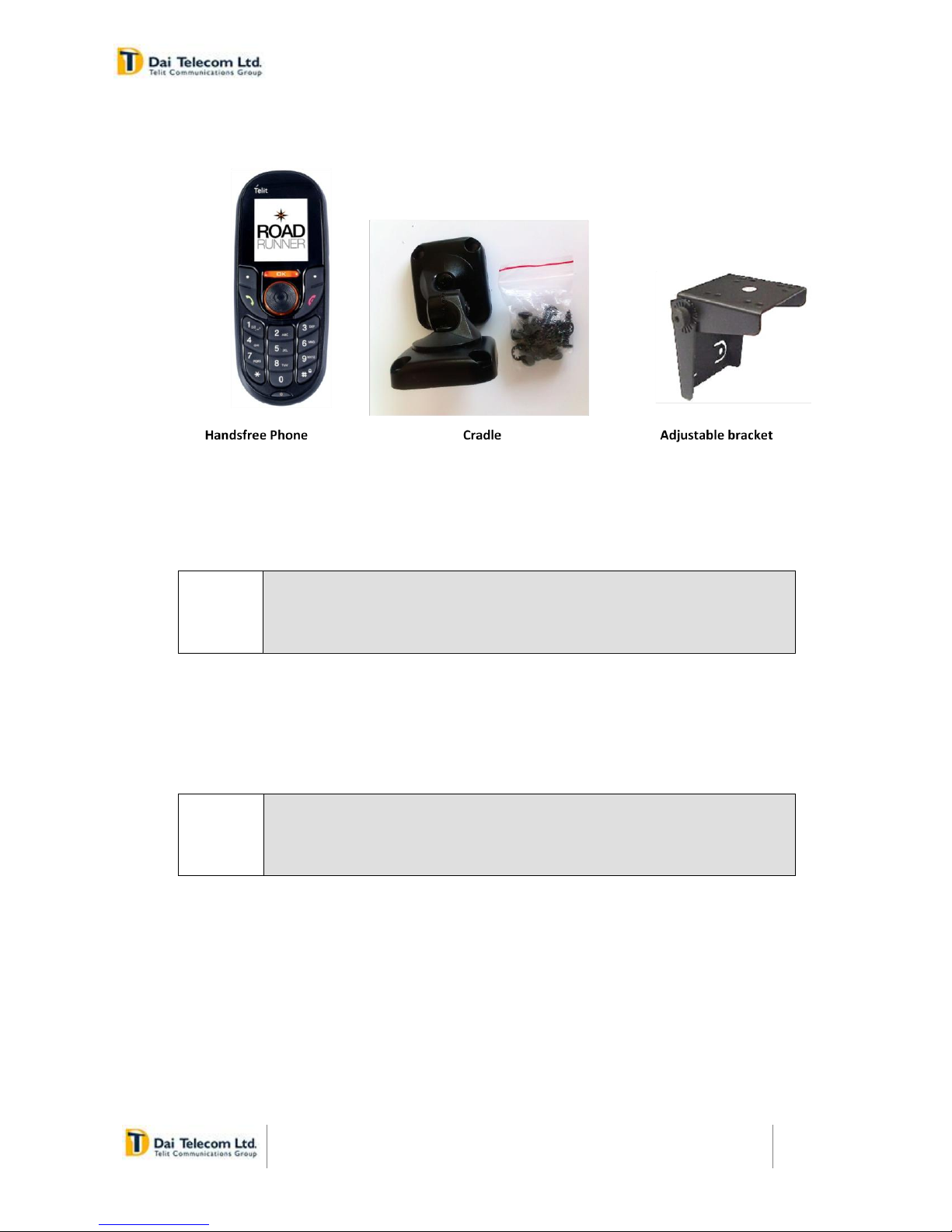

4.1 Plan Phone and Cradle Positions

Note!
The best way to determine the Phone’s position to the customer’s full
satisfaction is to locate it when the customer is beside you and obtain
his/her approval.
Please ensure the Phone’s location does not interfere with the vehicle or its
accessories operation: it should not interfere with opening the glove compartment
or ashtray, should not prevent access to the lighter, moving the gear stick,
operating the hand break etc.

Warning!
Do not install the Phone in front of the vehicle’s air bag. This restriction
must be adhered to, as in the case of an emergency the air bag blows up
and can fail to work properly.
Ensure the surface on which this Phone is installed is sufficiently strong to carry
the weight and pressure which would be exerted on it.
When selecting the Phone’s location, please ensure the control cable connected
to it does not interfere with the vehicle or its accessories’ operation.
Ensure it is safe and convenient to operate the Phone and read the display from
the driver’s seat.
Ensure the Phone would be protected from direct sunlight and humidity (air
conditioner openings).
Ensure the Phone would be protected from mechanical damage by the car’s
accessories.

This document and all the information herein are confidential, and the exclusive
property of Dai Telecom. Do not copy, distribute or disclose this material without
prior permission from Dai Telecom.
Page 9 of 21
4.2 Plan the Microphone’s Position
Install the handsfree Phone’s microphone 30-40 cm away from where the driver
speaks when he/she is in their normal driving position.

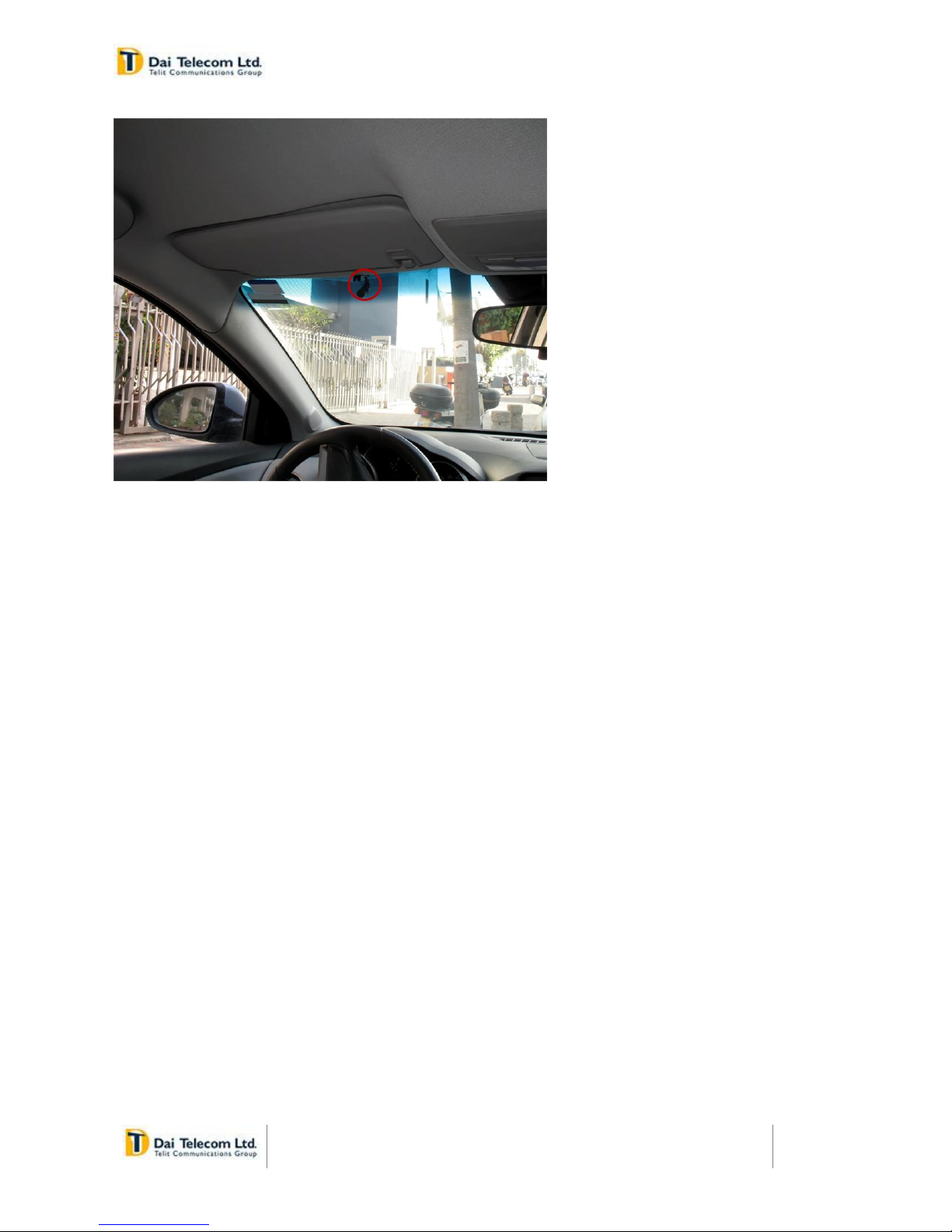

It is recommended to install the microphone inbetween car roof and windscreen
glass and away from external sources of noise.
Install the microphone in a different direction than the speaker so as to avoid
echo.

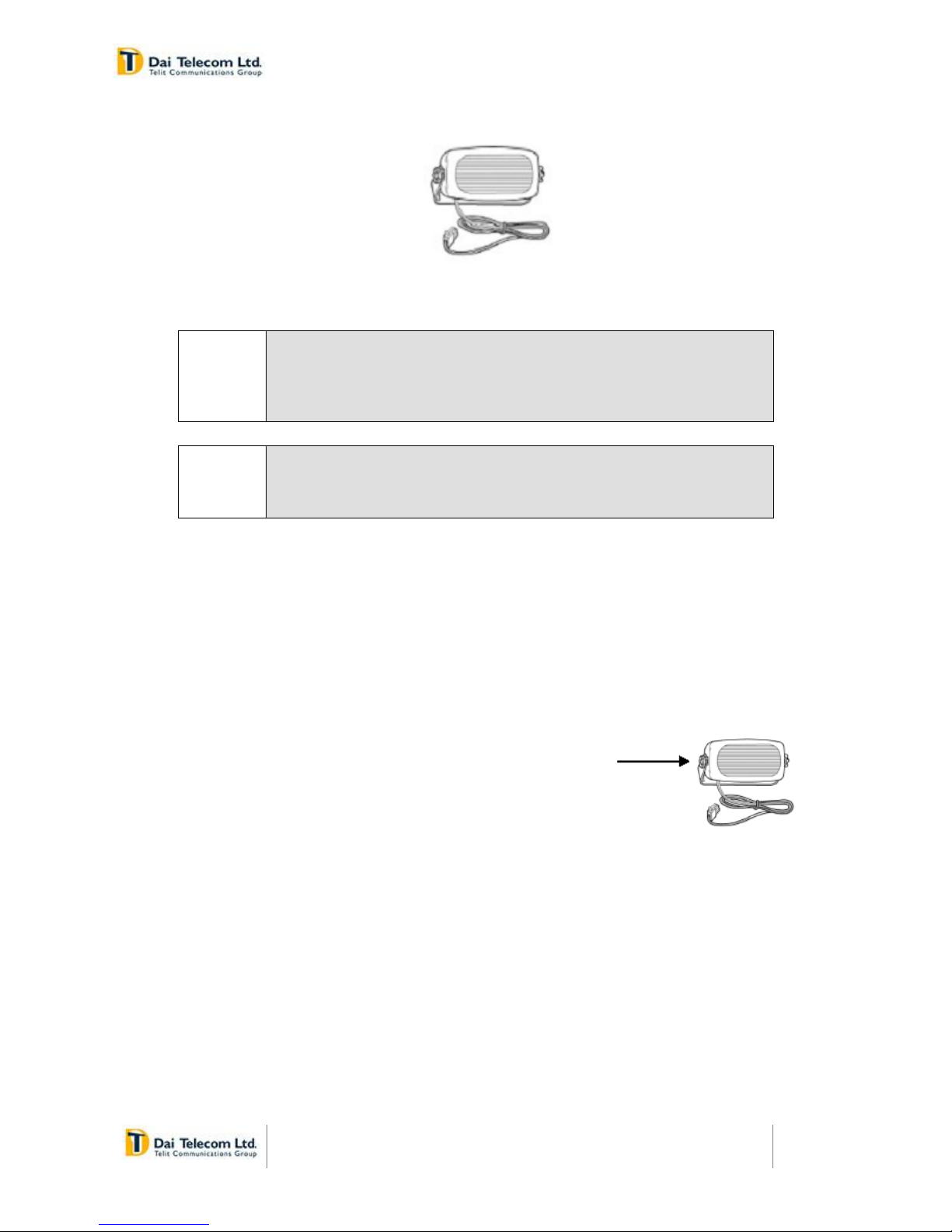

4.3 Plan the Speaker’s Position

Note!
The speaker and microphone (installed inbetween car roof and windscreen
glass above the driver) must face different directions.

Note!
Do not hide the speaker inside the dash board.
If you cover it, sound quality will be lowered.
Locate the speaker at the right side of the main console, at the front of the
console, in a location where it would not bother the driver or passengers but
would sound best.

This document and all the information herein are confidential, and the exclusive
property of Dai Telecom. Do not copy, distribute or disclose this material without
prior permission from Dai Telecom.
Page 10 of 21
5Installing the Cradle and Phone
5.1 Where to Position (Reminder)

Note!
The best way to determine the Phone’s position to the customer’s full
satisfaction is to locate it when the customer is beside you and obtain
his/her agreement.
Please ensure the Phone’s location does not interfere with the vehicle or its
accessories operation: it should not interfere with opening the glove compartment
or ashtray, should not prevent access to the lighter, moving the gear stick,
operating the hand break etc.

Warning!
Do not install the Phone in front of the vehicle’s air bag. This restriction
must be adhered to, as in the case of an emergency the air bag blows up
and can fail to work properly.
Ensure the surface on which this Phone is installed is sufficiently strong to carry
the weight and pressure which would be exerted on it.
When selecting the Phone’s location, please ensure the control cable connected
to it does not interfere with the vehicle or its accessories’ operation.
Ensure it is safe and convenient to operate the Phone and read the display from
the driver’s seat.
