Daiichi Turk traktor mp228 bt User manual

TURK TRAKTOR

MP228 BT 1DIN

Size User Manuel

November 2019 Ver.1.0

Contents

1. Warning...........................................................................................

2.Device Introduction........................................................................

General Features.................................................................................

3.Keypad and Functions..................................................................

4.Settings.............................................................................................

5.Bluetooth Connection.....................................................................

Bluetooth Pairing...................................................................................

Answering Phone..................................................................................

End Call / Reject Call............................................................................

Bluetooth Music.....................................................................................

6.

7.

2

4-6

7

ConnectionDiagram......................................................................... 9

Troubleshooting..............................................................................10

8.Warranty Certificate........................................................................11

9.Warranty Conditions......................................................................12

1

8

3

Warning

For product specifications and information, the operating instructions are for

reference only. Information in this manual is subject to change without notice. We

reserve the right to change or improve our products without obligation to warn any

person or organization.

Security Reminder

For your safety, please do not use the entertainment system's display while driving.

Adjust the volume so that you can hear the ambient sound. Before operating the

system, please read this manual carefully to obtain information on safety warnings

and warning labels, and retain them for future reference.

Please obey traffic rules.

If you encounter difficulties or need to start the system, please park your

vehicle in a safe place.

To prevent injury or damage to the system, please do not allow children to operate

the system.

Observe the regulations of your country when using the device system.

Do not use the system in areas with electronic equipment or in the open area.

It is forbidden to use the system in places where there is a possibility of fire,

such as a gas station or chemical components, or in strong electromagnetic

fields.

Do not attempt to repair this product; please contact an authorized dealer.

Installation and repair of the system should only be carried out by

professional and trained personnel.

The system must be kept away from hazardous environments and away from direct

sunlight.

Do not scratch the screen with sharp or blind objects and apply pressure to the

screen; these will damage the screen.

Do not leave the system in a humid environment and do not pour any liquid into it.

2

3

GENERAL FEATURES:

Device Introduction

•Radio Function

•USB Function

•SD Function

•AUX Function

•Bluetooth Function

4

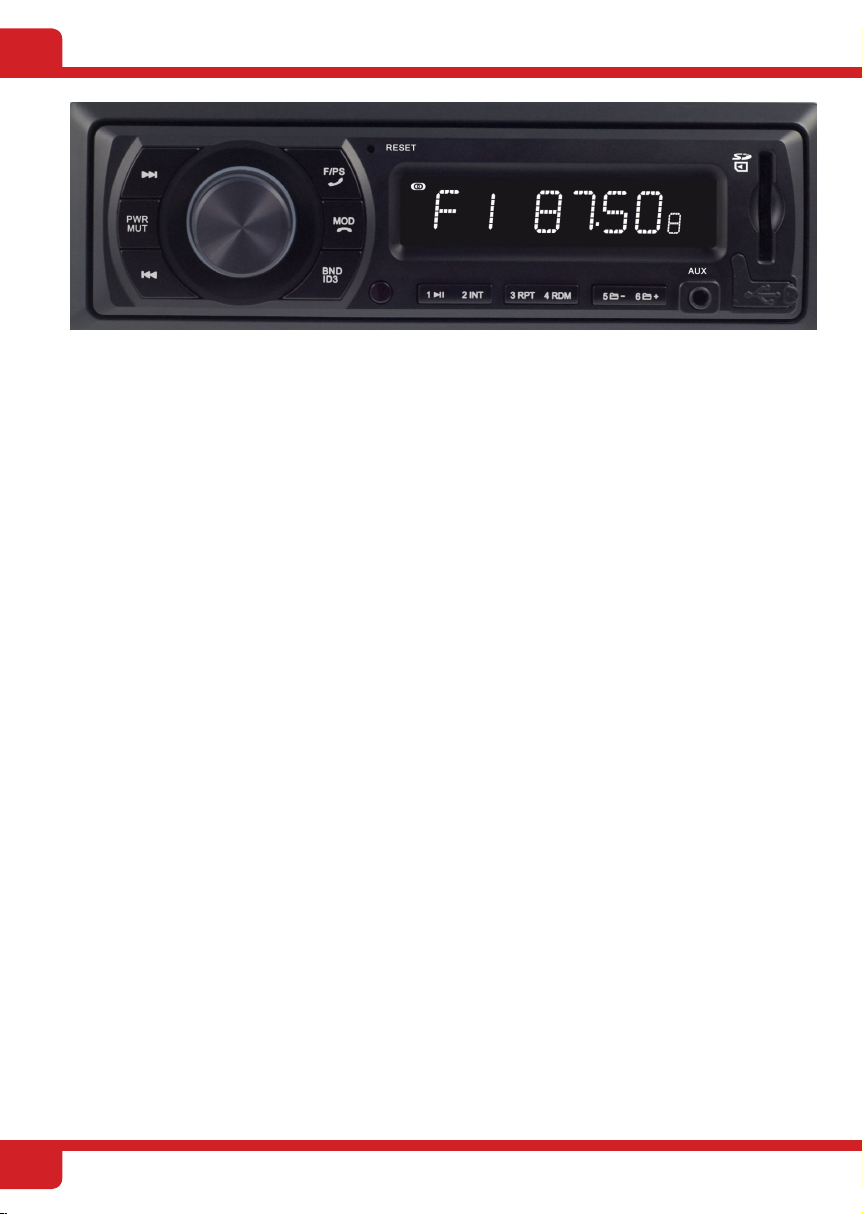

Keypad & Functions

1 >>| Button: Press this button briefly to go to the next station in radio mode. 2

seconds for manual forward search. by pressing and holding the button. While in

USB / SD / BT MUSIC mode, press this button briefly to go to the next song. As

long as you press and hold this button, you can fast forward the current song.

2 Power / Mute (PWR / MUTE) Button: Press this button short or long to turn off

the device. Use this button to mute or unmute the device.

3 | << Button: Press this button briefly to go to the previous station when in radio

mode. 2 seconds for manual callback. by pressing and holding the button. While in

USB / SD / BT MUSIC mode, press this button briefly to go to the previous song.

As long as you hold down this button, you can quickly rewind the song that is

playing.

4 VOLUME +/- Knob: You can adjust the volume of the device by turning this

knob to the right / left. You can scroll through the settings menu by briefly pressing

this button. You can access AF, TA, VOL, BAS, TRE, BAL, FAD, LOU, EQ

respectively. You can adjust the setting by turning this knob to the right / left. Long

press this button to set the device clock

5 F / PS Button: When in radio mode, press this button for 5 seconds of pre-

listening between preset stations. Press and hold this button to find and

automatically store radio stations. Press this button again to stop searching during

station search. Press this button to end the call or reject an incoming call in the

Bluetooth menu.

6 Mode / Answer Button: Use this button to switch between FM / USB / SD /

AUX / BT modes. Use this button to answer an incoming call. In Radio mode,

press and hold this button to activate the Traffic Announcement function.

5

Keypad & Functions

7 BND / ID3 Button: Press this button briefly to switch between FM1, FM2, FM3

bands in radio mode. When playing an MP3 file with ID3 tag information in USB /

SD mode, press BND / ID3 repeatedly to display the ID3 tag information on the

LCD screen. The ID3 tag information will be: Folder - File - Title - Artist - Album

8 1 / Play / Pause Button: In radio mode, press briefly to play the preset station 1.

Press and hold this button for a while to store the currently playing radio station in

memory 1. In USB / SD / BT mode, press this button to stop or restart the currently

playing song.

9 2 / INT (INT) Button: In radio mode, press briefly to play preset number 2.

Press and hold this button for a while to store the currently playing radio station in

memory 2. Use this button to pre-listen each song for 10 seconds while in USB /

SD mode.

10 3 / Repeat (RPT) Button: In radio mode, press briefly to play preset number 3.

Press and hold this button for a while to store the currently playing radio station in

memory 3. In USB / SD / mode, use this button to repeat the song, repeat the folder,

or play all songs again.

11 4 / Random (RDM) Button: In radio mode, press briefly to play preset number 4.

Press and hold this button for a while to store the currently playing radio station in

memory 4. Use this button to play songs sequentially or randomly in USB / SD

mode.

12 5 / Previous Folder Button: Press briefly to play the preset number 5 station in

radio mode. Press and hold this button for a while to store the currently playing radio

station in memory 5. In USB / SD mode, briefly press this button to move to the

previous folder.

13 6 / Next Folder Button: Press briefly to play the preset number 6 station in radio

mode. Press and hold this button for a while to store the currently playing radio

station in memory 6. In USB / SD mode, briefly press this button to move to the next

folder.

14 AUX Input Socket: You can connect external units such as MP3

player or phone to this input

6

15 USB Port: Connect a USB memory to play a music file in MP3 / WMA / WAV

format.

16 SD Port: Insert an SD card to play a music file in MP3 / WMA / WAV format.

17 LCD Display: Displays the digital clock and information about the selected function.

Keypad & Functions

7

Settings

1. SOUND Level

Use the VOLUME +/- button to adjust the volume. Max. Sound level: 40

2. BASS Adjustment

Press the VOLUME button repeatedly until "BAS 00" appears on the display. Use

VOLUME +/- to change the setting. Bass control is not available when EQ is on.

3. TREBLE Adjustment

Press the VOLUME button repeatedly until "TRE 00" appears on the display. Use

VOLUME +/- to change the setting. Treble control is not available when EQ is on.

4. BAL (Speaker Balance)

Press the VOLUME button repeatedly until "BAL 00" appears on the display, then

use the VOLUME / +/- button to adjust the balance between the left and right

speakers.

5. FADE (Front-Rear Speaker Balance)

Press the VOLUME button repeatedly until "FAD 00" appears on the display, then

use the VOLUME +/- button to adjust the balance between the front and rear

speakers.

6. LOUD (Loudness Control)

Press the VOLUME button repeatedly until "LOU OFF" appears on the display.

Turn the VOLUME +/- control to select between ON and OFF.

7. EQ (Equalizer Function Preset)

Press the VOLUME button repeatedly until "EQ OFF" appears on the display,

then turn the VOLUME +/- button to select from the EQ sound effects. The order

of the equalizer settings will be as follows: EQ OFF / CLASS / ROCK / POP

8. DX / LOCAL (Broadcast Signal Quality Control)

In FM radio mode, press the SOUND button repeatedly until "DX" appears on the

display. Turn the VOLUME +/- knob to select between "LOCAL" or "DX". The local

and remote broadcast setting can improve the radio broadcast quality depending on

the location.

9. MONO / STEREO (Broadcast Sound Quality Control)

In FM radio mode, press the VOLUME button repeatedly until "STEREO" appears on

the display. Turn the VOLUME +/- knob to select between STEREO or MONO. To

improve the broadcast quality of remote stations, the "MONO" operation can be

selected, which may slightly reduce the broadcast noise.

10. CLOCK Setting

In any menu, press and hold the VOLUME button until the time display appears.

After the time comes, press and hold the VOLUME button again, turn VOLUME

+/- to set the time, press the VOLUME button again and set the minute.

8

1 Bluetooth Pairing

To pair with Bluetooth, make a device search from your phone's bluetooth

menu. Then contact "Car BT" on your phone. Connection will display "BT ON".

2 Answering the Phone

When the call comes in, the caller's number appears on the display. To

answer an incoming call, press the F / PS / PHONE button on the panel.

When you make a call, "CALL" is displayed.

3 End Call / Reject Call

Press the MODE / PHONE button to end the call. Press the MODE /

PHONE button to reject the call.

5 Bluetooth Music

To listen to music on your phone via the device, first switch to BT MENU with

the MODE button on the panel, then press the 1 button.

Bluetooth Connection

9

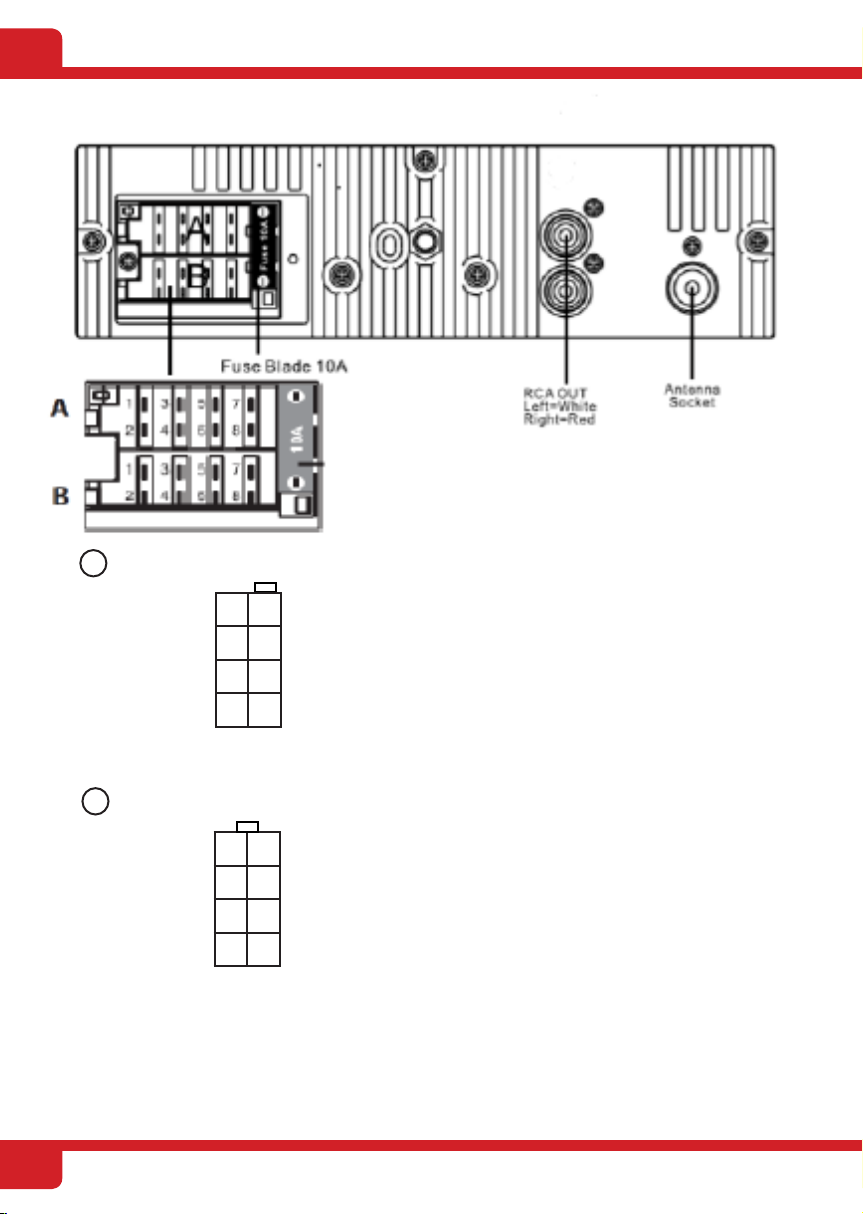

Connection Diagram

1 2

3 4

56

7 8

Battery +12V (Yellow)

Rear Right (+) Rear Right (-)

Front Right (+) Front Right (-)

Front Left(+) Front Left (-)

Rear Left (+) Rear Left (-)

B ISO Speaker Socket Connection

A ISO Power Supply Socket Connection

1 2

3 4

56

7 8 Grounding (Black)ACC (Red)

10

Troubleshooting

Problem Reason Solution

The device does not

work.

The power connection

is faulty.

Check that the power

connections are correct.

Fuse blown. Replace the fuse.

No sound.

The volume is

minimum.

Increase the volume.

No speaker connection

is made.

Check the speaker cable

connections.

The radio does not

operate or the automatic

station search function

does not work.

The antenna cable is

not connected or the

radio frequency is too

weak.

Make sure the antenna

cable is firmly connected

and perform the station

search manually.

The device works but

the song does not play.

The song you want to

play is not in a suitable

format.

Make sure the song is an

MP3 / WMA format song.

Exposure to static

electricity above 4KV

results in an automatic

reset of the system.

Provide electrostatic

protection.

Restart the device.

The device does not

read USB.

The USB used is

empty or corrupted.

Another USB should be

tried, the USB used should

be tried in another vehicle.

Cannot make

Bluethooth connection.

The Bluethooth module

of the device to be

paired may be painful

A connection with another

phone should be tried, and

the phone that is not

connected should be tried

in another vehicle. If the

problem persists, go to the

nearest service center for

repairs

Warranty Certificate

Importer Company

Daiichi Electronic

Industry and Trade

Co., Ltd.

Technical Service:

Ferhatpaşa AVE.

16. St. No: 38 - 34888

Ataşehir / İstanbul

Tel: 0216 471 85 70-75

[email protected]

Type: Sound System

Brand Name: Daiichi

Model: MP228 BT

Warranty Period: 2 Years

Maximum Repair Time: 20 business days

Bandrol and Serial No:

In this document, Daiichi Elektronik San. Ve Tic. Inc.

declares that the above equipment complies with

Directive 2014/53 / EU. The full text of EC

Declaration of Conformity is available at the

following internet address: http: // https: //

www.daiichi.com/about/ warranty is valid within the

borders of Turkey.

Authorized Dealer Information

Company Name:

Address:

Phone:

Fax:

email:

Invoice Date and Number:

Delivery Date and Place: Signature of

the Official and Company Stamp

11

Product information

1. The warranty period starts from the delivery date of the goods and is the time or Km stated in the product

information section.

2. All parts including the goods are covered by the warranty.

3. If the goods are found to be defective (read article 8 for defective goods) the consumer;

a. Return from the contract,

b. Asking for discount from sales price,

c. Request free repair,

d. Requesting the replacement of the solder to be replaced by a non-defective amount may exercise one of its rights.

4. If the consumer chooses the right to repair free of charge, the seller; is obliged to repair or have the product

repaired without any cost under labor cost, replacement part cost or any other name. The consumer may also

exercise the right to free repair against the manufacturer or importer. The seller, producer and importer are jointly

responsible for exercising this right by the consumer.

5. If the consumer uses the right to repair free of charge;

a. Failure within the warranty period,

b. Exceeding the maximum time required for repair,

c. In the event that it is not possible to repair it by a report from the authorized service station, seller, manufacturer or

importer; the consumer may demand the return of the goods, the discount of the defect rate or the replacement of the

goods with defective times if possible. The seller may not reject the consumer's request. If this request is not fulfilled,

the seller, manufacturer and importer are jointly and severally liable.

6. The maintenance and repair period of the goods at the authorized service stations may not exceed the maximum

repair period. This period starts from the date of delivery of the goods to the authorized service station or the seller

during the warranty period. Consumer failure notification; telephone, fax, e-mail, registered mail and return. In case

of dispute, the burden of proof belongs to the consumer.

7. Malfunctions resulting from the use of the goods contrary to the “Operating Instructions Mal are not covered by the

warranty. In addition, the device will be out of warranty under the following conditions; The customer should pay

attention to;

a. Problems caused by all electrical faults and interventions outside the device

b. Faults caused by external factors (water, excessive moisture, external impact, impact, fire, lightning strike)

chemical agents and pollination effect)

c. Mounting / installing / connecting non-genuine parts or accessories not approved by the manufacturer

d. Daiichi Electronics Co., Ltd. Installation or intervention by persons other than authorized service

e. Products whose serial number has been altered or destroyed

f. Damaged devices on the warranty certificate

ARTICLE 8

a. Defective goods are goods that are contrary to the contract at the time of delivery to the consumer because they do

not conform to the sample or model agreed by the parties or do not carry the characteristics that should be

objectively possessed.

b. Not carrying one or more of the features contained in its packaging, label, identification and user guide, internet

portal or advertisements and advertisements; that is contrary to the quality reported by the seller or as determined

in the technical regulation; goods that do not meet the intended use of their counterparts, which reduce or eliminate

the benefits reasonably expected by the consumer, are also considered defective.

c. Failure to deliver the goods subject to the contract within the time specified in the contract, or to assemble the

assembly properly, under the responsibility of the seller, is considered to be contrary to the contract. In cases

where the installation of the goods is foreseen by the consumer, if the installation is done incorrectly due to

inaccuracy or omission in the installation instruction, it will be performed contrary to the contract.

9.Consumer, the warranty arising from the exercise of rights arising from the settlement of the settlement

10. If this Warranty Certificate is not provided by the seller, the consumer may apply to the General Directorate of

Consumer Protection and Market Surveillance of the Ministry of Customs and Trade..

Warranty Conditions

12

13

Note

............................................................................................................

Technical Support Contact Center

Ferhatpaşa AVE. 16. ST. No: 38 -

34888 Ataşehir / İstanbul

Tel: + 90 (216) 661 50 59

Tel: + 90 (216) 471 85 70

Tel: + 90 (216) 471 85 75

www.daiichi.com.tr

[email protected]

TÜRK TRAKTÖR

MP228 BT Ses

Sistemi Kullanım

Kılavuzu Kasım 2019

Ver.1.0

İçindekiler

1. Uyarı.................................................................................................

2.Cihaz Tanıtımı..................................................................................

Genel Özellikler....................................................................................

3.Tuş Takımı ve Fonksiyonlar........................................................

4.Ayarlar..............................................................................................

5.Bluetooth Bağlantısı.......................................................................

Bluetooth Eşleştirme.............................................................................

Telefon Cevaplama...............................................................................

Görüşme Sonlandırma / Çağrı Reddetme............................................

Bluetooth Müzik....................................................................................

6.

7. Sorun Giderme................................................................................

2

4-6

7

Bağlantı Şeması............................................................................... 9

10

8.Garanti Belgesi................................................................................11

8

9. Garanti Şartları...............................................................................12

1

3

DAIICHI TURK TRAKTOR MP228 BT User manual

Popular Transducer manuals by other brands
