Daikin Altherma 3 GEO EGSAH10DA9W User manual

Operation manual
Daikin Altherma 3 GEO English
Operation manual
Daikin Altherma 3 GEO
EGSAH06DA9W
EGSAH10DA9W
EGSAX06DA9W(G)
EGSAX10DA9W(G)

Table of contents
Operation manual
2
EGSAH/X06+10DA9W(G)
Daikin Altherma 3 GEO
4P569812-1 – 2019.02
Table of contents
1 About this document 2
2 About the system 3
2.1 Components in a typical system layout ..................................... 3
3 Operation 3
3.1 User interface: Overview ........................................................... 3
3.2 Possible screens: Overview ...................................................... 4
3.2.1 Home screen............................................................... 4
3.2.2 Main menu screen ...................................................... 5
3.2.3 Setpoint screen ........................................................... 5
3.2.4 Detailed screen with values ........................................ 5
3.3 Space heating/cooling control ................................................... 5
3.3.1 Setting the space operation mode .............................. 5
3.3.2 To change the desired room temperature................... 6
3.3.3 To change the desired leaving water temperature...... 6
3.4 Domestic hot water control........................................................ 6
3.4.1 Reheat mode .............................................................. 6
3.4.2 Scheduled mode ......................................................... 6
3.4.3 Scheduled + reheat mode........................................... 6
3.4.4 Using DHW powerful operation................................... 6
3.5 Advanced usage........................................................................ 7
3.6 Schedule screen: Example........................................................ 7
3.7 Menu structure: Overview user settings .................................... 9
3.8 Installer settings: Tables to be filled in by installer .................... 10
3.8.1 Configuration wizard ................................................... 10
3.8.2 Settings menu ............................................................. 10
4 Energy saving tips 10
5 Maintenance and service 10
5.1 Overview: Maintenance and service ......................................... 10
5.2 To find the contact/helpdesk number ........................................ 11
6 Troubleshooting 11
6.1 To display the help text in case of a malfunction....................... 11
6.2 Symptom: You are feeling too cold (hot) in your living room..... 11
6.3 Symptom: The water at the tap is too cold ................................ 11
6.4 Symptom: Heat pump failure..................................................... 11
6.5 Symptom: The system is making gurgling noises after
commissioning........................................................................... 11
7 Disposal 12
8 Glossary 12
1 About this document
Thank you for purchasing this product. Please:
▪ Read the documentation carefully before operating the user
interface to ensure the best possible performance.
▪ Request the installer to inform you about the settings that he used
to configure your system. Check if he has filled in the installer
settings tables. If not, request him to do so.
▪ Keep the documentation for future reference.
Target audience
Endusers
Documentation set
This document is part of a documentation set. The complete set
consists of:
▪General safety precautions:
▪ Safety instructions that you must read before installing
▪ Format: Paper (in the box of the unit)
▪Operation manual:
▪ Quick guide for basic usage
▪ Format: Paper (in the box of the unit)
▪User reference guide:
▪ Detailed step-by-step instructions and background information
for basic and advanced usage
▪ Format: Digital files on http://www.daikineurope.com/support-
and-manuals/product-information/
▪Installation manual:
▪ Installation instructions
▪ Format: Paper (in the box of the unit)
▪Installer reference guide:
▪ Preparation of the installation, good practices, reference
data,…
▪ Format: Digital files on http://www.daikineurope.com/support-
and-manuals/product-information/
▪Addendum book for optional equipment:
▪ Additional info about how to install optional equipment
▪ Format: Paper (in the box of the unit) + Digital files on http://
www.daikineurope.com/support-and-manuals/product-
information/
Latest revisions of the supplied documentation may be available on
the regional Daikin website or via your installer.
The original documentation is written in English. All other languages
are translations.
Daikin Online Control Heating app
If set up by your installer, you can use the Daikin
Online Control Heating app to control and
monitor the status of your Daikin Altherma heat
pump system. For more information, see:
http://www.onlinecontroller.daikineurope.com/
Breadcrumbs
Breadcrumbs (example: [4.3]) help you to locate where you are in
the menu structure of the user interface.
1To enable the breadcrumbs: In the home screen or
main menu screen, press the help button. The
breadcrumbs will appear in the top left corner of the
screen.
2To disable the breadcrumbs: Press the help button
again.
This document also mentions these breadcrumbs. Example:
1Go to [4.3]: Space heating/cooling > Operation
range.
This means:

2 About the system
Operation manual
3
EGSAH/X06+10DA9W(G)
Daikin Altherma 3 GEO
4P569812-1 – 2019.02
1Starting from the home screen, turn the left dial and
go to Space heating/cooling.
4
Space heating/cooling
2Press the left dial to enter the submenu.
3Turn the left dial and go to Operation range.
Operation range
4.3
4Press the left dial to enter the submenu.
2 About the system
Depending on the system layout, the system can:
▪ Heat up a space
▪ Cool down a space (if a heating/cooling heat pump model is
installed)
▪ Produce domestic hot water

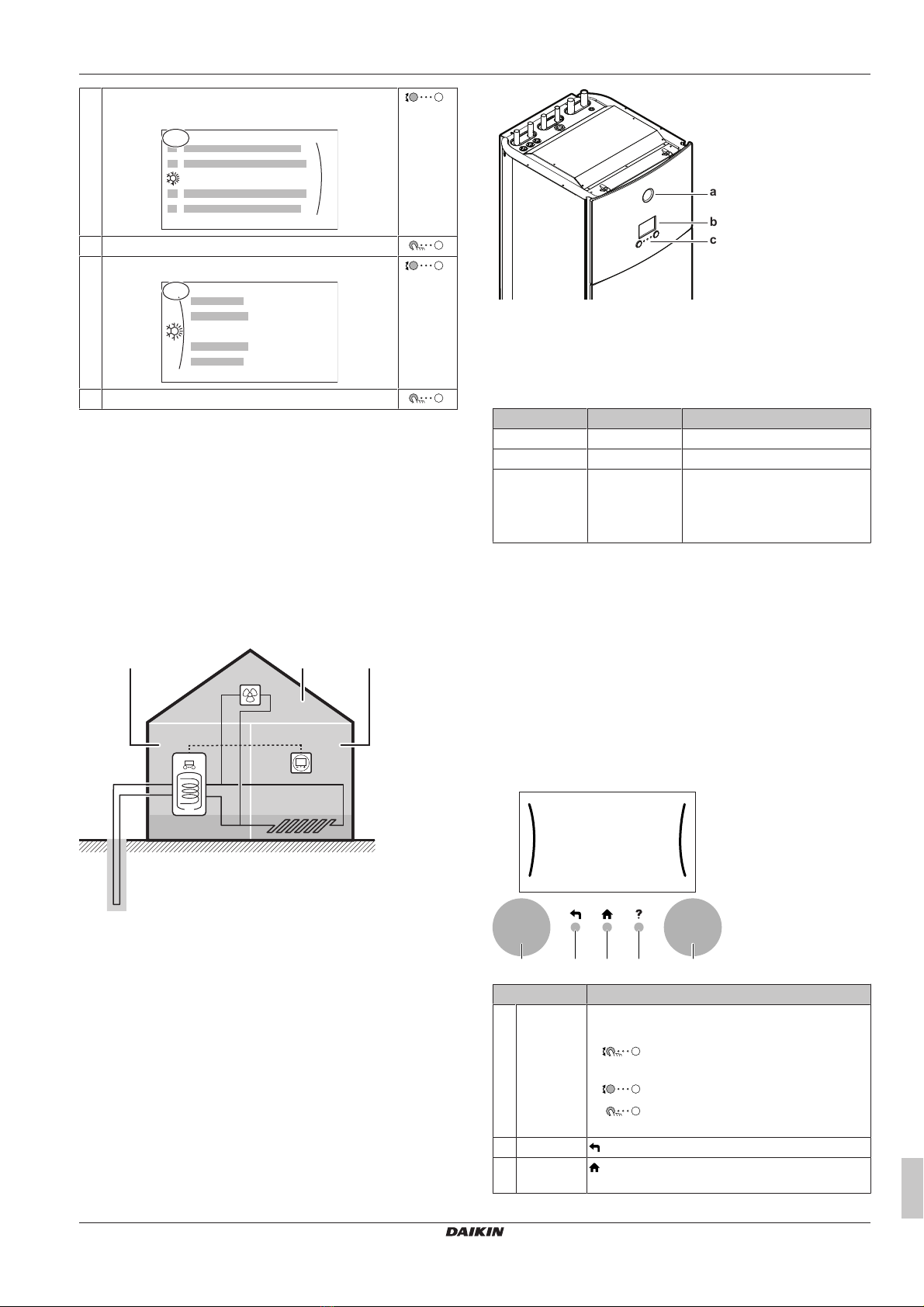

2.1 Components in a typical system
layout
g
A
db
a
f
e
c
BC
AMain zone. Example: Living room.
BAdditional zone. Example: Bedroom.
CTechnical room. Example: Garage.
aBrine loop
bIndoor unit heatpump
cDomestic hot water (DHW) tank
dUser interface at the indoor unit
eDedicated Human Comfort Interface (BRC1HHDA used as room
thermostat)
fUnderfloor heating
gRadiators, heatpump convectors, or fancoil units
3 Operation
3.1 User interface: Overview
The user interface has the following components:
a
b
c
aStatus indicator
bLCD screen
cDials and buttons
Status indicator
The LEDs of the status indicator light up or blink to show the
operating mode of the unit.
LED Mode Description
Blinking blue Standby The unit is not in operation.
Continuous blue Operation The unit is in operation.
Blinking red Malfunction A malfunction occurred.
See "6.1To display the help text
in case of a malfunction"on
page11 for more information.
LCD screen
The LCD screen has a sleeping function. After a certain time of non-
interaction with the user interface, the screen darkens. Pressing any
button or rotating any dial awakens the display. The time of non-
interaction differs depending on the user permission level:
▪User or Advanced user: 15min
▪Installer: 1h
Dials and buttons
You use the dials and buttons:
▪ To navigate through the screens, menus and settings of the LCD
screen
▪ To set values
a b c d e
Item Description
aLeft dial The LCD shows an arc on the left side of the
display when you can use the left dial.
▪ : Turn, then press the left dial. Navigate
through the menu structure.
▪ : Turn the left dial. Choose a menu item.
▪ : Press the left dial. Confirm your choice
or go to a submenu.
bBack button : Press to go back 1 step in the menu structure.
cHome
button
: Press to go back to the home screen.

3 Operation
Operation manual
4
EGSAH/X06+10DA9W(G)
Daikin Altherma 3 GEO
4P569812-1 – 2019.02
Item Description
dHelp button : Press to show a help text related to the current
page (if available).
eRight dial The LCD shows an arc on the right side of the
display when you can use the right dial.
▪ : Turn, then press the right dial. Change
a value or setting, shown at the right side of the
screen.
▪ : Turn the right dial. Navigate through
the possible values and settings.
▪ : Press the right dial. Confirm your
choice and go to the next menu item.
3.2 Possible screens: Overview
The most common screens are as follows:
+
–
a
b
c
c2c1
aHome screen
bMain menu screen
cLower level screens:
c1: Setpoint screen
c2: Detailed screen with values
3.2.1 Home screen
Press the button to go back to the home screen. You see an
overview of the unit configuration and the room and setpoint
temperatures. Only symbols applicable for your configuration are
visible on the home screen.
6
1.6
bar
26 Feb 2019
22:19
55
21
45
h
j
i1
i2
i3
18
b
c
e3
e2
f1
e1
g2 g3 g4 f2g1
a2a1
d
Possible actions on this screen
Go through the list of the main menu.
Go to the main menu screen.
Enable/disable breadcrumbs.
Item Description
a Domestic hot water
a1 Domestic hot water
a2
55
Measured tank temperature(1)
b Current date and time
c Disinfection / Powerful
Disinfection mode active
Powerful operation mode active
d Space operation mode
Cooling
Heating
e Outdoor / quiet mode
e1
6
Measured outdoor temperature(1)
e2 Quiet mode active
e3 Outdoor brine piping
f Indoor unit / domestic hot water tank
f1 Floor-standing indoor unit with integrated tank
f2 Water pressure
g Main zone
g1 Installed room thermostat type:
Unit operation is decided based on the ambient
temperature of the dedicated Human Comfort
Interface (BRC1HHDA used as room thermostat).
Unit operation is decided by the external room
thermostat (wired or wireless).
— No room thermostat installed or set. Unit operation
is decided based on the leaving water temperature
regardless of the actual room temperature and/or
heating demand of the room.
g2 Installed heat emitter type:
Underfloor heating
Fancoil unit
Radiator
g3
21
Measured room temperature(1)
g4
45
Leaving water temperature setpoint(1)
h Holiday mode
Holiday mode active
i Additional zone
i1 Installed room thermostat type:
Unit operation is decided by the external room
thermostat (wired or wireless).
— No room thermostat installed or set. Unit operation
is decided based on the leaving water temperature
regardless of the actual room temperature and/or
heating demand of the room.
i2 Installed heat emitter type:
Underfloor heating
Fancoil unit
Radiator
i3
18
Leaving water temperature setpoint(1)

3 Operation
Operation manual
5
EGSAH/X06+10DA9W(G)
Daikin Altherma 3 GEO
4P569812-1 – 2019.02
Item Description
j Malfunction
A malfunction occurred.
See "6.1To display the help text in case of a
malfunction"on page11 for more information.
(1) If the corresponding operation (for example: space heating)
is not active, the circle is greyed out.
3.2.2 Main menu screen
In the home screen, press to open the main menu screen.
From the main menu, you can access the different setpoint screens
and submenus.
Possible actions on this screen
Go through the list.
Enter the submenu.
Enable/disable breadcrumbs.
Item Description
or
Malfunctioning
Restriction: Only displayed if a malfunction
occurs.
See "6.1To display the help text in case of
a malfunction"on page11 for more
information.
Room Restriction: Only displayed if a dedicated
Human Comfort Interface (BRC1HHDA
used as room thermostat) is controlling the
indoor unit.
Set the room temperature.
Main zone Shows the applicable symbol for your main
zone emitter type.
Set the leaving water temperature for the
main zone.
Additional zone Restriction: Only displayed if there are two
leaving water temperature zones. Shows
the applicable symbol for your additional
zone emitter type.
Set the leaving water temperature for the
additional zone.
Space heating/
cooling
Restriction: Only for heating/cooling
models.
Shows the applicable symbol of your unit.
Put the unit in heating mode or cooling
mode.
Tank Set the domestic hot water tank
temperature.
User settings Gives access to user settings such as
holiday mode and quiet mode.
Information Displays data and information about the
indoor unit.
Installer
settings
Restriction: Only for the installer.
Gives access to advanced settings.
Commissioning Restriction: Only for the installer.
Perform tests and maintenance.
User profile Change the active user profile.
Item Description
Operation Turn heating/cooling functionality and
domestic hot water preparation on or off.
3.2.3 Setpoint screen
The setpoint screen is displayed for screens describing system
components that need a setpoint value.
Example:
▪ Room temperature screen
▪ Main zone screen
▪ Additional zone screen
▪ Tank temperature screen
a1
d
+
–
d
ed
e
c
a2
b1
b2
Possible actions on this screen
Go through the list of the submenu.
Go to the submenu.
Adjust and automatically apply the desired
temperature.
Item Description
Minimum temperature limit a1 Fixed by the unit
a2 Restricted by the installer
Maximum temperature limit b1 Fixed by the unit
b2 Restricted by the installer
Current temperature cMeasured by the unit
Desired temperature dTurn the right dial to
increase/decrease.
Submenu eTurn or press the left dial to
go to the submenu.
3.2.4 Detailed screen with values
a b
aSettings
bValues
Possible actions on this screen
Go through the list of settings.
Change the value.
Go to the next setting.
Confirm changes and proceed.
3.3 Space heating/cooling control
3.3.1 Setting the space operation mode
To set the space operation mode
1Go to [4.1]: Space heating/cooling > Operation
mode

3 Operation
Operation manual
6
EGSAH/X06+10DA9W(G)
Daikin Altherma 3 GEO
4P569812-1 – 2019.02
2Select one of the following options:
▪Heating: Only heating mode
▪Cooling: Only cooling mode
▪Automatic: The operation mode changes
automatically based on the outdoor temperature.
Restricted according to the operation mode
schedule.
To restrict automatic changeover according to a schedule
Conditions: You set the space operation mode to Automatic.
1Go to [4.2]: Space heating/cooling > Operation
mode schedule.
2Select a month.
3For each month, select an option:
▪Reversible: Not restricted
▪Heating only: Restricted
▪Cooling only: Restricted
4Confirm the changes.
3.3.2 To change the desired room temperature
During room temperature control, you can use the room temperature
setpoint screen to read out and adjust the desired room temperature.
1Go to [1]: Room.
You can read out the desired and actual room
temperature in the center of the setpoint screen.
2Adjust the desired room temperature.
If scheduling is on after changing the desired room temperature
▪ The temperature will stay the same as long as there is no
scheduled action.
▪ The desired room temperature will return to its scheduled value
whenever a scheduled action occurs.
You can avoid scheduled behaviour by (temporarily) turning off
scheduling.
To turn off room temperature scheduling
1Go to [1.1]: Room > Schedule.
2Select No.
3.3.3 To change the desired leaving water
temperature
INFORMATION
The leaving water is the water that is sent to the heat
emitters. The desired leaving water temperature is set by
your installer in accordance with the heat emitter type.
Only adjust the leaving water temperature settings in case
of problems.
You can use the leaving water temperature setpoint screen to read
out and adjust the desired leaving water temperature.
1Go to [2]: Main zone or [3]: Additional zone.
You can read out the desired and actual leaving
water temperature in the center of the setpoint
screen.
2Adjust the desired leaving water temperature.
3.4 Domestic hot water control

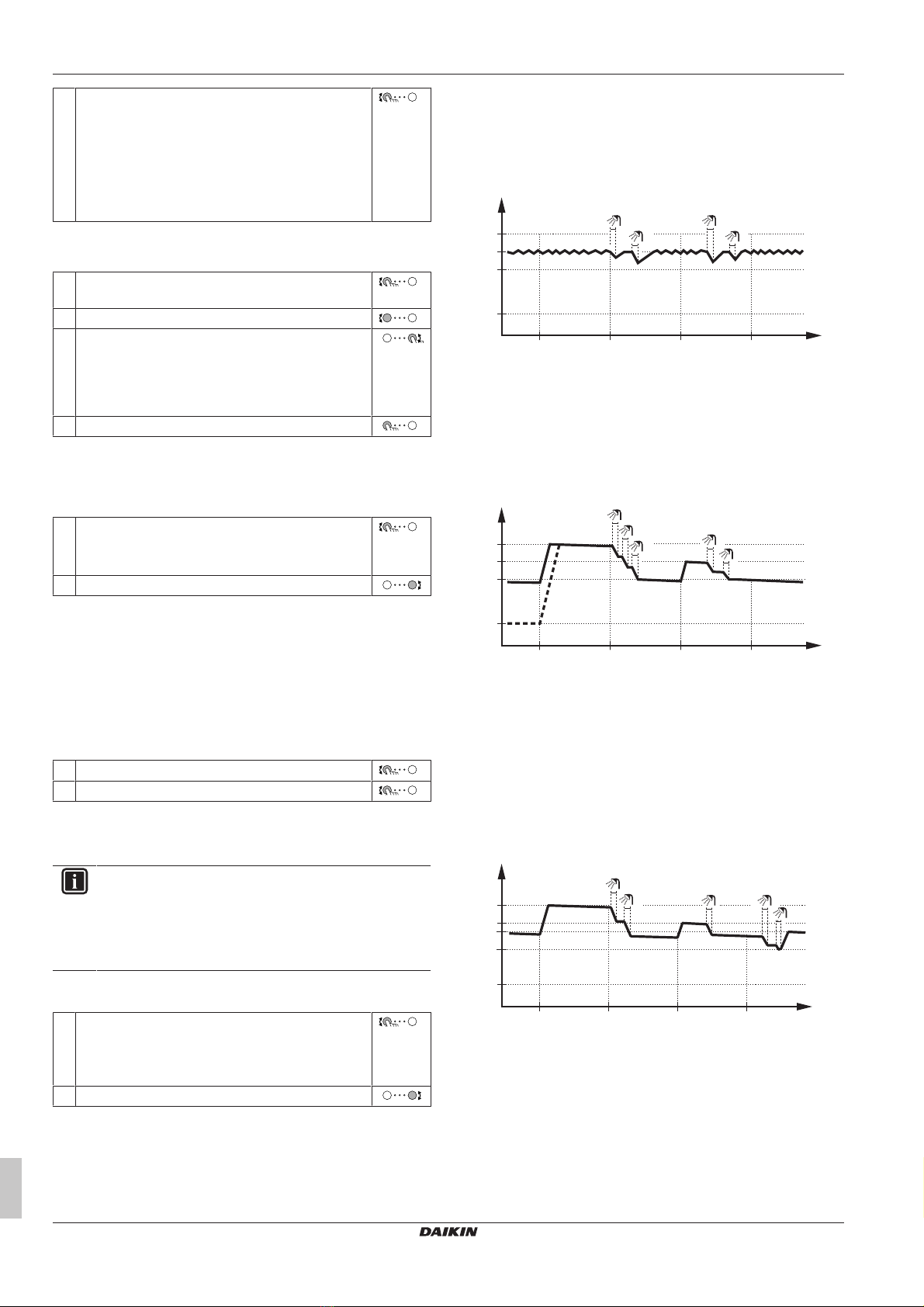

3.4.1 Reheat mode
In reheat mode the DHW tank continuously heats up to the
temperature shown on the home screen (example: 50°C).
t
60°C
00:00 07:00
50°C
15°C
40°C
14:00 21:00
1
2
3
4
Tt
TtDHWtank temperature
tTime
3.4.2 Scheduled mode
In scheduled mode the DHWtank produces hot water corresponding
to a schedule. The best time to allow the tank to produce hot water is
at night, because the space heating demand is lower.
Example:
t
60°C
00:00 07:00
50°C
15°C
40°C
14:00 21:00
1
2
34
5
Tt
TtDHWtank temperature
tTime
3.4.3 Scheduled + reheat mode
In scheduled + reheat mode, the domestic hot water control is the
same as in scheduled mode. However, when the DHW tank
temperature drops below a preset value (=reheat tank temperature –
hysteresis value; example: 35°C), the DHW tank heats up until it
reaches the reheat set point (example: 45°C). This ensures that a
minimum amount of hot water is available at all times.
Example:
t
Tt
60°C
00:00 07:00
50°C
45°C
15°C
14:00 21:00
35°C
1
24
5
3
TtDHWtank temperature
tTime
3.4.4 Using DHW powerful operation
About powerful operation
Powerful operation allows the domestic hot water to be heated by
the backup heater. Use this mode on days when there is more hot
water usage than usual.

3 Operation
Operation manual
7
EGSAH/X06+10DA9W(G)
Daikin Altherma 3 GEO
4P569812-1 – 2019.02
To check if powerful operation is active
If is displayed on the home screen, powerful operation is active.
Activate or deactivate Powerful operation as follows:
1Go to [5.1]: Tank > Powerful operation
2Turn powerful operation Off or On.
Usage example: You immediately need more hot water
You are in the following situation:
▪ You already consumed most of your domestic hot water.
▪ You cannot wait for the next scheduled action to heat up the
domestic hot water tank.
Then you can activate powerful operation. The domestic hot water
tank will start heating up the water to the Comfort temperature.
3.5 Advanced usage
The amount of information you can read out in the menu structure
depends on your user permission level:
▪User: Standard mode
▪Advanced user: You can read out more information
To change the user permission level
You can change the user permission level as follows:
1Go to [B]: User profile.
2Enter the applicable code for the user permission. —
▪ Move the cursor from left to right.
▪ Browse through the list of digits and change the
selected digit.
▪ Confirm the pincode and proceed.
User pin code
The User pin code is 0000.
Advanced user pin code
The Advanced user pin code is 1234. Additional menu items for the
user are now visible.
3.6 Schedule screen: Example
This example shows how to set a room temperature schedule in
heating mode for the main zone.
INFORMATION
The procedures to program other schedules are similar.
To program the schedule
Example: You want to program the following schedule:
Mon
Sat
Wed
Fri
Thu
Tue
Sun
User defined 1
Prerequisite: The room temperature schedule is only available if
room thermostat control is active. If leaving water temperature
control is active, you can program the main zone schedule instead.
1Go to the schedule.
2(optional) Clear the content of the whole week schedule or the
content of a selected day schedule.
3Program the schedule for Monday.
4Copy the schedule to the other weekdays.
5Program the schedule for Saturday and copy it to Sunday.
6Give the schedule a name.
To go to the schedule:
1Go to [1.1]: Room > Schedule.
2Set scheduling to Yes.
3Go to [1.2]: Room > Heating schedule.
To clear the content of the week schedule:
1Select the name of the current schedule.
Mon
Sat
Wed
Fri
Thu
Tue
Sun
User defined 1
2Select Delete.
Delete
Rename
Select
3Select OK to confirm.
To clear the content of a day schedule:
1Select the day of which you want to clear the
content. For example Friday
Mon
Sat
Wed
Fri
Thu
Tue
Sun
User defined 1
C
2Select Delete.
Delete
Edit
Copy
3Select OK to confirm.

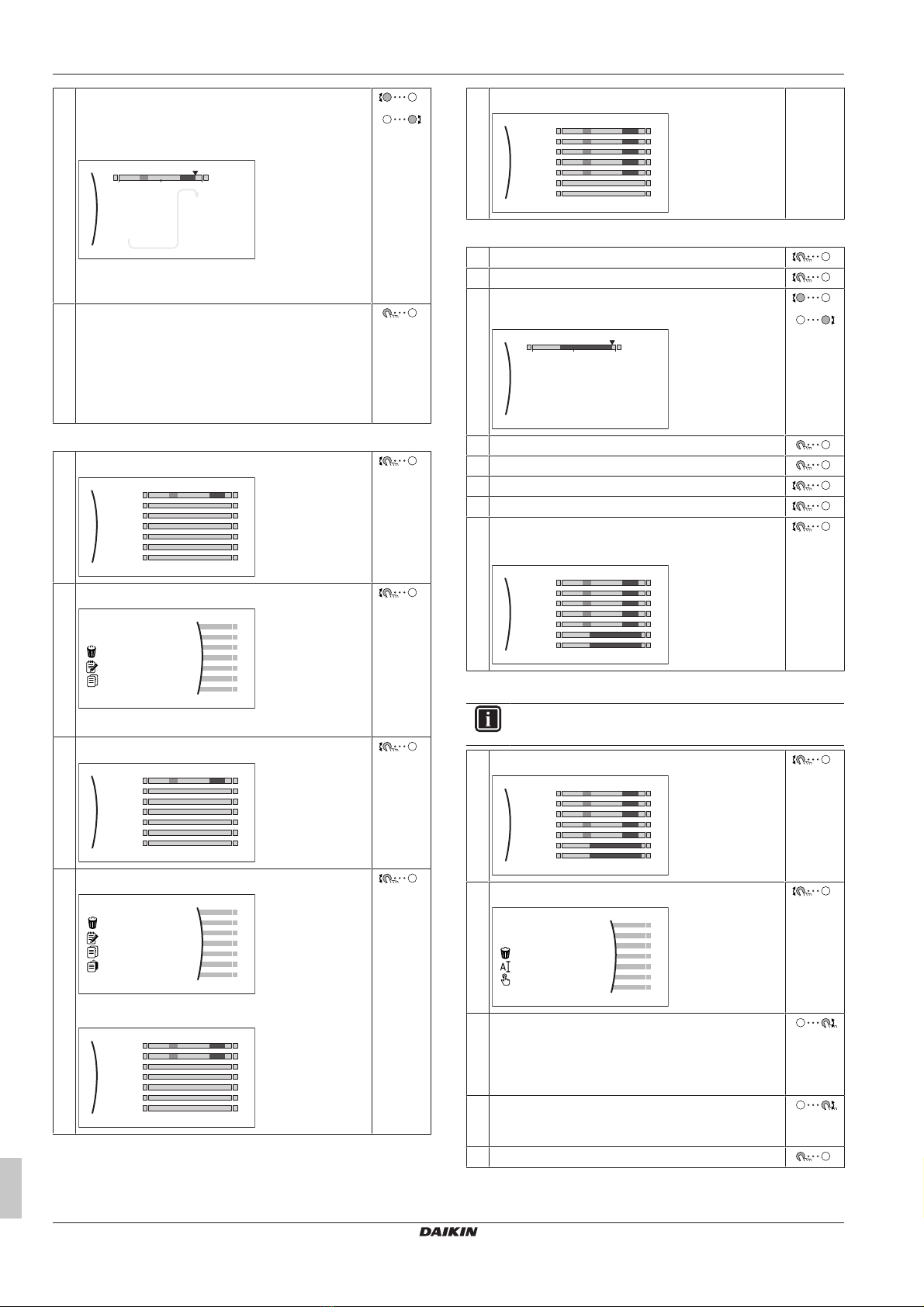

To program the schedule for Monday:
1Select Monday.
Mon
Sat
Wed
Fri
Thu
Tue
Sun
User defined 1
2Select Edit.
Delete
Edit
Copy

3 Operation
Operation manual
8
EGSAH/X06+10DA9W(G)
Daikin Altherma 3 GEO
4P569812-1 – 2019.02
3Use the left dial to select an entry and edit the entry
with the right dial. You can program up to 6 actions
each day. On the bar, a high temperature has a
darker colour than a low temperature.
0
6:00
8:30
17:30
20°C
18°C
22:00
--:--
18°C
--
21°C
12 24
Mon
Note: To clear an action, set its time as the time of
the previous action.
4Confirm the changes.
Result: The schedule for Monday is defined. The
value of the last action is valid until the next
programmed action. In this example, Monday is the
first day you programmed. Thus, the last
programmed action is valid up to the first action of
next Monday.
To copy the schedule to the other weekdays:
1Select Monday.
Mon
Sat
Wed
Fri
Thu
Tue
Sun
User defined 1
2Select Copy.
Delete
Edit
Copy
Result: Next to the copied day, "C" is displayed.
3Select Tuesday.
Mon
Sat
Wed
Fri
Thu
Tue
Sun
User defined 1
C
4Select Paste.
Delete
Edit
Copy
Paste
Result:
Mon
Sat
Wed
Fri
Thu
Tue
Sun
User defined 1
C
5Repeat this action for all other weekdays.
Mon
Sat
Wed
Fri
Thu
Tue
Sun
User defined 1
C
—
To program the schedule for Saturday and copy it to Sunday:
1Select Saturday.
2Select Edit.
3Use the left dial to select an entry and edit the entry
with the right dial.
0
8:00
23:00
--:--
21°C
18°C
--
12 24
Sat
4Confirm the changes.
5Select Saturday.
6Select Copy.
7Select Sunday.
8Select Paste.
Result:
Mon
Sat
Wed
Fri
Thu
Tue
Sun
User defined 1
C
To rename the schedule:
INFORMATION
Not all schedules can be renamed.
1Select the name of the current schedule.
Mon
Sat
Wed
Fri
Thu
Tue
Sun
User defined 1
2Select Rename.
Delete
Rename
Select
3(optional) To delete the current schedule name,
browse through the character list until ← is
displayed, then press to remove the previous
character. Repeat for each character of the schedule
name.
4To name the current schedule, browse through the
character list and confirm the selected character.
The schedule name can contain up to 15characters.
5Confirm the new name.

3 Operation
Operation manual
9
EGSAH/X06+10DA9W(G)
Daikin Altherma 3 GEO
4P569812-1 – 2019.02
3.7 Menu structure: Overview user settings
INFORMATION
Depending on the selected installer settings and unit type,
settings will be visible/invisible.
[1] Room
Room sensor offset
Setpoint range
Antifrost
Cooling schedule
Heating schedule
Schedule
[2] Main zone
Schedule
Heating schedule
Setpoint mode
Cooling schedule
Heating WD curve
Cooling WD curve
WD curve type
[3] Additional zone
Schedule
Heating schedule
Setpoint mode
Cooling schedule
Heating WD curve
Cooling WD curve
WD curve type
[4] Space heating/cooling
Operation mode
Operation mode schedule
[5] Tank
Powerful operation
Comfort setpoint
Eco setpoint
Reheat setpoint
Schedule
WD curve type
[7] User settings
Language
Time/date
Holiday
Quiet
Electricity price
Gas price
(*)
[8] Information
Energy data
Malfunction history
Dealer information
Sensors
Actuators
Operation modes
About
Connection status
Running hours
[B]User profile
[C]Operation
Room
Space heating/cooling
Tank
[1.4] Antifrost
Activation
Room setpoint
[1.5] Setpoint range
Heating minimum
Heating maximum
Cooling minimum
Cooling maximum
[7.2] Time/date
Hours
Minutes
Year
Month
Day
Daylight savings time
Format
[7.3] Holiday
Activation
From
Till
[7.4] Quiet
Activation
Schedule
Level
[7.5] Electricity price
High
Medium
Low
Schedule
[8.1] Energy data
Electricity input
Produced heat
Setpoint screen
(*) Not applicable

4 Energy saving tips
Operation manual
10
EGSAH/X06+10DA9W(G)
Daikin Altherma 3 GEO
4P569812-1 – 2019.02
3.8 Installer settings: Tables to be
filled in by installer
3.8.1 Configuration wizard
Setting Fill in…
System
Indoor unit type (read only)
Backup heater type (read
only) [9.3.1]
Domestic hot water [9.2.1]
Emergency [9.5]
Number of zones [4.4]
Backup heater
Voltage [9.3.2]
Maximum capacity [9.3.9]
Main zone
Emitter type [2.7]
Control [2.9]
Setpoint mode [2.4]
Schedule [2.1]
WD curve type [2.E]
Additional zone (only if [4.4] = 1, dual zone)
Emitter type [3.7]
Control (read only) [3.9]
Setpoint mode [3.4]
Schedule [3.1]
WD curve type [3.C]
Tank
Heat up mode [5.6]
Comfort setpoint [5.2]
Eco setpoint [5.3]
Reheat setpoint [5.4]
3.8.2 Settings menu
Setting Fill in…
Main zone
Thermostat type [2.A]
Additional zone (if applicable)
Thermostat type [3.A]
Information
Dealer information [8.3]
4 Energy saving tips
Tips about room temperature
▪ Make sure the desired room temperature is NEVER too high (in
heating mode) or too low (in cooling mode), but ALWAYS
according to your actual needs. Each saved degree can save up
to 6% of heating/cooling costs.
▪ Do NOT increase the desired room temperature to speed up
space heating. The space will NOT heat up faster.
▪ When your system layout contains slow heat emitters (example:
under floor heating), avoid large fluctuation of the desired room
temperature and do NOT let the room temperature drop too low. It
will take more time and energy to heat up the room again.
▪ Use a weekly schedule for your normal space heating or cooling
needs. If necessary, you can easily deviate from the schedule:
▪ For shorter periods: You can overrule the scheduled room
temperature. Example: When you have a party, or when you
are leaving for a couple of hours.
▪ For longer periods: You can use the holiday mode. Example:
When you stay at home during your holiday, or when you go
away during your holiday.
Tips about DHWtank temperature
▪ Use a weekly schedule for your normal domestic hot water needs
(only in scheduled mode).
▪ Program to heat up the DHWtank to a preset value (Comfort =
higher DHW tank temperature) during the night, because then
space heating demand is lower.
▪ If heating up the DHW tank once at night is not sufficient,
program to additionally heat up the DHWtank to a preset value
(Eco = lower DHWtank temperature) during the day.
▪ Make sure the desired DHW tank temperature is NOT too high.
Example: After installation, lower the DHWtank temperature daily
by 1°C and check if you still have enough hot water.
▪ Program to turn ON the domestic hot water pump only during
periods of the day when instant hot water is necessary. Example:
In the morning and evening.
5 Maintenance and service
5.1 Overview: Maintenance and
service
The installer has to perform a yearly maintenance. You can find the
contact/helpdesk number via the user interface.
As enduser, you have to:
▪ Keep the area around the unit clean.
▪ Keep the user interface clean with a soft damp cloth. Do NOT use
any detergents.
▪ Regularly check if the water pressure is above 1bar.
Refrigerant
This product contains fluorinated greenhouse gases. Do NOT vent
gases into the atmosphere.
Refrigerant type: R32
Global warming potential (GWP) value: 675
WARNING: FLAMMABLE MATERIAL
The refrigerant inside this unit is mildly flammable.
WARNING
▪ Do NOT pierce or burn refrigerant cycle parts.
▪ Do NOT use cleaning materials or means to accelerate
the defrosting process other than those recommended
by the manufacturer.
▪ Be aware that the refrigerant inside the system is
odourless.

6 Troubleshooting
Operation manual
11
EGSAH/X06+10DA9W(G)
Daikin Altherma 3 GEO
4P569812-1 – 2019.02
WARNING
The refrigerant inside the unit is mildly flammable, but
normally does NOT leak. If the refrigerant leaks in the
room and comes in contact with fire from a burner, a
heater, or a cooker, this may result in fire, or the formation
of a harmful gas.
Turn off any combustible heating devices, ventilate the
room, and contact the dealer where you purchased the
unit.
Do NOT use the unit until a service person confirms that
the part from which the refrigerant leaked has been
repaired.
5.2 To find the contact/helpdesk
number
1Go to [8.3]: Information > Dealer information.
6 Troubleshooting
6.1 To display the help text in case of
a malfunction
In case of a malfunction, the following will appear on the home
screen depending on the severity:
▪ : Error
▪ : Malfunction
You can get a short and a long description of the malfunction as
follows:
1Press the left dial to open the main menu and go to
Malfunctioning.
Result: A short description of the error and the error
code is displayed on the screen.
2Press in the error screen.
Result: A long description of the error is displayed
on the screen.
6.2 Symptom: You are feeling too cold
(hot) in your living room
Possible cause Corrective action
The desired room temperature is
too low (high).
Increase (decrease) the desired
room temperature. See "3.3.2To
change the desired room
temperature"on page6.
If the problem recurs daily, do
one of the following:
▪ Increase (decrease) the room
temperature preset value. See
the user reference guide.
▪ Adjust the room temperature
schedule. See "3.6 Schedule
screen: Example"on page7.
The desired room temperature
cannot be reached.
Increase the desired leaving
water temperature in accordance
with the heat emitter type. See
"3.3.3To change the desired
leaving water temperature"on
page6.
Possible cause Corrective action
The weather-dependent curve is
set incorrectly.
Adjust the weather-dependent
curve. See the user reference
guide.
6.3 Symptom: The water at the tap is
too cold
Possible cause Corrective action
You ran out of domestic hot
water because of unusual high
consumption.
If you immediately need domestic
hot water, activate the DHW tank
Powerful operation. However,
this consumes extra energy. See
"3.4.4Using DHW powerful
operation"on page6.
If the problems recurs daily, do
one of the following:
▪ Increase the DHW tank
temperature preset value. See
the user reference guide.
▪ Adjust the DHW tank
temperature schedule.
Example: Program to
additionally heat up the
DHW tank to a preset value
(Eco setpoint = lower tank
temperature) during the day.
See "3.6 Schedule screen:
Example"on page7.
The desired DHWtank
temperature is too low.
6.4 Symptom: Heat pump failure
When the heat pump fails to operate, the backup heater can serve
as an emergency heater and either automatically or non-
automatically take over the heat load.
▪ When auto emergency is set to Automatic and a heat pump
failure occurs, the backup heater will automatically take over the
heat load and the domestic hot water production.
▪ When auto emergency is set to Manual and a heat pump failure
occurs, the domestic hot water and space heating operation will
stop and need to be recovered manually via the user interface. To
recover operation manually, go to the Malfunctioning main
menu screen, where the user interface will then ask you to confirm
whether the backup heater can take over the heat load or not.
When the heat pump fails, or will appear on the user
interface.
Possible cause Corrective action
Heat pump is damaged. See "6.1To display the help text
in case of a malfunction"on
page11.
INFORMATION
When the backup heater takes over the heat load,
electricity consumption will be considerably higher.
6.5 Symptom: The system is making
gurgling noises after
commissioning
Possible cause Corrective action
There is air in the system. Purge air from the system.(a)

7 Disposal
Operation manual
12
EGSAH/X06+10DA9W(G)
Daikin Altherma 3 GEO
4P569812-1 – 2019.02
Possible cause Corrective action
Various malfunctions. Check if or is displayed
on the home screen of the user
interface. See "6.1To display the
help text in case of a
malfunction"on page11 for more
information about the
malfunction.
(a) We recommend to purge air with the air purge function of
the unit (to be performed by the installer). If you purge air
from the heat emitters or collectors, mind the following:
WARNING
Air purging heat emitters or collectors. Before you
purge air from heat emitters or collectors, check if or
is displayed on the home screen of the user interface.
▪ If not, you can purge air immediately.
▪ If yes, make sure that the room where you want to
purge air is sufficiently ventilated. Reason: Refrigerant
might leak into the water circuit, and subsequently into
the room when you purge air from the heat emitters or
collectors.
7 Disposal
NOTICE
Do NOT try to dismantle the system yourself: dismantling
of the system, treatment of the refrigerant, oil and other
parts MUST comply with applicable legislation. Units
MUST be treated at a specialised treatment facility for
reuse, recycling and recovery.
8 Glossary
DHW = Domestic hot water
Hot water used, in any type of building, for domestic
purposes.
LWT = Leaving water temperature
Water temperature at the water outlet of the heatpump.

4P569812-1 2019.02
Copyright 2019 Daikin
4P569812-1 0000000T
