Daikin homecontrols EKRCTRDI2BA User guide

Installer and user reference guide
Daikin Home Controls
Room Thermostat – 1
EKRCTRDI2BA

1
G
B
E
DF
A
C

3
2
1
2

5
4
AP
click

7
6
2x

60 mm
9
8
2x

11
10
click

13
12
4 s

15
14
4 s

Package contents
Quantity Description
1 Daikin Home Controls
Room Thermostat – 1
1 Wall mounting bracket
2 Double-sided adhesive strips
2 Screws 3.0 x 30 mm
2 Plugs 5 mm
2 1.5 V LR6/mignon/AA batteries
1 Installation and operation manual
1 Supplement sheet with safety instructions
Documentation © 2022 Daikin Europe N.V., Belgium
All rights reserved. This manual may not be reproduced in any
format, either in whole or in part, nor may it be duplicated or edited
by electronic, mechanical or chemical means, without the written
consent of the publisher.
Typographical and printing errors cannot be excluded. However,
the information contained in this manual is reviewed on a regular
basis and any necessary corrections will be implemented in the next
edition. We accept no liability for technical or typographical errors or
the consequences thereof.
All trademarks and industrial property rights are acknowledged.
Printed in Hong Kong.
Changes may be made without prior notice as a result of technical
advances.
4P687364-1
2022.04

11
Package contents
Quantity Description
1 Daikin Home Controls
Room Thermostat – 1
1 Wall mounting bracket
2 Double-sided adhesive strips
2 Screws 3.0 x 30 mm
2 Plugs 5 mm
2 1.5 V LR6/mignon/AA batteries
1 Installation and operation manual
1 Supplement sheet with safety instructions
Documentation © 2022 Daikin Europe N.V., Belgium
All rights reserved. This manual may not be reproduced in any
format, either in whole or in part, nor may it be duplicated or edited
by electronic, mechanical or chemical means, without the written
consent of the publisher.
Typographical and printing errors cannot be excluded. However,
the information contained in this manual is reviewed on a regular
basis and any necessary corrections will be implemented in the next
edition. We accept no liability for technical or typographical errors or
the consequences thereof.
All trademarks and industrial property rights are acknowledged.
Printed in Hong Kong.
Changes may be made without prior notice as a result of technical
advances.
4P687364-1
2022.04
Table of contents
1 Information about this manual................................ 13
2 Hazard information................................................. 13
3 Daikin Home Controls ........................................... 15
4 Function and accessory overview .......................... 16
5 Start-up................................................................... 18
5.1 Connecting DHC accessories ..................................... 18

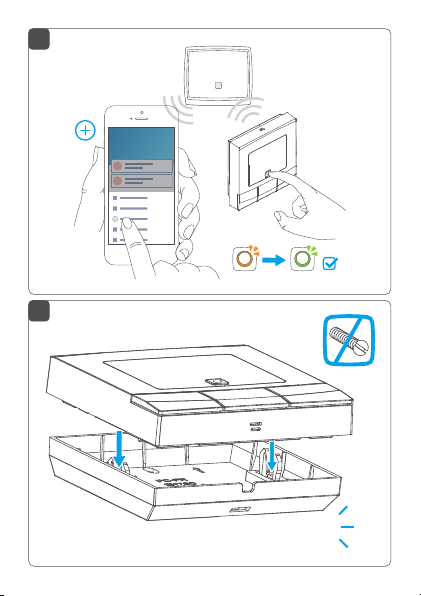

5.1.1 Connecting to the DHC Access Point .............. 18
5.2 Mounting ..................................................................... 20

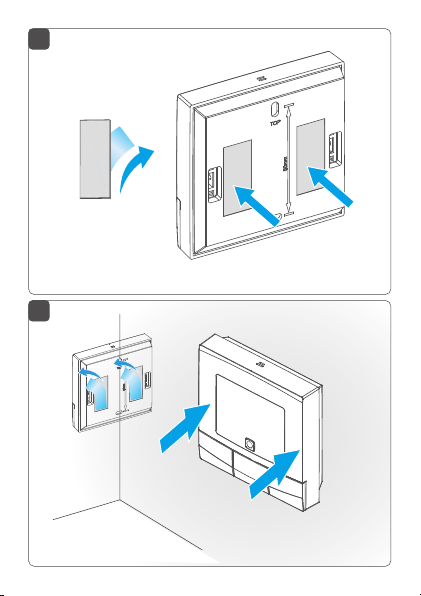

5.2.1 Adhesive strip mounting .................................. 20

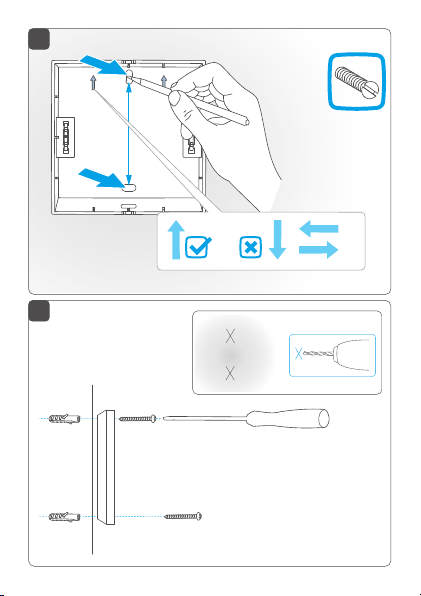

5.2.2 Screw mounting............................................... 21
5.2.3 Flush-mounted box mounting .......................... 22
6 Conguration.......................................................... 24
6.1 Automatic mode .......................................................... 24
6.2 Manual mode .............................................................. 25
6.3 O󰀨settemperature(notyetavailable)......................... 25
6.4 Programming a schedule ............................................ 25
6.5 Operatinglock(notyetavailable)................................ 26
6.6 Holiday mode .............................................................. 26
7 Operation................................................................ 27
8 Replacing batteries................................................. 28
9 Troubleshooting...................................................... 29
9.1 Weak battery ............................................................... 29
9.2 Duty cycle ................................................................... 30
9.3 Errorcodesandashingsequences........................... 31
10 Restore factory settings.......................................... 33
11 Maintenance and cleaning ..................................... 34

12
Information about this manual
12 General information about radio operation............. 35
13 Technicalspecications.......................................... 36

13
Information about this manual
12 General information about radio operation............. 35
13 Technicalspecications.......................................... 36
1 Information about this manual
Read this manual carefully before beginning operation with
yourDaikinHomeControls(DHC)accessories.Keep the
manual so you can refer to it at a later date if you need to. If
you hand over the accessory to other persons for use, hand
over this manual as well.
Symbols used:
Attention!
This indicates a hazard.
Please note:
This section contains important additional informa-
tion.
2 Hazard information
Do not open the accessory. It does not contain any
parts that can be maintained by the user. In the
event of an error, have the accessory checked by
an expert.
For safety and licensing reasons (CE), unautho-
rizedchangeand/ormodicationoftheaccessory
is not permitted.

14
Hazard information Daikin Home Controls
The accessory may only be operated in a dry and
dust-free environment and must be protected from
the e󰀨ects of moisture, vibrations, solar or other
types of heat radiation, cold and mechanical loads.
The accessory is not a toy; do not allow children to
play with it. Do not leave packaging material lying
around. Plastic lms/bags, pieces of polystyrene,
etc. can be dangerous in the hands of a child.
We do not assume any liability for damage to prop-
erty or personal injury caused by improper use or
the failure to observe the hazard information. In
such cases, any claim under warranty is extin-
guished! For consequential damages, we assume
no liability!
The accessory may only be operated within resi-
dential buildings.
Using the accessory for any purpose other than
that described in this operating manual does not
fall within the scope of intended use and shall inval-
idate any warranty or liability.
Always keep a minimum distance of 50 cm be-
tween the DHC accessories.
3 Daikin Home Controls
This accessory is part of the DHC ecosystem and commu-
nicates with a dedicated wireless connection.
Allaccessoriesofthesystemcanbecongured comfort-
ably and individually via the ONECTA app. The available
functions provided by the DHC ecosystem in combina-
tion with other accessories are described in the DHC
Application Guide.
All current technical documents and updates can be found
on the product pages:
https://qr.daikin.eu/?N=EKRCTRDI2BA

15
Hazard information Daikin Home Controls
The accessory may only be operated in a dry and
dust-free environment and must be protected from
the e󰀨ects of moisture, vibrations, solar or other
types of heat radiation, cold and mechanical loads.
The accessory is not a toy; do not allow children to
play with it. Do not leave packaging material lying
around. Plastic lms/bags, pieces of polystyrene,
etc. can be dangerous in the hands of a child.
We do not assume any liability for damage to prop-
erty or personal injury caused by improper use or
the failure to observe the hazard information. In
such cases, any claim under warranty is extin-
guished! For consequential damages, we assume
no liability!
The accessory may only be operated within resi-
dential buildings.
Using the accessory for any purpose other than
that described in this operating manual does not
fall within the scope of intended use and shall inval-
idate any warranty or liability.
Always keep a minimum distance of 50 cm be-
tween the DHC accessories.
3 Daikin Home Controls
This accessory is part of the DHC ecosystem and commu-
nicates with a dedicated wireless connection.
Allaccessoriesofthesystemcanbecongured comfort-
ably and individually via the ONECTA app. The available
functions provided by the DHC ecosystem in combina-
tion with other accessories are described in the DHC
Application Guide.
All current technical documents and updates can be found
on the product pages:
https://qr.daikin.eu/?N=EKRCTRDI2BA

16
Function and accessory overview Function and accessory overview
4 Function and accessory overview
The DHC Room Thermostat enables time-controlled reg-
ulation of your conventional radiators with DHC Radiator
Thermostats, or of your oor heating in combination with
DHC Floor Heating Controllers, and adjusts heating time
slots to your individual needs.
The DHC Room Thermostat measures the room tempera-
ture and humidity and transmits these at intervals to the
DHC Radiator Thermostats or DHC Floor Heating Control-
lers enabling room temperatures to be precisely controlled.
You can comfortably control the DHC Room Thermostat in
combination with a DHC Access Point via the free app.
Thanks to battery operation and radio communication, the
DHC Room Thermostat is highly exible concerning the
mounting location.

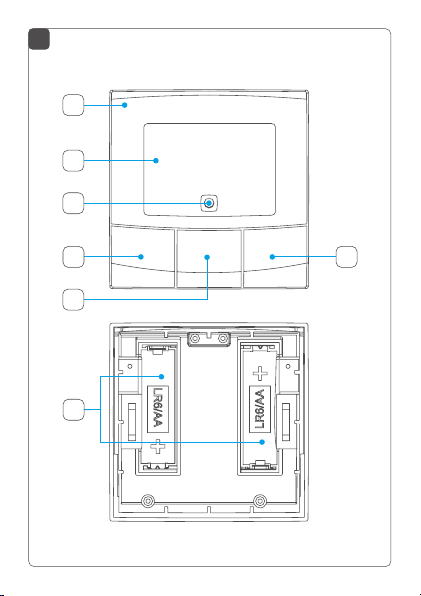

Accessory overview (see gure 1):
(A) Electronicunit(thermostat)
(B) Display
(C) System button and LED
(D) Minus button
(E) Menu/Boost button
(F) Plus button
(G) Battery compartment
Display overview (see gure 2):
Setpoint/actual temperature
Open window symbol
Battery symbol
Radio transmission
Boost function
Manual mode*
Automatic mode*
Holiday mode*
Heating
Cooling
Operating lock*
Setpoint temperature
Overview of time slots
Date and time
O󰀨settemperature*
Programming a schedule*
Days of the week
* see “6Conguration”onpage24

17
Function and accessory overview Function and accessory overview
4 Function and accessory overview
The DHC Room Thermostat enables time-controlled reg-
ulation of your conventional radiators with DHC Radiator
Thermostats, or of your oor heating in combination with
DHC Floor Heating Controllers, and adjusts heating time
slots to your individual needs.
The DHC Room Thermostat measures the room tempera-
ture and humidity and transmits these at intervals to the
DHC Radiator Thermostats or DHC Floor Heating Control-
lers enabling room temperatures to be precisely controlled.
You can comfortably control the DHC Room Thermostat in
combination with a DHC Access Point via the free app.
Thanks to battery operation and radio communication, the
DHC Room Thermostat is highly exible concerning the
mounting location.
Accessory overview (see gure 1):
(A) Electronicunit(thermostat)
(B) Display
(C) System button and LED
(D) Minus button
(E) Menu/Boost button
(F) Plus button
(G) Battery compartment
Display overview (see gure 2):
Setpoint/actual temperature
Open window symbol
Battery symbol
Radio transmission
Boost function
Manual mode*
Automatic mode*
Holiday mode*
Heating
Cooling
Operating lock*
Setpoint temperature
Overview of time slots
Date and time
O󰀨settemperature*
Programming a schedule*
Days of the week
* see “6Conguration”onpage24

18
Start-up Start-up
5 Start-up
5.1 Connecting DHC accessories
Read this entire section before starting to
connect other accessories.
To integrate the DHC Room Thermostat into your ecosys-
tem and enable it to communicatie with other accessories,
youmustconnectthemrst.
You can connect the DHC Room Thermostat to the DHC
Access Point via the ONECTA app. It is also possible to
create a direct connection to other DHC accessories. For
further information on direct connection, see the DHC
Application Guide.
5.1.1 Connecting to the DHC Access Point
First set up your DHC Access Point via the
ONECTA app to enable operation of other DHC ac-
cessories within your system. For further informa-
tion, see the manual of the DHC Access Point.
After connecting the DHC Room Thermostat to the
DHC Access Point, the menu of the DHC Room
Thermostat will be hidden and settings can be ad-
justed only via the ONECTA app.
To connect the DHC Room Thermostat to the DHC Access
Point, proceed as follows:
1. Open the ONECTA app.
2. Clickontheplussymbol(+).
3. Select the menu item Add Daikin Home Controls.
4. Select Add DHC Accessory (see gure 4).

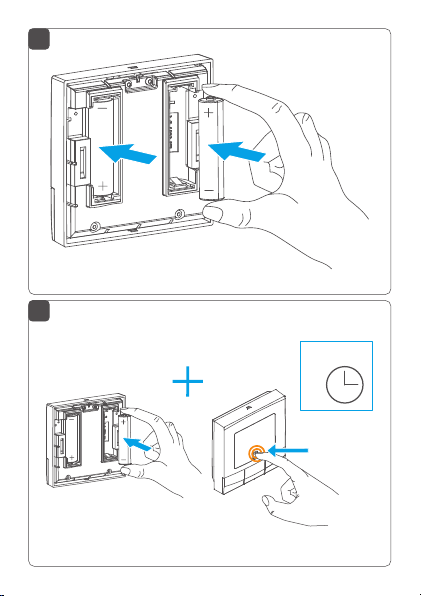

5. Open the battery compartment (G) using a slotted
screwdriver to loosen the wall mounting plate (see
gure 3).
6. Remove the insulation strip from the battery com-
partment.
» Connection mode remains activated for 3 minutes.
You can manually start the connection mode for
another 3 minutes by pressing the system button
(C)shortly(see gure 4).
7. Follow the instructions in the app.

19
Start-up Start-up
5 Start-up
5.1 Connecting DHC accessories
Read this entire section before starting to
connect other accessories.
To integrate the DHC Room Thermostat into your ecosys-
tem and enable it to communicatie with other accessories,
youmustconnectthemrst.
You can connect the DHC Room Thermostat to the DHC
Access Point via the ONECTA app. It is also possible to
create a direct connection to other DHC accessories. For
further information on direct connection, see the DHC
Application Guide.
5.1.1 Connecting to the DHC Access Point
First set up your DHC Access Point via the
ONECTA app to enable operation of other DHC ac-
cessories within your system. For further informa-
tion, see the manual of the DHC Access Point.
After connecting the DHC Room Thermostat to the
DHC Access Point, the menu of the DHC Room
Thermostat will be hidden and settings can be ad-
justed only via the ONECTA app.
To connect the DHC Room Thermostat to the DHC Access
Point, proceed as follows:
1. Open the ONECTA app.
2. Clickontheplussymbol(+).
3. Select the menu item Add Daikin Home Controls.
4. Select Add DHC Accessory (see gure 4).
5. Open the battery compartment (G) using a slotted
screwdriver to loosen the wall mounting plate (see
gure 3).
6. Remove the insulation strip from the battery com-
partment.
» Connection mode remains activated for 3 minutes.
You can manually start the connection mode for
another 3 minutes by pressing the system button
(C)shortly(see gure 4).
7. Follow the instructions in the app.

20
Start-up Start-up
5.2 Mounting
Read this entire section before starting to
mount the accessory.
YoucanxtheDHCRoomThermostattoawallwith:
• the supplied double-sided adhesive strips, or
• the supplied screws.
You can also mount the DHC Room Thermostat on a
ush-mountedbox.
5.2.1 Adhesive strip mounting
To mount the DHC Room Thermostat using the adhesive
strips, proceed as follows:
1. Choose a site for installation.
Make sure that the mounting surface is smooth,
solid, non-disturbed, free of dust, grease and sol-
vents and not too cold to ensure long-time adher-
ence.

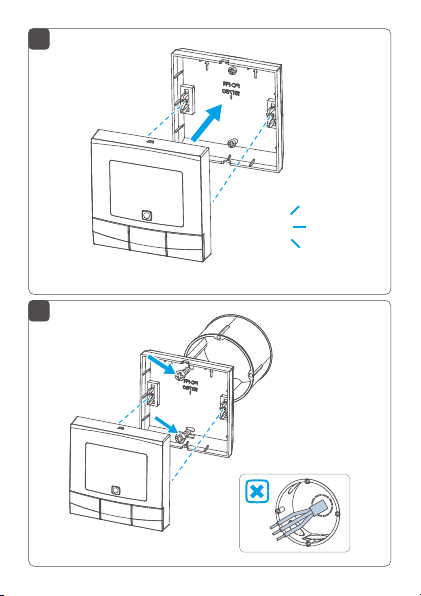

2. Insert the electronic unit (A) into the wall mounting
plate (see gure 5). Make sure that the electronic
unit properly engages into the wall mounting plate.
3. Fix the adhesive strips on the back side of the wall
mounting plate in the provided area. You should be
able to read the letters (“TOP”) on the back side
(see gure 6).
4. Removetheprotectivelmfromtheadhesivestrips
(see gure 7).
5. Press the assembled DHC Room Thermostat with
the back side to the wall (see gure 7).
5.2.2 Screw mounting
To mount the DHC Room Thermostat with screws, proceed
as follows:
1. Choose a site for installation.
Make sure that no electricity or similar lines run in
the wall at this location!
2. Position the wall mounting plate on the desired site
on the wall. Make sure that the arrows on the back
side of the wall mounting plate point upwards (see
gure 8).
3. Use a pen to mark the positions of the two screw
holes according to the wall mounting plate, with a
distance of 60 mm, on the wall (see gure 8).
4. Drill the marked holes (see gure 9).
If you are working with a stone wall, drill the marked
5 mm holes and insert the plugs supplied. If you are
working with a wooden wall, you can pre-drill
1.5 mm holes to easier insert the screws.
5. Usethe suppliedscrewsand plugstox thewall
