Daikin RoCon UFH User manual

Installation and operating manual
Installation and operating manual
Installations- und Betriebsanleitung
Manuel d'installation et de fonctionnement
Montagehandleiding en gebruiksaanwijzing
Manuale d'installazione e d'uso
UFH-BM
UFH-UM
UFH-RMD2
UFH-RMD6
UFH-RD
UFH-RMF2A
UFH-RMF6A
UFH-RFT
12/2020
English
Deutsch
Italiano
Français
Nederlands
RoCon UFH

Installation and operating manual
Installation and operating manual
UFH-BM
UFH-UM
UFH-RMD2
UFH-RMD6
UFH-RD
UFH-RMF2A
UFH-RMF6A
UFH-RFT
12/2020
English
RoCon UFH

2
About these operating instructions
EN
RoCon UFH
1 About these operating instructions
These operating instructions describe the system "„RoCon UFH" for single room tem-
perature control (also referred to as "product" in these operating instructions). These
operating instructions are part of the product.
• You may only use the product if you have fully read and understood these operat-
ing instructions.
• Verify that these operating instructions are always accessible for any type of work
performed on or with the product.
• Pass these operating instructions as well as all other product-related documents
on to all owners of the product.
• If you feel that these operating instructions contain errors, inconsistencies, ambi-
guities or other issues, contact the manufacturer prior to using the product.
• The wireless system described in these instructions is only available in certain
sales areas.
These operating instructions are protected by copyright and may only be used as pro-
vided for by the corresponding copyright legislation. We reserve the right to modifica-
tions.
The manufacturer shall not be liable in any form whatsoever for direct or consequen-
tial damage resulting from failure to observe these operating instructions or from fail-
ure to comply with directives, regulations and standards and any other statutory
requirements applicable at the installation site of the product.

3
Information on safety
EN
RoCon UFH
2 Information on safety
2.1 Safety messages and hazard categories
These operating instructions contain safety messages to alert you to potential haz-
ards and risks. In addition to the instructions provided in these operating instructions,
you must comply with all directives, standards and safety regulations applicable at the
installation site of the product. Verify that you are familiar with all directives, standards
and safety regulations and ensure compliance with them prior to using the product.
Safety messages in these operating instructions are highlighted with warning symbols
and warning words. Depending on the severity of a hazard, the safety messages are
classified according to different hazard categories.
In addition, the following symbols are used in these operating instructions:
DANGER
DANGER indicates a hazardous situation, which, if not avoided, will result in
death or serious injury.
NOTICE
NOTICE indicates a hazardous situation, which, if not avoided, can result in
equipment damage.
This is the general safety alert symbol. It alerts to injury hazards or
equipment damage. Comply with all safety instructions in conjunc-
tion with this symbol to help avoid possible death, injury or equip-
ment damage.
This symbol alerts to hazardous electrical voltage. If this symbol is
used in a safety message, there is a hazard of electric shock.

4
Information on safety
EN
RoCon UFH
2.2 Intended use
This product may only be used to control the room temperature (heat/cool) of individ-
ual rooms with underfloor heating system.
The controller modules may only be used to control the thermostatic actuators via the
signals of the associated room controllers and the base module.
Any use other than the application explicitly permitted in these operating instructions
is not permitted and causes hazards.
Verify that the product is suitable for the application planned by you prior to using the
product. In doing so, take into account at least the following:
• All directives, standards and safety regulations applicable at the installation site of
the product
• All conditions and data specified for the product
• The conditions of the planned application
In addition, perform a risk assessment in view of the planned application, according
to an approved risk assessment method, and implement the appropriate safety meas-
ures, based on the results of the risk assessment. Take into account the conse-
quences of installing or integrating the product into a system or a plant.
When using the product, perform all work and all other activities in conjunction with
the product in compliance with the conditions specified in the operating instructions
and on the nameplate, as well as with all directives, standards and safety regulations
applicable at the installation site of the product.
2.3 Predictable incorrect application
The product must never be used in the following cases and for the following purposes:
• Hazardous area (EX)
- If the product is operated in hazardous areas, sparks may cause deflagrations,
fires or explosions
• In conjunction with products which are used for health-saving or life-saving pur-
poses or whose operation may incur hazards to humans, animals or property

5
Information on safety
EN
RoCon UFH
2.4 Qualification of personnel
Only appropriately trained persons who are familiar with and understand the contents
of these operating instructions and all other pertinent product documentation are
authorized to work on and with this product.
These persons must have sufficient technical training, knowledge and experience and
be able to foresee and detect potential hazards that may be caused by using the prod-
uct.
All persons working on and with the product must be fully familiar with all directives,
standards and safety regulations that must be observed for performing such work.
2.5 Personal protective equipment
Always wear the required personal protective equipment. When performing work on
and with the product, take into account that hazards may be present at the installation
site which do not directly result from the product itself.
2.6 Modifications to the product
Only perform work on and with the product which is explicitly described in these oper-
ating instructions. Do not make any modifications to the product which are not
described in these operating instructions.

6
Transport and storage
EN
RoCon UFH
3 Transport and storage
The product may be damaged as a result of improper transport or storage.
NOTICE
INCORRECT HANDLING
• Verify compliance with the specified ambient conditions during transport or
storage of the product.
• Use the original packaging when transporting the product.
• Store the product in a clean and dry environment.
• Verify that the product is protected against shocks and impact during trans-
port and storage.
Failure to follow these instructions can result in equipment damage.

7
Product description
EN
RoCon UFH
4 Product description
The single room temperature controller RoCon UFH is used to control the tempera-
ture in rooms with underfloor heating system (heating and cooling). The controller
compares the actual temperature and the reference temperature and controls the vol-
ume flow of the heating water via the corresponding thermostatic actuators.
The room controllers measure the actual temperature in the corresponding rooms.
The reference temperature is adjusted via the rotary knob of the corresponding room
controllers.
The controller modules with 2 or 6 independent control circuits control the respective
thermostatic actuators via the signals of the room controllers and the base module.
Th base module supplies the room controllers with 5 V DC and the thermostatic actu-
ators with 230 V AC. The single room temperature controller RoCon UFH can be
switched between heating and cooling via the base module. The control circuit pumps
can be controlled via the base module.
The optional timer module features a hundred year calendar. The display shows the
date, time and day of the week. The timer module features 2 independently program-
mable switching channels for temperature reduction. A total of 9 programmable mem-
ory blocks are available. The additional pump running time can be set via the timer
module. The timer module has a valve and pump protection function.
The single room temperature controller consists of a base module, at least one room
controller and at least one controller module. Multiple controller modules with 2 or 6
control circuits can be adapted.
The single room temperature controller RoCon UFH is available in 2 versions(1):
• Room controller and controller modules are interconnected by a cable.
• Room controllers and controller module are connected via EnOcean®wireless(1).
The single room temperature controller RoCon UFH is a modular system. The ver-
sions wired and wireless(1) can also be operated in mixed mode.
(1) The wireless system is only available in certain sales areas.

8
Product description
EN
RoCon UFH
4.1 Overview of the individual RoCon UFH components
Component Versions Explanation Ordering
number
Base module RoCon UFH-
BM
- 175137
Timer module RoCon UFH-
UM
- 175138
Room tempera-
ture controller
RoCon UFH-RD Wired 175139
RoCon UFH-
RFT(1)
(1) The wireless system is only available in certain sales areas.
Wireless, temperature 175142
Controller mod-
ule
RoCon UFH-
RMD2
Wired with 2 control circuits 175141
RoCon UFH-
RMD6
Wired with 6 control circuits 175140
RoCon UFH-
RMF2A(1) With external antenna and 2
control circuits
175144
RoCon UFH-
RMF6A(1) With external antenna and 6
control circuits
175143

9
Product description
EN
RoCon UFH
4.2 Overview

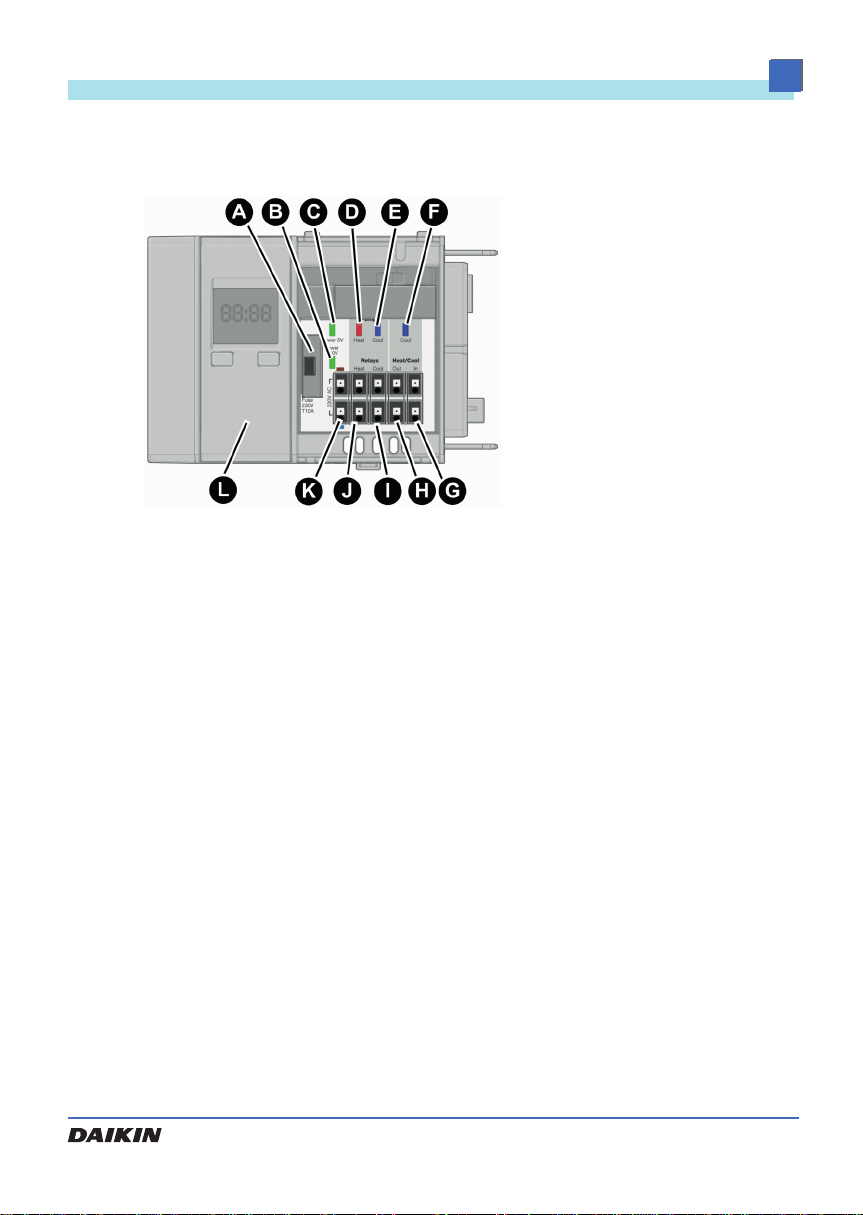

Base module RoCon UFH-BM
A. Fuse compartment
B. Operation mains voltage
(LED green)
C. Operation 5 V (LED green)
D. Pump Heating (LED red)
E. Pump Cooling (LED blue)
F. Cooling (LED blue)
G. Input switchover Heating/
Cooling
H. Cascading output Heating/
Cooling
I. Relay contact pump Cooling
J. Relay contact pump Heating
K. Mains voltage 230 V AC
L. Timer module (optional)
Fig. 4-1: Front view base module

10
Product description
EN
RoCon UFH
Controller modules wired
A. Controller module RoCon UFH-
RMD2
B. Controller module RoCon UFH-
RMD6
C. End cover
1. Catch
2. Operation mains voltage (LED green)
3. Thermostatic actuator active (LED
yellow)
4. Terminal block for room controller
RoCon UFH-RD
5. Terminal block for thermostatic actua-
tors
6. Fuse compartment
Fig. 4-2: Front view controller modules wired

11
Product description
EN
RoCon UFH
Controller modules wireless(1)
A. Controller module RoCon UFH
RMF2A
B. Controller module RoCon UFH
RMF6A
C. End cover
1. Teach-in key (LRN key)
2. Catch
3. Operation mains voltage (LED green)
4. Thermostatic actuator active (LED
yellow)
5. Wireless module
6. Terminal block for thermostatic actua-
tors
7. Fuse compartment
8. Reset button (CLR button)
Fig. 4-3: Front view controller modules wireless
(1) The wireless system is only available in certain sales areas.
Information
Additional information on planning (e.g. "range planning"), installation and oper-
ation of EnOcean®wireless systems can be found at www.enocean.com.

12
Product description
EN
RoCon UFH

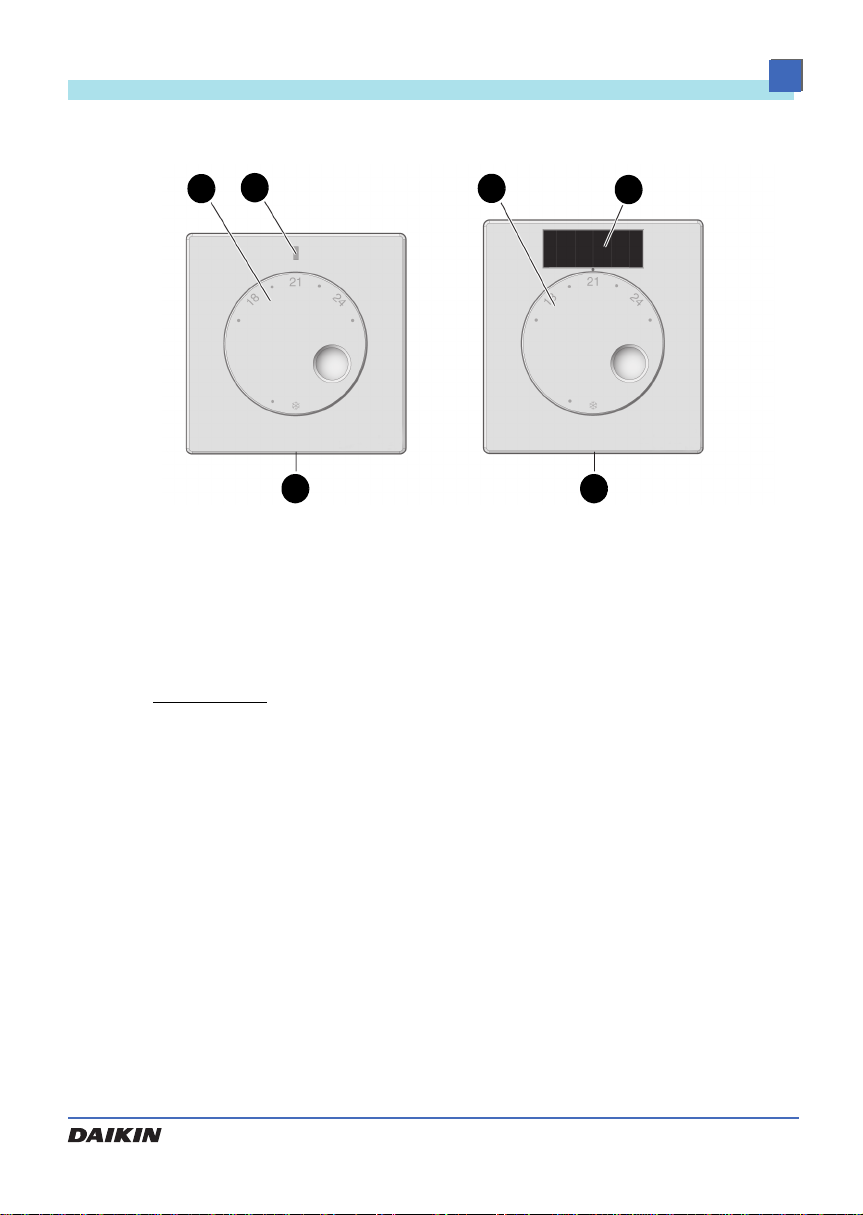

Room controller
A. Room controller wired UFH-RD
B. Room controller wireless UFH-RFT(1)
(1) The wireless system is only available in certain sales areas.
1. Rotary knob for adjusting the refer-
ence temperature
2. LED red: Hearing
LED blue: Cooling
3. Solar cell
Fig. 4-4: Front view room controller
2
1
A
1
B
13

13
Product description
EN
RoCon UFH
4.3 Application examples
Fig. 4-5: Single room temperature controller-RoCon UFH with one controller module
RoCon UFH-RMD6 wired and 6 room controllers RoCon UFH-RD
Fig. 4-6: Single room temperature controller RoCon UFH with one controller module
RoCon UFH-RMF6A wireless(1) and 6 room controllers RoCon UFH-RFT(1)
(1) The wireless system is only available in certain sales areas.

14
Product description
EN
RoCon UFH
4.4 Technical data
Table 4-1: Technical specifications base module
Parameter Base module RoCon UFH-BM
General specifications
Dimensions housing
(W x H x D)
122 mm x 92 mm x 45 mm
Weight 215 g
Housing material PC/ABS
Colour Light grey, similar to RAL 7047
Operating temperature range
Ambient -20°C...+60°C
Storage -20°C...+60°C
Max. humidity Non-condensing
Supply voltage
Nominal voltage AC 230 V, 50 Hz to 60 Hz
Nominal power (base module
only)
1 VA
Mains fuse T 10 A
Relay load Max. 230 V, max. 2 A, power factor > 0.6
Permissible cable type H03 VV-H2-F 2 x 0.75 mm²
The following components may be connected to one product
Controller modules sextuple Max. 3
Controller module dual Max. 9
Total number of control circuits Max. 18
Total number of thermostatic
actuators
Max. 72 (see table 4-6)
Electrical safety
Protection class (EN 60730-1) II
Degree of protection
(EN 60529)
IP 20

15
Product description
EN
RoCon UFH
Table 4-2: Technical specifications controller modules wired
Parameter Controller module
RoCon UFH-RMD2 Controller module RoCon UFH-RMD6
General specifications
Dimensions housing
(W x H x D)
73 mm x 92 mm x 45 mm 162 mm x 92 mm x 45 mm
Weight 130 g 260 g
Housing material PC/ABS
Operating temperature range
Ambient -20 °C … +60 °C
Storage -20 °C … +60 °C
Max. humidity Non-condensing
Supply voltage
Nominal voltage Via base module AC 230 V, DC 5 V
Nominal power
(controller module only)
0.1 W 0.3 W
Fuse for thermostatic actu-
ators
T 1 A T 3.15 A
Permissible cable type to
thermostatic actuators
H03 VV-H2-F 2 x 0.75 mm²
Permissible cable type to
the room temperature con-
trollers
J-Y (St) Y 2 x 2 x 0.6 mm2
Wire colours: red, black, white, yellow
The following components may be connected to one controller module
Room controllers Max. 2 Max. 6
Thermostatic actuators Per control circuit up to 4 Daikin UFH-Sat8
Electrical safety
Protection class
(EN 60730-1)
II
Degree of protection
(EN 60529)
IP 20
Electromagnetic compatibility (EMC)
Emitted interference/immu-
nity
EN 61326-1: 2013

16
Product description
EN
RoCon UFH
Controller module wireless(1)
Table 4-3: Technical specifications controller modules wireless
Parameter Controller module
RoCon UFH RMF2A Controller module RoCon UFH RMF6A
General specifications
Dimensions (W x H x D) 73 mm x 92 mm x 45 mm 162 mm x 92 mm x 45 mm
Weight 130 g 260 g
Housing material PC/ABS
Operating temperature range
Ambient -20 °C … +60 °C
Storage -20 °C … +60 °C
Max. humidity Non-condensing
Supply voltage
Nominal voltage Via base module AC 230 V, DC 5 V
Nominal power
(controller module only)
0.3 W 0.5 W
Fuse for thermostatic actua-
tors
T 1 A T 3.15 A
Permissible cable type to
thermostatic actuators
H03 VV-H2-F 2 x 0.75 mm²
The following components may be connected to one controller module
Room controllers Max. 2 Max. 6
Thermostatic actuators Per control circuit up to 4 Daikin UFH-Sat8
Electrical safety
Protection class
(EN 60730-1)
II
Degree of protection
(EN 60529)
IP 20
Electromagnetic compatibility (EMC)
Emitted interference/immu-
nity
EN 61326-1:2013
EnOcean®wireless
Radio Equipment Directive
(RED) 2014/53/EU
See declaration of conformity
(enclosed with product)
(1) The wireless system is only available in certain sales areas.

17
Product description
EN
RoCon UFH
Parameter Room controller wired
RoCon UFH-RD Room controller wire-
less(1) RoCon UFH-RFT
General specifications
Dimensions (W x H x D) 78 mm x 78 mm x
12.5 mm
78 mm x 82.5 mm x
12.5 mm
Weight 30 g 35 g
Housing material PC
Temperature adjustment
range/
temperature measuring
range
8 °C… 30 C°
Temperature reduction 4K (only if higher than +12 °C)
Operating temperature range
Ambient -20°C…+60°C
Storage -20°C…+60°C
Max. humidity Non-condensing
Humidity measurement
Measuring range - 0 % - 100 % room humidity
Supply voltage
Nominal voltage Via controller module
5VDC
Via solar cell or battery
(type 1632, 3 V DC) with
illuminance < 200 lux
Nominal power per room
controller
0.015 W Energy Harvesting
Permissible cable type,
wire colours
J-Y (St) Y 2 x 2 x 0.6 mm2:
red, black, white, yellow
-
Maximum cable length 100 m -
Electrical safety
Protection class
(EN 60730-1, SELV)
III
Degree of protection
(EN 60529)
IP 30

18
Product description
EN
RoCon UFH
Table 4-4: Technical specifications room controller
Electromagnetic compatibility (EMC)
Emitted interference/immu-
nity
EN 61326-1:2013
EnOcean®wireless
Radio Equipment Directive
(RED) 2014/53/EU
- Frequency 868.3 MHz
Transmission power
max. 10 mW
Additional information:
www.enocean.com
See declaration of con-
formity (enclosed with the
product)
(1) The wireless system is only available in certain sales areas.
Parameter Room controller wired
RoCon UFH-RD Room controller wire-
less(1) RoCon UFH-RFT
