1Introduction
The Dairymaster MooMonitor+ is the most advanced animal behavioural analysis
tool in the world.
MooMonitor+ tags are lighter with reduced
power consumption longer battery life along with
extended range allowing the user greater
flexibility with how the system is put into practice.
Dairymasters MooMonitor+ is a complete health
and fertility monitoring system for beef and dairy
cows that pair’s cutting edge technology with a
user-friendly cloud-based software system
spanning Android, IOS, and browser-based
interfaces.
The MooMonitor+ system is designed with the farmer in mind, providing the farmer
important information on the health and fertility of each cow in the herd.
It is the next generation in Cow activity monitoring systems as it measures and
records millions of data points on every animal every day, these data points are
used to identify different activity patterns of every cow.
The information recorded on the MooMonitor+
activity collar is wirelessly transferred to the
internet via the MooMonitor+ Base station which
is installed on site by the installation team.
This data is then interpreted by a Dairymasters
own software programs, which use specially
designed algorithms to analyse the data and
provide the user with accurate information on
each individual animal.
These algorithms have been built based on years of
research and development to turn the raw data
from the cow into usable information that the
farmer can use to better manage the health and
fertility of his herd.
The MooMonitor+ provides the user with health
reports based on different criteria such as
rumination, feeding activity, oestrous activity, lying
time restlessness and much more as the system
develops further.
Figure 2 –MooMonitor +
Basestation assembly
Figure 1 - MooMonitor + Tag

2-1
USM 12044 - MOOMONITOR + v4.0
Copyright Dairymaster 2016
2Scope
The information in this manual is intended for the valued customer and end-user of
Dairymaster’s MooMonitor+.
The Information in this manual relates to the latest software version of the web
interface and mobile devices. This manual contains information for the following:
Web Interface: Software Version 2.5
Android App: Software Version 2.0
IOS App: Software Version 2.0
This latest version of the installation manual contains new information relating to
the latest Android and IOS Apps. There have been lots of additional features added
to the mobile apps which will enable the user to receive and update more
information at any time.
For repairs or replacements, it is recommended that you use Dairymaster
replacement parts alone. Contact your Dairymaster installer or agent with any
queries.
Dairymaster warranties cover the operation of its parts alone and cannot be held
responsible for the malfunction of parts not supplied by Dairymaster.
For further information regarding Dairymaster’s Moo Monitor + system or any
other Dairymaster product please feel free to contact us through e-mail or by
telephone using the details given below:
Email: [email protected]
Telephone: [phone]
This manual contains information allowing end-users to:
Use of the MooMonitor+ Applications on Android, IOS, and browser based
platforms.
Understand and utilise The MooMonitor+ Interface.

3-1
USM 12044 - MOOMONITOR + v4.0
Copyright Dairymaster 2016
3Safety
Only trained Dairymaster technicians should be allowed to install and service
MooMonitor+ plant. The Farmer/User Must Not Attempt to alter any part of the
MooMonitor+ System.
Before attempting any installation /
maintenance works
Always isolate the electrical supply.
Warning
To prevent accidental injury ensure all safety devices and PPE are used during any
maintenance / installation works. Always ensure that following guidelines are
adhered to at a minimum.
Follow the current Health & Safety standards appropriate to your region.
Ensure Tools used, are appropriate for the task.

The work area has been checked by a suitable person; who has been
identified in accordance with the relevant industry / statutory regulations in
your region as a capable person to access the work area. This person must
deem the work area is a safe suitable working environment.
Safe systems of work are in place and are being adhered to.

That all equipment has been checked by a suitable person and are
appropriate for the task.
You alone are responsible for Health & Safety

3-2
USM 12044 - MOOMONITOR + v4.0
Copyright Dairymaster 2016
This device complies with Part 15 of the FCC Rules.
The operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that
may cause undesired operation.
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. End users must follow the specific operating instructions for
satisfying RF exposure compliance. This transmitter must not be co-located or operate
in conjunction with any other antenna or transmitter.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment
Canada
Under Industry Canada regulations, this radio transmitter may only operate using
an antenna of a type and maximum (or lesser) gain approved for the transmitter by
Industry Canada.
To reduce potential radio interference to other users, the antenna type and its gain
should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not
more than that necessary for successful communication."
This device complies with Industry Canada licence-exempt RSS standard(s). The
operation is subject to the following two conditions:
1. This device may not cause interference, and
2. This device must accept any interference, including interference that may
cause undesired operation of the device.
Conformément à la réglementation d'Industrie Canada, le présent émetteur radio
peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur)
approuvé pour l'émetteur par Industrie Canada.
Dans le but de réduire les risques de brouillage radioélectrique à l'intention des
autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la
puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité
nécessaire à l'établissement d'une communication satisfaisante."
"Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux
appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions
suivantes:
1. l'appareil ne doit pas produire de brouillage, et
2. l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi,
même si le brouillage est susceptible d'en compromettre le fonctionnement."

4-1
USM 12044 - MOOMONITOR + v4.0
Copyright Dairymaster 2016
4Mechanical
Base station Installation (Main Kit components).
Wall mounting
bracket
Wall mounting
bracket
MooMonitor +
Basestation
GSM Antenna
ISM Antenna
WI-FI Antenna
Figure 3 –Typical MooMonitor + Basestation assembly

4-2
USM 12044 - MOOMONITOR + v4.0
Copyright Dairymaster 2016
4.1.1 Fitting the MooMonitor+ Collars to the Cows
The MooMonitor+ collar comprises of the strap, the collar sleeve, the
retainer/locking ring, the collar weight, and the MooMonitor+ activity unit.
Fitting of the collar is vital to ensure the MooMonitor+ is giving accurate readings.
The collar must be a snug fit to ensure that all movements are recorded.
A loose fitting collar may increase the risk of the collar snagging on an obstruction
and/or become a choking hazard.
When fitting the MooMonitor+ to the cow, thread the collar through the weight to
the midpoint of the collar strap. Thread the locking ring into place over the weight.
Add the buckle onto one side of the weight and the MooMonitor+ to the opposite
side of the collar strap.

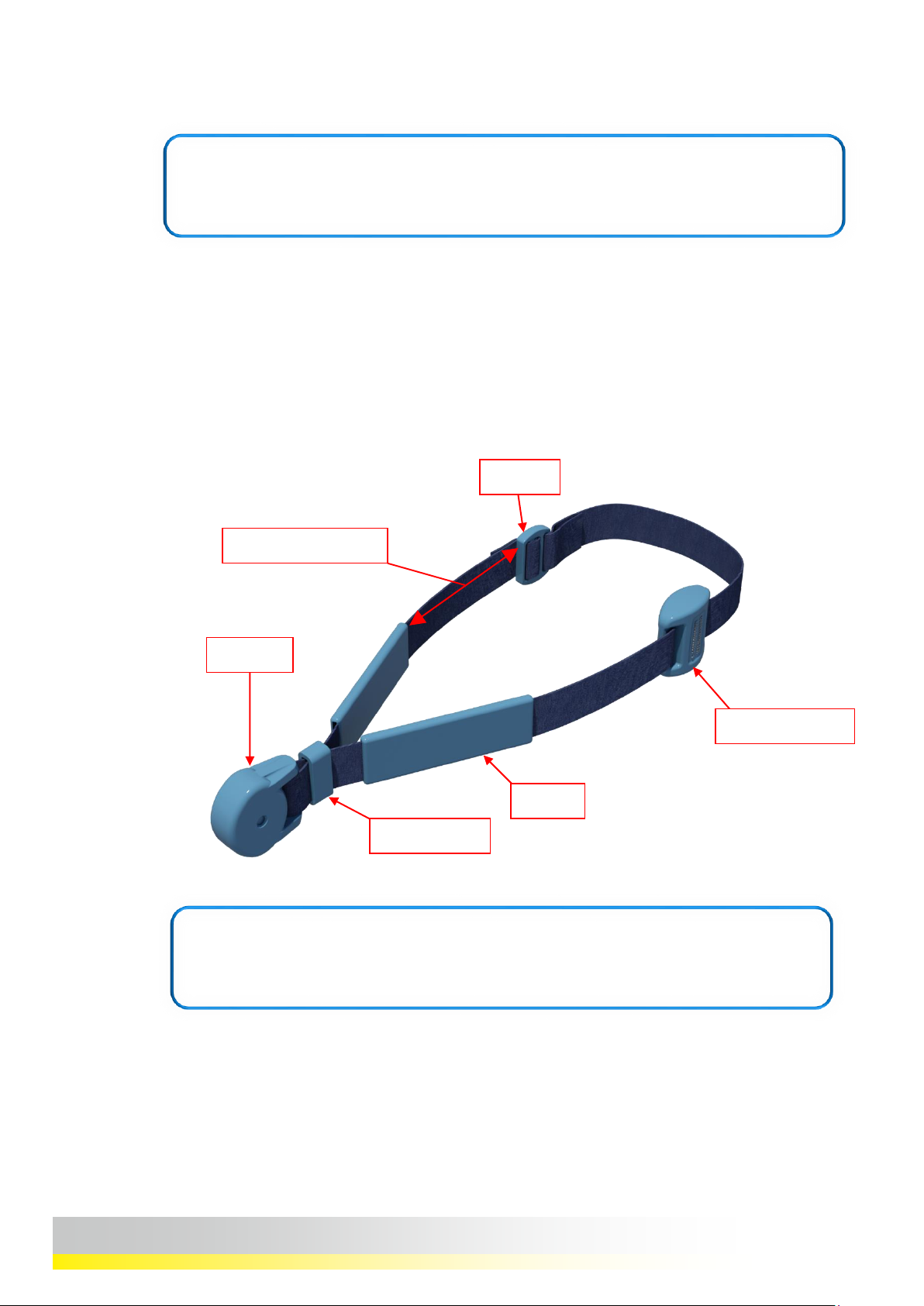

Figure 4 –MooMonitor+ Activity unit collar
Buckle
MooMonitor +
Sleeve
Locking Ring
Weight
Average of 75mm
Important Notes:
Only staff adequately trained in procedures for handling livestock should secure
the MooMonitor to the cows.
Important Note:
Note: Always keep track of the MooMonitor+ serial number and CowID pairings.
The MooMonitor+ serial number is located on the rear of the Tag.

4-3
USM 12044 - MOOMONITOR + v4.0
Copyright Dairymaster 2016
Figure 6 –Typical View of the MooMonitor + on the Cow (RHS)
Figure 5 - Typical view of the MooMonitor on the Cow (LHS)
MooMonitor + Collar
Buckle
Ensure a tight fit so the
collar will not get snagged

4-1
USM 12044 - MOOMONITOR + v4.0
Copyright Dairymaster 2016
Figure 8 - Typical View of the MooMonitor installed on the cow.
(The Weight should be centred on the cow’s neck to ensure the MooMonitor stays in position)
Figure 7 - Typical view of MooMonitor + installed on a cow
(Allow a minimum of a 100mm lap at this point)
Minimum of 100mm
lap in the strap
Weight Centred
on cow’s neck

4-1
USM 12044 - MOOMONITOR + v4.0
Copyright Dairymaster 2016
MooMonitor+ Web Interface (Version 2.5)
4.2.1 Logging in
The Dairymaster MooMonitor + Web interface provides the user with an intuitive
interface which can be accessed by typing the following address into the address
bar of google chrome or internet explorer:
cloud.dairymaster.com
Once the page loads a login page will appear and ask the user to enter the
credentials provided to them by Dairymaster. These credentials i.e. the customer's
Username and Password.
This information must be obtained from Dairymaster.
Figure 9 –MooMonitor + Web Interface Log in

5-1
USM 12044 - MOOMONITOR + v4.0
Copyright Dairymaster 2016
5Troubleshooting
In the event of an issue with an application or hardware malfunction, the user is
asked to contact their local Dairymaster Agent for support.

6-1
USM 12044 - MOOMONITOR + v4.0
Copyright Dairymaster 2016
6Reference documents/appendices
For Information on the MooMonitor+ check on the Dairymaster website at
http://www.dairymaster.com/
Table of figures
Figure 1 - MooMonitor + Tag ..................................................................................1-1
Figure 2 –MooMonitor + Basestation assembly .....................................................1-1
Figure 3 –Typical MooMonitor + Basestation assembly ........................................4-1
Figure 4 –MooMonitor+ Activity unit collar...........................................................4-2
Figure 5 - Typical view of the MooMonitor on the Cow (LHS)................................4-3
Figure 6 –Typical View of the MooMonitor + on the Cow (RHS) ............................4-3
Figure 7 - Typical view of MooMonitor + installed on a cow..................................4-1
Figure 8 - Typical View of the MooMonitor installed on the cow. .........................4-1
Figure 9 –MooMonitor + Web Interface Log in.....................................................4-1

7-1
USM 12044 - MOOMONITOR + v4.0
Copyright Dairymaster 2016
7 Contact Information
Global Headquarters
Dairymaster
Causeway
Co. Kerry
Ireland
Email: [e-mail]
Tel: [phone]
Fax: [phone]
Web: www.dairymaster.com
Dairymaster UK
Dairymaster (UK) Limited
Buntsford Hill Business
Park
Buntsford Park Road
Bromsgrove
Worcestershire
United Kingdom
Email:
[email protected]
Tel: [phone]
Fax: [phone]
Web: www.dairymaster.com
Europe
Europe Dairy Systems
Marconiweg 17
3899 BR Zeewolde
The Netherlands
Email:
[email protected]
Tel: [phone]
Fax: [phone]
Web:
www.europedairysystems.com
Dairymaster USA
Dairymaster USA Inc
11405 Sebring Drive
Cincinnati
Ohio
45240
USA
Email:
[e-mail]
Tel: [phone]
Fax: [phone]
Web:
www.dairymaster.com
