AgCam® or EnduraCam® 9” AHD Quad DVR Monitor Kit
Dakota Micro Part Numbers(s): AGCO Part Number(s):
9” AHD DVR Quad Monitor – DM-H9QD 9” AHD DVR Quad Monitor – AG-H9QD
Thank you for purchasing equipment from Dakota Micro, Inc.
Always read the manual prior to operating this equipment. Also, please follow all safety signs and precautions.
See the Dakota Micro, Inc. website for installation training videos at www.dakotamicro.com.
Table of Contents
I. Included Monitor Kit Components 2
II. Standard Features 3
III. Important Information About AHD & Analog 3
IV. Monitor Installation & Mounting 3
V. Installation 4
VI. Power Options 4-8
VII. Event Trigger Wire Operations 8
A. Event Trigger Wire Color Guide
B. Event Trigger Wires Explained
VIII. Monitor & Remote Operations 9-10
A. Monitor Operations
B. Remote Operations
IX. Menu Settings 11-13
X. Specifications 13
XI. Warnings 14
XII. Product Warranty/Repair Process 15
XIII. Consumer Limited Warranty 16
XIV. Disclaimer 16
XV. Contact Us 16
XVI.

DM(AG)-H9QD User Manual
Author: MES & CNR Revised by: MES & CNR Rev: 08/13/21 Page 2 of 16
I. INCLUDED MONITOR KIT COMPONENTS
(PER PN: DM-H9QD AND AG-H9QD)
The AgCam® and EnduraCam® camera lines are a durable, reliable surveillance system with the innovative ability to be quickly
moved from one application to the next.
Description
Dakota Micro, Inc. 9” AHD Quad DVR Monitor
Includes SD card
24-pin Locking Monitor
Wire Harness
PN: DM-HMWH
Monitor Remote
PN: DM-H9QRMT
(Styles vary by kit & battery is included)
12v Locking Hardwire Power Adapter
PN: DM-HDWRE
Monitor U-bracket with 4 Wing Bolts
PN: DMAC-9M Bracket
Monitor Sun Shield
12v Cigarette Lighter Power Adapter
PN: DM-12v
(Styles vary by kit)

DM(AG)-H9QD User Manual
Author: MES & CNR Revised by: MES & CNR Rev: 08/13/21 Page 3 of 16
II. STANDARD FEATURES
•Feature the latest in Analog HD technology
•View 1, 2, 3 or 4 cameras at the same time
•Multiple camera layouts
•LED backlit
•Compatible with NTSC or PAL cameras, simultaneously
•Compatible with AHD or CBVS cameras, simultaneously
•Advanced LCD technology allows you to clearly see your image from any angle
•Mirror the view of any of your cameras for use as a backup camera
•2 Year Warranty
•16:9 aspect ratio
•4 Camera Inputs
•Records up to 4 cameras simultaneously or independently onto SD card for easy transfer of files
•Available in 9in size
•Event triggers for each camera allow for triggered events to bring your camera to full view (IE: putting the vehicle in
reverse)
•Color, brightness, contrast, and volume controls that allow compensation for use in different environments
•Remote control, sun shield, and metal U-bracket monitor stand included
•ACC wire allows for monitor power on/off with ignition
III. IMPORTANT INFORMATION ABOUT AHD & ANALOG
•For multi-camera systems, all cameras can be either AHD or Analog.
IV. MONITOR INSTALLATION & MOUNTING
A. Mounting Precautions
Remove your monitor carefully from packaging and inspect all mounting hardware. Mounting location is the most
important part of the monitor installation as it ensures you the maximum visual benefit from your AgCam® system. With
that said, when installing your monitor, ensure to follow these three (3) precautions:
1. The monitor is out of direct sunlight. This will prolong the life of the unit as well as ensure optimum visibility.
2. The monitor does not obstruct view.
3. The monitor does not interfere with the normal operation of equipment.
WARNING:
Dakota Micro, Inc. is not responsible for any damages caused to your monitor, or yourself, due to the improper installation or
use of a suction cup monitor mount, whether it be product sold by DM or product purchased from another source.
B. Universal Bracket Mounting
1. Hold monitors U-bracket in place on monitor.
2. Attach bracket with included wing bolts.
C. Finalizing Universal Bracket Installation
1. With the mount and monitor attached, find and
mark the desired position for the monitor.
2. Remove the monitor from the mount.
3. Attach the monitor to the mount and tighten
the wing nuts.
*Use ONLY the nuts included in the kit, bolts longer than 10mm will damage your monitor.
NOTE: Turn the monitor on only after it has been securely mounted, supplied with power, and the cameras are connected

DM(AG)-H9QD User Manual
Author: MES & CNR Revised by: MES & CNR Rev: 08/13/21 Page 4 of 16
V. INSTALLATION

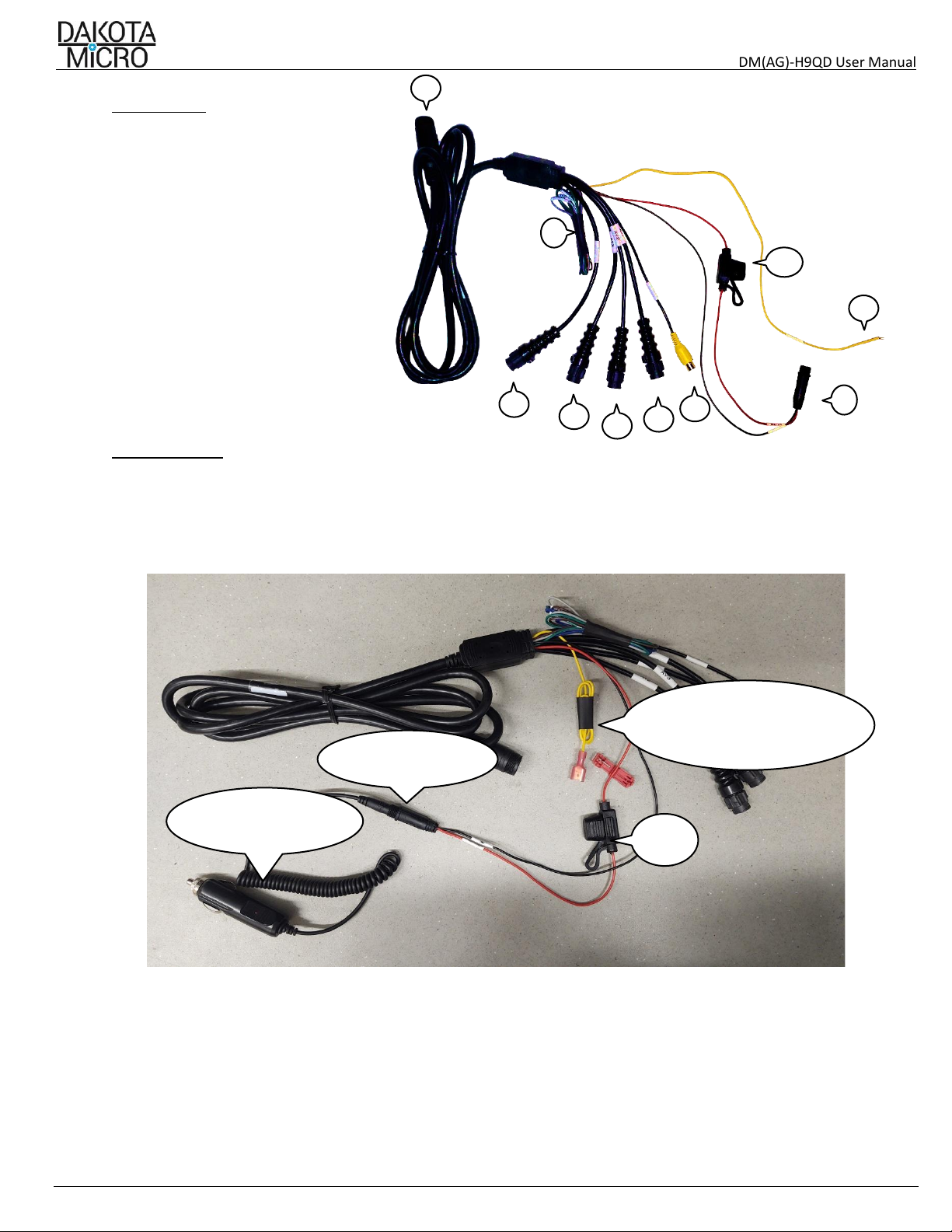

A. Monitor Wire Harness Details
1. Input to Monitor
2. AV1-4 Event Trigger Wires
3. AV1 –Audio/Video Input
4. AV2 –Audio/Video Input
5. AV3 –Audio/Video Input
6. AV4 –Audio/Video Input
7. RCA-Video Output
8. Power Input
9. ACC Power
10. Fuse
VI. POWER OPTIONS
Note that both the power (red) and ACC (yellow) wires need to be powered for the monitor display to turn on. Depending on
your needs, there are a few different ways to power your monitor and/or recordings.
A. Cigarette Adapter –No Recording When Power Off
Note: This scenario does not allow the monitor to record once power is shut off or removed.
Installation Steps:
1. Connect the power (red) and ACC (yellow) wires together with the provided T-tap. To protect the circuit, combine
before the fuse.
2. Plug the 12v Cigarette Adapter into the Power Input.
3. Power the 12v Cigarette Adapter by plugging in to any 12v accessory or port.
1
2
3
4
5
6
7
8
9
Fuse
Power Input to 12v
Cigarette Adapter
Plug in 12v Cigarette
Adapter to 12v port
Combine red and yellow wires
before the fuse with the T-Tap.
10

DM(AG)-H9QD User Manual
Author: MES & CNR Revised by: MES & CNR Rev: 08/13/21 Page 5 of 16
B. Cigarette Adapter –Recording When Ignition Off
Note: This scenario allows the monitor to record even when the ignition is off. You must have the 12v Cigarette Adapter
plugged into a port with constant power for this to work.
Installation Steps:
1. Hardwire the ACC (yellow) wire to the vehicle’s keyed/switched wire or fuse.
2. Plug the 12v Cigarette Adapter into the Power Input.
3. Power the 12v Cigarette Adapter by plugging in to any 12v accessory or port with constant power. Note: If not
plugged in to a port with constant power, the recording feature will not work if the vehicle ignition is turned off.
Plug in 12v Cigarette Adapter to
12v port with constant power
Power Input to 12v
Cigarette Adapter
Hardwire to
keyed/switched circuit

DM(AG)-H9QD User Manual
Author: MES & CNR Revised by: MES & CNR Rev: 08/13/21 Page 6 of 16
C. Hardwire Adapter - Constant Power
Note: This scenario allows the monitor to record even when the ignition is off. This installation is best used when you
need constant power when a vehicle is off, but do not have a 12v Cigarette Adapter port available to use. Hardware is
included.
Installation Steps:

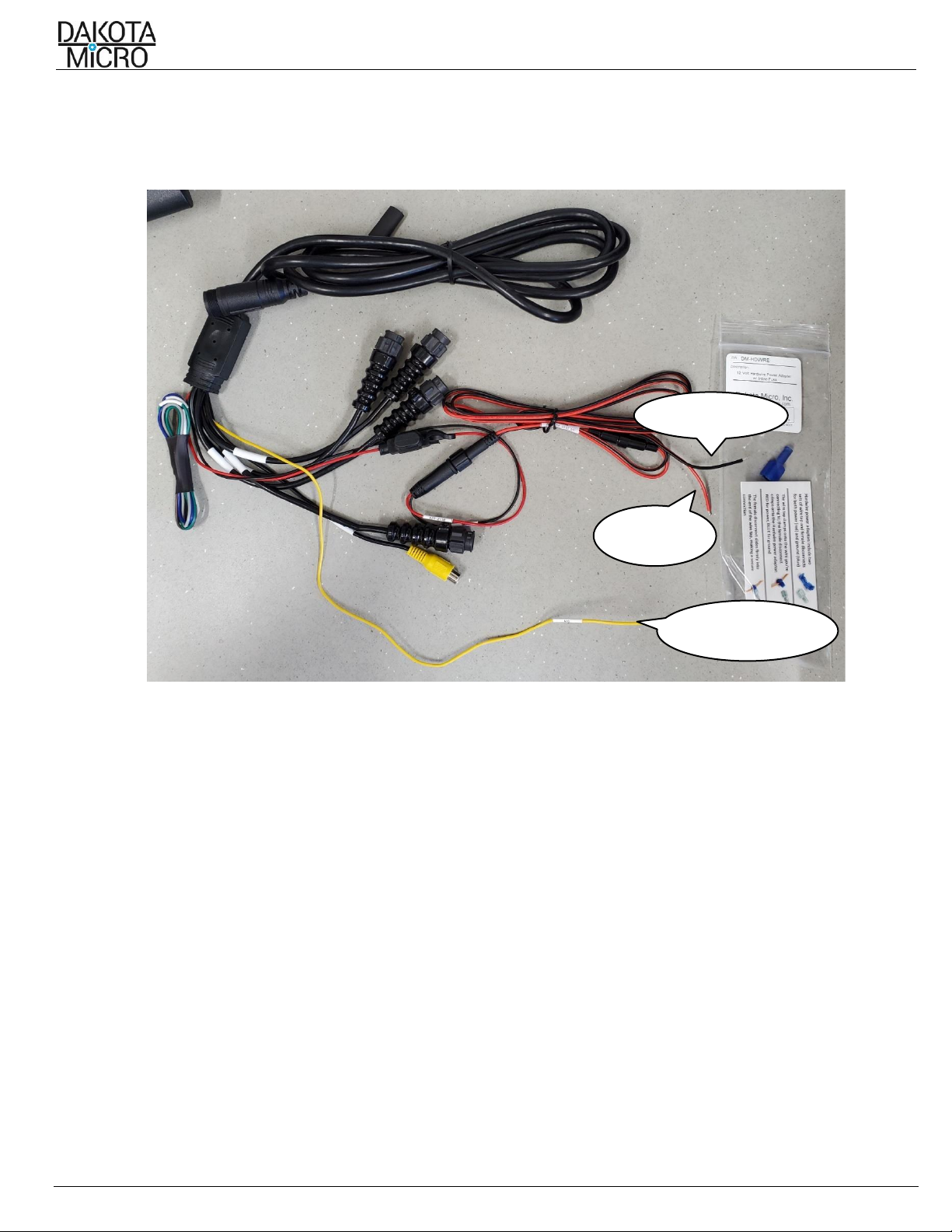

1. Hardwire the ACC (yellow) wire to the vehicle’s keyed/switched wire or fuse.
2. Hook the power (red) to a constant power circuit.
3. Hook the ground (black) to a proper ground.
Connect to ground
Connect to
constant power
Hardwire to
keyed/switched circuit

DM(AG)-H9QD User Manual
Author: MES & CNR Revised by: MES & CNR Rev: 08/13/21 Page 7 of 16
D. Wall Adapter Power –Power Only When Plugged In
This option allows for all monitor function. If the adapter is removed from the wall power source, the monitor settings
will be saved by the internal monitor battery; however, you won’t be able to record.
*North American DC Adapter (DM-PA3) not included in kit. Contact dealer to purchase this accessory.
Installation Steps:
1. Connect the power (red) and ACC (yellow) wires together with the provided T-Tap. To protect the circuit, combine
before the fuse.
2. Plug the monitor into the wall outlet.
WARNING:
Dakota Micro, Inc. is not responsible for any damages caused to your monitor, or yourself, due to the improper installation,
whether it be product sold by DM or product purchased from another source. We recommend contacting a vehicle specialist
before completing work yourself.
Plus
Plu
s
Plug DC adapter into wall outlet*
Fuse
Combine red and yellow wires
before the fuse with the T-Tap.

DM(AG)-H9QD User Manual
Author: MES & CNR Revised by: MES & CNR Rev: 08/13/21 Page 8 of 16
FUSE REPLACEMENTS
1. There is a small in-line blade fuse located on the
red and black power wire of the wiring harness.
When replacing this fuse, use a MAX 3amp blade
fuse.
2. There is a small glass fuse located on the inside tip
of the 12v portion of the power adapter (PN: DM-
12v). When replacing this fuse, use a MAX 3amp
glass fuse.
VII. EVENT TRIGGER WIRE OPERATIONS
A. Event Trigger Wire Color Guide
1. Camera 1 –Gray
2. Camera 2 –Green
3. Camera 3 –Blue
4. Camera 4 –Brown
B. Event Trigger Wires Explained
Event trigger wires can be attached to any 12v or 24v positive event. This will cause the monitor to change to that
camera, regardless of the state of the monitor (i.e. ON/OFF or channel selection). The most recent event will be the
primary display. So, if two (2) video channels (AV1 & AV2) are attached to an event output, the event that happens
last will change the monitor to its respective camera view.
The wires can be attached to any positive output 10.5v to 24v switch or supply to cause the monitor to automatically
switch the unit to its respective channel camera. Example: If you were to attach the AV1 wire to a positive output
from an unloading auger on a combine, the monitor would switch from channel 2, 3, or 4 to channel 1 when the auger
is extended. The event circuit should be neutral in its normal state and change to HIGH (+12v or 24v) when the event
is active.
Fuse
Fuse

DM(AG)-H9QD User Manual
Author: MES & CNR Revised by: MES & CNR Rev: 08/13/21 Page 9 of 16
VIII. MONITOR & REMOTE OPERATIONS
1. Monitor Operations
1
Headphone Jack
Output for audio (disabled)
2
Full Screen
Will show cameras 1/2/3/4 each time pressed.
3
Duplex / Triplex Screen
Will show different duplex & triplex camera
combinations each time pressed
4
Quad Screen
First press will display all four (4) cameras in equally sized
boxes (1/4 screen each camera) Second press displays
alternative four (4) camera view
5
- Key
To decrease parameter/Up/Down
6
+ Key
To increase parameter/Up/Down
7
MENU
Enables / Disables Menu. Also acts as “enter” key once
within menu
8
AV Key
Will show cameras 1/2/3/4 each time pressed/ In MENU
acts as ENTER key & Down arrow
9
POWER
Turns monitor ON/OFF.
Port 10 and 11 is located on the back side of the monitor
10
Battery (Included)
Saves settings for DVR function (Included)
11
SD Card
Required for onboard recording

DM(AG)-H9QD User Manual
Author: MES & CNR Revised by: MES & CNR Rev: 08/13/21 Page 10 of 16
2. Remote Operations
DVR Remote
POWER ON (few
seconds delay)/OFF
Switches between
video channels
N/A
Navigation Arrows
Navigation Arrows
Navigation Arrows
Navigation Arrows
Fast Forward
Rewind
Next File/Skip
Previous File/Skip
Acts as “back” button
in Menu
Acts as “enter” button
in Menu
Play/Pause
Activates Menu
N/A
N/A
N/A

DM(AG)-H9QD User Manual
Author: MES & CNR Revised by: MES & CNR Rev: 08/13/21 Page 11 of 16
IX. MENU SETTINGS
A. Monitor Menu Settings
1. Press the MENU key on the face of monitor or remote.
2. Use the AV key on the monitor (up and down arrows on remote) to select an item under each section. Selected menu items
turn blue.
3. Use MENU key on face of monitor to select menu item (MENU button acts as an ENTER button)
4. AV button moves your cursor down the list of menu items
5. MENU button brings up drop down of sub-menu options
6. AV button allows for selection of sub-menu items
7. To exit: Press AV Button to move cursor to bottom of menu screen. Use + to select CANCEL. Press MENU to select CANCEL
option
MAIN MENU
Playback: Access to and control of recorded events
Record Set: Adjusts recording setup
Display: Adjusts monitor display settings
System: System Settings including time setup
RECORD QUERY “Playback” (Memory card must be in place):
Channel Select: Select cameras (channels) to search
Audio Output: Not applicable
Video Type: Choose type of recorded event to search: All,
Common Record, Planned Record, Alarm
Record, Emergency Record, Snap Picture
Search Date: Search recordings by date
Start Time: Search recordings by start time
Stop Time: Search recordings by stop time
Storage Device: Search SD Card (no Hard Disk available)
Once all selections are made, select “Query.” Selecting “Cancel” will exit
screen and clear all selections.

DM(AG)-H9QD User Manual
Author: MES & CNR Revised by: MES & CNR Rev: 08/13/21 Page 12 of 16
DISPLAY
Display Adjustment:
Scene Mode: Adjusts look of entire display –standard,
highlight, film, brilliance, cool, warm, and
custom. Adjustment of brightness, contrast,
saturation & hue of chosen scene also available
Screen Margins: Adjusts image scale, horizontal & vertical
placement
Image Adjust: Allows adjustment of individual cameras –
brightness, contrast, saturation, hue
Channel Name: Individually title cameras
Loop Preview: Select number of seconds preview recorded
video will loop –OFF, 3, 5, 8, 10 or 15 seconds
Transparency: Adjust transparency of menu display in 10%
increments from 0-50%
Installation Mode: Input default settings when installing new
cameras (channels)
Install Select: Select Mode 1 for regular screen view and
Mode 2 to flip screen upside down
Reverse Line: Choose which cameras you’d like to see reverse
guidelines
Reverse Priority: Pick which camera takes priority when a reverse
event is triggered
Automatic Brightness: Turns auto dimming function ON/OFF
Time Display: Turns screen time ON/OFF
Display Mode: Allows adjustment of how cameras are
displayed on screen as well as background &
border colors
Back Color: Select Black or Blue for the background color
Border Color: Choose between White, Red, Green, Yellow or
No border color
Display Mode: Pick the camera display arrangement options
available when toggling between layouts
RECORD SET
Channel Select: Select which camera (channel) is being recorded
Flameout Delay: Sets delay for monitor to power off after the
ACC wire is disconnected (or key is turned off) –
5 or 10 seconds, 3, 10, or 30 minutes 1, 2, 6, or
12 hour increments
Record Time: Select amount of time to be recorded –3, 5, 10,
15, 20, or 30 minute segments
Record Mode: Select record mode –Shutdown, Automatic,
Scheduled, Alarm, Auto+Alarm, Plan+Alarm
Image Flip: Allows adjustment of camera images –Normal,
Horizontal, Vertical, HV, Rotate 90, Rotate 270
Anti Collision: Not applicable
Encode Setting: Allows adjustments to video settings for each
camera (channel)
Channel Select: Choose which camera (channel) to adjust
Resolution: Pick between 720P or 1080N resolution for the
Main Stream and CIF or D1 for the Sub Stream
Image Quality: Select Bad, General, Good, or Best quality
Advanced: Set Frame Rate, Rate Type, Rate, and Frame
Interval for Main and Sub-Streams

DM(AG)-H9QD User Manual
Author: MES & CNR Revised by: MES & CNR Rev: 08/13/21 Page 13 of 16
Print Setting: Chose any or all you’d like displayed on
recording: Channel Selection, Time Print, Cars
Print, Channel Print, Location Print, Speed Print
Audio: Not applicable
SYSTEM
Language Setting: Select display language
Power Saving Mode: Set power saving mode duration –Off, 10 or 30
minutes, 1 or 2 hours
System Time: Time settings –date, time, time format, daylight
savings, proof time, time zone, NTP address,
NTP port
Vehicle Information: Set vehicle info details
User Management: Manage users and passwords
Storage Management: Manage SD card storage
Restore Factory: Restore monitor to factory settings
System Upgrade: Install firmware updates (SD card would need to
be supplied by manufacturer to update;
updates generally not needed)
System Information: System information details
X. SPECIFICATIONS
B. LCD Monitor
Screen Size
16:9 digital panel
Overall Size
9.25in(L)x 6.1in(H)x1.44in(D) 235mm(L)X155mm(H)X36.5mm(D)
Weight
30.4oz (862g)
Power Input
DC 12v-24v
Color System
NTSC/PAL auto switch
ACC Power
Powers on the monitor with key activation
Operating Temp.
-30°F~130°F (-34°C~+54°C)
Brightness
350cd/m2
Resolution (HxV)
1024(H)x600(V)
Contrast
500:1
Viewing Angle
L/R: 70° Up: 50° Down: 70°
Operating Voltage
Min. 12v (Check monitor label for specific voltage range)
Lighting Source
LED Backlit
Environmental Rating
IP50
Video Output Format
Full/Quad/split/ Auto Switch
Video Output Port
RCAx1 Video Out - Analog (CVBS) ONLY
Video Input Port
X4 AHD video input channels
Removable DVR Memory
Over 7 hours of recording (4 individual cameras) with included 16GB SD
Card

DM(AG)-H9QD User Manual
Author: MES & CNR Revised by: MES & CNR Rev: 08/13/21 Page 14 of 16
XI. WARNINGS
•When selecting a camera system from Dakota Micro, be sure to utilize the appropriate system for your use. AgCam and
EnduraCam cameras are designed for high impact, moisture, vibration, and a variety of other rough conditions. OverView
cameras and kit components are designed for light use, low vibration, and low moisture. OverView equipment is not
warranted when used in situations outside of the above-mentioned parameters. We always request that customers keep
in mind that our less expensive OverView product line is cheaper because it does not feature the reliability and durability
of our AgCam and EnduraCam lines. The warranty available on these products reflects that durability.
•To avoid electrical shock and maintain optimal functionality, do not open the enclosures. High voltage may be present and
there are no user serviceable parts inside. All warranties will be void should any enclosures be tampered with in any way.
•Do not use any harsh chemical solvents, cleaning agents or corrosive detergent to clean away dirt on the surface of the
screen or lens.
•On AgCam and EnduraCam products, the photo-chromic camera lenses have been made impact-resistant and have been
drop-ball tested according to Sec. 3.84,21 CRF BUT ARE NOT UNBREAKABLE. Because they have been hardened chemically,
they show no stress pattern. Inspect your lenses frequently. Chipped or scratched surfaces will reduce protection. Such
lenses should be replaced only by the manufacturer.
•Power to cameras is not interrupted by turning off monitor; 12v power source must be terminated when not in use to
avoid battery drain. To avoid this problem be sure when hard wiring a unit, use a 5-amp fused circuit.
•Do not use your Dakota Micro camera system for anything other than legal surveillance and observation uses. Dakota
Micro, Inc. is not liable for any illegal or nefarious usage.

DM(AG)-H9QD User Manual
Author: MES & CNR Revised by: MES & CNR Rev: 08/13/21 Page 15 of 16
XII. PRODUCT WARRANTY/REPAIR PROCESS
1. For Technical Support call 1 701-538-4403 OR email techsu[email protected]
2. Technician will assist in troubleshooting product malfunction.
3. If product malfunction cannot be remedied and a repair is deemed necessary, Technician will issue a Repair Authorization (RA)
number.
IMPORTANT NOTE:
The Technician will note on the RA form if the repair APPEARS to be a warranty or non-warranty issue based on customer description of
the issues at hand. No final determination can be made until inspection and testing of the equipment is completed at the factory.
4. To ensure fast and effective repairs, customer is required to send:
•Dakota Micro Product that Technician has requested/deemed necessary in the proper diagnosis and repair of
malfunction. This may include some or all components of the kit.
•Original/Copy of purchase receipt.
•For serialized items ONLY, If a copy of the original purchase receipt cannot be provided, then DAKOTA MICRO will use
the product manufacture date.
•Customer information, including return address & phone number. If the phone number is not included, the customer
will be sent a letter requesting the needed information.
•RA Number provided by Dakota Micro Technical Support
•Shipping and associated costs to ship product to DM factory to be borne by the customer unless otherwise specified.
5. Customer should mail product to:
Dakota Micro, Inc.
RA # XXXXX
8659 148 ½ Ave. SE
Cayuga, ND 58013
6. Upon receipt and evaluation of product at Dakota Micro Factory, it will be established if the repair is warranty or non-warranty.
If requested, customer will be called and notified of any applicable charges.
7. If the repairs are deemed non-warranty and require a service/repair fee of any kind, a credit card number will be requested by
Order Processing after the repair is completed.
8. If customer is unable to be contacted over the course of 3 weeks regarding required non-warranty repairs, product will be
returned, unrepaired, to the customer.
9. Any product returned without proper documentation may be returned at customer’s expense.
10. Product returned with unconfirmed problems will be assessed a $60 evaluation fee per unit
11. Return shipping costs will be borne by the party at fault; in other words, if Dakota Micro determines that the defective product
was covered under warranty, Dakota Micro pays the shipping charges. If Dakota Micro determines that it was the customers
fault, the customer will pay shipping charges. If a circumstance cannot be determined than the cost of shipping charges will be
decided on a discretionary basis depending on the situation at hand.

DM(AG)-H9QD User Manual
Author: MES & CNR Revised by: MES & CNR Rev: 08/13/21 Page 16 of 16
XIII. CONSUMER LIMITED WARRANTY
LIMITED WARRANTY
Subject to the disclaimer, limitations and other directions stated hereafter, Dakota Micro, Inc. warrants that the Product will be free
from defects in material and workmanship for periods as stated hereafter from the date of original purchase. THIS WARRANTY IS
EXPRESSLY MADE IN LIEU OF ANY AND ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS. THE EXCLUSIVE REMEDY OF THE BUYER IS LIMITED TO REPAIR OR REPLACEMENT OF THE PRODUCT.
EXCEPT AS STATED IN THIS WARRANTY, DAKOTA MICRO SHALL NOT BE LIABLE FOR ANY LOSS, INCONVENIENCE, OR DAMAGE,
INCLUDING DIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES, RESULTING FROM THE USE OR INABILITY TO USE THE
PRODUCT, WHETHER RESULTING FROM BREACH OF WARRANTY, NEGLIGENCE, STRICT LIABILITY OF ANY OTHER LEGAL THEORY. Any
oral statements or representations made by anyone which are contrary to or at variance with the terms stated in this LIMITED
WARRANTY are void.
Dakota Micro will, at its option, either repair the defect or replace the defective Product or part thereof with a new or remanufactured
equivalent at no charge to the purchaser for parts or labor for the period of three (3) years for AgCam® /EnduraCam® and InnoPro®
cameras; two (2) years for AgCam®/ EnduraCam® monitors, and Wireless components; Twelve Months (12) for all Overview Cameras &
Monitors, cables and all other accessories.
The Dakota Micro limited warranty periods outlined above apply throughout the United States and Canada only. A one (1) year
maximum limited warranty for all Products applies to all other geographic locations unless otherwise stated in writing by Dakota Micro.
This limited warranty does not apply to any issues connected with appearance that have no relation to the performance of the Product
nor to any Product the exterior of which has been damaged or defaced, which has been subjected to improper voltage or other misuse,
abnormal service or handling, or which has been altered or modified in design or construction.
In order to enforce the rights under this limited warranty, the purchaser should follow the steps set forth in the complete Dakota Micro
“Warranty & Repair Policy” listed on page 11 - section XVI , and provide proof of purchase to Dakota Micro.
Neither the sales personnel of Dakota Micro nor any dealer or any other person is authorized to make any warranties other than those
described herein, or to extend the duration of any warranties beyond the time periods described herein.
The warranties described herein shall be the sole and exclusive warranties and remedies provided by Dakota Micro. Correction of
defects, in the manner and for the period of time described herein, shall constitute complete fulfillment of all liabilities and
responsibilities of Dakota Micro to the purchaser with respect to the Product, and shall constitute full satisfaction of all claims. In no
event shall Dakota Micro be liable or in any way responsible for any damages or defects in the Product which were caused by repairs or
attempted repairs performed by anyone other than Dakota Micro.
Some states do not allow the limitation or exclusion of incidental or consequential damages, so said limitation may not apply to you.
Any action at law, suit in equity, or other judicial proceeding for the enforcement of any right provided for herein or otherwise, or with
respect to any claim that a purchaser may have against Dakota Micro shall be instituted only in the Courts of the State of North Dakota,
either in the state district court located in Wahpeton, North Dakota or in Federal District Court location in Fargo, North Dakota.
Without regard to conflicts of law principles, the laws of the state of North Dakota shall govern the interpretation and enforcement of
the terms of this Limited Warranty and all aspects of the relationship between Dakota Micro and the purchaser.
This warranty gives you specific legal rights and you may also have other rights, which may vary from state to state.
XIV. DISCLAIMER
Dakota Micro Inc. products, specifications, pricing and programs are subject to change without prior notice. Dakota Micro
Inc. reserves the right to make design changes at any time without obligation to retroactively install them on previously sold
units.
XV. CONTACT US
8659 148 ½ Ave. SE.
Cayuga, ND 58013
Management System Registered to ISO 9001
www.dakotamicro.com
