dallmeier DAS-300 E Guide
Installation and Commissioning
Rev. 1.0.2 / 080618
English
Storage Extension
for DAS-303
DAS-300 E
DAS-300 E
2Dallmeier electronic
Copyright © Dallmeier electronic GmbH & Co.KG
All rights reserved. This document may not be copied, photocopied, reproduced, translated,
transferred to an electronic medium or converted to a machine-readable form either whole or in
part without first receiving written permission from Dallmeier electronic GmbH & Co.KG.
We reserve the right to make technical modifications.
The manufacturer accepts no liability for damage to property or pecuniary damages arising due
to minor defects of the product or documentation, e.g. print or spelling errors, and for those not
caused by intention or gross neglegence of the manufacturer.
Dallmeier electronic GmbH & Co.KG
Cranachweg 1
D 93051 Regensburg
www.dallmeier-electronic.com
Adobe and Flash are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other
countries.
IBM is a trademark of International Business Machines Corporation in the United States, other countries, or both.
Microsoft,ActiveX, DirectX, Internet Explorer, Windows and Windows Vista are either registered trademarks or trademarks of Microsoft
Corporation in the United States and/or other countries.
Mozilla and Firefox are registered trademarks of the Mozilla Foundation.
All other trademarks are the property of their respective owners.
DAS-300 E
3Dallmeier electronic
Table of contents
1 About this document 5
1.1 Validity 5
1.2 Documentation on the DAS-300 E 5
1.3 Convention 5
1.4 Glossary 6
2 For your safety 7
3 General notes 9
3.1 Scope of delivery 9
3.2 Transportation and packaging 9
3.3 Proper usage 9
3.4 Performance features 9
3.5 Certificates 10
3.6 Warranty 10
4 Views 11
4.1 Front view 11
4.2 Rear view 11
5 Status LEDs and plug-in modules 12
5.1 Status LEDs 12
5.2 Plug-in modules 12
5.2.1 HDD module 13

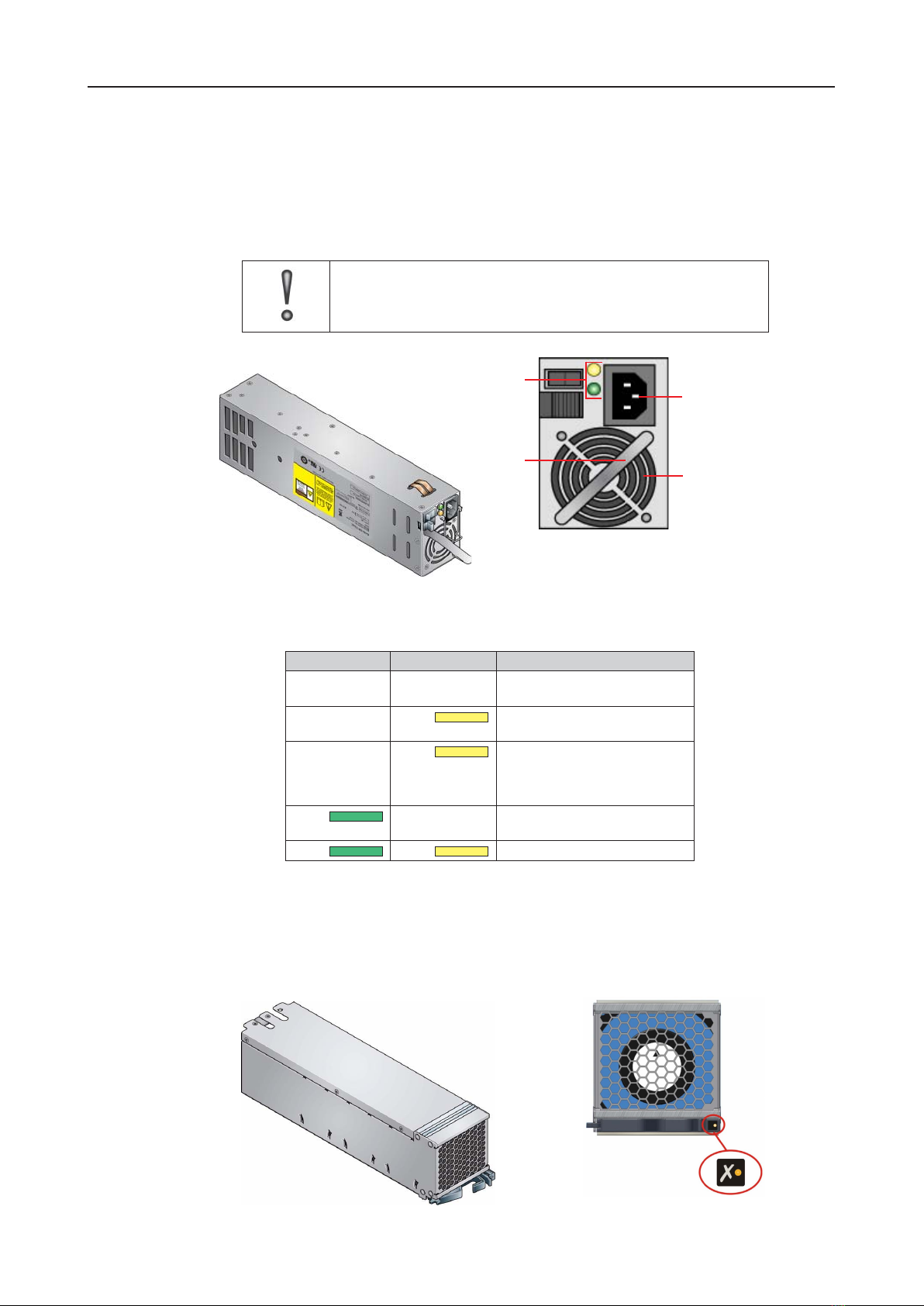

5.2.2 Power supply module 14
5.2.3 Fan module 14
5.2.4 Disk I/O module 15
6 Mounting 16
6.1 Safety requirements 16
6.2 Installation requirements 16

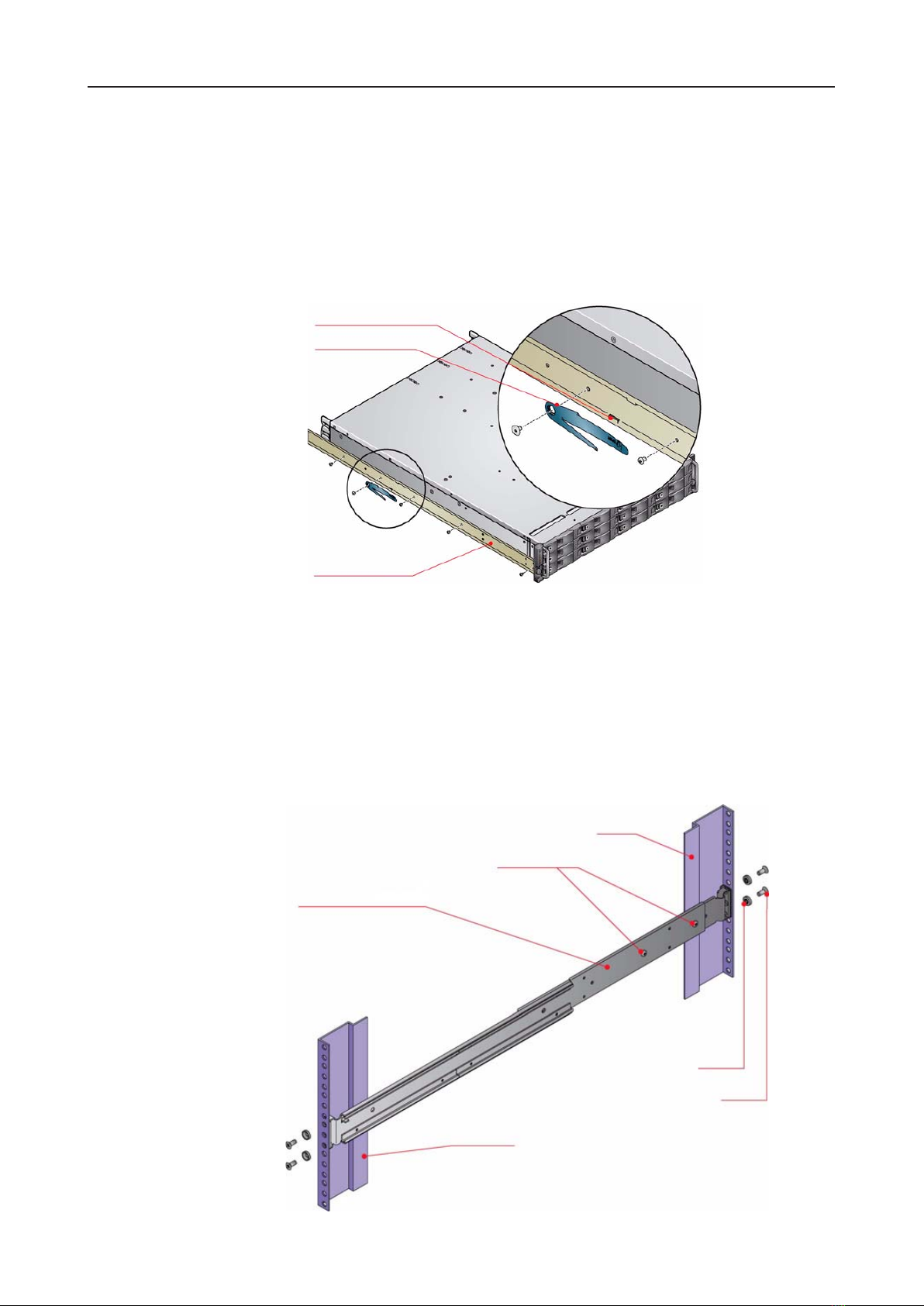

6.3 Attaching the chassis slides 17
6.4 Attaching the guide rails 17
6.5 Mounting into the rack 18
7 Connection 19
8 Commissioning and reboot 21
8.1 Commissioning 21
8.2 Reboot 21
9 Module replacement 22
9.1 Replacing an HDD module 22
9.1.1 Conditions 22
9.1.2 Removing the HDD module 23
9.1.3 Installing the HDD module 24
9.2 Replacing a power supply module 25
9.2.1 Removing the power supply module 25
9.2.2 Installing the power supply module 26
9.3 Replacing the fan module 27
9.3.1 Removing the fan module 27
9.3.2 Installing the fan module 27
DAS-300 E
5Dallmeier electronic
1 About this document
1.1 Validity
This document applies to the external storage extension DAS-300 E in conjunction with the
external storage system DAS-303.
Ithasbeenproduced onthe basisof firmwareversion 3.3.0032or ratherof softwareversions
5.3.3 SP E (DMS 180III) and 6.0.9 (DMS 240).
1.2 Documentation on the DAS-300 E
Installation and Commissioning (this document)
The document entitled „Installation and Commissioning“ contains detailed descriptions of
the mounting, connection, commissioning and module replacement. General notes on the
product and technical data are additionally provided.
The target audience of this document is exclusively specially trained and authorized
professionals („installers“).
1.3 Convention
This document contains various warning words and symbols that indicate potential sources
of danger. Various symbols and formats are used to maintain the clarity of the document.
DANGER
The warning word DANGER denotes an immediate danger
that may cause death or serious injury if it is not averted.
WARNING
The warning word WARNING denotes a possible danger that
may cause death or serious injury if it is not averted.
CAUTION
The warning word CAUTION denotes a possible danger that
may cause minor injury if it is not averted.
IMPORTANT
The word IMPORTANT denotes information for preventing
damage, incorrect configurations or incorrect actions.
NOTE
A NOTE offers information on principles, special features and
efficient procedure as well as general recommendations.
Expression Expressions in bold and italics generally indicate a control
elementonthedevice(switchesorlabels)oron itsuserinterface
(buttons, menu entries).
DAS-300 E
6Dallmeier electronic
1.4 Glossary
Battery module
Replaceable lithium-ion battery pack
Dummy module
Blank module to be fitted in unused bays.
Disk I/O module
Data transmission interface
Plug-in module
Module to be fitted in a bay.
GBIC module
Interface between the RAID module and FC cable (LC-LC)
HDD
Hard drive disk
HDD module
HDD + removable drive enclosure
Hot-plug
Hot-plugging is the ability to replace hardware of a unit while the unit is operating.
Fan module
Replaceable fan
Sub-rack
Internal DAS-300 E housing with bays.
Power supply module
Replaceable power supply unit
RAID module
Replaceable RAID controller (DAS-303 only) with data transmission interface
Bay
Bay in the DAS-300 E to be fitted with a plug-in module.
Removable drive enclosure
Enclosure in which an HDD is built in.
DAS-300 E
7Dallmeier electronic
2 For your safety
Only use this unit if it is technically in proper working order, to the intended purpose and
whilekeepingsafetyandpotentialdangersinmind.Havemalfunctionsordamageseliminated
immediately!
Appoint a professional
Installation, mounting, connection, start-up and configuration of the unit may only be carried
out by trained and authorized professionals (installers).
Unless otherwise expressly specified, this also applies to the maintenance, testing and
repair. In doing do the regulations of the DIN VDE 0701 series of standards (repair,
modification and inspection of electrical appliances) must be followed in addition.
Read and pay attention to the documents
Carefully and completely read the documents included in delivery. Always pay attention to
the provided instructions, notes and warnings.
Regulations surveillance systems
The use of video and audio surveillance systems is strictly regulated in most countries.
Therefore,inform yourselfonlaws andregulations thatgovern individualapplicationsbefore
using the unit. Ensure compliance with these laws and regulations and also observe
regulations regarding data, working and environmental protection.
Regulations data protection
This unit can store data that may be subject to data protection. The collecting, recording,
processing or disclosure of such data may be forbidden and thus have legal consequences.
Therefore, inform yourself on data protection laws and regulations that govern individual
applications before using the unit. Ensure compliance with this laws and regulations.
Do not make modifications
Do not make any modifications to the unit (neither to the software nor the hardware) without
consultingDallmeier electronic.Improper modificationscan causemalfunctions ordamages.
Dallmeierelectronic acceptsno liabilityfor damagesresulting fromunauthorized orimproper
modifications to the unit.
Protection against condensation water
If the unit is brought from a cold to a warm environment, condensation water can form
inside the unit. Short-circuits may then lead to damage to the system. Wait up to 8 hours for
the unit to reach room temperature before starting it up.
Observe the rated voltage
The unit can be damaged or destroyed by the application of an incorrect voltage.
The mains voltage must always match the rated voltage of the unit. The rated voltage is
specified on the rating plate of the unit.
Observe ratings
Unsuitable ambientconditionsandimproperinstallation(mainly toohighambient temperature
and insufficient ventilation) may reduce the unit’s life cycle. Ensure compliance with the
stated operating conditions (see technical data), requirements at the installation site and, if
applicable, maintenance regulations.
DAS-300 E
8Dallmeier electronic
Expansion components/peripheral devices
Useonly expansioncomponentsconforming withthe technicaldataofthe unit.Inappropriate
peripheral devices may result in the violation of local laws and regulations and damages to
the unit. Furthermore, the use of peripheral devices that are not tested and approved by
Dallmeier electronic results in loss of warranty. In case of doubt, contact the sales partner
responsible for your area.
Do not move while in operation
Strong vibrations can cause damage to the unit, in particular to the hard disk(s). Therefore,
do not bump the unit or move it in a jerky motion while in operation. Instruct the cleaning
personnel accordingly if necessary!
Do not open the unit
Do not open the housing of the unit. There are no components inside the unit that require
maintenance by the user. The inspection, maintenance and repair with an open housing
must only be carried out by trained and authorized professionals (installer).
Penetration of foreign bodies and liquids
No objects or liquids may be allowed to get into the device. In this case, immediately
disconnect the unit from the power supply (pull out the power plug). Please contact the
sales partner responsible for your area.
Measures to be taken in the event of damage and burnt smell
If you notice burnt smell or formation of smoke from a unit, immediately disconnect it from
the power supply (pull out the power plug). Please contact the sales partner responsible for
your area.
Disposal
Disconnect the unit from the power supply. Remove all connected units and system
components. Return the unit to your respective sales partner.
DAS-300 E
9Dallmeier electronic
3 General notes
3.1 Scope of delivery
Included in the standard scope of delivery is:
1 x DAS-300 E incl. HDDs (as ordered)
1 x SAS cabel
1 x Null modem cabel (RS232)
2 x Non-heating appliance cable
1 x Rack mounting kit
1 x Screwdriver
1 x Documentation „Installation and Commissioning“ (CD)
The scope of delivery may differ depending on the ordered equipment or device variant.
The device’s range of functions depends on the ordered equipment or device variant and
may therefore not correspond with this document’s content. Certain functions and features
may require an activation that is subject to costs.
3.2 Transportation and packaging
Store the original packaging for transportation at a later date. Dallmeier electronic is not
responsible for damage resulting from unprofessional/improper transportation. The goods
should only be shipped in their original packaging.
If the original packaging is no longer available, ensure that the packaging used sufficiently
protects the unit against damage, moisture, heat and cold.
3.3 Proper usage
TheDAS-300 E isan extensionfor theDAS-303 externalstorage system.Its twoU housing
can contain max. 12 SATA hard disks in lockable slide-in units.

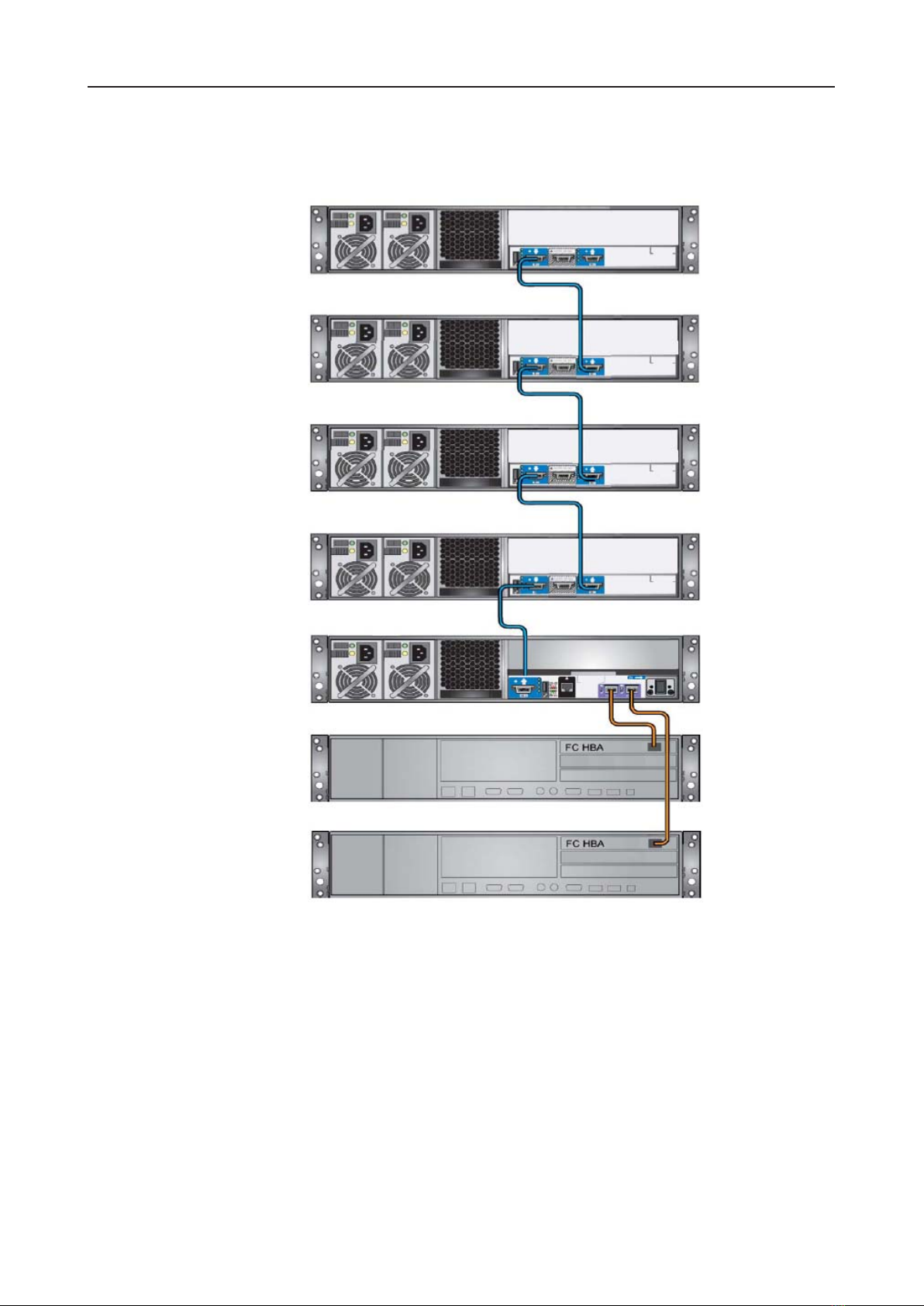

Up to four DAS-300 E can be combined to extend a DAS-303 storage system. Thus the
total memory capacity of the
external storage system can be enlarged upon 60 SATA hard disk (currently up to 45 TB).
3.4 Performance features
The DAS-300 E is especially characterized by the following functions and properties:
zFor increasing the storage capacity of the DAS-303
zExternal storage system for connection of a DAS-303 Basic Housing or a DAS-300 E for
cascading
zMax. of 12 hard disks can be used
zThe chassis is only offered populated with hard drives
zStandard RAID level 5 (RAID level 0, 1, 10 and 50 upon request)
DAS-300 E
10Dallmeier electronic
3.5 Certificates
The following certifications were in effect for the DAS-300 E at the time this document was
produced:
zCCC
zBSMI
zCE
zUL
zcUL
zRoHS (R5)
zMicrosoft®WHQL
zMicrosoft®RAID System Submission - w/MPIO (Single Host)
3.6 Warranty
The terms and conditions valid at the signing of the contract apply.
DAS-300 E
11Dallmeier electronic

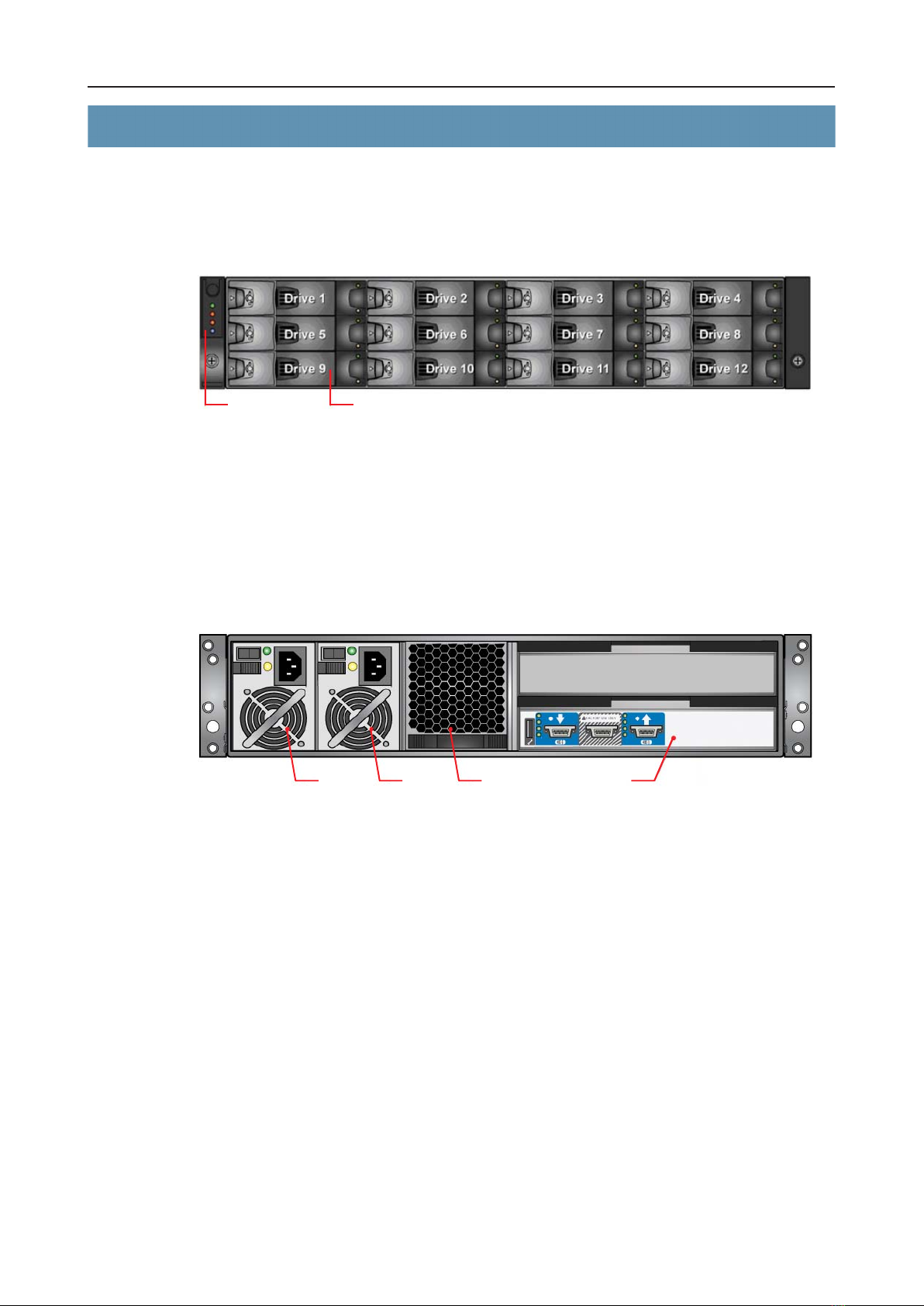

4 Views
4.1 Front view
The DAS-300 E front panel incorporates 1 Alarm Mute push button, 4 status LEDs and 12
bays for 12 HDD modules.
1- Alarm Mute push button + 4 status LEDs
2- HDD module
4.2 Rear view
The DAS-300 E back panel provides 5 bays for 2 power supply modules, 1 fan module and
one I/O module.
1– Power supply module 0
2– Power supply module 1 3– Fan module
4– I/O module
Fig.4-1
12
Fig.4-2 123 4
DAS-300 E
12Dallmeier electronic
5 Status LEDs and plug-in modules
5.1 Status LEDs
The DAS-300 E front panel incorporates 4 status LEDs and an Alarm Mute push button.
1 – Alarm Mute push button
2 – Power on
3 – System fault
4 – Logical fault
5 – Identification LED
5.2 Plug-in modules
Except for the I/O module, all other DAS-300 E plug-in modules are hot-pluggable and
redundant. A module can be replaced whilst the DAS-300 E is running.
The DAS-300 E must never be run with empty bays. Therefore, unused bays must be fitted
with dummy modules for continuous operation.
Ensure that you have a replacement module of the same type before removing any fault
module. The DAS-300 E must never be operated with one or more unfitted bays for more
than a few minutes, since this may cause overheating of the DAS-300 E and thus power
failure and data loss.
IMPORTANT
Serious damage to the unit and modules (particularly HDD
failure).
Ensure that all bays of the sub-rack are fitted and closed whilst
in operation.
Fig.5-1
1
2
3
4
5
LED
Power on
(green)
System fault
(amber)
Logical fault
(amber)
Identification LED
(blue)
State
on
on
on
on
Description
Power supply OK
Indicates a problem with a
power supply, cooling or I/O
module. The module failing
will be indicated via a LED
on the module.
Indicates failure of an HDD
module. The HDD module
failing will be indicated via a
LED on the module.
The user can illuminate this
LED via the management
software. In so doing the
faulty DAS-300 E can be
found more easily in the
rack.
DAS-300 E
13Dallmeier electronic
5.2.1 HDD module
The DAS-300 E is designed to be equipped with a maximum of 12 HDD modules. Empty
bays must be fitted with dummy modules to maintain balanced airflow.
Each HDD module can be secured against accidentally opening by locking the integrated
anti-tamper lock.
Two LEDs on the front side indicate the status of each HDD module.
LED green
off
on
blink
on
on
off
LED amber
off
off
off
off
blink
on
Description
No HDD fitted
Power supply OK / HDD ready
HDD activity
HDD fault
HDD function impacted
Power control circuit failure
Fig.5-2
Fig.5-2
Locked
Unlocked
Anti Tamper Lock
Indicator Aperture
Status LEDs
Fig.5-3
DAS-300 E
14Dallmeier electronic
5.2.2 Power supply module
The DAS-300 E is fitted with two power supply modules, each of them supplying 50% of the
total power during normal operation. If one of the power supply modules fails, all the power
will be provided by the remaining one. The defective power supply module can be replaced
whilst the system continues to operate.
IMPORTANT
Seriousdamage to theunit andmodules.TheDAS-300 E must
always be operated with 2 power supply modules installed.
Two LEDs on the rear side indicate the status of each power supply module:
5.2.3 Fan module
TheDAS-300 Eis equippedwith afanmoduleformonitoringandcontrolling thetemperature
in the DAS-300 E.
Fig.5-4
Fig.5-5
Status LEDs
Handle
Cold appliance jack
Mains supply
Fan
Fig.5-6 Fig. 5-7: Error LED
LEDgreen
off
off
off
on
on
LEDamber
off
on
on
off
on
Description
Nopower
(eitherpower supplyunits)
Nopower
(thispower supplymoduleonly)
Powersupply modulefault(over
temperature,overvoltage,
overcurrent,power supplyunitfan
failure)
Powersupply OK,normal
operatingstate
Fanfault
DAS-300 E
15Dallmeier electronic
The LED on the rear side indicates the status of the
fan module.
NOTE
The fans within the fan module are not replaceable. The entire
fan module must be replaced in case of a defective fan.
5.2.4 Disk I/O module
The DAS-300 E storage expansion is
designed to be equipped with one Disk I/O
module. DAS-303 and DAS-300 E are
connected together via SAS cables.
1RS-323 2Host IN Port 3Host IN Port LEDs
4Factory Use Only 5Host OUT Port 6Host OUT Port LEDs
The LEDs on the rear side indicate the status of the Disk I/O module:
LED amber
off
on
Description
Fan OK
Fan module fail
Fig.5-9
Fig.5-8
12 5
346
Port
Host IN
Host OUT
LEDgreen
on
blink
off
on
blink
off
Description
ready
active
notready
ready
active
notready
DAS-300 E
16Dallmeier electronic
6 Mounting
The DAS-300 E is designed to be installed and operated in a standard 19" rack in a dust-
controlled server room.
NOTE
The guide rails and chassis slides included in delivery fit into
many but not all 19" racks.
If necessary, contact the rack manufacturer to obtain suitable
rails or load-bearing shelves.
6.1 Safety requirements
Observe the following safety requirements when installing a DAS-300 E:
zThe rack must be secured against tipping over during installation and in normal use.
zThe rack must be filled from the bottom up and emptied from the top down.
zThe rack must have a safe electrical distribution system and an overcurrent protection
for all integrated units. The rack must not be overloaded by the total number of units
installed. Pay attention to the nameplates of each unit.
zThe electrical distribution system must provide a reliable earth for each unit and the
rack.
zEach power supply in each unit has an earth leakage current of 1.5 mA maximum at 264
V AC. The design of the electrical distribution system must take into consideration the
total earth leakage current from all the power supplies in all the units. The rack will
requirelabelling with“HIGH LEAKAGE CURRENT. Earth connection essential before
connecting supply“.
zThe rack when configured with the units must meet the safety requirements of UL60950
and IEC 60950.
6.2 Installation requirements
Observe the following installation requirements when installing a DAS-300 E:
zThe system must be operated with low pressure rear exhaust installation (back pressure
not to exceed 5 pascals, 0.5 mm water gauge).
zThe maximum allowable ambient temperature of 40 °C (104 °F) with two power supply
modules installed must not be exceeded.
zThe rack must have a minimum load-carrying capacity of „number of DAS-303/DAS-
300E x 32kg).
zMinimum installation depth of 70 cm (excludes rear cabling).
zMinimum gap of 25 mm (1 inch) clearance between the DAS-300 E front side and rack
front door.
zMinimum gap of 50 mm (2 inches) clearance between the DAS-300 E rear side and rack
rear door.
DAS-300 E
17Dallmeier electronic
6.3 Attaching the chassis slides
1. Attach the chassis slides to the DAS-300 E sides using 3 M3x4 screws for each side.
2. Assemble the left and right chassis latches using the special chassis latch screws.
Ensure the latches are correctly orientated. Both spring arms must be located against its
stop.
On the right hand the shorter arm must be at the top, on the left it must be at the bottom.
6.4 Attaching the guide rails
1. If necessary, loosen both clamping screws to change the length of the guide rails before
attaching them.
2. Fit the guide rails into the rack.
3. Attach the guide rails to both front and rear side of the rack using two washers and
screws for each side. The screws should be left loose enough to allow for sideways
movement of the rails.
4. Tighten the two clamping screws.
Fig.6-2: Installation ofthe leftguide rail
ChassisLatch Stop
ChassisLatch
ChassisSlide Fig. 6-1
RearRack Post
ClampingScrews
GuideRail
SlideWasher(x4)
SlideScrew (x4)
FrontRack Post
DAS-300 E
18Dallmeier electronic
6.5 Mounting into the rack
IMPORTANT
Danger of injury and damage to the DAS-300 E!
A DAS-300 E can weigh up to 32 kg. It must always be lifted
with adequate lifting facilities or by at least 2 persons.
Donot lifttheDAS-300 Eby thehandlesoftheplug-inmodules.
1. Lift the DAS-300 E and insert the chassis slides into the guide rails.
2. Completely slide the DAS-300 E into the rack.
IMPORTANT
Possible damage to the DAS-300 E and / or rack!
Ensure that you slide it straight. Do not use any force.
3. Tighten the rear screws.
4. Withdraw the DAS-300 E until it reaches the hard stops (approx. 40 cm).
5. Tighten the front screws.
6. Completely slide the DAS-300 E into the rack.
7. Secure the DAS-300 E to the rack using the captive fasteners on the front flanges.
Fig.6-3
Captive fastener
DAS-300 E
19Dallmeier electronic
7 Connection
A DAS-303 allows the connection of up to 4 DAS-300E storage expansions units.
DAS-300 E connection
Always pay attention to the following procedure when connecting a DAS-300E:
1. Shut down the recorder.
2. Turn off the recorder.
3. Disconnect the recorder from the power supply (pull out the power plug).
4. Disconnect the DAS-303 from the power supply.
5. Connect the DAS-300 E to the DAS-303 using a SAS patch cable as shown below.
Connection of four DAS-300 E to the DAS-303
The DAS 303 is connected to one recorder.
DAS-303
Recorder
DAS-300 E
DAS-300 E
DAS-300 E
DAS-300 E
Fig.7-1
DAS-300 E
20Dallmeier electronic
Connection of four DAS-300 E to the DAS-303
The DAS 303 is connected to two recorders.
DAS-303
Recorder 1
DAS-300 E
DAS-300 E
DAS-300 E
DAS-300 E
Recorder 2
Fig.7-2
Table of contents
Other dallmeier Storage manuals
