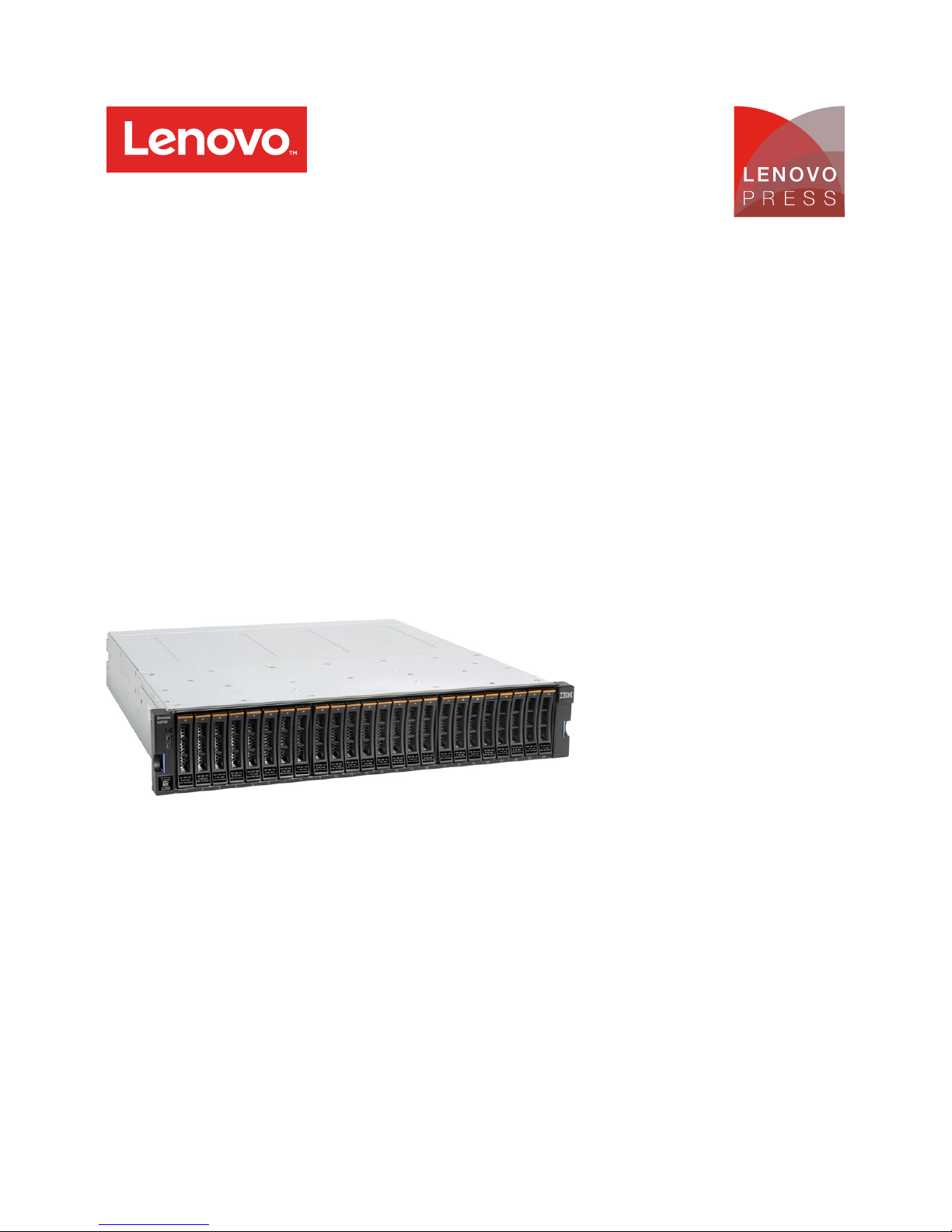

IBM Storwize V3700 for Lenovo
Product Guide
IBM Storwize V3700 Storage System for Lenovo (Machine Type 6099) is a member of the IBM Storwize
family of disk systems. By using IBM Storwize V7000 Storage System and IBM SAN Volume Controller
functions, interoperability, and management tools, Storwize V3700 delivers innovation and new levels of
storage efficiency with ease of use in an entry-level disk system to enable organizations to overcome their
storage challenges.
Storwize V3700 Storage System features two node canisters, with 4 GB cache per canister upgradeable to
8 GB, in a compact, 2U, 19-inch rack mount enclosure. A 6 Gb SAS and 1 Gb iSCSI connectivity is
standard, with an option for 8 Gb Fibre Channel (FC) or 10 iSCSI or Fibre Channel over Ethernet (FCoE)
connectivity.
Storwize V3700 supports up to 240 drives with up to nine external expansion units. It also offers flexible
drive configurations with the choice of 2.5-inch and 3.5-inch drive form factors, 10 K or 15 K rpm SAS and
7.2 K rpm NL SAS hard disk drives (HDDs), and SAS solid-state drives (SSDs).
The Storwize V3700 SFF enclosure is shown in the following figure.
Figure 1. Storwize V3700 SFF enclosure
Did you know?
Storwize V3700 provides small and midsized organizations with the ability to consolidate and share data
at an affordable price, while utilizing advanced software capabilities that often are found in more expensive
systems.
Storwize V3700 can be scaled up to 960 TB of raw storage capacity.
Storwize V3700 offers hybrid block storage connectivity with support for 6 Gb SAS, 1 Gb iSCSI, and 10 Gb
iSCSI or FCoE or 8 Gb FC at the same time.
IBM Storwize V3700 for Lenovo 1

Key features
The Storwize V3700 storage system provides the following key features and benefits:
Scalable, modular storage with dual-active intelligent array node canisters with up to 8 GB cache
per canister.
Flexible host connectivity to match diverse client needs with support for 6 Gb SAS and 1 Gb iSCSI
connectivity standard, with optional 10 Gb iSCSI or FCoE, 8 Gb FC, or extra 6 Gb SAS or 1 Gb
iSCSI connectivity.
6 Gb SAS drive-side connectivity with support for 12x 3.5-inch large form factor (LFF) or 24x 2.5-
inch small form factor (SFF) drives in the controller unit; scalable up to 120 LFF drives per system
with the attachment of LFF expansion units (12x LFF drives each) or up to 240 SFF drives per
system with the attachment of SFF expansion unit (24x SFF drives each) to satisfy growing needs
for storage capacity and performance.
Flexibility in storing data on high-performance SAS SSDs, performance-optimized enterprise SAS
HDDs, or capacity-optimized enterprise NL SAS HDDs; mixing and matching drive types and form
factors within a single system to perfectly meet performance and capacity requirements for various
workloads.
Rich set of standard functions are available at no extra cost, including virtualized internal storage,
snapshots, thin provisioning, data migration, and data replication.
Optional licensed functions, including higher number of snapshots for added scalability, Turbo
performance, Easy Tier, and remote mirroring.
VMware vSphere Virtual Volumes (VVol) integration brings advanced storage management functions
to the virtual machine level for finer VM storage service level control and policy-driven automation.
Note: VVol integration feature requires IBM Spectrum Control Base Edition for Lenovo that can be
downloaded from http://www.ibm.com/support/fixcentral.
Intuitive, web-based GUI for easy system set up and management.
Extensive interoperability with support for most major server platforms and operating systems.
Conforms to applicable Network Equipment Building System (NEBS) level 3 documents and to
applicable European Telecommunications Standards Institute (ETSI) documents
The Storwize V3700 LFF enclosure is shown in the following figure.
Figure 2. Storwize V3700 LFF enclosure
The Storwize V3700 supports the complete range of data storage requirements, from highly utilized
applications to high-capacity, low usage applications, with the flexible choice of drives.
IBM Storwize V3700 for Lenovo 2

The following 2.5-inch drives are supported:
High-performance SSDs: 200 GB, 400 GB, 800 GB, 1.6 TB, and 3.2 TB SAS
Performance-optimized, enterprise class disk drives:
300 GB and 600 GB 15K rpm SAS
600 GB, 900 GB, 1.2 TB, and 1.8 TB 10K rpm SAS
High-capacity, archival-class nearline disk drives: 2 TB 7.2K rpm NL SAS
The following 3.5-inch drives are supported:
Performance-optimized, enterprise class disk drives:
300 GB and 600 GB 15K rpm SAS
900 GB, 1.2 TB, and 1.8 TB 10K rpm SAS
High-capacity, archival-class nearline disk drives: 4 TB, 6 TB, and 8 TB 7.2K rpm NL SAS
All drives are dual-port and hot-swappable. Drives of the same form factor can be intermixed within the
appropriate enclosure, which provides the flexibility to address performance and capacity needs within a
single enclosure.
Up to nine Storwize V3700 expansion units are supported by a single Storwize V3700 controller unit. You
can intermix 3.5-inch and 2.5-inch expansion units behind a 3.5-inch or 2.5-inch controller unit. This
configuration delivers the added flexibility to mix 3.5-inch and 2.5-inch drives within a single system. More
drives and expansion units are designed to be dynamically added with virtually no downtime, which helps
to quickly and seamlessly respond to ever-growing capacity demands.
The Storwize V3700 storage system is designed to offer high levels of system and data availability with the
following technologies:
Dual-active, intelligent node canisters with mirrored cache
Dual-port drives with automatic drive failure detection and RAID rebuild with global hot spares
Redundant hardware, including power supplies and fans
Hot-swappable and customer replaceable components
Automated path failover support for the data path between the server and the drives
The Storwize V3700 supports the following management interfaces:
Web-based graphical user interface (GUI) via HTTPS that requires only a supported browser
(Microsoft Internet Explorer, Google Chrome, or Mozilla Firefox), so there is no need for a separate
console or plug-in
Command line interface (CLI) via SSH
Storage Management Initiative Specification (SMI-S)
SNMP and email notifications
IBM Storwize V3700 for Lenovo 3

Components and connectors
The following figure shows the front of the Storwize V3700 SFF enclosure.
Figure 3. Front view of the Storwize V3700 SFF enclosure
The following figure shows the front of the Storwize V3700 LFF enclosure.
Figure 4. Front view of the Storwize V3700 LFF enclosure
IBM Storwize V3700 for Lenovo 4

The following figure shows the rear of the Storwize V3700 Controller Unit.
Figure 5. Rear view of the Storwize V3700 Controller Unit
IBM Storwize V3700 for Lenovo 5

The following figure shows the rear of the Storwize V3700 Expansion Unit.
Figure 6. Rear view of the Storwize V3700 Expansion Unit
System specifications
The following table lists the Storwize V3700 storage system specifications.
Table 1. System specifications
Component Specification
Form factor Storwize V3700 Controller Unit: 2U rack mount
Storwize V3700 Expansion Unit: 2U rack mount
Controller unit
configuration
Dual controller (known as node canister) configuration.
RAID levels RAID 0, 1, 5, 6, and 10; Distributed RAID 5 and 6 (Distributed RAID is supported with the
Spectrum Virtualize Software for V3700 version 7.6 onwards, which requires 4 GB to 8 GB
cache upgrades).
Controller cache 8 GB per system (4 GB per node canister) upgradeable to 16 GB (8 GB per node canister).
Battery-backed cache protection.
Drive bays Up to 240 SFF drive bays per storage system:
24 SFF drive bays in the controller unit
24 SFF drive bays in the expansion unit; up to 9x expansion units
Up to 120 LFF drive bays per storage system:
12 LFF drive bays in the controller unit
12 LFF drive bays in the expansion unit; up to 9x expansion units
Intermix of SFF and LFF units is supported.
Drive technology SAS and NL SAS HDDs and SAS SSDs. Intermix of HDDs and SSDs is supported.
IBM Storwize V3700 for Lenovo 6

Drive connectivity Dual-ported 6 Gb SAS drive attachment infrastructure.
Controller unit with two node canisters (ports per one node canister):
24x 6 Gb SAS internal drive ports (SFF enclosure)
12x 6 Gb SAS internal drive ports (LFF enclosure)
1x 6 Gb SAS x4 (Mini-SAS HD SFF-8644) expansion port for the attachment of the
expansion units
Expansion unit with two expansion canisters (ports per one expansion canister):
24x 6 Gb SAS internal drive ports (SFF enclosure)
12x 6 Gb SAS internal drive ports (LFF enclosure)
2x 6 Gb SAS x4 (Mini-SAS HD SFF-8644) expansion ports for the daisy chained
attachment of the expansion units
Drives SFF drives:
200 GB, 400 GB, 800 GB, 1.6 TB, and 3.2 TB SAS SSDs
300 GB and 600 GB 15K rpm SAS HDDs
600 GB, 900 GB, 1.2 TB, and 1.8 TB 10K rpm SAS HDDs
2 TB 7.2K rpm NL SAS HDDs
LFF drives:
300 GB and 600 GB 15K rpm SAS HDDs
900 GB, 1.2 TB, and 1.8 TB 10K rpm SAS HDDs
4 TB, 6 TB, and 8 TB 7.2K rpm NL SAS HDDs
Storage capacity Up to 960 TB (120x 8 TB NL SAS HDDs)
Host connectivity Standard ports (per controller unit with two node canisters):
6x 6 Gb SAS host ports (Mini-SAS HD, SFF-8644) (3 ports per node canister)
4x 1 Gb iSCSI host ports (UTP, RJ-45) (2 ports per node canister)
Optional additional ports on host interface cards (per controller unit with two node canisters):
8x 6 Gb SAS host ports (Mini-SAS HD, SFF-8644) (4 ports per node canister)
8x 1 Gb iSCSI host ports (UTP, RJ-45) (4 ports per node canister)
4x 10 Gb iSCSI or FCoE SFP+ host ports (SW fiber optics, LC) (2 ports per node
canister)
8x 8 Gb FC SFP host ports (SW or LW fiber optics, LC) (4 ports per node canister)
Host operating
systems
Microsoft Windows Server 2008 R2, 2012 and 2012 R2; Red Hat Enterprise Linux (RHEL) 5, 6,
and 7; SUSE Linux Enterprise Server (SLES) 10, 11, and 12; VMware vSphere 5.0, 5.1, 5.5,
and 6.0.
Standard
software features
Virtualization of internal storage, Thin Provisioning, One-way Data Migration, FlashCopy
snapshots (up to 64 targets).
Optional features Turbo Performance, Easy Tier, Remote Mirroring, FlashCopy snapshots (up to 2,040 targets).
Performance
(non-Turbo /
Turbo)*
Up to 200,000 / 295,000 cache read IOPS
Up to 45,000 / 67,000 disk read IOPS
Up to 12,300 / 14,000 disk write IOPS
Up to 23,000 / 33,000 disk mixed (70% read/30% write) IOPS
Up to 3.3 / 5.95 GBps sequential cache read throughput
Up to 2.5 / 4.1 GBps sequential disk read throughput
Up to 0.81 / 1.4 GBps sequential disk write throughput
Component Specification
IBM Storwize V3700 for Lenovo 7

Configuration
maximums**
Per system:
Maximum number of storage pools: 1,024
Maximum number of logical volumes: 2,048
Maximum logical volume size: 256 TB
Maximum number of drives in a RAID array: 16
Maximum number of drives in a distributed RAID array: 128 (including up to 4 spares)
Maximum number of RAID arrays: 128
Maximum number of distributed RAID arrays: 10
Maximum hot spare drives: No limit
Maximum number of host ports: 2,048
Maximum number of hosts: 256
Maximum number of host ports per one host: 32
Maximum number of snapshots: 2,040 (requires an optional license)
Maximum number of remote mirroring relationships: 2,048 (requires an optional
license)
Cooling Redundant cooling with the fan modules that are built into power supplies.
Power supply Two redundant hot-swap 735 W AC or 800 W DC power supplies.
Hot-swap parts Node canisters, expansion canisters, SFP/SFP+ transceivers, drives, power supplies with
fans.
Management
interfaces
2x 1 GbE ports (UTP, RJ-45) in a primary/redundant configuration.
Web-based GUI; SSH CLI; SMI-S; SNMP and email notifications.
Security features Secure Socket Layer (SSL), Secure Shell (SSH), user level security, LDAP authentication
Warranty Three-year customer-replaceable unit and onsite warranty with 9x5 next business day
terms. Optional warranty service upgrades are available through Lenovo: 24x7 coverage, 2-
hour or 4-hour response time, 1-year or 2-year warranty extensions, Hard Drive Retention.
Dimensions Height: 87 mm (3.4 in.); width: 483 mm (19.0 in.); depth: 556 mm (21.9 in.)
Weight 3.5-inch controller unit: Empty: 18.0 kg (39.6 lb); Fully configured: 28.3 kg (62.2 lb)
3.5-inch expansion unit: Empty: 16.4 kg (36.1 lb); Fully configured: 26.7 kg (58.8 lb)
2.5-inch controller unit: Empty: 19.0 kg (41.8 lb); Fully configured: 27.3 kg (60.0 lb)
2.5-inch expansion unit: Empty: 16.7 kg (36.7 lb); Fully configured: 25.0 kg (55.2 lb)
Component Specification
* Performance measurements with the maximum number of 15K rpm HDDs supported by the system.
** For a detailed list of configuration limits and restrictions for a specific version of the Storwize V3700 software, see the
following online document: http://www.ibm.com/support/docview.wss?uid=ssg1S1004388
Controller units
The following table lists the models of the Storwize V3700 controller units.
Product availability: Storwize V3700 Controller Units are withdrawn and no longer available for
ordering. The replacement product is Lenovo Storage V3700 v2 .
Table 2. Ordering information for Storwize V3700 controller units
Description
Part
number
Machine
Type-Model
Feature
code
IBM Storwize V3700 3.5-inch Storage Controller Unit 6099L2C 6099-12C ACAN
IBM Storwize V3700 2.5-inch Storage Controller Unit 6099S2C 6099-24C ACBN
IBM Storwize V3700 2.5-inch DC Storage Controller Unit 6099T2C 6099-2DC ACDJ
* MTM = Machine Type (first four digits) - Model (last three digits and letters)
IBM Storwize V3700 for Lenovo 8

The part number for the Storwize V3700 controller unit includes the following items:
One Storwize V3700 LFF or SFF controller unit with two power supplies with cooling modules and
with two node canisters
Two 2.8 m, 10 A/100 - 250 V, C13 to IEC 320-C14 Rack Power Cables (AC-powered models only)
Two DC power cables (DC-powered models only)
Rack mount hardware kit
Publications package
The Storwize V3700 controller units ship with two node canisters. A node canister provides interfaces for
host connectivity, management, and internal drives, and it runs storage management and virtualization
software.
Each Storwize V3700 controller unit ships with 8 GB of battery-backed cache (4 GB per node canister) that
can be upgraded to 16 GB (8 GB per node canister). The following table lists cache upgrade option.
Table 3. Cache upgrade option
Description
Part
number
Feature
code
Maximum
quantity per one
controller unit
4GB to 8GB Cache Upgrade 00MJ101 ACHB 2*
* One per node canister; both node canisters must have the same cache size.
The Storwize V3700 controller units ship with the following host connectivity interfaces:
4x Gigabit Ethernet (RJ-45) ports (2 ports per node canister) for 1 Gb iSCSI host connectivity and
management
6x 6 Gb SAS x4 (Mini-SAS HD SFF-8644) ports (3 ports per node canister) for 6 Gb SAS direct host
attachments
Each node canister has one expansion slot for an optional host interface card (HIC). The following host
interfaces can be added to the Storwize V3700 controller unit with optional HICs (if HICs are used, two
HICs of the same type are required per one controller unit):
8x 6 Gb SAS x4 (Mini-SAS HD SFF-8644) ports (4 ports per HIC) for extra SAS connectivity (for a
total of 14x 6 Gb SAS ports per controller unit)
8x GbE (RJ-45) ports (4 ports per HIC) for extra iSCSI connectivity (for a total of 12x GbE ports per
controller unit)
4x 10 GbE SFP+ ports (2 ports per HIC) with four SW SFP+ optical transceivers (LC connectors)
installed for 10 Gb iSCSI or FCoE connectivity
8x 8 Gb FC SFP ports (4 ports per HIC) with four SW SFP optical transceivers (LC connectors)
installed (2 transceivers per HIC) for FC connectivity (a pair of extra 8 Gb FC SW or LW SFP
transceivers is available for ordering as an option)
Note: Both node canisters must have the same type of the host interface card installed, and both cards
must have SFP/SFP+ modules of the same type, if any.
IBM Storwize V3700 for Lenovo 9

The following table lists the available host port configurations for the Storwize V3700 controller units.
Table 4. Storwize V3700 controller unit host port configurations
Port type 6 Gb SAS 1 Gb iSCSI 10 Gb iSCSI or FCoE 8 Gb FC
Number
of ports
Standard configuration
6 (3 per node canister) 4 (2 per node canister) - -
Optional configurations
14 (7 per node canister) 4 (2 per node canister) - -
6 (3 per node canister) 12 (2 per node canister) - -
6 (3 per node canister) 4 (2 per node canister) 4 (2 per node canister) -
6 (3 per node canister) 4 (2 per node canister) - 8 (4 per node canister)
The following table lists ordering information for the host connectivity options for the Storwize V3700
controller units.
Table 5. Host connectivity options
Description
Part
number
Feature
code
Maximum
quantity per one
controller unit
Host connectivity card options
6Gb SAS 4 Port Host Interface Card 00MJ093 ACHJ 2*
8Gb FC 4 Port Host Interface Card 00MJ095 ACHK 2*
1Gb iSCSI 4 Port Host Interface Card 00MJ097 ACHL 2*
10Gb iSCSI - FCoE 2 Port Host Interface Card 00MJ099 ACHM 2*
SFP options for 8 Gb FC host interface card (ships with a pair of 8 Gb FC SW SFP transceivers)
8Gb FC SW SFP Transceivers (Pair) 00MJ103 ACHS 2**
8Gb FC LW SFP Transceivers (Pair) 00MJ105 ACHT 4***
Cable options for FC, FCoE, and 10 Gb iSCSI host connectivity (AC-powered models only)
Lenovo 0.5m LC-LC OM3 MMF Cable 00MN499 ASR5 8
Lenovo 1m LC-LC OM3 MMF Cable 00MN502 ASR6 8
Lenovo 3m LC-LC OM3 MMF Cable 00MN505 ASR7 8
Lenovo 5m LC-LC OM3 MMF Cable 00MN508 ASR8 8
Lenovo 10m LC-LC OM3 MMF Cable 00MN511 ASR9 8
Lenovo 15m LC-LC OM3 MMF Cable 00MN514 ASRA 8
Lenovo 25m LC-LC OM3 MMF Cable 00MN517 ASRB 8
Lenovo 30m LC-LC OM3 MMF Cable 00MN520 ASRC 8
Cable options for FC, FCoE, and 10 Gb iSCSI host connectivity (AC- and DC-powered models)
1m Fiber Cable (LC) (FC only) 00MJ168 ACSJ 8
5m Fiber Cable (LC) (FC only) 00MJ170 ACSK 8
10m OM3 Fiber Cable (LC) 00MJ174 ACSS 8
25m Fiber Cable (LC) (FC only) 00MJ172 ACSL 8
SAS host connectivity cables - Mini-SAS HD (controller) to Mini-SAS (host)
0.6m SAS Cable (mSAS HD to mSAS) 00MJ162 ACSA 14
IBM Storwize V3700 for Lenovo 10

1.5m SAS Cable (mSAS HD to mSAS) 00MJ163 ACSB 14
3m SAS Cable (mSAS HD to mSAS) 00MJ166 ACSC 14
SAS host connectivity cables - Mini-SAS HD (controller) to Mini-SAS HD (host)
0.6m SAS Cable (mSAS HD to mSAS HD) 00MJ176 ACTA 14
1.5m SAS Cable (mSAS HD to mSAS HD) 00MJ178 ACTB 14
3m SAS Cable (mSAS HD to mSAS HD) 00MJ180 ACTC 14
Description
Part
number
Feature
code
Maximum
quantity per one
controller unit
* Up to one per node canister; both node canisters must have the same connectivity type.
** Up to one extra SW SFP module pair per 8 Gb FC host interface card in the node canister; both node canisters must have
the same connectivity type.
*** Up to two LW SFP module pairs per 8 Gb FC host interface card in the node canister; both node canisters must have the
same connectivity type. The second pair of LW SFP modules replaces the SW SFP modules that ship standard with the 8 Gb
FC HIC.
The Storwize V3700 controller units provide 6 Gb SAS internal dual-port drive connectivity, and each
controller unit also has two 6 Gb SAS x4 (Mini-SAS HD SFF-8644) ports (1 port per node canister) for 6 Gb
SAS expansion unit connectivity.
Expansion units
The Storwize V3700 controller unit supports attachment of up to nine Storwize V3700 expansion units.
Intermix of LFF and SFF units is supported. The enclosures can be added to the system non-disruptively.
The following table lists the models of the Storwize V3700 expansion units.
Table 6. Ordering information for Storwize V3700 expansion units
Description
Part
number
Machine
Type-Model
Feature
code
IBM Storwize V3700 3.5-inch Storage Expansion Unit 6099LEU 6099-12E ACAS
IBM Storwize V3700 2.5-inch Storage Expansion Unit 6099SEU 6099-24E ACBS
IBM Storwize V3700 2.5-inch DC Storage Expansion Unit 6099TEU 6099-2DE ACDS
The part number for the expansion unit includes the following items:
One Storwize V3700 LFF or SFF expansion unit with two power supplies with cooling modules and
with two expansion canisters
Two 2.8 m, 10 A/100 - 250 V, C13 to IEC 320-C14 Rack Power Cables (AC-powered models only)
Two DC power cables (DC-powered models only)
Rack mount hardware kit
Publications package
IBM Storwize V3700 for Lenovo 11

Each Storwize V3700 expansion unit ships with two expansion canisters. Each expansion canister provides
6 Gb SAS connectivity to the internal drives and two external 6 Gb SAS x4 ports (Mini-SAS HD SFF-8644
connectors labelled Port 1 and Port 2) that are used for connections to the Storwize V3700 node canisters
and for daisy chaining the expansion units between each other. The expansion port (Port 4) on the Storwize
V3700 node canister is connected to the Port 1 on the expansion canister. The Port 2 on the expansion
canister is connected to the Port 1 on the expansion canister in the adjacent enclosure, and so on.
The expansion unit connectivity topology is shown in the following figure.
Figure 7. Expansion unit connectivity topology
The following table lists ordering information for the expansion unit connectivity options.
Table 7. Expansion unit connectivity options
Description
Part
number
Feature
code
Maximum
quantity per one
expansion unit
0.6m SAS Cable (mSAS HD to mSAS HD) 00MJ176 ACTA 2*
1.5m SAS Cable (mSAS HD to mSAS HD) 00MJ178 ACTB 2*
3m SAS Cable (mSAS HD to mSAS HD) 00MJ180 ACTC 2*
* One cable per expansion canister; two cables are required per each expansion unit.
IBM Storwize V3700 for Lenovo 12

Drives
The Storwize V3700 LFF controller and expansion units support up to 12 LFF hot-swap drives, and the
Storwize V3700 SFF units support up to 24 SFF hot-swap drives.
The following table lists drive options for the Storwize V3700 LFF units.
Table 8. LFF drive options
Description
Part
number
Feature
code
Maximum
quantity per one
LFF unit
3.5-inch SAS hot-swap HDDs
300 GB 15,000 rpm 6 Gb SAS 3.5 Inch HDD 00MJ135 ACKS 12
600 GB 15,000 rpm 12 Gb SAS 3.5 Inch HDD 00MJ137 ACKT 12
900 GB 10,000 rpm 6 Gb SAS 3.5 Inch HDD 00MJ131 ACKJ 12
1.2 TB 10,000 rpm 6 Gb SAS 3.5 Inch HDD 00MJ133 ACKK 12
1.8 TB 10,000 rpm 12 Gb SAS 3.5 Inch HDD 00MN524 ASTK 12
3.5-inch NL SAS hot-swap HDDs
4 TB 7,200 rpm 6 Gb NL SAS 3.5 Inch HDD 00MJ129 ACKC 12
6 TB 7,200 rpm 12 Gb NL SAS 3.5 Inch HDD 00MN522 ASTJ 12
8 TB 7,200 rpm 12 Gb NL SAS 3.5 Inch HDD 00WC008 AT0T 12
The following table lists drive options for the Storwize V3700 SFF units.
Table 9. SFF drive options
Description
Part
number
Feature
code
Maximum
quantity per one
SFF unit
2.5-inch SAS hot-swap HDDs
300 GB 15,000 rpm 6 Gb SAS 2.5 Inch HDD 00MJ141 ACLB 24
600 GB 10,000 rpm 6 Gb SAS 2.5 Inch HDD 00MJ145 ACLK 24
600 GB 15,000 rpm 12 Gb SAS 2.5 Inch HDD 00MJ143 ACLC 24
900 GB 10,000 rpm 6 Gb SAS 2.5 Inch HDD 00MJ147 ACLL 24
1.2 TB 10,000 rpm 6 Gb SAS 2.5 Inch HDD 00MJ149 ACLM 24
1.8 TB 10,000 rpm 12 Gb SAS 2.5 Inch HDD 00MN526 ASTL 24
2.5-inch NL SAS hot-swap HDDs
2 TB 7,200 rpm 12 Gb NL SAS 2.5 Inch HDD 00WC011 AT0W 24
2.5-inch SAS hot-swap SSDs
200 GB 12 Gb SAS 2.5 Inch Flash Drive 00MJ154 ACMD 24
400 GB 12 Gb SAS 2.5 Inch Flash Drive 00MJ156 ACME 24
800 GB 12 Gb SAS 2.5 Inch Flash Drive 00MJ158 ACMF 24
1.6 TB 12 Gb SAS 2.5 Inch Flash Drive 00WC014 AT0Z 24
3.2TB 12 Gb SAS 2.5 Inch Flash Drive 00MM832 ATQS 24
IBM Storwize V3700 for Lenovo 13

Software
Note: Storwize V3700 functional capabilities that are described in this product guide are based on the
Spectrum Virtualize Family Software for Storwize V3700 version 7.8. The Spectrum Virtualize Software for
Storwize V3700 version 7.8 requires 8 GB cache memory per node canister.
The following features are included with every Storwize V3700 storage system:
RAID levels 0, 1, 5, 6, and 10
Provides the flexibility to choose the level of data protection that is required.
Distributed RAID 5 and 6
Helps improve performance and availability with significantly faster rebuild time by allowing data to
be distributed across more physical drives that are used simultaneously.
Virtualization of internal storage
Enables rapid, flexible provisioning and simple configuration changes.
Thin Provisioning
Optimizes efficiency by allocating disk storage space in a flexible manner among multiple users,
based on the minimum space required by each user at any time. With thin provisioning,
applications use only the space they are actually using, not the total space that is allocated to them.
One-way Data Migration
Enables easy and nondisruptive moves of volumes from another storage system onto the Storwize
V3700 Storage System by using FC or SAS connectivity.
FlashCopy
Enables creation of copies of data for backup, parallel processing, testing, and development, and
have the copies available almost immediately. Base software supports up to 64 FlashCopy targets
per system.
The Storwize V3700 storage capabilities can be expanded with optional licensed functions. Each optional
Storwize V3700 function is licensed on a per-system basis and covers controller unit and all attached
expansion units.
To help evaluate the benefits of these new capabilities, licensed functions (with the exception of
FlashCopy upgrade) can be enabled at no charge for a 90-day trial period. Trials are started from the
Storwize management GUI and do not require any Lenovo intervention. Upon expiration of the trial, the
function is automatically disabled unless a license key for that function was installed onto the machine.
The following optional licensed functions are available:
Turbo Performance
Turbo performance increases the maximum IOPS and throughput of a Storwize V3700 Storage
System. Configurations with greater than 80 disk drives or more than five SSDs are ideal candidates
to benefit from the increased IOPS offered with Turbo performance. Configurations with greater
than 30 HDDs are suited to benefit from the throughput increase offered with Turbo performance.
FlashCopy Upgrade
FlashCopy allows the creation of copies of data for backup, parallel processing, testing, and
development, and have the copies available almost immediately. All Storwize V3700 storage
systems support up to 64 targets per system at no charge. The FlashCopy upgrade option
increases this support to 2,040 FlashCopy targets per system.
Easy Tier
Storage tiering helps optimize storage use with data location to improve system performance,
reduce costs, and simplify management. Easy Tier automatically and dynamically moves frequently
accessed data to flash (solid-state) drives in the system, which results in flash drive performance
without manually creating and managing storage tier policies. Easy Tier makes it easy and
economical to deploy flash drives in the environment.
IBM Storwize V3700 for Lenovo 14

Remote Mirroring
The remote mirroring feature provides storage system-based data replication by using synchronous
or asynchronous data transfers over IP, FC, or FCoE communication links:
Metro Mirror maintains a fully synchronized copy at metropolitan distances (up to 300 km).
Global Mirror operates asynchronously and helps maintain a copy at much greater distances
(up to 8000 km)
Both functions support VMware Site Recovery Manager for disaster recovery.
For ultimate flexibility, Storwize V3700 remote mirroring interoperates with any other Storwize family
system, including Storwize V7000, Storwize V5000, and SAN Volume Controller.
The remote mirroring option must be acquired (or licensed) for the primary (local) and secondary
(remote) systems. If Storwize V3700 is mirrored to a system other than Storwize V3700, the other
system must have the appropriate and applicable license for remote mirroring.
The following table lists ordering information for optional software features.
Table 10. Optional software features
Description
Part
number
Feature
code
Maximum
quantity per one
controller unit
Turbo Performance 00MJ117 ACFA 1
FlashCopy Upgrade 00MJ119 ACFE 1
Remote Mirroring 00MJ121 ACFJ 1
Easy Tier 00MJ123 ACFN 1
Power cables
The Storwize V3700 AC-powered units ship standard with two 2.8 m, 10 A/100 - 250 V, C13 to IEC 320-
C14 rack power cables. Optionally, country-specific line cords also can be ordered (see the following
table; each part number or feature code contains two line cords that are needed per one unit).
Table 11. Ordering information for country-specific line cords for AC-powered models
Description
Part
number
Feature
code
1.8m, 10A/120V, C13 to NEMA 5-15P (US/Chicago) 2x Line Cords 00MJ248 AS25
2.8m, 10A/230V, C13 to BS 1363/A (UK) 2x Line Cords 00MJ232 ARZT
2.8m, 10A/230V, C13 to AS/NZS 3112 (Aus/NZ) 2x Line Cords 00MJ233 ARZU
2.8m, 10A/230V, C13 to CEE7-VII (Europe) 2x Line Cords 00MJ234 ARZV
2.8m, 10A/230V, C13 to DK2-5a (Denmark) 2x Line Cords 00MJ235 ARZW
2.8m, 10A/230V, C13 to SABS 164 (South Africa) 2x Line Cords 00MJ236 ARZX
2.8m, 10A/230V, C13 to SEV 1011-S24507 (Sws) 2x Line Cords 00MJ237 ARZY
2.8m, 10A/230V, C13 to CEI 23-16 (Italy) 2x Line Cords 00MJ238 ARZZ
2.8m, 10A/230V, C13 to SI 32 (Israel) 2x Line Cords 00MJ239 AS00
2.8m, 10A/220V, C13 to IRAM 2073 (Argentina) 2x Line Cords 00MJ240 AS01
2.8m, 10A/220V, C13 to GB 2099.1 (China) 2x Line Cords 00MJ241 AS02
2.8m, 10A/120V, C13 to NEMA 5-15P (US) 2x Line Cords 00MJ242 AS03
2.8m, 10A/120V, C13 to NEMA 5-15P (US) 2x Line Cords 00MJ242 AS03
2.8m, 10A/110V, C13 to CNS 10917-3 (Taiwan) 2x Line Cords 00MJ243 AS04
IBM Storwize V3700 for Lenovo 15

2.8m, 10A/220V, C13 to NBR 6147 (Brazil) 2x Line Cords 00MJ244 AS05
2.8m, 10A/240V, C13 to IS 6538 (India) 2x Line Cords 00MJ245 AS06
2.8m, 12A/220V, C13 to KSC 8305 (S. Korea) 2x Line Cords 00MJ247 AS08
4.3m, 12A/100V, C13 to JIS C-8303 (Japan) 2x Line Cords 00MJ246 AS07
Description
Part
number
Feature
code
For DC-powered units, two DC power cables are included with the unit.
Physical specifications
The Storwize V3700 units have the following dimensions and weight (approximate):
Height: 87 mm (3.4 in.)
Width: 483 mm (19.0 in.)
Depth: 556 mm (21.9 in.)
Approximate weight::
3.5-inch storage controller unit:
Empty: 18.0 kg (39.6 lb)
Fully configured: 28.3 kg (62.2 lb)
3.5-inch storage expansion unit:
Empty: 16.4 kg (36.1 lb)
Fully configured: 26.7 kg (58.8 lb)
2.5-inch storage controller unit:
Empty: 19.0 kg (41.8 lb)
Fully configured: 27.3 kg (60.0 lb)
2.5-inch storage expansion unit:
Empty: 16.7 kg (36.7 lb)
Fully configured: 25.0 kg (55.2 lb)
Operating environment
The Storwize V3700 units are supported in the following environment:
Air temperature:
Operating: 10 °C - 35 °C (50 °F - 95 °F) at 30.5 m (100 ft) below to 3,000 m (9,840 ft) above
sea level
Storage: -10 °C - +50 °C (14 °F - 125 °F)
Maximum altitude: 3,000 m (9,840 ft)
Humidity:
Operating: 20% - 80%
Storage: 10% - 90%
Electrical power (AC-powered models):
Voltage range: 100 V AC - 240 V AC
Frequency: 50 Hz - 60 Hz
Power:
3.5-inch storage controller unit: 358 watts
3.5-inch storage expansion unit: 300 watts
2.5-inch storage controller unit: 405 watts
2.5-inch storage expansion unit: 338 watts
IBM Storwize V3700 for Lenovo 16

Electrical power (DC-powered models):
Voltage range: -42 V DC to -60 V DC
Voltage nominal:-48 V DC
Current: 12.0 A
Power:
SFF control enclosure: 356 watts
SFF expansion enclosure: 278 watts
Heat dissipation (BTU per hour):
AC-powered models:
3.5-inch storage controller unit: 1,222
3.5-inch storage expansion unit: 1,024
2.5-inch storage controller unit: 1,383
2.5-inch storage expansion unit: 1,154
DC-powered models:
2.5-inch storage controller unit: 1,215
2.5-inch storage expansion unit: 949
Acoustical noise emission:
3.5-inch controller unit:
6.0 bels (idling)
6.0 bels (operating)
2.5-inch controller unit:
6.1 bels (idling)
6.1 bels (operating)
Warranty services and upgrades
The Storwize V3700 has a three-year Customer Replaceable Unit (CRU) and onsite warranty with 9x5/next
business day (NBD) terms. Lenovo offers the service upgrades through warranty maintenance upgrades
and post-warranty maintenance agreements with a well-defined scope of services, including service hours,
response time, term of service, and service agreement terms and conditions.
Lenovo warranty service upgrade offerings are country-specific. Not all warranty service upgrades are
available in every country. For more information about Lenovo warranty service upgrade offerings that are
available in your country, refer to the Lenovo Enterprise Solutions Configurator (LESC):
http://lesc.lenovo.com
The warranty service definitions for the Storwize V3700 system are listed in the following table.
Table 12. Warranty service definitions
Term Description
On-site
service
A service technician arrives at the client’s location for equipment service.
24x7x2
hour
A service technician is scheduled to arrive at the client’s location within two hours after remote
problem determination is completed. Lenovo provides service around the clock, every day, including
Lenovo holidays.
24x7x4
hour
A service technician is scheduled to arrive at the client’s location within four hours after remote
problem determination is completed. Lenovo provides service around the clock, every day, including
Lenovo holidays.
9x5x4 hour A service technician is scheduled to arrive at the client’s location within four business hours after
remote problem determination is completed. Lenovo provides service 8:00 am - 5:00 pm in the
client's local time zone, Monday - Friday, excluding Lenovo holidays. For example, if a customer
reports an incident at 3:00 pm on Friday, the technician will arrive by 10:00 am the following Monday.
IBM Storwize V3700 for Lenovo 17

9x5 next
business
day
A service technician is scheduled to arrive at the client’s location on the business day after remote
problem determination is completed. Lenovo provides service 8:00 am - 5:00 pm in the client's local
time zone, Monday - Friday, excluding Lenovo holidays. Calls received after 4:00 pm local time
require an extra business day for service dispatch. Next business day service is not guaranteed.
Committed
Repair
Problems receive priority handling so that repairs are completed within the committed time of 6 or 24
hours. Lenovo provides service 24 hours/day, every day, including Lenovo holidays.
Term Description
In general, the following types of Lenovo warranty service upgrades for the Storwize V3700 are available:
Warranty and maintenance service upgrades:
Three, four, or five years of 9x5 or 24x7 service coverage
Onsite response from next business day to two or four hours
Committed repair service
Up to five years of warranty extension for all service levels in one or two year increments
Committed Repair Service
Committed Repair Services enhances the level of Warranty Service Upgrade or Post
Warranty/Maintenance Service offering associated with the selected systems. Offerings vary and
are available in select countries.
Priority handling to meet defined time frames to restore the failing machine to good working
condition
Committed repair service levels are measured within the following coverage hours:
24x7x6: Service performed 24 hours per day, 7 days per week, within 6 hours
24x7x24: Service performed 24 hours per day, 7 days per week, within 24 hours
Hard Drive Retention
Lenovo’s Hard Drive Retention service is a multi-drive hard drive retention offering that ensures your
data is always under your control, regardless of the number of hard drives that are installed in your
Lenovo system. In the unlikely event of a hard drive failure, you retain possession of your hard drive
while Lenovo replaces the failed drive part. Your data stays safely on your premises, in your hands.
The Hard Drive Retention service can be purchased in convenient bundles with our warranty
upgrades and extensions.
Hardware Installation Services
Lenovo experts can seamlessly manage the physical installation of your server, storage, or
networking hardware. Working at a time convenient for you (business hours or off shift), the
technician will unpack and inspect the systems on your site, install options, mount in a rack
cabinet, connect to power and network, check and update firmware to the latest levels, verify
operation, and dispose of the packaging, allowing your team to focus on other priorities. Your new
systems will be configured and ready for your software installation.
Regulatory compliance
The Storwize V3700 conforms to the following regulations:
FCC: Verified to comply with Part 15 of the FCC Rules, Class A
Canada ICES-003, Class A
Australia and New Zealand Class A statement
European Union Council Directive 2004/108/EC
EN 55022, Class A
Japan VCCI Class A statement
People's Republic of China Class A statement
Taiwan Class A compliance statement
Korea KCC Class A statement
Russia EMI Class A statement
IBM Storwize V3700 for Lenovo 18

Interoperability
Lenovo provides end-to-end storage compatibility testing to deliver interoperability throughout the
network. The Storwize V3700 supports attachment to Lenovo System x®, ThinkServer®, and Flex
System™ hosts by using SAS, iSCSI, FC, or FC over Ethernet (FCoE) storage connectivity protocols.
Hybrid storage connectivity also is supported.
Note: Tables that are provided in this section are for ordering reference purposes only. End-to-end storage
configuration support must be verified through the System Storage Interoperation Center (SSIC):
http://ibm.com/systems/support/storage/ssic
SAS connectivity
The following table lists currently available SAS adapters for Lenovo servers that are compatible with the
Storwize V3700 SAS storage (direct attach).
Table 13. SAS adapters
Description Part number
ThinkSystem SAS HBAs
ThinkSystem 430-8e SAS/SATA 12Gb HBA 7Y37A01090
ThinkSystem 430-16e SAS/SATA 12Gb HBA 7Y37A01091
System x SAS HBAs
6Gb SAS HBA 46M0907
N2125 SAS/SATA HBA (6Gb) 46C9010
N2225 SAS/SATA HBA (12Gb) 00AE912
N2226 SAS/SATA HBA (12Gb) 00AE916
ThinkServer SAS HBAs
Lenovo ThinkServer 9300-8e PCIe 12Gb 8 Port External SAS Adapter by LSI 4XB0F28703
FCoE or iSCSI connectivity
The Storwize V3700 supports end-to-end 10 Gb FCoE connectivity with native FCoE ports or FCoE
connectivity via FCoE/FC gateways with native FC ports. Lenovo RackSwitch™, Brocade, and Cisco
converged switches can be used to provide FCoE connectivity with the Storwize V3700 FC storage.
The Storwize V3700 also supports iSCSI attachments via standard 1 Gb or 10 Gb Ethernet network. Any
compatible Ethernet switch, including Lenovo RackSwitch top of rack (TOR) switches and integrated
BladeCenter or Flex System Ethernet I/O modules, can be used to provide iSCSI connectivity with the
Storwize V3700 iSCSI storage.
With software iSCSI initiators, any supported 1 Gb Ethernet or 10 Gb Ethernet adapter for Lenovo
servers is compatible with the Storwize V3700 iSCSI storage.
IBM Storwize V3700 for Lenovo 19

Currently available converged FCoE/iSCSI adapters for Lenovo servers that are compatible with Storwize
V3700 are listed in the following table. Other HBAs also might be supported (see the SSIC for details).
Table 14. Converged FCoE/iSCSI adapters
Description Part number
System x converged adapters
Emulex VFA5 ML2 Dual Port 10GbE SFP+ Adapter (Requires 00D8544) 00D1996
Emulex Dual Port 10GbE SFP+ Embedded VFA IIIr (Requires 90Y5178) 00Y7730
Emulex Dual Port 10GbE SFP+ VFA IIIr (Requires 95Y3760) 00D8540
Emulex VFA5 2x10 GbE SFP+ Adapter and FCoE/iSCSI SW 00JY830
Emulex VFA5 2x10 GbE SFP+ PCIe Adapter (Requires 00JY824) 00JY820
Qlogic Dual Port 10GbE SFP+ Embedded VFA (Requires 90Y5179) 90Y6454
Qlogic 8200 Dual Port 10GbE SFP+ VFA (Requires 00Y5624) 90Y4600
System x FoD upgrades required for FCoE/iSCSI support
Emulex VFA5 ML2 FCoE/iSCSI License (FoD) (Required for 00D1996) 00D8544
Emulex Mezz VFA III/IIIr FCoE/iSCSI License (FoD) (Required for 00Y7730) 90Y5178
Emulex VFA III/IIIr FCoE/iSCSI License (FoD) (Required for 00D8540) 95Y3760
Emulex VFA5 FCoE/iSCSI SW for PCIe Adapter (FoD) (Required for 00JY820) 00JY824
Qlogic Embedded VFA FCoE/iSCSI License (FoD) (Required for 90Y6454) 90Y5179
Qlogic 8200 VFA FCoE/iSCSI License (FoD) (Required for 90Y4600) 00Y5624
Flex System converged adapters
Flex System CN4022 2-port 10Gb Converged Adapter 88Y5920
Flex System CN4052 2-port 10Gb Virtual Fabric Adapter (Requires 00JY804) 00JY800
Flex System CN4054 10Gb Virtual Fabric Adapter (Requires 90Y3558) 90Y3554
Flex System CN4054R 10Gb Virtual Fabric Adapter (Requires 90Y3558) 00Y3306
Flex System CN4058S 8-port 10Gb Virtual Fabric Adapter (Requires 94Y5164) 94Y5160
Flex System FoD upgrades required for FCoE/iSCSI support
Flex System CN4052 Virtual Fabric Adapter SW Upgrade (FoD) (Required for 00JY800) 00JY804
Flex System CN4054 Virtual Fabric Adapter Upgrade (FoD) (Required for 90Y3554, 00Y3306) 90Y3558
Flex System CN4058S Virtual Fabric Adapter SW Upgrade (FoD) (Required for 94Y5160) 94Y5164
Fibre Channel connectivity
The Storwize V3700 supports direct FC attachments and FC switch-based attachments. Brocade and
Cisco SAN switches can be used to provide FC connectivity with the Storwize V3700 FC storage.
Currently available FC adapters for Lenovo servers that are compatible with the Storwize V3700 FC storage
are listed in the following table. Other HBAs also might be supported (see the SSIC for details).
Table 15. Fibre Channel adapters
Description Part number
System x HBAs: 16 Gb FC
Emulex 16Gb FC Dual-port HBA 81Y1662
Emulex 16Gb FC Single-port HBA 81Y1655
QLogic 16Gb FC Single-port HBA 00Y3337
IBM Storwize V3700 for Lenovo 20
