Dancover AC08013 User manual

14-01-2021
for
Rope Light
Manual

Precaution
♦Don’t cover the rope light or place in an area where heat can’t escape. It will cause the
rope light overheat and melt.
♦Don’t turn on the rope light before it is uncoiled. This will cause it overheat.
♦ Don’t ex and bent the rope light continuously.
♦Don’t submerge the rope light in water.
♦Don’t put the rope light in a damp area without the connector joints being sealed with
silicon glue.
Rope light is water tight but when used outdoors in an area that is damp
or could get wet, seal all connections with silicone or silicone tape. Never
submerge in water.
Installation

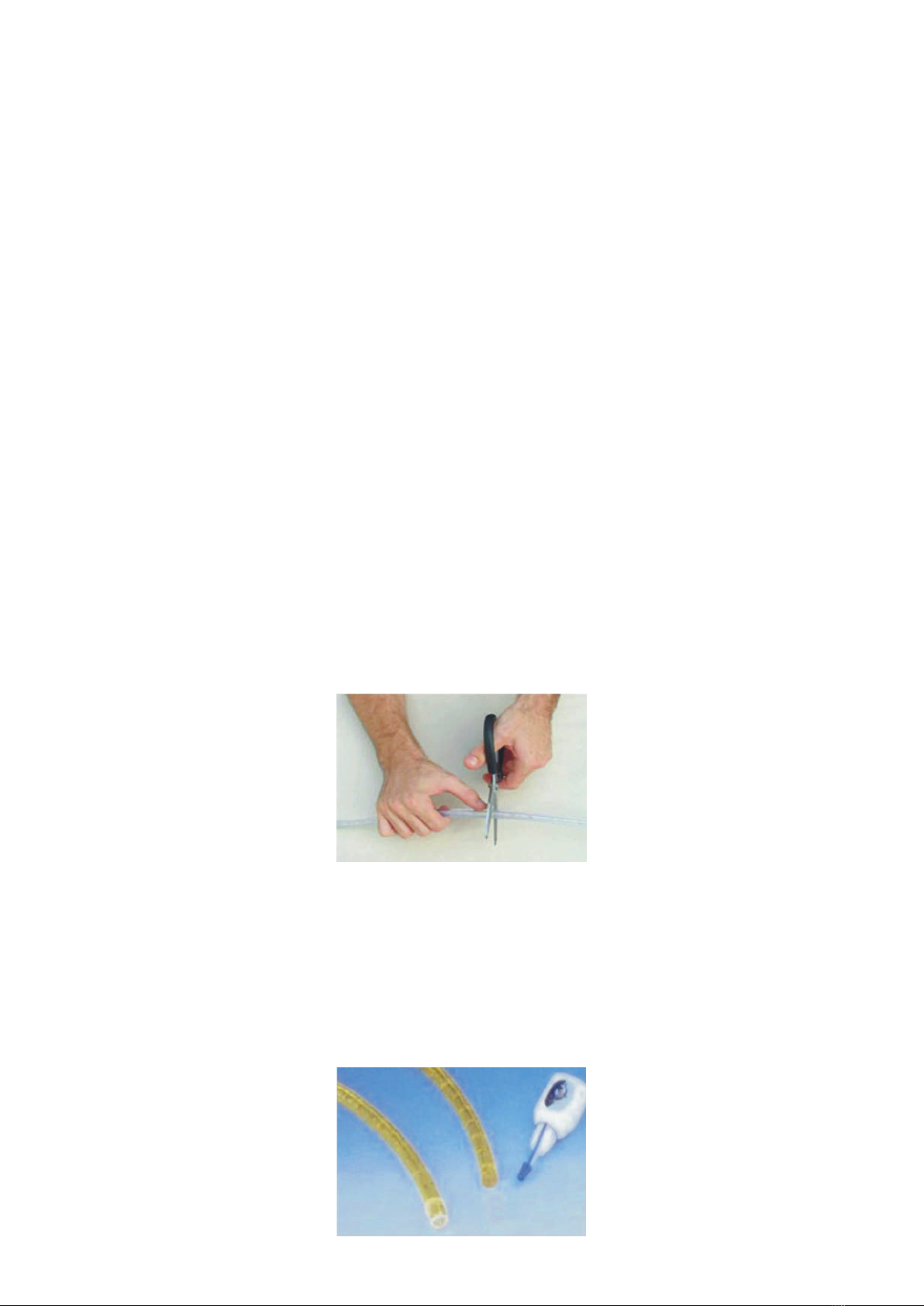

Where do I cut the rope light?
There is a scissor mark on the rope indicating where to cut. Be very careful to cut cleanly
and only where indicated. If you cut elsewhere, it will ruin that stretch of light and cause it to
go dark. After you have cut the rope light, don’t forget to trim the copper wires from the cut
ends.
How do I attach the connector kit to the rope light?
a. Place the plastic end-cap on the end of the rope farthest from where the power source will
be. The end cap is necessary to prevent water from getting in to the rope light wiring and
creating an electrical short circuit.

b. Use the rope light connector to connect two sections rope light together:
Unscrew the connector parts.
STEP 1
Push the connector pins into the rope light towards the trimmed wires. Screw the cover back
on that side. Do the same with the other side (just remember to put the connector cover on
the rope light first so you can screw it tight after you have pushed the two parts together).
STEP 2
NOTICE: When two sections are connected, try to power it on and check whether the rope
lights work or not. If the rope lights do not work simply remove the connector from the rope
light and turn the rope light or the connector 180 degree due to the positive and negative
poles.
STEP 3

How to mount the rope light?
You can use a mounting clip or mounting channel to attach the rope light with place which
you want.
Application
It is easy to be installed and widely used for outdoor landscape, decorating around a patio or
You can put them
in the kitchen underneath or above the cabinets. You can also use them on your boat or RV.
NOTE: If you need to use your rope light outdoors you must seal the connector with
silicone glue as it is not waterproof!
STEP 4

I
