Danfoss Eco User manual

Danfoss Eco™ Electronic radiator
thermostat
Instruction Manual
www.danfoss.com

2
| © Danfoss | Heating Segment | 2017.04 VILTH102
Installation Guide Danfoss Eco™ Electronic radiator thermostat
Installation Guide
1. Installation
1.1 Identify your Danfoss Eco™ ..........................................................4
1.2 In the package ......................................................................5
1.3 Overview of valve adapters ..........................................................5
1.4 Installing the right adapter ..........................................................7
1.5 Inserting the batteries...............................................................8
1.6 Mounting the Danfoss Eco™ .........................................................9
1.7 Download Danfoss Eco™ App .......................................................9
1.8 Paring Danfoss Eco™ .............................................................. 10
1.9 Automatic adjustments............................................................ 10
1.10 Removing Danfoss Eco™ .......................................................... 11
1.11 Resetting Danfoss Eco™ to default settings ......................................... 11
2. Technical specifications................................................................. 12

3
VILTH102 © Danfoss | Heating Segment | 2017.04 |
Installation Guide Danfoss Eco™ Electronic radiator thermostat
User Guide
3. Display
3.1 Display screen .................................................................... 13
3.2 Red illuminating ring .............................................................. 13
3.3 Display rotation ................................................................... 14
3.4 Manual mode ..................................................................... 14
4. Temperature and programme settings
4.1 Time ............................................................................. 15
4.2 Default temperature .............................................................. 15
4.3 Setting temperatures ............................................................. 15
4.4 Create your own schedule ........................................................ 16
4.5 Vacation .......................................................................... 16
4.6 Overrule a vacation ............................................................... 17
4.7 Cancel an existing vacation programme ........................................... 17
4.8 Pause ............................................................................. 17
4.9 Open window setting ............................................................. 18
5. Additional settings
5.1 Setting options via the Danfoss Eco™ App.......................................... 19
5.2 Software updates ................................................................. 20
5.3 Data security ..................................................................... 21
6. Safety precautions...................................................................... 21
7. Disposal ................................................................................ 21

4
| © Danfoss | Heating Segment | 2017.04 VILTH102
Installation Guide Danfoss Eco™ Electronic radiator thermostat
Code no. Version characteristics
014G1000 Adapters included: RA adapter
014G1001 Adapters included: RA, M30 x 1.5 adapters
014G1002 IT - Adapters included RA, M30, Caleffi & Giacomini
014G1003 RU - Adapters included RA & M30
014G1020 UK (Combi, Bi-Div valve) - RA (Premounted)
014G1021 UK (Combi, Bi-Div valve, RLV-D) - RA (Premounted)
Code no. Version characteristics
014G1100 DK - Adapters included RA, M30, RAV & RAVL
014G1101 DE - Adapters included RA, M30, RAV & RAVL
014G1102 FR - Adapters included RA, M30, M28 Comap
014G1103 HU, HR, RO, SK, UA - Adapters included RA, M30, RTD
014G1104 IT - Adapters included RA, M30, M28 Herz, Caleffi & Giacomini
014G1105 PL, CZ, LT, EE, LV, SI - Adapters included RA, M30 & RTD
014G1106 NL, BE, NO, FI, IS, TR - Adapters included RA & M30
014G1107 ES, PT - Adapters included RA, M30, M28 Orkli
014G1108 UK - Adapters included RA, M30
014G1109 AT - Adapters included RA, M30 & M28 Herz
014G1110 SE - Adapters included RA, M30 & M28 MMA
014G1111 RU - Adapters Included RA, M30, RTD, M28 Herz & Giacomini
014G1112 CH - Adapters included RA, M30, RAVL & RAV
1. Installation
1.1 Identify your Danfoss Eco™

5
VILTH102 © Danfoss | Heating Segment | 2017.04 |
Installation Guide Danfoss Eco™ Electronic radiator thermostat
1.2 In the package
Danfoss Eco™ are supplied with the adapters as listed above. In addition each pack contains:
Danfoss Eco™ Quick Guide Requires 2x AA batteries Allen Key
Adapter
selectionguide
RAV
(Ø34mm)
Danfoss
RAVL
(Ø26mm)
Danfoss
RTD
Danfoss
RA
Danfoss
M30
Heimeier,TA,
Oventrop,
Honeywell
M28
Orkli,Comap,
Herz,MMA
C
Giacominni
26
34
Adapterselection
Adapter
selectionguide
RAV
(Ø34mm)
Danfoss
RAVL
(Ø26mm)
Danfoss
RTD
Danfoss
RA
Danfoss
M30
Heimeier,TA,
Oventrop,
Honeywell
M28
Orkli,Comap,
Herz,MMA
Cale
Giacominni
26
34
?
R
A
V
(
Ø
3
4
m
m
)
D
a
n
fo
s
s
R
A
VL
(
Ø
2
6
m
m
)
D
a
n
f
os
s
R
A
D
a
n
fo
s
sM
2
8
O
r
k
l
i
,
C
o
m
a
p
,
He
r
z
,
M
M
A
0
1
3
R9
6
3
3
-
VU
F
Q
B
1
0
2
M
3
0
He
i
m
e
i
e
r
,
T
A
,
O
v
e
n
t
r
o
p
,
H
o
n
e
y
w
e
l
l
A
d
a
p
t
e
r
s
e
le
ct
io
n
g
u
id
e
R
T
D
D
a
n
f
o
s
s
3
4
26
Adapterselection
Adapter
selectionguide
RAV
(Ø34mm)
Danfoss
RAVL
(Ø26mm)
Danfoss
RTD
Danfoss
RA
Danfoss
M30
Heimeier,TA,
Oventrop,
Honeywell
M28
Orkli,Comap,
Herz,MMA
Cal
Giacominni
26
34
?
R
A
V
(
Ø
3
4
m
m
)
D
a
n
f
o
s
s
R
A
V
L
(
Ø
2
6m
m)
Da
n
f
o
ss
R
A
D
a
nf
o
ssM
2
8
O
r
k
l
i
,
C
om
a
p
,
H
e
r
z
,
M
M
A
0
1
3
R
9
6
3
3
-
V
U
F
Q
B
1
0
2
M
30
He
i
m
e
i
e
r
,
T
A
,
O
v
e
nt
r
o
p
,
H
on
e
y
w
e
l
l
A
d
a
p
te
r
s
e
l
e
c
t
io
n
g
u
id
e
R
T
D
D
a
n
f
o
s
s
3
4
2
6
Adapterselection
Adapter Guide Adapters

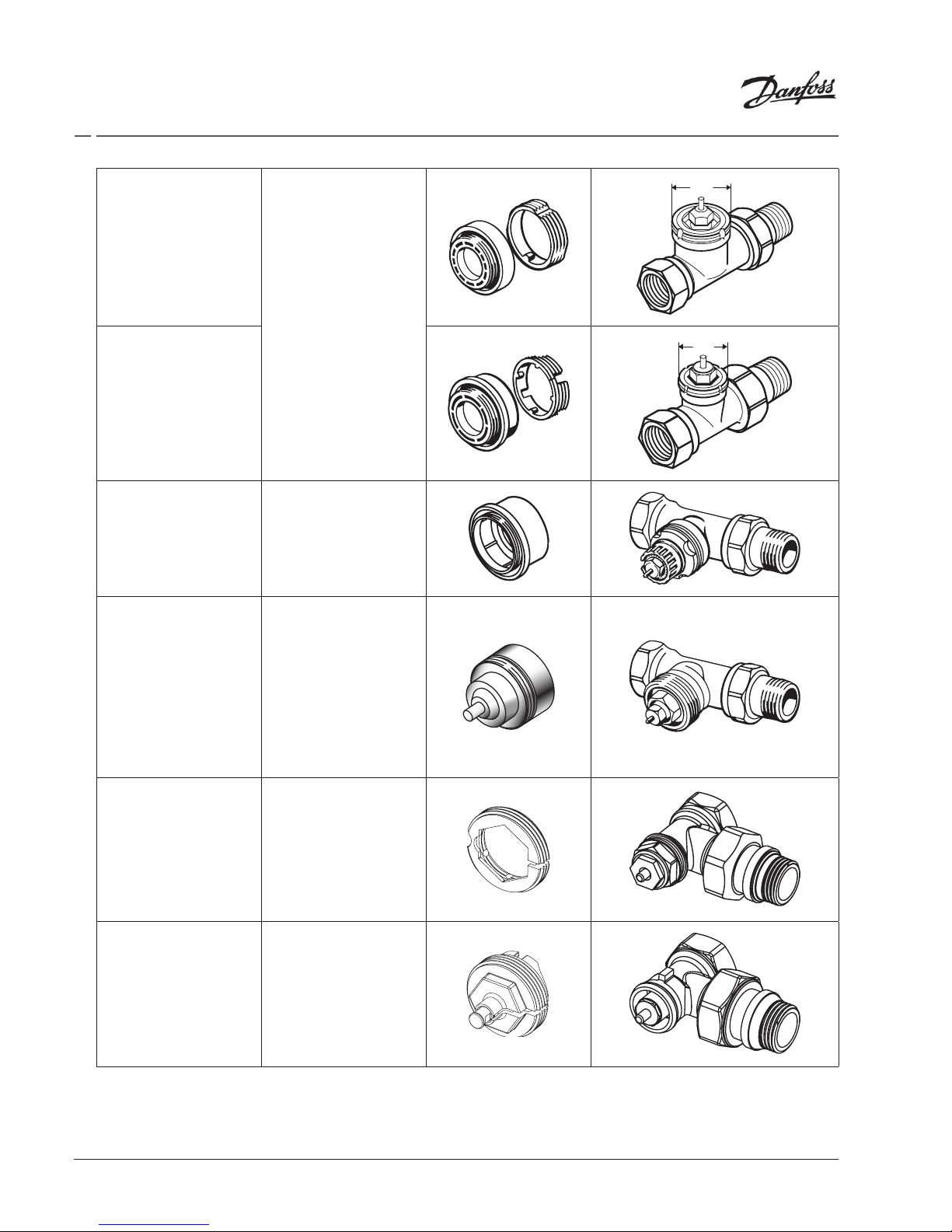

1.3 Overview of valve adapters
Adapters for a wide range of different valve types are available as accessories.
Adapter type Code no. Adapter Valve
For Danfoss
RA valves 014G0251
For M30 x 1.5 (K)
valves 014G0252

6
| © Danfoss | Heating Segment | 2017.04 VILTH102
Installation Guide Danfoss Eco™ Electronic radiator thermostat
For Danfoss
RAV valves
014G0250
34
For Danfoss
RAVL valves
26
For Danfoss
RTD valves 014G0253
For M28 valves:
- MMA 014G0255
- Herz 014G0256
- Orkli 014G0257
- COMAP 014G0258
For Caleffi
valves 013G5849
For Giacomini
valves 013G5849

7
VILTH102 © Danfoss | Heating Segment | 2017.04 |
Installation Guide Danfoss Eco™ Electronic radiator thermostat
1.4 Installing the right adapter
The Danfoss Eco™ pack contains an adapter guide to help you find the correct adapter for your
valve. If you need additional help in finding the correct adapter follow the QR code on the guide
and follow the video instruction.
Adapter for RA valves Adapter for M30 x 1.5 (K) valves
Adapter for RAV valves Adapter for RAVL valves
Adapter for RTD valves Adapters for M28 valves

8
| © Danfoss | Heating Segment | 2017.04 VILTH102
Installation Guide Danfoss Eco™ Electronic radiator thermostat
Adapter for Caleffi valves Adapter for Giacomini valves
1.5 Inserting the batteries
Remove the battery cover as shown in the diagram and insert two AA batteries.
Make sure the batteries are correctly oriented.
Rechargeable batteries must not be used.
When replacing batteries the time and date settings are lost im-
mediately. After replacing batteries re-connect to a smartphone to
activate a schedule. The red ring will flash. Re-connect to the App
and the time and date will be restored. If you do not re-connect the
sensor will remain in manual mode.
The low battery symbol is displayed approx. one month before
the batteries run out.
Before the batteries run out Danfoss Eco™ will leave the valve in
Frost Protection position to protect the heating system from dam-
age.
Estimated battery life time is up to 2 years.

9
VILTH102 © Danfoss | Heating Segment | 2017.04 |
Installation Guide Danfoss Eco™ Electronic radiator thermostat
1.6 Mounting the Danfoss Eco™
Screw the Danfoss Eco™ onto the mounted adapter until a click sound appears. Once the ther-
mostat is tightened properly, then adjust the display to your preferred display orientation.
A large M is flashing in the display to indicate that Installation Mode is activated. Press and hold
the button for 3 seconds.
The temperature set point will show on the screen once the Danfoss Eco™ is mounted.
1.7 Download Danfoss Eco™ App
Download the Danfoss Eco™ App.
Danfoss Eco™

10
| © Danfoss | Heating Segment | 2017.04 VILTH102
Installation Guide Danfoss Eco™ Electronic radiator thermostat
1.8 Pairing Danfoss Eco™
Note, Turn on Bluetooth on your smart phone to connect to the Danfoss Eco™.
Follow the prompts from the Danfoss Eco™ App to pair your Danfoss Eco™.
Bluetooth range is 10m (depending on the building construction and surroundings).
1.9 Automatic adjustments
When Danfoss Eco™ is installed it will automatically begin to adjust itself to your heating system,
during the first week after insallation. During this process you might experience that the ther-
mostat reacts slowly or turns the heat up and down by itself. This is normal and a necessary part
of the adjustment process.
1. Adjusting to the valve
During the first night of operation Danfoss Eco™ will shut off the radiator heat and then open
again to detect the exact opening point of the valve. This will allow Danfoss Eco™ to control the
heat as efficiently as possible. If necessary, the procedure is repeated once a night for up to a
week.
2. Adaptive Learning
If you activate Adaptive Learning Danfoss Eco™ learns during the first week of operation when
it is necessary to start heating the room in order to reach the correct temperature at the correct
time.
The intelligent control will continuously adjust the heating time compared to seasonal tempera-
ture changes.
Using Saving Program requires that your heating system has enough heat for a short period
during heat up. If you experience problems you should contact your installer.

11
VILTH102 © Danfoss | Heating Segment | 2017.04 |
Installation Guide Danfoss Eco™ Electronic radiator thermostat
1.10 Removing Danfoss Eco™
1. 2.
Press and hold until large Mflashes. This
indicates you are in mounting mode
Remove the cover.
3.
Press firmly on the tab and unscrew the
thermostat from the adapter.
1.11 Resetting Danfoss Eco™ to default settings
1. 2.
Remove the cover and take out one battery. Press and hold , Keep holding while
reinserting the battery. The screen will go
blank after approx 3 seconds.

12
| © Danfoss | Heating Segment | 2017.04 VILTH102
Installation Guide Danfoss Eco™ Electronic radiator thermostat
2. Technical specifications
Thermostat type Programmable electronic radiator valve controller
Recommended use Residential (pollution degree 2)
Actuator Electromechanical
Display LCD with white backlight
Software classification A
Control PID
Power supply 2 x 1.5 V alkaline AA batteries (not included)
Power consumption 3 μW in standby 1.2 W when active
Trasmission Frequency / Power 2,4 GHz / <2,1mW
Battery life Up to 2 years
Low battery signal Battery icon will flash in display.
If battery level is critical the red ring will flash.
Ambient temperature range 0 to 40 °C
Transportation temperature range -20 to 65 °C
Maximum water temperature 90 °C
Temperature setting range 4 to 28 °C
Measurement interval Measures temperature every minute
Clock accuracy +/- 10 min/year
Spindle movement Linear, up to 4.5 mm, max. 2 mm on valve (1 mm/s)
Noise level <30 dBA
Safety classification Type 1
Open-window function Activated at temperature decrease.
Weight (incl. batteries) 198 g (with RA adapter)
IP class 20 (not to be used in hazardous installations or in places
where it will be exposed to water)
Approvals, markings etc.
Intertek

13
VILTH102 © Danfoss | Heating Segment | 2017.04 |
Installation Guide Danfoss Eco™ Electronic radiator thermostat
3. Display
3.1 Display Screen
Short press on and the Display Screen appears.
Danfoss Eco™ is displaying the set temperature, not the measured room temperature.
Display symbols:
Installation Mode must always be activated when installing or removing Danfoss
Eco™. The thermostat may be irreparably damaged if not in the correct position during
installation.
Temperature is shown in degrees celcius. Danfoss Eco™ is displaying the set temperature,
not the measured room temperature.
Scheduled Mode
The antenna symbol flashes when you need to connect the App to the thermostat.
If you are connected, the red ring will illuminate (the display will be blank).
low battery. Battery icon will flash in display.
If battery level is critical the red ring will flash.
3.2 Red illuminating ring
The red ring will be constantly on when you are connected to the Danfoss Eco™ App. It also
flashes to indicate when the batteries are critically low on power.

14
| © Danfoss | Heating Segment | 2017.04 VILTH102
Installation Guide Danfoss Eco™ Electronic radiator thermostat
3.3 Display rotation
Danfoss Eco™ can be mounted in a horizontal or veritcal position, depending on your radiator
valve. You can set the display rotation to either‘horizontal’or‘vertical’ within the Danfoss Eco™
App under Advanced Settings.
3.4 Manual mode
Danfoss Eco™ can be used without the Danfoss Eco™ App in Manual Mode.
Functionality is reduced.
Use the handwheel to adjust the temperature. The display shows the required temperature and
not the room temperature. In manual mode there are no comfort or setback temperatures or
times set.

15
VILTH102 © Danfoss | Heating Segment | 2017.04 |
Installation Guide Danfoss Eco™ Electronic radiator thermostat
4. Schedules and Temperatures
4.1 Time
The device will take the correct time from your smart phone. There is no need to set the time.
Danfoss Eco™ uses a 24 hour time display.
Note. If the batteries have been removed from the Danfoss Eco™you will need to connect to the
Danfoss Eco™ App to correct the time once the batteries are replaced.
4.2 Default temperature
The default temperatures for Danfoss Eco™ are as below:
Icon Name Default Temperature
At Home 21°C
Away / Asleep 17°C
Vacation 15°C
The default temperatures can be changed in the Danfoss Eco™ App.
4.3 Setting temperatures
Set your own temperatures for your setback periods in the Danfoss Eco™ App.
Scroll on temperatures to set your preferred temperatures.
The Danfoss Eco™ can be set from 5°C to 28°C.
Danfoss recommend a difference between‘At Home’ tem-
perature and‘Away/Asleep’ that does not exceed 4 degrees.
Note. Changes in temperature from the home screen are
temporary (Until next setback period)

16
| © Danfoss | Heating Segment | 2017.04 VILTH102
Installation Guide Danfoss Eco™ Electronic radiator thermostat

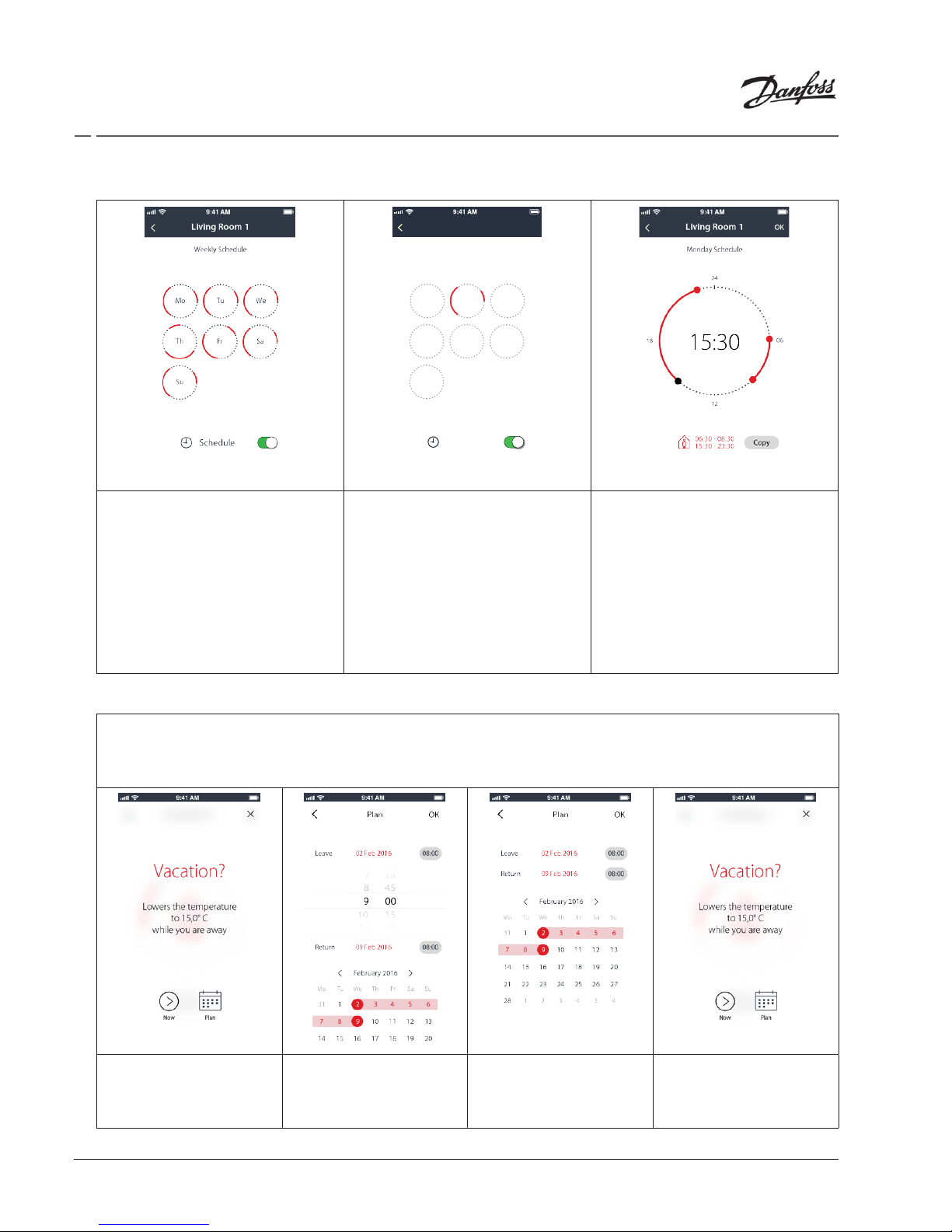

4.4 Create your own schedule
Mo Tu We
Th Fr Sa
Su
Schedule
Weekly Schedule
Living Room 1
Within the Danfoss Eco™ App
you can create your own
schedule. You can choose any
setback times within 24 hours
and a maximum of 3 setback
periods per day.
The weekly schedule shows
the ‘At Home’ periods in
red. The ‘copy’ functional-
lity allows you to copy the
schedule you have created to
other days.
The Danfoss Eco™ App dis-
play shows both the 24 hour
clock wheel, showing your At
Home time in red and a sum-
mary of your schedule, with
the detailed times set.
The minimum At Home pe-
riod is 30 minutes.
4.5 Vacation
A Vacation programme keeps the setback temperature for a period, defined by you.
Use a Vacation programme to save energy, when you are away from home. Vacation programme
is set within the Danfoss Eco™ App.
Vacation mode can
be planned or set
straight away (Now).
Planned Vacations
use a calendar and
time setting.
Schecule your Vaca-
tion in the Danfoss
Eco™ App.
The Danfoss Eco™
App display confirms
your Vacation date.

17
VILTH102 © Danfoss | Heating Segment | 2017.04 |
Installation Guide Danfoss Eco™ Electronic radiator thermostat

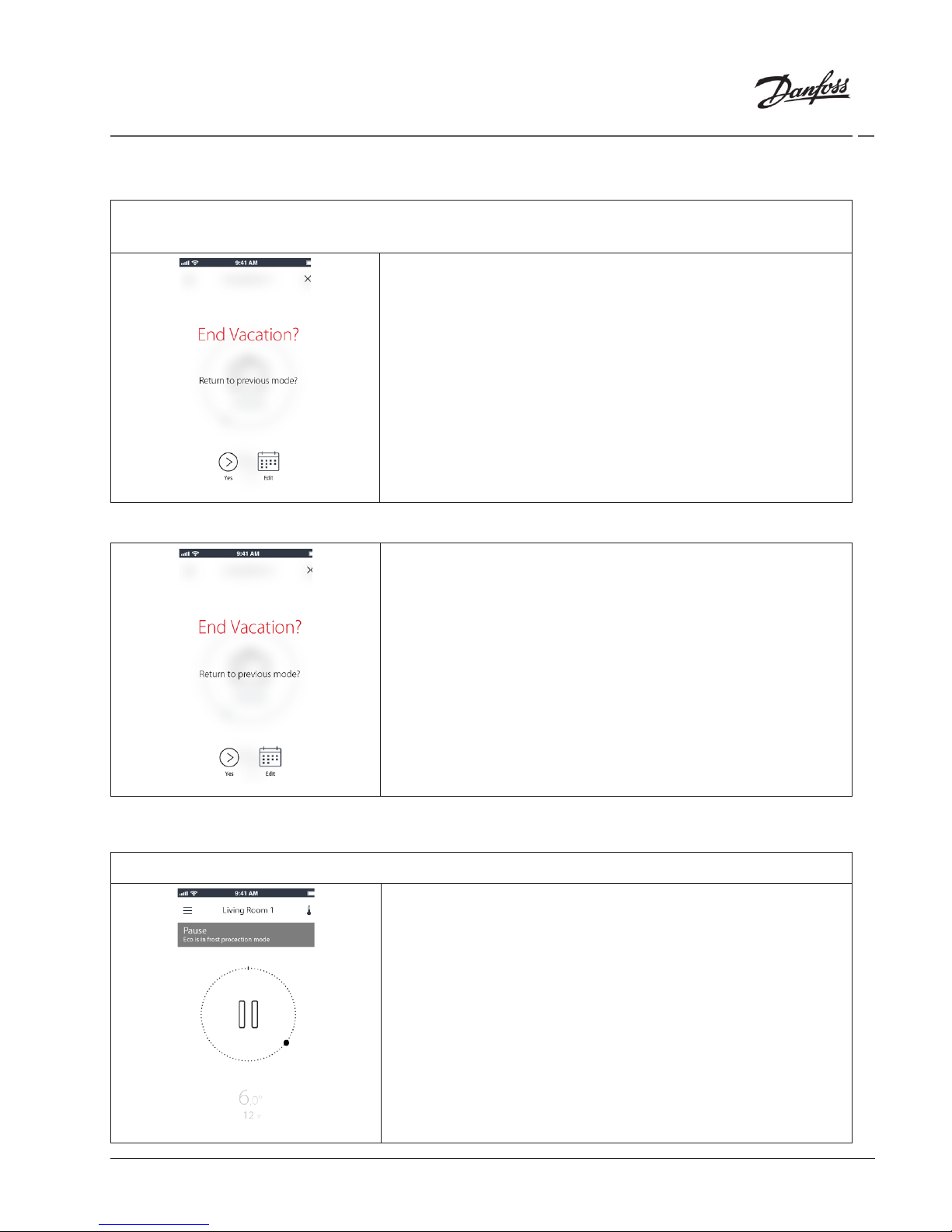

4.6 Overrule a vacation
If returning earlier than expected you might wish to shift from the Vacation programme to
your normal schedule.
When in‘Vacation’setting the Danfoss Eco™ App will give
options to end the Vacation period or edit the dates and
times.
4.7 Cancel an existing vacation programme
If the Vacation is planned for the future you can simply edit
the dates or cancel the programme.
4.8 Pause
The Pause programme keeps the setback temperature until another programme is selected.
When Danfoss Eco™ is turned down to Min level manually,
a notification banner is shown, and center icon switches
to ‘Pause’.
To exit Pause click the centre icon on the Danfoss Eco™
App and return to the scheduled or manual setpoint.

18
| © Danfoss | Heating Segment | 2017.04 VILTH102
Installation Guide Danfoss Eco™ Electronic radiator thermostat

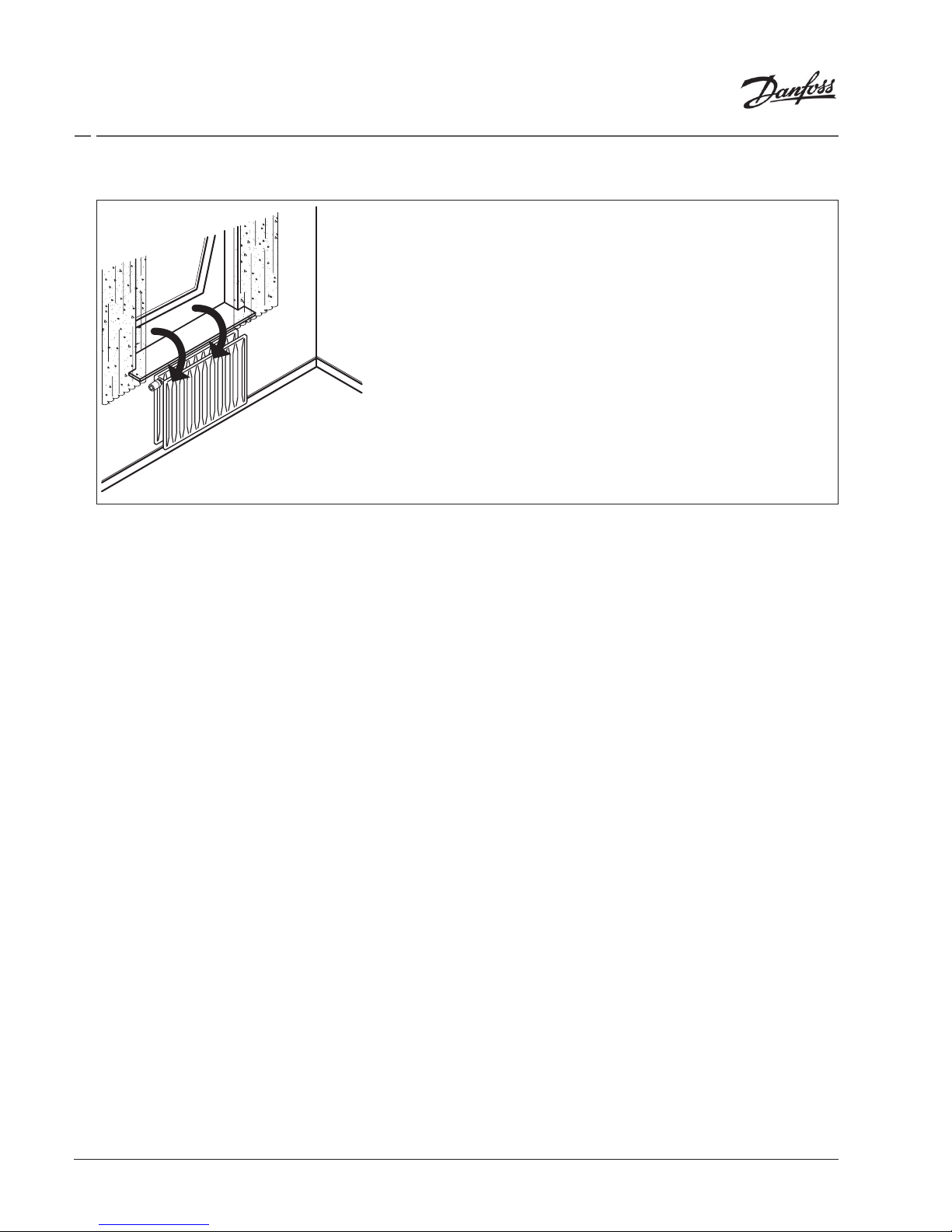

4.9 Open window function
Danfoss Eco™ features an Open-window function, which
closes the valve if the room temperature is falling
dramatically, thus reducing the heat loss.
The heat is turned off for up to 30 minutes, before Danfoss
Eco™ returns to its original settings.
When Open-window has been activated, the function is
quarantined for 45 minutes.
Note! Be aware that the Open-window function will be
affected, if curtains or furniture are covering Danfoss Eco™,
preventing it from detecting the decreasing temperature.

19
VILTH102 © Danfoss | Heating Segment | 2017.04 |
Installation Guide Danfoss Eco™ Electronic radiator thermostat
5. Settings & Installation modes
5.1 Setting options via the Danfoss Eco™ App
Command Options
Thermostats
List of the installed Danfoss
Eco™ thermostats (by name)
Option to change the name of the Danfoss
Eco™ or to un-pair an existing Danfoss
Eco™.
Add Danfoss Eco™ Option to add another Danfoss Eco™
Restrictions
PIN Code Option to add a PIN code to the Danfoss
Eco™ App
Change PIN Code Option to change PIN code
Child Lock To protect your Danfoss Eco™ activate the
Child Lock, once activated the Danfoss
Eco™ can only be adjusted by the Danfoss
Eco™ App and the Manual function is
overridden.
Min/Max Temperatures Limit the temperature range. The MIN/
MAX settings are adjusted by scrolling the
temperatures in the Danfoss Eco™ App.
Advanced Settings
Adaptive Learning Adaptive Learning ensures you get the
temperature you asked for at the right
time. Adaptive Learning uses historical
data to determine how fast (degrees/hour)
each room can be reheated.
Heat Control The Heat Control ensures that Danfoss
Eco™reaches the comfort temperature on
time, according to the schedule. Options
are for Moderate or Quick. Moderate en-
sures sufficient return temperature.
Display Rotation The Danfoss Eco™ display can be rotated
by 180°. This allows the display to be read
from hoziontal and vertical mounting.
Mode Mounting Mode
Frost Protection The minimum temperature to protect your
heating system. Set between 4-10°C.

20
| © Danfoss | Heating Segment | 2017.04 VILTH102
Installation Guide Danfoss Eco™ Electronic radiator thermostat
System Information
Software version information Confirms the latest sofware version of the
Danfoss Eco™ App that is downloaded to
your device.
EULA Legal information Full terms and conditions of the Danfoss
Eco™ App.
Help
Topics Links to the FAQ site for the main help
topics for troubleshooting issues with your
Danfoss Eco™.
Show Introduction Screens Plays the introduction screens that first
appear when you download the Danfoss
Eco™ App.
Demo Mode Try the Danfoss Eco™ App with the Demo
Mode feature. This will not adjust the
Danfoss Eco™ but will show the screens
and functionallity within theDanfoss
Eco™App.
NB. To exit the Demo Mode double click on
the word ‘Demo’ on the Danfoss Eco™ App
screen.
5.2 Software Updates
Danfoss Eco™ thermostat can be updated via the Danfoss Eco™ App
The Danfoss Eco™ App will inform when a new software is available.
