Dantherm HXV 5 User manual

1
039913 •Version 1.0 • 07.04.2014
High End User Panel
HXV 5
Service manual
Rev. 2.0
en

2
Der tages forbehold for trykfejl og ændringer
Dantherm can accept no responsibility for possible errors and changes
Irrtümer und Änderungen vorbehalten
Dantherm n’assume aucune responsabilité pour erreurs et modifications éventuelles

3
039913 •Version 1.0 • 07.04.2014
Introduction
Overview
Introduction
This is the installation and users instruction for the Dantherm Air Handling High End
User’s Panel for the HXV 5 unit.
The table of content below gives you an overview of the subjects.
Copyright
Copying of this service manual, or part of it, is forbidden without prior written permis-
sion from Dantherm Air Handling.
Reservations
Dantherm Air Handling reserves the right to make changes and improvements to the
product and the service manual at any time without prior notice or obligation.
Table of contents
This instruction covers the following topics:
Topic
See page
Description of the display and the keys
4
Get ready for use
5
User’s guide
6
Fault finding guide
9
Menu structure and factory settings
10

4
Description of the display and the keys
Introduction
The High End User’s Panel can control the HXV 5 unit.
Up to 5 High End User’s Panels can be connected at the same time.
Information about operation can be read on the display.
NB
The basic panel for HXV 5 cannot be used when the High End User’s Panel is installed.

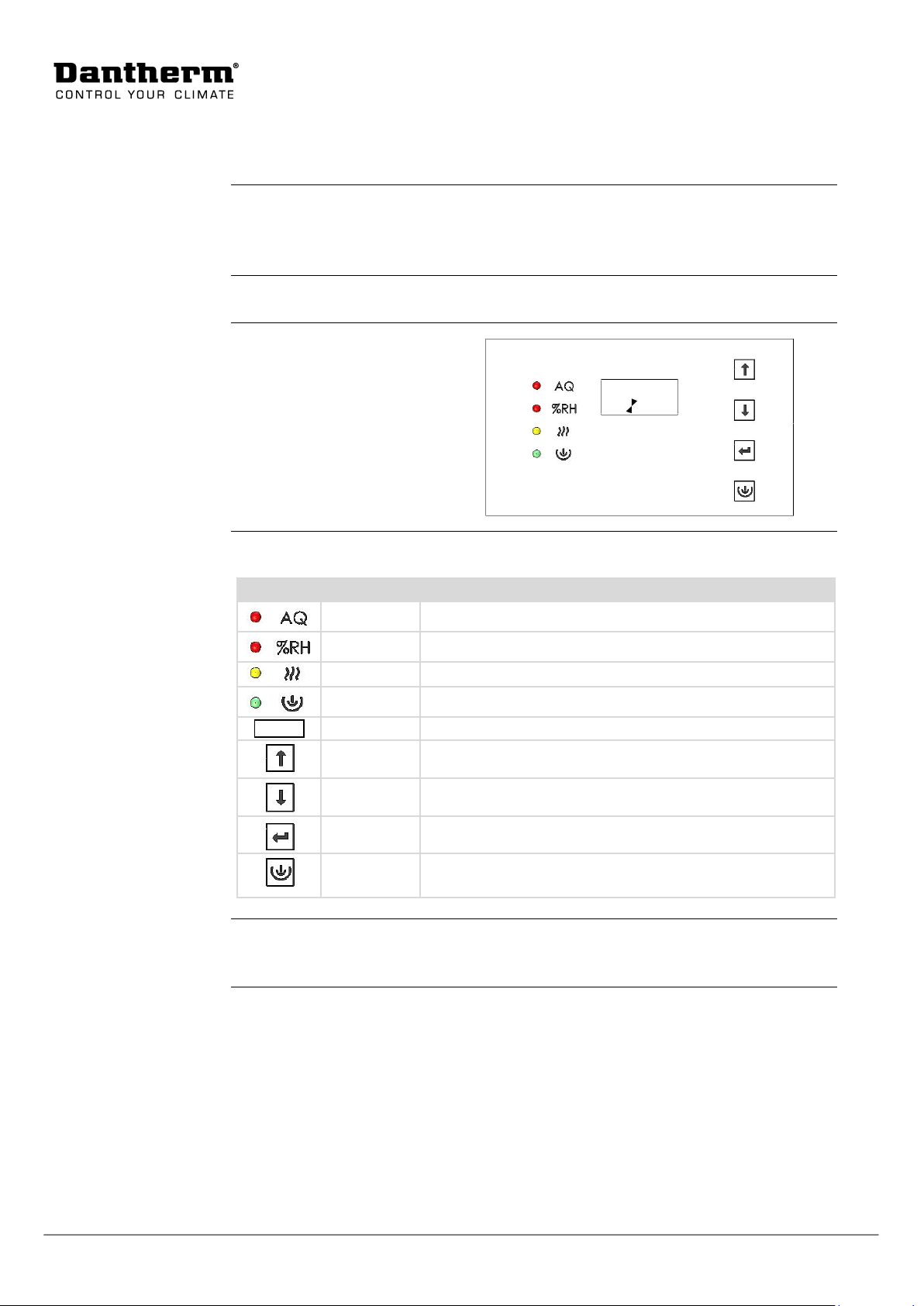

Illustration
This illustrates the High End User’s
Panel:
Part/function
The following describes the user’s panel:
Part
Function
Air Quality
Illuminates when the air quality sensor is activated
Humidity
Illuminates when the humidity sensor is activated
Heater
Illuminates when the heater is activated
Power on
Illuminates when power to the HXV 5 is on
Display
Shows the menu etc.
Arrow
Moves up one menu item
Arrow
Moves down one menu item
Enter
Acceptance of changes
Key lock/-
Escape
To protect against unintended settings
To escape the menu and return to the main screen
Display
When the panel has not been activated for 1 minute, the display shows the actual fan
speed (1-4) and the fan symbol.
1

5
039913 •Version 1.0 • 07.04.2014
Get ready for use
Introduction
This section will guide you through the mounting and installation of the High End User
Panel.
Mounting and in-
stallation
Follow this procedure to mount and install the unit:
Step
1st High end user panel
Additional High end user panel
1
Disconnect the basic user panel if one
is connected to the HXV 5
Connect the 12 meter cable from the
High End User Panel to the last serial
connected user panel
2
Connect the 12 meter cable from the
High End User Panel to the cable from
the HXV 5 that was previously con-
nected to the basic user panel
-

6
User’s guide
Introduction
This topic will guide through customization of different settings.
Displays
Displays shown in this manual is often examples and may differ from one display to an-
other.
More than one high
end user panel, ad-
dress
By use of more than one high end user panel, the following should be done:
When the panel is installed it requests for its address. If the address of one of the pan-
els needs to be changed later on, follow this procedure:
Step
Action
Key
Result
1
Press at the same time Arrow
Down and Enter for 3 seconds
2
Press Arrow Up/Down to address
the user panel (1-6)
-
3
Press Enter to save the new set-
ting
-
Lock/unlock keys
The keys can be locked or unlocked. Follow this procedure to lock/unlock:
Step
Action
Key
Result
1
Press the Key Lock to lock or un-
lock the keys
Locked keys:
Unlocked keys:
Fan speed
The fan speed is easily changed form the main screen on the display:
Step
Action
Key
Result
1
Press Arrow Up/Down to change
the fan speed when in the main
screen
Continued overleaf
1
1
1
Addr= 5

7
039913 •Version 1.0 • 07.04.2014
User’s guide, continued
Read settings
Follow this procedure to read settings:
Step
Action
Key
Result
1
Press Enter to reach the menu
2
Press arrow down to read the
different settings/values
A complete menu structure is
available in section “Menu struc-
ture and factory settings”, page
10
3
Press Key Lock twice to escape
the menu
Change of settings
Follow this procedure to change settings:
Step
Action
Key
Result
1
Press Enter
2
Press arrow down to reach the
setting to be changed
3
Press Enter to select the setting
to be changed
4
Change value with Ar-
row Up/Down
5
Confirm with Enter
(You can here change the fan
speed with Arrow Up/Down)
Repeat step 1-5 to change more
settings
Fan speed
Settings made on one High End User’s Panel will override settings of other panels.
Air inlet temperature
Settings made on one High End User’s Panel will override settings of other panels.
Continued overleaf
1
2= 70%
2= 60%
2= 60%
1= 40%
1
2= 60%
1= 40%

8
User’s guide, continued
Humidity
Settings made on one High End User’s Panel will NOT override settings of other panels.
Humidity settings are individually.
Setting on 100 % disables the actual humidity sensor!
Air quality
Settings made on one High End User’s Panel will NOT override settings of other panels.
Air quality settings are individually.
Setting on 100 disables the actual air quality sensor!
Fire place
The fireplace function is a help when e.g. the wood burning stove, fireplace or the like is
to be lit.
The function disables the exhaust air fan for 15 minutes by which the inlet fan estab-
lishes an over pressure in the house, which is good for the vent in the chimney.
Reset filter timer
See the service manual for HXV 5.

9
039913 •Version 1.0 • 07.04.2014
Fault finding guide
Fault finding
Use this table to find the solution of a problem:
Problem
Cause
Solution
Display shows FIRE
AQ sensor has detected a
value on or below 5
Stop the HXV 5
Reset HXV 5 by discon-
necting it for a few sec-
onds
Buzzer sounds
Filter timer is below val-
ue 1000
Replace/clean the filter
and reset the timer by
pressing Enter for
3 seconds
Smoke is coming out from
the wood burning stove
Low pressure in the house
Activate the fireplace
function.
The function disables
the exhaust air fan for
15 minutes by which
the inlet fan establishes
an over pressure in the
house, which is good
for the vent in the
chimney.
The unit is supposed to run
fan speed 4 but it automat-
ically switches to fan speed
3 after a while
The unit automatically
switches from fan speed 4
to 3 after one hour
Set fan speed 4 again
after one hour if need-
ed
The fan speed sometimes
changes to fan speed 3
even though it was set at
fan speed 1 or 2
A humidity sensor or AQ
sensor has detected a value
which is higher than its set
point
The fan speed returns
to its previous setting
(1 or 2) when the hu-
midity level or the air
quality is okay again
The panel is locked
The Key Lock key has been
activated
Press the Key Lock key
to unlock the panel

10
Menu structure and factory settings
Menu structure
The following table shows the complete menu structure in the panel. The factory set-
tings (if any) of each menu item and the range is also available from the table:
Menu
Display
Factory setting
Range
Fan speed 1
40 %
35 –55 %
Fan speed 2
60 %
60 –90 %
Fan speed 3
95 %
95 %
Fan speed 4
100 %
100 %
T1 - Outdoor air
temperature
-
*)
T2 - Supply air
temperature
18 °C
+10 –+30 °C
T3 - Warm and
humid air from
the house
-
*)
T4 –Exhaust air
temperature
4 °C
0 –+10 °C
%RH –Humidity
80 %
20 –100 %
AQ –Air quality
20
0 –100
FP –Fireplace**)
-
*)
Filter timer
-
*)
Operation time
-
*)
*) Cannot be changed
**) When pressing Enter, the FirePlace function is activated and the Fire symbol is shown
for 15 minutes
TIMER
2
TIMER
3918
FP OFF
AQ= 61
AQs= 25
RH= 51%
RHs= 75%
T4= 22°
T4s= 4°
T3= 21°
T2= 22°
T2s= 18°
T1= 21°
4= 100%
3= 85%
2= 60%
1= 40%

11
