Multi-Purpose
Spray Gun
Operator’s Manual
Part No. D27122 Rev. 1

2- ENG
D27122
• SAVE THESE INSTRUCTIONS •
The Following Hazards Can Occur During The Normal Use Of This Product:
The solvents 1,1,1-Trichloroethane and Methylene
Chloride can chemically react with the aluminum
used in most spray equipment, and this gun and
cup, to produce an explosion hazard and could
result in serious injury or death.
Read the label or data sheet for the material you
intend to spray.
1. Never use any type of spray coating material
containing these solvents.
2. Never use these solvents for equipment cleaning
or flushing.
3. If in doubt as to whether a material is compatible,
contact your material supplier.
SAFETY GUIDELINES - DEFINITIONS
indicates an imminently hazardous situation
which, if not avoided, will result in death or
serious injury.
indicates a potentially hazardous situation which,
if not avoided, could result in death or serious
injury.
indicates a potentially hazardous situation which,
if not avoided,may result in minor or moderate
injury
used without the safety alert symbol indicates
potentially hazardous situation which, if not
avoided, may result in property damage.
This manual contains
information that is
important for you to know and
understand. This information re-
lates to protecting YOUR SAFE-
TY and PREVENTING
EQUIPMENT PROBLEMS. To
help you recognize this informa-
tion, we use the symbols below.
Please read the manual and
pay attention to these sections.
IMPROPER OPERATION OR MAINTENANCE OF THIS PRODUCT COULD
RESULT IN SERIOUS INJURY AND PROPERTY DAMAGE. READ AND UN-
DERSTAND ALL WARNINGS AND OPERATING INSTRUCTIONS BEFORE USING THIS
EQUIPMENT.
HAZARD
WHAT COULD HAPPEN HOW TO PREVENT IT
Risk of explosion or fire - flammable materials
IMPORTANT SAFETY INSTRUCTIONS
When paints or materials are sprayed, they are
broken into very small particles and mixed with air.
This will cause certain paints and materials to be-
come extremely flammable and could result in
serious injury or death.
Never spray near open flames or pilot lights in
stoves or heaters.
Never smoke while spraying.
Provide ample ventilation when spraying indoors.
HAZARD
WHAT COULD HAPPEN HOW TO PREVENT IT
Risk of explosion - incompatible materials
HAZARD
WHAT COULD HAPPEN HOW TO PREVENT IT
Risk of breathing
Some paints, coatings and solvents may cause lung
damage, and burns if inhaled or allowed to come
into contact with skin or eyes.
Use a NIOSH approved mask or respirator and pro-
tective clothing designed for use with your specific
application and spray materials. Some masks
provide only limited protection against toxic materi-
als and harmful paint solvent. Consult with a Safety
Expert or Industrial Hygienist if uncertain about your
equipment or materials.

3- ENG D27122
SPECIFICATIONS
Air Inlet 1/4 NPT
Maximum Air Pressure 50 psi.
Recommended Operating Air Pressure 40 psi.
Air consumption @ 50 psi 9.5 SCFM
Cup 1.0 liter
Prolonged exposure to air spray can result in per-
manent damage to hearing. Always wear hearing protection when operating
spray equipment.
Spray guns operate at pressures and velocities
high enough to penetrate human and animal flesh,
which could result in amputation or other serious
injury.
! See a physician immediately!
Never place hands in front of nozzle.
Direct spray away from self and others.
HAZARD
WHAT COULD HAPPEN HOW TO PREVENT IT
Risk of flying objects
HAZARD
WHAT COULD HAPPEN HOW TO PREVENT IT
Risk of injection
Certain parts are under pressure whenever the gun
is connected to a pressurized air line. These parts
may be propelled if the gun is disassembled.
Disconnect the gun from the air line, or completely
depressurize the air line whenever the gun is to be
disassembled.
Compressed air may propel dirt, metal shavings,
etc. and possibly cause an injury.
Never point any nozzle or sprayer toward a person
or part of the body.
Always wear ANSI 278.1 safety approved goggles
or glasses when spraying.
Before disassembly or removal of any part of gun or
attached components, shut off compressor, release
pressure by depressing trigger, and disconnect power source. NEVER as-
sume system pressure is zero!
TO AVOID CREATING AN EXPLOSIVE ATMOSPHERE,
WORK ONLY IN WELL VENTILATED AREAS.
USE OF A NIOSH APPROVED FACE MASK IS
RECOMMENDED TO PREVENT INHALATION OF TOXIC
MATERIAL.
GENERAL INFORMATION

4- ENG
D27122
Before use
●Install a moisture separator/regulator when there is a possibility moisture will
damage the surface to be painted. Install the moisture separator/regulator as
close to the tool as possible.

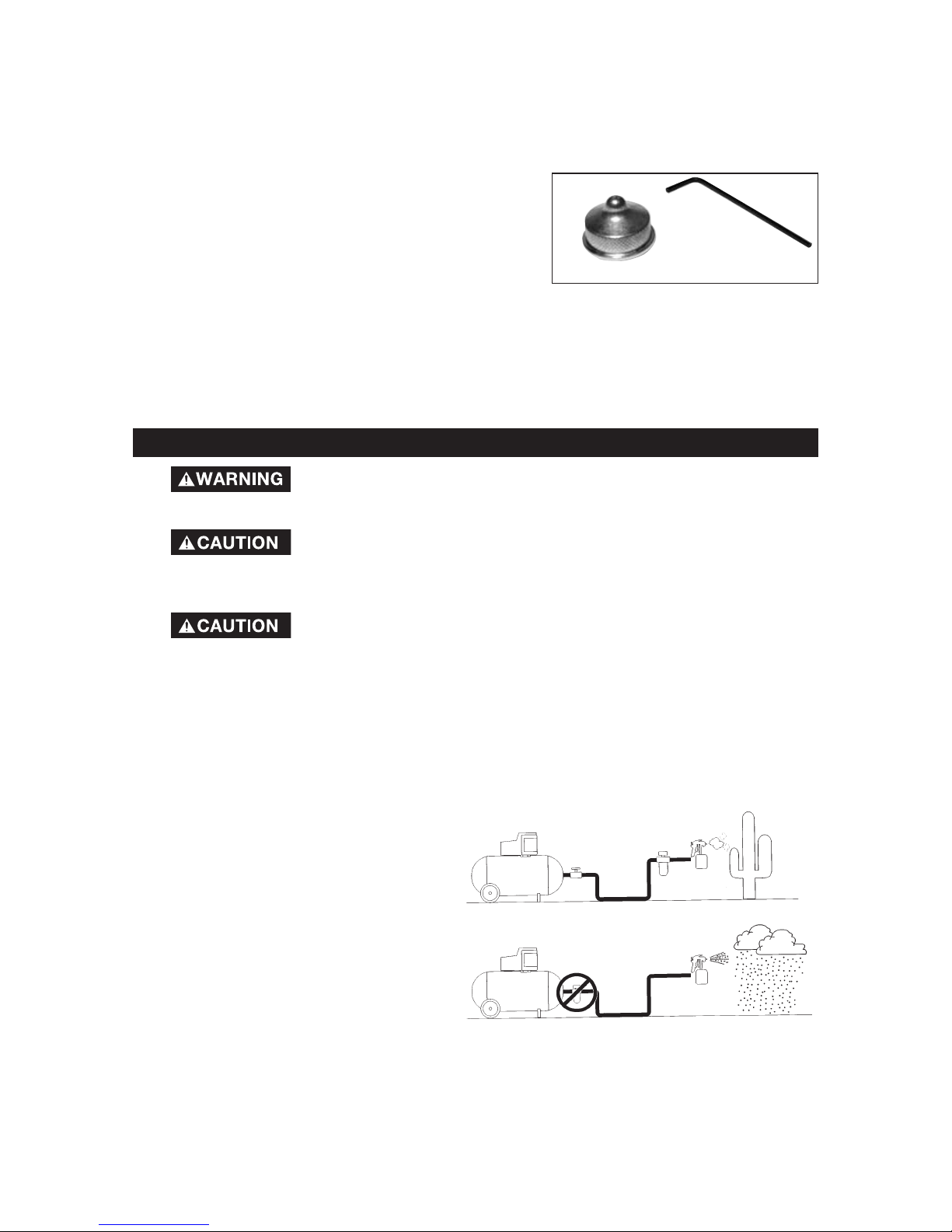

NOTE: Liquid water occurs naturally
in air lines as a result of
compression. The moisture exiting
near the compressor is warm and
still in a vapor state which allows it
to pass through the moisture
separator. The vapor must travel a
minimum of 5 to 10 feet to cool
down to a liquid to be removed by
the moisture separator. See
Illustration.
●Prior to shipment, this gun was
treated with an anticorrosive agent. Before using this gun make sure that it is
carefully flushed with thinner.
This spray gun has a siphon and pressure feed setting. It is set at the factory for
pressure feed application.
Pressure feed mode is used for fast application of heavy material.
Siphon feed mode is used for applying light and medium bodied paints (stain,
lacquer) to large size jobs such as auto refinishing. Only external mix cap can be
used when in the siphon feed mode.
External mix cap (assembled at factory on spray
gun): The air and material are mixed after leaving
the nozzle. This method is used for fast drying
materials and when a high quality finish is desired.
Internal mix cap (supplied): The air and material
are mixed inside the air cap before being sprayed. This method is used with the
spray gun in the pressure feed mode to spray heavy duty, slow drying material.
Hex Wrench (supplied): used to remove hex screw to convert from pressure feed to
siphon feed mode.
DO NOT ATTEMPT TO UNCLOG (BACK FLUSH) SPRAY GUN
BY SQUEEZING TRIGGER WHILE HOLDING FINGER IN
FRONT OF FLUID NOZZLE.
Pressure may vary according to viscosity of material used.
Maximum working pressure of gun is 50 psi. DO NOT EX-
CEED PRESSURE LIMIT OF GUN OR ANY OTHER COMPONENT IN
SYSTEM!
Prior to daily operation, make certain that all connections
and fittings are secure. Check hose and all connections for
a weak or worn condition that could render system unsafe. All replacement
components such as hose or fittings must have a working pressure equal
to or greater than system pressure.
OPERATION
Internal Mix Cap
Hex Wrench

5- ENG D27122
TO USE PRESSURE FEED
1. Mix material according the manufacturer’s instructions. Mixture should be
smooth and easily pourable. Lumps or foreign particles should be removed by
straining through a suitable paint filter.
2. Fill the material cup (a) 3/4 full.
3. Attach material cup (a ) to the gun
securely.
4. Attach air supply line to 1/4 NPT air inlet
(c).
5. Adjust spray pattern.
a. The position of the air cap horns (g) will de-
termine the spray pattern. Loosen air cap (h)
and rotate horns to achieve desired pattern.
Tighten air cap.
6. Turn fluid control knob (b) clockwise until it
stops, do not force. This will shut off the fluid
flow. NOTE: The fluid or density of “fan spray” is controlled by fluid control
knob (b).
7. Adjust air pressure to 40 psi at air compressor.
DO NOT exceed 50 psi.
NOTE: Care should be exercised when handling spray gun to avoid damage to the
orifice of the air cap and tip of fluid nozzle. Damage to these parts results in irregular
spray patterns.
8. Depress spray gun trigger (d) and gradually turn the fluid control knob (b)
counterclockwise until desired fluid flow is reached. Trigger gun quickly, one
second on-off to test pattern.
NEVER point spray gun at self or any other person. Acci-
dental discharge of material may result in serious injury.
NOTE: If gun sprays too fast, decrease the fluid pressure. If too slow, increase the
pressure. Turn fluid control knob (b) counterclockwise to increase, or clockwise to
decrease, the fluid flow.
9. If spraying heavy duty, slow drying material replace external air cap with internal
air cap.
To replace:
a. Remove air cap retainer (h).
b. Remove external air cap and replace with internal air cap (supplied).
c. Replace air cap retainer (h).
Horizontal position
Vertical position
b
d
c
h
g
a

6- ENG
D27122
Always exercise extreme care when using any solvent or
thinner. Never clean gun near fire, flame, or any source of
heat or sparks. Properly dispose of used cleaning materials.
DO NOT soak entire spray gun in solvent or thinner for a
long period of time as this will destroy lubricants and possi-
bly make motion uneven. NEVER use lye or caustic alkaline solution for
cleaning. Such solutions will attack aluminum alloy parts of gun.
It is important that spray gun be cleaned after daily use. Cleaning is accomplished by
spraying appropriate solvent or thinner through system.
Cleaning
NOTE: Clean gun immediately after use. Paint and other materials dry quickly in
the small passages.
1. Turn off air supply to gun.
2. Loosen the material cup and remove the fluid tube from the material. Hold the
tube over the cup and pull the trigger to allow the paint to drain back into the
cup.
3. Empty material from material cup and replace with a suitable solvent. If using
water based material use mineral spirits to prevent corrosion.
4. Turn air supply on and operate trigger until all material traces have disappeared
and gun is thoroughly clean.
IMPORTANT: Do not immerse the gun in solvent, this will cause damage to the
packings.
NOTE: Always comply with local codes when disposing of solvents.
5. Remove air cap and immerse in a suitable solvent.Use a bristle brush to clean
dried paint and blow it dry with compressed air.
6. Use a wooden toothpick to clean small clogged holes.
IMPORTANT: Make certain air cap and fluid nozzle are kept clean at all times.
DO NOT use hard objects to clean clogged holes. The smallest amount of
damage may cause irregular spray pattern.
7. Wipe gun with a solvent soaked cloth.
Lubrication
Lubrication procedures must be observed after thoroughly cleaning the gun to ensure
effective, high quality performance of spray gun.
1. Lubricate working points with straight mineral oil, or castor oil.
2. Periodically, place a few drops of oil on tapered sections of fluid nozzle to ensure
easy operation of air cap. When spraying water base materials, coat fluid nozzle
inside and outside with straight mineral oil after each use.
MAINTENANCE
TO CONVERT TO SIPHON FEED

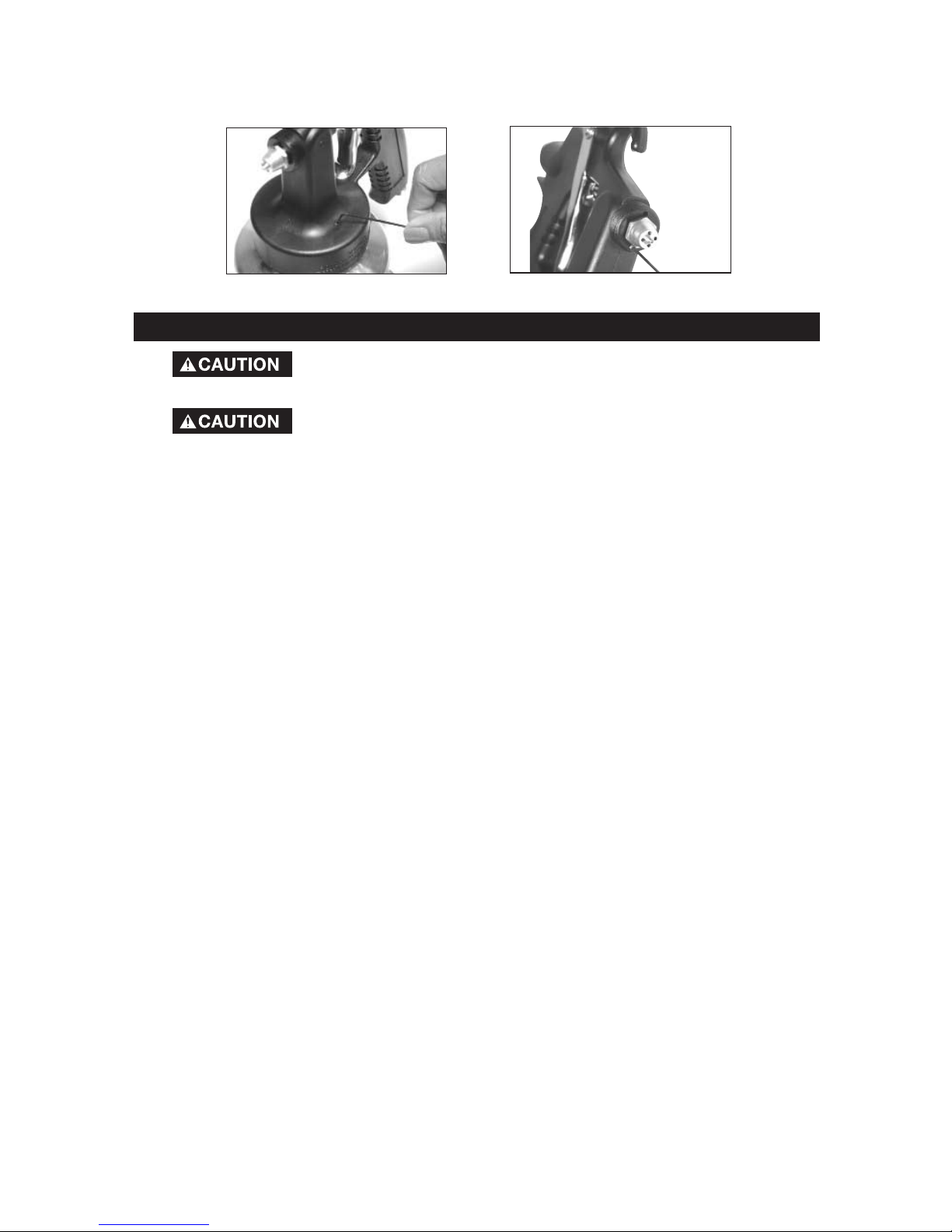

1. Remove set screw from canister top and place it in the lower part of gun head
as shown.
2. To operate see steps 2-8 in the “To Use pressure feed” section to continue.

7- ENG D27122

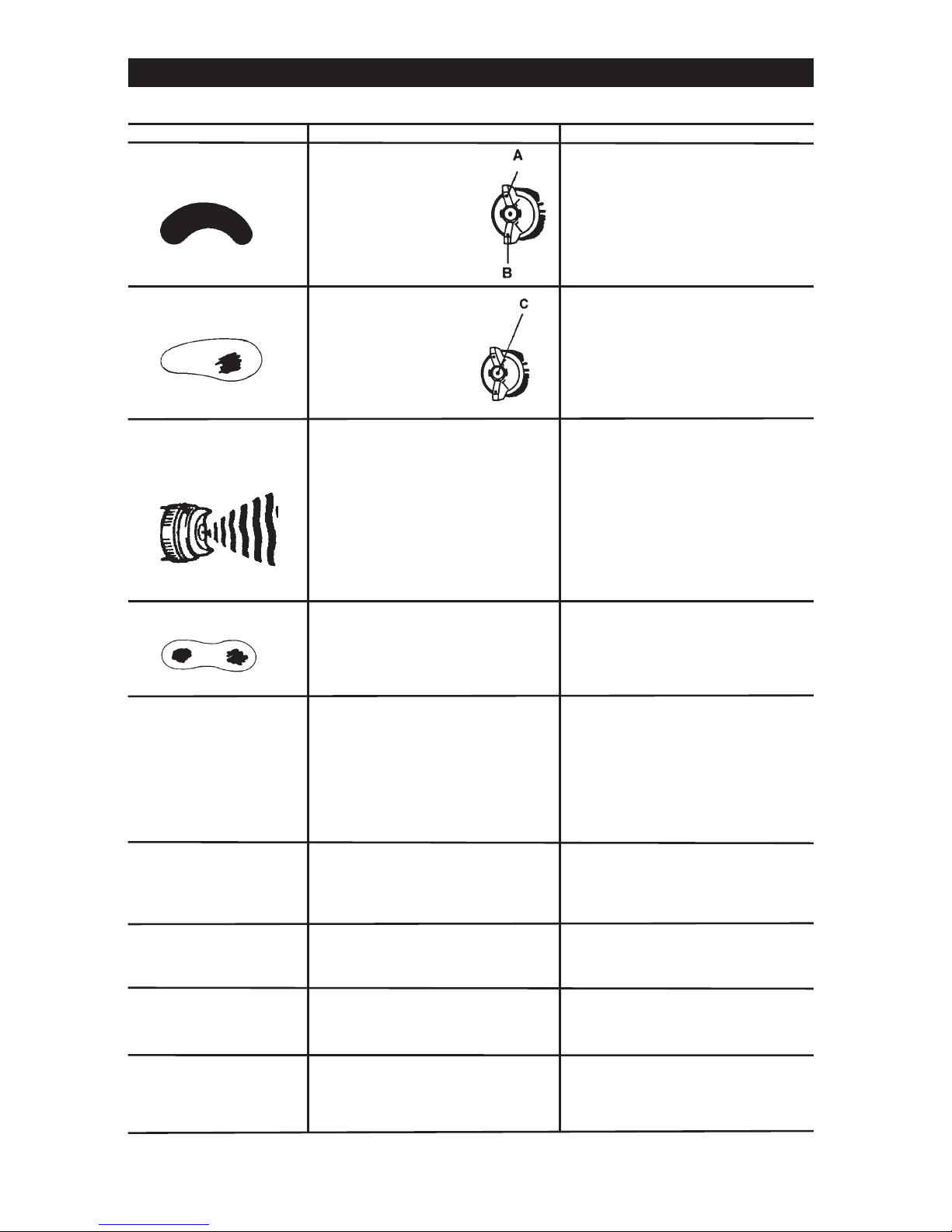

Dried material is clog-
ging side-port “A” and
causing side-port “B”
to blow spray towards
the clogged side
A. Soak side-ports in thinner to
clean clog. DO NOT poke any
opening with hard objects.
B. Dried material at fluid
nozzle “C” restricts air
flow
Loose air nozzle
Air pressure set too
high
Remove air nozzle. Wipe off fluid
tip using a cloth soaked in thinner
or by soft brush
Fasten nozzle securely
Reduce air pressure
C. Spitting, irregular
or fluttering spray
Fluid nozzle cracked or worn
Leak at thread of fluid nozzle
Leak at fluid needle
Needle packing worn out
Insufficient fluid in cup
Vent hole in container cover
clogged
Tighten or replace
Tighten fluid nozzle
Tighten compression nut
assembly or replace needle
packing
Replace packing
Fill cup with fluid
Clean Out
D. Split spray pattern Air pressure too high Turn pattern control knob
clockwise to decrease fan width.
Turn fluid needle adjusting nut
counterclockwise to increase fluid
flow
Material too heavy
Insufficient air pressure
Fluid pressure too high
Dried material on tip of fluid noz-
zle or air jets of air cap
Thin material or use larger orifice
fluid nozzle set
Increase pressure to within limit
Reduce pressure
Clean
Air needle partially closed
Dried material in air jets or air cap
Obstruction in air line
Remove obstruction
Reduce air pressure and/or open
fluid control knob
Air pressure to high for viscosity
of fluid
Loose cup or foreign substances
on/between cup thread and fluid
inlet
Tighten and clean or replace it
F. Inadequate air de-
livery
E. Unatomized or
spattered spray
G. Excessive fog
I. Material leaking
from nozzle when
trigger is released
H. Material leaking
from fluid inlet of
cup.
Worn fluid needle
Dried material in tip of nozzle
Loose packing nut
Replace
Clean
Tighten needle packing nut by
turning counterclockwise
Defective Pattern Likely Cause Suggested Remedy
TROUBLESHOOTING
Open control knob
Clean
NOTICE: See parts list to identify parts referred to in these Troubleshooting steps.

8- ENG
D27122

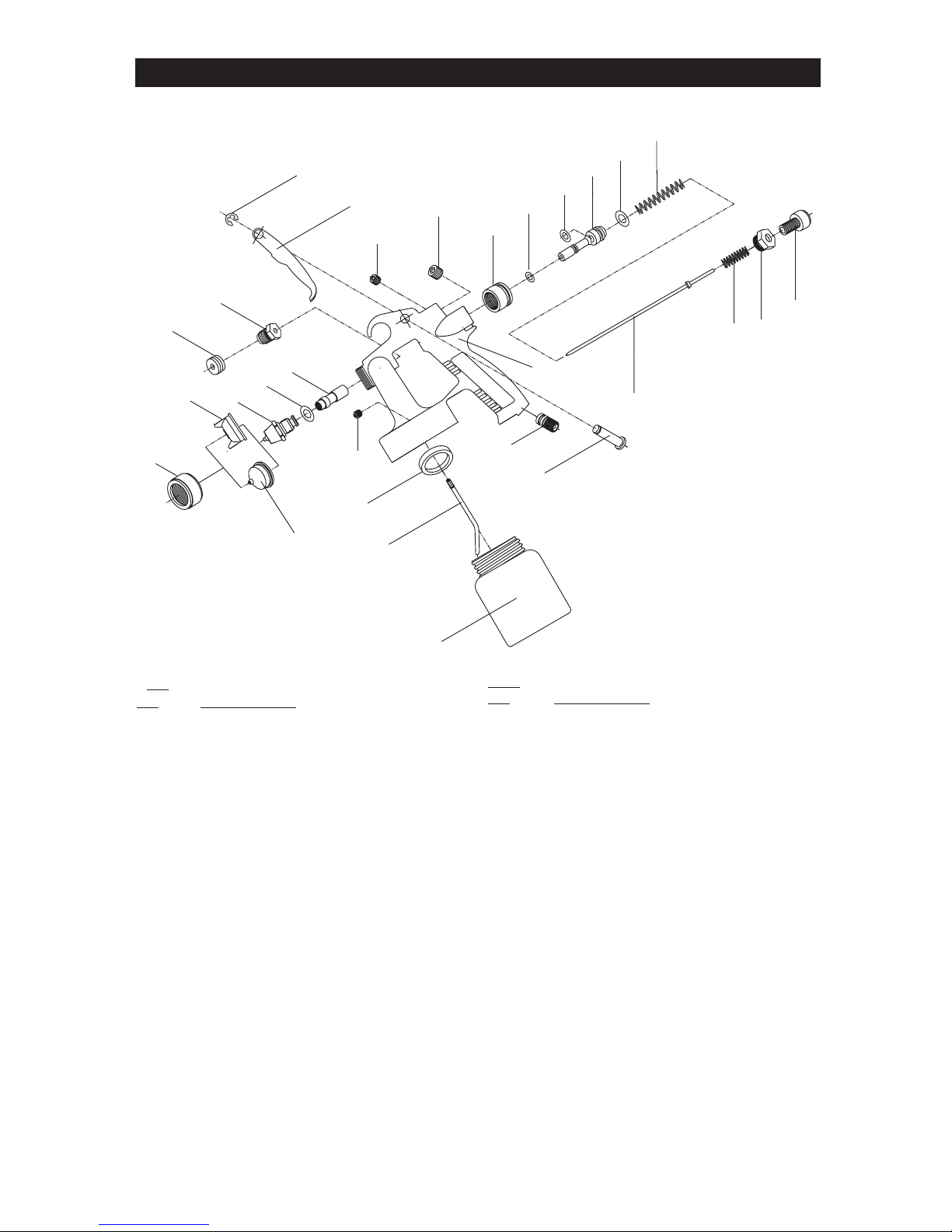

PARTS LIST
REF
NO DESCRIPTION
1 Gun Body Assembly
2 Fluid Tip Sleeve
3 Retaining Nut Sleeve
4 Hose Connection
5 Air Cap (external mix)
6 Fluid Tip
7 O-ring
8 Retaining Ring
9 Packing
10 Packing Nut
11 Socket Head Set Screw
12 Socket Head Set Screw
13 Valve Piston
14 O-ring
15 O-ring
16 O-ring
17 Spring
18 Fluid Needle Assembly
19 Spring
20 Fluid Control Knob
21 Retaining Nut
22 Trigger
23 Trigger Pin
24 Snap Retaining Ring
25 Material Tube
26 Canister
27 Canister Gasket
28 Socket Head Set Screw
29 Air Cap (internal mix)
REF
NO DESCRIPTION
20
19 21
15 13 16
3
14
12
24
11
22
1
10
9
2
17
18
23
4
56
28
25
29
27
8
26
7

9- ENG D27122
NOTES

10- ENG
D27122
LIMITED WARRANTY
DeVilbiss Air Power Company warrants to the original purchaser who uses the product in a
consumer application (personal, residential or household usage) that all products covered under this
warranty are free from defects in material and workmanship for one year from the date of purchase.
All products covered by this limited warranty which are used in commercial applications (i.e., income
producing) are warranted to be free of defects in material and workmanship for 90 days from the date
of original purchase. Products covered under this warranty include air compressors, air tools, service
parts, pressure washers, and generators.
DeVilbiss Air Power Company will repair or replace, at DeVilbiss' option, products or components
which have failed within the warranty period. Service will be scheduled according to the normal work
flow and business hours at the service center location, and the availability of replacement parts. All
decisions of DeVilbiss Air Power Company with regard to this limited warranty shall be final.
This warranty gives you specific legal rights, and you may also have other rights which vary from state
to state.
RESPONSIBILITY OF ORIGINAL PURCHASER (initial User):
•To process a warranty claim on this product, DO NOT return it to the retailer. The product must be
evaluated by an Authorized Warranty Service Center. For the location of the nearest Authorized
Warranty Service Center call 1-800-888-2468, Ext. 2, 24 hours a day, 7 days a week or visit our
web site @ devap.com.
•Retain original cash register sales receipt as proof of purchase for warranty work.
•Use reasonable care in the operation and maintenance of the product as described in the Owners
Manual(s).
•Deliver or ship the product to the nearest Authorized Warranty Service Center. Freight costs, if any,
must be paid by the purchaser.
•Air compressors with 60 and 80 gallon tanks will be inspected at the site of installation. Contact
the nearest Authorized Warranty Service Center that provides on-site service calls for service call
arrangements.
•If the purchaser does not receive satisfactory results from the Authorized Warranty Service Center,
the purchaser should contact DeVilbiss Air Power Company.
THIS WARRANTY DOES NOT COVER:
•Merchandise sold as reconditioned, used as rental equipment, or floor or display models.
•Merchandise that has become damaged or inoperative because of ordinary wear, misuse*, cold,
heat, rain, excessive humidity, freeze damage, use of improper chemicals, negligence, accident,
failure to operate the product in accordance with the instructions provided in the Owners Manual(s)
supplied with the product, improper maintenance, the use of accessories or attachments not
recommended by DeVilbiss Air Power Company, or unauthorized repair or alterations.
* An air compressor that pumps air more than 50% during a one hour period is considered
misuse because the air compressor is undersized for the required air demand.
•Repair and transportation costs of merchandise determined not to be defective.
•Costs associated with assembly, required oil, adjustments or other installation and start-up costs.
•Expendable parts or accessories supplied with the product which are expected to become
inoperative or unuseable after a reasonable period of use, including but not limited to sanding
disks or pads, saw and shear blades, grinding stones, springs, chisels, nozzles, o-rings, air jets,
washers and similar accessories.
•Merchandise sold by DeVilbiss Air Power Company which has been manufactured by and identified
as the product of another company, such as gasoline engines. The product manufacturer's
warranty, if any, will apply.
•ANY INCIDENTAL, INDIRECT OR CONSEQUENTIAL LOSS, DAMAGE, OR EXPENSE THAT
MAY RESULT FROM ANY DEFECT, FAILURE OR MALFUNCTION OF THE PRODUCT IS NOT
COVERED BY THIS WARRANTY. Some states do not allow the exclusion or limitation of
incidental or consequential damages, so the above limitation or exclusion may not apply to you.
•IMPLIED WARRANTIES, INCLUDING THOSE OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR FROM THE DATE OF ORIGINAL
PURCHASE. Some states do not allow limitations on how long an implied warranty lasts, so the
above limitations may not apply to you.
213 Industrial Drive • Jackson, TN 38301-9615
Telephone: [phone] , Ext. 2
FAX: [phone]
