Sealey HVLP05 User manual

PROFESSIONAL HVLP GRAVITY FEED SPRAY
GUN 1.3MM SET-UP
MODEL NO: HVLP05
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLYAND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURYAND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
9Familiarise yourself with the application, limitations and potential hazards peculiar to the spray gun.
WARNING! Disconnect the spray gun from the air supply before changing accessories, servicing or performing any maintenance.
9Maintain the spray gun in good condition (use an authorised service agent).
9Replace or repair damaged parts. Use authorised parts only. Unauthorised parts may be dangerous and will invalidate the warranty.
9Keep the spray gun clean for best and safest performance.
9Ensure that the compressed air system can supply the spray gun air consumption for the model to be used.
9Wear approved safety respiratory protection and safety eye goggles.
9If spraying isocyanate based finisher, wear approved respirator/clean air breathing apparatus and cover exposed skin with latex gloves
and an impervious hooded coverall.
9Remove ill-fitting clothing. Remove ties, watches, rings and other loose jewellery and tie back long hair.
9Locate the spray gun in a suitable work area. Keep area clean and tidy and free from unrelated materials and ensure that there is
adequate ventilation and lighting.
9Keep children and unauthorised persons away from the work area.
9When not in use, ensure that the air supply is turned off.
9Avoid unintentional operation of spray gun.
9The spray gun has been treated with an anti-corrosive agent at the factory and MUST be flushed out thoroughly with thinner before use.
8DO NOT point spray gun at yourself, other persons or animals.
8DO NOT direct air from the air hose at yourself, other persons or animals.
8DO NOT carry the spray gun by the hose, or yank the hose from the air supply.
8DO NOT use the spray gun for any purpose other than that for which it is designed.
8DO NOT allow untrained persons to operate the spray gun.
8DO NOT get the spray gun wet or use in damp or wet locations or in areas where there is condensation.
8DO NOT operate the spray gun if any parts are missing or damaged as this may cause failure and/or personal injury.
9When not in use, disconnect the spray gun from the air supply, clean thoroughly and store safely.
2. INTRODUCTION
Gravity feed spray gun designed for applying clear and base coats. Features air and paint ow controls for ne adjustment of spray
pattern with a maximum size of 280mm. HVLP technology and precision engineering delivers consistent and unrivalled results. No
O-ring design for solvent resistance and increased life. Stainless steel uid passages, needle, nozzle, air cap and air valve suitable
for water based paints.
3. SPECIFICATION
Model no...........................................................HVLP05
Air consumption .............................................. 14.12cfm
Available set ups..........................................1.2, 1.4mm
Pot capacity .........................................................600ml
Recommended air pressure............................. 29-32psi
Standard set up...................................................1.3mm
4. AIR SUPPLY

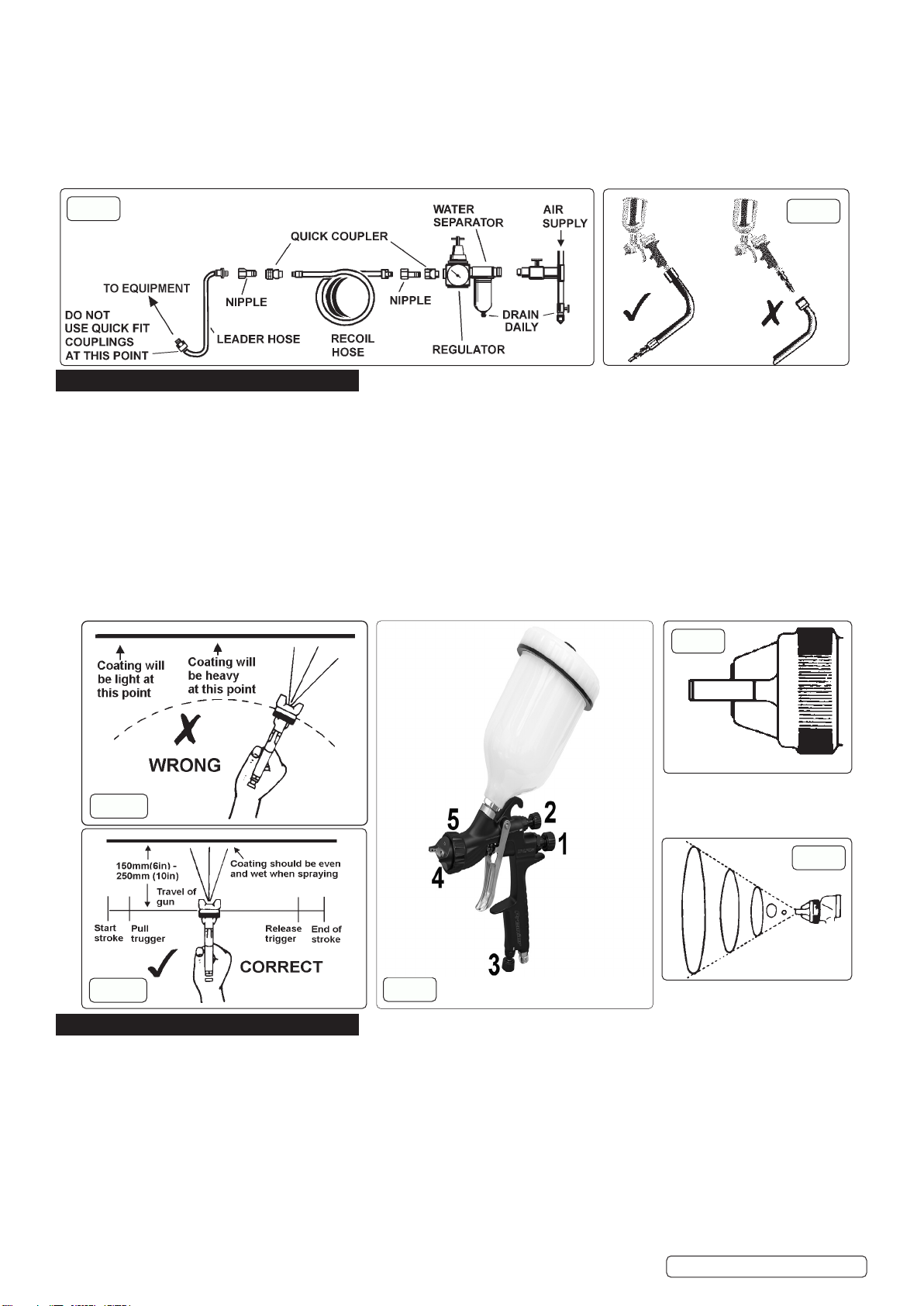

4.1. Recommended hook-up is shown in Fig.1.
4.2. Ensure spray gun air valve (or trigger) is in the o󰀨 position before connecting
to the air supply.
4.3. You will require an air pressure of 32psi, and an air flow according to specification.
WARNING! Ensure the air supply is clean and does not exceed a maximum pressure of
43psi while operating the spray gun.
Too high an air pressure and/or unclean air will shorten the product life
due to excessive wear, and may be dangerous causing damage and/or personal injury.
4.4. Drain the air tank daily. Water in the air line will ruin the paint finish and damage the
spray gun.
HVLP05 Issue:2 (4) 03/01/23
Original Language Version
© Jack Sealey Limited
Refer to
instructions Wear eye
protection Wear respiratory
protection Wear protective gloves Wear protective
clothing Wear protective
footwear

4.5. Clean air inlet filter weekly.
4.6. Line pressure should be increased to compensate for unusually long air hoses (over 8 metres). The minimum hose diameter should be
1/4” I.D. and fittings must have the same inside dimensions.
4.7. Keep hose away from heat, oil and sharp edges. Check hose for wear, and make certain that all connections are secure.
4.8. COUPLINGS
Vibration may cause failure if a quick change coupling is connected directly to the spray gun. To overcome this, connect a leader
hose to the spray gun.
4.9. A quick change coupling may then be used to connect the leader hose to the air line recoil hose (g’s 1 and 2).
5. OPERATION
5.1. For best results, the gun should be held perpendicular to the surface being sprayed and moved parallel to it. Start the stroke before
squeezing the trigger and release the trigger before finishing the stroke. This will enable accurate control of the gun and material (fig.3B).
5.2. Spray from a distance of about 6 to 10 inches (150 to 250mm) depending on the material and the atomizing pressure. The material
deposited should always be even and wet. Each stroke must overlap the preceding stroke to obtain a uniform finish. To reduce
over-spray and obtain maximum efficiency, spray with the lowest possible atomizing air pressure.
5.3. Controlling the fan spray and the fluid.
a) Use the needle (paint) adjustment knob (fig.4.2) to adjust the amount of paint flow.
b) The atomizing air flow is controlled by the control knob (fig.4.1).
c) The volume of air input is controlled by the adjustment knob (fig.4.3).
d) As width of spray is increased more material must pass through the gun to obtain the same coverage on the increased area.
e) Turn the air nozzle (fig.4.4) to achieve a horizontal or vertical fan spray. Lock the nozzle with retaining ring (fig.4.5).
The spray pattern of the gun is variable from round to flat with all patterns in between. In normal operation, the wings on the
nozzle are horizontal (fig.5). This provides a vertical fan-shaped pattern which gives maximum, uniform and even coverage when
moving the gun back and forth, parallel to the work surface (fig.6).
6. CLEANING
FOR OPTIMUM PERFORMANCE IT IS VERY IMPORTANT TO ENSURE THE SPRAY GUN IS CORRECTLY CLEANED AFTER
EACH USE.
WARNING! Disconnect from the air supply before attempting any cleaning or maintenance.
6.1. Flush the gun through with clean solvent.
6.2. Use a bristle brush and solvent to wash off accumulated paint.
6.3. Clean the air nozzle using a brush. Blow clean with air. Handle all nozzles carefully and DO NOT make any alterations in the gun.
6.4. Wipe the outside of the gun with a dampened solvent rag.
6.5. If there is a need to probe the holes in the nozzles, ensure a tool that is softer than brass is utilised, under no circumstances use metal
tool, as the slightest amount of damage will adversely affect the spray pattern.
6.5.1. Adjust the fluid needle valve so that when the gun is triggered, air flow occurs before fluid flow.
6.6. Take care when re-assembling. Screw parts hand tight to avoid cross-threading. If a part cannot easily be turned by hand, check that it
is the correct part, or unscrew it, realign and retry. DO NOT use excessive force when re-assembling.
Original Language Version
© Jack Sealey Limited
g.1
g.3B
g.3A
g.2
g.4
g.5
g.6
HVLP05 Issue:2 (4) 03/01/23

Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 703534 [e-mail] www.sealey.co.uk
ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste.All tools, accessories and packaging should be sorted,
taken to a recycling centre and disposed of in a manner which is compatible with the environment. When the product
becomes completely unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and
dispose of the product and fluids according to local regulations.
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior
notice.
Important: No Liability is accepted for incorrect use of this product.
Warranty: Guarantee is 12 months from purchase date, proof of which is required for any claim.
6.7. When changing the nozzle size, ensure the complete nozzle set is fitted. This consists of air cap, fluid nozzle and paint needle. Insert
the fluid nozzle before paint needle.
7. TROUBLESHOOTING
A faulty spray is usually caused by improper cleaning or dried material around the fluid nozzle tip or in the air nozzle. If cleaning is required,
remove these parts and soak them in solvent. This will soften the dried material which can then be removed with a brush or a cloth.
These parts are carefully machined and any damage to them will cause a faulty spray. If either the air nozzle or fluid nozzle are damaged, they
must be replaced before a perfect spray can be obtained.
Problem Possible Causes Solution
Dried material in a side port restricts passage
of air. Greater flow of air from the clean side
port forces a fan pattern in the direction of the
clogged side.
Dissolve material in the side ports with
solvent, then blow the gun clean. Do not poke
into the nozzles with metal instruments.
Dried material around the outside of the fluid
nozzle tip restricts the passage of atomizing
air at one point through the centre opening of
the air nozzle and results in the pattern
shown. This pattern can also be caused by a
loose air nozzle.
Remove the air nozzle and wipe off fluid tip
using a rag dampened with solvent. Tighten
the air nozzle.
Material too thin or atomization air pressure
too high. Regulate material viscosity or reduce air pressure.
Paint spray utter
Not enough paint in bottle.
Nozzle set / seating dirty, damaged or loosely
installed.
Refill bottle. Remove the fluid nozzle, clean
the back of the nozzle and the nozzle seat
using a cloth dampened with thinner. Refit the
nozzle and secure it tightly against the body.
If necessary replace nozzle set.
Material bubbles or “boils” in paint
cup.
Atomised air flowing through the paint channel
to the bottle. The paint nozzle is not
sufficiently tight.
Air nozzle is not completely screwed on.
Tighten, clean or replace parts accordingly.
