DAUDIN iO-Grid GFPS-0202 User manual

iO-GRID M
Power Module User Manual
2211TW
V2.0.0

2
Table of Contents
1. Power Module List ..........................................................................................................3
2. Power Module Specification.............................................................................................4
2.1 GFPS-0202 ..........................................................................................................4
2.2 GFPS-0303 ..........................................................................................................5
3. Power Module Information ..............................................................................................6
3.1 Power Module Dimensions....................................................................................6
3.2 Power Module Panel Information ...........................................................................8
4. Module Installation/Disassembly ....................................................................................10
4.1 Installation.........................................................................................................10
4.2 Removal ............................................................................................................ 11
5. iO-GRID M Series Introduction......................................................................................12
5.1 iO-GRID M Components ....................................................................................12
6. Power Module Instructions.............................................................................................13
6.1 Power Module Assembly and Connections ............................................................13
6.2 Power Module Insulation Map .............................................................................15

3
1. Power Module List
Product No. Description Remarks
GFPS-0202 100~240 VAC to 24 VDC Power Module
GFPS-0303 24 VDC to 5 VDC Power Module

4
2. Power Module Specification
2.1 GFPS-0202
Technical Specification
Rated Input Voltage 100~240 VAC (rated)
Inrush Current (Cold Start) 34 A
Rated Power 48 W／2 A
Output Voltage 24 VDC ± 1%
Overload Protection Hiccup Mode
Overload 120% - 185% Rated Output Power
Overvoltage Protection Clamper Overvoltage Protection
Overvoltage 30-34 VDC
General Specification
Dimension (W*D*H) 20 x 100 x 96mm
Weight 126g
Ambient Temperature (Operation) -20℃...+60℃
Ambient Humidity RH 20%...90%
Altitude Limit < 2000 m
Ingress Protection (IP) IP 20
Pollution Severity II
Safety Approval CE
Wiring Range (IEC / UL) 0.2 mm²~2.5 mm² / AWG 26~12
Wiring Ferrules DN00508D、DN00708D、DN01508D

5
2.2 GFPS-0303
Technical Specification
Rated Input Voltage 21 ~ 28.8 VDC
Max Input Current < 1.3 A
Rated Output Power 20 W／4 A
Output Voltage 5 VDC ± 5%
Overload Protection Clamper Overvoltage Protection (Latching)
Overload 127% ~ 170% Rated Output Power
Overvoltage Protection Clamper Overvoltage Protection
Overvoltage 6.5 VDC ~ 6.7 VDC
General Specification
Dimension (W*D*H) 12 x 100 x 96mm
Weight 68g
Ambient Temperature (Operation) -20℃...+60℃
Ambient Humidity RH 20%...90%
Altitude Limit < 2000 m
Ingress Protection (IP) IP 20
Pollution Severity II
Safety Approval CE

6
3. Power Module Information
3.1 Power Module Dimensions
I. GFPS-0202
Unit: mm

7
II. GFPS-0303
Unit: mm

8
3.2 Power Module Panel Information
I. GFPS-0202
LED Indicator Light
LED
Color
Status
DC24V 2A Green Power Conve Rterrunning

9
I. GFPS-0303
LED Indicator Light
LED
Color
Status
DC5V 4A Green Power Converter Running

10
4. Module Installation/Disassembly
4.1 Installation

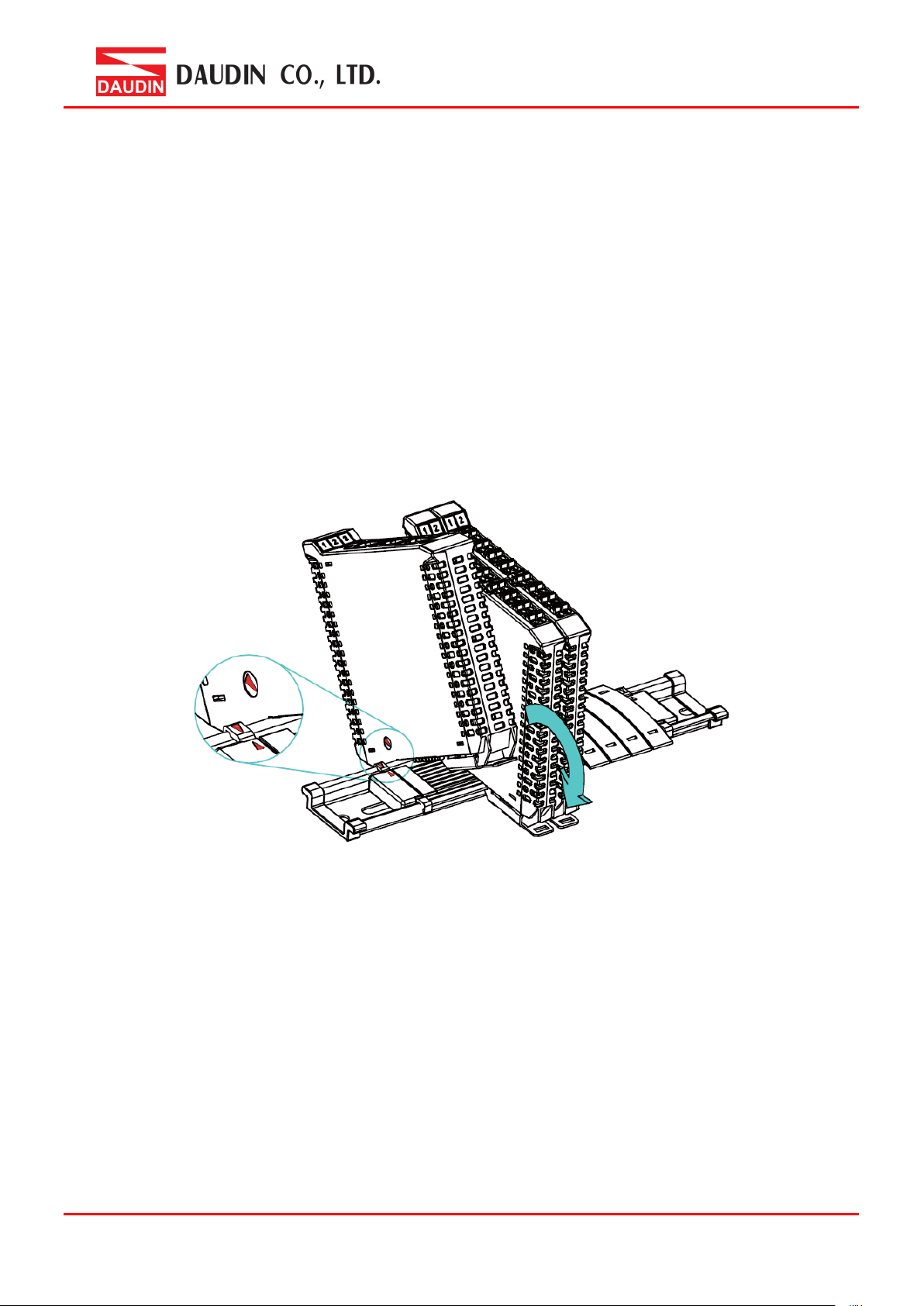

I. Align the red arrow on the side of the module to the arrow on the DIN rail.
II. Press the module down and the metal clamp will slide (thanks to its spring
mechanism)
and grab on the other side of the DIN rail. Continue to push down until the metal
clamp “clicks”.
*Note: Make sure the red arrows on the module and the rail are pointing the same direction.

11
4.2 Removal
I. Use a screwdriver to pull the metal hook sideways and detach the module from the
DIN rail.
II. Remove all modules from the DIN rail in reverse order of installation.

12
5. iO-GRID M Series Introduction
iO-GRID M series utilizes the standard Modbus communication protocol and supports Modbus
RTU/ASCII and Modbus TCP. Please choose products and factory controllers to figure your
system based on your communication protocol.
5.1 iO-GRID M Components

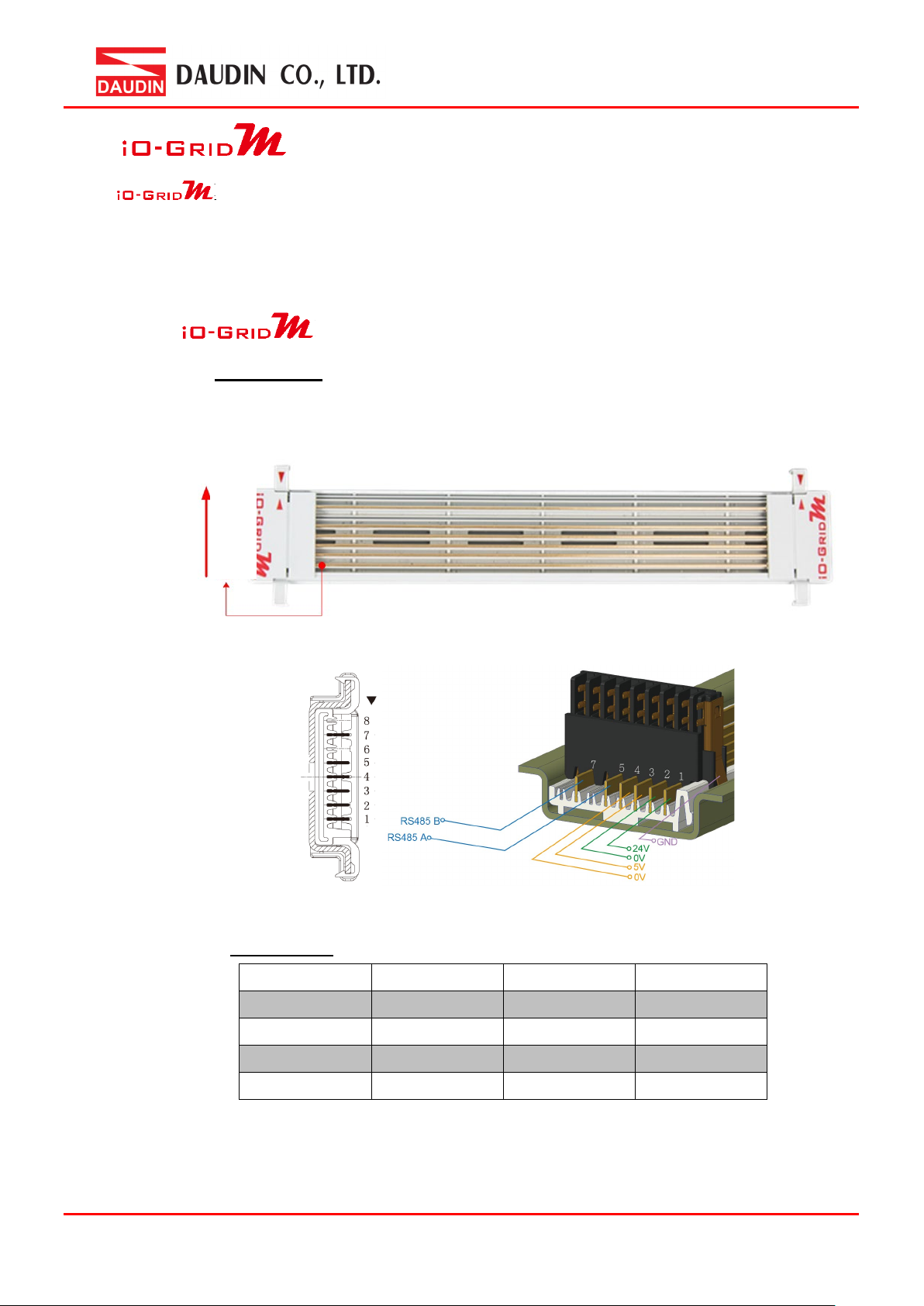

I. DINKLE Bus
Rail 1 to 4 are defined for power supply and rail 5 and 7 are defined for
communication.
DINKLE Bus Rail Definitions:
Rail
Definition
Rail
Definition
8 — 4 0V
7 RS485B 3 5V
6 — 2 0V
5 RS485A 1 24V
⑧
①

13
6. Power Module Instructions
6.1 Power Module Assembly and Connections
I. Install the fieldbus to the DIN rail
II. Install GFPS-0202 to the fieldbus and GFPS-0202 will convert the alternating
current from the external power supply into 24V direct current and feed it to
the fieldbus

14
III. Install GFPS-0303 to the fieldbus and GFPS-0303 will convert the 24V direct
current from the fieldbus into 5V direct current before feeding it to the fieldbus
IV. Plug the external alternating current power supply to the “L”, “N” and “G”
connectors on GFPS-0202 accordingly

15
6.2 Power Module Insulation Map
I. GFPS-0202

16
II. GFPS-0303
