Daum electronic pedelec Series User manual

dynamic body control
made in germany
pedelec

2
What‘s a pedelec?

3
Dashboard 6 - 7
Drive 8 - 9
ergo_bike pedelec Comfort 10 - 11
ergo_bike pedelec Trekking D 12 - 13
ergo_bike pedelec Trekking H 14 - 15
Accessories 16 - 17
Specifications 18 - 19
contents
Pedelec stands for Pedal Electric Cycling
It designates a bike with electric assisted pedalling
having the following characteristics:
- Pedelecs combine a bike with an electric motor,
a rechargeable battery, control electronics, and
sensors for recognising crank movements.
- Pedelecs are considered bikes and may be used
without driving licence and without automobile
liability insurance
- A helmet is not required but we do recommend
wearing a bicycle helmet
- All pedelecs sold in the EU must comply with the
DIN EN 15194 guideline
- While pedalling pedelecs are assisted by a motor
from 0 to 25 km/h

4
Best Quality for a Trouble Free Riding Experience
After 16 years of successfully producing ergometers, daum
electronic made the move into the outdoor world: By deve-
loping and manufacturing the pedelecs we break into new
grounds and bring our know-how and experience from
the production of ergometers to a new generation of
bikes. Daum pedelecs can be used for health promotion
as well as for recreational biking, they are equipped with
a powerful electric motor providing adequate pedalling
assistance for every situation. The bicycles feature premi-
um bike components of well-known manufacturers and
have the control intelligence – thanks to the outstanding
dashboards of our own development – to help make your
riding experience as trouble free as possible.

Best Quality for a Trouble Free Riding Experience
Fitness
Daum pedelecs combine premium and aesthetical fitness training
and biking fun. They bring the proven daum ergometer technolo-
gy to the roads. Defineable limit values provide for controlled biking
and a measured enhancement of endurance and fitness. All the data,
for instance the heart rate, ride time, speed, and distance can be sto-
red on a SD card, reviewed, and evaluated. An ideal technical prere-
quisiste not only for therapeutic purposes: health oriented users can
pedal for preset distances under guidance by the tour management
system and obtain their individual biological values.
Safety
In order to always give bikers the feeling of an unrestricted reliabili-
ty in their day-to-day use, all pedelecs are equipped with the daum
safety pack. This high standard already begins with the produc-
tion: all components are assembled in the daum factory according
to strictest and latest DIN standards. The dashboard software of the
own development takes over everyday safety control. A 3D position
sensor monitors the vertical and horizontal tilt and reacts immedia-
tely when the limit is exceeded by switching the motor on or off. The
motor itself is powered by a rechargeable battery tested for safety.
Also when the brake is activated, the motor will switch off immedia-
tely to prevent uncontrolled bike movements. Moreover, the pedelec
as well as the dashboard are equiped with a PIN controlled theft pro-
tection. In case of emergency the bicycle can be traced everywhere
via position data transmission through SMS. All the pedelecs, inclu-
ding the rechargeable battery, are covered by a two year warranty.
Comfort
Thanks to outstanding technology, daum pedelecs will make you
feel you are always pedalling with tailwind. You can adjust the
3-stage drive assistance by means of the control buttons convenient-
ly located on the handlebar, and thus have it always adapted to your
needs, while the integrated tour management system shows the
right directions on the display. Several tours are available for down-
load on www.daum-electronic.de and can easily be loaded on the
dashboard by means of SD card. The other way around, own routes
can be uploaded to the server. A 36V rechargeable battery powers
the motor, enabling to travel up to 80 kms with one charge. The bat-
tery is fully recharged after only 3 hours charging time and ready for
the next relaxed ride.

6
pedelec Dashboard

7
pedelec
Dashboard, classic version:
- integrated SD/SDHC memory card reader
- interference free digital heart rate receiver
- integrated buzzer
- entry and display of personal limit values
- several display data: speed, assistance mode, date, time, heart rate, distance,
travel time, average speed
- recording of heart rate, speed, distance and travel time on SD card
- display of remaining battery charge
- 3.7“ grey scale display with backlight and brightness sensor
- option to export the travelled distances to the daum ergometer with
heart rate and speed
- evaluation of personal data
- software update via SD card
Control Panel:
- control buttons conveniently located on the handlebar (e.g. to adjust the
pedalling assistance)
- starting and pushing assistance up to 6 km/h
Dashboard, premium version with additional equipment (available third quarter):
- GSM module with GPS for enhanced documentation of biking tours
- transmission of position data via SMS or internet (requires SIM card)
- barometric height measurement
- theft protection with SMS notication
- incline adjusted pedalling asistance
- several display data with recording on SD card: GPS coordinates, temperature,
incline, height above sea level
- gear recommendation
Get on. Start. Relax -
Thanks to an intelligent technology.
We focussed our dashboards on one central function: To make your biking as con-
venient as possible. The intelligent technology design made by daum broadens
the horizon of the pedelec and that of its users alike. All important data are clear-
ly shown on the high performance graphic display, so that you are always in con-
trol of the speed, distance, pulse rate and current trip data. Simply and intuitively
turn the control button to change the settings and the displayed data. As soon as
your pedalling force drops too much within the self defined limit values, the sen-
sor gives the impulse to start motor assistance and thus provides for a steadily com-
fortable biking. In the Premium version the dashboard will even become your per-
fectly equipped tour guide. GPS data acquisition will continuously determine your
position. These data let you save the travelled routes and reuse them for later trips.
A reserved area is set up on www.daum-electronic.de where you can download
predefined routes as well as upload your own ones.

8
Drive

premium
9
Die Funktionen im Überblick:
- 3,7 Zoll Graustufen-Display mit
Hintergrundbeleuchtung und
Beleuchtungssensor
- USB-Anschlussbuchse
- Kartenslot für SD-Karte
- Nahbedientasten am Lenker
- Kodierter Pulsempfänger
- Steigungsabhängige Tretunterstützung
- Integrierter Tonsummer
- Schiebehilfe bis 6 km/h
- Speicherung persönlicher Daten un
Grenzwerte
- Gangempfehlung (für energieeffizi-
entes Fahren)
- Diverse Anzeigewerte: Geschwindigkeit,
Unterstützungsmodus, Datum,
Uhrzeit, Puls, Distanz, Fahrzeit,
Durchschnittsgeschwindigkeit
Lorem ipsum dolor sit amet,
consectetur adipiscing elit.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Proin congue, enim ac male-
suada posuere, nunc metus faucibus leo, eu viverra orci dolor et magna. Proin luctus.
Phasellus quis purus id quam scelerisque ultrices. Nam augue leo, facilisis in, mole-
stie a, dictum ut, est. Fusce a velit. Suspendisse potenti. Proin est dui, lacinia nec, con-
dimentum quis, sollicitudin id, velit. In quis nunc. Class aptent taciti sociosqu ad litora
torquent per conubia nostra, per inceptos himenaeos.
In der Ausstattung Plus zusätzlich:
- GSM-Modul mit GPS, erweiterte
Dokumentation von Radtouren,
Übermittlung von Positionsdaten per
SMS oder Internet
- Höhenmessung
- Diebstahlschutz mit RFID-
”Zündschlüssel” und SMS
- Wattgrenze
- Aufzeichnung von Puls,
Geschwindigkeit, Distanz, Zeit,
Steigung und Höhe auf SD-Karte;
Exportmöglichkeit gefahrener Strecken
in daum Ergometer
- Auswertung persönlicher Daten
- Diverse Anzeigewerte: erbrachte
Wattleistung, GPS-Koordinaten,
Temperatur, Wetterlage, Steigung,
Höhe über NN, Energieverbrauch,
Drehzahl u. v. m.
pedelec
9
Power
The 250W electric motor is wear-free
(brushless) and drives the rear wheel
directly through the pedals‘ axleshaft. A
two speed transmission, located in the
waterproof aluminium housing, is shifted
as needed to compensate for insufficient
pedalling forces, almost noiselessly.
Intelligence
A sensor system permanently measures
the torsion of the pedal shaft, determi-
ning the force applied by the cyclist. The
electronic system reacts instantaneously,
ensuring a continuously variable motor
control. The gear recommendation incre-
ases the pedelec‘s range considerably by
optimising the energy consumption and
thus contributing decisively to econo-
mic cycling.
Safety
The motor is equiped with several safe-
ty mechanisms. The 3D position sen-
sors detect both horizontal and verti-
cal tilts and react immediately by swit-
ching off the motor or by giving an
impulse for stronger pedalling assistance.
Furthermore, the electronic system will
switch off the motor as soon as a brake
lever is pulled. This guarantees a jerk-free
stop and smooth start, e.g. at traffic lights.
The motor was developed and is manu-
factured by daum electronic in compli-
ance with the specifications of the DIN EN
15194 standard.
Endurance
The 36V battery is equipped with lithium-
ion technology, the latest battery tech-
nology for electric bikes. This reduces
the weight of the power packs while ex-
tending the travel range. The approx. 3.6
kgs battery pack allows a travel range of
up to 80 kms, depending on the selected
assistance mode, the terrain profile
and your weight. The charging time for
discharged batteries is under 3 hrs and
thus pretty fast.
The heart of the pedelecs beats in the
motor – whenever it‘s needed
The drive unit developed by daum combines both top class technical know how and
top quality workmanship„made in Germany“. Mounted on a central position of the bot-
tom bracket, it provides with its precise mechanism and intelligent elecronics a power-
ful assistance and relaxed riding experience.
The wear-free electric motor is controlled by a power measuring system sensing the tor-
sion of the pedals shaft and permanently communicating with the electronic system.
Driven by a high performance lithium-ion rechargeable battery tested for safety, it gua-
rantees a relaxed riding pleasure for up to 80 kms.The sensors detect both horizontal
and vertical tilts of the bike and react immediately either by switching off the motor or
by giving the impulse for a stronger pedalling assistance.

10

ergo_bike pedelec Comfort classic
Colour: silver
Frame size: 44, order number: 9514844
Frame size: 52, order number: 9514852
Colour: black
Frame size: 44, order number: 9504844
Frame size: 52, order number: 9504852
11
pedelec
ergo_bike pedelec Comfort
Convenient biking is a question of drive.
To meet everyday movement quotas whithout any excessive strain. To be flexible and
always arrive relaxed. The ergo_bike pedelec Comfort is the ideal companion for health
conscious everyday cyclists. A low step-through frame provides the convenient and safe
use of the bike. The individual pedal position in combination with the starting off assis-
tance allow a safe start at each traffic situation. The daum safety pack with its intelligent
protecting mechanism cares for your wellbeing. Wether on the way to work or for shop-
ping. The wear-free pedal drive and the power measuring system will assist you in each
pedalling situation. You can thus think of building up and maintaining your fitness level
while improving your personal eco-balance.
Frame:
Frame material aluminium 6061, tested ac-
cording to DIN EN 14764, wet painted with
double layers clear coating, with internally
driven cables
Fork:
adjustable, Suntour brand
Handlebar/Stem:
Aluminium stem adjustable, curved touring
handlebar compliant with DIN EN 14764,
ergonomic grips free of toxic substances
Gear System:
Shimano Nexus Inter 8 Premium free-wheel
hub, total transmission ratio 307%, gear
shift over rotary handle with gear indicator
Brakes:
V-brakes with power modulator front and
rear, brake lever with safety motor cutout
Wheels:
Aluminium extruded rims, stainless steel
spokes
Tyres:
Schwalbe Marathon with Kevlar Guard
puncture protection and reective stripes,
700x40c (28“)
Hub Dynamo:
Shimano DH-3N80 6V, 3W rolling
resistance, 75% less than with customary
dynamos
Front Light:
Busch & Müller Lumotec Fly LED-IQ-Tec
40 Lux with light sensor and automatic
standlight, 300% brighter than required by
German road trac regulations (StVZO),
winner of the Eurobike Award 2007 in
Gold
Rear Light:
Busch & Müller Toplight Flat plus LED with
standlight function
Saddle:
High quality convenient gel / cold foam
saddle, suspended aluminium seat post
Carrier Rack:
Material 6061, carrying capacity 25 kgs,
tested in compliance with DIN EN 14872,
with aluminium battery box and lockable
battery compartment, elastic rubber
straps to x the luggage
Weight:
approx. 26 kgs including battery
Seat Height:
Frame size 44: min. 89 cm, max. 100 cm
measured from the ground; step-through
depth 46 cm;
Frame size 52: min. 95 cm, max. 110 cm
measured from the ground; step-through
depth 46 cm
Miscellaneous:
Anti-slip safety pedals, side stand
ergo_bike pedelec Comfort premium
Colour: silver
Frame size: 44, order number: 9515844
Frame size: 52, order number: 9515852
Colour: black
Frame size: 44, order number: 9505844
Frame size: 52, order number: 9505852

12

13
pedelec
ergo_bike pedelec Trekking D
A relaxed experience of the nature.
Your leisure time is important to us. That’s why we developed a bicycle which combines
both the power and elegance of a trekking bike with the serenity of the pedelec tech-
nology. The ergo_bike pedelec Trekking D fully corresponds to the ladies’ ergonomic
requirements. While the wear-free pedals drive assists you in pedalling, you can, thanks
to the gear recommendation, fully concentrate on the riding pleasure. All functions can
be set easily and intuitively on the conveniently located control buttons or on the dash-
board. The daum safety pack with its intelligent protection mechanism cares for your
wellbeing at any time. That guarantees a relaxed riding comfort everywhere.
Frame:
Frame material aluminium 6061, tested ac-
cording to DIN EN 14764, wet painted with
double layers clear coating
Fork:
adjustable, Suntour brand
Handlebar/Stem:
Aluminium stem adjustable, stem type
trekking handlebar compliant with DIN EN
14764, ergonomic grips free of toxic sub-
stances
Gear System:
Shimano Nexus Inter 8 Premium free-wheel
hub, total transmission ratio 307%, gear
shift over rotary handle with gear indicator
Brakes:
V-brakes with power modulator front and
rear, brake lever with safety motor cutout
Wheels:
Aluminium extruded rims, stainless steel
spokes
Tyres:
Schwalbe Marathon Cross with Kevlar
Guard puncture protection and reective
stripes, 700x38c (28“)
Hub Dynamo:
Shimano DH-3N80 6V, 3W rolling
resistance, 75% less than with customary
dynamos
Front Light:
Busch & Müller Lumotec Fly LED-IQ-Tec
40 Lux with light sensor and automatic
standlight, 300% brighter than required by
German road trac regulations (StVZO),
winner of the Eurobike Award 2007 in
Gold
Rear Light:
Busch & Müller Toplight Flat plus LED with
standlight function
Saddle:
High quality convenient gel / cold foam
saddle, suspended aluminium seat post
Carrier Rack:
Material 6061, carrying capacity 25 kgs,
tested in compliance with DIN EN 14872,
with aluminium battery box and lockable
battery compartment, elastic rubber
straps to x the luggage
Weight:
approx. 26 kgs including battery
Seat Height:
Frame size 44: min. 89 cm, max. 100 cm
measured from the ground;
Frame size 52: min. 95 cm, max. 110 cm
measured from the ground
Miscellaneous:
Anti-slip safety pedals, side stand
ergo_bike pedelec Trekking D classic
Colour: silver
Frame size: 44, order number: 9510844
Frame size: 52, order number: 9510852
Colour: black
Frame size: 44, order number: 9500844
Frame size: 52, order number: 9500852
ergo_bike pedelec Trekking D premium
Colour: silver
Frame size: 44, order number: 9511844
Frame size: 52, order number: 9511852
Colour: black
Frame size: 44, order number: 9501844
Frame size: 52, order number: 9501852

14

15
pedelec

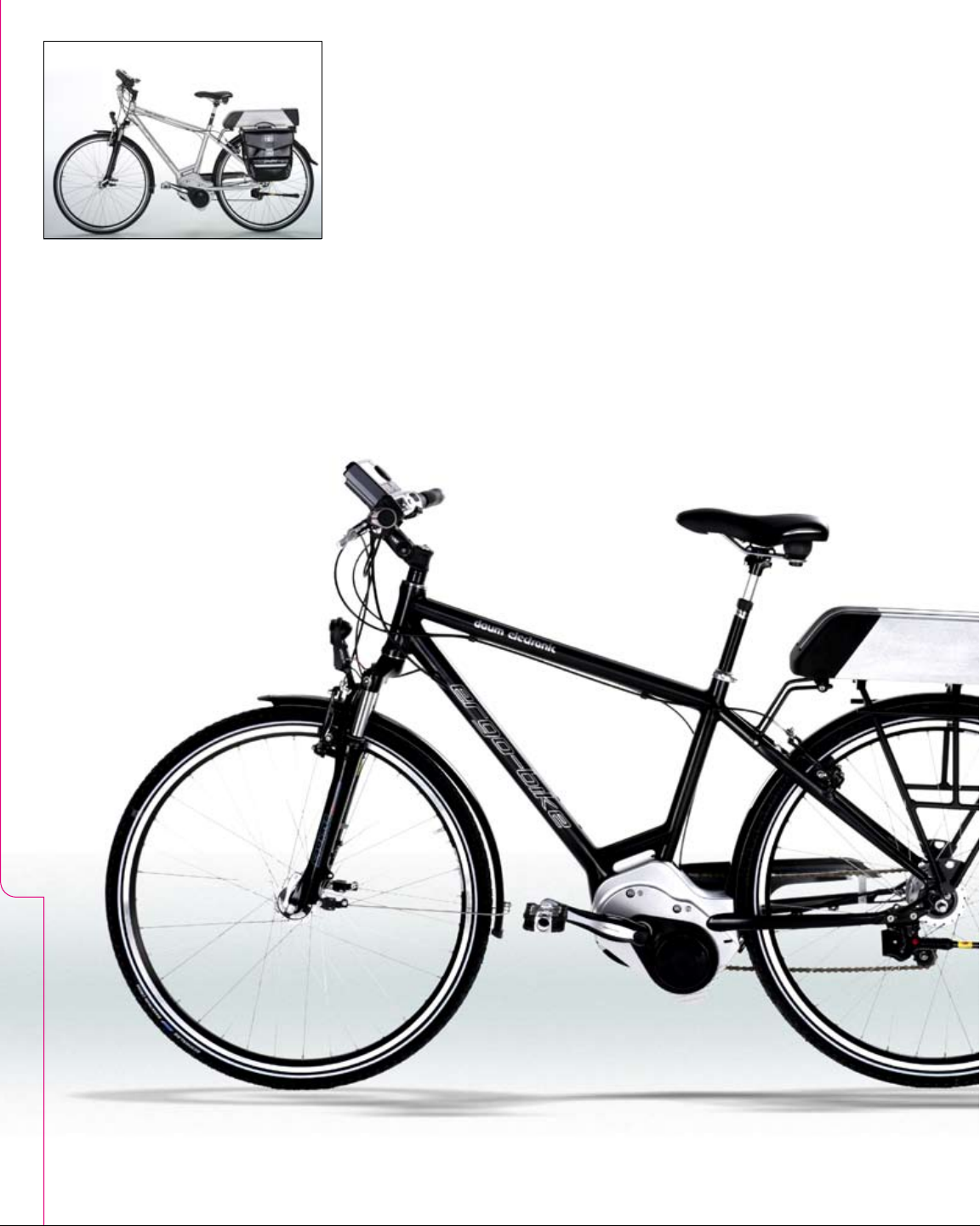

ergo_bike pedelec Trekking H
A relaxed experience of the nature.
Your leisure time is important to us. That’s why we developed a bicycle which com-
bines both the power and elegance of a trekking bike with the serenity of the pede-
lec technology. Whether sportively offroad or elegantly in the urban traffic. You can go
on the journey with full swing and enjoy the scenery while the wear-free pedals drive
assists your pedalling. The battery holds for up to 80 kms and provides power also for
longer trips. The daum safety pack with its intelligent protection mechanism cares for
your wellbeing. You can thus discover new ways or get back to the routes recommend-
ed in our database.
Frame:
Frame material aluminium 6061, tested ac-
cording to DIN EN 14764, wet painted with
double layers clear coating
Fork:
adjustable, Suntour brand
Handlebar/Stem:
Aluminium stem adjustable, stem type
trekking handlebar compliant with DIN EN
14764, ergonomic grips free of toxic sub-
stances
Gear System:
Shimano Nexus Inter 8 Premium free-wheel
hub, total transmission ratio 307%, gear
shift over rotary handle with gear indicator
Brakes:
V-brakes with power modulator front and
rear, brake lever with safety motor cutout
Wheels:
Aluminium extruded rims, stainless steel
spokes
Tyres:
Schwalbe Marathon Cross with Kevlar
Guard puncture protection and reective
stripes, 700x38c (28“)
Hub Dynamo:
Shimano DH-3N80 6V, 3W rolling
resistance, 75% less than with customary
dynamos
Front Light:
Busch & Müller Lumotec Fly LED-IQ-Tec
40 Lux with light sensor and automatic
standlight, 300% brighter than required by
German road trac regulations (StVZO),
winner of the Eurobike Award 2007 in
Gold
Rear Light:
Busch & Müller Toplight Flat plus LED with
standlight function
Saddle:
High quality convenient gel / cold foam
saddle, suspended aluminium seat post
Carrier Rack:
Material 6061, carrying capacity 25 kgs,
tested in compliance with DIN EN 14872,
with aluminium battery box and lockable
battery compartment, elastic rubber
straps to x the luggage
Weight:
approx. 26 kgs including battery
Seat Height:
Frame size 48: min. 93 cm, max. 107 cm
measured from the ground;
Frame size 56: min. 100 cm, max. 116 cm
measured from the ground
Miscellaneous:
Anti-slip safety pedals, side stand
ergo_bike pedelec Trekking H classic
Colour: silver
Frame size: 48, order number: 9512848
Frame size: 56, order number: 9512856
Colour: black
Frame size: 48, order number: 9502848
Frame size: 56, order number: 9502856
ergo_bike pedelec Trekking H premium
Colour: silver
Frame size: 48, order number: 9513848
Frame size: 56, order number: 9513856
Colour: black
Frame size: 48, order number: 9503848
Frame size: 56, order number: 9503856

16
Accessories

Accessories
Shopping Basket
The klickfix basket can easily be mounted on the
handlebar with just a klick and comes with a
matching handlebar adapter.
Order number: 9091041
Chest Belt
The digitally encoded heart rate transmission system
sends the heart rate data reliably with 868 MHz to the
dashboard from a distance of up to 3 m, enabling a
heart rate controlled ride of the pedelec. Easy to use and
comfortable to wear.
Order number: 9091036
Luggage Bags
Laptop and Office Bag
Equipped with magnetic press-in lock and additional zipper,
two zipper compartments and side pockets, detachable inside
pocket, carry handle, shoulder strap. Volume: 16 l. Dimension:
L40 x H32 x W12 cm. Fastening system: vario hooks.
Order number: 9091042
Shopping Bag
Colour: black/granite
Equipped with outside pocket, reinforcement,
zipper, carry handle, reflective stripes.
Volume: 15 l. Dimension: L36 x H32 x W15 cm.
Order number: 9091043
Trekking Bag
Colour: black/granite
Equipped with water repellent tarpaulin fabric, inside frame
and reinforcement of unbreakable PE material, ouside pocket,
carry handle, reflective stripes, reflective push button, can be
used on either side of the carry rack. Volume: 17 l.
Dimension: L30 x H32 x W16 cm.
Order number: 9091044
17

18
Specifications
Chassis
Aluminium frame AL 6061, polished, high value painting •••
Frame size S/M 44 cm 44 cm 48 cm
Frame size L/XL 52 cm 52 cm 56 cm
Adjustable suspension fork SR Suntour •••
Drive
Powerful 250 Watt central motor drive developed and manufactured by daum in
compliance with DIN EN 15194, low noise technology, daum sensors for recognition
of crank movements and pedalling force
•••
Intelligent assistance mode adjustable in 3 levels •••
Starting and pushing assistance up to 6 km/h •••
Pedalling assistance 0 - 25 km/h •••
Rechargeable battery
Lithium-ion technology, 9.5 Ah, 36 Volt •••
Life expectation: about 500 charging cycles, 3-4 years •••
External charger 115/230 Volt, 4 Amperes, charging time 0-100 % about 3 hours •••
Handlebar and control elements
Curved ALU touring handlebar, ALU stem adjustable in height and tilt •
Stem type ALU trekking handlebar, ALU stem adjustable in tilt • •
Ergonomic handlebar grips, free of toxic substances •••
Control block conveniently located on the left side for the assistance mode +/-, starting and
pushing assistance, dashboard displays (scan) •••
Rotary handle on the right side with gear display •••
Brake lever with safety motor cutout on both sides •••
3.7“ dashboard grey scale display with backlight and brightness sensor •••
Gear shift
Shimano Nexus 8 speed free-wheel hub, total transmission ratio 307%, gear shift over rotary
handle with gear indicator •••
Brakes
Mechanical rim V-brakes with power modulator front and rear •••
Wheels
Aluminium extruded rims 700c (28“), stainless steel spokes 2mm •••
Schwalbe Marathon with puncture protection and reflective stripes, 42-622 •
Schwalbe Marathon Cross with puncture protection and reflective stripes 40-622 • •
Plastic mudguards with edge protection and rear spoiler •••
Lighting system
Shimano hub dynamo front 6 Volt, minimal rolling resistance •••
LED front light B&M Lumotec Fly IQ senso plus, 40 Lux, with light sensor and automatic standlight •••
LED rear light B&M Toplight flat with automatic standlight •••
Miscellaneous
High quality convenient gel / cold foam saddle, suspended aluminium seat post •••
Stable ALU carrier rack with lockable aluminium battery compartment, elastic rubber straps to fix
the luggage, possibility to attach extra pack bags, carrying capacity 25 kg •••
Anti-slip safety pedals •••
Aluminium side stand •••
Dimensions and weight
Weight bike without battery ca. 22 kg ca. 22 kg ca. 22 kg
Weight of the battery ca. 3.6 kg ca. 3.6 kg ca. 3.6 kg
Seat height for frame size S/M 89 - 100 cm 89 - 100 cm 93 - 107 cm
Seat height for frame size L/XL 95 - 110 cm 95 - 110 cm 100 - 116 cm
Step-through depth 46 cm
Colours
Silver metallic •••
Black metallic •••
Comfort Trekking D Trekking H

19
Chassis
Aluminium frame AL 6061, polished, high value painting •••
Frame size S/M 44 cm 44 cm 48 cm
Frame size L/XL 52 cm 52 cm 56 cm
Adjustable suspension fork SR Suntour •••
Drive
Powerful 250 Watt central motor drive developed and manufactured by daum in
compliance with DIN EN 15194, low noise technology, daum sensors for recognition
of crank movements and pedalling force
•••
Intelligent assistance mode adjustable in 3 levels •••
Starting and pushing assistance up to 6 km/h •••
Pedalling assistance 0 - 25 km/h •••
Rechargeable battery
Lithium-ion technology, 9.5 Ah, 36 Volt •••
Life expectation: about 500 charging cycles, 3-4 years •••
External charger 115/230 Volt, 4 Amperes, charging time 0-100 % about 3 hours •••
Handlebar and control elements
Curved ALU touring handlebar, ALU stem adjustable in height and tilt •
Stem type ALU trekking handlebar, ALU stem adjustable in tilt • •
Ergonomic handlebar grips, free of toxic substances •••
Control block conveniently located on the left side for the assistance mode +/-, starting and
pushing assistance, dashboard displays (scan) •••
Rotary handle on the right side with gear display •••
Brake lever with safety motor cutout on both sides •••
3.7“ dashboard grey scale display with backlight and brightness sensor •••
Gear shift
Shimano Nexus 8 speed free-wheel hub, total transmission ratio 307%, gear shift over rotary
handle with gear indicator •••
Brakes
Mechanical rim V-brakes with power modulator front and rear •••

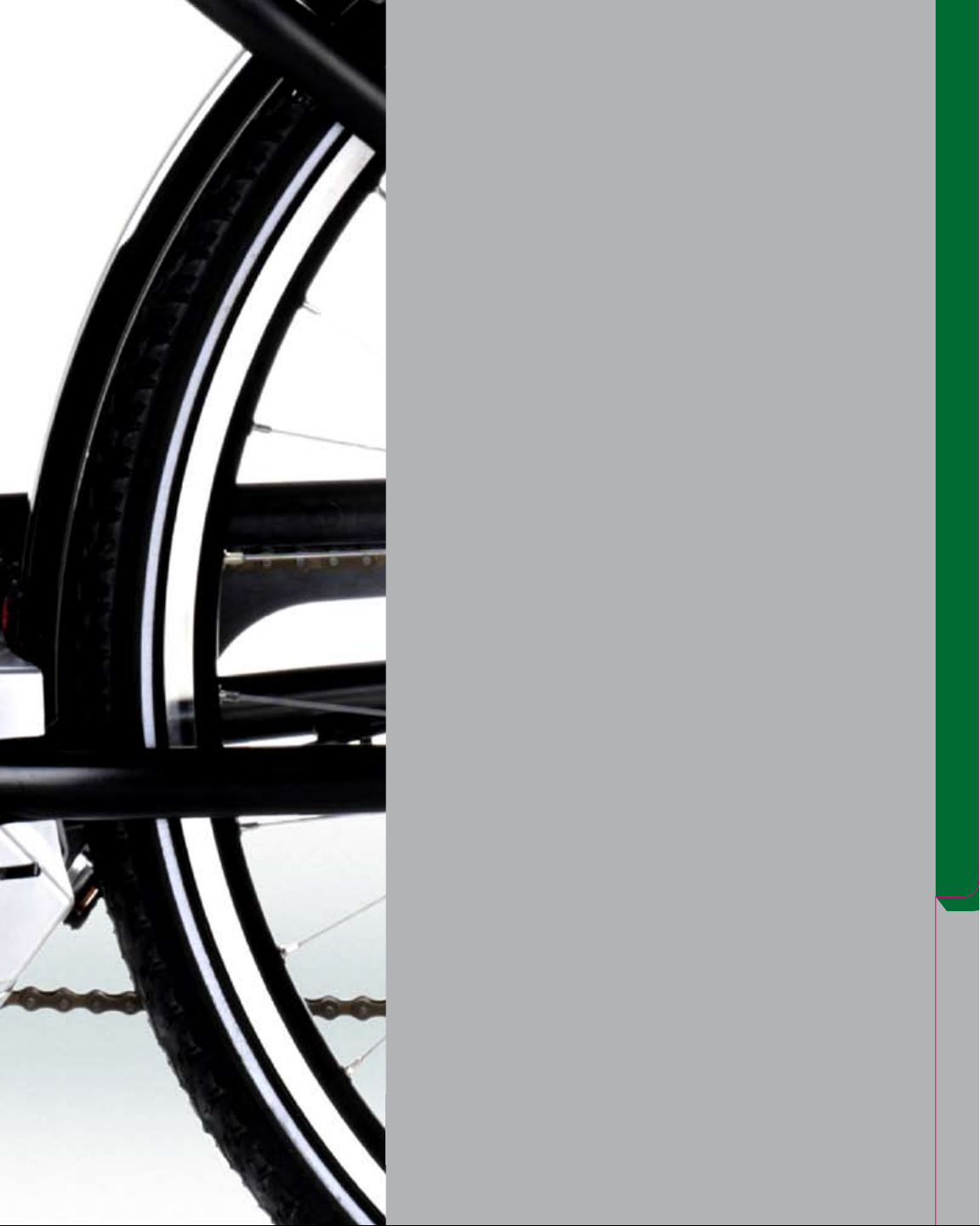

Wheels
Aluminium extruded rims 700c (28“), stainless steel spokes 2mm •••
Schwalbe Marathon with puncture protection and reflective stripes, 42-622 •
Schwalbe Marathon Cross with puncture protection and reflective stripes 40-622 • •
Plastic mudguards with edge protection and rear spoiler •••
Lighting system
Shimano hub dynamo front 6 Volt, minimal rolling resistance •••
LED front light B&M Lumotec Fly IQ senso plus, 40 Lux, with light sensor and automatic standlight •••
LED rear light B&M Toplight flat with automatic standlight •••
Miscellaneous
High quality convenient gel / cold foam saddle, suspended aluminium seat post •••
Stable ALU carrier rack with lockable aluminium battery compartment, elastic rubber straps to fix
the luggage, possibility to attach extra pack bags, carrying capacity 25 kg •••
Anti-slip safety pedals •••
Aluminium side stand •••
Dimensions and weight
Weight bike without battery ca. 22 kg ca. 22 kg ca. 22 kg
Weight of the battery ca. 3.6 kg ca. 3.6 kg ca. 3.6 kg
Seat height for frame size S/M 89 - 100 cm 89 - 100 cm 93 - 107 cm
Seat height for frame size L/XL 95 - 110 cm 95 - 110 cm 100 - 116 cm
Step-through depth 46 cm
Colours
Silver metallic •••
Black metallic •••
Dashboard
Premium
Dashboard
Classic
Control buttons located on handlebar
Starting and pushing assistance up to 6 km/h • •
Preselection of the intelligent assistant mode +/- (3 levels) • •
Preselection of the values displayed on the dashboard (scan) • •
Dashboard functions
3.7“ grey scale display with backlight and brightness sensor • •
Card slot for SD card, integrated SD/SDHC memory card reader • •
Interference free digital heart rate receiver • •
Integrated buzzer • •
Storage of the heart rate, speed, distance and travel time on the SD card • •
Incline adjusted pedalling assistance •
Barometric height measurement •
GSM module with GPS for enhanced documentation of biking tours, transmission of position data
via SMS or internet (requires SIM card) •
Theft protection per SMS notification (requires SIM card) •
Gear recommendation for optimal travel range •
Software update via SD card • •
Dashboard display values
Assistance mode • •
Display of remaining battery charge • •
Speed • •
Average speed • •
Maximum speed • •
Trip distance • •
Total trip distance • •
Daily travel time • •
Total travel time • •
Clock • •
Date • •
Heart rate (requires chest belt) • •
Average heart rate (requires chest belt • •
Temperature •
Incline •
Height above sea level •
Gear recommendation •
GPS coordinates •
Premium versions available from September 2009
Subject to change in technology and equipment
To learn more about the complete world of daum
electronic products with all the award winning
ergometers, please ask for our general catalogue.
www.daum-electronic.de/katalog
made in germany
dynamic body control

daum electronic gmbh
www.daum-electronic.de
Your dealer:
