Paul&Ernst Promo Bike User manual

usermanual–cookingbike


paul&ernstGmbH
FN470437w
HandelsgerichtWien page1



page2–10 USERGUIDE
page10  MAINTENANCE
page10‐13  STORAGE
page13‐14  SERVICE
page15  LIMITEDWARRANTY
page15  GENERALWARNING



Thankyouforchoosingapaul&ernstcookingbike.Wehopethatyouwillenjoythemanybenefitsa
paul&ernstbikehastooffer.Wetrustthattheproductyouhavejustpurchasedisunrivaledintermsof
qualityandfunctionality.Weadvisethatyoutakethetimetoreadthroughthisentiremanualto
familiarizeyourselfwiththeproduct,itssafetyfeatures,andinstructionsforsafeuse.Also,pleasebe
awarethatpaul&ernstbikesaretricyclesandthusrequiredifferentanduniqueridingandhandling
techniquesincontrasttotwo‐wheeledbicycles.Afterreadingthismanualinitsentirety,youmaytryout
yournewbike.Please,however,familiarizeyourselfwiththeridingtechniquesandproceduresinasafe
andcontrolledenvironment–awayfromtrafficandotherobstacles.




usermanual–cookingbike


paul&ernstGmbH
FN470437w
HandelsgerichtWien page2
USERGUIDE

GASTRONOMYUNIT
Theunitismadeofrobustandlastingmaterialswhichcaneasilybecleanedandmaintained:
‐ Cookinginsert:madeofstainlesssteel
Cleanwithheavydutydetergentandtheroughsideofthesponge.
‐ Countersurface:compactpanelforexterioruse
Cleanwithheavydutydetergent;usetheroughsideofthespongecarefully.
‐ Storagevolume:madeofaluminumhoney‐combpanelswithcleanablerollercoatedsurface.
Cleanwithregulardetergent,avoidtheroughsideofthesponge–youmightscratchthesurface.
Ifthebiglidisflippedopen,thecountertopis265cmlong.Thebiglidisheavyduetoitssizeandtowhat
isstoredwithin.Itthereforeneedstobeopenedandclosedcarefullyincompliancewiththefollowing
steps:


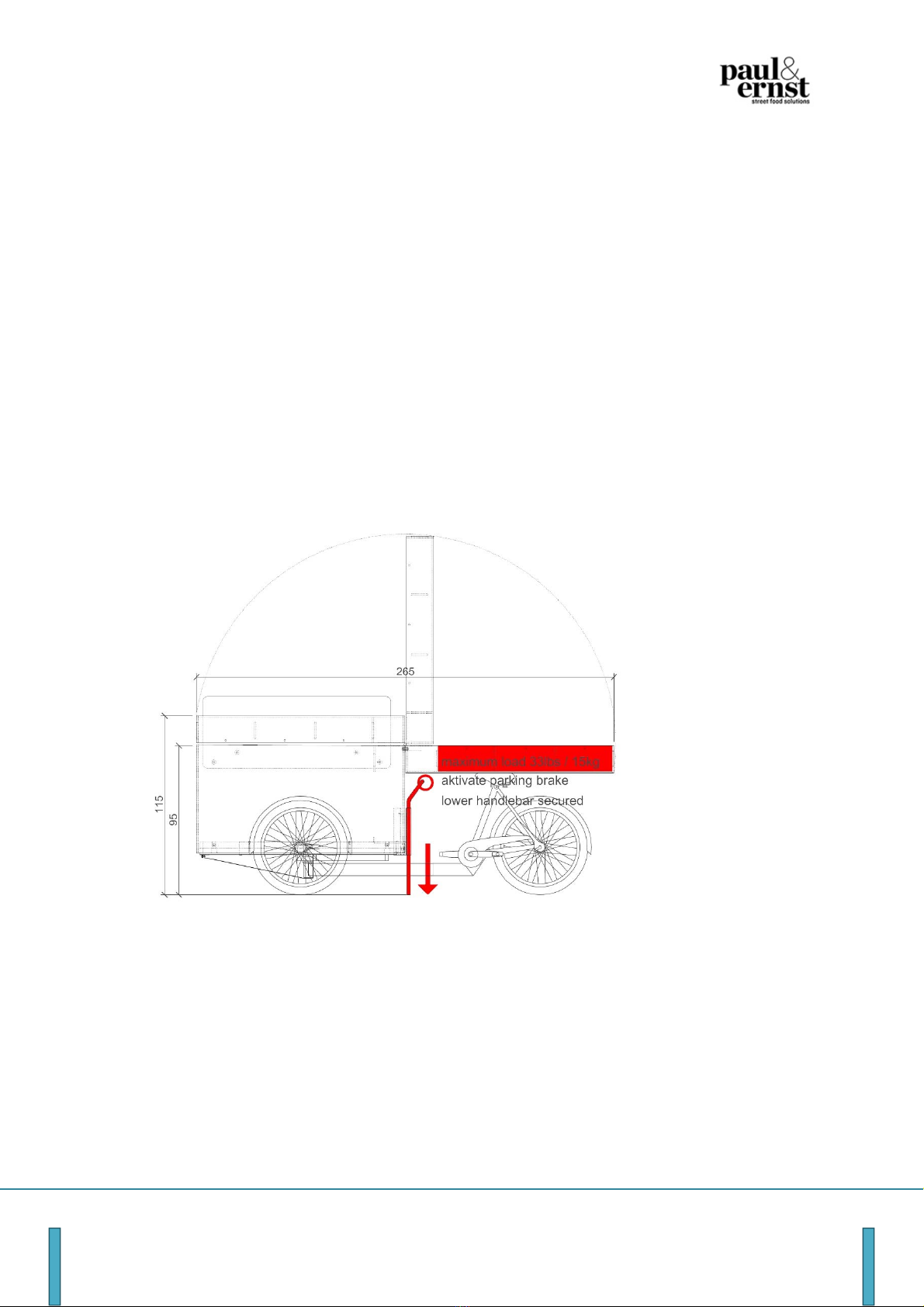

‐ Activatetheparkingbrakebeforeopeningthebiglid.Ifthebikestartsmovingduringtheprocess
ofopeningthebiglidthismightleadtoanuncontrolledmovementwhichcanresultindamageor
injury.
‐ Ifthebiglidistooheavyforyouitmightbenecessarytogetassistancefromasecondpersonto
openandcloseit.Acontrolledmovementhastobeensuredinordertoavoiddamageand
injuries.
‐ Thebiglidcontainsstoragespaceforlightobjects.
Maximumload(forbiglidstoragespace):33lbs.(15kg)
‐ Beforeopeningthebiglid–lowerthebikeseattoitslowestpositionandlowerthehandlebarto
thefloorsurface.

usermanual–cookingbike


paul&ernstGmbH
FN470437w
HandelsgerichtWien page3
WARNING:ifthehandlebarispositionedtoohighwhenopeningthebiglid,thismightleadto
damageofthebikecompartmentsmountedonthehandlebarandtothegastronomyunit.


‐ Beforeclappingthebiglidshut–makesurethatallstoragecompartmentsareproperlyclosed.
Anuncontrolledopeningofthestoragecompartmentswhenthebiglidinanuprightpositioncan
causepropertydamageorinjury.
‐ Makesuretherearenoobjectsontheworkingsurfacewhenclappingthebiglidshut.The
objectscouldbecrushedanddamagedandcausedamagetotheworkingsurface.

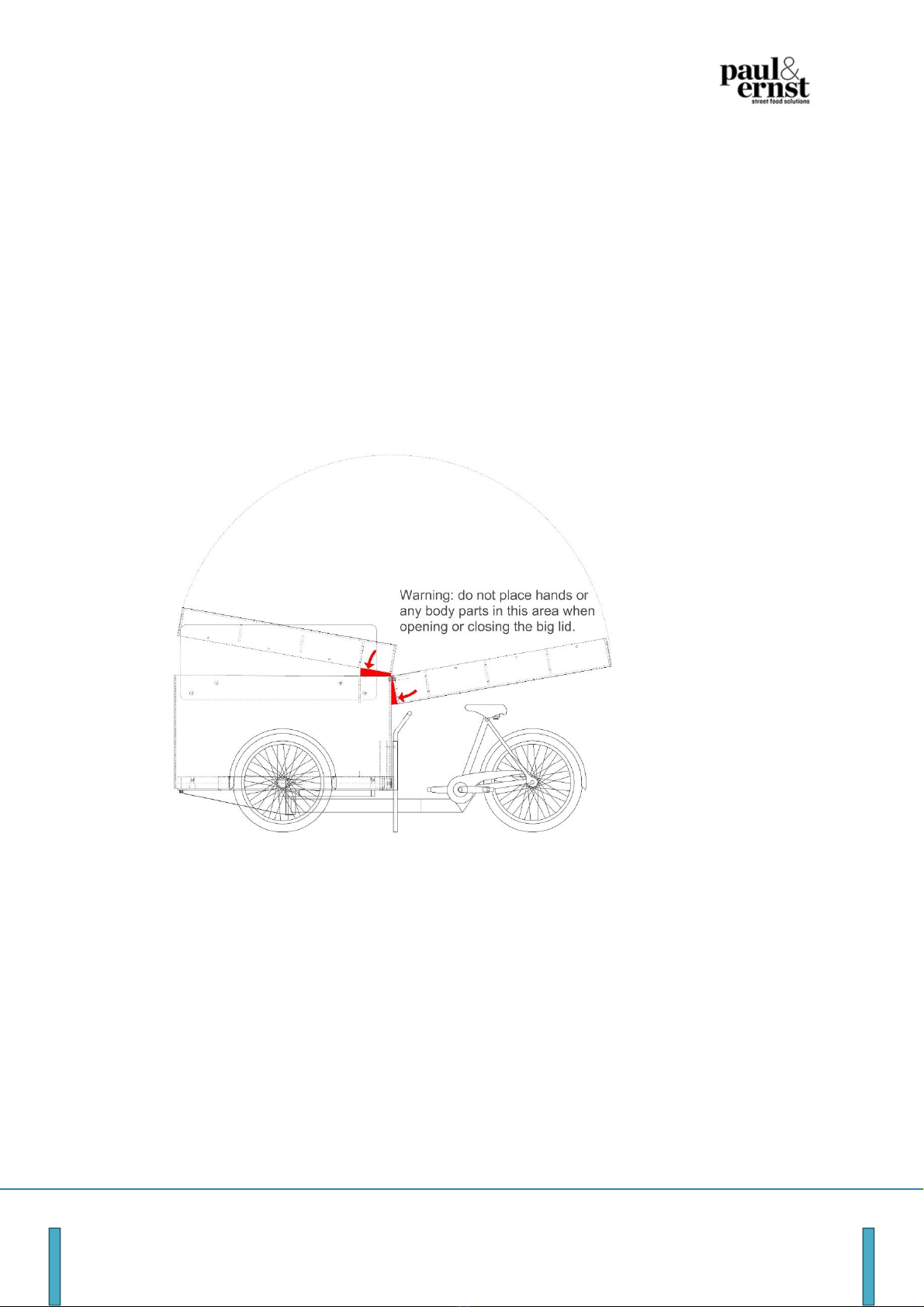

‐ WARNING:Bewareofthehingewhenclappingthebiglidshut.Donotplaceanybodypartinthis
areawhenopeningorclosingthebiglidasthiscouldleadtosevereinjuries.Takecareofyourself
andothers,especiallychildren.

Refrigerator/Freezerunit
Therefrigerator/freezerisoperatedwith24VDC.Itcanrunonregularhouseholdpower(230VAC)orthe
battery(36VDC)usinginstalledelectricityconverters.Theelectronicsystemautomaticallychoosesthe
powersource.
Operatingtherefrigerator/freezer

usermanual–cookingbike


paul&ernstGmbH
FN470437w
HandelsgerichtWien page4
 

‐ Activatethemainswitchlabeled“refrigerator/freezer”toconnectittothepowersource(battery
orlandlineincasethebikeisattachedtoanelectricaloutlet)

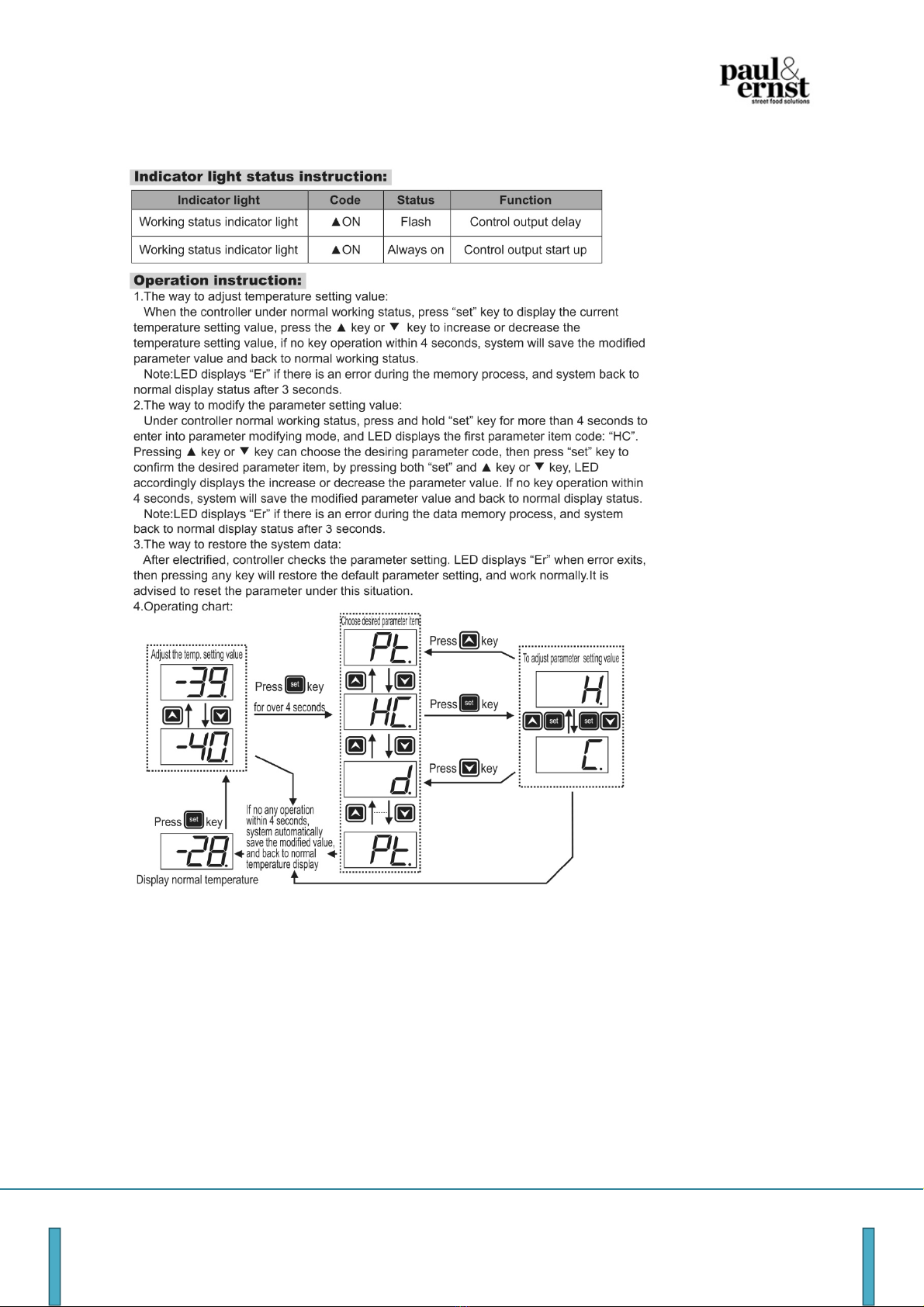

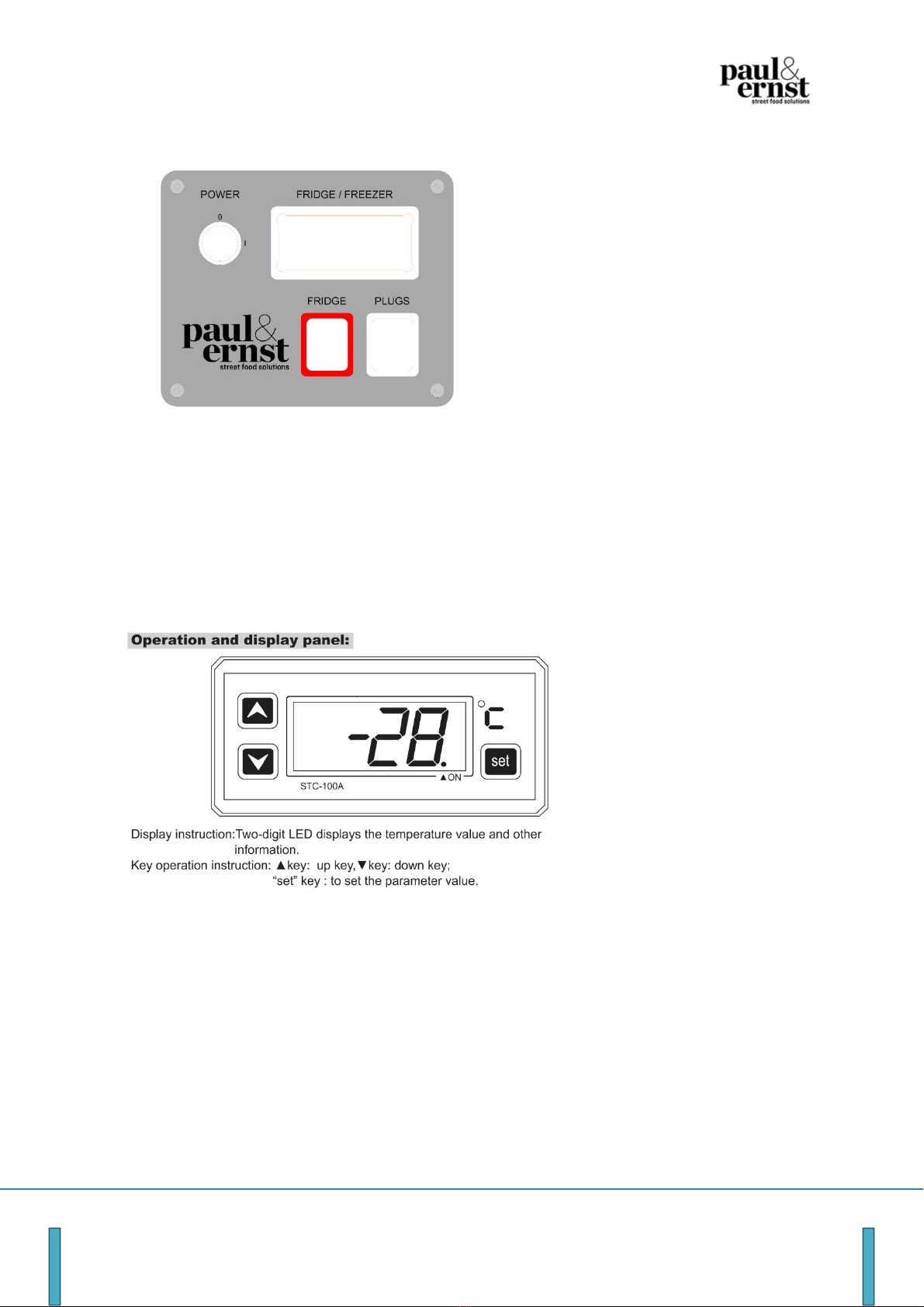

‐ Setthetemperatureofyourrefrigerator/freezerunitbyusingtheSTC‐100Adisplay:











usermanual–cookingbike


paul&ernstGmbH
FN470437w
HandelsgerichtWien page5


usermanual–cookingbike


paul&ernstGmbH
FN470437w
HandelsgerichtWien page6


Operatingthecookingdevice:
 

‐ Attachthecookingdevicetotheelectricaloutletattached(mounted)totherearsurfaceofthe
cookinginsert.

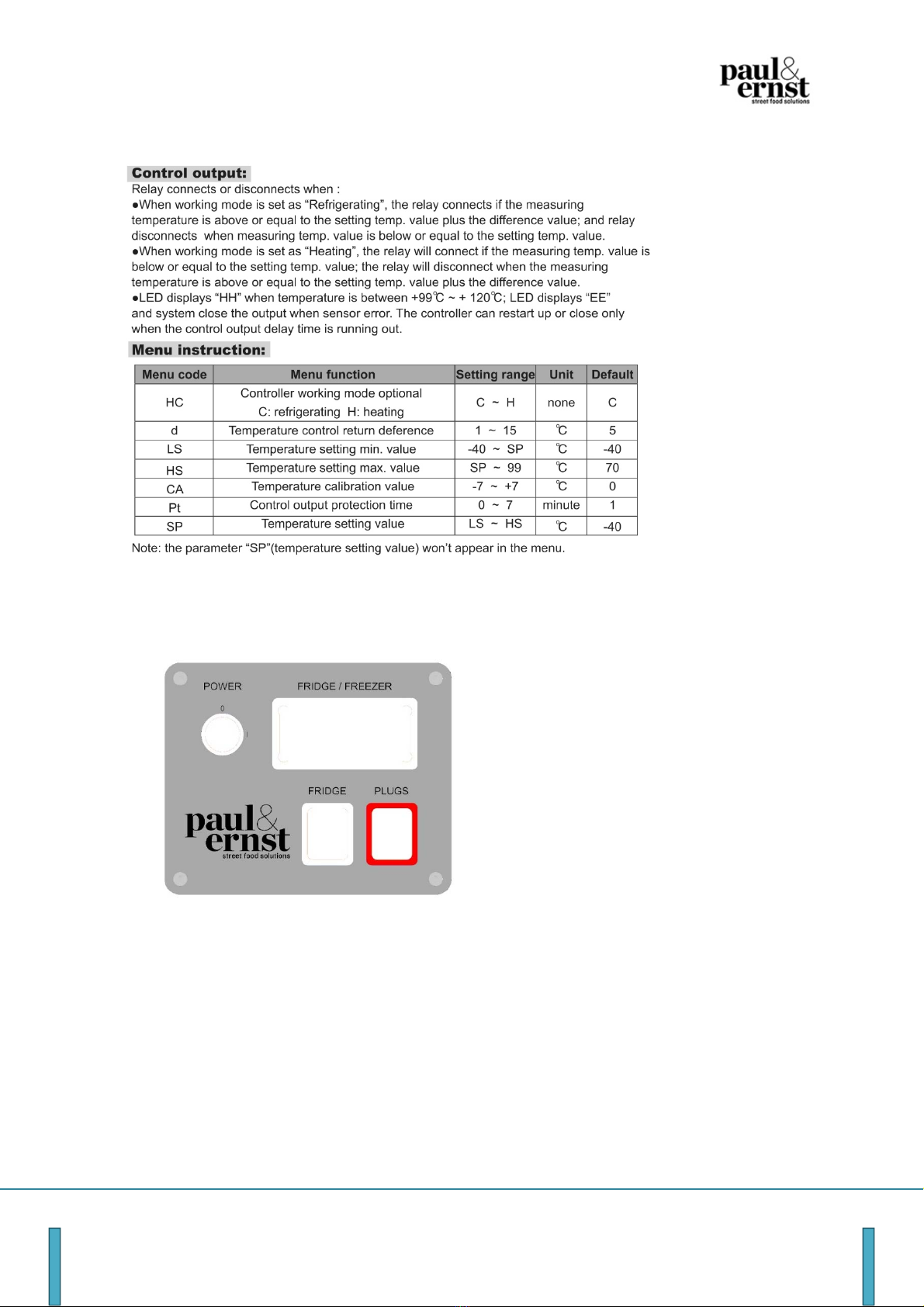

‐ Activatethemainswitchlabeledwith“plugs”toconnecttheelectricaloutlettothepower
source.The220VACplugsareonlyactivewhenthebikeisattachedtoapowerplugwiththe
maincableconnectedtothedisplaybelowthehandlebar.


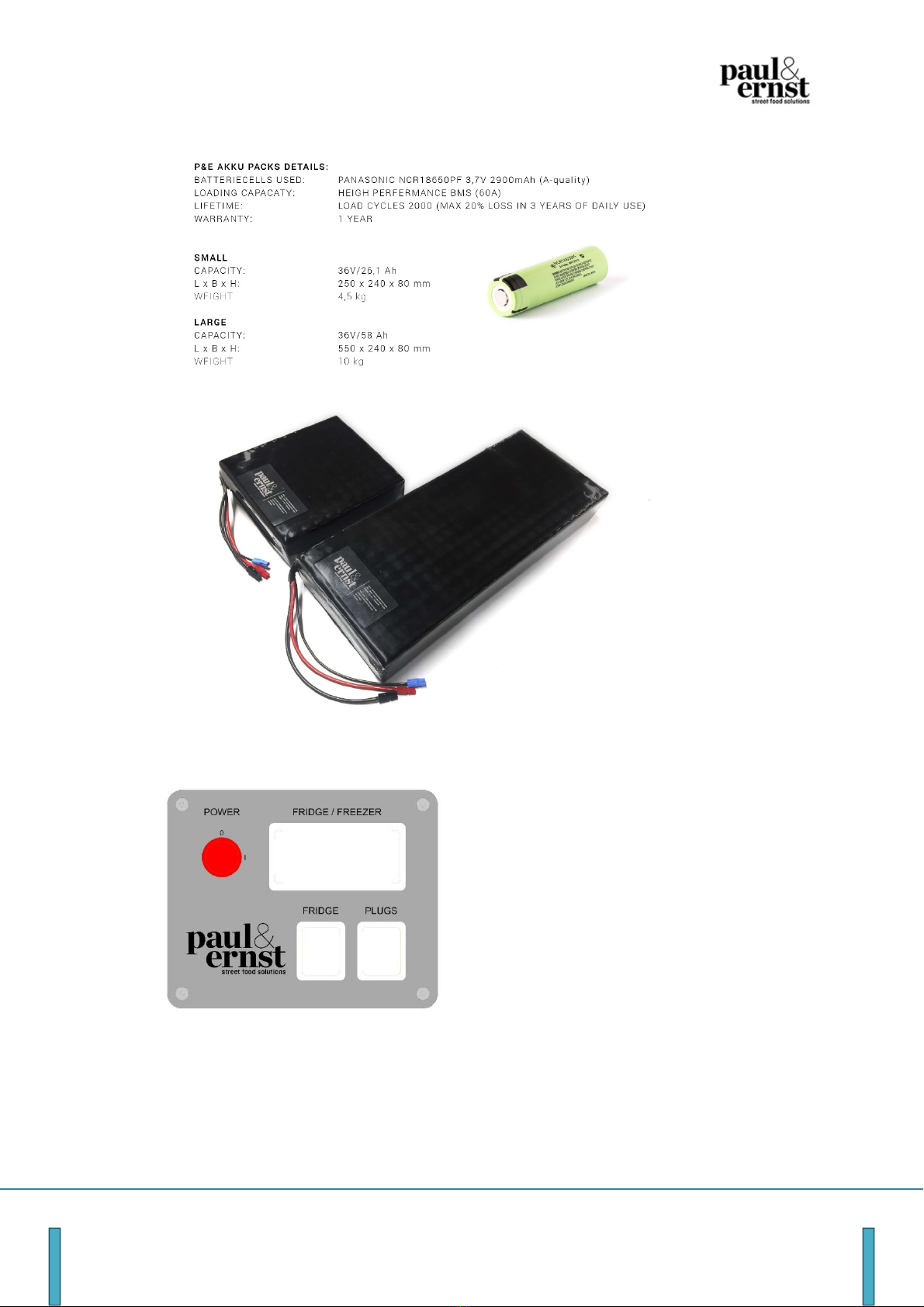

Powersource&batterycharger

usermanual–cookingbike


paul&ernstGmbH
FN470437w
HandelsgerichtWien page7



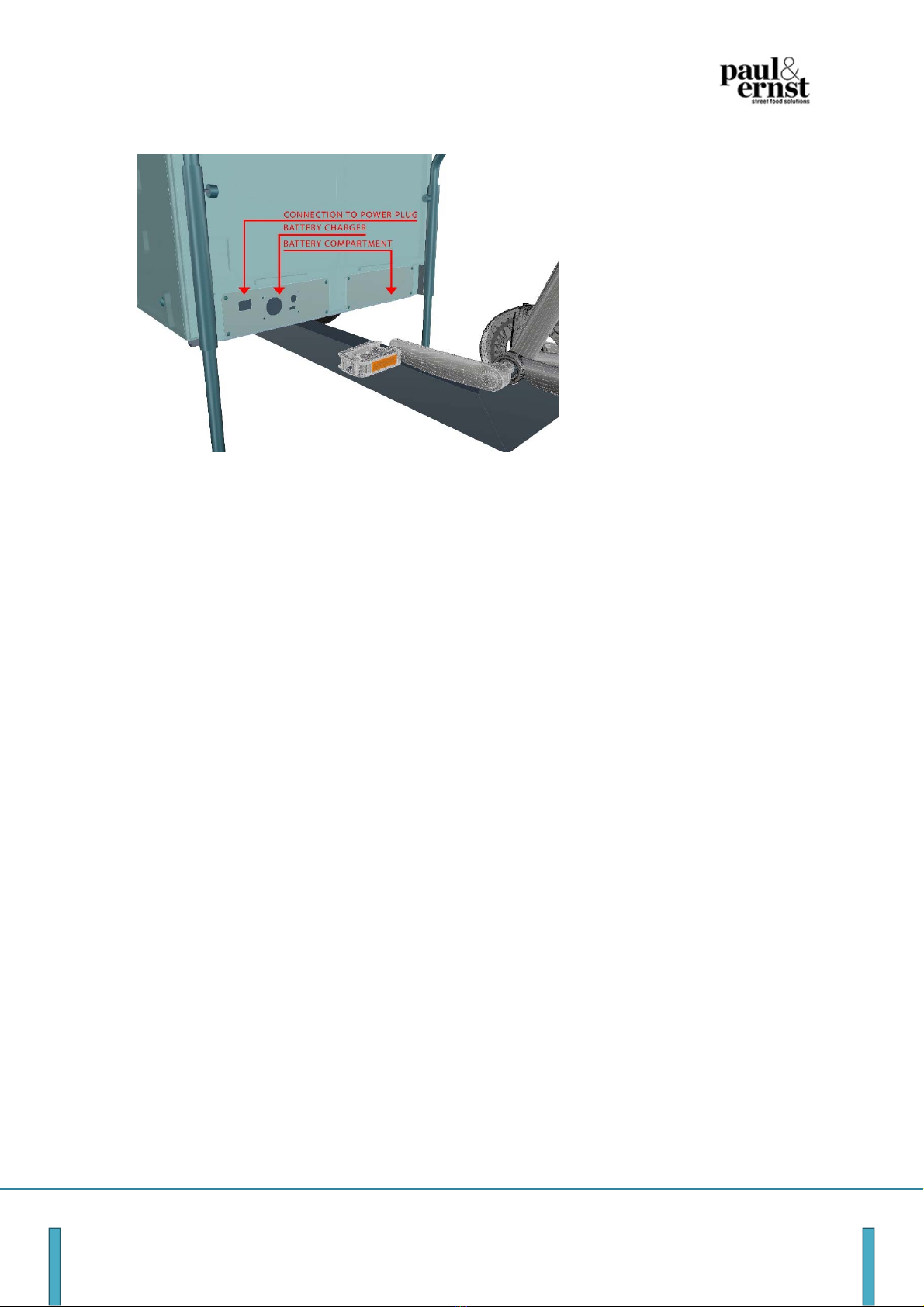

‐ Thebikeisequippedwithstateoftheartbatterytechnology.Itispermanentlyinstalledatthe
bottomrightcompartmentunderthehandlebarandconnectedtothechargerwhichisinstalled
inthebottomleftcompartment.
‐ Thebatterychargesautomaticallywhenthebikeisconnectedtoapowerplug.
‐ TherightLEDlightindicatesthechargingstatus:
1. redLED =charging
2. greenLED =fullycharged
‐ Chargerandbatterymanagementsystemsaredesignedtoautomaticallystopchargingwhenthe
batteryisfullycharged
‐ Thebatterymanagementsystemisequippedwithabatteryprotectiondevice.Underregular
conditionsthebatterycannotbedamagedduetodeepdischargingoroverheating.
‐ Storagetomaintainthemaximumlife‐cycleofyourbattery:
1. ideal:40%‐70%chargingvoltage
2. good:fullycharged
3. bad:discharged

usermanual–cookingbike


paul&ernstGmbH
FN470437w
HandelsgerichtWien page8

E‐bike(starting,stoppingandriding)
 
1. TostarttheE‐Bikeyouneedtoturnthekeyonthemaindisplaylocatedonthesideofthe
gastronomyunittoconnectthebatterytotheE‐Bikecontroller(installedatthebottom
compartmentofthegastronomyunit).
2. Pressthestartbuttononthebikedisplayinstalledonthehandlebar.
3. Usethe+/‐buttonsonthedisplaytoadjustthepowerofthemotor.
4. Turntherotationcontrollerontherightsideofthehandlebartostartthesupportofthemotor.

usermanual–cookingbike


paul&ernstGmbH
FN470437w
HandelsgerichtWien page9
WARNING:StarttheE‐Bikeundersafeconditionsafteracheckupandafterhavingadjustedthe
seatandhandlebartosuityoursize.

BIKE

Productspecifications
•TheE‐Bikeisequippedwitha500Wmotorandapedalassistsystem
•CargoLoad:220lbs.(100kg)‐Donotoverloadthevehicle
•Topspeed:10mph(16km/h)
•Topspeedwhengoingaroundcornersoronunevenground:5mph(8km/h)
•Maximumadultriderweight:220lbs.(100kg)
•Maximumtirepressure:65psi

•Besuretoreadtheentiremanualbeforetakingyourpaul&ernstbikeoutforaride.
•Discontinueuseifanypartbecomesdamagedorbrokenandcontactthenearestbikerepairworkshop
orcontactusdirectly.
•Donotridethebikeonroadswithahighvolumeofautomobiletraffic.
•Balanceyourcargoload.Whenloadingyourtransportvolumeorrefrigerator/freezerunit,putthemain
loadnearthecentertooptimizestability.Avoidheavyloadsonlyatthefrontofthebikeunit.
•Beforeeachride,checktomakesurethatnothingwillinterferewiththebraking,pedaling,orsteering
ofthevehicle.
•Pickacontrolledenvironment,awayfromcars,othercyclists,obstacles,orotherhazardstofamiliarize
yourselfwiththevehicle.
•Familiarizeyourselfwiththebrakingaction.Testthebrakesatslowspeeds.
WARNING:Heavyloadsextendthebrakingdistance.Leaveenoughspacebetweenyourselfandother
bikersorroaduserstoensurebrakingactionunderanyconditionevenwithaheavytransportunit.
•Usetheparkingbrakewheneverthevehicleisinastationaryposition–especiallywhensettingupand
openingthegastronomyunit.Failuretoactivatetheparkingbrakecanresultinvehicledamageorserious
injury.
•Ifyouencounteranymechanicaloroperatingissuesduringyourinitialtestrideorthereafter,you
shouldcontactthenearestbikerepairworkshoporusdirectly.

Handlingthroughturnsandaroundcorners
•Yourpaul&ernstbikehasawideturningradius,anditsoperationdifferssubstantiallyfromthatofa
bicycle.
•Remainuprightwillmakingturns,leaningslightlyintotheturn.
•Donotmakesharpturnsorturnsathighspeeds.Sharpturnsorturnsatfasterthan5mph(8km/h)may
resultinthevehicleoverturningandseriousinjury.

Starting,stopping,andriding
•Becarefulwhencrossingstreetsandpaths.Yourpaul&ernstbikeislongerthanastandardbicycleand
thefront‐endmayinadvertentlystickoutintooncomingtraffic.
•Thevehicleisheavierthanastandardbicycleandrequiresmoretimeanddistancetostartandtostop.
•Alwaystestthebrakespriortouse.

usermanual–cookingbike


paul&ernstGmbH
FN470437w
HandelsgerichtWien page10
•Alwaysbalancetheloadinthetransport/refrigerator/freezingunit.Thiswilloptimizeriding
performanceandminimizethepotentialfordangerousridingsituations.
•Ridewithextracareonunevensurfaces,especiallywhenridingupordownhills.

MAINTENANCE
Yourpaul&ernstbikeisdesignedandbuilttolast.Withregularmaintenanceandcareyoucangreatly
extendthelifeexpectancyofyourpaul&ernstbikeandmaximizetheperformancecapabilities.Any
mechanicalrepairsandadjustmentsshouldbeperformedbyaprofessionalbicyclemechanic.

WearandTear
Ifyouexposeyourpaul&ernstbiketovariouskindsofweatherorrideitfrequently,componentsand
partsmayreachtheirwearlimitbeforeitswarrantyexpires.Intheeventthatcomponentsstarttoshow
signsofwear,visitabikerepairworkshoporcontactusdirectlyforadvicebeforecontinuinguse.

Thefollowingcomponentsaresubjecttofunction‐relatedwear:
•Tires
•Rims,hubs,axles,andspokes
•Steeringcomponentsandbearings
•Brakediscs,cables,andhandlevers

Bikeandgastronomyunitsaresubjecttowearandtearduetothefollowing:
•Cargoload
•Intensityofuse
•Ridinghabits
•Storageconditions
•Weatherconditionsandclimatefactorsincluding
•UVexposure
•Humidity
•Dirt
•Temperature
•Moisture
•Saltwater
•Roadsalt

Visuallyinspectyoupaul&ernstbikebeforeeveryride.Thisincludescheckingthecomponentsandthe
conditionofthegastronomyunit.Additionally,yourvehicleshouldhaveregularmaintenancecheckups.


STORAGE
Maintainingandcleaningyourpaul&ernstbikewhichisanoutdoorvehiclewithmovingpartsand
components:
Tooptimizeperformanceandproductlongevity,regularcleaningandmaintenancearemandatory.After
everyuse,wipedowntheentirevehiclewithacleanrag‐donotusecleaningsolvents.Cleanonlywith
mildsoapandwater.

usermanual–cookingbike


paul&ernstGmbH
FN470437w
HandelsgerichtWien page11

Longtermstorageofyourpaul&ernstbikeshouldbeinadry,wellventilatedplaceandawayfromdirect
sunlight.


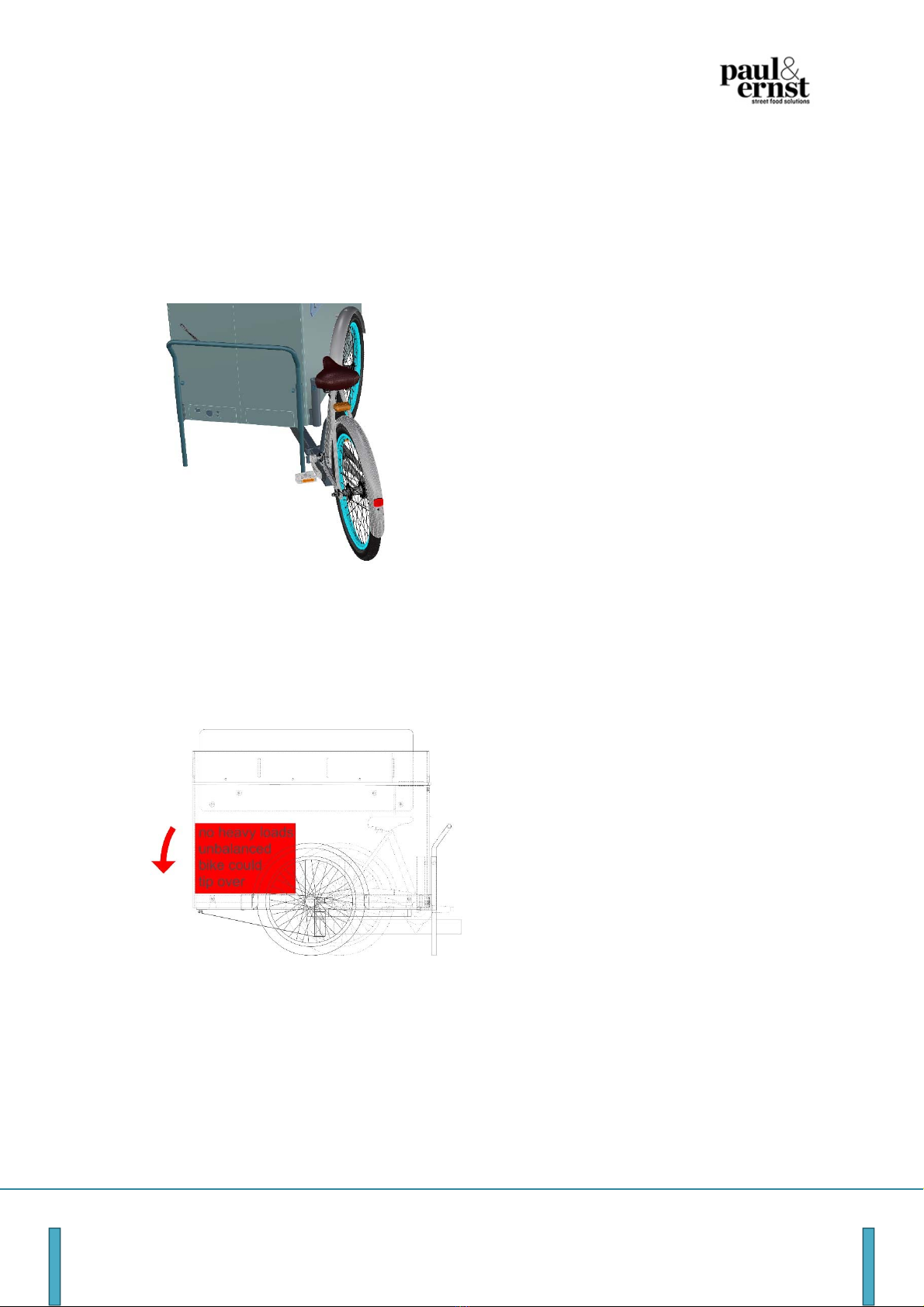

paul&ernstbikesareequippedwithahingeonthemainframepipeinordertosavespacefordelivery
andstorage.Usethefollowingprocesstosecurelyfoldthepaul&ernstbikeframe:

1. Carefullyrotatetherearpartofthebikecounterclockwisetojustbeyondtherightpipeofthe
movablehandlebar.
2. Lowerthehandlebartothefloorsurfaceandfirmlytightenthescrewsinordertosecurethe
stabilityofthebike.

3. Makesurethatthereisnoheavyloadinthefrontstorageunit.Thiscouldleadtoinstabilityand
causethebiketotipoveroncetheframepipeisfolded.
4. Openthequickreleaseofhingeonthemainframepipe.

usermanual–cookingbike


paul&ernstGmbH
FN470437w
HandelsgerichtWien page12


WARNING:thehingehasasecuritymechanism.Tocompletelyopenthehingeonehastopush
thepinwiththequickreleaseupwards.



5. Turntherearpartofthebikesidewaysandpositiontherearwheelnexttothefrontwheel.
Choosethepositioncarefullytoavoiddamageofthespokesofthefrondwheelwiththepedal.
6. Storagesizeinparkingposition:120x150cm

usermanual–cookingbike


paul&ernstGmbH
FN470437w
HandelsgerichtWien page13


Thebatteryispermanentlyinstalledinthebike.Maintainthefollowingconditionsforlongtermstorage:
1. Drystorageplace
2. Idealtemperature:roomtemperature(thebatterydischargesmorequicklyinlow‐temperature
environments)
3. Stateofhealthchargingcurrent40%‐70%(WARNING:avoidlongtermstorageofadischarged
battery–thiscanleadtopermanentdamage)
4. Thebatterydischargesslowlywhennotinuse.Thechargingcurrentshouldbecontrolledonce
everysecondmonth.


SERVICE
GeneralWarnings
1.Technologicaladvanceshavemadebicyclesandtheircomponentsmorecomplex,andthepaceof
innovationisconstantlyincreasing.Itisimpossibleforthismanualtoprovidealltheinformationrequired
toproperlyrepairand/ormaintainyourpaul&ernstbike.Inordertohelpminimizethechancesofan
accidentandpossibleinjury,itiscriticalthatyouhaveanyrepairormaintenance,whichisnotspecifically
describedinthismanual,performedbyaprofessionalbicyclemechanic.Also,keepinmindthatyour
individualmaintenancerequirementswillbedeterminedbyeverythingfromyourridingstyletothe
climaticconditionsofwhereyouliveandride.
2.Manybicycleserviceandrepairtasksrequirespecialknowledgeandtools.

ServiceIntervals:Someserviceandmaintenancecanandshouldbeperformedbytheownerandrequire
nospecialtoolsorknowledgebeyondwhatispresentedinthismanual.Thefollowingareexamplesofthe
typeofserviceyoucouldperformyourself.Allothertypesofservice,maintenance,andrepairshouldbe
performedinaproperlyequippedfacilitybyaqualifiedbicyclemechanicusingthecorrecttoolsand
procedures.
1.FollowingBreak‐InPeriod:Yourpaul&ernstbikewilllastlongerandworkbetterifyoubreakitin.
Controlcables,spokes,andchainsmaystretchand‘seat’whenanewbikeisfirstusedandmayrequire
adjustmentsbyabicyclemechanic.Your‘MechanicalSafetyCheck’willhelpyouidentifysomethingsthat
needreadjustment
2.Beforeeveryride:Mechanicalsafetycheck

usermanual–cookingbike


paul&ernstGmbH
FN470437w
HandelsgerichtWien page14
3.Asneeded:Ifyourpaul&ernstbikehasbeenexposedtowater,sand,salt,orgrit,oratleastevery100
miles:cleanyourpaul&ernstbikeandlightlylubricatethechain’srollerswithagoodqualitybicyclechain
lubricant.Wipeoffexcesslubricantwithalint‐freecloth.
4.Afterevery10to20hoursofriding:
•Squeezethefrontbrakesandrockthepaul&ernstbikeforwardsandbackwards.Ifyoufeelitclunkwith
eachmovement,yourbrakesmayneedtobeadjusted.Haveaprofessionalbikemechaniccheckit.
•Grabonepedalandrockittowardandawayfromthecenterlineoftheframe.Dothesamewiththe
otherpedal.Ifeitherfeelsloose,haveabicyclemechaniccheckthepedalsout.
•Checkthecontrolcablesandcablehousingscarefully.Ifyounoticeanyrust,kinks,fraying,orother
imperfections,haveabicyclemechanicreplacethem.
•Squeezeeachadjoiningpairofspokesoneithersideofeachwheelbetweenyourthumbandindex
finger.Ifanyfeelloose,haveyourbicyclemechaniccheckthewheelfortensionandtrueness.
•Checkthetiresforexcesswear,cuts,orbruises.
•Thefrontwheelscanbedetachedincasepartshavetobereplaced(tubes,tires,spokesandrims)orif
thefoliationofthebikehastobereplaced.Weadvisetohavethisrepair/maintenanceworkdonebya
professionalbikemechanic.
5. Beforedetachingthewheel,thebrakingdevicefromthediscbrakehastobedetached.The
brakingdevicehastobeunscrewedfromthebikeframe.Thescrews(2xinbus)arelocated
underneaththeexteriorsurfaceofthegastronomyunitpointingtowardsthecenteroftheframe.
6. Whenthebrakingdeviceisdetachedmakesurethatthebikeframeisstablysupportedsothat
thewheeliselevatedfromtheground.
7. Unmountthecenterscrewtodetachthewheelfromtheaxis.
8. WARNING:useproperforcetomountthescrewsofthebrakingdeviceandthecenterscrew.If
thesecomponentsweretoloosenupoffalloutduringarideitcouldcauseaseriousaccident.
Wethereforestronglyadvisetohavethisworkdonebyaprofessionalbikemechanic.
•Checktomakesurethatallpartsandaccessoriesarestillsecureandtightenanywhicharenot.
5.Every100hours:Takeyourpaul&ernstbiketoabicyclerepairworkshopforacompletecheckup.
WARNING:likeanymechanicaldevice,yourpaul&ernstbikeanditscomponentsaresubjecttowearand
stress.Differentmaterialsandmechanismswearorfatiguefromstressatdifferentratesandhave
differentlifecycles.Ifacomponent’slifecycleisexceeded,thecomponentcansuddenlyfail,causing
seriousinjury.
Whilethematerialsandworkmanshipofyourpaul&ernstbikeoroftheindividualcomponentsmaybe
coveredbyawarrantyforaspecifiedperiodoftimebythemanufacturer,thisisnoguaranteethatthe
productwilllastthetermofthewarranty.Productlifeisoftenrelatedtothekindofridingyoudoandto
thetreatmenttowhichyousubmitthevehicle.Thepaul&ernstbikewarrantyisnotmeanttosuggestthat
thevehiclecannotbebrokenorwilllastforever.Itonlymeansthattheproductiscoveredsubjecttothe
termsofthewarranty.
WARNING:Acrashorotherimpactcanputextraordinarystressonbicyclecomponents,causingthemto
fatigueprematurely.Componentssufferingfromstressfatiguecanfailsuddenlyandcatastrophically,
causinglossofcontroland/orseriousinjury.




usermanual–cookingbike


paul&ernstGmbH
FN470437w
HandelsgerichtWien page15
LIMITEDWARRANTY
paul&ernstbikewarrantsthatthevehicleincludingcomponents,frame,gastronomyunit,andauthorized
accessorieswillbefreefromdefectsinmaterialsandworkmanshipforaperiodofone(1)year.Please
note,thiswarrantyonlyextendstotheoriginalconsumerbuyer.Thiswarrantydoesnotcoverdefectsor
failuresduetoabuse,neglect,alteration,accidents,orwearandtearattributabletonormaluse.Defect
resultingfromimproperassemblyorinstallationofunapprovedaccessoriesnotcompatiblewiththe
paul&ernstbikeyouhavepurchasedarenotcovered.Atitsoption,paul&ernstGmbHwillrepairor
replace,orrefundthepurchasepriceofanypaul&ernstcomponent,frame,gastronomyunit,or
authorizedaccessorywhichisdefectiveorfailstoconformwiththiswarrantyundernormaluseand
service.Toobtainserviceunderthiswarranty,contactpaul&ernstdirectly.Repairandreplacementofa
defectivepaul&ernst(frame,components,gastronomyunit,orauthorizedaccessory)orrefundofthe
purchasepriceshallbethesoleremedyofthebuyerunderthiswarranty,andinnoeventshall
paul&ernstGmbHbeliableforincidentalorconsequentialdamages,injury,lossesorexpenses.

GENERALWARNING
Bychoosingtocycle,youassumetheresponsibilityforthatriskand,therefore,youmustknowand
practicerulesandguidelinesforsafeandresponsibleuseandmaintenance.Properuseandmaintenance
ofyourpaul&ernstbikereducestheriskofinjury.Becauseitisimpossibletoanticipateeverysituation
andconditionwhichcanoccurwhileriding,thismanualmakesnorepresentationaboutthesafeuseof
yourpaul&ernstbikeunderallconditions.Therearerisksassociatedwiththeuseofanybicyclewhich
cannotbepredictedoravoided,andwhicharethesoleresponsibilityoftherider.

IntendedUse:paul&ernstbikesareintendedforuseindaylighthoursondesignatedbikepathsaway
fromheavytraffic.Ifyouchoosetouseyourpaul&ernstbikewhenlightingorvisibilityarepoor,youare
advisedtopurchaseanduseanaccessorylightingsystem.

Usenotrecommended:paul&ernstbikesarenotrecommendedforuseinsituationsincluding,butnot
limitedto:roughterrain,hightrafficareas,transportofloadsexceedingtherecommendedallowance,
excessivespeeds,usefollowingimproperrepairofdefects,usewithunauthorizedaccessories,andany
custommodifications.

*Themanufacturerisnotliablefordamagesarisingfromusethatisnotrecommended*




