Davis Instruments Fan-Aspirated Radiation Shield User manual

1
Integrated Sensor Suite with
Fan-Aspirated Radiation Shield
Installation Instructions Addendum
For Vantage Pro2™ and Vantage Pro2 Plus™
The Vantage Pro2™ Integrated Sensor Suite (ISS)
with the Fan-Aspirated Radiation Shield uses a
combination of fan-aspiration and shielding to
minimize temperature measurement errors due to
the effects of solar radiation.
Fan-Aspirated ISS Addendum
Overview
This addendum provides additional information
specific to the installation and use of ISS models
containing the fan-aspirated radiation shield. It is
intended to be used in conjunction with the “Inte-
grated Sensor Suite Installation Manual.”
The table below shows the location of the information required to install and
maintain your Fan-Aspirated ISS system.
Section/Procedure In This
Addendum In the ISS
Installation
Manual
Tools for Setup X
Preparing the Anemometer X
Preparing the Rain Collector XX
Preparing the Radiation Shield X
Powering ISS and Testing Communications X
Powering and Testing the Fan X
Choosing a Site for the ISS X
Mounting the ISS X
Additional Mounting Options X
Fan-Aspirated Shield Maintenance X
Theory of Operation X
Fan-Aspirated Shield Troubleshooting X
Fan-Aspirated Shield Specifications X

Fan-Aspirated ISS Addendum Overview
2
Components
The Fan-Aspirated ISS includes these components:
The hardware shown here is provided for assembly and mounting:
Rain Collector Debris Screen
(Place inside cone after installation)
Metric
Rain Adapter Anemometer
Vane
Solar Panel
(Wireless
SIM only)
SIM
Housing
ISS Base
Wind Cups
Anemometer
Base
Control
Head
Drip Ring
Anemometer
Arm
Aspirated
Radiation
Shield
Anemometer Cable
40’ (12.2 m)
Fan
Solar Panel
8" Cable Tie .05"
Allen Wrench
#4-40 Hex Nut
#4 Tooth Lock Washer
#4 x 1-1/8
Machine Screw
1/4"x x3" Lag Screws
Backing Plate
1/4" Hex Nuts
1/4" Lock Washers
1/4" Flat Washers
U-Bolts

Tools for Installation
3
Additional Components on Vantage Pro Plus
The Vantage Pro2 Plus™includes an ultraviolet
(UV) sensor and a solar radiation sensor. These
two sensors are mounted next to the rain collec-
tor on your ISS.
See the Integrated Sensor Suite Installation
Manual about mounting and maintaining these
sensors.
Do not to touch the small white diffusers on top
of the UV and solar radiation sensors. Oil from
the skin reduces sensor sensitivity.
Tools for Installation
Refer to this section in your ISS Installation Manual for the tools needed to
assemble the ISS.
Preparing the ISS for Installation
Refer to this section in your ISS Installation Manual on assembling the ISS.
Preparing the SIM for Installation
The ISS sensors are connected by cables to the Sensor Interface Module
(SIM), located inside the SIM housing. The SIM contains electronics that
measure and store weather information for transmission to the console via
radio. The SIM housing protects the SIM from the elements and provides easy
access to the SIM cable connections.
See the ISS Installation manual on checking the sensor connections to the SIM
and for any additional sensor and wireless installation instructions.
Preparing the Rain Collector

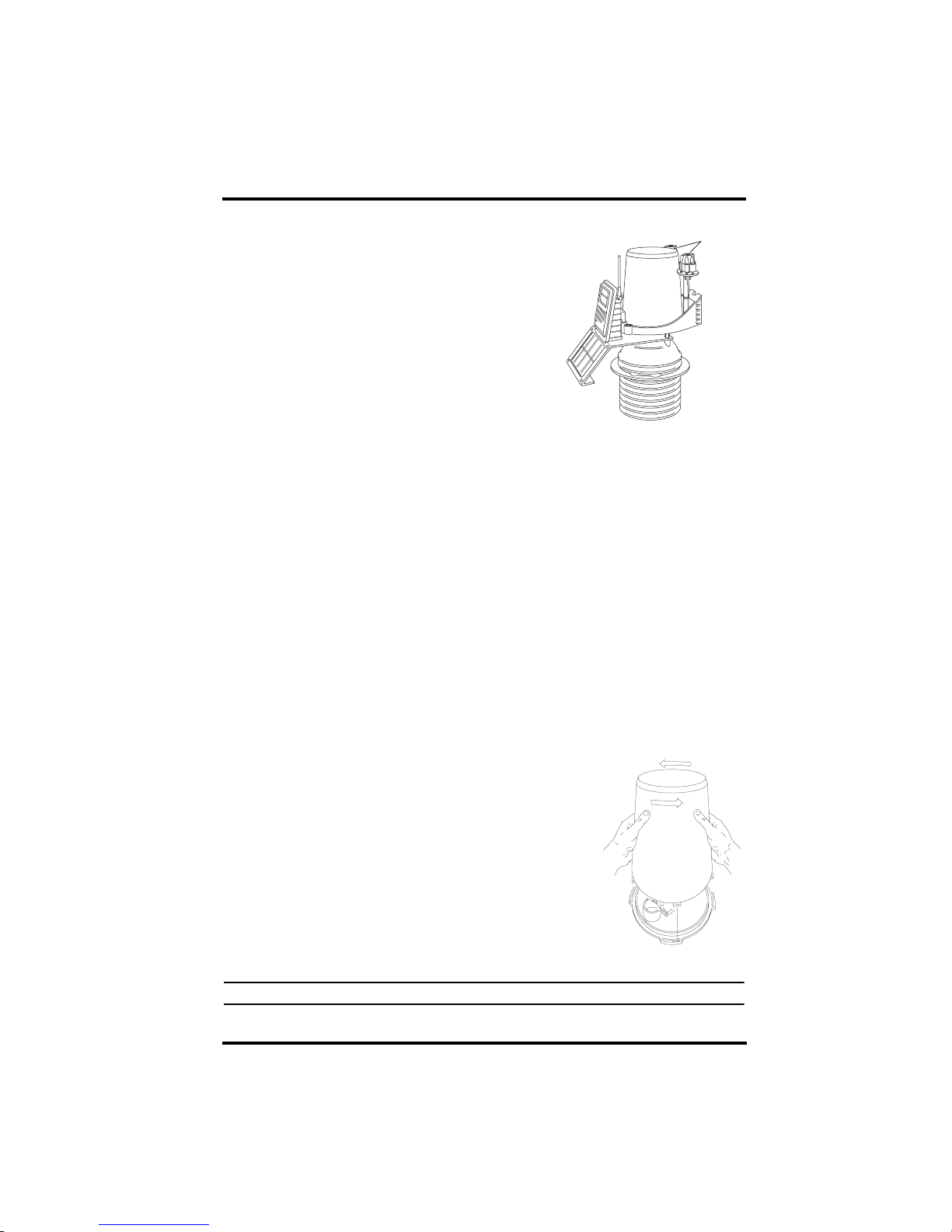

1. Remove the rain collector cone from its base by
rotating the cone counter-clockwise until its
latches line up with openings which allow you
to lift it off. The cone fits in the base tightly and
may require extra pressure to remove it when
new.
Note: Steady the base between your knees when you rotate the rain collector.
Sensor
Mounting Shel
f
UV and Solar
Sensors
Twist off the rain collector cone

Preparing the Fan-aspirated Shield for Installation
4

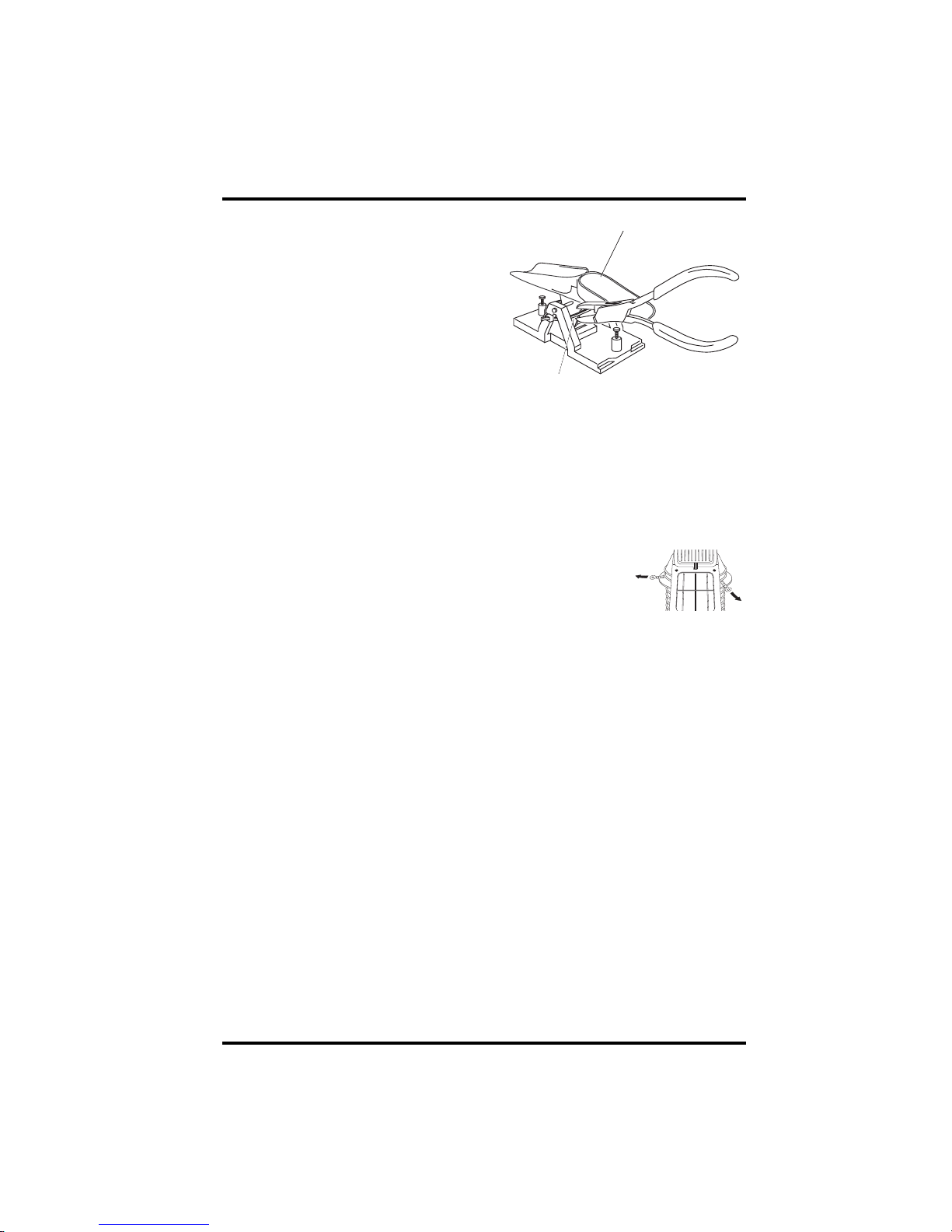

2. Carefully cut and remove the plas-
tic tie (usually black in color) that
holds the two-sided tipping bucket
mechanism in place during ship-
ping.
3. See the ISS Installation Manual for
instructions on inserting the
optional metric measurement
adapter.
Preparing the Fan-aspirated Shield for Installation
The radiation shield, fan, and solar panel used to power the fan come pre-
assembled with the ISS unit and require no additional assembly. However, the
fan requires initial power from the pre-installed batteries. Tabs are included to
ensure that the batteries installed in the fan-aspirated housing do not power the
unit during shipping. To power the fan-aspirated unit:
1. Pull the battery tabs out slowly.
2. Listen for a slight whir coming from the bottom of the
ISS unit. This sound signifies that the fan is running.
Applying Power and Testing Communications
Refer to the Wireless ISS Assembly section in your ISS Installation Manual
for the rest of the procedures required to power and test the ISS.
Locating the ISS and Anemometer
Refer to this section in your ISS Installation Manual.
Mounting the ISS
Refer to this section in your ISS Installation Manual.
Additional Mounting Options
Refer to this section in your ISS Installation Manual.
Fan-Aspirated Shield Batteries
The Fan-Aspirated shield is solar powered and is supplied with two NiCad C-
cell batteries that come pre-installed. The following options for battery power
exist:
• Use two fan batteries for maximum length of overnight aspiration but with
slightly lower average daytime aspiration.
Tipping bucket mechanism
Cut the plastic tie
Preparing the Rain collector

Fan-Aspirated Shield Maintenance
5
• Use only one fan battery for some overnight aspiration but with slightly
higher average daytime aspiration.
• Remove both batteries for maximum daytime aspiration and no nighttime
aspiration. See “Replacing Fan Motor and Batteries” on page 6 for more
information.
Fan-Aspirated Shield Maintenance
• Keep the outer surfaces clean, since the unit is less effective when the sur-
faces are dirty. Remove dust from the solar panel and the shield with a
damp cloth. Pull off and clean the inlet screen as necessary.
• Remove any debris obstructing air flow through the radiation shield, e.g.,
leaves, twigs, webs, and nests.
• Avoid spraying insect killer of any kind into the radiation shield as this may
damage the sensors and the shield.
• Disassemble the shield and clean interior surfaces as necessary to prevent
dirt build-up. Consider replacing the motor (Part # 7758) and batteries
every two to three years.
• To check the motor, listen for the slight whirring or, on a calm day, test air
suction by placing a very thin one-ply piece of plastic the size of the fan
screen at the bottom of the radiation shield. If the fan is working, the plastic
will stick to the fan screen.
Note: The fan runs at low speeds in order to conserve limited solar and battery capacity. The fan motor
turns faster on solar power and slower on battery power. For instance, if the fan motor’s strength
is tested when it is running on optimal solar power, testing the fan with a piece of plastic is easy.
Testing on battery power alone requires more care because air movement is less.
Disassembling the Radiation Shield
Disassemble the radiation shield for routine
cleaning, maintenance, and to replace the
batteries and motor. To disassemble the
shield:
1. Remove the three screws connecting the
rain collector base to the threaded
spacers.
2. Lift the rain collector base off of the
threaded spacers. For easier re-assembly,
mark the holes used by the rain collector
base, the holes used by the radiation
shield, and the orientation of the bracket
relative to the radiation shield.
1-1/4" Screw
Rain Collector Base
Threaded
Spacer
Lock Washer
Flat Washer

Fan-Aspirated Shield Maintenance
6
3. Unscrew the three threaded spacers
holding the solar bracket and radia-
tion shield together.
4. Remove the three screws from the
bottom of the radiation shielding and
separate the shield stack.
Interior Maintenance
Once the shield has been disassembled,
do the following to clean and maintain
the interior of the shield:
• Remove all debris from inside the
shield and wipe the interior surfaces
clean.
• Expose the solar panel to the sun and
check that the fan rotates.
• Replace the fan motor and batteries
as needed (see instructions below).
Once interior maintenance is completed,
reassemble the shield and remount the
ISS.
Replacing Fan Motor and
Batteries
1. Unplug the old motor and lift it from
the Radiation Shield.
2. Install the new motor/fan assembly and
plug its cable into the junction board.
Plates
5-1/2" Screw
Lock Washer
Flat Washer
Threaded
Spacer
Lock Washer
Flat Washer
Stand-offs
Fan Plate
Temp/Humidity
Cable
Power Cable
Closed Cap Plate
Open Cap Plate
(hole in center)
Solar Panel
Bracket
Fan Unit
Motor Connector
Junction Board
Temp/Hum
Sensor Cable
Channel
Fan Plate
Solar Panel Cable
(Connects to Solar Panel,
Panel not shown)

Fan-Aspirated Shield Specifications
7
3. Remove the fan batteries.
4. Install new batteries (NiCad C-cells). Be
sure to match the “+” sign on the battery
with the “+” sign in the battery compart-
ment.
Theory of Operation
The diagram below shows how the Fan-Aspirated Radiation Shield draws out-
side air up through the sensor chamber and between the three walls surround-
ing the sensor chamber, while the shield stack prevents radiation heating of the
outer wall.
Cross-section of Fan-Aspirated Radiation Shield
Fan-Aspirated Shield Specifications
Aspiration Rate (at the sensor) . . . . . . . . . 190ft./min. (.96 m/s)(solar-powered, full
sun), 80 feet/min. (0.4 m/s) (battery only)
Radiation-Induced Temperature Error. . . . 0.5°F (0.3°C)
[At solar noon, insolation = 1040 W/m2]
(Reference: RM Young model 43408)
Operating Temperature . . . . . . . . . . . . . . –40° to +140° F (–40° to +60° C)
Non-operating Temperature . . . . . . . . . . . –50° to +158° F (–45° to +70° C)
Fan Primary Power Input
ISS . . . . . . . . . . . . . . . . . . . . . . . . . . solar panel
Fan secondary power . . . . . . . . . . . . 1 or 2 - 1.2 Volt NiCad C-cells
#4 Screws
Battery Cover
1.2 Volt Nicad
Battery
O-Ring
Battery
Compartment
Air
Flow
MOTOR
FAN
SENSOR
CHAMBER

Addendum, Fan-Aspirated ISS Installation
Rev C (March 22, 2006)
Document Part Number: 7395.252
Product Number:6153, 6163
Vantage Pro®and Vantage Pro2™are trademarks of Davis Instruments Corp., Hayward, CA.
© Davis Instruments Corp. 2006. All rights reserved.
Information in this document subject to change without notice.
3465 Diablo Avenue, Hayward, CA 94545-2778
510-732-9229 • Fax: [phone]
E-mail: info
@
davisnet.com • www.davisnet.com
Fan-Aspirated ISS Troubleshooting
If you are experiencing problems with your Fan-Aspirated ISS, first be sure to
check all cable connections. If you are unable to solve the problem, please call
Davis Technical Support. We’ll be glad to help. Most questions can be
answered while you’re on the phone. You can also e-mail us for support, or
visit our website. Sorry, we are unable to accept collect calls.
Note: Please do not return items to the factory for repair without prior authorization.
Phone Support:
[phone] – Monday – Friday, 7:00 a.m. – 5:30 p.m. Pacific Time.
[phone] – Fax to Technical Support.
E-mail Support:
[email protected] – E-mail to Technical Support.
[email protected] – E-mail to Davis Instruments.
Web Support:
www.davisnet.com – Copies of User Manuals are available on the “Support”
page. Watch for FAQs and other updates.
