DAVIS Tripod Kit User manual

Product#7716
M
OUNTING
T
RIPOD
For use with Davis’s Wireless, EZ-Mount, and Vantage Pro Weather Stations,
the Mounting Tripod simplifies installation. The tripod supports the sensor
array, and features an adjustable foot pad which enables mounting on any sur-
face: flat, inclined, or level. The anemometer extension tube can be used to ele-
vate the anemometer in installations where wind flow obstruction is a concern.
C
OMPONENTS
The Mounting Tripod includes the following poles and mounting hardware.
Please make sure you have everything you need before beginning.
Poles
Tripod
Anemometer
Extension
Tube
Long
Extension
Tube
(swaged end)

Page2

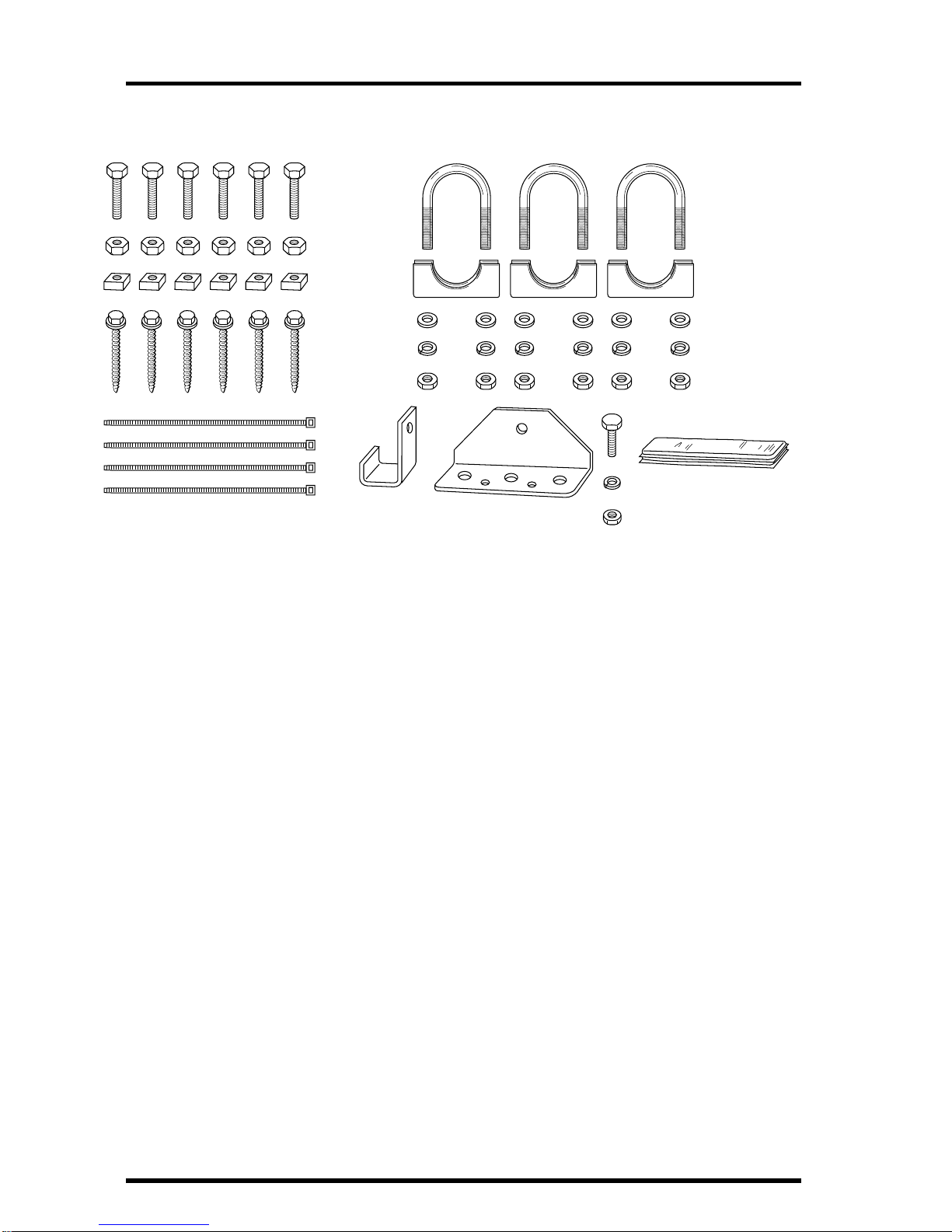

Hardware
T
OOLS FOR
S
ETUP
✦
Adjustable wrench
✦
Compass or local area map
✦
Drill with 3/16" or 13/64" (5 mm) bit for the 1/4" lag screws
C
ONTENTS OF
T
HIS
M
ANUAL
✦
Tripod assembly, page 3
✦
Mounting the tripod, page 5
✦ Attaching the ISS to the anemometer extension tube, page 6
✦
Securing the ISS on the tripod, page 7
✦
Attaching the sensor array on EZ-Mount and Wireless systems, page 8
✦ Using the anemometer extension tube on EZ-Mount and Wireless, page 9
1-1/8" Saddles
5/16" Flat Washers
5/16" x 1-1/2"
U-Bolts
5/16" Lock Washers
5/16" Hex Nuts
1/4" x 2"
Lag Screws
5/16" Bolts
Hex Nuts
Vertical Stop
Plate
Square Nuts
Foot Bracket and
1/4" Bolt
Pitch Pads
Cable Ties

TripodAssembly Page3
T
RIPOD
A
SSEMBLY
Follow the instructions below to assemble the tripod.
1. Unfold the tripod so the two foot pads which come pre-installed on the tripod legs are
flat on the ground.
2. Thread a hex nut almost all the way onto all six of the 5/16" bolts.
3. Insert one of the 5/16" bolts into the hole in vertical stop plate.
4. Insert the 5/16" bolt with vertical stop plate into one of the holes in the tripod's lower
bracket and thread a square nut onto the end of the bolt, on the inside of the bracket.
Do not thread the square nut too far up the bolt.
5. Repeat this procedure for the remaining 5/16" bolts. Place them into the holes in both
the top and bottom tripod brackets, threading a square nut on the end of each bolt.
Do not thread the square nuts too far up the bolts.
6. Insert the long extension tube into the tripod, sliding it through the brackets.
The vertical stop plate should keep the tube from sliding all the way
through.
7. Secure the extension tube by tightening the square and hex nuts on the 5/16" bolts
until the bolts hold the tube in place securely.
5/16" Bolt
Hex Nut
Square Nut
Assemble nuts and bolts
in Tripod brackets.
Do not tighten.
Use Vertical Stop Plate
on one of the lower
bracket bolts.
Slide Long Extension Tube
through center of Tripod brackets.
Tighten nuts and bolts.
Vertical
Stop Plate
Long
Extension
Tube

Page4
8. Attach the foot bracket to the tripod leg as shown below.
Apply pitch pads to the bottom of the foot bracket and the two foot brackets
that come pre-installed on the tripod.
Hex
Nut Lock
Washer
1/4" Bolt
Foot Bracket
Front Leg
Pitch Pad

MountingtheTripod Page5
M
OUNTING THE
T
RIPOD
Mount the tripod with long extension tube on the desired surface, as shown
below. On the following pages are instructions for securing your sensor array
or ISS onto the long extension tube.
CAUTION: Any metal object may attract a lightning strike, including your weather station or tripod. If
lightning strikes your station or strikes somewhere nearby, the station's internal electronics may suffer
anywhere between little to extensive damage. The station itself has been designed with considerable
surge protection, but to safeguard nearby equipment and structures, we recommend following local
recommendations on properly grounding your installation. For more information, contact your local
lightning protection authority and/or refer to the following articles:
✦ MIL-HDBK-419A: Grounding, Bonding, and Shielding for Electronic Equipments and Facili-
ties, 29 Dec 1987.
✦ National Fire Protection Association, 1997: Standard for Installation of Lightning Protection
Systems, 1997 ANSI/NFPA 780, National Fire Protection Association, Quincy, MA.
✦ NEC, National Electrical Code, 1996 Edition: National Fire Protection Information, Quincy,
MA.
Long Extension Tube
(use level or plumb line
to find true vertical)
Tighten nut when
proper angle of feet
determined
1/4 x 2"
Lag Screw
(6 places)
Flat
Washer
Field Sensor
Array or ISS
Field Sensor
Array or ISS
Long Extension Tube
Deck or other
flat surface
1/4 x 2"
Lag Screw
(6 places)
Flat
Washer
ROOF MOUNTING DECK MOUNTING

Page6
A
TTACHING THE
ISS
TO THE
A
NEMOMETER
E
XTENSION
T
UBE
For Vantage Pro, the anemometer extension tube provided as part of the
mounting tripod will be used to support the ISS, which does not come on its
own pole. You can mount your ISS on this tube with both sides together or sep-
arate. For better access to the hardware securing the rain collector side, remove
the rain collector cone by rotating it counter-clockwise and lifting it off.
Mount your ISS on the anemometer extension tube as shown below, in either
Configuration A or Configuration B . Make sure the swaged end of the tube is
pointing downward as you secure the ISS to it.

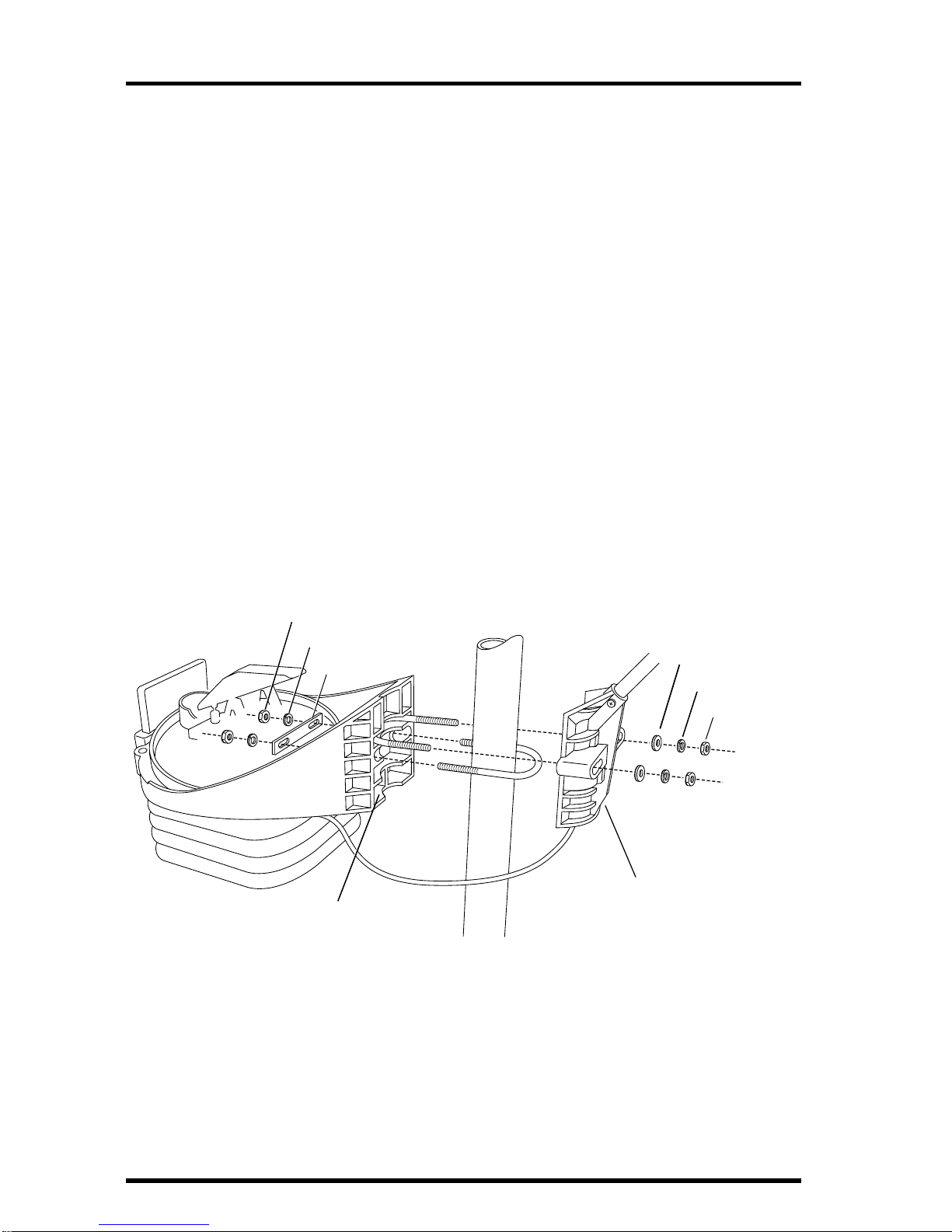

Configuration A — Both Sides Together
Remember when mounting both sides together that whichever side of the ISS
is mounted first, the U-bolt from the opposite side ALSO must be placed
around the pole before you tighten anything. (If it is not, there is no way to
slide it in later.)
1/4" Hex Nut
1/4" Lock Washer
Rain Collector Side's Mounting Base Anemometer's Mounting Base
Backing Plate
U-Bolts
1/4" Flat Washer
1/4" Lock Washer
1/4" Hex Nut

SecuringtheISSontheTripod Page7

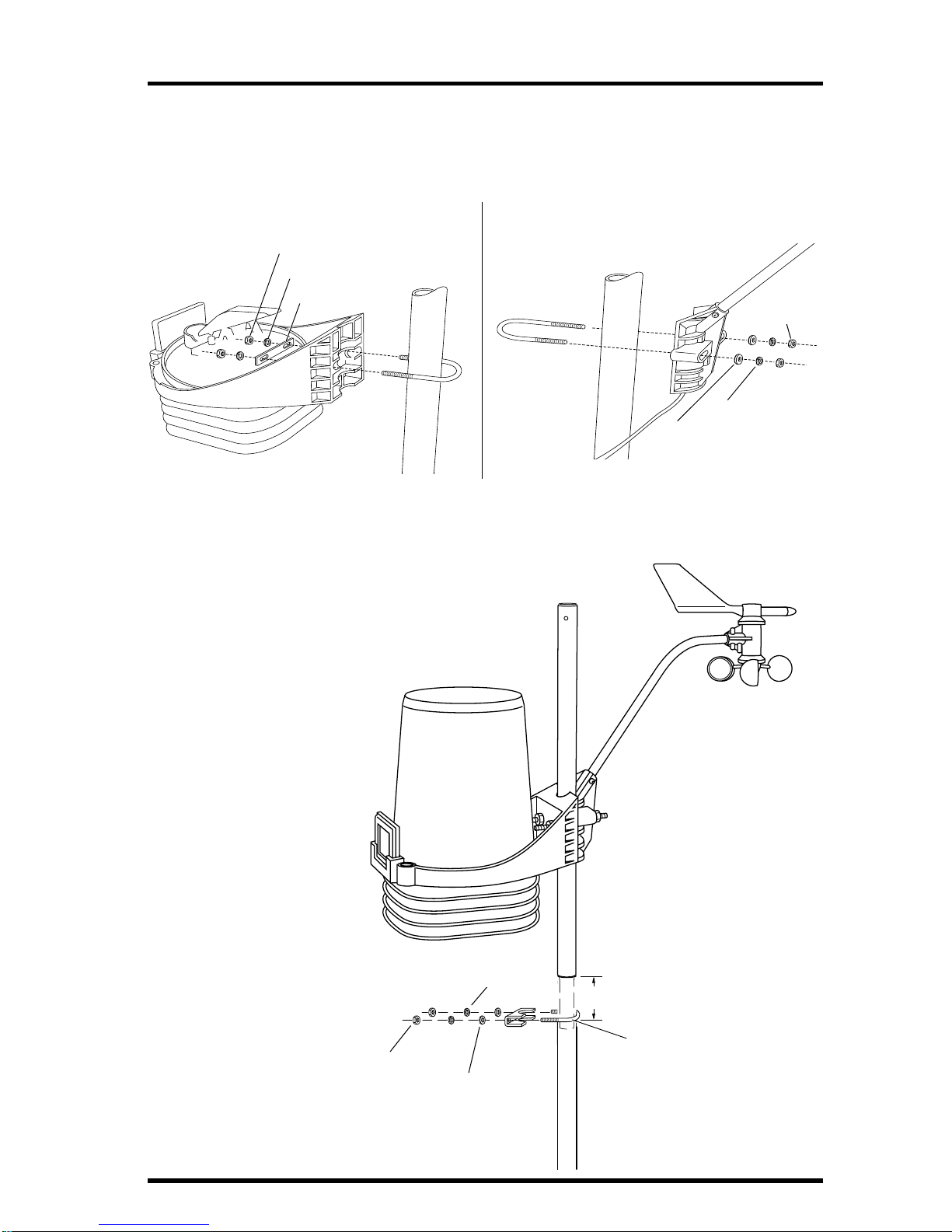

Configuration B — Anemometer Above the Rain Collector Side
Secure the rain collector side to the anemometer extension tube as shown in the
illustration on the left. Then mount the anemometer above it as shown on the
right.
S
ECURING THE
ISS
ON THE
T
RIPOD
Now the ISS is firmly
attached to the ane-
mometer extension
tube.
1. Inserttheswagedend
of the anemometer
extension tube down
into the long exten-
sion tube in tripod.
2. Consulting a compass
or local map, turn
assembly until the
anemometer arm
points directly north.
3. Place the U-bolt pro-
vided with the tripod
around the tubes
where they overlap.
Secure saddle onto
U-bolt with flat
washers, lock
washers, and hex
nuts as shown.
4. Tighten the hex nuts
quite firmly, until the
U-bolt begins to dent
the tubing slightly.
U-Bolt
1/4" Flat Washer
1/4" Lock Washer
1/4" Hex Nut
1/4" Hex Nut
1/4" Lock Washer
Backing Plate
U-Bolt
Long Extension Tube
(secure in the tripod)
5/16" Hex
Nuts
5/16" Lock
Washers
5/16" Flat
Washers
Saddle
Tighten until
5/16" x 1-1/2" U-bolt
dents the tubing slightly
2-1/2"
Anemometer Extension Tube
(swaged end pointing
downward)
ISS

Page8
NOTE: For Vantage Pro, the anemometer arm must point northward when
mounted, or you will have to re-orient the wind vane. (Re-orienting instructions
are located in ISS Installation Manual : Appendix C.)
A
TTACHING
S
ENSOR
A
RRAY ON
EZ-M
OUNT AND
W
IRELESS
S
YSTEMS
Insert the sensor array pole into the top of the long extension tube and secure
using U-bolts and saddles provided with the mounting tripod.
Support
Tube
Long
Extension
Tube
Hex
Nuts Lock
Washers Flat
Washers 1-1/8"
Saddles 1-1/2" x 5/16" U-Bolts;
tighten until bolts dent
tubing slightly
1/2"
2"

UsingAnemometerExtensionTubeonEZ-MountandWirelessSystems Page9
U
SING
A
NEMOMETER
E
XTENSION
T
UBE ON
EZ-M
OUNT AND
W
IRE-
LESS
S
YSTEMS
If you need the anemometer mounted higher, install the anemometer extension
tube as shown below.
Anemometer
Uncoil about
3-1/2' extra
anemometer
cable
Anemometer
Extension Tube
Use three
Cable Ties
Remove
and discard
plastic bushing
and plastic sleeve
Support Tube
*
*
#12 x 1-1/2"
Bolt Lock
Washer Hex Nut
Hex
Nuts Lock Washers Flat Washers 1-1/8" Saddles 1-1/2" x 5/16" U-Bolts;
tighten until bolts den
t
tubing slightly
1/2"
2"
Anemometer
Extension Tube
Support Tube

Page10

UsingAnemometerExtensionTubeonEZ-MountandWirelessSystems Page11

Product Numbers: 7716
Davis Instruments Part Number: 7395.299
Mounting Tripod
Rev. D Manual (1/25/01)
