Dawner Prince Electronics RED ROX User manual

Congratulations! You have just purchased a RED ROX from Dawner Prince E !
It is an effect pedal capable of delivering anything from ultra clean tones all the way to a ‘grease-melting’ distortion.
, fully professionally designed and handmade
with audiophile quality components and true bypass switching system incorporated.
lectronics
Red Rox is a top quality guitar effect pedal
RED ROX OWNER’S MANUAL
TM
MASTER (potentiometer) 1
controls the output volume level. You can adjust your Red Rox to the same volume
as your bypass signal (unity gain) or volume it up for a fatter tone - there is plenty volume on tap!
CONTOUR (potentiometer) 2
controls the frequency emphasis overall. In the middle position is a balanced presentation of the
overall frequencies; clockwise it becomes midrange pronounced and counterclockwise
it becomes midrange scooped.
TONE (potentiometer) 3
controls the frequency emphasis on the highs coming out of the distortion section. You can easily cut or
add the upper frequences to the tone.
PREAMP (potentiometer) 4
controls the amount of distortion in the signal and can take your guitar tone from completely clean
all the way to a full, fat and thick distortion - there is a great deal of flexibility.
TRUE BYPASS SWITCHING SYSTEM with STATUS LED (footswitch) 5, 6
switches the effect ON and OFF. When in ON mode, status LED will glow red.
POWER SUPPLY (jack) 9
Unit operates at voltages from V DC up to 18V DC. Use regulated adapter 9V DC-18V DC/100mA.
Red Rox has built in reverse polarity power protection circuitry.
9
IN and OUT (jack) 7, 8
IN jack (7) takes signal from guitar or previous effect pedal in chain. OUT jack (8) delivers signal to the
amplifier or to the next effect pedal in the chain.
3
4
8
9
5
6

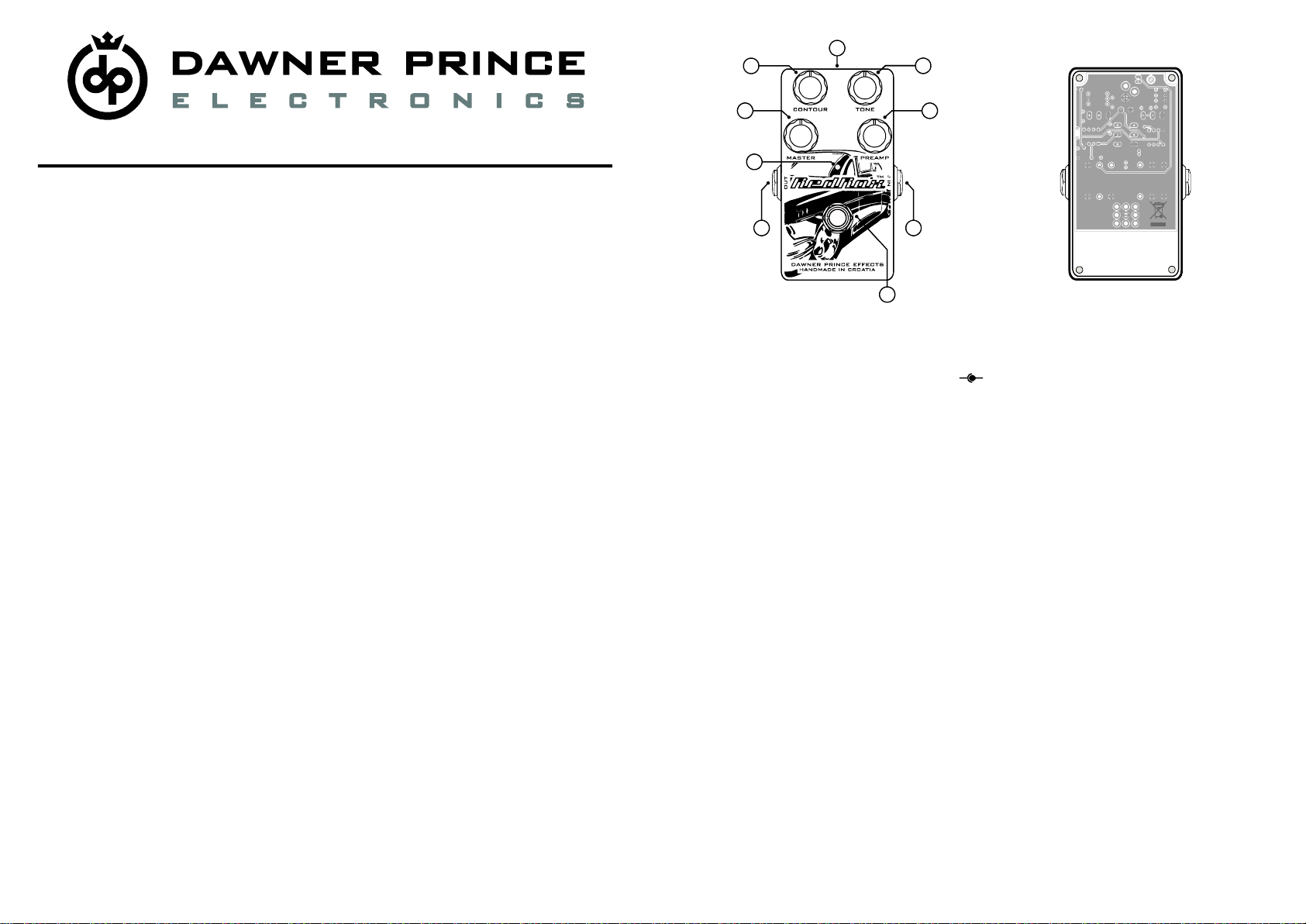

FRONT PANEL VIEW
INSIDE VIEW
SPECIFICATIONS:
Input impedance:
Output impedance:
Power supply:
Power supply connector type:
Current draw (typical at 9VDC):
Lenght:
Width (W/O jacks):
Height (W/O potentiometers):
Weight (W/O packaging):
Weight (with packaging):
Standard colour:
1 Mohm
1 Kohm
Adapter 9V-18V DC, 9V battery
Barrel, 5.5mm/2.1mm, center negative,
~ 9.5 mA
91 mm / 3.58 inch
116 mm / 4.17 inch
34 mm / 1.33 inch
0.245 kg / 0.54 lb
0.310 kg / 0.68 lb
Mirror Red
7
+-
1
2
w w w . d a w n e r p r i n c e . c o m
Dawner Prince E
Zmijavci, Croatia
[e-mail]
www.dawnerprince.com
lectronics Ltd Dawner Prince E
Zmijavci, Croatia
[email protected]m
www.dawnerprince.com
lectronics Ltd
WARRANTY:
Dawner Prince E warrant this product to be free from defects in materials and workmanship under normal
use and service. Dawner Prince E liability under this warranty is limited to repairing or replacing defective
materials that show evidence of defect, provided the product is returned to Dawner Prince E s WITH
RETURN AUTHORIZATION, where all parts and labor will be covered up to a period of ( ) year . A Return
Authorization number can be obtained from Dawner Prince E by e-mail. Return transportation costs for the
service within the warranty period are paid by the owner of goods.
This warranty does not cover loss or theft of products, and excludes failures caused by misuse,
mechanical damage, liquid damage of any kind, device falling, unauthorized modification, shock surge in electricity
supply, lightning, improper storage and natural disasters. Dawner Prince E assumes no liability for any
damages resulting from the use of this product. Using the product, the customer accepts all conditions set forth
hereby. Dawner Prince E reserves the right to make changes in design, or make additions to, or
improvements upon this product without incurring any obligation to install the same on products previously
manufactured.
NOTE: The information contained in this manual is subject to change at any time without notification. Some
information contained in this manual my also be inaccurate due to undocumented changes in the product after
this version of the manual was completed. The information in this version of the owner’s manual supersedes all
previous versions.
lectronics
lectronics
lectronic
two 2 s
lectronics
lectronics
lectronics

If you want to dispose of this product, do not mix it with general household waste.
There is a separate collection system for used electronic products in accordance
with legislation that requires proper treatment, recovery, and recycling.
Private households in the 25 member states of the EU, in Switzerland and Norway may return their used electronic
product free of charge to designated collection facilities or to a retailer (if you purchase similar new one).
For countries not mentioned above, please contact your local authorities for a correct method of disposal.
By doing so you will ensure that your disposed product undergoes the necessary treatment, recovery and
recycling and thus prevent potential negative effects on the environment and human health.
WARNING
For your protection, read the following:
Importaint Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Do not use this apparatus near water.
5. Clean only with dry cloth.
6. Install in accordance with manufacturer’s instructions.
7. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
8. Protect the power cord from being walked on or pinched particulary at plugs, convenience receptacles,
and the point where they exit from the apparatus.
9. Unplug this apparatus during lightning storms or when unused for long periods of time.
10. No user serviceable parts inside.Refer all servicing to qualified service personnel. Servicing is required
when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid
has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
11. WARNING:To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
12. Refer to labels on the unit, including bottom cover, or other markings and pertinent information.
