Strymon Zelzah User manual

USER MANUAL

Zelzah - Multidimentional Phaser
pg 2
Knobs and Switches
4-Stage Phaser Controls
6-Stage Phaser Controls
Rear Panel I/O and Control
Live Edit Functions
Signal Routing
Stereo Spread
Barber Polarity (4-Stage)
MIDI Clock Sync
Respond/Ignore MIDI Expression
Power Up Modes
Input Level
Bypass Mode
Configuring the EXP/MIDI Jack
External Controls
Expression Pedal Setup
Favorite Switch Setup and Compare Mode
Configuring MultiSwitch Plus
Using MultiSwitch Plus
MIDI Functionality
Configuring Zelzah to Use MIDI
Saving Presets in MIDI Mode
MIDI Specifications
Factory Reset
Features
Specifications
Sample Settings
Power Up Modes Quick Reference
Live Edit Controls Quick Reference
Strymon Non-Transferrable Limited Warranty
Table of Contents
3
4
5
7
8
10
11
12
13
14
15
17
19
20
22
23
28
29
31
32
33
35
37
40
42

Zelzah - Multidimentional Phaser
pg 3
SWEEP
phase time
RESONANCE
SPEED
DEPTH
DEPTH
VOICE
MIX
SPEED
multidimensional phaser
classic
barber
env
o
mild
strong
Knobs and Switches - 4-Stage Phaser Controls
SPEED
Adjusts the LFO rate.
MIX
Adjusts the balance of the dry signal
and the phase-shifted signal from mild
phasing at min to 100% wet at max.
Strongest phasing effect occurs with knob
set at 12 o’clock (50/50 mix).
DEPTH
Adjusts the LFO range. A deeper phasing effect
is achieved as the knob is turned clockwise.
ON
Engages the 4-Stage phaser circuit,
independent of the 6-Stage phaser. RED ON
LED indicates that the 4-Stage phaser is
engaged. The LED pulses in time with the
selected SPEED when engaged.
SWEEP
Selects the style of the 4-Stage phaser.
classic: traditional rising and falling LFO* voicings that change in
character as the DEPTH knob is adjusted
barber: continuously rising or falling LFO. Direction is set via live
edit function (See page 10 for details.)
env: touch sensitive envelope phasing effect with range set by the
SPEED knob and sensitivity set by the DEPTH knob
NOTE: *An LFO is a low frequency oscillator. It is used to modulate
the filters that create the phasing effect.

Zelzah - Multidimentional Phaser
pg 4
SWEEP
phase time
RESONANCE
SPEED
DEPTH
DEPTH
VOICE
MIX
SPEED
multidimensional phaser
classic
barber
env
o
mild
strong

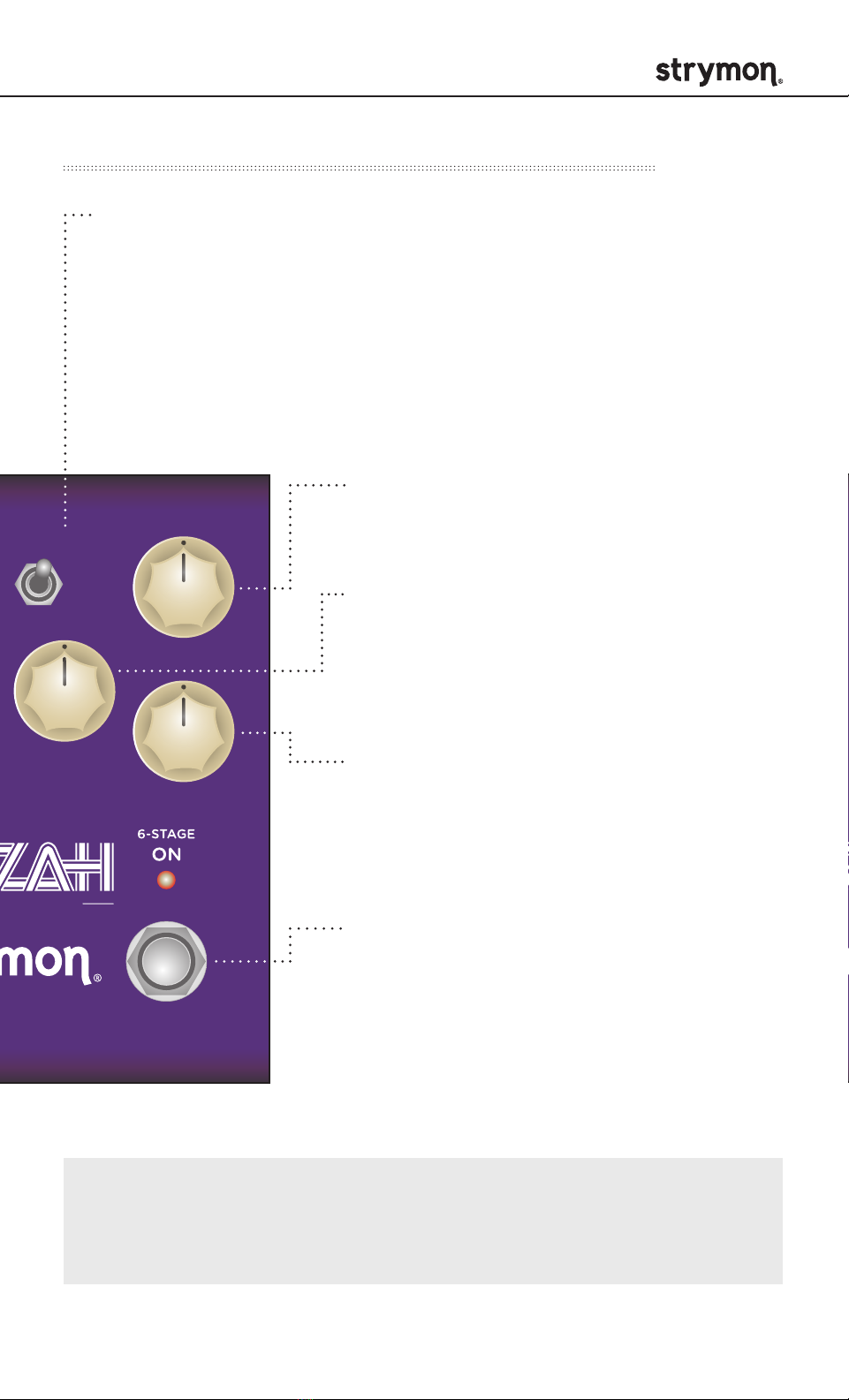

Knobs and Switches - 6-Stage Phaser Controls
SPEED
Adjusts the LFO rate.
VOICE
Sweeps smoothly from pure phaser
voicings on the left to flanger tones past
12 o’clock and chorus tones on the right.
DEPTH
Adjusts the LFO range. Higher settings
result in more dramatic phase and/or time
modulations as set by the VOICE knob.
ON
Engages the 6-Stage phaser circuit,
independent of the 4-Stage phaser. RED
ON LED indicates that the 6-Stage phaser
is engaged. The LED pulses in time with
the selected SPEED when engaged.
RESONANCE
Selects from three settings of regeneration that add color and
intensity.
off: smooth response
mild: enhanced frequency peaks
strong: prominent frequency peaks
NOTE: When both the 4-Stage phaser and the 6-Stage phaser are
disengaged, the bypass is either Buffered Bypass or True Bypass
depending on the selected mode. (See page 14 for details.)

Zelzah - Multidimentional Phaser
pg 5

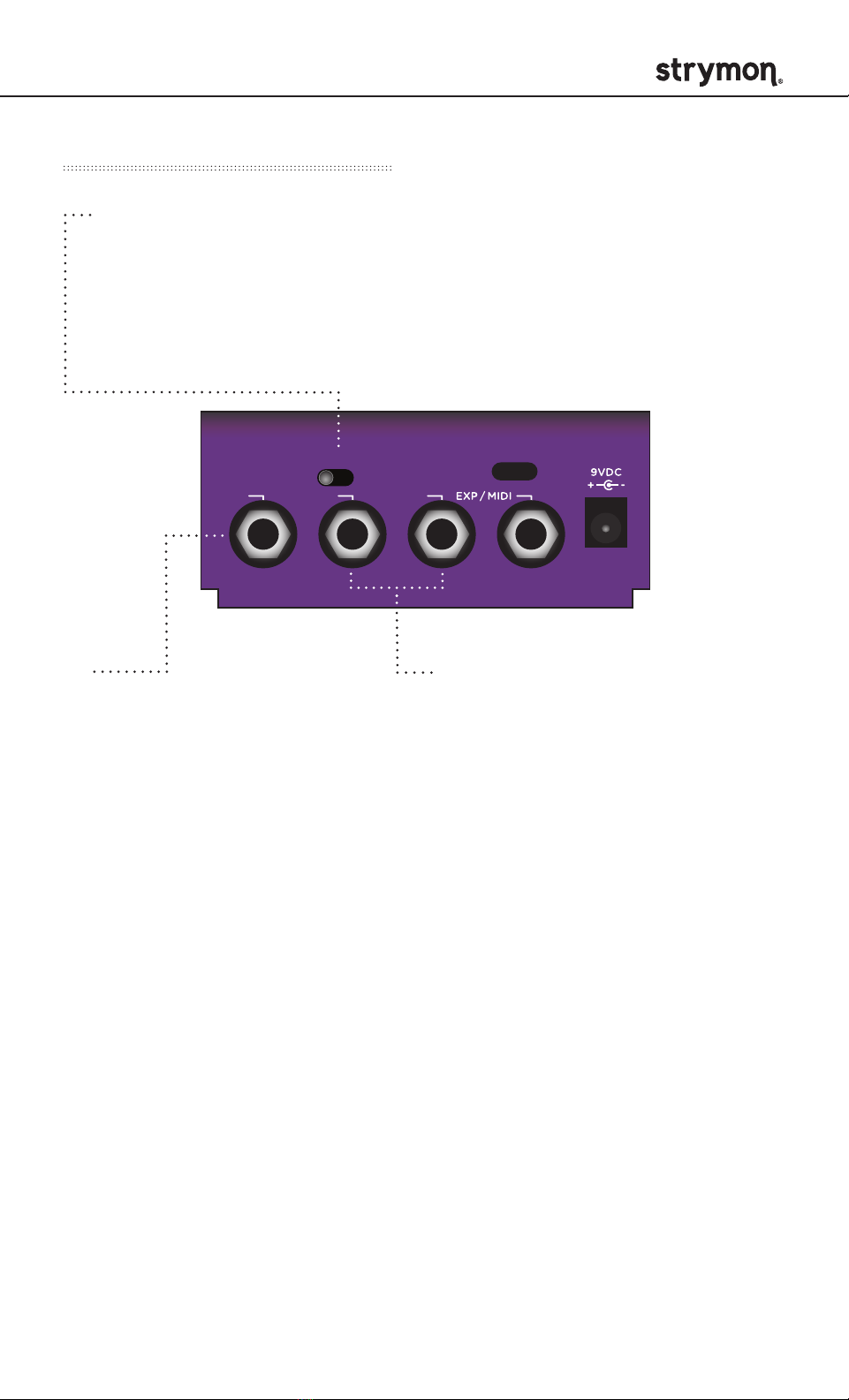

Rear Panel I/O and Control
INPUT
MONO
IN OUT L OUT R
STEREO USB
IN
High impedance ultra low-
noise discrete Class A JFET
preamp input. Use a TRS
stereo adapter/cable for
stereo input.
Audio Input Selector
MONO: Use with a mono input signal such as a guitar. Output is
stereo. Use OUT L for mono connection.
STEREO: Use with a stereo input signal. Output is stereo.
OUTPUTS
Low impedance stereo outputs.
Use OUT L for mono output.

Zelzah - Multidimentional Phaser
pg 6
Rear Panel I/O and Control (cont.)
INPUT
MONO
IN OUT L OUT R
STEREO USB
EXP / MIDI
Multifunction communication jack for external control of Zelzah’s
features and functions. Can be set to operate in one of the following
modes (See page 15 for details.):
Expression Pedal mode: Allows continuous control over any of the
knobs in any direction with a standard TRS expression pedal.
(See page 17 for details.)
Favorite mode: Allows you to recall a Favorite setting using a
Strymon MiniSwitch.
(See page 19 for details.)
Tap mode: Allows you to control the SPEED of the 6-stage phaser
with TAP tempo using a Strymon MiniSwitch.
MIDI mode: Allows for the selection of three presets using a
Strymon MultiSwitch Plus. Full MIDI functionality is available by
sending MIDI Program Change messages via 1/4" MIDI connection
using a Strymon Conduit or MIDI EXP cable. Up to 300 presets are
available via MIDI.
(See page 22 for MultiSwitch Plus or page 23 for MIDI.)
9VDC
Use the included power
supply or an adapter with the
following rating:
• 9VDC center negative
• 300mA minimum
USB
Used for MIDI control as well
as for performing firmware
updates.

Zelzah - Multidimentional Phaser
pg 7

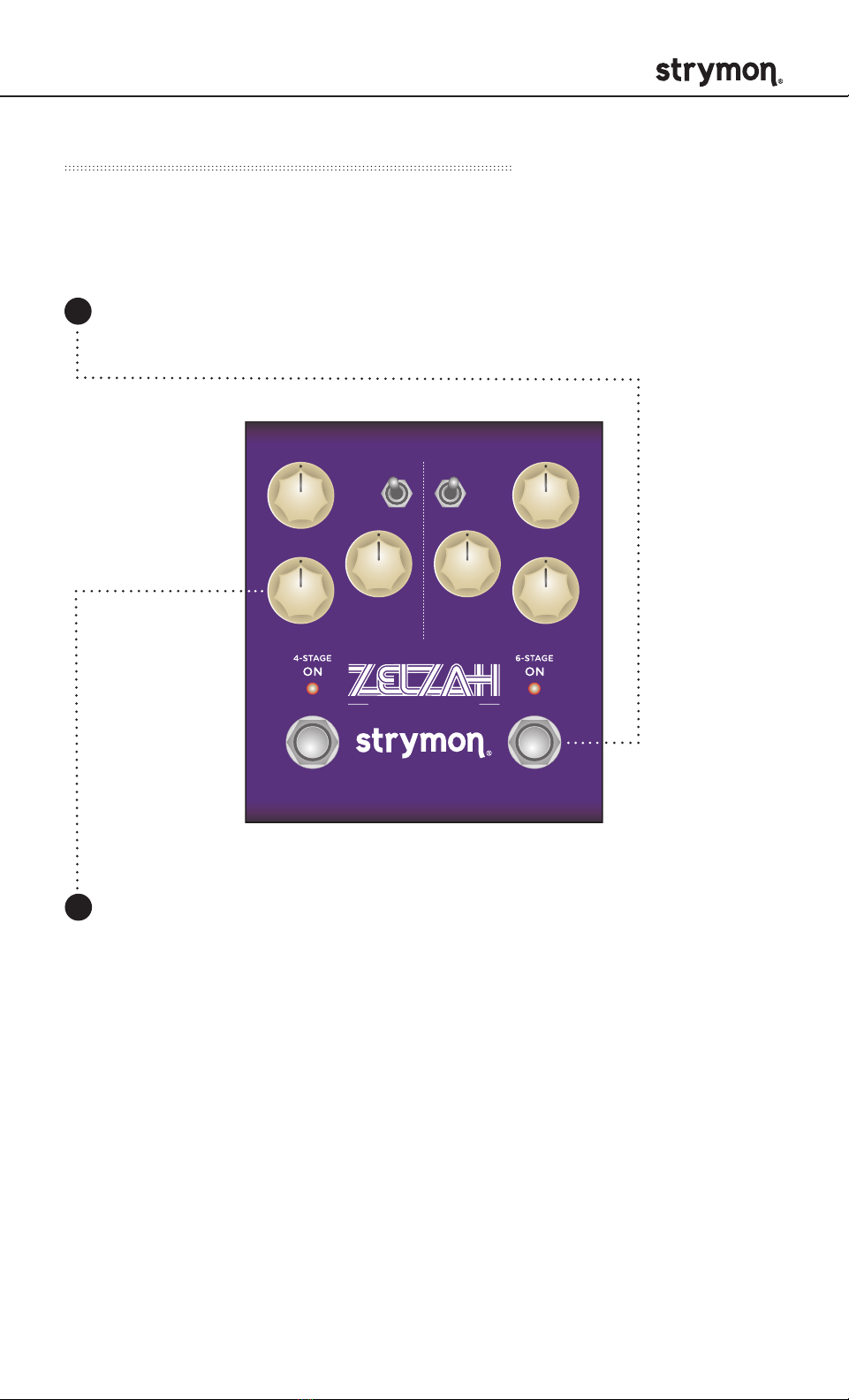

Live Edit Functions – Signal Routing
Sets the signal routing configuration of the 4-Stage and 6-Stage
sides of Zelzah.
SWEEP
phase time
RESONANCE
SPEED
DEPTH DEPTH
VOICEMIX
SPEED
multidimensional phaser
classic
barber
env
o
mild
strong
Press and hold the ON
(6-STAGE) footswitch.
Once both LEDs flash,
release the footswitch.
VOICE knob selections:
Series: GREEN (default) - Output of the 6-Stage phaser feeds into the
4-Stage phaser when both sides are engaged.
Parallel: BLUE - Output of both the 4-Stage and 6-Stage phasers are
mixed to the outputs while maintaining stereo independence of the
LEFT and RIGHT signals.
Split: RED - Sets both the 4-Stage and 6-Stage phasers as mono
effects that are sent to separate outputs. Output of the 4-Stage phaser
goes to OUT L, and output of the 6-Stage phaser goes to OUT R.
(For stereo output connections only.)
Turn the VOICE knob
to select the routing
option. The ON
(6-STAGE) LED will
change color to indicate
the current status as
the knob is turned.
Press either footswitch to exit and store the routing option.
1
2
3
NOTE: The Signal Routing is saved per Favorite setting or preset.

Zelzah - Multidimentional Phaser
pg 8

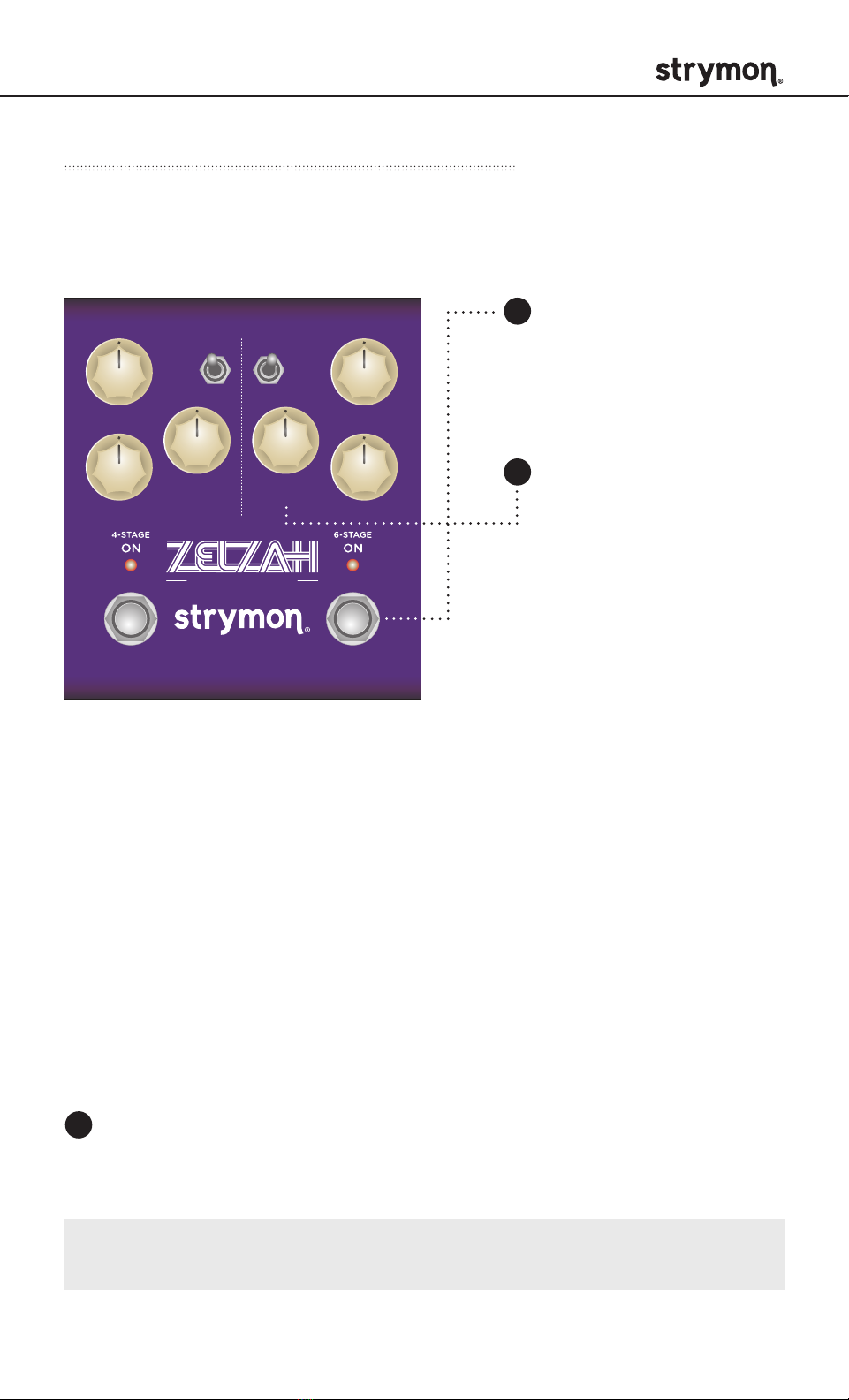

Live Edit Functions – Stereo Spread
Widens the stereo image for each of the phasers when using
stereo output.
SWEEP
phase time
RESONANCE
SPEED
DEPTH DEPTH
VOICEMIX
SPEED
multidimensional phaser
classic
barber
env
o
mild
strong
Press and hold the ON (6-STAGE) footswitch. Once both LEDs
flash, release the footswitch.
Turn the DEPTH (4STAGE) knob to adjust the stereo spread of
the 4-Stage phaser. Both LEDs will momentarily change color
smoothly from GREEN (narrow) to AMBER (wide) to indicate the
current status as the knob is turned.
1
2

Zelzah - Multidimentional Phaser
pg 9
SWEEP
phase time
RESONANCE
SPEED
DEPTH DEPTH
VOICEMIX
SPEED
multidimensional phaser
classic
barber
env
o
mild
strong
Turn the DEPTH (6STAGE) knob to adjust the stereo spread of
the 6-Stage phaser. Both LEDs will momentarily change color
smoothly from GREEN (narrow) to AMBER (wide) to indicate the
current status as the knob is turned.
Press either footswitch to exit and store the Stereo Spread settings.
3
4
NOTE: The Stereo Spread settings are saved per Favorite setting
or preset.
NOTE: Stereo Spread is not applied when Split Signal Routing is
selected.
Live Edit Functions – Stereo Spread (cont.)

Zelzah - Multidimentional Phaser
pg 10

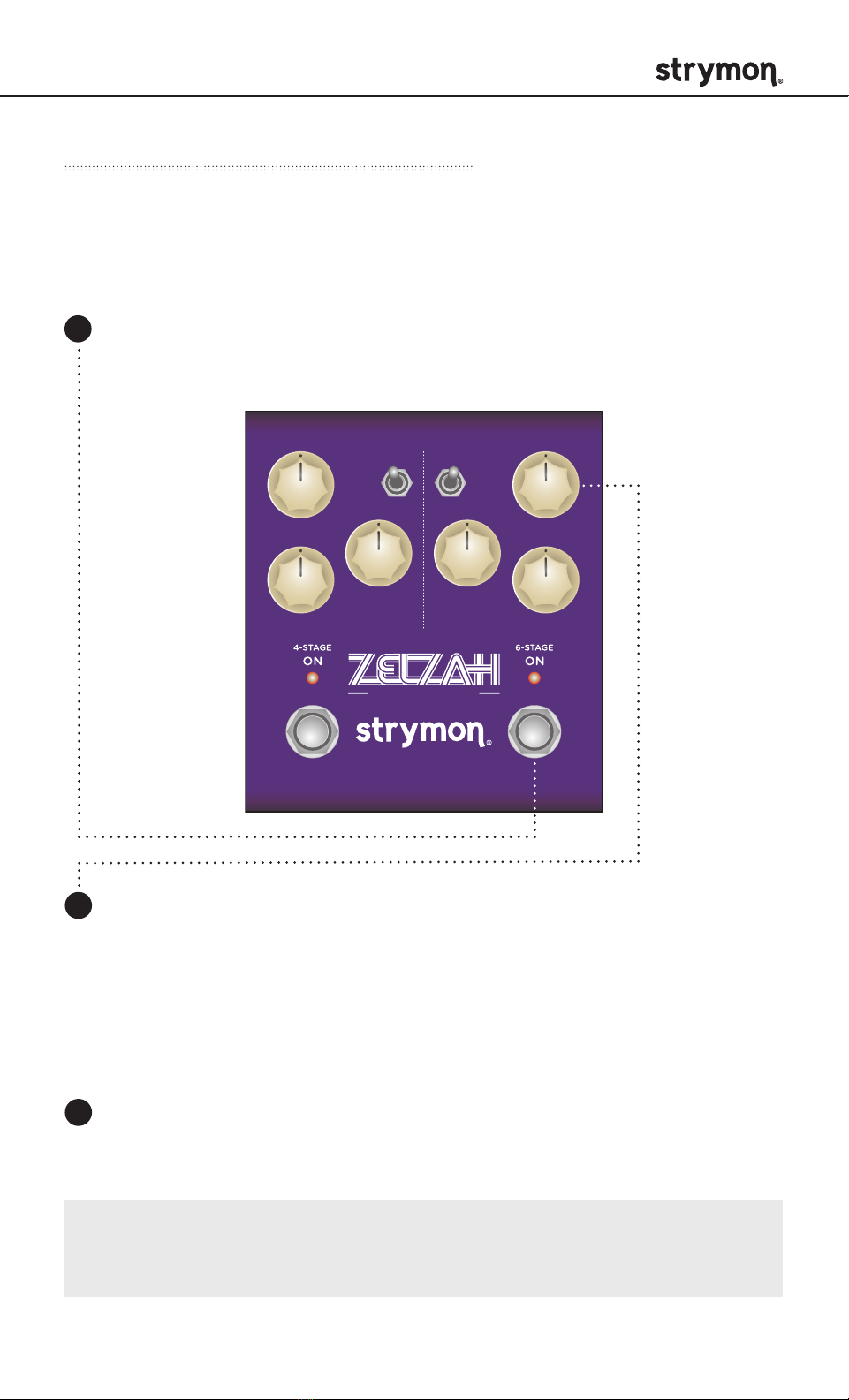

Live Edit Functions – Barber Polarity (4-Stage)
Sets the direction of the continuously rising or falling filter frequency
of the 4-Stage barber phaser.
SWEEP
phase time
RESONANCE
SPEED
DEPTH DEPTH
VOICEMIX
SPEED
multidimensional phaser
classic
barber
env
o
mild
strong
Press and hold the ON (6-STAGE) footswitch. Once both LEDs
flash, release the footswitch.
1
Turn the SPEED (4STAGE) knob to adjust the polarity of the
4-Stage phaser. The ON (4STAGE) LED will change color to
indicate the current status as the knob is turned.
Negative: RED - Continuously falling LFO.
Positive: BLUE (default) - Continuously rising LFO.
2
Press either footswitch to exit and store the Barber Polarity.
3
NOTE: The Barber Polarity setting is saved per Favorite setting
or preset.

Zelzah - Multidimentional Phaser
pg 11

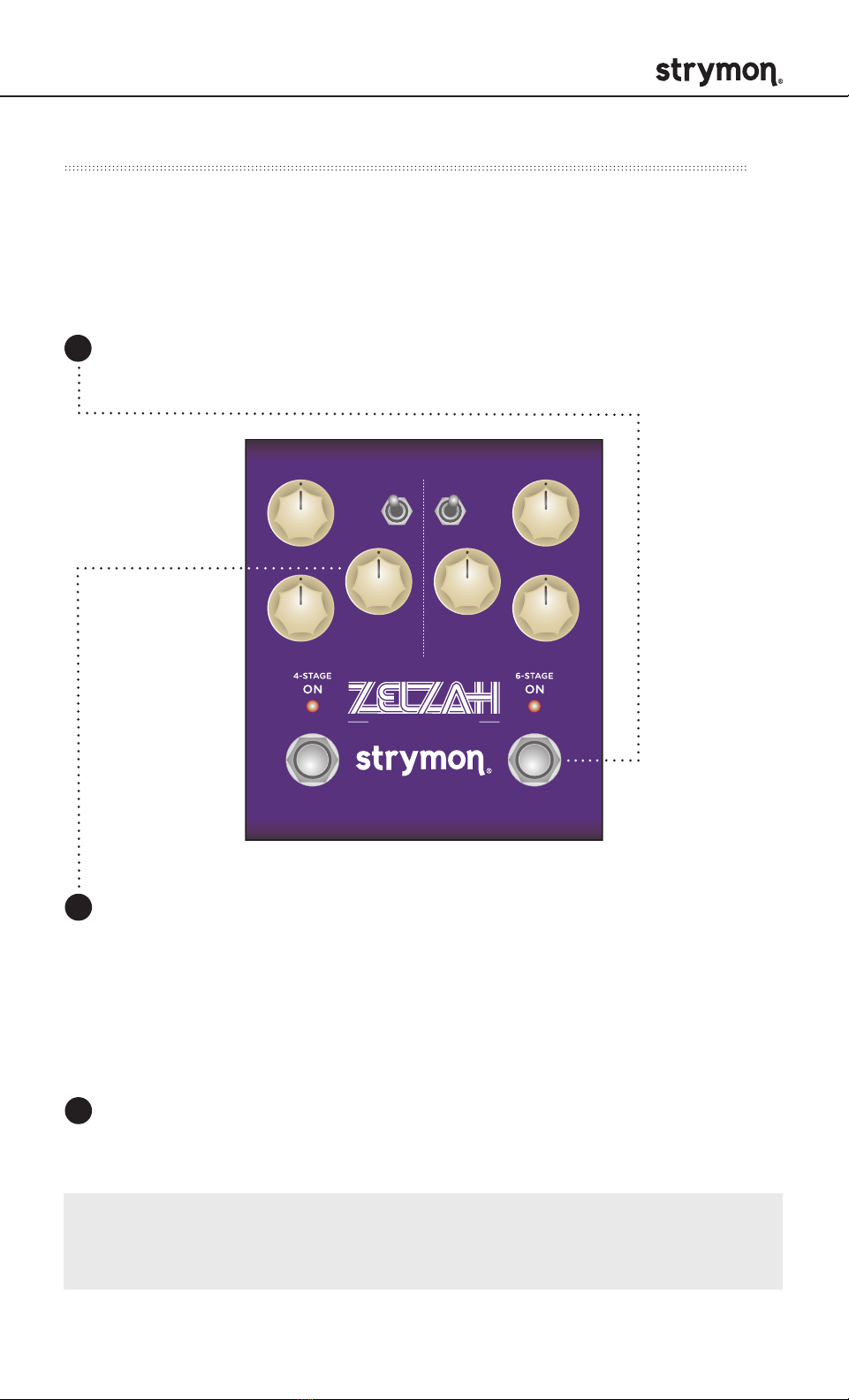

Live Edit Functions – MIDI Clock Sync
Determine whether Zelzah’s LFOs will respond to MIDI Clock.
Press and hold the ON (6-STAGE) footswitch. Once both LEDs
flash, release the footswitch.
Turn the SPEED (6STAGE)
knob to sync Zelzah with
MIDI clock. Both LEDs will
momentarily change color to
indicate the current status as
the knob is turned.
Off: RED (default) - Zelzah
will not respond to MIDI
clock.
On: BLUE - Zelzah will
respond to MIDI clock.
Press either footswitch to exit and store the MIDI Clock settings.
1
2
3
SWEEP
phase time
RESONANCE
SPEED
DEPTH DEPTH
VOICEMIX
SPEED
multidimensional phaser
classic
barber
env
o
mild
strong
NOTE: The MIDI Clock setting
is saved per Favorite setting or
preset.
NOTE: When sync’d to MIDI
Clock, the SPEED knobs act
as a multiplier or divider of
the incoming clock tempo.
The sync’d SPEED mult/div
settings from left to right are:
x4, x3, x2, x1 at 12 o’clock
noon, 1/2, 1/3, 1/4.

Zelzah - Multidimentional Phaser
pg 12

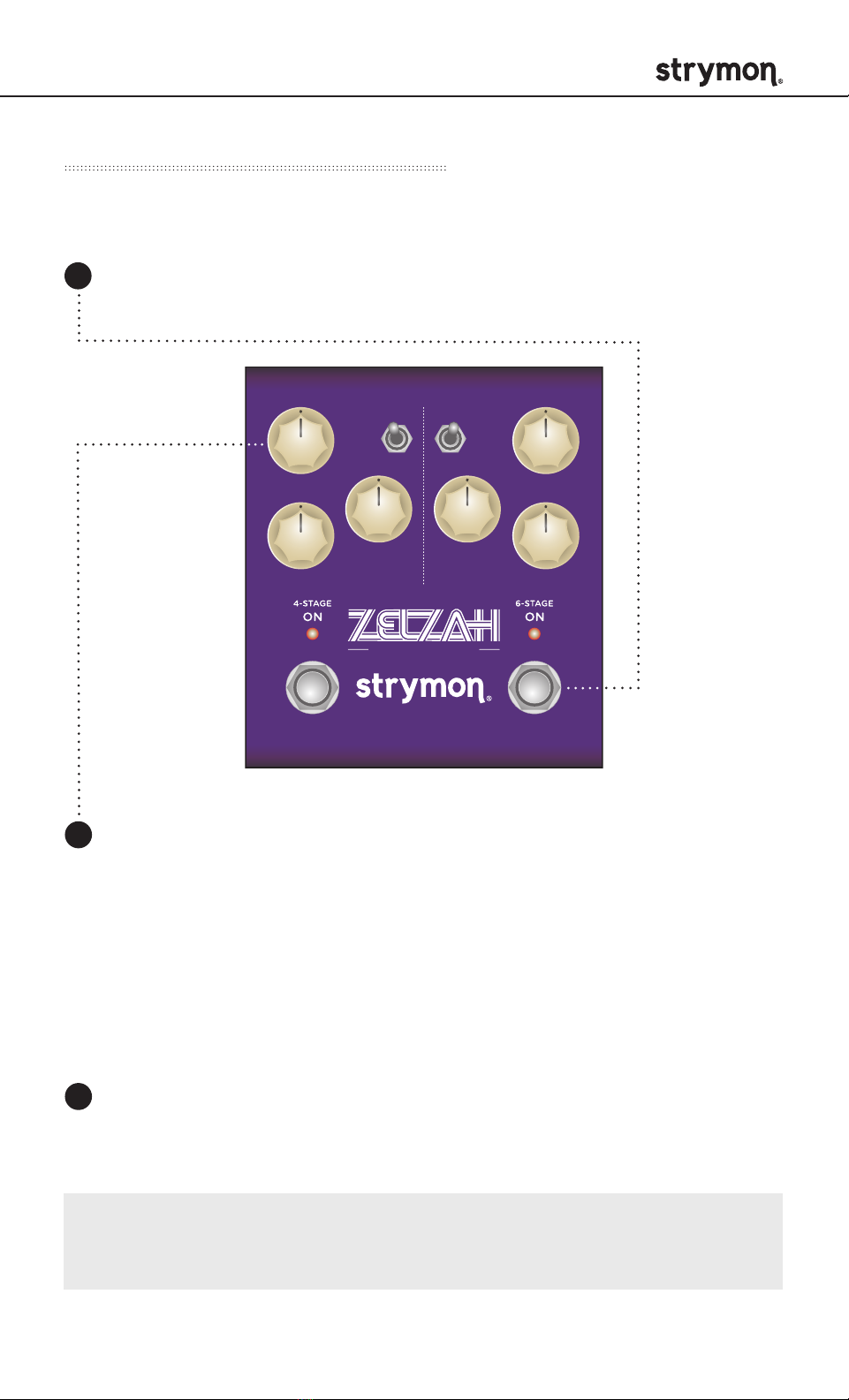

Live Edit Functions – Respond/Ignore MIDI Expression
When set to MIDI mode, this setting determines whether Zelzah will
respond to MIDI Expression CC# 100 to control the knob settings in the
same manner as a TRS Expression pedal.
SWEEP
phase time
RESONANCE
SPEED
DEPTH DEPTH
VOICEMIX
SPEED
multidimensional phaser
classic
barber
env
o
mild
strong
Press and hold the ON (6STAGE) footswitch. Once both LEDs
flash, release the footswitch.
Turn the MIX knob to select whether Zelzah will respond to MIDI
Expression CC #100. Both LEDs will momentarily change color to
indicate the current status as the knob is turned.
Off: RED – Zelzah will not respond to MIDI CC# 100.
On: BLUE (default) – Zelzah will respond to MIDI CC# 100.
Press either footswitch to exit and store the MIDI Expression mode.
1
2
3
NOTE: The MIDI Expression setting is saved per Favorite setting
or preset.

Zelzah - Multidimentional Phaser
pg 13
Power Up Modes – Input Level
Select the input level to the effect processing.
Press and hold the ON (6-STAGE) footswitch while connecting
power to the pedal. Once both LEDs flash, release the footswitch.
Turn the SPEED (4STAGE) knob to select the Input Level mode.
The ON (4STAGE) LED will change color to indicate the current
status as the knob is turned.
Instrument: GREEN (default) - Input headroom set for guitar
level source.
Line: RED - Use with line level source, such as a keyboard or
synthesizer. Adds 10dB of headroom.
Press either footswitch to store the Input Level mode and begin
using Zelzah.
1
2
3
SWEEP
phase time
RESONANCE
SPEED
DEPTH DEPTH
VOICEMIX
SPEED
multidimensional phaser
classic
barber
env
o
mild
strong
NOTE: Input Level is persistent across power cycles and is not
saved per preset.

Zelzah - Multidimentional Phaser
pg 14
Power Up Modes – Bypass Mode
Setting Zelzah to Buffered Bypass mode preserves the high frequency
response of your guitar signal through your pedal chain and long cable
runs.
Press and hold the ON (6-STAGE) footswitch while connecting
power to the pedal. Once both LEDs flash, release the footswitch.
Turn the SPEED (6-STAGE) knob to select True Bypass or Buffered
Bypass. The ON (6-STAGE) LED will change color to indicate the
current status as the knob is turned.
True Bypass: GREEN (default)
Buffered Bypass: RED
Press either footswitch to store the Bypass mode and begin
using Zelzah.
1
2
3
SWEEP
phase time
RESONANCE
SPEED
DEPTH DEPTH
VOICEMIX
SPEED
multidimensional phaser
classic
barber
env
o
mild
strong
NOTE: Bypass mode is persistent across power cycles and is not
saved per preset.

Zelzah - Multidimentional Phaser
pg 15
Power Up Modes – Configuring the EXP/MIDI Jack
Set the functionality of the EXP/MIDI jack.
SWEEP
phase time
RESONANCE
SPEED
DEPTH DEPTH
VOICEMIX
SPEED
multidimensional phaser
classic
barber
env
o
mild
strong
Press and hold the ON (4-Stage) footswitch while powering up the
pedal. Once both LEDs flash, release the footswitch.
Turn the SPEED (6-STAGE) knob to select the function of the EXP/
MIDI jack. ON (6-STAGE) LED will change color to indicate the
current status as the knob is turned.
Expression Pedal mode: GREEN (default) - Allows continuous
control over any of the knobs in any direction with a standard TRS
expression pedal. (See page 17 for details.)
Favorite mode: AMBER - Allows you to recall a Favorite setting
using a Strymon MiniSwitch. (See page 19 for details.)
Tap mode: RED - Allows you to control the SPEED of the 6-Stage
phaser with TAP tempo using a Strymon MiniSwitch.
MIDI mode: BLUE - Allows for the selection of three presets
using a Strymon MultiSwitch Plus. Full MIDI functionality is
available by sending MIDI Program Change messages via 1/4”
MIDI connection using a Strymon Conduit or MIDI EXP cable. Up
to 300 presets are available via MIDI.
(See page 22 for MultiSwitch Plus or page 23 for MIDI.)
1
2

Zelzah - Multidimentional Phaser
pg 16
SWEEP
phase time
RESONANCE
SPEED
DEPTH DEPTH
VOICEMIX
SPEED
multidimensional phaser
classic
barber
env
o
mild
strong
Press either footswitch to store the EXP/MIDI jack mode and begin
using Zelzah.
3
NOTE: EXP/MIDI jack mode is persistent across power cycles and
is not saved per preset.
Power Up Modes – Configuring the EXP/MIDI Jack (cont.)

Zelzah - Multidimentional Phaser
pg 17
INPUT
MONO
IN OUT L OUT R
STEREO USB
RIGHT IN LEFT OUT RIGHT OUT EXP
MIDI IN
USB
MIDI OUT
Use a TRS expression pedal to control the knobs of Zelzah.
External Control - Expression Pedal Setup
Connect an expression pedal to the EXP/MIDI jack of Zelzah
using a TRS cable.
Configure the EXP/MIDI jack for Expression mode.
(See page 15 for configuration instructions.)
Press and hold both footswitches until both LEDs blink GREEN.
Rock the expression pedal to the HEEL position. Only the ON
(4STAGE) LED will blink GREEN.
Set the knob(s) you would like to control to the desired settings for
the HEEL position of the expression pedal. Only the ON (4STAGE)
LED will turn RED.
2
1
3
4
5

Zelzah - Multidimentional Phaser
pg 18
External Control - Expression Pedal Setup (cont.)
Press either footswitch to exit and store the expression
pedal setup.
Set the knob(s) you would like to control to the desired settings for
the TOE position of the expression pedal. Only the ON (6STAGE)
LED will turn RED.
Now, rock the expression pedal to the TOE position. Now only the
ON (6STAGE) LED will blink GREEN.
8
7
6
NOTE: Expression pedal assignment is saved per Favorite setting
or preset.

Zelzah - Multidimentional Phaser
pg 19
External Control – Favorite Switch Setup and Compare Mode
Connect MiniSwitch or other external latching footswitch with a TRS
cable to store and recall your favorite setting.
Step on the external footswitch
to toggle between your Favorite
setting and the current setting on
Zelzah.
Configure the EXP/MIDI
jack for Favorite mode.
(See page 15 for more info.)
Connect an external switch
with a TRS cable to the
EXP/MIDI jack.
Dial in your desired sound.
To save your sound as
the new Favorite setting,
press and hold the ON
(4STAGE) footswitch for
until the ON (4STAGE) LED
blinks BLUE. Press the ON
(4STAGE) footswitch again
to save the Favorite setting.
1
2
3
4
INPUT
MONO
IN OUT L OUT R
STEREO USB
OR
COMPARE MODE
With the Favorite engaged, as
a knob or switch is adjusted,
the ON (4STAGE) LED flashes
GREEN when the current knob or
toggle switch position matches
the setting of the saved Favorite
setting.
NOTE: Along with the knobs
and toggle switches on the
face of the pedal, all Live
Edit settings and the bypass
state of 6-Stage and 4-Stage
are stored with the Favorite
setting. Power Up modes are
not stored with the Favorite
setting.
NOTE: Saving presets works
differently when using MIDI.
(See page 28 for more details.)
NOTE: The Favorite setting is
stored at MIDI program change
location 0.

Zelzah - Multidimentional Phaser
pg 20
External Control – Configuring MultiSwitch Plus
Press either footswitch to exit and store the MIDI channel, the MIDI
OUTPUT setting, and the EXP/MIDI jack mode.
Turn the SPEED (4-STAGE) knob all the way counter-clockwise to
set the MIDI channel to Channel 1. The ON (4-STAGE) LED should
be GREEN.
Press and hold the ON (4-STAGE) footswitch while connecting
power to the pedal. Hold until both LEDs stop blinking.
Turn the MIX knob to select any of the following options:
Send MIDI CC, PC, and Other Data: WHITE
Send MIDI CC and Other Data: GREEN
Send MIDI PC and Other Data: PURPLE
Send Other Data: AMBER
Turn the SPEED (6-STAGE) knob all the way clockwise to set
the EXP/MIDI jack to MIDI mode. The ON (6-STAGE) LED should
be BLUE.
5
2
1
3
4
Configure Zelzah and MultiSwitch Plus for remote access to three
additional presets.
