Days Chrome Plated Steel Wheelchair
Owner’s Manual

2
Table of Contents
Introduction ................................................................................................3
Intended Use .............................................................................................3
Technical Description ................................................................................3
Feature Guide ............................................................................................ 4
Safety Guidelines ....................................................................................... 5
Safe Operation ...........................................................................................5
Adjustment Procedures .............................................................................6
Footrest Adjustments ................................................................................6
Operations of Use ......................................................................................6
Footrests ....................................................................................................6
Armrests......................................................................................................6
Manual Brake .............................................................................................6
Folding Back ..............................................................................................6
Folding the Chair .......................................................................................7
Unfolding the Chair ....................................................................................7
Basic Propulsion.........................................................................................7
Transferring to and from the Chair ............................................................8
Tyres ...........................................................................................................8
Slopes & Gradients ....................................................................................8
Wheelchair Assistance ..............................................................................9
Transportation ............................................................................................9
Maintenance Inspection ............................................................................9
Cleaning .....................................................................................................9
Technical Specifications .......................................................................... 10
Warranty Information ................................................................................ 11
Limitation of Liability ................................................................................ 11
NEW OLD
09 146 3090 108
09 146 3108 138
09 143 9330 21823
09 143 9223 21823N
09 143 9132 21823FB
09 143 9173 21823FBN
09 143 9181 21823FBWHD
09 135 6674 21823WHD
09 143 9280 21823XWHD
NEW OLD
09 143 9116 23823
09 143 9397 23823N
09 135 6708 23823FB
09 143 9959 23823FBN
09 122 7412 23823FBWHD
09 122 7420 23823XWHD
09 122 7644 41824
09 143 9868 41824N
Product codes covered by these instructions

3
Introduction
Welcome to the Days Chrome Plated Steel wheelchair and thank you for choosing our product. This
latest model has been designed with specific practical user needs in mind. It combines solid, rugged
construction, safety and performance. We are confident that it will prove a reliable companion in your
home as well as outdoors.
This manual contains some useful tips and information on safety, operation and maintenance. Please
read it carefully to ensure that you get maximum enjoyment and benefit from your new independence
and mobility.
Whenever you require special advice and attention do not hesitate to contact your local Days
wheelchair dealer. They have all the equipment and know-how to provide an expert service and
assistance on technical and clinical applications to suit your particular need.
Intended Use
The Days Chrome Plated Steel manual wheelchairs are intended to assist and improve mobility for
those individuals who are less able or have walking difficulties who wish to maintain their independence
and freedom.
Your day to day activities will depend on your physical capabilities and your own specific
circumstances. If in doubt seek medical advice first.
The information is this booklet provides a general guide on how to use your chair safely and correctly.
Do not use the chair without reading this manual first.
Technical Description
The Days Chrome Plated Steel manual wheelchairs have a maximum carrying capacity of 115kg (18
stone). These must never be exceeded. The Days Chrome Plated Steel is classified as an ‘Invalid
Carriage’ for use indoors, on pavements, footpaths, pedestrian zones and areas free from motor traffic.
Use on the road or highway is not allowed except for the purpose of crossing.

4
Feature Guide
Attendant Propelled
Self-propelled
Armrest
Armrest
Footrest
Footrest
Footplate
Front Castor
Front Castor
Transit Wheel
Self-propelled Wheel
Manual Brake
Handrim
Fixed/Fold Down Back
Fixed/Fold Down Back
Footplate

5

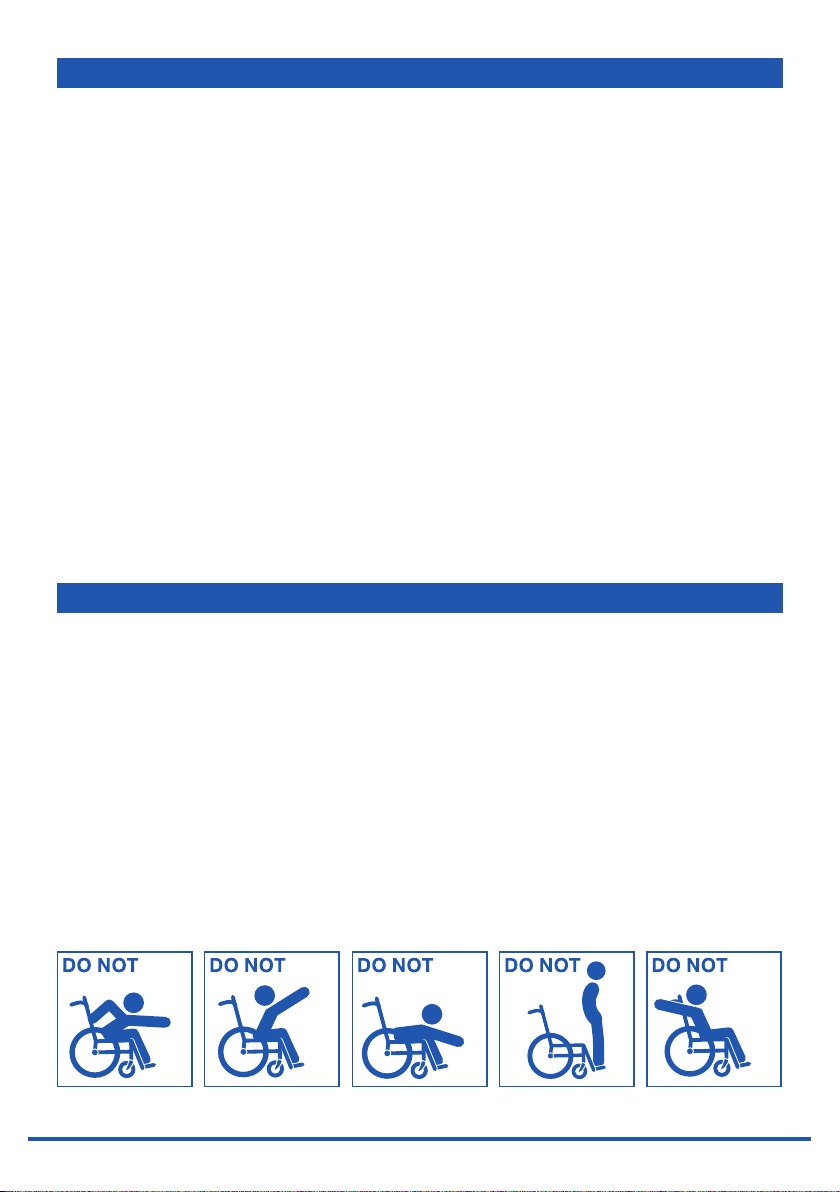

Safety Guidelines
• Do not exceed the following weight limits:
Standard range: 115 kg (18 stone), Heavy Duty: 140kg (22 stone).
• Do not use on the road, except when crossing between pavements.
• When crossing the carriageway of a public road always take extra care and observe the
Highway code
• Do not ride over deep, soft terrain (soft dirt, loose gravel, deep grass)
• Do not attempt to mount a kerb without assistance
• Do not carry passengers
• We recommend that you do not sit on your wheelchair when in a vehicle, but transfer to a
vehicle seat
• Always engage a slow speed when going down gradients
• Do not ride in reverse down a slope or kerb
• Always keep your feet on the footplate when moving
• Do not stand on the footplate when getting in or out of the chair
• We recommend the use of safety belt
• Always keep your pneumatic tyres to the correct pressures
• Do not use parts, accessories or adapters other then those authorised by Performance Health
International Ltd
• Keep the wheelchair away from children. It is not intended to be used as a toy
• The manual parking brakes are not designed for slowing-down
• Do not attempt to lift a wheelchair by lifting on the armrests or leg rests if they are removable
(detachable) type. Doing so may result in injury to the user or damage to the wheelchair
Safe Operation
When using indoors beware of narrow doors, steps, high surfaces, protruding wall fittings and
everyday household items such as children’s toys, electrical appliances etc. Take extra care in kitchen
environments.
To ensure stability and safe control you must maintain proper balance at all times. The wheelchair is
designed to remain stable during normal use as long as you do not move you centre of gravity outside
the normal seating position.
When reaching/bending forward do not lean your body out of the wheelchair further than the length of
the armrests. Do not attempt to reach objects by sliding forwards to the edge of the seat.
When reaching/bending backwards do not reach any further than your arm will extend without
changing your seating position.
Never attempt to use an escalator or stairway, always use a lift.
Occasionally check that the adjustments of the footrests and armrests are secure and are set in the
most comfortable position for use.

6
Adjustment Procedures

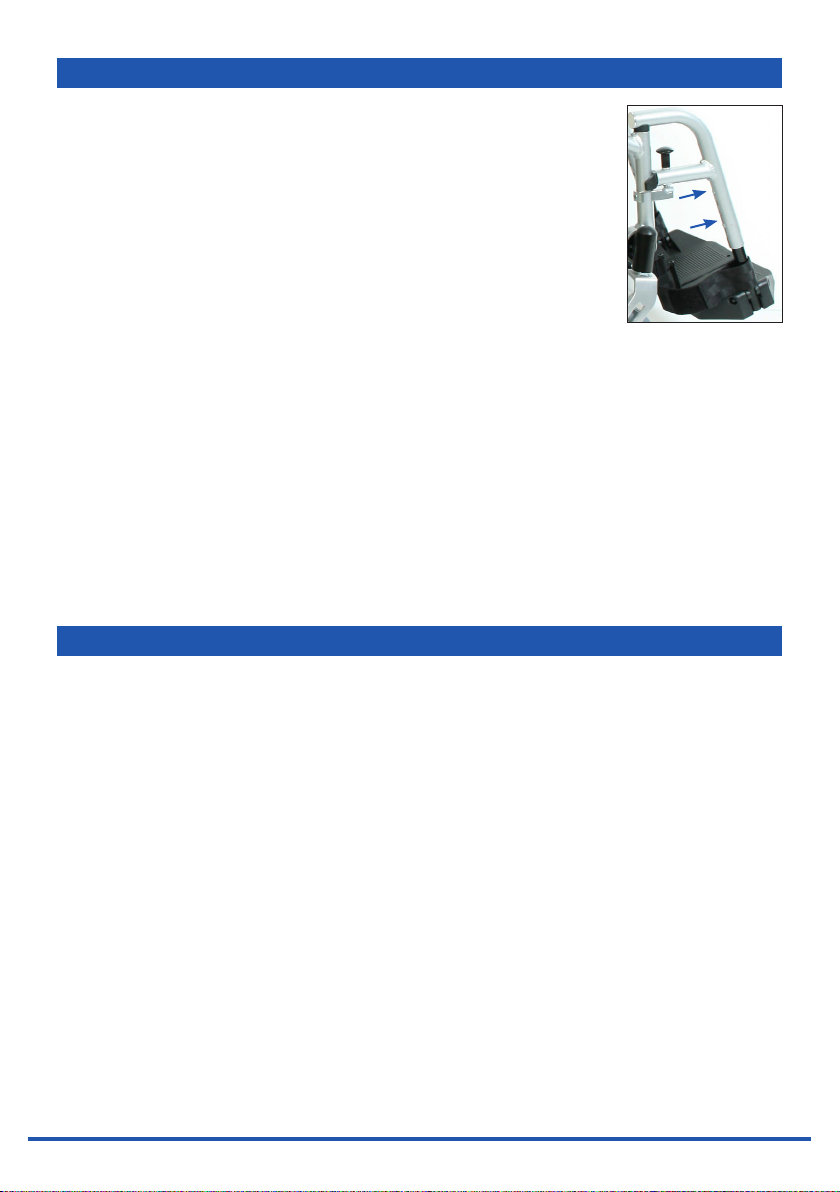

Swing-away Footrest
Length Adjustment
Adjustments are made with the user sitting in the wheelchair with feet
on footplates.
1) Use a spanner to loosen the bolt at the rear of the footrest support hanger.
2) Adjust the footplate up or down as needed to provide maximum support of
thighs on the seat upholstery, then re-tighten the bolt.
WARNING!
Ensure that desired front rigging adjustment does not cause pressure to legs
at front of seat upholstery.
Swing-away Elevating Leg Rest
Raising
1) Lift up on foot plate or support assembly behind the calf pad until desired position is achieved.
2) Release the foot plate; it will automatically lock into position.
Lowering
1) Firmly grasp leg rest close to foot pate and provide vertical support.
2) Activate the leg rest lever by pushing it out
3) Slowly lower the footplate until desired position is reached.
WARNING!
Do not allow leg rest to suddenly drop.
Operations of Use
Footrests
Your footrests are capable of being rotating outwards. To achieve this pull the release lever towards
you and rotate footrest in the required direction. Lift-off from the two pivot points to remove.
Armrests (Detachable type)
Both armrests are removable. To operate, push the release lever down to unclip and lift arm out of
front socket and rear sockets.
Manual Brake
This is a parking brake which is applied manually to the tyres when the chair is parked or stationary.
To apply the brake, push the lever forwards until the shoe is locked in place. Pull backwards to release.
Folding Back (If fitted)
This is available to reduce the overall height of the chair. Whilst at the rear of the chair, grip the small
lever and push down to release pin allowing the handle section to be folded.

7
Folding and Unfolding the Chair
Remove the seat cushion. The wheelchair is folded by grasping the seat canvas at the front centre with
one hand and at the rear with the other. A simple lifting action will draw both sides of the chair together
into the folded position.
When both wheels have been secured, grasp both side frames of the wheelchair and pull apart as far
as possible or at least until there is sufficient room to push down on the sides of the seat canvas. The
chair is fully open when the seat canvas is taut and flat. Place the seat cushion on top of the canvas
with the angled edge towards the front of the chair. Note that Velcro holds this in place.
Basic Propulsion
To move forwards or backwards, the user should release the brakes, grasp the handrims (attached to
rear wheels) and with a pushing action rotate them forwards or pull them backwards respectively.
To move to the right, hold the right handrim steady and push forward with the left handrim. To move to
the left, hold the left handrim steady and push forward the right handrim.
Transferring to and from the Chair
Circumstances and individual needs will vary from person to person, but if there are difficulties we
advise you to consult your therapeutic advisor who will help you to develop your skill for appropriate
transfer method that suits you.
During transfer always make sure that the brakes are in a locked position and the wheelchair is
manoeuvred as close as possible to the transfer seat
Tyres
Regularly check the condition of front & rear tyres for wear and tear. Contact your supplier
for replacements.
If you have pneumatic tyres fitted, the pressure indicated on the side of the tyre wall should not
be exceeded.
PULL APART PUSH
DOWN
HERE

8

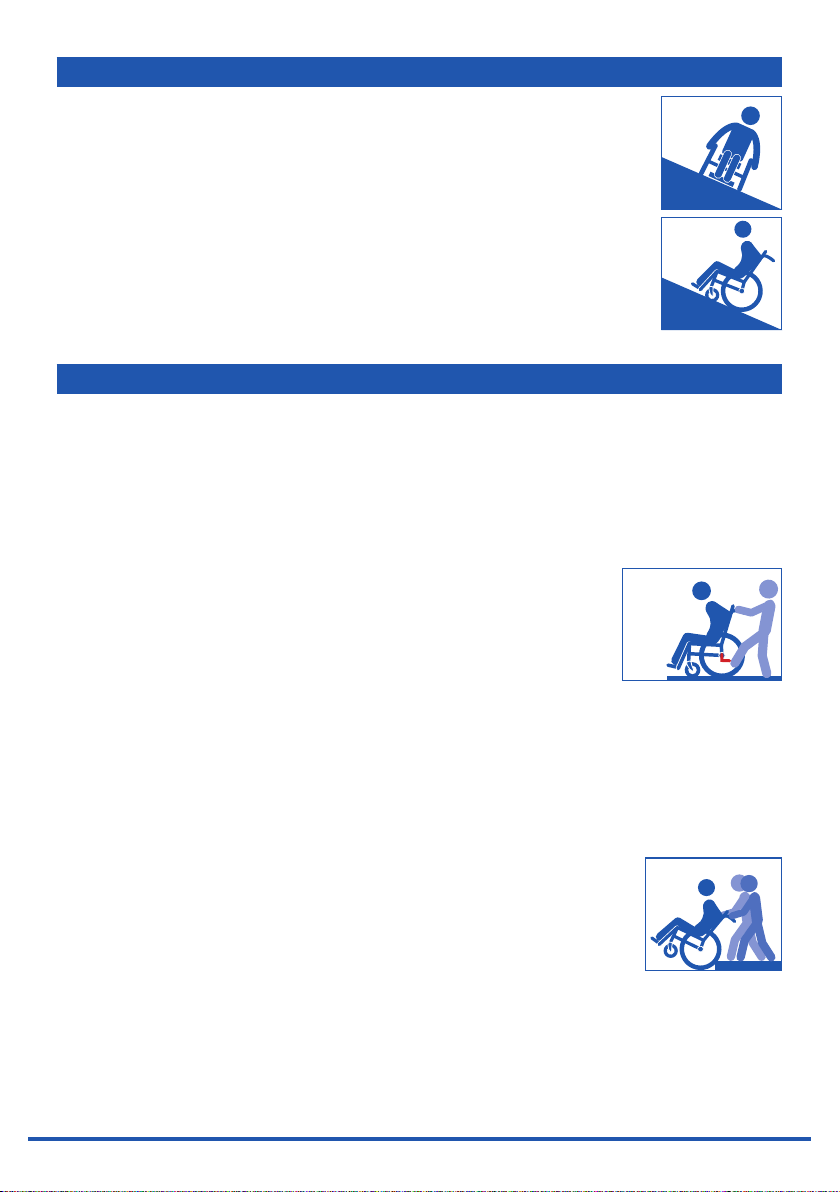

Slopes and Gradients
Do not attempt to climb or descend beyond your limitations to avoid tipping over.
Climbing Upwards
Lean the upper body forward and move the wheelchair forwards with short quick
pushes on the Handrims.
Downward Travel
Lean backwards in the chair and let the handrim slide gently through your hands
to control downward speed and direction.
Note: When travelling down or up a slope, avoid sharp turns, zigzag movements
or moving across the slope
Wheelchair Assistance
Practical Use
Many activities require the wheelchair owner to reach, bend and transfer in and out of the wheelchair.
These movements will cause a change to the normal balance, the centre of gravity and weight
distribution of the wheelchair.
To determine and establish your particular safety limits, activities involving reaching, bending and
transferring should first be practised with a qualified health care professional.
Tilting
WARNING! Do not tilt the wheelchair without assistance.
1. The attendant should grasp the push handles securely, making sure that
the handle grips are firmly attached.
2. Inform the chair occupant before tilting the chair and remind him/her to
lean back. Be sure the occupant’s feet and hands are clear of all wheels.
3. Place one foot on the tipping lever and apply a continuous motion until
the balance point is achieved. At this point, the attendant will feel a difference
in weight distribution (this usually occurs at about 14° angle).
4. Turn the wheelchair in the direction required.
5. Lower the front end, placing one foot on the tipping lever and grasping the push handles to slowly
lower to the ground.
NOTE: After mastering the techniques of tilting the chair, use this procedure to tackle kerbs, steps, etc.
Kerbs
1. The attendant should stand on the pavement and turn the chair so that the
rear wheels are against the kerb.
2. The chair should be tilted back to the balance point and in one continuous
movement, the rear wheels should be pulled up and over the kerb.
NOTE: We recommend that two attendants are utilised for this procedure.
KERB TILT
ALWAYS
USE THE
TIPPING
LEVER
BE CAREFUL
DO NOT

9
Transportation
We recommend that you do not sit on your Wheelchair when in a vehicle, but transfer to a vehicle
seat. A Wheelchair secured in a vehicle will not provide the equivalent safety level and security as the
vehicle’s seating systems.
However, when transfer is not practical or impossible, ensure the following:
1. Check that the vehicle is suitably designed, insured and equipped to transport a passenger seated in
a Wheelchair
2. Remove any part of the Wheelchair (accessories, etc.) that can be easily detached and store it in the
vehicle’s luggage hold
3. Make sure the Wheelchair is transported in a forward facing direction. Rearward facing is only
acceptable if the passenger’s head and back can be supported by a suitable bulkhead
4. Use the buckle seat belt (if fitted) with your chair as additional restraint
We recommend that the wheelchair is secured within the vehicle using the 4-point webbing tie-down
system with Karibiner, model no SYS02 (available from Unwin Safety Systems based in Yeovil, U.K.)
Note: Although safety during transportation largely depends upon the diligence of the person securing
the tie-downs and passenger restraints it is the user’s responsibility to ensure that the wheelchair has
been safely secured.
Maintenance and Inspection
We recommend that your wheelchair is serviced by your local dealer every twelve months. It is in your
best interests, not only to ensure your personal safety but also to ensure long life and reliability. Regular
service will identify early damage and worn components avoiding unnecessary faults occurring.
Weekly check that:
• Manual brakes do not rub the tyres and
secure the wheel when locked
• Castor bolts are tight and all fasteners
are secure
• The drive wheels axles are secure and there
is no excessive side movement or binding
when spun
• Tyres do not show excessive wear or damage
• Castors have proper tension, i.e. spinning
castors should come to gradual stop
Monthly check that:
• Tyres are not excessively worn
• The chair rolls straight (no excessive
drag or pull to one side)
• Pivot points are free of wear or looseness
• Seat and backrest upholstery is not for ripped
or sagging
• Frames are not worn or bent
Cleaning
Chromework and plastic mouldings can be cleaned with a damp soft cloth of warm soapy water. Do
not use any harsh abrasive cleaners, bleach base fluids or solvents.
Seat and back upholstery can be cleaned with a general purpose upholstery cleaner or sponged with
warm soapy water.

10
Technical Specifications
Optional Extras
Self-Propelled Attendant
Seat Width 46cm (18˝) 46cm (18˝)
Seat Depth 41cm (16˝) 41cm (16˝)
Seat Height (Front) 51cm (20˝) 51cm (20˝)
Seat Height (Rear) 47cm (18½˝) 47cm (18 ½˝ )
Backrest Height Above Seat 41cm (16˝) 41cm (16˝)
Footrest Length 38 - 53cm (15 - 21˝) 38 - 53cm (15 - 21˝)
Armrest Height Above Seat 2 5c m (9 ¾˝) 2 5c m (9 ¾˝)
External Width (Open) 67. 5 cm (2 6 ½˝) 63.5cm (25˝)
External Width (Closed) 28c m (11˝) 2 6 c m (10 ¼˝ )
External Depth (w/o Footrests) 82cm (32¼˝) 7 5c m (2 9 ½˝ )
External Depth (w Footrests) 107cm (42˝) 10 0 c m (3 9 ½˝ )
Chair Weight 19kg (48.3lb) 15kg (33lb)
Chair Weight (w/o Footrests) 17kg (37.4lb) 13kg (28.6lb)
Elevating Leg Rests
RP36 To suit Standard & Heavy Duty
RP36N To suit Narrow
Amputee Support
RP230 Pair
Cast Support
RP70L Left
RP70R Right
Desk Arms
RP54
Adjustable I.V. Pole
RP81A

11
Warranty Information
Days Chrome Plated Steel wheelchairs are warranted for 12 months from the date of purchase on
frame and crossbars.
• During the warranty period any parts that have become defective due to faulty workmanship or
material will be repaired or replaced without charge by a Days supplier/dealer
• The warranty excludes tyres, punctures and items that become worn due to normal wear and tear
such as upholstery and armrest pads
• The warranty excludes all items that have been subject to undue wear and tear and misuse
• Unauthorised changes or modifications will forfeit your warranty
• If a defect or fault is discovered, the Days supplier/dealer from whom the wheelchair was
purchased should be notified immediately
• The maximum user weight is 115kg (18 stone) for narrow and standard chairs and
140kg (22 stone) for the wide chairs.
Limitation of Liability
The warranty does not extend to the consequential costs resulting from fault clearance, in particular
freight and travel costs, loss of earnings, expenses, etc.
The manufacturer will not accept responsibility for any damage or injury caused by misuse or non-
observance of the instructions set out in this user manual.

12
Your Authorised Dealer
71535 Is2 © Copyright Performance Health International Ltd. 2019
These user instructions are available in large print, please contact Performance Health Customer Services for a copy.
Please retain these instructions for future reference.
Performance Health International Ltd.
Nunn Brook Road, Huthwaite,
Sutton-in-Ashfield, Nottinghamshire,
NG17 2HU, UK.
UK:
Tel: [phone]
Fax: [phone]
www.performancehealth.co.uk
International:
Tel: [phone]
Fax: [phone]
Performance Health Supply, Inc.
W68 N158 Evergreen Blvd.
Cedarburg, WI 53012, USA
www.performancehealth.com
Performance Health ANZ
Unit 3, 3 Basalt Road,
Pemulwuy NSW, Australia 2145.
Tel: [phone]
Fax: [phone]
www.performhealth.com.au
Performance Health France
13 rue André Pingat, CS 10045,
51724 Reims Cedex, France
Tel: [phone]
Fax: [phone]
www.performancehealth.fr
Days®is a registered trademark of Performance Health International Ltd.
