THE PROFESSIONAL WARMING DRAWER
Installation Guide
MODELS:
WDT-30
WDTI

1
Thank you for selecting this DCS Warming Drawer. Because of its unique features, we have developed this
Installation Guide. It contains valuable information on how to properly install your new Warming Drawer for
years of safe and enjoyable use.
For your convenience, product questions can be answered by a DCS Customer Care Representative by
phone:[phone], or email: [e-mail].
NOTE:Inspect the product to verify that there is no shipping damage. If any damage is detected, call the
shipper and initiate a damage claim. DCS by Fisher & Paykel is not responsible for shipping damage.
DO NOT discard any packing material (box, pallet, straps) until the unit has been inspected.
WARNING
The warming drawer is not intended to be used in conjunction with water. DO NOT fill the drawer or warming
cavity with water. Doing so could create a shock hazard, resulting in a possible injury.
WARNING
TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A WARMING DRAWER GREASE FIRE, OBSERVE THE
FOLLOWING: SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn off the Warming
Drawer. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately EVACUATE AND CALL THE FIRE
DEPARTMENT. NEVER PICK UP A FLAMING PAN - You may be burned. DO NOT USE WATER, including wet
dishcloths or towels - a violent steam explosion will result. Use an extinguisher ONLY if:
1. You know you have a Class ABC extinguisher, and you already know how to operate it.
2. The fire is small and contained in the area where it started.
3. The fire department is being called.
4. You can fight the fire with your back to an exit.
WARNING
DO NOT use water on grease fires. Turn OFF the warming drawer, then smother the fire with baking soda or use
adry chemical or foam-type fire extinguisher.
PLEASE RETAIN THIS MANUAL FOR FUTURE REFERENCE.
AMESSAGE TO OUR CUSTOMERS
NOTE: Please write the Model, Code, and Serial Numbers on this page for references (located at the front right
hand side of the body of the drawer).
MODEL NUMBER CODE SERIAL NUMBER

TABLE OF CONTENTS
2
SAFETY PRACTICES & PRECAUTIONS 3-4
FEATURES 5
INSTALLATION INSTRUCTIONS
Specifications 6
Mounting Installation 7-8
Custom Panel Installation (WDTI) 9
Cabinet Installation 10
SERVICE 11
WARRANTY 12-13

3
READ AND UNDERSTAND THESE PRECAUTIONS
■Read this Installation Guide thoroughly before installation. This will help to reduce the risk of fire, electric
shock, or injury to persons.
■Remove all packaging materials from your appliance.
■Install according to instructions. See page 6-10 to insure proper installation and servicing.
■Be sure to have a qualified service technician install and ground this appliance.
■Plug into rated outlet: 120 Volts AC, 5 amp min., 15 amp maximum circuit requirement.
PREHEATING INSTRUCTIONS
The Warming Drawer is designed to keep cooked foods warm for extended periods of time. The drawer must
be pre-heated before use on high (see Use and Care Guide). If the warming drawer isn’t pre-heated, the
internal temperature of the food being warmed could fall below the minimum safe level and bacteria could
develop. Always preheat the drawer according to the instructions described in the warming drawer Use and
Care Guide.
■Children should not be left alone or unattended in an area where appliances are in use. They should never be
allowed to turn knobs, push buttons, sit or stand on any part of an appliance.
■Children in walkers, or children crawling can be attracted to the round door handle and may grab and open
the warming drawer. This can result in injury from the door being pulled open on a child, or severe burns if it
is in use and hot.
WARNING:
Do not store items of interest to children in, above or around any appliance. Children could be seriously injured if
they should climb ontothe appliance to reach these items.
Be certain to use only dry pot holders:Moist or damp pot holders on hot surfaces may cause burns from
steam. Do not use a towel or other bulky cloth in place of pot holders.
■Never store anything in the warming drawer. Flammable materials can catch fire, plastic items may melt or
ignite and other types of items could be ruined.
■Do not hang articles from any part of the appliance or place anything against the drawer. Some fabrics are
quite flammable and could catch on fire.
■For safety reasons and to avoid damage to the appliance, never sit, stand, or lean on the warming drawer door.
■For personal safety, wear proper apparel. Loose fitting garments or hanging sleeves should never be worn
while using this appliance. Some synthetic fabrics are highly flammable and should not be worn while using
this appliance.
■Do not use aluminum foil to line any part of the warming drawer. Using a foil liner could result in a fire
hazard, or the obstruction of the flow of heat and ventilation air. Foil is an excellent heat insulator and heat
will be trapped underneath it. This trapped heat can upset the performance of the warming drawer parts.
WARNING:
This appliance is designed for warming food. Based on safety considerations, never use the warming drawer to
warm or heat a room.
■Aswith any cooking or heating appliance, never leave the warming drawer unattended when warming food,
this could be a fire hazard.
■Only certain types of glass, heat proof glass-ceramic, ceramic, earthenware or glazes are suitable for use in this
SAFETY PRACTICES AND PRECAUTIONS

4
SAFETY PRACTICES & PRECAUTIONS
warming drawer. Utensils that are not thermally heat safe may break with sudden temperature changes.
■Never heat unopened containers, a build up of pressure may cause the container to burst.
■Grease is flammable, avoid letting grease deposits collect in the warming drawer, clean up spillage.
■120 Volts AC, 5 amp min., 15 amp maximum circuit requirement.
■DO NOT use water on grease fires. Turn OFF the warming drawer, then smother the fire with baking soda or use
adry chemical or foam-type fire extinguisher.
■When opening the drawer while keeping sauces warm, tomato sauce, etc., the drawer must be opened slowly to
avoid spillage.
■Use care when opening a hot warming drawer; to avoid severe burns, open slowly, allow the hot air or steam to
escape before reaching in to remove or replace any foods.
■Do not repair or replace any part of this appliance unless it is specifically recommended in this manual. All
other servicing should be referred to a qualified Service Technician. Service Technicians must disconnect the
power supply before servicing this appliance.
■When using the warming drawer: DO NOT TOUCH THE INTERIOR SURFACES or the exterior area immediately
surrounding the door until it has had sufficient time to cool to avoid burn injuries.
■Clean the warming drawer with caution. Avoid steam burns; do not use a wet sponge or cloth to clean the
appliance while it is hot. Some cleaners produce noxious fumes if applied to a hot surface. Follow directions
provided by the cleaner manufacturer.
■Be sure all the controls are turned off and the appliance is cool before using any type of aerosol cleaner on or
around the appliance. The chemical that produces the spraying action could, in the presence of heat, ignite or
cause metal parts to corrode.
■Do not touch the heating element or interior surfaces of the warming drawer, even if they appear dark in color.
They may still be hot enough to cause burn injury. Allow sufficient time to cool.
■Donot allowflammable materials which mayignite to come in contact with the hot heating element or the
interior surface of the warming drawer until the unit has had a sufficient time to cool.

5

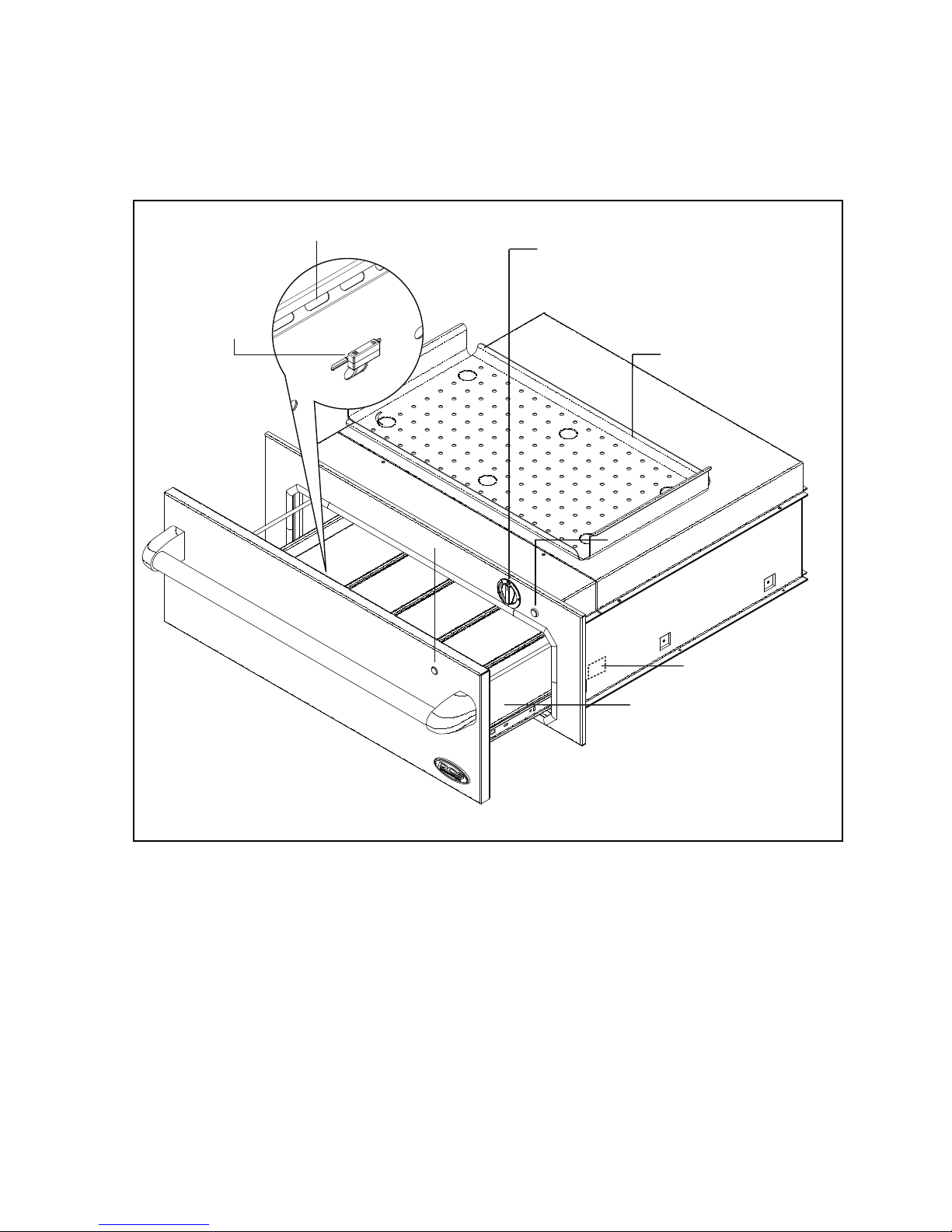

FEATURES
Moist/
Crisp
Knob
*
Power
Indicator
Lens
Thermostat
Control
Knob
Power
Indicator
Light
Stainless Steel
Drawer
Removable
Stainless
Steel
Tray
Model and
Serial tag location
on inside panel
Vent Holes
*
*
Fig. 01
*Not available on fully
integrated model (WDTI).

6
INSTALLATION INSTRUCTIONS
SPECIFICATIONS
The cabinet depth from the outer edge of the face frame to the inside back of the cabinet or wall should be at
least 24” (see Fig. 02).
The Warming Drawer should be installed into a base cabinet with minimum outside dimensions of 13-1/4” high
by 30” wide by 24” deep.
Power supply required: 120Volts AC; 5 amp min., 15 amp maximum circuit requirement.
1-1/2" min.
to bottom
of
countertop
A 120 volt AC GFI
outlet should be
located below the
Warming Drawer
2x4's or similar
support
10 1/16"
+
–
25-3/4 1/16"
+
–
24"
>
–
20"
10-1/2"
29-11/16"
23-1/2"
25-1/16"
28-3/16"
POWER
CORD
9-3/4"
1/4"
1/2"
Fig.02 Fig. 03
Fig. 04
CUT OUT DIMENSIONS WARMING DRAWER DIMENSIONS
(FRONT VIEW)
WDT-30 DIMENSIONS
(SIDE VIEW)
POWER
CORD
1/2"
1/4"
23-1/2"
24-1/8"
9-3/4"
8-5/16"
WDTI
(SIDE VIEW)
Fig. 05

7
MOUNTING INSTALLATION
The lower rear corners of the cabinet need to provide proper support to the back of the Warming Drawer and
the anti-tip mounting clips. A 120 volt AC outlet should be located no further than 36 inches from the back
center of the Warming Drawer.
The bottom rear section of the cabinet should be made of solid plywood or two 2x4 beam. It holds the anti-
tip mounting clips and supports the weight of Warming Drawer, which is 90 lbs. (see Fig. 06 and 07). If two
2x4 beams are used, the distance between their centers must be 20” to be able to secure the Warming Drawer.
STEP 1
Use the screws provided and attach the mounting clips. They must be installed for anti-tip safety to the
bottom support at the back. See placement dimensions in figure below (see Fig. 06 and 07).
STEP 2
Plug power cord into AC outlet. Slide the body onto the anti-tip mounting clips (see Fig. 07).
STEP 3
Use the two supplied 1-1/2” long screws through the two embossed holes (see Fig. 08) to secure the front of
the Warming Drawer.
INSTALLATION INSTRUCTIONS
Slide body
on to Anti-Tip
mounting clips
mounting clips
21-1/2"
Fig.06

8
INSTALLATION INSTRUCTIONS
Center line
to Center line
for mounting clips for
WDT-30
20"
WDTI
Fig.07
Fig. 08
1-1/2”
mounting
screws
Power cord
Slot
Slot

9
INSTALLATION INSTRUCTIONS
CUSTOM PANEL INSTALLATION OF THE WARMING DRAWER INTEGRATED (WDTI)
STEP 1
Remove drawer as per instructions (see Use & Care Manual).
STEP 2
Check the dimensions of the front face (see fig. 09).
STEP 3
Cut the custom panel to the desired dimensions, knowing that the panel must cover the paper front template
plus 1/8” on all four sides for a good presentation. The thickness of the custom panel must be greater than
9/16” to allow for clearance for the tips of the screws holding the drawer when the custom panel is mounted.
STEP 4
Center the provided paper front template on the back of the custom panel to drill or cut the clearance areas
for the hardware holding the drawer. (Note: the drill sizes and callouts are on the template.)
STEP 5
Fasten the custom panel to the front face with the supplied screws as shown in fig. 09.
Fig. 09
25-3/4”
Front face
(WDTI only)
Screws to hold
custom panel to
Warming Drawer
8-5/16”
10-1/2”
29-11/16”
Paper front
template
ø1/4” clearance
5/16” deep
ø1/2” clearance
1/2” deep
11/16” x 2-1/8” clearance
1/8“deep
Custom panel

10
warming drawer
cutout**
11-3/16"
double
wall oven
cutout
15-3/4"
10 1/16"
+
–
25-3/4 1/16"
+
–
SINGLE Wall Oven and Microwave and
Warming Drawer Installation
Fig.10
DOUBLE Wall Oven and
Warming Drawer Installation
INSTALLATION INSTRUCTIONS
warming drawer
cutout**
single
wall oven
cutout
microwave
cut-out
18-3/4"
11-3/16"
25-3/4 1/16"
+
–
10 1/16"
+
–
Fig. 11
**The floor of the opening should be constructed of plywood strong enough to support the weight of
the oven (or use 2x4 constructions - see fig. 02)
CABINET INSTALLATION

11
HOW TO OBTAIN SERVICE
HOW TO OBTAIN SERVICE:
Before you call for service:
1. Is the circuit breaker tripped or the fuse blown?
2.Is there a power outage in the area?
For warranty service, please contact your local service provider or DCS Customer Care Representative at
[phone]. Before you call, please have the following information ready:
■Model Number (located at the front right hand side of the body of the drawer)
■Serial Number (located at the front right hand side of the body of the drawer)
■Code (located at the front right hand side of the body of the drawer)
■Date of installation
■Abrief description of the problem
Your satisfaction is of the utmost importance to us. If a problem cannot be resolved to your satisfaction, please
write to Customer Care or email: customer[email protected]
Write:
Fisher & Paykel Appliances, Inc.
Attention: DCS Customer Care
5900 Skylab Road
Huntington Beach, CA 92647

12
WARRANTY
LIMITED WARRANTY
When you purchase a new DCS Professional Warming Drawer you automatically receive a One Year Limited
Warranty covering parts and labor for the entire product for servicing within the 48 mainland United States,
Hawaii, Washington D.C. and Canada. In Alaska the Limited Warranty is the same except that you must pay to
ship the Product to the service shop or the service technician’s travel to your home. Products for use in
Canada must be purchased through the Canadian distribution channel to ensure regulatory compliance.
FISHER & PAYKEL UNDERTAKES TO:
Repair without cost to the owner either for material or labor any part of the Product, the serial number of
which appears on the Product, which is found to be defective. In Alaska, you must pay to ship the Product to
the service shop or for the service technician’s travel to your home.
If we are unable to repair a defective part of the Product after a reasonable number of attempts, at our
option we may replace the part or the Product, or we may provide you a full refund of the purchase price of
the Product (not including installation or other charges).
This warranty extends to the original purchaser and any succeeding owner of the Product for products
purchased for ordinary single-family home use. All service under this Limited Warranty shall be provided by
Fisher & Paykel Appliances Inc. or its Authorized DCS Service Agent during normal business hours.
HOW LONG DOES THIS LIMITED WARRANTY LAST?
Our liabilityunder this Limited Warranty for the entire product expires One Year from the date of purchase of
the Product bythe first consumer.
Our liability under any implied warranties, including the implied warranty of merchantability (an unwritten
warranty that the Product is fit for ordinary use) also expires One Year (or such longer period as required by
applicable law) from the date of purchase of the Product by the first consumer. Some states do not allow
limitations on how long an implied warranty lasts, so this limit on implied warranties may not apply to you.
THIS WARRANTY DOES NOT COVER:
A. Service calls that are not related to any defect in the Product. The cost of a service call will be charged if the
problem is not found to be a defect of the Product. For example:
1. Correct faulty installation of the Product.
2. Instruct you how to use the Product.
3. Replacehouse fuses, reset circuit breakers, correct house wiring or plumbing, or replace light bulbs.
4. Correct fault(s) caused by the user.
5. Change the set-up of the Product.
6. Unauthorized modifications of the Product.
7. Noise or vibration that is considered normal, for example, drain/fan sounds, regeneration noises or user
warning beeps.
8. Correcting damage caused by pests, for example, rats, cockroaches etc.

13
WARRANTY
B. Defects caused by factors other than:
1. Normal domestic use or
2. Use in accordance with the Product’s Use and Care Guide.
C. Defects to the Product caused by accident, neglect, misuse, fire, flood or Act of God.
D. The cost of repairs carried out by non-authorized repairers or the cost of correcting such unauthorized repairs.
E. Travel Fees and associated charges incurred when the product is installed in a location with limited or restricted
access. (i.e. airplane flights, ferry charges, isolated geographic areas).
F. Normal recommended maintenance as set forth in the Product’s Use and Care Guide.
If you have an installation problem, contact your dealer or installer. You are responsible for providing adequate
electrical, exhausting and other connection facilities.
We are not responsible for consequential or incidental damages (the cost of repairing or replacing other
property damaged if the Product is defective or any of your expenses caused if the Product is defective). Some
states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or
exclusion may not apply to you.
HOW TO GET SERVICE
Please read your Use and Care Guide. If you then have any questions about operating the Product, need the
name of your local DCS Authorized Service Agent, or believe the Product is defective and wish service under this
Limited Warranty, please contact your dealer or call us at:
TOLL FREE 1-888-936-7872 or contact us through our web site: www.dcsappliances.com
You may be required to provide reasonable proof of the date of purchase of the Product before the Product will
be serviced under this Limited Warranty.
COMMERCIAL USE
This warrantyapplies toappliances used in residential applications; it does not cover their use in commercial
situations.
NO OTHER WARRANTIES
This Limited Warranty is the complete and exclusive agreement between you and Fisher & Paykel Appliances Inc.
regarding any defect in the Product. None of our employees (or our Authorized Service Agents) are authorized to
make any addition or modification to this Limited Warranty.
Warrantor: Fisher & Paykel Appliances, Inc.
If you need further help concerning this Limited Warranty, please call us at the above number, or write to: Fisher
& Paykel Appliances, Inc., 5900 Skylab Road, Huntington Beach, CA 92647
This Limited Warranty gives you specific legal rights, and you may also have other rights which vary from state to
state.
Fisher & Paykel Appliances Inc. is a leading manufacturer of premium quality cooking and specialty appliances
under the Fisher & Paykel and DCS brands.

NOTE
14

CHAUFFE-PLATS PROFESSIONNEL
Guide d'installation
MODÈLES:
WDT-30
WDTI

1
ÀL'INTENTION DE NOS CLIENTS
Nous vous remercions d'avoir choisi ce chauffe-plats DCS. Nous avons conçu ce Manuel d'installation et
d'entretien pour expliquer les fonctions uniques de cet appareil. Il contient des informations extrêmement
utiles sur la façon correcte de faire fonctionner votre nouveau chauffe-plats et d'en faire l'entretien. Vous
pourrez ainsi en profiter pendant des années en toute sécurité.
Si vous avez des questions au sujet de notre produit, communiquez avec un représentant du centre de service à
la clientèle DCS par téléphone :1-888-936-7872, ou par courriel : customer[email protected].
REMARQUE : Veuillez noter les numéros de modèle, code, et de série sur cette page pour information (situé sur
le panneau droit intérieur de la cavité du tiroir derrière le côté du tiroir droit)
NUMÉRO DE MODÈLE CODE NUMÉRO DE SÉRIE
REMARQUE :Inspecter le produit pour vérifier qu’il n’a pas été endommagé pendant l’expédition. En cas de
dommages, contacter le transporteur et entamer une déclaration pour dommage. DCS by Fisher & Paykel n’est
en aucun cas responsable des dommages pendant l’expédition.
Ne pas jeter le matériau d’emballage (boîte, palette, sangles) avant d’avoir inspecté l’unité.
AVERTISSEMENT
Le chauffe-plats n'est pas conçu pour être utilisé avec de l'eau. NE remplissez PAS le tiroir ou le logement du
chauffe-plats avec de l'eau. Cela pourrait créer un risque de choc et causer des blessures.
AVERTISSEMENT
POUR RÉDUIRE LES RISQUES DE BLESSURES EN CAS DE FEU DE GRAISSE SUR LA CUISINIÈRE, RESPECTEZ LES
CONSIGNES SUIVANTES : ÉTOUFFEZ LES FLAMMES à l'aide d'un couvercle hermétique,d'une plaque à biscuits ou
d'un plateau métallique,puis éteignez le brûleur. ÉVITEZ DE VOUS BRÛLER. Si les flammes ne s'éteignent pas
immédiatement, ÉVACUEZ LES LIEUX ET APPELEZ LES POMPIERS. NE SOULEVEZ JAMAIS UN RÉCIPIENT EN FEU -
Vous pourriez vous brûler. N'UTILISEZ PAS D'EAU, y compris des serviettes mouillées - une explosion de vapeur
violente pourrait en résulter. Utilisez un extincteur SEULEMENT si :
1Vous êtes sûr qu'il s'agit d'un extincteur de classe ABC et savez comment le faire fonctionner.
2. Le feu est limité et restreint à la zone où il s'est déclenché.
3. Leservice des pompiers a été appelé.
4. Vous pouvez combattre l'incendie le dos tourné vers une sortie.
AVERTISSEMENT
NE VERSEZ PAS d'eau sur les feux de graisse. Éteignez le chauffe-plats, puis étouffez le feu avec du bicarbonate de
soude ou à l'aide d'un extincteur à poudre ou à mousse.
VEUILLEZ CONSERVER CE MANUEL À TITRE DE RÉFÉRENCE.

2
TABLE DES MATIÈRES
MESURES DE SéCURITé ET DE PRéCAUTION 3-4
CARACTERISTIQUES DU CHAUFFE-PLATS 5
INSTRUCTIONS DE MONTAGE
Specifications 6
Montage et Installation 7-8
Chauffe-plats intégré 9
Four, micro-ondes et installation de chauffe-plats 10
SERVICE 11
GARANTIE 12-13

3
MESURES DE SÉCURITÉ ET DE PRÉCAUTION
VEUILLEZ LIRE ET BIEN ASSIMILER CES CONSIGNES
■Veuillez lire attentivement ce guide d'installation avant d'utiliser votre nouvel appareil. Ceci vous permettra de
réduire les risques d'incendie, de chocs électriques ou de blessures.
■Retirez tout le matériel d'emballage de l'appareil.
■Procédez à l'installation conformément aux instructions. Voir pages 6-9, pour assurer une installation et un
entretien corrects, respectez les instructions fournies avec l'appareil.
■Confiez la mise à la terre de l'appareil à un technicien qualifié.
■Branchez l'appareil dans une prise de 120 V C.A., 5 A min., 15 A maximum requis.
INSTRUCTIONS DE PRÉCHAUFFAGE
Lechauffe-plats est conçu pour garder les aliments cuits à une température chaude pendant de longues
périodes. Il doit être préchauffé avant toute utilisation (voir tableau en page 5 du Guide opérationnel). Il doit
être préchauffé pendant une demi-heure au moins à température maximum. Si le chauffe-plats n'est pas
préchauffé, la température interne des aliments chauffés pourrait baisser à un niveau dangereux propice au
développement des bactéries. Préchauffez toujours le chauffe-plats selon les instructions de la section du
manuel qui traite d'utilisation et d'entretien de l'appareil.
■Les enfants ne doivent pas être laissés seuls ou sans surveillance dans un endroit où l'on utilise ce type
d'appareil. Il ne faut jamais les laisser tourner ou enfoncer des boutons, ni s'asseoir ou se tenir debout sur
l'appareil.
■Des enfants en marchette ou à quatre pattes peuvent être attirés par la poignée ronde de la porte et la saisir
pour ouvrir le chauffe-plats. Ils pourraient alors se blesser ou être brûlés sérieusement si l'appareil est en
fonctionnement et qu'il est chaud.
AVERTISSEMENT
Évitez de ranger des articles pouvantattirer les enfants dans l'appareil, au-dessu ou à proximité. Les enfants
pourraientêtre blessés sérieusement s'ils grimpent sur l'appareil pour atteindre ces articles.
Utilisez seulement des gants isolants secs: Les gants humides sur des surfaces chaudes peuvent provoquer des
brûlures causées par la vapeur. N'utilisez pas de serviette ou de chiffon épais à la place de gants isolants.
■Ne rangez jamais rien dans le chauffe-plats. Des matériaux inflammables pourraient prendre feu, des éléments
en plastique pourraient fondre ou s'enflammer et d'autres types d'objets pourraient être détruits.
■Ne suspendez aucun article sur l'appareil et ne placez aucun objet contre lui. Certains matériaux sont
extrêmement inflammables et pourraient prendre feu.
■Pour des raisons de sécurité et pour ne pas endommager l'appareil, évitez de vous asseoir, de vous tenir debout
ou de vous appuyer contrela porte du chauffe-plats.
■Pour assurer votre propre sécurité, habillez-vous de façon appropriée. Ne portez jamais de vêtements ou de
manches lâches lorsque vous utilisez l'appareil. Certains tissus synthétiques sont extrêmement inflammables et
ne doiventpas êtreportés pendantl'utilisation de l'appareil.
■Ne recouvrez aucune partie du chauffe-plats avec du papier aluminium. L'utilisation de papier aluminium peut
créer un risque d'incendie ou empêcher la circulation de la chaleur et de l'air de ventilation. C'est un excellent
isolant thermique qui peut emprisonner la chaleur. Celle-ci pourrait alors affecter la performance des pièces du
chauffe-plats.
