De Vielle DEF766326 Service manual

INSTALLATION & INSTRUCTION MANUAL
Model: DEF766326
PLEASE RETAIN THIS MANUAL FOR FUTURE REFERENCE

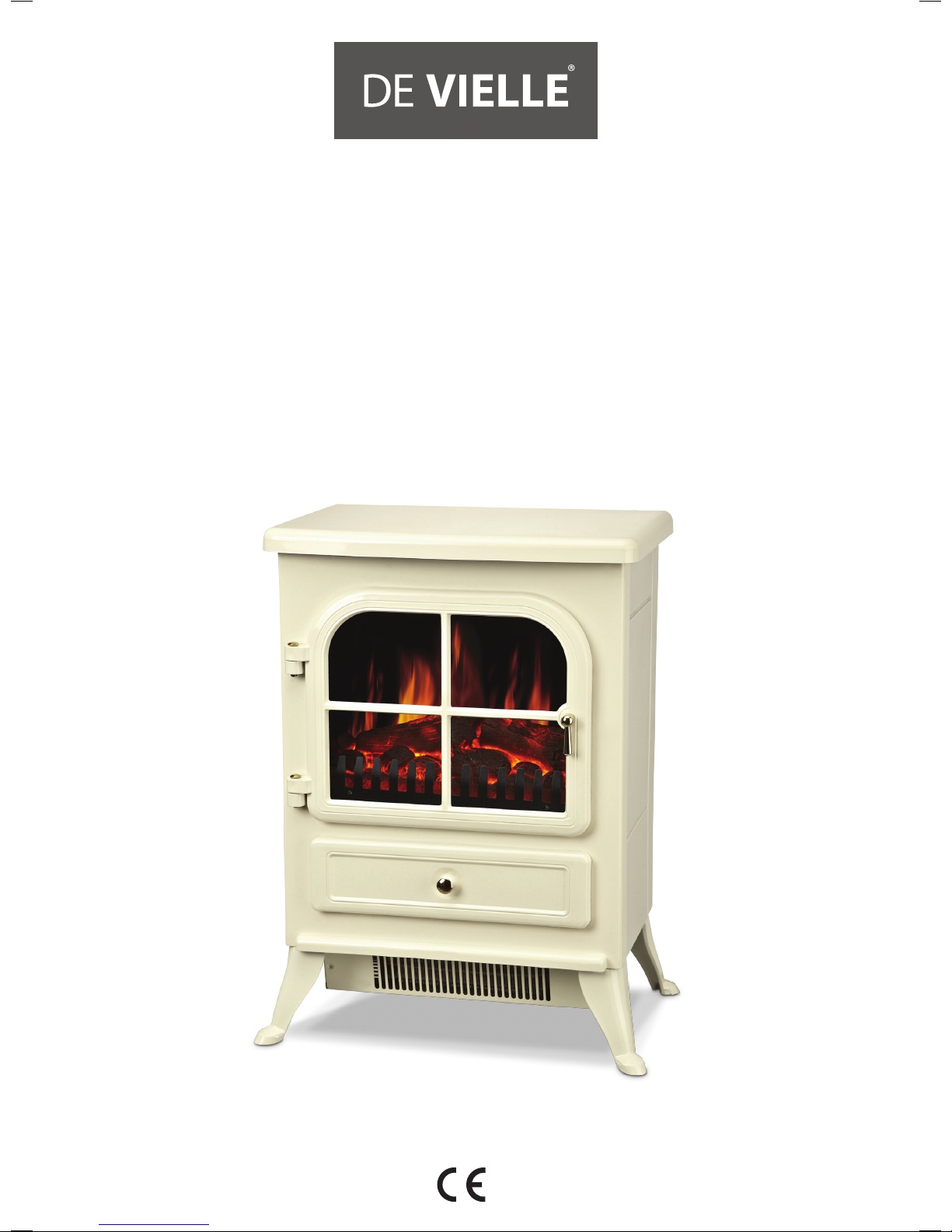

Classic Electric Stove
1800W

2
CAUTION:
• Pleasereadallinstructionscarefullybeforeusingthisproduct.
• Makesurethatthevoltageratinglabelonthetypeplate  
 correspondstoyourmainvoltage.Ifnotseeyourretaileranddo
 notconnecttheappliance.
• Neverusetheapplianceunsupervisedwheninuse.
• Ifyouhavetoleaveevenforashortmomentpleasestopthe 
 appliance.
• Keepoutofreachofchildrenanddonotallowthemtooperate
 thisappliance
• Onlyusetheappliancefordomesticpurposesandintheway 
 indicatedintheseinstructions.
• Fromtimetotimecheckthecordfordamages.Neverusethe 
 applianceifthecordoranypartoftheapplianceshowsany 
 signsofdamage.
• Ifthesupplycordisdamaged,itmustbereplacedbythe  
 manufacturer,itsserviceagentorsimilarlyqualiedpersonsin
 ordertoavoidahazard.
• Makesuretheconnectioncorddoesnottouchanyhotsurfaces.
WARNING
Inordertoavoidoverheating,donotcovertheheater.
• Keeptheapplianceatleast50cm(20inches)fromwallsandany
otherthing,topermitagoodaircirculation.
• Donotusetheapplianceoutdoors
• Donotuseifyouhavewethands.
• Neverusetheapplianceonornearhotsurfaces.
• Nevermovetheappliancebypullingthecord.
• Beforecleaningtheappliance,makesureitisunpluggedfrom
thepowerandthatitiscompletelycooled.
• Donotcleantheappliancewithabrasivechemicals.

3
• Neveruseaccessoriesthatarenotrecommendedorsuppliedby
 themanufacturer.Itcouldcausedangertotheuserordamageto
 theappliance
• Theheatermustnotbelocatedimmediatelybelowasocketoutlet.
• Dotusethisheaterwithaprogrammer,timeroranyotherdevice
 thatswitchestheheateronautomatically,sinceareriskexistsif
 theheateriscoveredorpositionedincorrectly.
• Donotusethisheaterintheimmediatesurroundingsofabath,a
 showeroraswimmingpool.

CAUTION:
• Inordertoavoidahazardduetoinadvertentresettingof  
 thethermalcutout,thisappliancemustnotbesuppliedthrough
 anexternalswitchingdevice,suchasatimer,orconnectedtoa
 circuitthatisregularlyswitchedonandoffbytheutility.
• Thisappliancecanbeusedbychildrenagedfrom8yearsand 
 aboveandpersonswithreducedphysical,sensoryormental
 givensupervisionorinstructionconcerninguseoftheappliance
 inasafewayandunderstandthehazardsinvolved.Childrenshall
 notplaywiththeappliance.Cleaningandusermaintenanceshall
 notbemadebychildrenwithoutsupervision.
 Childrenoflessthan3yearsshouldbekeptawayunless  
 continuouslysupervised.
• Childrenagedfrom3yearsandlessthan8yearsshallonlyswitch
 on/offtheapplianceprovidedthatithasbeenplacedorinstalled
 initsintendednormaloperatingpositionandtheyhavebeen
 givensupervisionorinstructionconcerninguseoftheappliancein
 asafewayandunderstandthehazardsinvolved.Childrenaged
 from3yearsandlessthan8yearsshallnotplugin,regulateand
 cleantheapplianceorperformusermaintenance.

4
CAUTION
—Somepartsofthisproductcanbecomeveryhotandcauseburns.
 Particularattentionhastobegivenwherechildrenandvulnerable
 peoplearepresent.
HeaterControlPanel
Nevercovertheheaterorobstructtheopeningatthebaseofthe
heater,thiscouldcauseoverheatingandconsequentriskofre.
Nevermovetheheaterwhenitisoperating,thiscouldcausethebulb
breakdown.Pleaseturntheheateroffifyouwanttomoveit.
Whenyouturntheheateronforthersttimeyoumaynoticeaslight
odor,thisisharmlessandwillstopafterashortamountoftime.
Thefollowingswitchesarelocatedunderthecontrolscoveratthe
frontoftheheater.
1) Thermostat
2) FireAdjustableSwitch
3) Switches
a. Fan(withoutheating)
b. Heat900W
c. Heat900W
d. Fireeffect
13a 3b 3c 3d 2

5
OperatingInstructions
• InsertPlugIntoSocket
Functions
• Openthecontrolpanelcover.
• Selectthedesiredfunction:
- Fireeffect(3d)
- Fan(3a)(withoutheating)
- Halfpower900w(3a+3b)
- Fullpower1800wwithnoreeffect(3a+3b+3c)
- HeatandFireeffect1800w(3a+3b+3c+3d)
• Fanfunctionisnecessarytoactivateheatfunctions.
 Withoutfantheheatingcannotrun.
• Increaseordecreasethereeffectbyrotatingthereadjustable
 switch(2)untildesiredintensity.
• Toadjustthepermanenttemperature:
- Turnthethermostat(1)clockwisetothebiggestpoint.
- Whentheroomtemperaturegoesuptobecomfortablethenturn
 theswitch(1)inananticlockwisetobreakpointandkeepthe 
 buttonposition.
- Thefunctioncankeepnecessaryroomtemperatureandalsosave
 energy.
BulbReplacement
Thisproductdoesnotuseastandardbulbforitsameeffect.The
applianceusesanelectronicallycontrolledLEDsystemtocreate
theeffect,therefornopartsneedtobereplaced.Therearenouser-
serviceablepartsonthisappliance.Undernocircumstancesshould
theappliancebeservicedbeanyoneotherthanaqualiedelectrician.

6
SafetyCut-Off
Thisapplianceisttedwithasafetycut-offwhichwilloperateif
theheateroverheats(e.g.Duetoblockedairvents).Forsafety
reasons,theheaterwillNOTautomaticallyreset.
Toresettheappliance,disconnecttheappliancefromthemains
supplyforatleast15minutes.Reconnectthesupplytothemains
andswitchontheappliance.
Maintenance
Beforecleaningormaintenanceoperation,switchoffandunplugthe
appliance.Ensureitisperfectlycooled.
Toremovethedust,wipetheappliancewithacloth
Neveruseabrasivesordetergents
Troubleshooting
Nolightfromthefueleffect:Possiblyabulbfailure.Replacethe
bulbbyaqualiedelectrician.
Noheatorlight:Checkthewallsocketbyplugginginaknown
workingappliance.Ifsocketisfunctional,andcordorplugis
suspected,havethemcheckedbyanelectrician.
Lightbutnoheat:CheckthattheThermostatontheheaterisset
abovetheambientroomtemperature.Alternatively,theautomatic
cut-offmayhaveengaged-seeSafetyCut-Offsection.
Disposal
Attheendoftheproduct’sserviceablelifeitshouldbedisposed
ofthoughtfullyandsafelyinaccordancewithlocalauthority
regulations.Theplugshouldberemovedfromthepowersupply
cordandthepowercordcutfromtheheater

7
TechnicalSpecication
Voltage:220-240V~
Ratedpower:1800W
Lamp:LEDsystem(noreplaceableparts)
Meaningofcrossed–outwheeleddustbin:
Donotdisposeofelectricalappliancesasunsortedmunicipalwaste,
useseparatecollectionfacilities.
Contactyoulocalgovernmentforinformationregardingthecollection
systemsavailable.
Ifelectricalappliancesaredisposedofinlandllsordumps,
hazardoussubstancescanleakintothegroundwaterandgetintothe
foodchain,damagingyourhealthandwell-being.
Guarantee:
Thisproductisguaranteedforaperiodoftwoyearsfromthedateof
purchase.Duringthisperiodwewillremedyalldefectsfreeofcharge,
whichcanbedemonstrablyattributedtomaterialormanufacturing
defects,byrepairorexchange.
Thisguaranteeisonlyvalidiftheappliancehasbeenusedin
accordancewiththeinstructionsandprovidedthatithasnotbeen
modied,repairedorinterferedwith,byanyunauthorizedperson,or
damagedthroughmisuse.
PLUGREPLACEMENT
Iftheplugisdamagedandrequiresreplacement,
followthewiringinstructionssuppliedwiththenewplug.
• Thegreenandyellowwiremustbeconnectedtotheterminalmarkedwiththe
letterEortheearthsymbol.
• ThebluewiremustbeconnectedtotheterminalmarkedwiththeletterN.
• ThebrownwiremustbeconnectedtotheterminalmarkedwiththeletterL.
• A13ampplugtoBS1363mustbetteda13AmpfusetoBS1362.
* Foryoursafetyandprotection,thisunitisearthedthroughthepowercordplug
whenpluggedintoamatchingwallsocket.Ifyouarenotsurewhetherthewall
socketsinyourhomeareproperlyearthed,consultaqualiedelectrician.Donot
useplugadaptorsorextensioncordswiththisunit.

Thecrossedoutwheeliebinsymbolon thisitemindicatesthat
this appliance needs to be disposed of in an environmentally
friendly way when it becomes of no further use or has worn
out. Contact your local authority for details of where to take
the item for re-cycling.
