Dean 24G Series User manual

Dean, a member of the Commercial Food Equipment Service Association, recommends using
CFESA Certified Technicians.
24-Hour Service Hotline [phone] DECEMBER 2003
PRINTED IN THE USA *8196000*
*8196000**8196000*
*8196000*
NON-CE &
24G Series Flatbottom Gas Fryers
Installation & Operation Manual
Models 1824G & 2424G

Please read all sections of this manual and retain for future reference.
NOTICE
This appliance is intended for professional use only and is to be operated by qualified
personnel only. A Dean Factory Authorized Service Center (FASC) or other qualified
professional should perform installation, maintenance, and repairs. Installation, maintenance,
or repairs by unqualified personnel may void the manufacturer’s warranty.
NOTICE
This equipment must be installed in accordance with the appropriate national and local codes of
the country and/or region in which the appliance is installed. See NATIONAL CODE
REQUIREMENTS in Chapter 3 of this manual for specifics.
NOTICE
Drawings and photos used in this manual are intended to illustrate operational, cleaning and
technical procedures and may not conform to onsite management operational procedures.
NOTICE
IF, DURING THE WARRANTY PERIOD, THE CUSTOMER USES A PART FOR THIS ENODIS
EQUIPMENT OTHER THAN AN UNMODIFIED NEW OR RECYCLED PART PURCHASED
DIRECTLY FROM FRYMASTER/DEAN, OR ANY OF ITS AUTHORIZED SERVICE CENTERS,
AND/OR THE PART BEING USED IS MODIFIED FROM ITS ORIGINAL CONFIGURATION, THIS
WARRANTY WILL BE VOID. FURTHER, FRYMASTER/DEAN AND ITS AFFILIATES WILL NOT BE
LIABLE FOR ANY CLAIMS, DAMAGES OR EXPENSES INCURRED BY THE CUSTOMER WHICH
ARISE DIRECTLY OR INDIRECTLY, IN WHOLE OR IN PART, DUE TO THE INSTALLATION OF
ANY MODIFIED PART AND/OR PART RECEIVED FROM AN UNAUTHORIZED SERVICE CENTER.
DANGER
Improper installation, adjustment, maintenance or service, and unauthorized alterations or
modifications can cause property damage, injury, or death. Read the installation, operating and
service instructions thoroughly before installing or servicing this equipment. Only qualified
service personnel may convert this appliance to use a gas other than that for which it was
originally configured.
DANGER
Adequate means must be provided to limit the movement of this appliance without depending
upon the gas line connection. Single fryers equipped with legs must be stabilized by installing
anchor straps. All fryers equipped with casters must be stabilized by installing restraining
chains. If a flexible gas line is used, an additional restraining cable must be connected at all
times when the fryer is in use.

DANGER
The front ledge of the fryer is not a step. Do not stand on the fryer. Serious injury can result
from slips or contact with the hot oil.
DANGER
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any
other cooking appliance.
DANGER
Instructions explaining procedures to be followed MUST
MUSTMUST
MUST be posted in a prominent location in
the event the operator detects a gas leak. This information can be obtained from the local gas
company or gas supplier.
DANGER
The crumb tray in fryers equipped with a filter system must be emptied into a fireproof container
at the end of frying operations each day. Some food particles can spontaneously combust if left
soaking in certain shortening material. Additional information can be obtained in the filtration
manual included with the system.
WARNING
No structural material on the fryer should be altered or removed to accommodate placement of
the fryer under a hood. Questions? Call the Dean Service Hotline at 1-800-551-8633.
WARNING
Do not bang fry baskets or other utensils on the fryer’s joiner strip. The strip is present to seal
the joint between the frypot. Banging fry baskets on the strip to dislodge shortening will distort
the strip, adversely affecting its fit. It is designed for a tight fit and should only be removed for
cleaning.
IMPORTANT
IMPORTANTIMPORTANT
IMPORTANT
Safe and satisfactory operation of Dean equipment depends upon its proper installation.
Installation MUST
MUSTMUST
MUST conform with local codes, or in the absence of local codes, to National or
European Community (CE) Standards.

24G Series Flatbottom Gas Fryers
Installation & Operation Manual
TABLE OF CONTENTS
Page #
1. INTRODUCTION 1-1
1.1 Applicability and Validity 1-1
1.2 Ordering Parts 1-1
1.3 Service Information 1-1
1.4 Safety Information 1-2
1.5 Service Personnel 1-2
2. IMPORTANT INFORMATION 2-1
2.1 Receiving and Unpacking Equipment 2-1
2.2 General 2-1
2.3 Principles of Operation 2-3
2.4 Rating Plate 2-3
2.5 Pre-Installation 2-4
2.6 Equipment Installed at High Altitudes 2-5
2.7 Air Supply and Ventilation 2-5
2.8 Conversion of Units 2-6
3. INSTALLATION INSTRUCTIONS 3-1
3.1 Installing the Fryer 3-1

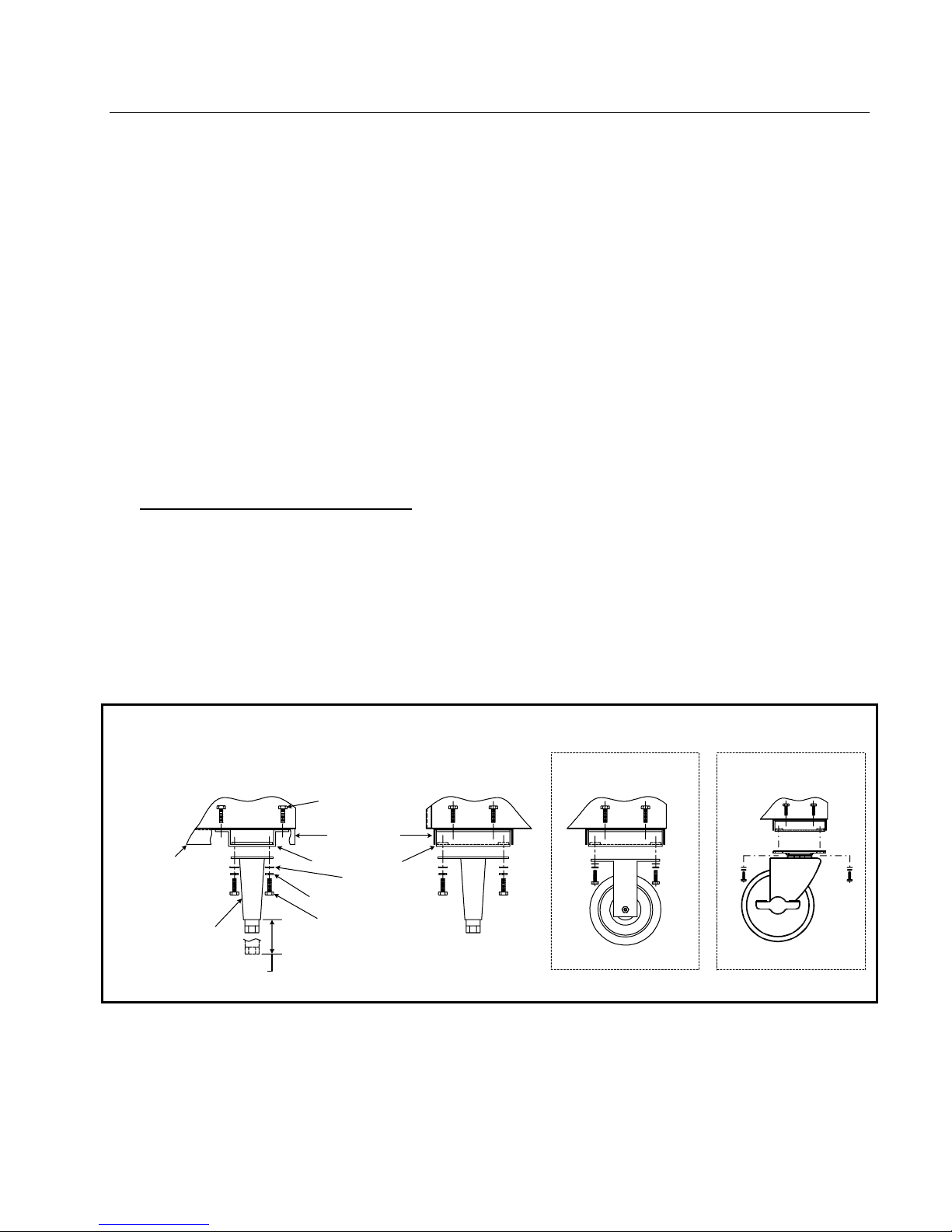

3.2 Leg and Caster Installation 3-1
3.3 Leveling the Fryer 3-2
3.4 Gas Connections 3-4
3.5 Adjustments/Adaptation to Different Gases 3-8
3.6 Gas Inputs 3-8
3.7 Gas Conversion Procedures 3-10
3.8 Gas Conversion Components 3-11
3.9 Electrical Connections 3-12

24G Series Flatbottom Gas Fryers
Installation & Operation Manual
TABLE OF CONTENTS (CONT.)
Page #
4. FRYER OPERATIONS 4-1
4.1 Initial Start-up 4-1
4.2 Boil-Out Procedure 4-5
4.3 Final Preparation 4-7
5. CONTROLLER OPERATION 5-1
5.1 Operating Fryers with Thermatron Controllers 5-1
6. PREVENTATIVE MAINTENANCE 6-1
6.1 General 6-1
7. TROUBLESHOOTING 7-1
7.1 Pilot Burner Malfunction 7-1
7.2 Main Burner Malfunctions 7-2
7.3 Thermatron Controller Calibration 7-3
7.4 Recommended Spare Parts 7-4

24G SERIES FLATBOTTOM GAS FRYERS
CHAPTER 1: INTRODUCTION
1-1
1.1 Applicability and Validity
The Dean 24G Series Flatbottom gas model family has been approved by the European Union
(EU) for sale and installation in all EU countries.
This manual is applicable to and valid for all Dean 24G Flatbottom gas units sold in English-
speaking countries, including those in the European Union. Where conflicts exist between
instructions and information in this manual and local or national codes of the country in which
the equipment is installed, installation and operation shall comply with those codes.
This appliance is only for professional use and shall be used by qualified personnel as defined
in Section 1.5.
1.2 Ordering Parts
Customers may order parts directly from their local Authorized Parts Distributor. For this address
and phone number, contact your maintenance and repair center or call the factory. The factory
address and phone numbers are on the back cover of this manual.
To speed up your order, the following information is required:
Model Number Type
Serial Number
Optional Equipment
Item Part Number Quantity Needed
1.3 Service Information
Call the 1-800-551-8633 or [phone] Service Hotline number for the location of your nearest
maintenance and repair center. Always give the model and serial numbers of your fryer.
To assist you more efficiently, the following information will be needed:
Model Number Type
Serial Number
Optional
Equipment
Nature of Problem
Additional information (i.e. cooking environment, time of day, and other pertinent
information) may be helpful in solving your service problem.

24G SERIES FLATBOTTOM GAS FRYERS
CHAPTER 1: INTRODUCTION
1-2
1.4 Safety Information
Before attempting to operate your unit, read the instructions in this manual thoroughly.
Throughout this manual, you will find notations enclosed in double-bordered boxes similar to the
ones below.
CAUTION
CAUTION boxes contain information about actions or conditions that may cause or result in a
malfunction of your system.
WARNING
WARNING boxes contain information about actions or conditions that may cause or result in
damage to your system, and which may cause your system to malfunction.
DANGER
DANGER boxes contain information about actions or conditions that may cause or result in injury
to personnel, and which may cause damage to your system and/or cause your system to malfunction.
1.5 Service Personnel
1.5.1 Definitions
A. Qualified and/or Authorized Operating Personnel
1. Qualified/authorized operating personnel are those who have carefully read the information
in this manual and have familiarized themselves with the equipment functions, or have had
previous experience with the operation of equipment covered in this manual.
B. Qualified Installation Personnel
1. Qualified installation personnel are individuals, or firms, corporations, or companies, which,
either in person or through a representative are engaged in and are responsible for the
installation of gas-fired appliances. Qualified personnel must be experienced in such work,
be familiar with all gas precautions involved, and have complied with all requirements of
applicable national and local codes.

24G SERIES FLATBOTTOM GAS FRYERS
CHAPTER 1: INTRODUCTION
1-3
1.5.1 Definitions (cont.)
C. Qualified Service Personnel
1. Qualified service personnel are those who are familiar with Dean equipment and have been
authorized by Dean to perform service on Dean equipment. All authorized service
personnel are required to be equipped with a complete set of service parts manuals and stock
a minimum amount of parts for Dean equipment. A list of Dean Factory Authorized Service
Centers (FASCs) was included with the fryer when shipped from the factory. Failure to use
qualified service personnel will void the Dean warranty on your equipment.

24G SERIES FLATBOTTOM GAS FRYERS
CHAPTER 2: IMPORTANT INFORMATION
2-1
2.1 Receiving and Unpacking Equipment
A. Check that the container is upright. Use an outward prying motion - no hammering - to remove
the carton. Unpack the fryer carefully and remove all accessories from the carton. Do not discard
or misplace accessories. They will be needed.
B. After unpacking, immediately check the equipment for visible signs of shipping damage. If
damage has occurred, contact the carrier and file the appropriate freight claims. Do not contact
the factory. Shipping damage responsibility is between the carrier and the dealer.
If your equipment arrives damaged:
1. File claim for damages immediately, regardless of extent of damage.
2. Visible loss or damage: Be sure this is noted on the freight bill or express receipt and is
signed by the person making the delivery.
3. Concealed loss or damage: If damage is unnoticed until equipment is unpacked, notify
freight company or carrier immediately, and file a concealed damage claim. The claim
should be filed within 15 days of date of delivery. Be sure to retain container for inspection.
NOTE: Dean Does Not Assume Responsibility for Damage or Loss Incurred in
Transit.
C. Move the fryer to the location of installation and install legs and/or casters as described in
Chapter 3.2.
D. Remove all plastic skin from sides, front, and doors of the fryer(s). Failure to do this prior to
initial fryer operation will make it very difficult to remove later.
2.2 General
Qualified, licensed, and/or authorized installation or service personnel only (as defined in
Section 1.5) should perform the following:
• Installation and service on Dean equipment.
• Conversion of this appliance from one gas type to another.
Failure to use qualified, licensed, and/or authorized installation or service personnel to install,
convert to another gas type or otherwise service this equipment will void the Dean warranty
and may result in damage to the equipment or injury to personnel.

24G SERIES FLATBOTTOM GAS FRYERS
CHAPTER 2: IMPORTANT INFORMATION
2-2
2.2 General (cont.)
Where conflicts exist between instructions and information in this manual and local code or
national codes, or regulations, installation and operation shall comply with the codes or
regulations in force in the country in which the equipment is installed.
DANGER
Building codes prohibit a fryer with its open tank of hot oil/shortening from being installed
beside an open flame of any type, including those of broilers and ranges.
Upon arrival, inspect the fryer carefully for visible or concealed damage. (See Receiving and
Unpacking Equipment in Section 2.7.)
CAUTION
Dean appliances equipped with legs are for stationary installations. Appliances fitted with
legs must be lifted during movement to avoid damage to the appliance and bodily injury.
For moveable installations, optional equipment casters must be used. Questions? Call 1-
800-551-8633
2.2.1 Fryer Description
Dean 24G Series Flatbottom gas fryers are energy efficient, open frypot, gas-fired units. All units
are shipped completely assembled, with accessories packed inside the frypot. All units are adjusted,
tested, and inspected at the factory prior to crating for shipment.
Base units described below are designed for use in a commercial food preparation environment after
installation as outlined in this manual.
MODEL 1824G 2424G
FRYING VESSEL
Frying Area:
Oil Capacity:
18 x 24 inches
(45.7 x 61 cm)
45-70 lb
(23-35 kg)
24 x 24 inches
(61 x 61 cm)
65-90 lb
(33-45 kg)
ENERGY REQUIREMENTS:
Gas [Natural or Propane (G20/25 & G31)]:
Electrical, Non-CE:
Electrical, CE:
120,000 BTU/Hr (30,7 kcal; 35,1 kW)
115V/60~1Ø
230V/50~1Ø
APPROXIMATE SHIPPING WEIGHT
(lb):
(kg):
285
129
300
138

24G SERIES FLATBOTTOM GAS FRYERS
CHAPTER 2: IMPORTANT INFORMATION
2-3
2.3 Principles of Operation
The frypot is constructed of welded steel with heat transfer ducting on the frypot-bottom for efficient
heating of oil without scorching.
Base units come equipped with painted cabinetry or optional stainless steel. Base units come
equipped with 6-inch (15-cm) adjustable legs or optional 5-inch (13-cm) casters. Multiple units
come equipped with casters.
Dean 24G Series Flatbottom gas fryers come standard with an electronic thermostat for reliable
temperature control. Fryers can be ordered with boil-out feature (optional- available only with
electronic thermostat controller).
A draft inducer draws air over the burners for combustion. Air movement directs the combustion
products back and forth across the frypot bottom by means of a set of baffles, transferring the heat
evenly across the frypot bottom. Cold air is prevented from entering the combustion chamber and
cooling the oil during the coasting cycle.
2.3.1 Automatic Safety Features
• High oil temperature detection to shut off power to the main burners through the solenoid-
actuated gas valve.
• Combination safety gas valve includes built-in pressure regulator and pilot safety.
• Air prover switch built into outlet duct shuts off gas to the burners in the event of blower
failure.
• Optional safety switch built into the drain valve prohibits burner ignition if the valve is not
completely closed.
2.4 Rating Plate
The rating plate can be found on the inside panel of the fryer door. Information on this plate
includes the model and serial numbers, BTU/hr (kW/hr) of the burners, outlet gas pressure in
BTU/hr (kW/hr), and configuration: natural or propane gas. Rating plate data is essential for proper
unit identification, communicating with the factory or requesting special parts and/or information.
The rating plate is located inside the front door panel. Information provided includes the model and
serial number of the fryer, BTU/hr (kW/hr) of the burners, outlet gas pressure in inches W.C.
(mbars) and whether the unit has natural or propane gas orifices.
DANGER
Fryers MUST
MUSTMUST
MUST be connected ONLY to the gas-type identified on the attached rating
plate.

24G SERIES FLATBOTTOM GAS FRYERS
CHAPTER 2: IMPORTANT INFORMATION
2-4
2.5 Pre-Installation
DANGER
No structural material on the fryer should be altered or removed to accommodate
placement of the fryer under a hood. Questions? Call the Frymaster/Dean Service
Hotline at 1-800-551-8633.
DANGER
Do not connect this appliance to the gas supply before reviewing all information in
this chapter.
A. General: Only licensed personnel (as defined in Section 1.5) should install any gas-fired
equipment.
1. A manual gas shut-off valve must be installed in the gas supply line ahead of the fryers for
safety and ease of future service.
2. Dean 24G Series Flatbottom gas fryers require 120 VAC (Non-CE), or 230VAC (CE), and
are equipped with a 16-3 SJT power cord.
B. Clearances: The fryer area must be kept free and clear of all combustibles. This unit is design-
certified for the following installations:
1. Commercial installation only (not for household use).
2. Non-combustible floor installation equipped with factory-supplied 6-inch (15-cm) adjustable
legs or optional 5-inch (13-cm) casters;
3. Combustible construction with a minimum clearance of 6-inch (15 cm) side and 6-inch (15
cm) rear, and equipped with factory-supplied 6-inch (15-cm) adjustable legs or optional 5-
inch (13-cm) casters.
DANGER
Local building codes prohibit a fryer with its open tank of hot oil from being installed
beside an open flame of any type, including those of broilers and ranges.

24G SERIES FLATBOTTOM GAS FRYERS
CHAPTER 2: IMPORTANT INFORMATION
2-5
C. Installation Standards
1. CE/EXPORT STANDARDS: Fryer installation must conform with local codes, or in the
absence of local codes, to the appropriate National or European Community (CE) standards.
2. NON-CE INSTALLATION STANDARDS: Fryer installation must conform with local
codes, or in the absence of local codes, to the appropriate national standards as listed below:
a. U.S. installations must meet: b. Canadian installations must meet:
American National Standard Institute CAN 1-B149 Installation Codes
ANSI Z83.11 Canadian Gas Association
American Gas Association 55 Scarsdale Road
8501 E. Pleasant Valley Road Don Mills, ONT, M3B 2R3
Cleveland, OH 44131
National Electrical Code Canadian Electric Code c22.1, part 1
ANSI/NFPA #70 Canadian Standards Association
American National Standard Institute 178 Rexdale Blvd.
1430 Broadway Rexdale, ONT, M9W 1R3
New York, NY 10018
NFPA Standards #96 and #211 c. Australian installations must meet:
National Fire Protection Association
470 Atlantic Avenue AS5601/AG601 Installation Codes
Boston, MA 02110 Standards Australia International
25 Raglan Street
South Melbourne, VIC 3205
2.6 Equipment Installed at High Altitudes
1. The fryer input rating [BTU/hr (kW/hr)] is for elevations up to 2,000 feet (610-m). For
elevations above 2,000 feet (610-m), the rating should be reduced 4-percent for each
additional 1,000 feet (305-m) above sea level.
2. The correct orifices are installed at the factory if the operating altitude is known at the time
of the customer’s order.

24G SERIES FLATBOTTOM GAS FRYERS
CHAPTER 2: IMPORTANT INFORMATION
2-6
2.7 Air Supply and Ventilation
DANGER
This appliance must be installed with sufficient ventilation to prevent the occurrence
of unacceptable concentrations of substances harmful to the health of personnel in
the room in which it is installed.
1. Keep the area around the fryer clear to prevent obstruction of combustion and ventilation
airflow.
2. Do not connect this fryer to an exhaust duct.
3. Correct installation and adjustment will ensure adequate airflow to the fryer system.
4. A commercial, heavy-duty fryer must vent its combustion wastes to the outside of the
building. A deep-fat fryer must be installed under a powered exhaust hood, or an exhaust
fan must be provided in the wall above the unit, as exhaust gas temperatures are
approximately 500-600°F (260-316°C). Check air movement during installation. Strong
exhaust fans in the exhaust hood or in the overall air conditioning system can produce slight
air drafts in the room.
5. Do not place the fryer’s flue outlet directly into the plenum of the hood, as it will affect the
gas combustion of the fryer.
6. Never use the interior of the fryer cabinet for storage or store items on shelving over or
behind the fryer. Exhaust temperatures can exceed 500°F (260°C) and may damage or melt
items stored in or near the fryer.
7. Adequate distance must be maintained from the flue outlet of the fryer(s) to the lower edge
of the exhaust filter bank. Per NFPA Standards No. 96, a minimum of 18 inches (45-cm)
should be maintained between the flue(s) and the lower edge of the exhaust hood filter.
8. Filters and drip troughs should be part of any industrial hood, but consult local codes before
constructing and installing any hood. The duct system, the exhaust hood and the filter bank
must be cleaned on a regular basis and kept free of grease.

24G SERIES FLATBOTTOM GAS FRYERS
CHAPTER 2: IMPORTANT INFORMATION
2-7
2.8 Conversion of Units (CE Systems)
Pressure:
1 mbar = 10,2 mm W.C. = 0,4-inch W.C.
20 mbar = 204 mm W.C. = 8-inch W.C.
1-inch W.C. = 25,4 mm W.C. = 2,5 mbar
Heat Input:
1 kW = 3410 BTU/hr
100 BTU/hr = 0,0293 kW
Temperature:
0° Celsius = 32° Fahrenheit
Temperature in degrees Celsius = (Temperature in degrees Fahrenheit (F) – 32) x 0,555
100° Celsius = (212° Fahrenheit – 32) x 0,555

24G SERIES FLATBOTTOM GAS FRYERS
CHAPTER 3: INSTALLATION INSTRUCTIONS
3-1
3.1 Installing the Fryer
A. Initial Installation: If installed with legs, do not push against the fryer’s side to adjust its
position. Use a pallet or lift jack to lift the fryer slightly and place it where it is to be installed.
B. Relocating the Fryer: If relocating a fryer installed with legs, remove all weight from each leg
before moving.
Note: If a leg becomes damaged during movement, contact your service agent for immediate
repair/replacement.
CAUTION
Fryers may not function properly if curb mounted. Do not curb mount Dean 24G
Series Flatbottom gas fryers.
DANGER
This fryer may tip and cause personal injury if not secured correctly in a stationary
position. Drain all oil/shortening from fryer before moving. Hot oil will splash and
cause severe burns upon contact.
3.2 Leg and Caster Installation
A. General
1. Install legs and rear rigid casters near where the fryer is to be used, as neither is secure for
long transit. Unit cannot be curb mounted and must be equipped with the legs and casters
provided.
2. When positioning the fryer, gently lower the fryer into position to prevent undue strain to
the legs and internal mounting hardware. Use a pallet or lift jack to lift and position the
fryer if possible. Tilting the fryer may damage the legs.
3. The rigid casters must be installed on the fryer rear channel assembly only. Install locking
casters on the front channel assembly.
4. Proceed to Step 3.3, Leveling the Fryer, after legs and rear rigid casters are installed.

24G SERIES FLATBOTTOM GAS FRYERS
CHAPTER 3: INSTALLATION INSTRUCTIONS
3-2
3.2 Leg and Caster Installation (cont.)
B. Leg and Rigid Caster Installation
1. Remove unit from pallet.
2. Carefully raise the unit with a forklift, pallet jack, or other steady means. Ensure the weight
is evenly distributed to avoid damaging the channel assemblies.
3. Place one lock washer on each hex head screw.
4. Insert hex head screws with lock washers [1/4-20 threads by ¾" long] through bolt holes of
leg mounting plates and mount to the front channel. Mount rigid casters to the rear channel
following the same procedure. A locknut has been attached to the topside of the base
mounting plates at the factory to capture the hex head screw as it is screwed in.
5. Tighten the bolts to 50 inch-lbs. (5.65 Nm) torque.
CAUTION
For caster retrofit, the unit must be at room temperature and drained of shortening
before installing the casters.
3.3 Leveling the Fryer
A. Place a carpenter’s spirit level across the top of the fryer and level the unit front to back. If the
fryer is not level from side to side, a platform or other surface adjustment is needed; there are no
side-to-side level adjustments on a fryer equipped with caster/leg combinations. (If a fryer is
equipped with legs only, side-to-side level adjustments can be made. If a fryer is equipped with
casters only, no level adjustments to the fryer can be made.) If the fryer is not level, the unit may
not function efficiently, the oil may not drain properly for filtering and in a multi-fryer battery, it
may not match adjacent units.
Legs (Only)
1. Adjust leg height with an adjustable or 1-1/16-inch (27 mm) open-end wrench by turning
the hex bullet on the bottom of the leg.
2. The hex bullet is for minor leg height adjustment only. Do not adjust more than 1-inch
(25.4 mm).
3. When leveling the unit, the leg body should be held firmly to keep the leg from bending or
rotating while turning the hex bullet foot to the required height.

24G SERIES FLATBOTTOM GAS FRYERS
CHAPTER 3: INSTALLATION INSTRUCTIONS
3-3
3.3 Leveling the Fryer (cont.)
Rigid Casters (Only)
1. Install the rigid casters on the fryer rear channel only. Legs must be installed on the front
channel.
2. There are no level adjustments for the rigid casters.
B. If the floor is uneven or has a decided slope, place the fryer on a level platform.
C. If the fryer is moved, re-level the fryer following the instructions given in Steps 3.3, A-B.
D. An installed fryer must be restrained to prevent tipping, which could splash hot oil. Restraints
can be straps or chains anchored to an immovable object (wall, floor anchor), or the manner of
installation (installing the fryer in an alcove, battering to other appliances, etc.).
E. Installing Optional Swivel Casters:
1. Install non-locking casters only at the rear of the unit.
2. Locking casters must be installed at the front of the unit. Locking casters allow the fryer to
be "locked" in position for safe operations.
3. Follow the same instructions for leg installations as given above in steps 3.2, B1-5.
1/4-20 x 3/4 Hex Bolt
1/4-20 Hex Head Locknut
Washer
Leg Support Assembly
Front Channel or
Rear Channel
1/4-20 x 3/4 Hex Bolt
Front Channel
or Rear Channel
Front or Rear Leg with
Mounting Plate
Adjust as needed
Front View Rear Side View
Rear Caster—5" Rigid
Optional Caster-
Rear Only
Front Caster—5" Swivel
w/Brake
Optional Caster-
Front Only
Leg and Caster (Optional) Mounting Installation

24G SERIES FLATBOTTOM GAS FRYERS
CHAPTER 3: INSTALLATION INSTRUCTIONS
3-4
3.3 Leveling the Fryer (cont.)
NOTE: The installation must be inspected after it is complete to ensure it meets the intent of
these instructions. The on-site supervisor and/or operator(s) should be informed that the
appliance is installed with restraints. If restraints are removed to move fryer (cleaning
beneath and behind, relocation, etc.), ensure that they are re-installed when fryer is returned
to its permanently installed position.
DANGER
The fryer MUST
MUSTMUST
MUST be connected to the gas supply specified on the rating and serial number
plate located on the back of the fryer door.
WARNING
If gas odors are detected, the gas supply MUST
MUSTMUST
MUST be shut off at the main shut-off valve. The
local gas company or FASC should be contacted immediately to rectify the problem.
3.4 Gas Connections
CE REQUIREMENTS
Dean 24G Series Flatbottom gas fryers have obtained CE markings for countries and gas categories
shown below:
COUNTRIES CATEGORIES GAS PRESSURE (MBAR)
II2ELL3B/P G20/G25; G30/G31 20
50
GERMANY (DE)
I3P G31 50
AUSTRIA (AT) II2H3B/P G20; G30/G31 20
50
I2E(R)B G20/G25 20/25
BELGIUM (BE) I3+ G30/G31 28-30/37
DENMARK (DK)
FINLAND (FI)
SWEDEN (SE) II2H3B/P G20; G30/G31 20
30
SPAIN (ES)
GREECE (GR)
ITALY (IT)
IRELAND (IE)
PORTUGAL (PT)
UNITED KINGDOM (GB)
II2H3+ G20; G30/G31
20
28-30/37
SPAIN (ES) II2H3P G20; G31 20
37 AND 50
II2Esi3+ G20/G25; G30/G31 20/25
28-30/37
FRANCE (FR) II2Esi3P G20/G25; G31 20/25
50
LUXEMBOURG (LU) II2E3B/P G20; G30/G31 20
50
II2L3P G25; G31
25
50
NETHERLANDS (NL) II2L3B/P G25; G30/G31
25
30

24G SERIES FLATBOTTOM GAS FRYERS
CHAPTER 3: INSTALLATION INSTRUCTIONS
3-5
3.4 Gas Connections (cont.)
NATIONAL CODE REQUIREMENTS: NON-CE
This equipment is to be installed in compliance with the Basic Plumbing Code of the Building
Officials and Code Administrators International, Inc. (BOCA) and the Food Service Sanitation
Manual of the U.S. Food and Drug Administration.
This equipment is manufactured to use the type of gas specified on the rating plate attached to the
door. Connect equipment stamped "NAT" only to natural gas and that stamped "PRO" only to LP
(Propane) gas.
Australia Only: Installation is to be in accordance with the requirements of AS5601/AG601, local
regulatory authority requirements and other statutory regulations.
DANGER
Before connecting new pipe to this appliance, the pipe must be blown out thoroughly to
remove all foreign material. Foreign material in the burner and gas controls will cause
improper and dangerous operation.
Installation shall be made with a gas connector that complies with national and local codes.
Quick disconnect devices, if used, shall likewise comply with national and local codes.
DANGER
The fryer MUST
MUSTMUST
MUST be connected to the gas supply specified on the rating and serial number
plate located on the back of the fryer door.
The gas supply (service) line must be the same size or greater than the fryer inlet line. Dean 24G
Series gas fryers are equipped with a 3/4" (22 mm) male ISO 7.1 inlet. The gas supply line must be
sized to accommodate all gas-fired equipment connected to that gas supply. Consult local gas
companies or suppliers, or your local contractor for minimum supply line requirements.
Supply Line Specifications
The gas supply lines must be sized as indicated in the chart below, based on the total number of
fryers connected to the main gas supply.
Recommended Gas Supply Line Sizes
Gas Types Number of Fryers
1 2 to 3 4 or more (*)
Natural Gas 3/4" (22 mm) 1" (28 mm) 1-1/4" (35 mm)
Propane Gas 1/2" (15 mm) 3/4" (22 mm) 1" (28 mm)
(*) When exceeding 18 feet (6 meters) for a configuration of more than four fryers, it is necessary
to provide a 1 1/4" (35 mm) rigid gas connection.
