THE SYMBOLS IN INSTRUCTION MANUAL AND THE LABEL ON THE TOOL
Read the instruction manual before using.
Safety alert.
Please only use the accessories supported by the manufacturer.
CE conformity.
Waste electrical products should not be disposed of with household
waste.
Please recycle where facilities exist. Check with your Local Authority or
retailer for recycling advice.
PERSONAL SAFETY
ELECTRICAL SAFETY
BATTERY SAFETY
SERVICE
INTENDED USE
WARNING
INTRODUCTION OF COMPONENTS
USE AS THE STICK VACUUM CLEANER
01
02
03
03
04
04
05
06
CONTENTS
HOW TO USE AS HANDLY
BATTERY CHARGING
HOW TO EMPTY THE DUST CUP
HOW TO MAINTAIN THE FILTER
TROUBLESHOOTING
TECHNICAL SPECIFICATION
ENVIRONMENT
CUCV001W EXPLODED VIEW
CUCV001W SPARE PART LIST
07
07
08
09
11
12
12
13
14
1
PERSONAL SAFETY
IMPORTANT: READ ALL INSTRUCTIONS BEFORE USE
RETAIN INSTRUCTIONS FOR FUTURE REFERRENCE.
Do not use in rain or leave outdoors whilst raining
WARNING: Basic safety precautions should always be observed when using anelectricalappliance, including the following to reduce
the risk of re, electricalshock, or injury.
Store indoors in dry place out of the reach of children;
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental
capabilities or lack of experience and konwledge if they have been given supervision or instruction concerning use of the appliance
in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance
shall not be made by children without supervition.
Don't let children play with the appliance; supervise children using or maintaining the appliance.
Use only manufacturer's recommended attachments as described in this manual; misuse or use of any accessory or attachment
other than those recommended, may present a risk of personal injury;
Take extra care when cleaning stairs;
Keep the appliance and accessories away from hot surface;
Do not block the appliances opening or hinder air ow, keep opennings free of any objects including dust,lint,clothing,ngers(and
all parts of the body);
Particularly keep hair away from openings and moving parts;
2
ELECTRICAL SAFETY
Use only the battery and charger provided by the supplier;
Never modify the charger in any way;
The charger has been designed for a specic voltage.Always check that the mains voltage is the same as than stated on the rating
plate;
A charger that is suitable for one type of battery pack may create a risk of re when used with another battery pack;
Before use, check the charger cord for signs of damage or ageing. A damaged or entangled charger cord increases the risk of re
and electric shock;
Don not abuse the chager cord;
Never carry the charge by the cord;
Do not pull the cord to disconnect from a socket, grasp the plug and pull to disconnect;
Don not wrap the cord around the charger when storing;
Keep the charger cord away from hot surfaces and sharp edges;
The supply cord cannot be replaced. If the cord is damaged the charger should be discarded and replaced. It must be replaced by
the manufacturer,its service agent or a qualied technician in order to avoid a hazard;
Do not handle the charger or the appliance with wet hands;
Do not store or charge the appliance outdoors;
The charger must be removed from the socket before removing the battery, cleaning or maintaining the appliance.
3
BATTERY SAFETY
This appliance includes Li-ion batteries,do not incinerate batteries or expose to high temperatures ,as they may explode;
Liquid ejected from the battery may cause irritation or burns;
In an emergency situation contact professional help immediately;
Leaks from the battery cells can occur under extreme conditions.Do not touch any liquid than leaks from the battery.If the liquid
that gets on skin wash immediately with soap and water.If the liquid gets into the eyes,ush them immediately with clean water for
a minimum of 10 minutes and seek medical attention.Wear gloves to handle the battery and dispose of immediately in accordance
with local regulations;
Shorting the battery terminals may cause burns or re;
When the battery pack is not in use,keep it away from paper clips,coins,keys, nails,screws or other small metal objects that could
make a connection from one terminal to another;
When you dispose of the appliance remove the battery and dispose of the battery safely in accordance with local regulations;
SERVICE
Before using the appliance and aer any impact,check for signs of wear of damage and repair as necessary;
Do not use the appliance if any part is damaged or defective;
Repairs should be carried out by a service agent or a suitably qualied person in accordanc wit relevant safety regulations. Repairs
by unqualied persons could be danerous;
Never modify the appliance in any way as this may increase the risk of personal injury;
Only use replacement parts or accessories provided or recommended by manufacturer;
Intended use:
4
INTENDED USE
This appliance has been designed for domestic dry vacuum cleaning only;
Do not pick up liquids or use on wet surfaces;
Do not pick up anyting that is ammable,burning or smoking;
Use only as described in this manual;
Do not use on concrete,tarmacadam or other rough surfaces.
WARNING
Do not use water, solvents,or polishes to clean the outside of the appliance; wipe clean with a dry cloth;
Never immerse the unit in water and do not clean in a dish washer.
55
INTRODUCTION OF COMPONENTS
Metal tube
Dust cup
Sofa Brush
Long crevice
nozzle
xed frame
Charger
Dust cup
locker
Metal tube
locker
Switch
Power brush locker
Power brush
6

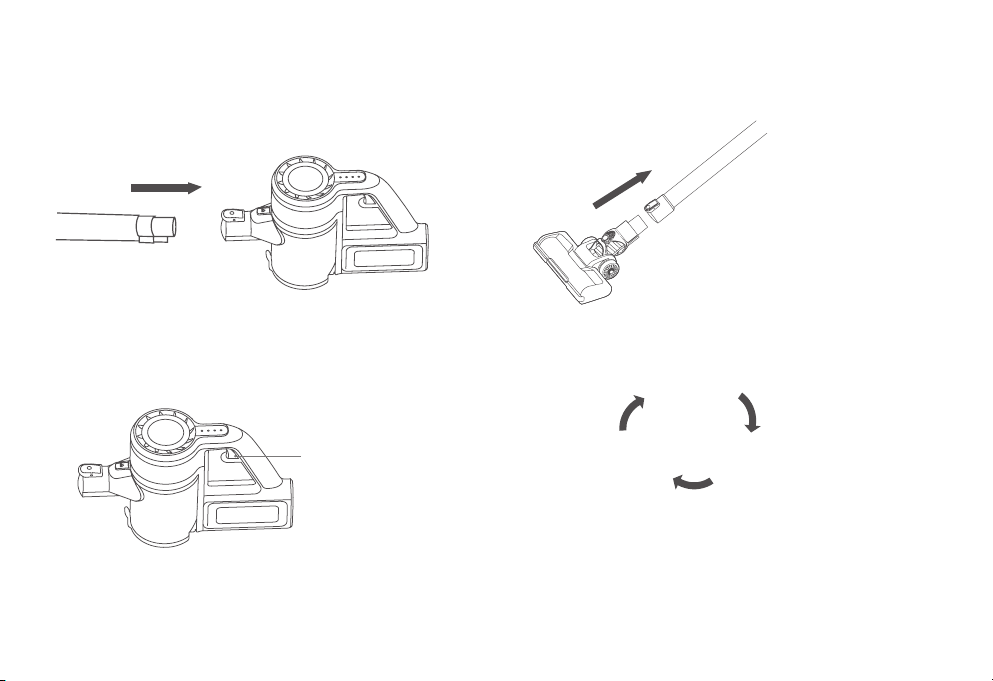

1.Attached the metal tube to the body as below until hear
click sound
3.Press the switch to work
Two level power control
2.Attached the brush to another head of metal tube as below showed
Lower power
It is lower power when your press the switch button rst time
High power
It is high power when you press the switch button second time it will be
power o when press third time, it is kind of circle as below showed
USE AS THE STICK VACUUM CLEANER
Hight powerPower o
Lower power
/Power on
Switch
7

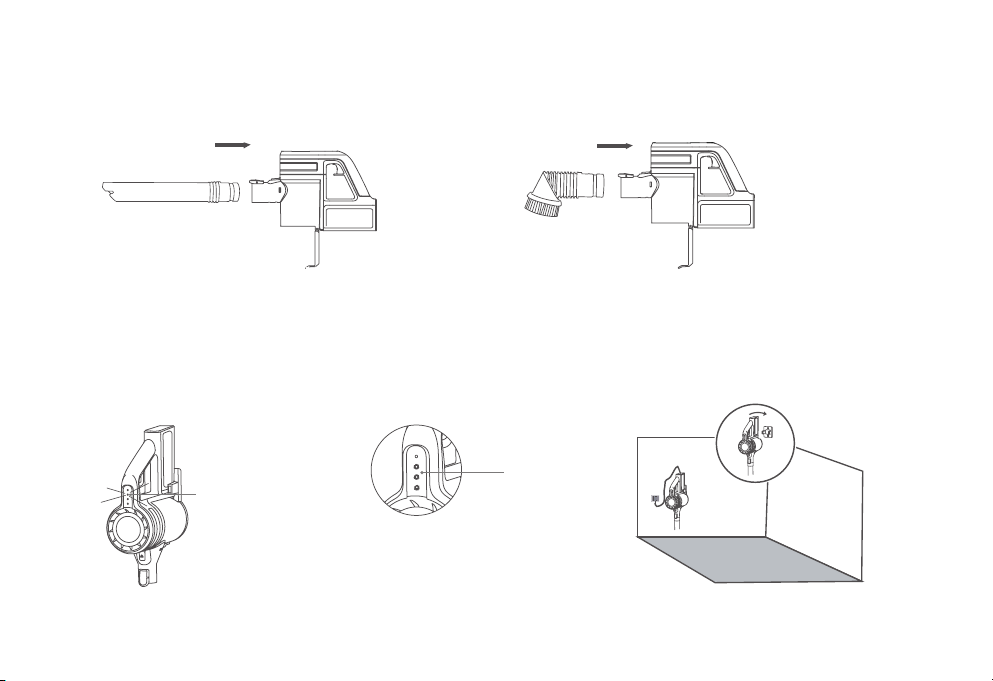

Insert the accessory(long crevice nozzle or Sofa Brush) to body as below showed
Lower power
Second light
ashing
When all the battery indicator lights are
on, the battery is full
7
HOW TO USE AS HANDLY
BATTERY CHARGING
When the battery power indictor is blinking,plesase power o ,place the machine on a stand and then connect the charger.
Lighting
8
HOW TO EMPTY THE DUST CUP

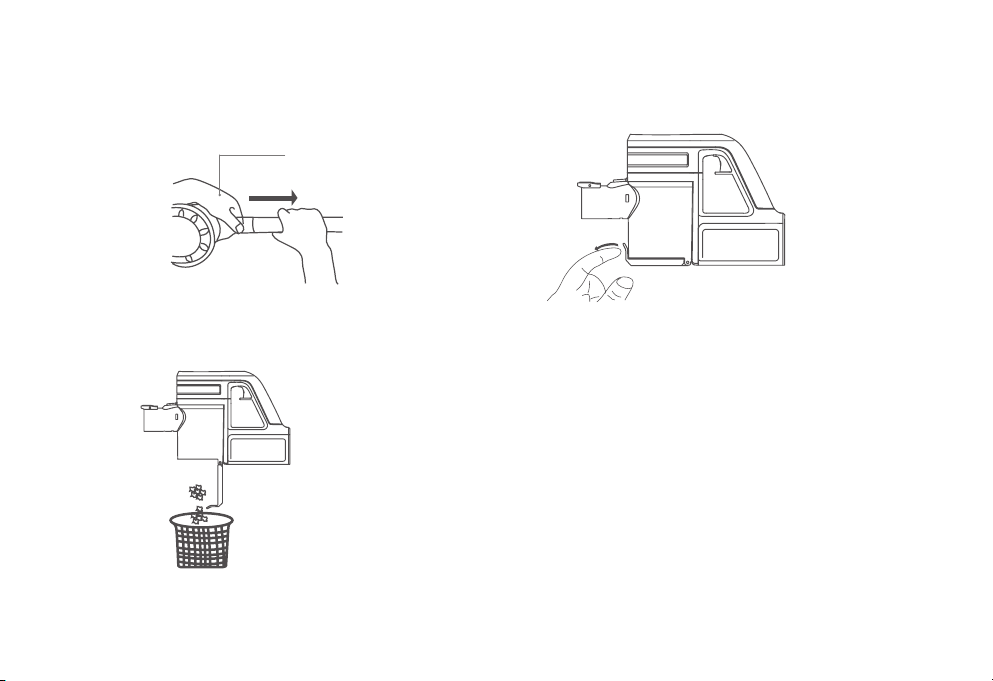

1.Press the metal tube locker then take out the
metal
2.Unlock the dust cup locker
3.Empty the dust cup
Metal tube locker
9
HOW TO MAINTAIN THE FILTER
2.Open the dust cup as below showed
4.Wash the HEPA lter and separator
1.Press the dust cup release button and turn the dust cup
clockwise
Dust cup
locker
3.Take out the lter and separator
10
6.Aer drying,assemble the lter and separator to the case
8.Put the dust cup assembly into the fuselage as below showed
5.Please dry the HEPA lter and separator completely before
assemble back
7.Put the lter case back to the dust cup
2
2
1
1
11
TROUBLESHOOTING
Not cleaning well
Stop or won't work
Battery will not charge
1.Empty the dust bin
2.Check dust bin is correctly tted
3.Check the lter is correctly tted
4.Clean the lter
1.Charge battery
2.Clear debris from brush bar
1.Check connections
2.Check wall socket
12
TECHNICAL SPECIFICATION
Battery
Charging period
Battery charger output
Net Weight
Usage time
Power
Vacuum
4.5H
26.5V 450mA
2.3kg
140W
10kpa
40min(low speed),20min(high speed)
ENVIRONMENT
CAUTION:
Do not dispose of this product as it has with other household products.There is a separation of this waste product
into communities,you will need to inform your local authorities about the places where you can return this product.In
fact,electrical and electronic products contain hazardous substances than have harmful eects on the environment or
human health and should be reycled.
The symbol here indicates that electrical and electronic equipment should be chosen carefully,a wheeled waste
container is marked with a cross.
22.2V 2200mAh
13
CUCV001W EXPLODED VIEW
14
CUCV001W SPARE PART LIST
No. No.Part Description Part Description
Body screws
Right case
Dust cup seal
Motor seal
Motor
Decorative panel
The wind sponge
The wind plate
The body insert
Led PCB
Switch button
Button spring
Rack assembly
Expansion screws
Charger
Battery pack
Le case
Brush
Metal tube assembly
Brush assembly
Roller
Dust cup bottom cover assembly
Dust cup bottom seal
Dust cup
Suction port seal
Cyclone cone
Cyclone top seal
Separator
Connector locker screws
Suction components
Suction components spring
Dust up release button
Suction port locker
Plug assembly
HAPA
HAPA seal
Contact piece assembly Suction nozzle
Qty Qty
1
2
3
4
5
6
7
8
9
11
14
17
12
15
18
19
10
13
16
20
21
22
23
24
25
26
27
28
30
33
36
31
34
37
38
29
32
35
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
10
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
