User Manual
Model Number : 8386657 & 8393529
Description : Bluetooth Headphone Beanie
A. Product Outlook:
 Dimension : 44(L)*35(W)*13.6（H）mm
 Weight : 30.6g
 Casing : Plastic & Silicon
 Available Colors : black casing & blue button
B. General information:
 Designation : Bluetooth Headphone Beanie
 model code : 8386657 & 8393529
 item code : 2311002
 conception code : 115048

C. General Features:
1. Bluetooth Stereo Device for Beanie
2. Beanie is provided by Decathlon’s supplier.
3. Build with high compatible Bluetooth Chipset: CSR8635
4. Wireless Range: in 10 meters (open area)
5. Support A2DP, ACRCP and HFP Profiles
6. Support Two Way Control Function: play/pause, next/back, volume up/down, pick
up or hang Up incoming Call and redial for last called number
7. Supports iPhone, iPad, Android’s phone…etc., which devices have Bluetooth
function.
8. Integrated microphone
9. 30mm Mylar diaphragm and moving coil speaker (Left & Right Channels)
10. Micro USB port for DC Input: DC 5V, 500mA
11. Built-in Rechargeable Lithium Battery: DC 3.7V 110 mAh
12. Music Playing Time: 5.5~6.5 Hours (at 75% ~ 80 % volume output)
D. Controls / Connections
1. Button (ON/OFF, Play / Pause, Pick up / Hang up call, Redial last call number)
2. Button (Next / Volume Up)
3. Button (Back / Volume Down)
Remark: Press and hold the “ ” button for 8 ~ 10 seconds to reset device.
E. Input / Output:
1. Micro USB Port (for DC Input)
2. Built-In Microphone
F. Indicator:
1. LED indicator (Charge – Red / Bluetooth - Blue)
G. Standard Accessories:
1. USB charging cable x 1 pc (USB-A plug to micro-USB plug)
2. User’s Manual x 1pc (English only)
H. Standard / Verification:
 CE, Sound pressure, RoHS.

I. Technical Specification:
Bluetooth:
 Frequency : 2.402GHz ~ 2.480GHz
 RF Power : Class 2, 4dBm (max.)
 Receive Sensitivity : Better than -80dBm
 Audio SNR : Equal or > 70dB (Bluetooth Module)
Audio:
 Stereo Output Power : 2.6mW (RMS) x 2 Channels
 Speaker Impedance & Rated Power : 32 Ohm
 Frequency Responses : 80Hz ~ 18KHz
 THD : 0.7%
Others:
 Power Source : Built In Rechargeable Battery Lithium
 Charge need time : about 1 ~ 1.5 hours
 Operating Temperature : 0 to 50℃
 Operating Voltage :min 3.0V and max 4.2V
 Current consumption :Power on</= 18mA;
:After power off<80uA;
:Searching <8mA;
:Playing<20mA;
Main device with right speaker
Soft linking flat cable
Length = 35 +/-1cm
Left speaker

Issued Date: 2019 Sep 16
Ref.: NDP-010_2016
Rev.: 0

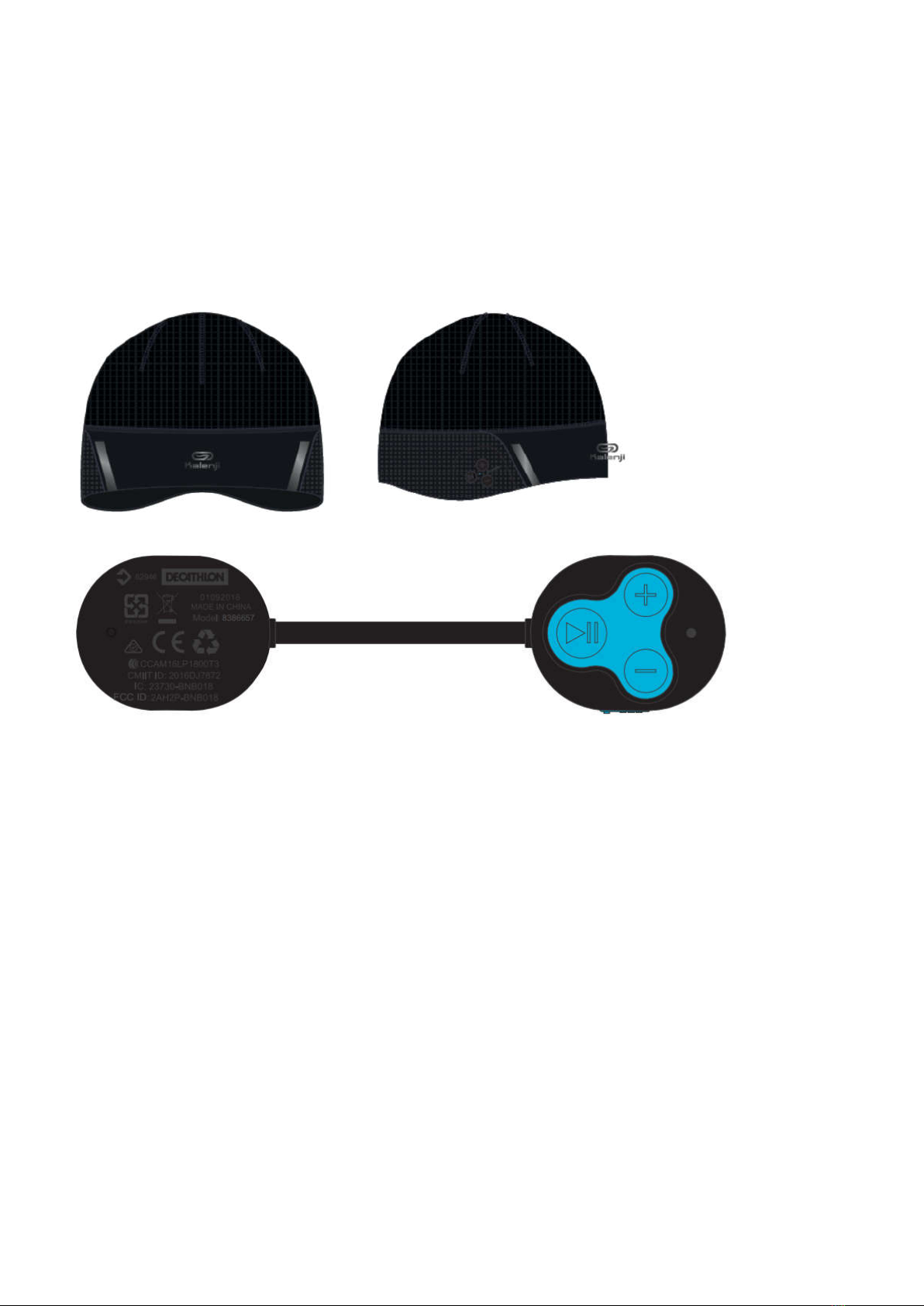

Product introduction:
 Elegant appearance and easy to use.
 Beanie built with Bluetooth device for Bluetooth music playback and hand-free for
incoming calls via your smartphone.
 Bluetooth technology allows you to talk on the smartphone without taking it out of
the pocket.
 Connection with the smartphone is obtained using the Bluetooth technology a 10m
range.
 The integrated steering control panel on Beanie allows for receiving and ending
calls as well as remotely controlling music without the need to touch your phone.
 Detachable design and Beanie washable. All electronic elements can be easily
removed, which allows for safe cleaning of the fabric.
 Beanie should be fabric with emulated leather’s control plate. (Depend on
manufacturer specifications or customer(s) requests)
Important!
All electronic elements in beanie are not waterproof design, so it’s cannot be
washed together in a washing machine or soaked. Clean dirty spots using a wet
sponge with a little amount of a detergent.
Only Beanie can be washed. All electronic elements are must be detached from
Beanie before wash it.

IMPORTANT
-Decathlon is not liable for accidents or
injuries due to improper use of the product,
failure to adhere to the instructions given in
this guide, or modications to the product
-To avoid serious injury or death, follow
the safety information in this document
-Keep these instructions
-While every effort has been made to
ensure that the information contained in the
guide is accurate and complete, Decathlon
is not liable for any errors or omissions
FCC Regulatory information
is device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) is device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.» CAUTION: changes or modications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment. Note:
is equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. ese limits are designed to provide reaso-
nable protection against harmful interference in a residential installation. is equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in ac-
cordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment o and on, the user is encouraged to try to
correct the interference by one or more of the following measures: - Reorient or relocate
the receiving antenna. - Increase the separation between the equipment and receiver. -
Connect the equipment into an outlet on a circuit dierent from that to which the receiver
is connected. - Consult the dealer or an experienced radio/TV technician for help.
RSS Gen., clause 7.1.3
is device complies with Industry Canada licence-exempt RSS standard(s). Operation is
subject to the following two conditions: (1) this device may not cause interference, and (2)
this device must accept any interference, including interference that may cause undesired
operation of the device. Le présent appareil est conforme aux CNR d’Industrie Canada
applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux
conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur
de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est
susceptible d’en compromettre le fonctionnement.
EN - General instructions for use For US market
8386657 & 8393529
åDECATHLON - 735 Market Street, San
Francisco, CA 94103 - [phone] DECATHLON
customer[email protected]
