DecoRad Floormate GEN6 User manual

User Manual
DecoRad® Floormate
DecoRad® Systems bv
Fokkerstraat 25
3905 KV Veenendaal
The Netherlands
Phone: [phone]
E-mail: [e-mail]
www.decorad.com

User Manual Floormate –V. 2.7 B/C
- 1 -
Preface
The DecoRad® Floormate is the safest and most advanced on-site UV curing
machine on the market today.
It is used for curing floor coatings, varnishes and oils in seconds !
DecoRad® Systems equipment is developed in close cooperation with coating
companies and build with the latest technology. This enables end-users to
successfully cure industrial concrete coatings as well as finishes for wood and
resilient floors with the same machine.
DecoRad® Floormate
The standard in on-site UV curing:
• 3000 Watt output
• 45 cm cure path
• Motorized with adjustable cure speed
• CE marking and TÜV certified
• Single phase electronics
• Compact, user-friendly and easily manoeuvrable (0˚ turning circle)
• Field replaceable spare parts
• Curing : approx. 250 square meter per hour (depending on coating used)
• Medium-pressure mercury lamp, ozone free or ozone building
Carefully read through this user manual before using the
the Floormate. Only then optimal safety is guaranteed.
The DecoRad® Floormate can only be operated by sufficiently
qualified personnel.
Keep this user manual with the DecoRad® Floormate

User Manual Floormate –V. 2.7 B/C
- 2 -
Contents
User Manual............................................................................................................... 1
DecoRad® Floormate................................................................................................. 1
Preface....................................................................................................................... 1
Contents..................................................................................................................... 2
1. Introduction............................................................................................................. 3
1.1 Related Documents........................................................................................... 3
1.2 Manufacturer..................................................................................................... 3
1.3 CE Marking....................................................................................................... 4
1.4 Guarantee......................................................................................................... 4
1.5 Copyright........................................................................................................... 4
1.6 Liability.............................................................................................................. 4
2. Safety ..................................................................................................................... 5
2.1 Safety Symbols in this User Manual.................................................................. 5
2.2 Symbols on the DecoRad® Floormate.............................................................. 5
2.3 Usage................................................................................................................ 6
2.4 Maintenance ..................................................................................................... 6
2.5 Safety Regulations............................................................................................ 6
2.6 UV radiation...................................................................................................... 6
2.7 Risks of UV Radiation....................................................................................... 7
2.8 User .................................................................................................................. 8
3. Machine Description............................................................................................... 9
3.1 Function............................................................................................................ 9
3.2 Overview of the DecoRad® Floormate.............................................................. 9
3.3 Control Elements............................................................................................. 10
3.4 Equipment and accessories............................................................................ 10
4. Putting into operation............................................................................................ 11
5. Operation.............................................................................................................. 13

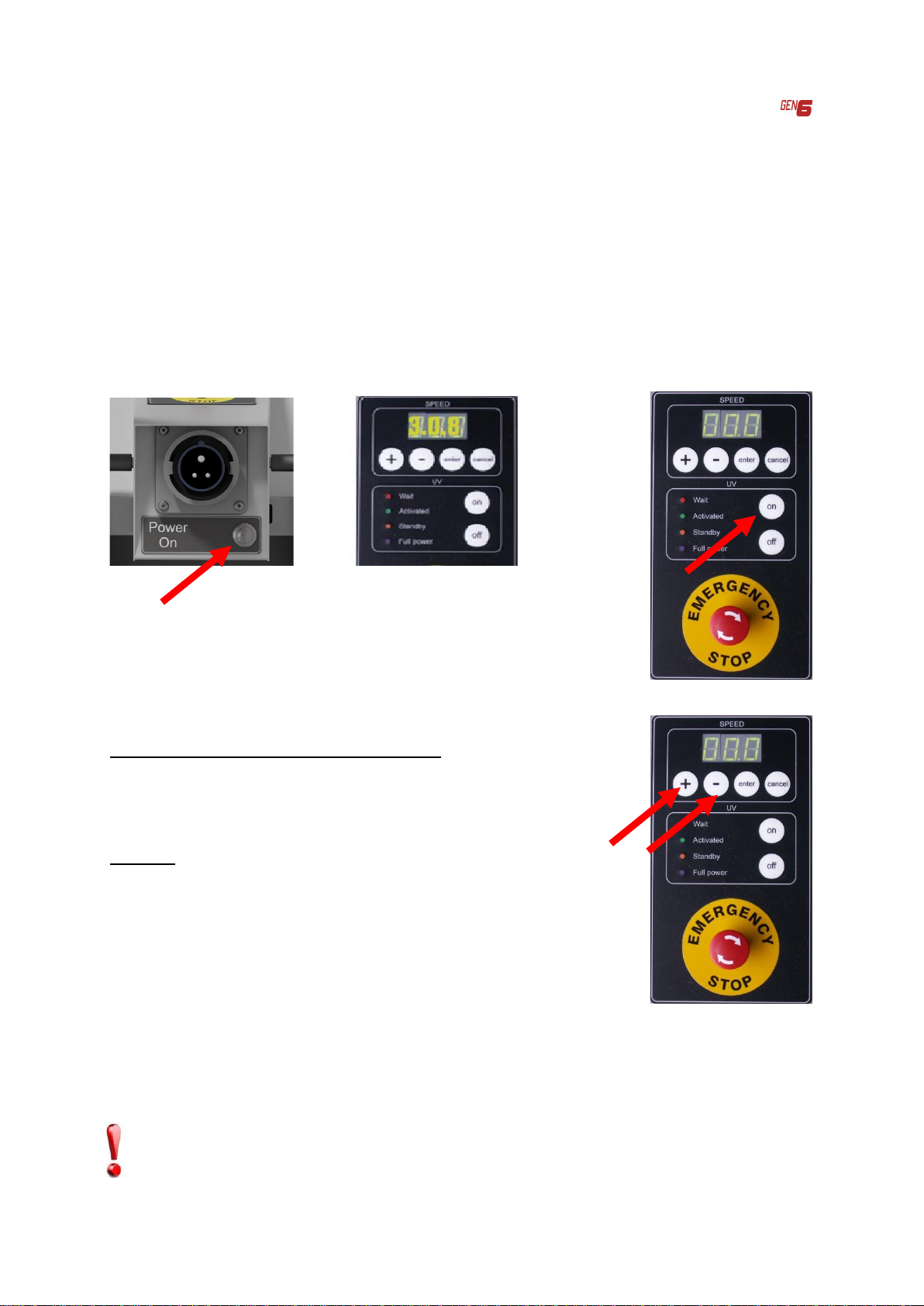

5.1 Switching the DecoRad® Floormate On ......................................................... 13
5.2 Switching the DecoRad® Floormate Off ......................................................... 14
6. Error Messages / tips............................................................................................ 15
7. Specifications of DecoRad® Floormate................................................................ 16
8. Service parts......................................................................................................... 17
8.1 Standard Delivery............................................................................................ 17
8.2 Field Replaceable Service Package................................................................ 17
9. Replacing Service Parts ....................................................................................... 18
9.1 Replacing the UV-Lamp.................................................................................. 18
9.2 Replacing the Mainprint .................................................................................. 21
9.3 Replacing the Fuses of the Mainprint.............................................................. 24
9.4 Calibrating speed............................................................................................ 25
10. Appendices......................................................................................................... 26
10.1 CE Declaration.............................................................................................. 26
10.2 TÜV Declaration............................................................................................ 27

User Manual Floormate –V. 2.7 B/C
- 3 -
1. Introduction
Carefully read through this user manual before using the
DecoRad® Floormate. Optimal safety is only guaranteed if the user
instructions, as described in this manual, are observed. The
DecoRad® Floormate can only be operated by sufficiently qualified
personnel.
1.1 Related Documents
In addition to this user manual, the following documents come with the
DecoRad® Floormate:
-CE declaration
-TÜV declaration
These were included in the appendices of this user manual.
1.2 Manufacturer
The DecoRad® Floormate is manufactured by:
DecoRad® Systems bv
Fokkerstraat 25
3905 KV Veenendaal
The Netherlands
Phone: [phone]
E-mail: [email protected]
www.decorad.com
For any questions regarding sales orders, deliveries, parts or shipments, please contact
DecoRad® Systems bv.

User Manual Floormate –V. 2.7 B/C
- 4 -
1.3 CE Marking
The DecoRad® Floormate comes with a CE marking. This means that the Floormate
meets the fundamental safety demands of the European Community. See the appendix
for the CE marking.
1.4 Guarantee
The manufacturer of the DecoRad® Floormate provides a 12 month carry-in warranty for
parts and repair costs*. This warranty is only valid if the DecoRad® Floormate is used
according to the specifications and the user and maintenance instructions are observed.
Factory repairs are under Carry Inn conditions.
The DecoRad® Floormate warranty* lapses in case of:
-Inexpert use
-Insufficient maintenance
-Inexpert maintenance
-Alterations without prior permission of the manufacturer
UV lamps do not fall under the factory warranty.
* At the discretion of DecoRad® Systems bv
1.5 Copyright
Copyright © DecoRad® Systems bv.
All rights reserved. Nothing from this publication can be multiplied, stored in an automated
file and/or made public in any form, either electronically, mechanically, by photocopies,
recordings, or any other way without prior written consent of the manufacturer.
1.6 Liability
The manufacturer of the DecoRad® Floormate is not liable for unsafe situations,
accidents or damage as a consequence of:
-Ignoring warnings or instructions as stated on the DecoRad® Floormate or as
described in this user manual (including not correctly applying personal protection
measures).
-The use of the DecoRad® Floormate for any other application or in any other
circumstances than indicated in this user manual.
-Making any kind of alterations to the DecoRad® Floormate. This also pertains to
applying other replacement parts.
-Intensity of the usage is decisive for the degree of maintenance.
The manufacturer is not liable for consequential loss when using the DecoRad®
Floormate, such as damage to products, business interruption, production loss, etc.

User Manual Floormate –V. 2.7 B/C
- 5 -
2. Safety
This chapter describes the safety measures pertaining to the DecoRad® Floormate.
Carefully read this chapter before putting the DecoRad® Floormate into operation
or performing maintenance work.
2.1 Safety Symbols in this User Manual
The following symbols are used in this user manual:
A comment draws the user's attention to possible problems.
Danger of damage to the DecoRad® Floormate if the instructions are
not carefully executed.
Possible injuries to the user if the instructions are not carefully
followed.
2.2 Symbols on the DecoRad® Floormate or in the manual:
The following mandatory symbols can be found:
Always wear a UV protective DecoRad® face shield.
Always wear UV protective DecoRad® clothes
Always wear UV protective DecoRad® gloves
Surface can become hot when using the
DecoRad® Floormate.
Careful: UV light.
Do not look into the light
Keep the room ventilated. The UV lamp might be full spectrum, so
there can be ozone production, depending on the type of lamp

User Manual Floormate –V. 2.7 B/C
- 6 -
2.3 Usage
The DecoRad® Floormate can only be operated by qualified personnel.
The safety instructions described in this manual should be observed. If
you deviate from these instructions, this can lead to serious personal
or material damage.
2.4 Maintenance
The DecoRad® Floormate can only be serviced by qualified personnel.
The weekly maintenance mechanic should be acquainted with the entire
content of this user manual.
Intensity of the usage is decisive for the degree of maintenance.
Examples of these are:
- The wheels (which should be undamaged and clean)
- The lamp & reflector (dirt, dust and age causes a decrease in UV energy output.
( clean with IPA alcohol and paper tissue )
2.5 Safety Regulations
The DecoRad® Floormate meets the fundamental safety and health demands of the
relevant guidelines of the European Community. However, in case of inexpert or careless
use, dangerous situations may still arise.
Stay alert for dangerous situations!
2.6 UV radiation
Ultraviolet radiation (or UV) is a proven process to disinfect water, air and solid surfaces
which have been contaminated with micro-organisms. In addition to this, UV radiation is
well-known for its application as a catalyst in drying processes. The effects of UV as a
disinfectant have been extensively documented in scientific research.

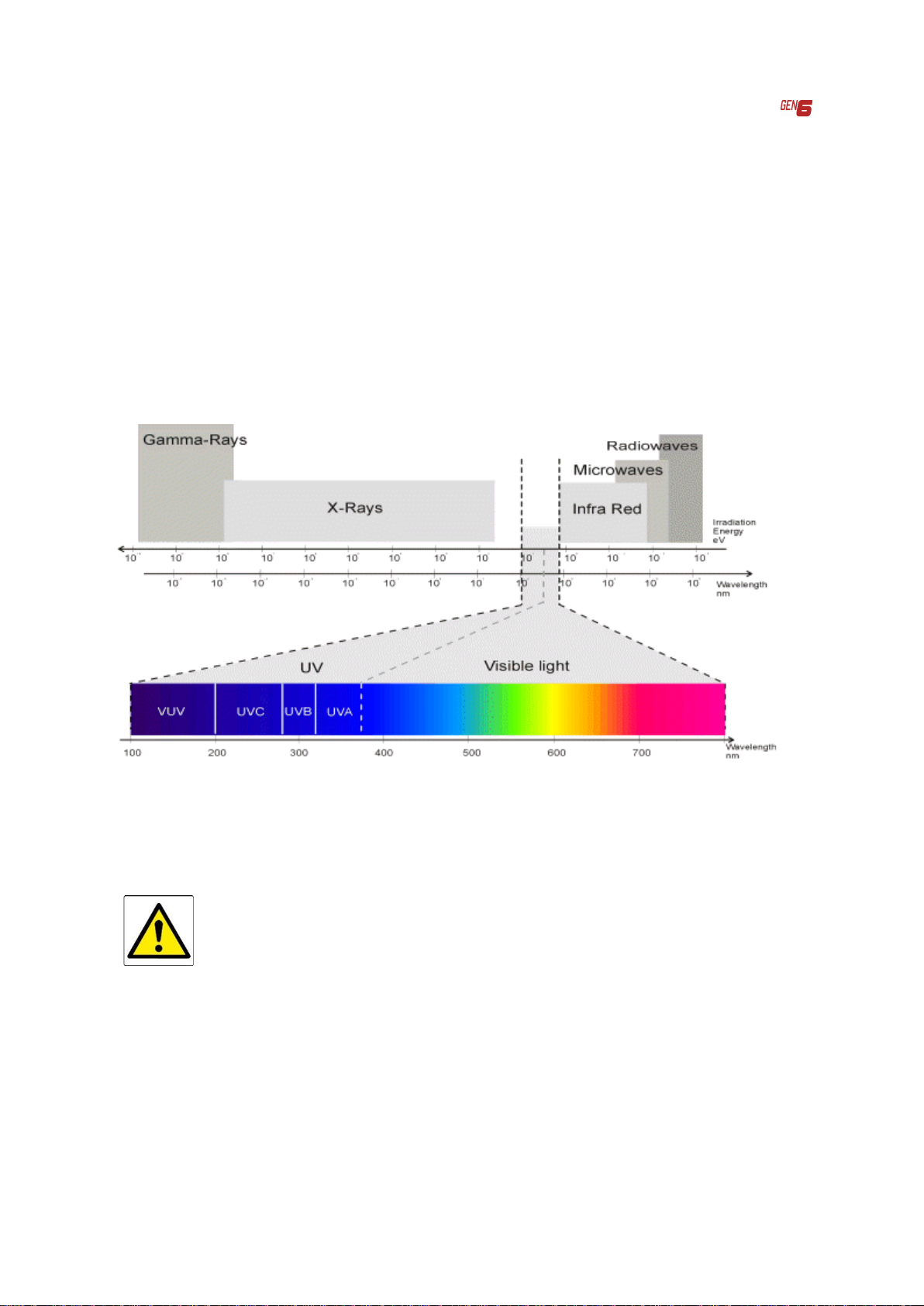

UV radiation is a mixture of radiation of various wavelengths. In a rainbow, the visible part
of the UV radiation is ordered according to the length of the waves. Progressing from
purple to red, the waves become increasingly longer. The infrared, with a wavelength
longer than that of red, is not visible but can be felt as (solar) heat. The ultraviolet or UV
has a wavelength shorter than that of purple. This part of the UV radiation is not visible as
well.
Most of the UV radiation we get comes through sunlight. Not all UV radiation reaches the
earth: a part is blocked by the ozone layer.

User Manual Floormate –V. 2.7 B/C
- 7 -
2.7 Risks of UV Radiation
Both UVA and UVB can damage cells and genetic material, thus leading to skin cancer.
UVB poses the greater risk here. Even though scientists used to think that UVA was not
harmful, newer research has proven that UVA contributes 10 to 20 percent to the cancer
risk.
In order to protect itself against damage to genetic material, the skin tries to thicken itself
(after UVB exposure). Pigment cells create the substance melanin, which gives the skin a
brown colour. This means that when the skin tans, it has already been damaged.
Because the ozone layer is becoming increasingly thinner due to environmental pollution,
less UV radiation is absorbed, thus leading to an increase of skin cancer occurrences.
In addition, the skin can burn under influence of UVA and UVB radiation. Burning is
accompanied by redness and in serious cases tremors, blisters, nausea and fever. In the
long term the skin will lose its elasticity, suffer from accelerated aging and will remain
sensitive for itching, pimples, etc.
Ultraviolet light can damage skin and eyes.
Wear the facial shield, protective clothes and gloves.
As a user, never look directly into a switched-on lamp.
Certain types of medication and cosmetics can increase sensitivity.

User Manual Floormate –V. 2.7 B/C
- 8 -
2.8 User
Carefully read through this user manual before operating the
DecoRad® Floormate.

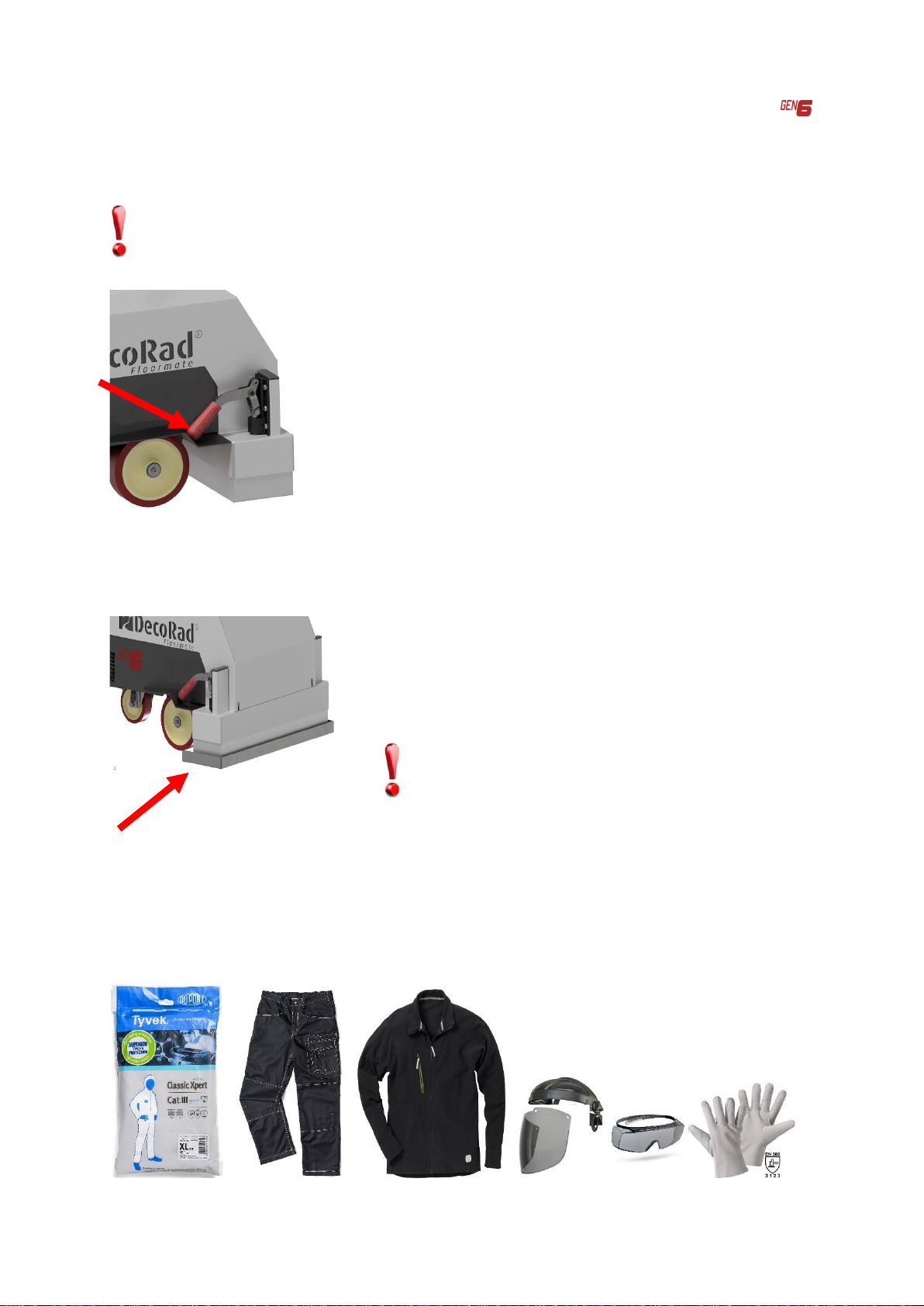

Before switching on the DecoRad® Floormate, please ensure that
the personal UV safety package as described in the user manual is
used. The UV-resistant facial shield and skin covering clothes
(including gloves) are obligatory.
The lamp emits large amounts of heat; keep out of reach of
explosive or highly flammable mixtures.
Make sure that the room where the DecoRad® Floormate will be used
is properly lit and ventilated.
The Floormate should be lifted by 2 persons.
Fold down handle bar and secure to lift.
Never lift from the lamp unit.
Dirt on the lamp and/or reflectors (e.g. from coatings or fingers)
can shorten the life span of the lamp or reduce the UV energy output
If needed, clean the cooled down lamp and reflector with IPA
alcohol and paper tissue.
Make sure the Floormate is visually checked (e.g. wheels, lamp,
reflector etc.) - Topple the DecoRad® Floormate over backwards and
let it rest on the folded out handle bar.
Please make sure that bystanders without appropriate UV protection
are at a safe distance of 10 meters / 33 ft.
In order to prevent damage to the DecoRad® Floormate and the user,
the user is strictly prohibited to work with tools on the DecoRad®
Floormate in any other way than indicated in this user manual for the
purpose of maintenance.

User Manual Floormate –V. 2.7 B/C
- 9 -
3. Machine Description
This chapter describes the parts and operational use of the DecoRad® Floormate.
3.1 Function
The DecoRad® Floormate is the ultimate tool for instantly curing floor coatings,
varnishes and oils. With the help of UV, it can instantly cure up to 250 square meter
per hour (depending on the type of substrate, layer thickness and product). Please
consult our website, www.decorad.com for a recent overview of suitable products!
3.2 Overview of the DecoRad® Floormate
1. Fold down handle bar
2. UV lamp
3. Adjustment levers for setting the height of the UV lamp
4. Display

User Manual Floormate –V. 2.7 B/C
- 10 -
3.3 Display
3.4 Equipment and standard
accessories
- UV-personal safety package
- Extension cord
- Heat shield
- Custom-made flight case (for transportation)
- UV yellow Safety cones
- User manual and Quick guide
For optional accessories and spare parts check our website.
1. “ON” button: switch on
2. “OFF” button: switch off
3. “+ and –“ buttons (individual and/or
together): set speed
4. “enter” button: confirm
5. “cancel” button: cancel
6. Emergency stop

User Manual Floormate –V. 2.7 B/C
- 11 -
4. Putting into operation
Remove the Floormate from the transportation stand in accordance with the directions as
indicated on the images below.
1. Pull to release the handlebar.
2. Place the handlebar into upright position and lock (secure) into red horizontal bar.
Drive the Floormate ( tilted on black wheels )
to the location where you would like to use it.
Power cable CEE –UL
1. Connect the supplied power cable with the blue connector to the DecoRad®
Floormate as indicated on the images below.
2. ATTENTION: make sure the power cable connector is firmly connected to the blue
machine outlet using the twist lock !

User Manual Floormate –V. 2.7 B/C
- 12 -
As soon as the power ON button on the display is pressed,
the Floormate’s electronics will start working.
Adjust the UV lamp to the right height by using the red adjustment levers.
The recommended height is as low as possible.
Place the heat shield underneath the UV lamphouse before starting the UV lamp, and
also during cooling down.
The heatshield prevents the floor from burning.
Skin & Eye protection.
Always wear protective clothing , gloves and a UV-resistant face shield during use. Make
sure that bystanders remain at sufficient distance ( 10 meters )

User Manual Floormate –V. 2.7 B/C
- 13 -
5. Operation
5.1 Switching the DecoRad® Floormate On
Connect the power cable to the Floormate and the mains.
Press the Power On button in the rear of the Floormate next to the blue power connector
The software version will shortly appear on the screen and the cooling fan will turn on.
Press the "on" button on the display.
The UV lamp will ignite and warm up, the LEDs "Activated" and "Wait" will light up.
Set the correct speed by using the "+" and "-" buttons.
Simultaneously press the "+" and "-".
Now it is possible to set the speed.
+ is faster
- is slower
Confirm the set speed by pressing the "enter" button.
Cancelling can be done by pressing the "cancel" button.
Cure speed: ask your coating company
Cure speed: is shown in meters per minute
USA: Cure speed in feet per minute
As soon as the orange "standby" LED lights up, the Floormate is ready for use.
Drive the Floormate away from the heat shield to the location where you would like to use
it.
Always keep the Floormate in motion with burning UV lamp
Software version

User Manual Floormate –V. 2.7 B/C
- 14 -
Press the left push button in the handle bar 1x.
The UV lamp will now go to full power. ( purple LED )
Press the right push button in the handle bar 1x.
The Floormate will now start moving according the latest set speed.
The set speed will appear on the display whilst moving.
When the Floormate is not moving for 4 seconds with the UV lamp on full
power, the Error Code U92 including an acoustic beeping signal will appear
on the display and the UV lamp will switch automatically to the dimming
position.
Press enter to suppress this notification, and start moving the Floormate.
If the notification is not suppressed with enter, and the Floormate remains in
“non movement’ Error Code U93 will appear on the display, after which the
Floormate’s UV lamp automatically switches off.
Driving with the set speed is only possible with the UV lamp on full
power.
Please consult chapter 6 for error messages.
5.2 Switching Off the DecoRad® Floormate
Press” Lamp” button on the handlebar; the UV lamp will switch to the dimming position.
Press the "off" button on the display to switch off the DecoRad® Floormate, place on heat
shield and let cool until auto off.
Unplug the DecoRad® Floormate from the mains voltage.
Remove the power cable from the DecoRad® Floormate.
Press the red bar down to release the handle bar.
Fold the handlebar down and secure, pull red levers in highest position lamphouse.
The DecoRad® Floormate is now ready for transportation.

User Manual Floormate –V. 2.7 B/C
- 15 -
6. Error Messages / tips
Troubleshooting:
•Have you read the manual?
•Starting the Floormate always begins with connecting the power cable with the
Floormate to the correct power source
•Is the power cable plugged in correctly and firmly connected(outlet/connector )
•Please make sure that stable and sufficient voltage is available.
•Have you set the correct speed and height lamphouse (matching with the UV
coating, please check with your supplier)?
•Turn OFF the Floormate wait for cool down and restart in case of unwanted or
unexpected actions (=reset)
•When having bad curing results, please consult your coating supplier and / or
order a new UV lamphouse
Error
Description
Solution
General
If an error cannot be solved
directly by pressing ENTER,
Restart after cooling down
E01
Communication error
Please consult DecoRad®
Systems bv
E11
Lamp driver fail
The lamp driver is damaged,
please consult DecoRad®
Systems bv.
E12
System fail
The electronics are damaged,
please consult DecoRad®
Systems bv
E13
Lamp fail
Switch off the Floormate and leave
the UV lamp to cool down.
Start up Floormate again /
Replace the lamp house unit.
E14
Temperature fail
The UV lamp is too warm, leave
the UV lamp to cool down.
E15
Fan fail
Please consult DecoRad®
Systems bv
E18
Low voltage
Please connect to power source
with more voltage
E21
Motor fail
Please consult DecoRad®
Systems bv
U91
Tilt error
The Floormate is tilted too far.
Press ENTER
U92
Non-movement error 4 seconds
The Floormate is not moving for 4
seconds whilst full power. The
lamp will switch to dimming
position. Press ENTER to avoid
U93
U93 (after U92)
Non-movement error 15 seconds
The Floormate is still not moving
after U92. The Floormate will shut
down after 10 seconds.
Restart after cooling down.
U94
Auto Off after 3 minutes no use
The Floormate will shut down after
not being used for 3 minutes whilst
in dimming position and placed on
the heat shield.
Restart after cooling down.

User Manual Floormate –V. 2.7 B/C
- 16 -
7. Specifications of DecoRad® Floormate
SPECIFICATIONS
Floormate
General
Brand and Type
DecoRad® Floormate GEN6
Colour
Silver / black
Cure path
45 cm
Lamphouse height adjustable to floor
✓
Zero degree turn radius
✓
Adjustable digital cure speed in meters or feet
✓
Wheels with PU tyre
✓
Measurements and weights
Total weight (kg)
Stainless Steel 56 Aluminium 39
Measurements (cm)
70 x 50 x 50 (LxWxH)
Power supply
Power UV - ultraviolet (Watt)
3000
Power voltage
190/250 V 50/60 HZ 16 Amp circuit
Cable powering provided (cm)
1000
Lamps
Standard UV-lamp (Ga, Fe or others possible)
Hg Mercury
Number of UV-lamp(s)
1
Burning hours UV-lamp(s)
500 to 1000
Start-up time UV-lamp(s)
Approx. 45 seconds
Ozone free or ozone building
Free of choice
Warranty (excluding UV lamp(s))
Manufacturer's warranty
1 year
Warranty type
Carry-in
Inspections
CE Approved
✓
TÜV certified (radiation)
✓
Accessories
Standard included
High quality flightcase, 2 safety
cones, operator manual and quick
guide, heat shield, power cable,
personal UV safety package.
Optional
Spare lamphouse with
same/different spectrum UV lamps,
linemarking 20 cm lamphouse,
extra PCB (mainprint), spare
wheels, pigtails power adapters
(3 phase to 1 phase)
See website for prices and details

User Manual Floormate –V. 2.7 B/C
- 17 -
8. Service parts
8.1 Standard Delivery
The DecoRad® Floormate is standard delivered with:
-Flight case (protection and transportation)
-2 yellow Safety cones
-Operator manual and quick guide
-Personal UV safety package
-Power cable
- Heat shield
8.2 Field Replaceable Service Package
In order to prevent on-site downtime, the following package is optionally available.
-Spare UV - lamphouse unit
-(field replaceable by operator in 10 minutes, see chapter 9.1).
-Spare PCB Mainprint
(field replaceable by operator in 15 minutes, see chapter 9.2).
-Spare set of wheels
(field replaceable by operator in 10 minutes)
-See website for prices and details

User Manual Floormate –V. 2.7 B/C
- 18 -
9. Replacing Service Parts
9.1 Replacing the UV-Lamp
Make sure the DecoRad® Floormate is cooled down
Remove the power cable
Follow the steps below for replacing the UV-lamp.
1. Topple the DecoRad® Floormate over backwards and let it rest on the folded
out handle bar.
2. Lower the red levers as much as possible; the lamp head is now in the lowest
position.

User Manual Floormate –V. 2.7 B/C
- 19 -
3. Loosen the lower socket head screw on both sides with a Allen Key and an
open-end wrench.
4. Remove both sides lamphouse socket head screws.
5. Carefully remove the complete lamphouse.
