DecorQuip Dream Range User manual

MOTORISATION MADE EASY
THE DREAM RANGE
USER’S GUIDE

CONTENTS
1. DREAM MOTORS AND MULTI-CHANNEL REMOTE................................... 14
1a. BUTTON SPECIFICATION.................................................................................. 14

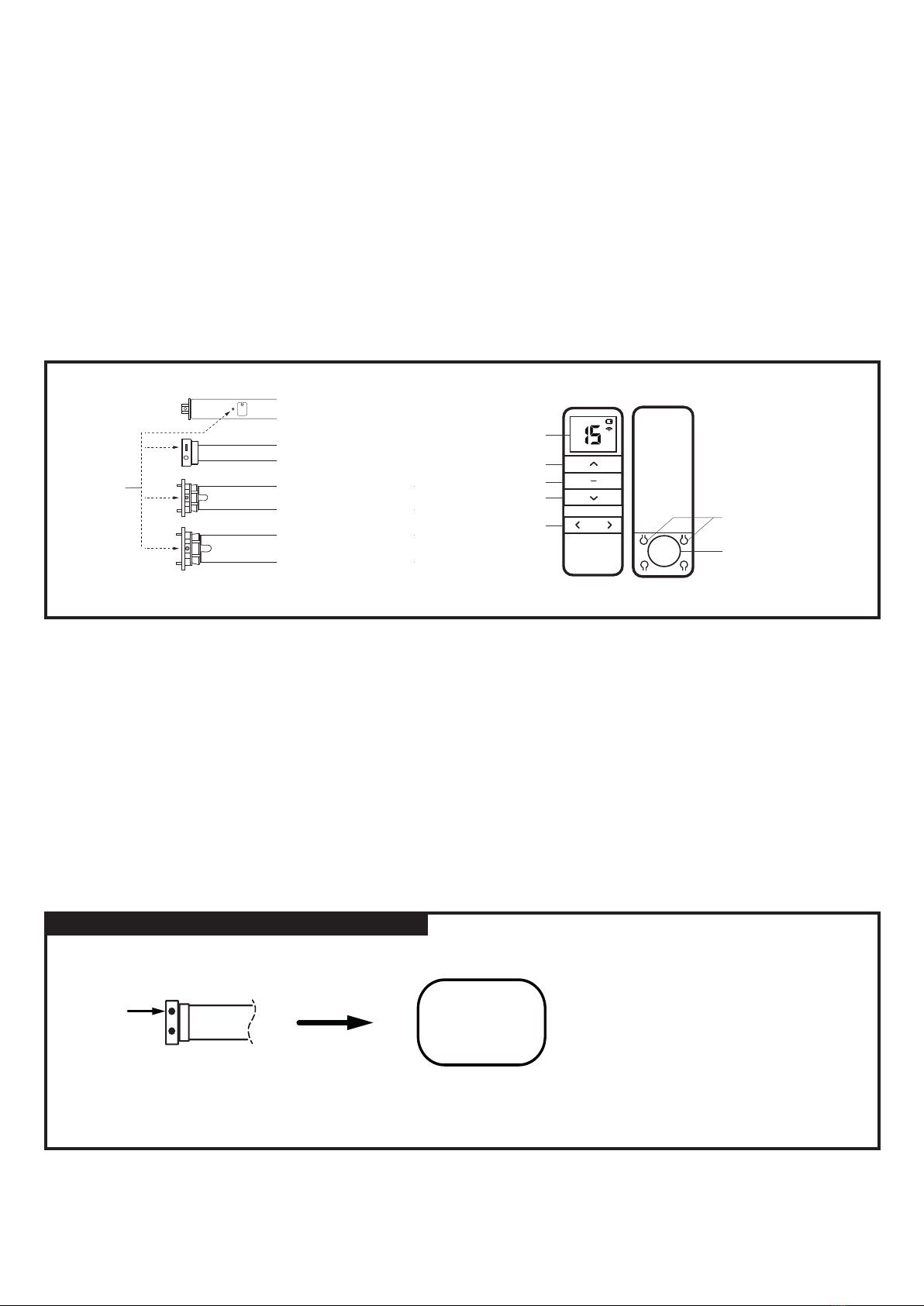

1b. P1 BUTTON SETTINGS....................................................................................... 14
SHORT PRESS FUNCTION................................................................................ 14
SLEEP MODE........................................................................................................ 15
SWITCHING DIRECTION.................................................................................... 15
RESTORING FACTORY SETTINGS................................................................... 15
1c. PAIRING A REMOTE AND INITIAL SETTINGS............................................... 16

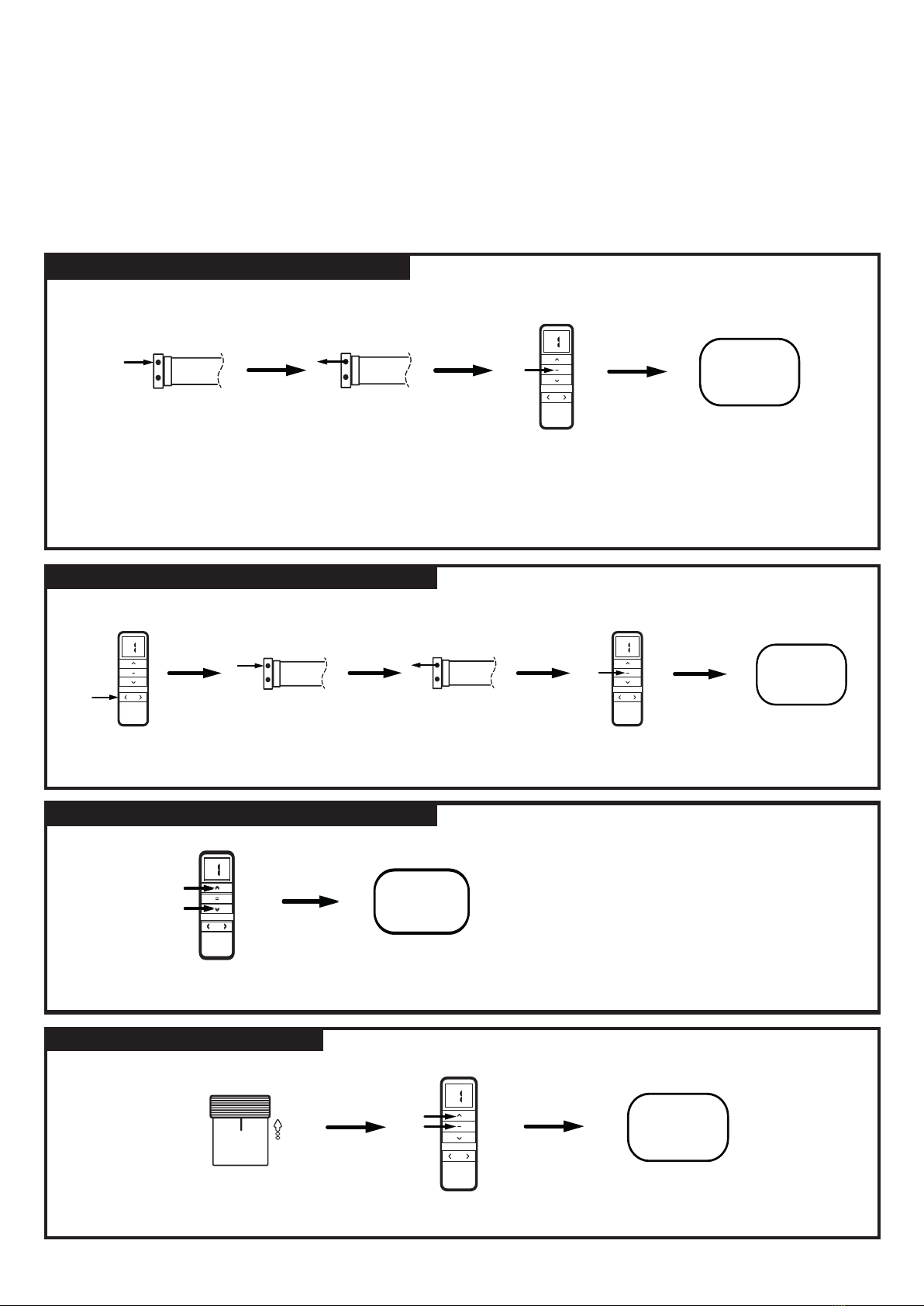

PAIRING A REMOTE WITH A MOTOR............................................................. 16
REMOVING A MOTOR FROM A REMOTE..................................................... 16
SWITCHING DIRECTION.................................................................................... 16
SETTING THE TOP LIMIT................................................................................... 16
SETTING THE BOTTOM LIMIT.......................................................................... 17
1d. ADVANCED SETTINGS....................................................................................... 17

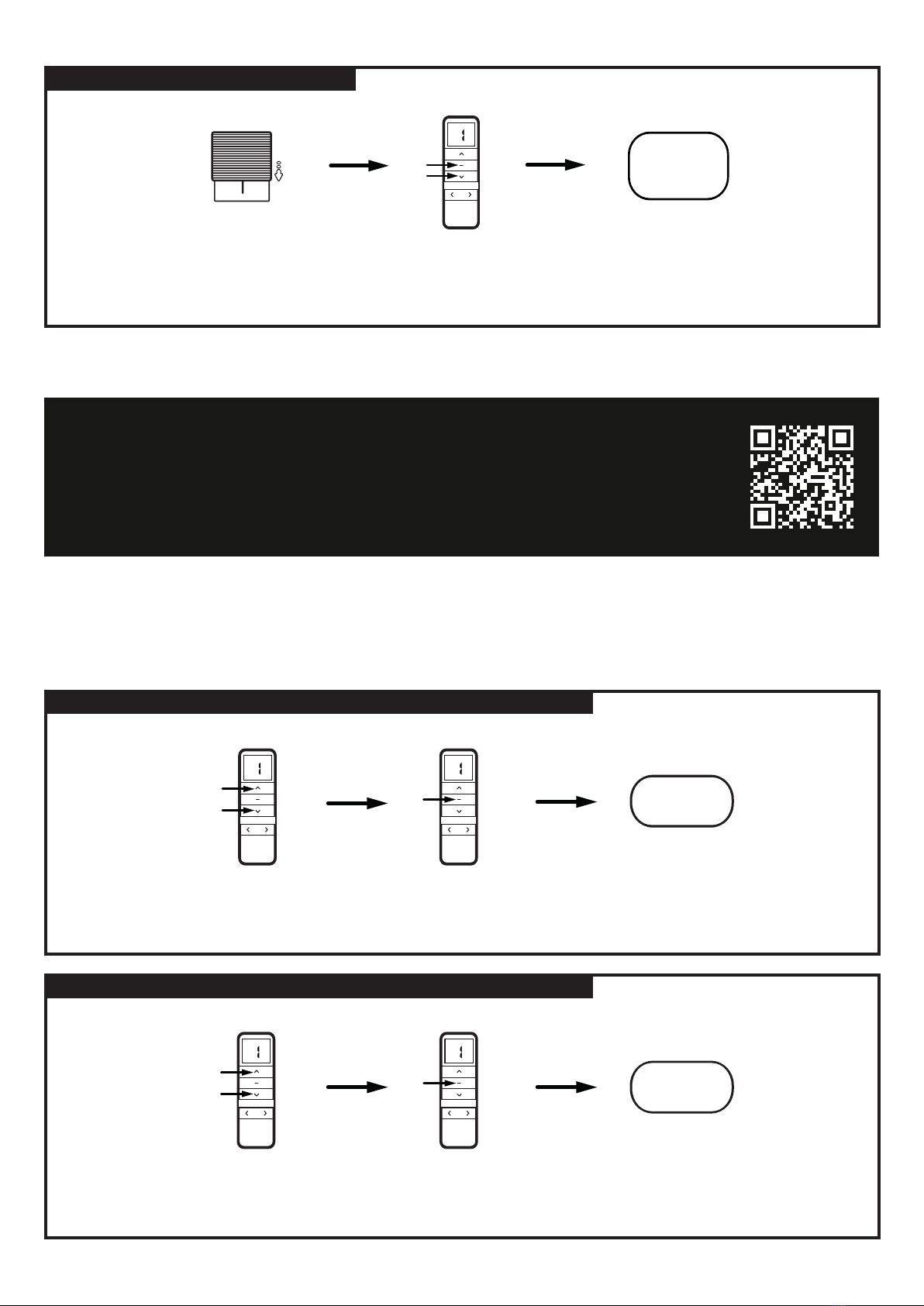

SWITCHING FROM CONTINUOUS MODE TO JOG MODE....................... 17
SWITCHING FROM JOG MODE TO CONTINUOUS MODE....................... 17
INCREASING MOTOR SPEED........................................................................... 18
DEACREASING MOTOR SPEED....................................................................... 18
SETTING A FAVOURITE STOP POSITION..................................................... 18
CLEARING A FAVOURITE STOP POSITION.................................................. 18
FINE-TUNING A TOP LIMIT............................................................................... 19
FINE-TUNING A BOTTOM LIMIT...................................................................... 19
ADDING OR REMOVING AN EXTRA REMOTE............................................ 19
MOVING A BLIND TO ANOTHER CHANNEL............................................... 19
DREAM RANGE PRODUCT SPECIFICATION.................................................... 5
PROGRAMMING INSTRUCTIONS - MOTORS.................................................. 13
2
1. DREAM MOTORS............................................................................................. 6
1a. ROLLER MOTORS................................................................................................ 6
FUNCTIONAL FEATURES.................................................................................. 8
INSTALLATION..................................................................................................... 8
CHARGING............................................................................................................ 8
1b. ROMAN AND PLEATED MOTOR...................................................................... 9
FUNCTIONAL FEATURES.................................................................................. 9
INSTALLATION..................................................................................................... 9
POWER SOURCE................................................................................................. 9
CHARGING............................................................................................................ 10
2. DREAM CONTROLS........................................................................................ 10
2a. DREAM MULTI-CHANNEL REMOTE............................................................... 10
2b. DREAM 15-CHANNEL WALL SWITCH............................................................ 11

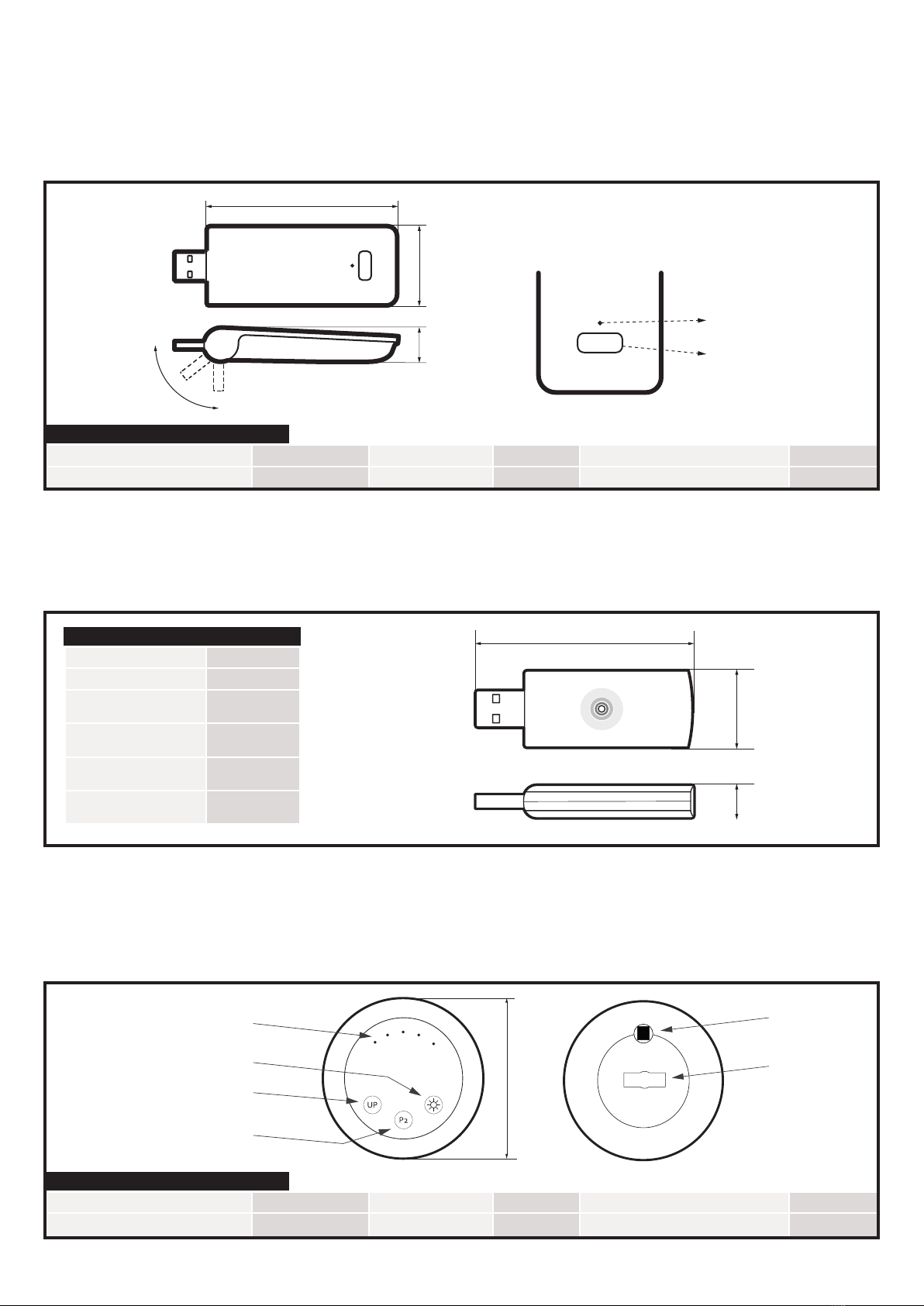

2c. DREAMHUB-PRO................................................................................................. 11
2d. DREAMHUB-MINI................................................................................................ 12
2e. DREAM SIGNAL BOOSTER............................................................................... 12
2f. SUN SENSOR......................................................................................................... 12

DREAM RANGE PRODUCT SPECIFICATION.................................................... 5
PROGRAMMING INSTRUCTIONS - MOTORS.................................................. 13
CONTENTS
2. DREAM MULTI-CHANNEL REMOTE (ADDITIONAL FUNCTIONS).............. 20

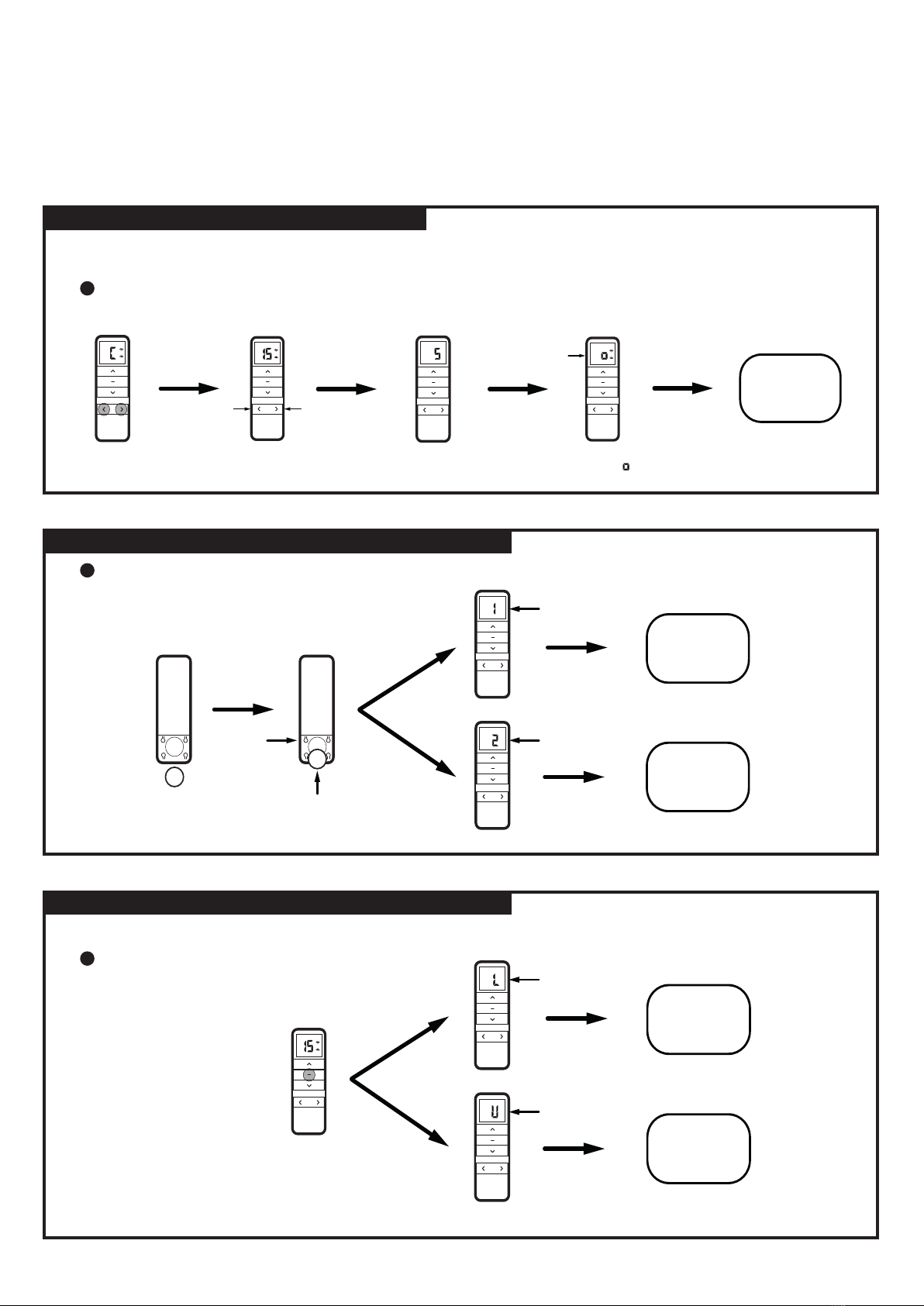

HIDE OR UNHIDE CHANNEL FUNCTIONS................................................... 20
UNI-DIRECTION/BI-DIRECTION SWITCHING MODE................................. 20
LOCK/UNLOCK MODE....................................................................................... 20
3. DREAM 15 CHANNEL WALL SWITCH (ADDITIONAL FUNCTIONS)............ 21
HIDE OR UNHIDE CHANNEL FUNCTIONS................................................... 21
UNI-DIRECTION/BI-DIRECTION SWITCHING MODE................................. 21
LOCK/UNLOCK MODE....................................................................................... 21
4. DREAMHUB-PRO/DREAMHUB-MINI........................................................... 22
CONNECTOR APP DOWNLOAD INSTRUCTIONS....................................... 22
4. DREAM SIGNAL BOOSTER............................................................................ 22
SETUP INSTRUCTIONS...................................................................................... 22
5. SUN SENSOR.................................................................................................. 23
PAIRING A SENSOR WITH A SINGLE BLIND................................................. 23
PAIRING A SENSOR WITH MULTIPLE BLINDS............................................. 23
SWITCHING BETWEEN SENSOR MODES...................................................... 23
MODES INDICATION........................................................................................... 24
SWITCHING LIGHT LEVELS............................................................................... 24
LOW BATTERY ALERT......................................................................................... 24
TESTING APPLIED SETTINGS........................................................................... 24
PROGRAMMING INSTRUCTIONS - CONTROLS............................................. 20
CONFORMITY DECLARATION AND DISPOSAL INSTRUCTIONS.................. 24
3

PRODUCT
SPECIFICATION

1.DREAM MOTORS
The Dream Motors come in a few shapes and sizes but the setup and programming options are
identical for all of them. For programming options go to page 10.

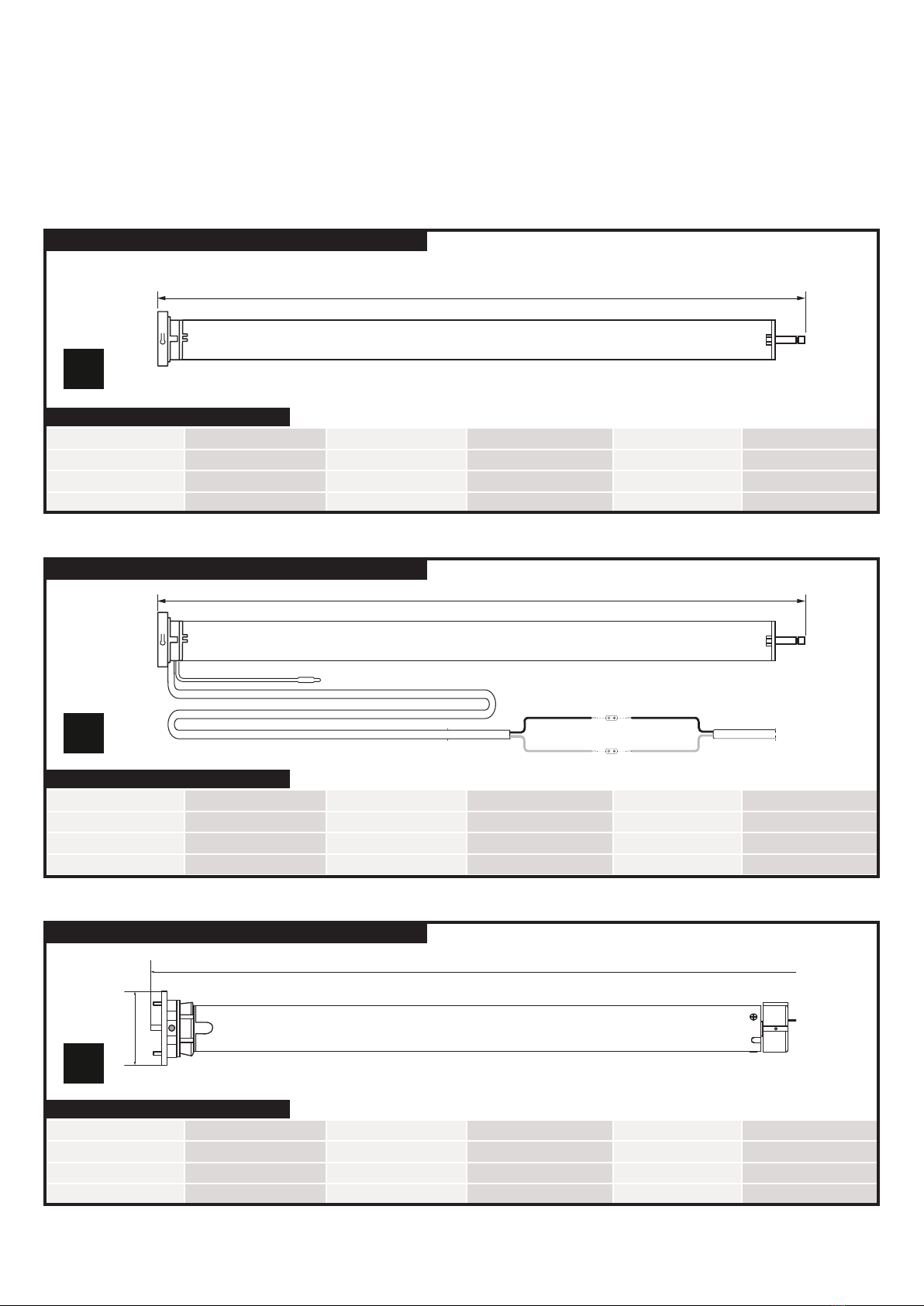

1a. ROLLER MOTORS
ROLLER 38 BATTERY MOTOR 191723
ROLLER 45 BATTERY MOTOR 191713
ROLLER 38 MAINS MOTOR 191731
TECHNICAL SPECIFICATION
TECHNICAL SPECIFICATION
TECHNICAL SPECIFICATION
CONTROL TYPE RADIO RATED VOLTAGE 12 V IP RATING IP44
LIMITS ELECTRONIC (set remotely) RATED POWER 10 W LIFTING CAPACITY 5.8 Kg
OUTPUT SPEED 40 rpm RATED CURRENT 0.83 A MIN. BLIND WIDTH 590 mm
RATED TORQUE 1.1 N.m RADIO FREQUENCY 433.92 MHz MOTOR LENGTH 510 mm
CONTROL TYPE RADIO RATED VOLTAGE 12 V IP RATING IP44
LIMITS ELECTRONIC (set remotely) RATED POWER 18 W LIFTING CAPACITY 13.3 Kg
OUTPUT SPEED 28 rpm RATED CURRENT 1.5 A MIN. BLIND WIDTH 770 mm
RATED TORQUE 3 N.m RADIO FREQUENCY 433.92 MHz MOTOR LENGTH 710 mm
CONTROL TYPE RADIO RATED VOLTAGE 240 V IP RATING IP20
LIMITS ELECTRONIC (set remotely) RATED POWER 13 W LIFTING CAPACITY 5.8 Kg
OUTPUT SPEED 32 rpm RATED CURRENT 0.3 A MIN. BLIND WIDTH 525 mm
RATED TORQUE 1.5 N.m RADIO FREQUENCY 433.92 MHz MOTOR LENGTH 466 mm
466mm
NEUTRAL LINE- BLUE
POWER
1
2LIVE LINE - BROWN
710mm
64mm
510mm
CABLE
LENGTH
5m
6
CHARGER
USB
Micro
CHARGER
USB
Micro

ROLLER 45 MAINS MOTOR 191633
ROLLER 55 BATTERY MOTOR 191711
ROLLER 55 MAINS MOTOR 191712
TECHNICAL SPECIFICATION
TECHNICAL SPECIFICATION
TECHNICAL SPECIFICATION
CONTROL TYPE RADIO RATED VOLTAGE 230 V IP RATING IP44
LIMITS ELECTRONIC (set remotely) RATED POWER 121 W LIFTING CAPACITY 26.7 Kg
OUTPUT SPEED 28 rpm RATED CURRENT 0.53 A MIN. BLIND WIDTH 640 mm
RATED TORQUE 6 N.m RADIO FREQUENCY 433.92 MHz MOTOR LENGTH 580 mm
CONTROL TYPE RADIO RATED VOLTAGE 12 V IP RATING IP44
LIMITS ELECTRONIC (set remotely) RATED POWER 26 W LIFTING CAPACITY 10.9 Kg
OUTPUT SPEED 28 rpm RATED CURRENT 1.5 A MIN. BLIND WIDTH 890 mm
RATED TORQUE 3 N.m RADIO FREQUENCY 433.92 MHz MOTOR LENGTH 830 mm
CONTROL TYPE RADIO RATED VOLTAGE 230 V IP RATING IP44
LIMITS ELECTRONIC (set remotely) RATED POWER 155 W LIFTING CAPACITY 21.8 Kg
OUTPUT SPEED 28 rpm RATED CURRENT 0.63 A MIN. BLIND WIDTH 830 mm
RATED TORQUE 6 N.m RADIO FREQUENCY 433.92 MHz MOTOR LENGTH 780 mm
NEUTRAL - BLUE 1
2
3
LIVE - BROWN
EARTH - GREEN & YELLOW
COMMON - BLACK1
2
3
4
UP - YELLOW
DOWN - GREEN
STOP - RED
580mm
HOME AUTOMATION/EXTERNAL SWITCH WIRE
MAINS WIRE
830mm
780mm
CABLE
LENGTH
2.5m
CABLE
LENGTH
5m
7

Bi - Directional Functionality Built-in Lithium-ion Battery (battery motors) Favourite Stop Position
Electronic Limit Setting Mains/Solar Charging (battery motors) Internally Stored Settings
Jog Mode Switch Direction Three Speeds Setting (battery motors)
Program/Operation Button P1 Built-in Radio Receiver Pair with up to 10 Control Devices
Smart Home Compatible Micro USB Charging Connector App
ROLLER MOTORS FUNCTIONAL FEATURES

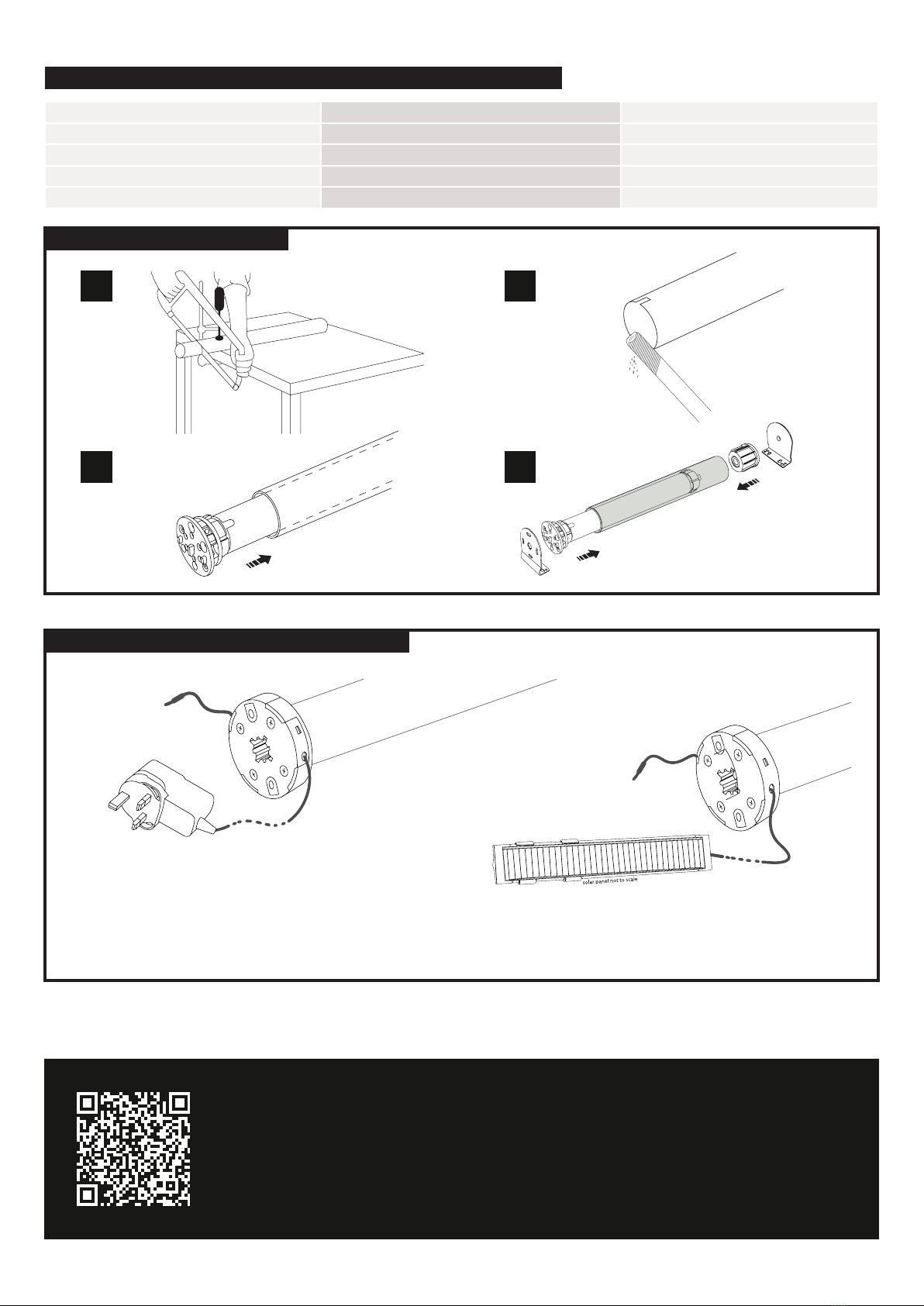

INSTALLATION
CHARGING Aplicable for battery motors
1
3
2
4
Dream Motors have a built-in battery that utillises the following chargers to
recharge:
- Micro USB Mains Charger 191701 for 38 and 45 motors
- Micro USB Solar Panel 191683 for 38 and 45 motors
- ‘Jack’ Plug Mains Charger 191692 for 55 motor
- Solar Panel 191682 for 55 motor
CONNECT YOUR SHADING SOLUTIONS
www.decorquip.com/made-to-measure/roller-blinds/dream-range/
8

Bi - Directional Functionality Built-in Lithium-ion Battery (battery motors) Favourite Stop Position
Electronic Limit Setting Mains/Solar Charging (battery motors) Internally Stored Settings
Jog Mode Switch Direction Three Speeds Setting (battery motors)
Program/Operation Button P1 Built-in Radio Receiver Pair with up to 10 Control Devices
Smart Home Compatible Micro USB Charging Connector App
ROMAN/PLEATED MOTORS FUNCTIONAL FEATURES
INSTALLATION
POWER SOURCE - BATTERY POWER SOURCE - MAINS POWER ADAPTER
1
3
2
4
Power Roman/Pleated LV Motor with conceled Li-ion battery.
Li-ion Rechargable Battery 191720 Mains Power Adaptor 191702
Plug Roman/Pleated LV Motor directly into a mains socket.
CONNECT YOUR SHADING SOLUTIONS
www.decorquip.com/made-to-measure/roller-blinds/dream-range/
ROMAN LV BATTERY MOTOR 191695 / PLEATED LV BATTERY MOTOR 191699
TECHNICAL SPECIFICATION
CONTROL TYPE RADIO RATED VOLTAGE 12 V IP RATING IP1.9
LIMITS ELECTRONIC (set remotely) RATED POWER 12 W LIFTING CAPACITY 8 Kg
OUTPUT SPEED 34 rpm RATED CURRENT 0.3 A MIN. BLIND WIDTH ROMAN 500mm | PLEATED450mm
RATED TORQUE 0.82 N.m RADIO FREQUENCY 433.92 MHz MOTOR LENGTH 205 mm
1b. ROMAN/PLEATED MOTORS
205mm
mm82
9

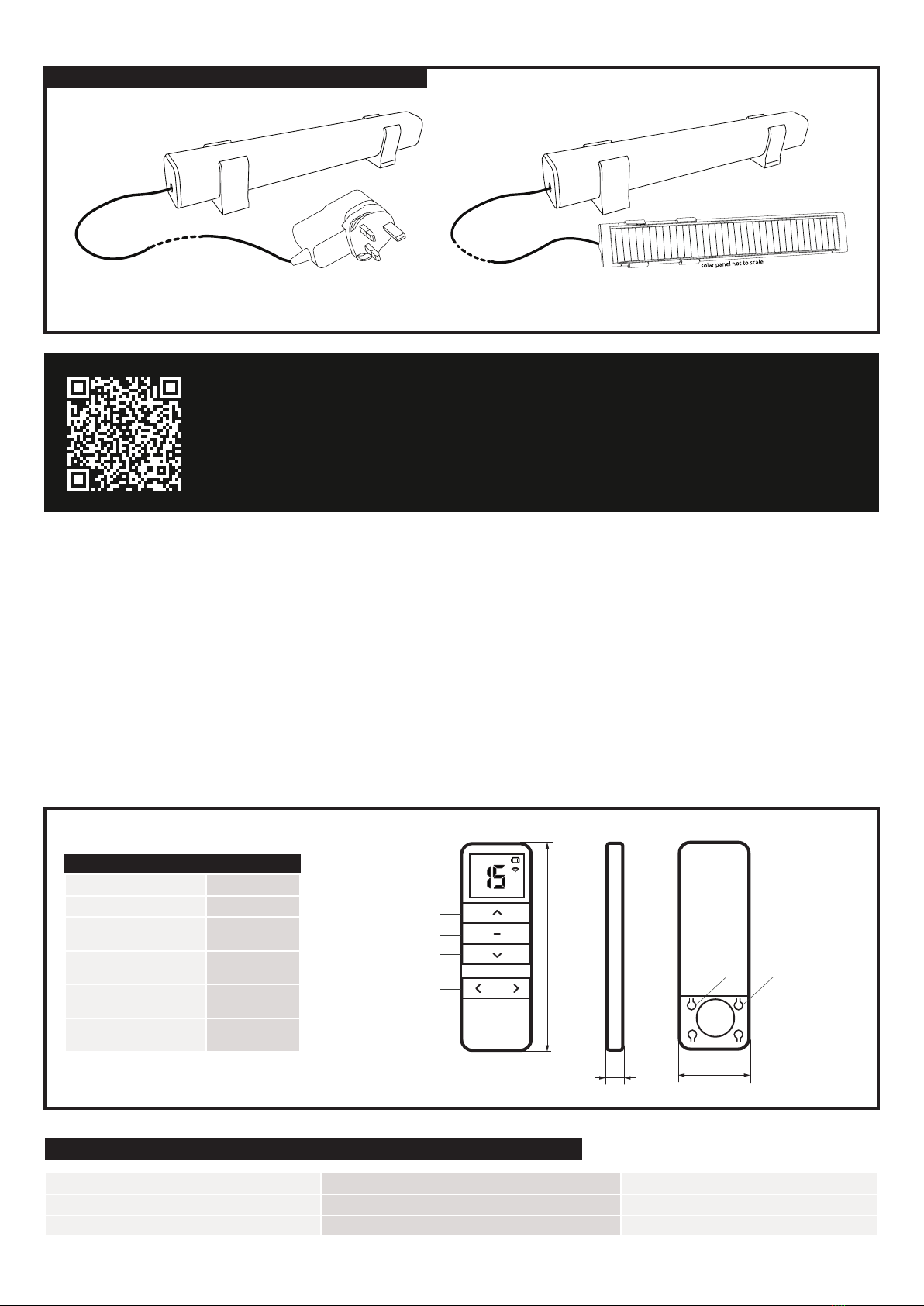

BATTERY RECHARGING
Li-ion rechargeable battery utillises Mains Charger 191692 or Solar Panel 191682 to recharge.
The remote is compatible with all bi-directional Dream Motors and older uni-directional motors.
For programming and paring options go to page 10. For programming the additional wall switch’s features
go to page 17.
2a. DREAM 15-CHANNEL REMOTE 191679
2.DREAM CONTROLS
DISPLAY SCREEN
UP
STOP
DOWN
CHANNEL SELECTOR
P2
SETTING
BUTTONS
BATTERY
44
11
130
TECHNICAL SPECIFICATION
INPUT VOLTAGE 3 V
BATTERY CR2450
TRANSMITTING
FREQUENCY 433.925 MHZ
TRANSMITTING
POWER 10 MW
OUTSIDE
TRANSMISSION RANGE 200 m
INSIDE
TRANSMISSION RANGE 35 m
Bi - Directional Functionality Pair up to 20 motors per channel Hide/Unhide Channel Option
Uni - Directional Functionality Channel ‘0’ to operate all paired blinds simultaneously Standard CR2450 Cell Battery
15 Channels Button Lock/Unlock Option Magnetic Wall Bracket
DREAM 15-CHANNEL REMOTE FUNCTIONAL FEATURES
CONNECT YOUR SHADING SOLUTIONS
www.decorquip.com/made-to-measure/roller-blinds/dream-range/
www.decorquip.com/made-to-measure/roller-blinds/dream-range/
10

The wall switch is compatible with all bi-directional Dream Motors and older uni-directional motors.
The programming and paring proccess is exactly the same as for the remote. For programming and
paring options go to page 10.
2b. DREAM 15-CHANNEL WALL SWITCH 191685
TECHNICAL SPECIFICATION
INPUT VOLTAGE 3 V
BATTERY CR2450
TRANSMITTING
FREQUENCY 433.925 MHZ
TRANSMITTING
POWER 10 MW
OUTSIDE
TRANSMISSION RANGE 200 m
INSIDE
TRANSMISSION RANGE 35 m
Bi - Directional Functionality Pair up to 20 motors per channel Hide/Unhide Channel Option
Uni - Directional Functionality Channel ‘0’ to operate all paired blinds simultaneously Standard CR2450 Cell Battery
15 Channels Button Lock/Unlock Option Wall Bracket
DREAM 15-CHANNEL WALL SWITCH FUNCTIONAL FEATURES
80mm
Channel selector - UP
UP
STOP
DOWN
Channel selector - DOWN
P2 Setting button
Battery
Display screen
Channel ‘0’ button
80mm
CONNECT YOUR SHADING SOLUTIONS
www.decorquip.com/made-to-measure/roller-blinds/dream-range/
www.decorquip.com/made-to-measure/roller-blinds/dream-range/
2c. DREAMHUB-PRO 191726
The Dream Hub works with all Dream Motors, by connecting them to your Wi-Fi network to allow you to
operate your blinds via smartphone with the free Connector app or voice control devices.
For Connector App download instructions go to page 18.
72mm 132mm
32mm
USB Port
LED light
RJ9 Port
TECHNICAL SPECIFICATION
INPUT VOLTAGE 3 V BATTERY CR2450 TRANSMITTING FREQUENCY 433.92 MHz
TRANSMITTING POWER 10 MW OPERATING TEMP. 50C ~ 500C OUTSIDE TRANSMITTING RANGE 200 m
INSIDE TRANSMITTING RANGE 35 M
11

2d. DREAMHUB-MINI 191717
The Dream Hub-Mini is a smaller version of its Pro equivalent and likewise works with all Dream Motors,
by connecting them to your Wi-Fi network to allow you to operate your blinds via smartphone with the
free Connector app or voice control devices. For Connector App download instructions go to page 18.
TECHNICAL SPECIFICATION
TECHNICAL SPECIFICATION
POWER INPUT DC 5V/1A (USB-A) CONNECTIVITY Wi-Fi: 2.4GHz TRANSMITTING FREQUENCY 433.92 MHz
INSIDE TRANSMITTING RANGE 35 m OPERATING TEMP. 00C ~ 400C OUTSIDE TRANSMITTING RANGE 200 m
POWER INPUT 3 V LIGHT RANGE 15-75 klx TRANSMITTING FREQUENCY 433.92 MHz
TRANSMITTING POWER 10 mV OPERATING TEMP. -200C ~ 600C TRANSMITTING RANGE 30 m
84mm
84mm13mm
PROGRAMMING
BUTTON
INDICATOR
2e. DREAM SIGNAL BOOSTER 191716
2f. SUN SENSOR 191727
The Dream Signal Booster works with all Dream Motors and control devices. When plugged in between a
control device and blinds extends the signal range up to 200m. For set up instructions go to page 18.
The Sun Sensor is compatible with all Dream Motors and works on a simple premise: automatically clos-
ing blinds when the sun is too bright and opening them as soon as the situation changes.
For programming and pairing instructions go to page 19.
TECHNICAL SPECIFICATION
POWER INPUT 4.8 V - 5.2 V
WORKING CURRENT <20mA
TRANSMITTING
FREQUENCY 433.925 MHZ
TRANSMITTING
POWER 10 MW
OUTSIDE
TRANSMISSION RANGE 200 m
INSIDE
TRANSMISSION RANGE 35 m
64mm
11mm 23mm
12
0
1
2
3
4
42mm
Light level indicators
Sun Button:
-press - indicates the light level and modes
-press & hold - switches between modes
UP Button:
moves blind upwards
P2 Button:
pairs the sensor with blind
Sensor
Suction pad slot

PROGRAMMING
INSTRUCTIONS

1. DREAM MOTORS/MULTI-CHANNEL REMOTE CONTROL
Every motor in our Dream range is equipped with bi-directional technology that only aords them some
very clever functionality when they’re coupled with smart devices, but also makes set up and operation
with our Dream Multi-Channel Handheld Remote Control a quick and easy process.
These instructions apply to all bi-directional Dream motors – including all roller, pleated and roman
motors – battery or mains powered.
1a. BUTTON SPECIFICATION
P1 BUTTON
ROMAN/PLEATED LV BATTERY MOTOR
ROLLER BLIND 38 BATTERY/MAINS MOTOR
ROLLER BLIND 45 BATTERY/MAINS MOTOR
ROLLER BLIND 55 BATTERY/MAINS MOTOR
DISPLAY SCREEN
UP
STOP
DOWN
CHANNEL SELECTOR P2 SETTING BUTTONS
BATTERY
1b. P1 BUTTON SETTINGS
The Dream motors come in a few shapes and sizes but the set up and control instructions are identical for
all of them. Crucial to these instructions is the P1 button that can be found on every motor.
The button in recessed into the motor to avoid accidental activation but is easily accessed with a pen or
a similar device. As well as being utilised in the pairing process, the P1 button can be used to control the
blind when an external control device is unavailable as well as functions such as restoring factory settings.
SHORT PRESS FUNCTION
Note:
When in jog-mode, holding the up
or down buttons will temproralily provide
continous-moving.
Press P1
for 1sec
UP / DOWN
/ STOP
DREAM RANGE PROGRAMMING INSTRICTIONS - OVERVIEW & P1 FUNCTIONALITY
Visit our YouTube channel for video equivalent of these instructions.
YouTube/Decorquip Channel
14

SLEEP MODE
SWITCHING DIRECTION
RESTORING FACTORY SETTINGS
Note:
Sleep mode can be utilised to temporariliy deactivate a motors’s radio functionality, allowing for multiple motors to be added
to a shared channel without disruption. Press P1 to restore functionality.
Note:
Switching direction using the P1 button is only available once a remote has been paired with the motor.
Hold P1
for 6sec
Motor
jogs x2 Beeps x2
SLEEP
MODE
Release
P1
Hold P1
for 10sec
Motor
jogs x3
Release P1
Beeps x3
DIRECTION
SWITCHED
Hold P1
for 14sec
Motor jogs x4
Beeps x4
FACTORY
SETTINGS
RESTORED
DREAM RANGE PROGRAMMING INSTRICTIONS - OVERVIEW & P1 FUNCTIONALITY
Visit our YouTube channel for video equivalent of these instructions.
YouTube/Decorquip Channel
15

PARING A REMOTE WITH A MOTOR
REMOVING A MOTOR FROM A REMOTE
SETTING THE TOP LIMIT
SWITCHING DIRECTION
SWITCHING DIRECTION
Note:
After pairing a remote and before setting limits, the motor will be defaulted to jog-mode. To switch to continuous-mode,
see ADVANCED FUNCTIONALITY - SWITCHING BETWEEN JOG MODE AND CONTINUOUS MODE on page 15
Motor
jogs x1 Motor
beeps x1
Motor
jogs x2
beeps x3
Release
P1 Press for 2sec
within 10s
PAIRING
COMPLETE
Press P1
for 2sec
Motor
jogs x1 Motor
beeps x1
Motor
jogs x2
beeps x3
Release
P1 Press for 2sec
within 10s
MOTOR
REMOVED
Press P1
for 2sec
Select a motor
to remove
TOP
LIMIT SET
Motor jogs x2
Beeps x3
Press together
for 2sec
Run blind to
top position
Press together
for 2sec
DIRECTION
SWITCHED
Motor
jogs x1
Press together
for 2sec
DIRECTION
SWITCHED
Motor
jogs x1
1c. PARING A REMOTE AND INITIAL SETTINGS
Before starting the process of pairing a handheld remote to a Dream motor, choose the channel to
which it is to be paired.
Channel Zero is reserved for simultaneously controlling all blinds paired to a remote and cannot be
used for pairing, programming or other adjustments. If using a battery powered motor, ensure that it is
su ciently charged to complete the set-up process.
Note:
Switching direction with a remote device is only
possible before setting top and bottom limits.
To switch after limits have been set, see P1 BUTTON
SETTINGS - SWITCHING DIRECTION
on page 14.
Note:
Switching direction with a remote device is only
possible before setting top and bottom limits.
To switch after limits have been set, see P1 BUTTON
SETTINGS - SWITCHING DIRECTION
on page 14.
DREAM RANGE PROGRAMMING INSTRICTIONS - PARING A REMOTE AND
INITIAL SETTINGS
Visit our YouTube channel for video equivalent of these instructions.
YouTube/Decorquip Channel
16

SETTING THE BOTTOM LIMIT
SWITCHING FROM CONTINUOUS MODE TO JOG MODE
SWITCHING FROM JOG MODE TO CONTINUOUS- MODE
Run blind to
bottom
position
BOTTOM
LIMIT SET
Motor jogs x2
Beeps x3
Press together
for 2sec
Hold together
for 5sec Press for
1sec
Motor
jogs x1 Motor jogs x1 Beeps x1
JOG
MODE
Hold together
for 5sec Press for
1sec
Motor
jogs x1 Motor jogs x2
Beeps x3
CONTINUOUS
MODE
Note:
After setting top and bottom limits, the motor will automatically switch to continuous mode. To switch to jog mode, see ADVANCED
FUNCTIONALITY - SWITCHING BETWEEN JOG MODE AND CONTINUOUS MODE on page 15.
Note:
When in jog mode, holding the up or down buttons will provide continuous-moving temporarily.
Note:
When in jog mode, holding the up or down buttons will provide continuous-moving temporarily.
DREAM RANGE PROGRAMMING INSTRICTIONS - PARING A REMOTE AND
INITIAL SETTINGS
Visit our YouTube channel for video equivalent of these instructions.
YouTube/Decorquip Channel
1d. ADVANCED SETTINGS
17

INCREASING MOTOR SPEED (BATTERY MOTORS ONLY)
DECREASING MOTOR SPEED (BATTERY MOTORS ONLY)
SETTING A FAVOURITE STOP POSITION
CLEARING A FAVOURITE STOP POSITION
Press for
1sec
Motor jogs x2
Beeps x1
SPEED
INCREASED
Press P2
for 1sec
Press for
1sec
Motor jogs x1
Beeps x1
Motor jogs x1
Beeps x1
Motor jogs x2
Beeps x1
SPEED
DECREASED
Press P2
for 1sec
Press for
1sec
Motor jogs x1
Beeps x1
Press for
1sec
Motor jogs x1
Beeps x1
Run shade to
desired position Press P2
for 1sec
Press
for 1sec
FAVOURITE
POSITION
SET
Motor jogs x1
Beeps x1 Motor jogs x1 Beeps x1
Press
for 1sec
Motor jogs x2
Beeps x3
Press
for 1sec
Press
for 1sec
FAVOURITE
POSITION
CLEARED
Press P2
for 1sec
Motor jogs x1
Beeps x1 Motor jogs x1
Beeps x1 Motor jogs x1
Beeps x1
Note:
If the motor does not response to these instructions, it has already reached its upper speed setting.
Note:
If the motor does not response to these instructions, it has already reached its lowest speed setting.
Note:
Once the favourite stop position has been set, it can be activated by holding the stop button for 2 seconds.
18
DREAM RANGE PROGRAMMING INSTRICTIONS - ADVANCED FUNCTIONALITY
Visit our YouTube channel for video equivalent of these instructions.
YouTube/Decorquip Channel

FINE-TUNNING A TOP LIMIT
FINE-TUNNING A BOTTOM LIMIT
MOVING A BLIND TO ANOTHER CHANNEL
ADDING/REMOVING AN EXTRA REMOTE
Hold together
for 5sec Hold together
for 2sec
Jog to desired
position
FINE-TUNE
MODE
ENGAGED
TOP
LIMIT SET
Motor jogs x1
Beeps x1 Motor jogs x2
Beeps x3
Hold together
for 5sec Hold together
for 2sec
Jog to desired
position
FINE-TUNE
MODE
ENGAGED
BOTTOM
LIMIT SET
Motor jogs x1
Beeps x1 Motor jogs x2
Beeps x3
BLIND
MOVED
Hold
for 2sec
Press P2
for 1sec
Select
channel Select channel
Press P2
for 1sec
Motor jogs x1
Beeps x1 Motor jogs x1
Beeps x1 Motor jogs x2
Beeps x3
REMOTE
PAIRED
Hold
for 2sec
Press P2
for 1sec Press P2 for 1sec
Motor jogs x1
Beeps x1 Motor jogs x1
Beeps x1 Motor jogs x2
Beeps x3
19
Existing remote control device
Remote control device to add/remove
DREAM RANGE PROGRAMMING INSTRICTIONS - ADVANCED FUNCTIONALITY
Visit our YouTube channel for video equivalent of these instructions.
YouTube/Decorquip Channel

2. DREAM MULTI-CHANNEL REMOTE CONTROL
ADDITIONAL FUNCTIONS
HIDE/UNHIDE CHANNEL FUNCTION
UNI-DIRECTION/BI-DIRECTION SWITCHING MODE
UNI-DIRECTION/BI-DIRECTION SWITCHING MODE
Hold together
for 5sec
Press stop x1
UNUSED
CHANNELS
HIDDEN
Channel activation
con�rmed ‘ ’
Channel 15 appears
on the screen
Select number of
channels in use
UNI-DIRECTION
MODE
BI-DIRECTION
MODE
Hold P2 button
while inserting battery
REMOTE
LOCKED
REMOTE
UNLOCKED
Hold for 15sec
Allows the user to hide or unhide unused or used channels. By selecting a channel, i.e. channel 5, channels 1,2,3,4 and 5 will remain
active while the other 10 unused channels will become hidden.
Enables or disables entering the remote setting mode without aecting normal blind operation.
Factory default: 15 channels unhidden.
Factory default: Bi-directional mode.
Factory default: Remote unlocked.
!
!
!
20
