Congratulations on the purchase of your ECOVACS ROBOTICS DEEBOT!
We hope it brings you many years of satisfaction. We trust the purchase of your
new robot will help keep your home clean and provide you more quality time to
do other things.
Live Smart. Enjoy Life.
Should you encounter situations that have not been properly addressed in
this Instruction Manual, please contact our Customer Service Center where a
technician can address your specic problem or question.
For more information, please visit the ECOVACS ROBOTICS official website:
www.ecovacs.com
The Company reserves the right to make technological and/or design changes
to this product for continuous improvement.
Thank you for choosing DEEBOT!
Benutzerhandbuch............................................................26
DE
Manuale d'uso .................................................................130
IT
..................................................52
Manual de instrucciones
ES
Manual de instruções.....................................................104
PT
.......................................................78
Manuel d'instructions
FR
..............................................................2
Instruction Manual
EN
Declaration of conformity ....................................................156

1. Important Safety Instructions.................................................................................2
2. Package Contents and Technical Specifications.............................................5
2.1 Package Contents...................................................................................................5
2.2 Specications...........................................................................................................5
2.3 Product Diagram.....................................................................................................6
3. Operating and Programming...................................................................................8
3.1 Notes Before Cleaning..........................................................................................8
3.2 Quick Start.............................................................................................................10
3.3 Cleaning Mode Selection...................................................................................13
3.4 Programming the Robot......................................................................................15
3.5 Additional Settings...............................................................................................16
3.6 Optional Advanced Wet/Dry Mopping System...............................................17
3.7 Voice Reporting....................................................................................................19
4. Maintenance...............................................................................................................20
4.1 Dust Bin and Filters.............................................................................................20
4.2 Advanced Wet/Dry Cleaning Cloth and Advanced Wet/Dry Reservoir....21
4.3 Main Brush and Side Brushes...........................................................................22
4.4 Other Components..............................................................................................23
5. Troubleshooting........................................................................................................24
Contents
.......................................................78

EN
2
1. Important Safety Instructions
When using an electrical appliance, basic precautions should always be
followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE.
SAVE THESE INSTRUCTIONS
1. This Appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the Appliance
in a safe way and understand the hazards involved. Children shall
not play with the Appliance. Cleaning and user maintenance shall
not be made by children without supervision.
2. Clear the area to be cleaned. Remove power cords and small
objects from the floor that could entangle the Appliance. Tuck
rug fringe under the rug base, and lift items such as curtains and
tablecloths off the oor.
3. If there is a drop off in the cleaning area due to a step or stairs, you
should operate the Appliance to ensure that it can detect the step
without falling over the edge. It may become necessary to place a
physical barrier at the edge to keep the unit from falling. Make sure
the physical barrier is not a trip hazard.
4. Only use as described in this manual. Only use attachments
recommended or sold by the manufacturer.
5. Please make sure your power supply voltage matches the power
voltage marked on the Charging Dock.
6. For INDOOR household use ONLY. Do not use the Appliance in
outdoor, commercial or industrial environments.
7. Use only the original rechargeable battery and Charging Dock
provided with the Appliance from the manufacturer. Non-
rechargeable batteries are prohibited. For battery information,
please refer to Specications section.
8. Do not use without dust bin and/or lters in place.
9. Do not operate the Appliance in an area where there are lit candles
or fragile objects.
10. Do not use in extremely hot or cold environments (below -5˚C /23˚F
or above 40˚C/104˚F).
11. Keep hair, loose clothing, ngers, and all parts of body away from
any openings and moving parts.
12. Do not operate the Appliance in a room where an infant or child is
sleeping.
13. Do not use Appliance on wet surfaces or surfaces with standing
water.

EN
3
1. Important Safety Instructions
14. Do not allow the Appliance to pick up large objects like stones,
large pieces of paper or any item that may clog the Appliance.
15. Do not use Appliance to pick up flammable or combustible
materials such as gasoline, printer or copier toner, or use in areas
where they may be present.
16. Do not use Appliance to pick up anything that is burning or
smoking, such as cigarettes, matches, hot ashes, or anything that
could cause a re.
17. Do not put objects into the suction intake. Do not use if the suction
intake is blocked. Keep the intake clear of dust, lint, hair, or
anything that may reduce air ow.
18. Take care not to damage the power cord. Do not pull on or carry
the Appliance or Charging Dock by the power cord, use the power
cord as a handle, close a door on the power cord, or pull power
cord around sharp edges or corners. Do not run Appliance over
the power cord. Keep power cord away from hot surfaces.
19. If the power cord is damaged, it must be replaced by the
manufacturer or its service agent in order to avoid a hazard.
20. Do not use the Charging Dock if it is damaged.
21. Do not use with a damaged power cord or receptacle. Do not use
the Appliance or Charging Dock if it is not working properly, has
been dropped, damaged, left outdoors, or come in contact with
water. It must be repaired by the manufacturer or its service agent
in order to avoid a hazard.
22. Turn OFF the power switch before cleaning or maintaining the
Appliance.
23. The plug must be removed from the receptacle before cleaning or
maintaining the Charging Dock.
24. Remove the Appliance from the Charging Dock, and turn OFF
the power switch to the Appliance before removing the battery for
disposal of the Appliance.
25. The battery must be removed and discarded according to local
laws and regulations before disposal of the Appliance.
26. Please dispose of used batteries according to local laws and
regulations.
27. Do not incinerate the Appliance even if it is severely damaged. The
batteries can explode in a re.
28. When not using the Charging Dock for a long period of time,
please unplug it.

EN
4
Correct Disposal of this Product
This marking indicates that this product should not be disposed of with
other household waste throughout the EU. To prevent possible harm
to the environment or human health from uncontrolled waste disposal,
recycle it responsibly to promote the sustainable reuse of material
resources. To recycle your used device, please use the return and
collection systems or contact the retailer where the product was
purchased. They can safely recycle this product.
For EU Countries
29. The Appliance must be used in accordance with the directions
in this Instruction Manual. ECOVACS ROBOTICS cannot be
held liable or responsible for any damages or injuries caused by
improper use.
30.WARNING: For the purposes of recharging the battery, only use
the detachable supply unit CH1465A provided with this Appliance.
31. The robot contains batteries that are only replaceable by skilled
persons.
RF of Wi-Fi module output power less than 100mW
1. Important Safety Instructions

EN
5
2. Package Contents and Technical Specifications
2.1 Package Contents
Robot
(2) Advanced Wet/
Dry Cleaning Cloths
(4) Side BrushesCharging Dock
Advanced Wet/Dry
Reservoir
Reservoir Cleaning
Solution
Direct Suction Option
Measuring Cup App Leaet
Instruction Manual
Model DR95
Working Voltage 14.8V DC Rated Power 30W
Battery Model 1355-10056-000-00-H001 Battery Specication Lithium 14.48V DC,
2850mAh
Charging Dock Model CH1465A
Rated Input Voltage 100-240V AC Rated Output Voltage 20V DC
Rated Output Current 1A Rated Power 20W
Laser max. power: 2.5mW Frequency: 1.8KHz
Rotate Speed: 300±5 circle/min
*Technical and design specications may be changed in the course of continuous product improvement.
2.2 Specifications

EN
6
2.3 Product Diagram
1
4
6
7
8
9
10
15
11
12
17
2
3
Robot
1
2 3 4 5
1. Top Cover
2. AUTO Mode Button
3. Anti-Collision Sensors
and Bumper
4. LDS (Laser Distance Sensor)
5. LDS Bumper
6. Anti-Drop Sensors
7. Charging Contacts
8. Side Brushes
9. Main Brush
10. Driving Wheels
11. Universal Wheel
12. Battery Pack with Screws
13. Upgrade Port
14. Multi-Function Cleaning
Tool
15. RESET Button
16. Power Switch
17. Advanced Wet/Dry
Reservoir Slots
18. Dust Bin
1. AUTO Mode Button
2. Wi-Fi Indicator
3. Scheduled Cleaning Indicator
4. Mapping Indicator
5. Return to Charger Mode Indicator
Control Panel
13
5
14 16
18
2. Package Contents and Technical Specifications

EN
7
2. Package Contents and Technical Specifications
Dust Bin
1. Dust Bin Handle
2. Filter Net
3. High Efciency Filter
4. Dust Bin Cover
5. Dust Bin Lock
1
2
3
4
5
Charging Dock
1. Infrared Signal Generators
2. Charging Dock Pins
1
2
Advanced Wet/Dry Cleaning Cloth and Advanced Wet/Dry Reservoir
1. Advanced Wet/Dry Cleaning Cloth
2. Advanced Wet/Dry Reservoir
3. Water Inlet
4. Velcro
1
2
3
4

EN
8
3. Operating and Programming

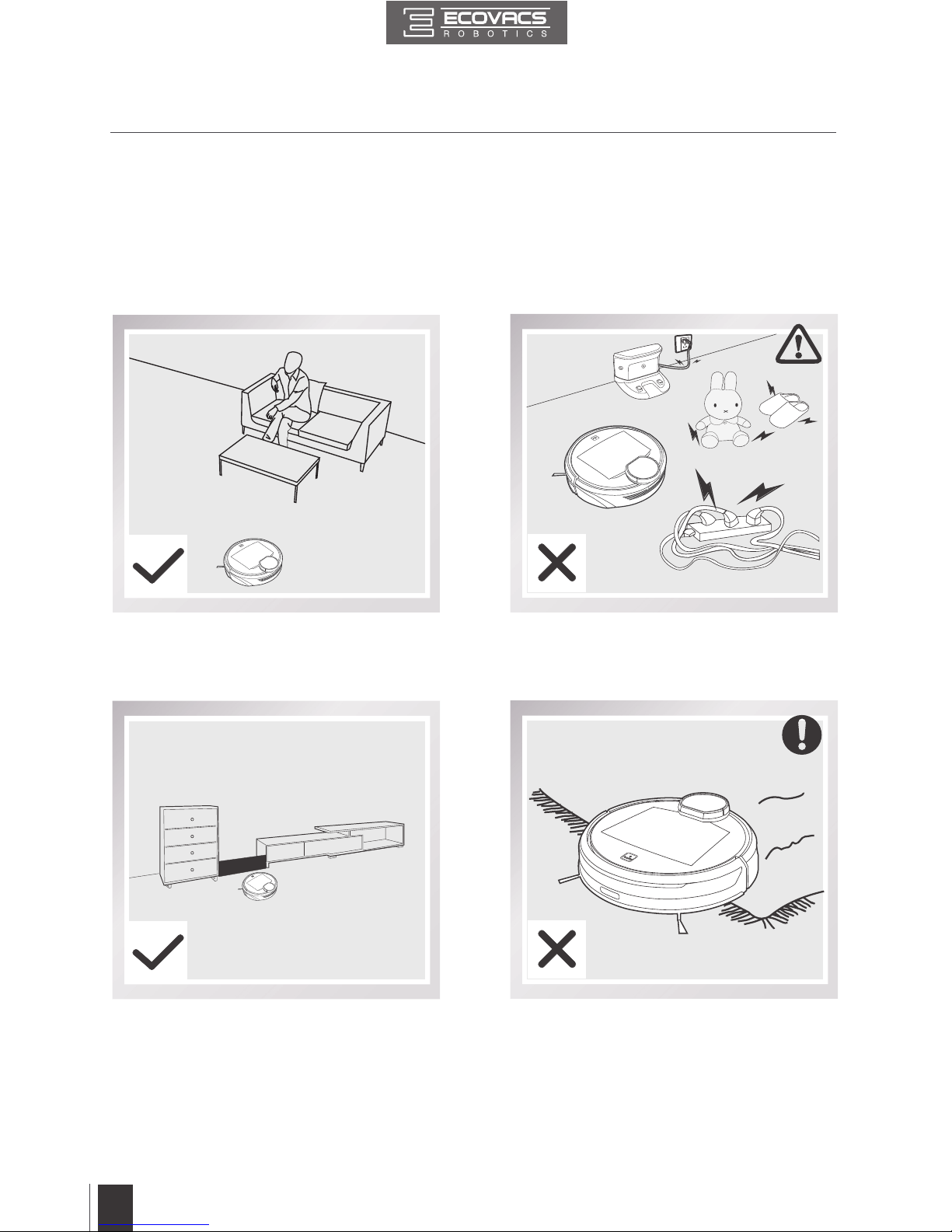

3.1 Notes Before Cleaning
DEEBOT uses SMART NAVI technology (a proprietary laser scanning and
mapping system) to scan and generate a map of the home environment.
Before operating DEEBOT, take a few moments to survey the area to be
cleaned and remove any obstacles.
Remove power cords and small objects from
the oor that could entangle the product.
Please supervise DEEBOT during its first
cleaning and assist should there be a
problem.
The product is not suitable for use on long
pile carpet. Before using the product near
an area rug with tasseled edges, please fold
area rug edges under themselves.
If there is a narrow entrance to a space
between furniture, please place a physical
barrier to stop the unit from entering that
area.

EN
9
3. Operating and Programming
Please be aware that DEEBOT needs at
least an 11cm (4.3”) clearance to clean under
furniture without complications.
Please be aware that DEEBOT may climb
on objects of less than 1.8cm (0.7") height.
Please remove these objects if possible.
Please cover reective surfaces 13cm (5.1")
from the ground.
When DEEBOT is cleaning, please do not
stand in narrow spaces, such as hallways, or
DEEBOT may fail to identify the area to be
cleaned.
If there is a step or stairs in the cleaning
area, please operate DEEBOT to ensure its
Anti-Drop Sensors can detect the drop off. It
may be necessary to place a physical barrier
at the edge of the drop off to keep the unit
from falling over the edge.


I
S

EN
10
3. Operating and Programming
Install Side Brushes
Attach Side Brushes to the bottom of
DEEBOT by pressing a brush into each
slot with the matching color until it clicks.
2
1.6
1.6
3.2 Quick Start
Remove the protection strip from the
robot’s Bumper before use.
Charging Dock Placement
Place the Charging Dock on a level
floor surface against the wall with the
base perpendicular to the ground. Keep
the immediate area 1.5m (5’) in front
of the charger and 0.5m (1.6’) on both
sides of the charger clear of objects and
reective surfaces.
Plug the Charging Dock in.
1
*Do not change the location of the
Charging Dock once DEEBOT has
scanned the environment. If it is
necessary to relocate Charging Dock,
power OFF DEEBOT and then power
back ON so DEEBOT can re-scan the
environment.

EN
11
3. Operating and Programming

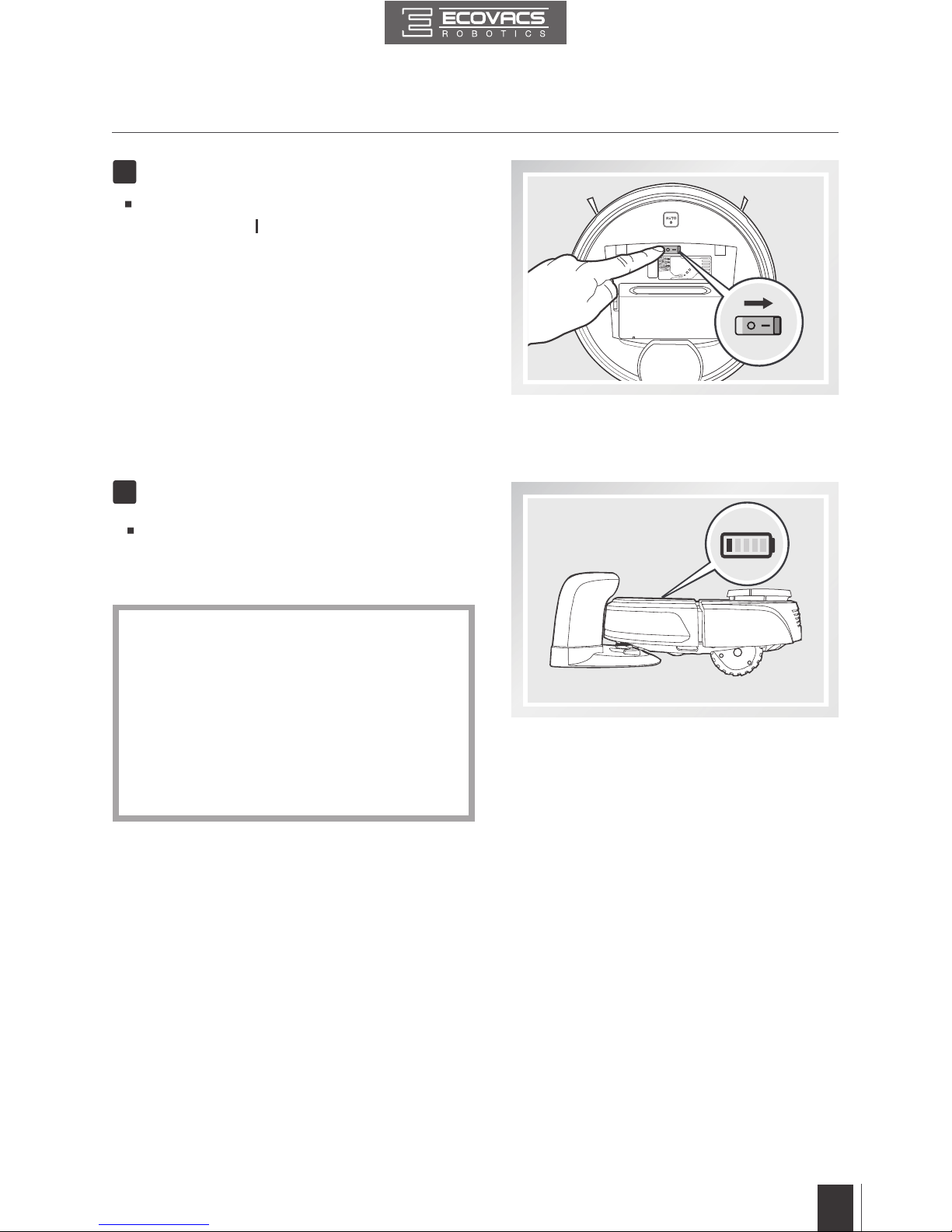

Power ON
Open the Top Cover. Move the Power
Switch to the “ ” position. The Control Panel
illuminates, DEEBOT plays a musical tune
and the AUTO Mode Button ashes. DEEBOT
is powered ON when the AUTO Mode Button
stays illuminated.
3
Place DEEBOT on the Charging Dock
making sure the Charging Contacts on
DEEBOT and the Charging Dock Pins make
a connection.
4Charge DEEBOT
*
*
*
Please make sure the Power Switch is
turned ON before charging. (“O” indicates
OFF and “I” indicates ON).
Charge DEEBOT for at least 4 hours before
the first use. The AUTO Mode Button
ashes when charging, and goes out when
DEEBOT is fully charged.
Remove the Advanced Wet/Dry Reservoir
before charging DEEBOT.

EN
12
3. Operating and Programming
*
*
When using the mopping feature, fold area
rug edges under themselves so DEEBOT
avoids the rug.
Please see section 3.6 Optional Advanced
Wet/Dry Mopping System for complete
instructions.

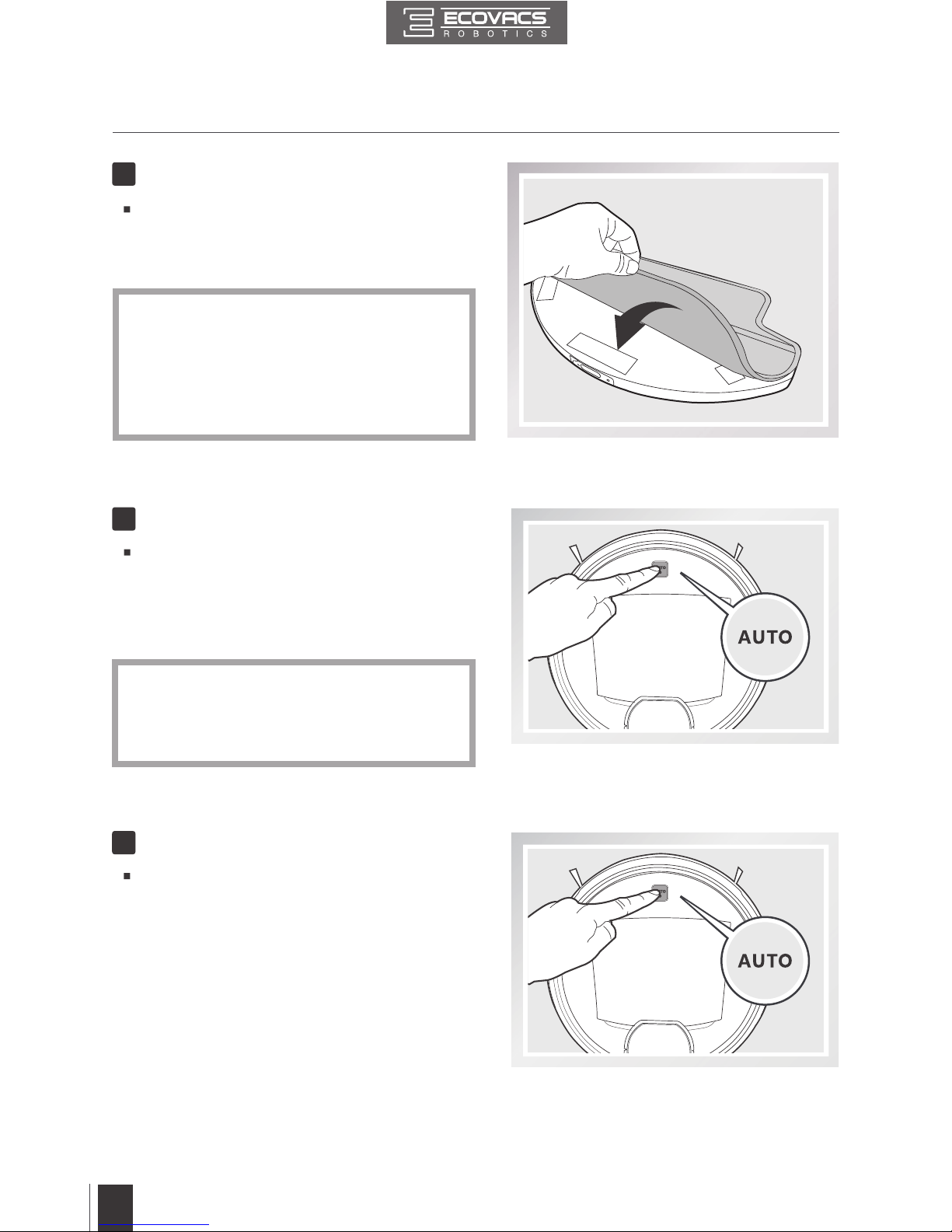

5Attach a Cleaning Cloth, if Desired
To use the robot’s optional Advanced Wet/
Dry Mopping System, attach the Advanced
Wet/Dry Reservoir and an Advanced Wet/
Dry Cleaning Cloth before use.
Pause DEEBOT by pressing the AUTO Mode
Button on the robot.
7Pause
Press the AUTO Mode Button on DEEBOT.
DEEBOT moves around to scan the environment
and build the map, and starts to work
immediately in AUTO Cleaning Mode when
nishes mapping.
6Start
*
*
DEEBOT must be powered ON to clean.
To choose another Cleaning Mode, please
refer to section 3.3 Cleaning Mode Selection
for details.

EN
13
3. Operating and Programming

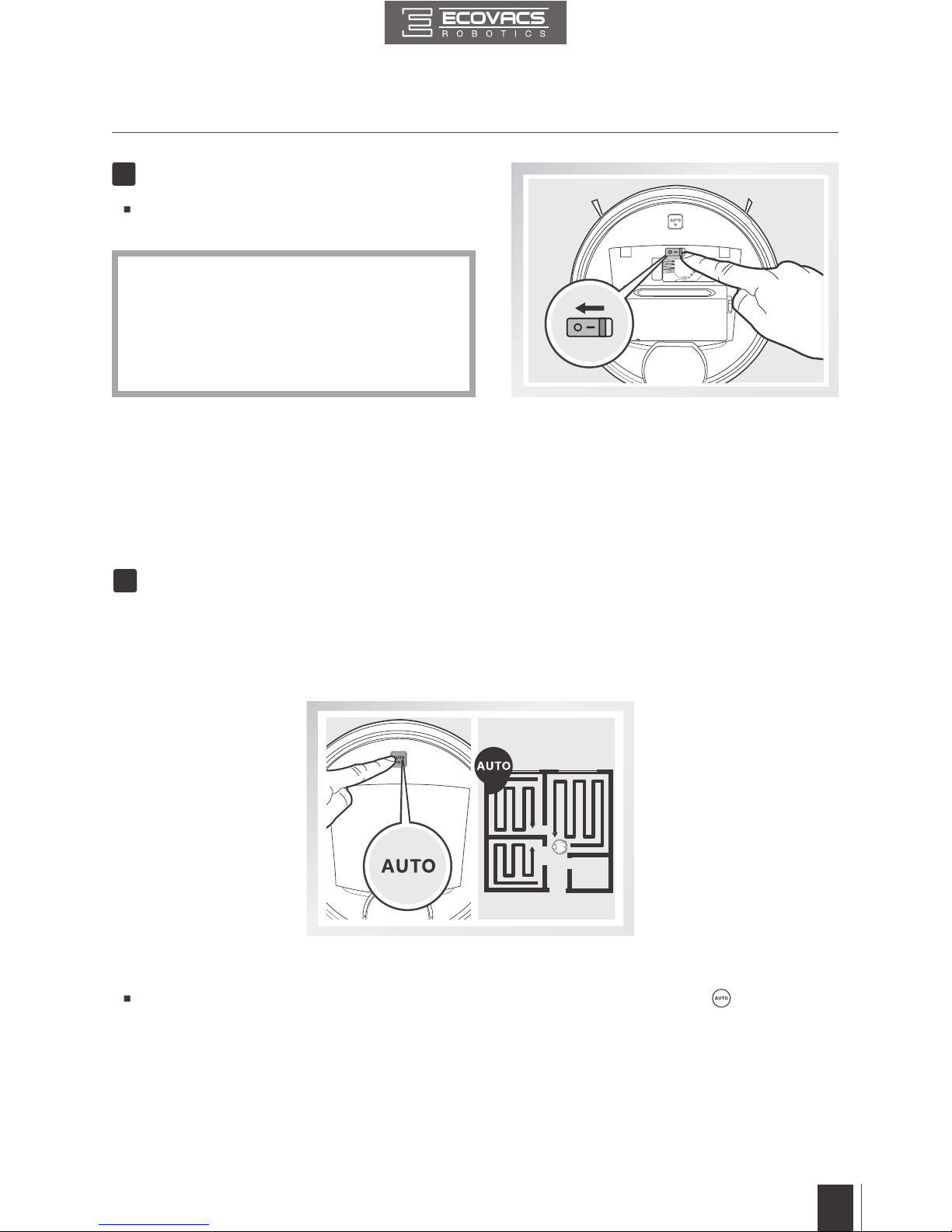

Open the robot’s Top Cover. Move the Power
Switch to the “O” position to power OFF.
8Power OFF
*
*
When DEEBOT is not working, it is suggested
to keep it powered ON and charging.
DEEBOT loses its map once it is powered
OFF. It is suggested to keep DEEBOT
powered ON if it remains in the same
home environment.
AUTO Cleaning Mode
This is the most commonly used mode. In AUTO Cleaning Mode, DEEBOT cleans in a back and
forth straight-line pattern.
When DEEBOT nishes mapping, it immediately starts AUTO Cleaning Mode.
1
3.3 Cleaning Mode Selection
DEEBOT has several Cleaning Modes to choose from to effectively clean different oors. Cleaning
Modes are selected using the ECOVACS App or using the AUTO Mode Button on the robot’s Control
Panel. For more information on the ECOVACS App, see the separate ECOVACS App leaet.
To start AUTO Cleaning Mode, press the AUTO Mode Button on the robot or on the App.

EN
14
3. Operating and Programming
Press and hold the existing spot to delete it.
To start Spot Mode Cleaning, press on the App’s map screen. DEEBOT cleans the selected
spot and a 1m/3.2’ area around the spot.
This mode is applicable for an area of highly concentrated dirt or dust. In Spot Cleaning Mode,
DEEBOT focuses on a specific area to clean and returns to the Charging Dock once the Spot
Cleaning is completed.
Spot Cleaning Mode
2
After DEEBOT has scanned and mapped the environment, specic areas on the map can be selected
to be cleaned using Area Cleaning Mode. Area Cleaning Mode can only be selected using the App.
Area Cleaning Mode
3
To set or discard cleaning areas, press on the App’s map screen.
*DEEBOT can only recognize a room with doorway ranging from 40cm (1.3') to 160cm (5.2')
and perimeter larger than 8m (26.2').
DEEBOT can also be sent back to the Charging
Dock at any time by pressing the Return to
Charger Mode Button on the main screen of the
ECOVACS App.
Return to Charger Mode
When battery power gets low, DEEBOT
automatically switches to Return to Charger
Mode and returns to the Charging Dock to
recharge itself.
4
*
*
When the Mapping Indicator on DEEBOT is illuminated, DEEBOT is in the process of
generating the map, and cannot be sent back to the Charging Dock.
After pressing the Return to Charger Mode Button on the App’s main screen, DEEBOT will
continue cleaning until it gets close to the Charging Dock. Once it is near the Charging Dock,
DEEBOT reduces power and gently dock itself to recharge.

EN
15
3. Operating and Programming
x2
x2
x2
x2
3.4 Programming the Robot
DEEBOT has an Intelligent Scheduling function and a Time Scheduling function to schedule
cleaning times. DEEBOT can be programmed to automatically clean once per day at the
same time with Intelligent Scheduling using the robot’s Control Panel. DEEBOT can also be
programmed weekly to clean once per day at specific times with Time Scheduling using the
App. All scheduled cleanings are performed in AUTO Cleaning Mode or Area Cleaning Mode
whichever is selected when scheduling the cleanings.
DEEBOT can be scheduled to clean once
per day at the same time, even if nobody
is at home. Press the AUTO Mode Button
on the robot twice to set the current time
as the scheduled cleaning time. Intelligent
Scheduling is set successfully when the
robot generates a voice report. DEEBOT
automatically cleans at the scheduled
cleaning time every day.
Press the AUTO Mode Button on the
robot twice. Intelligent Scheduling is
cancelled when the robot generates a
voice report.

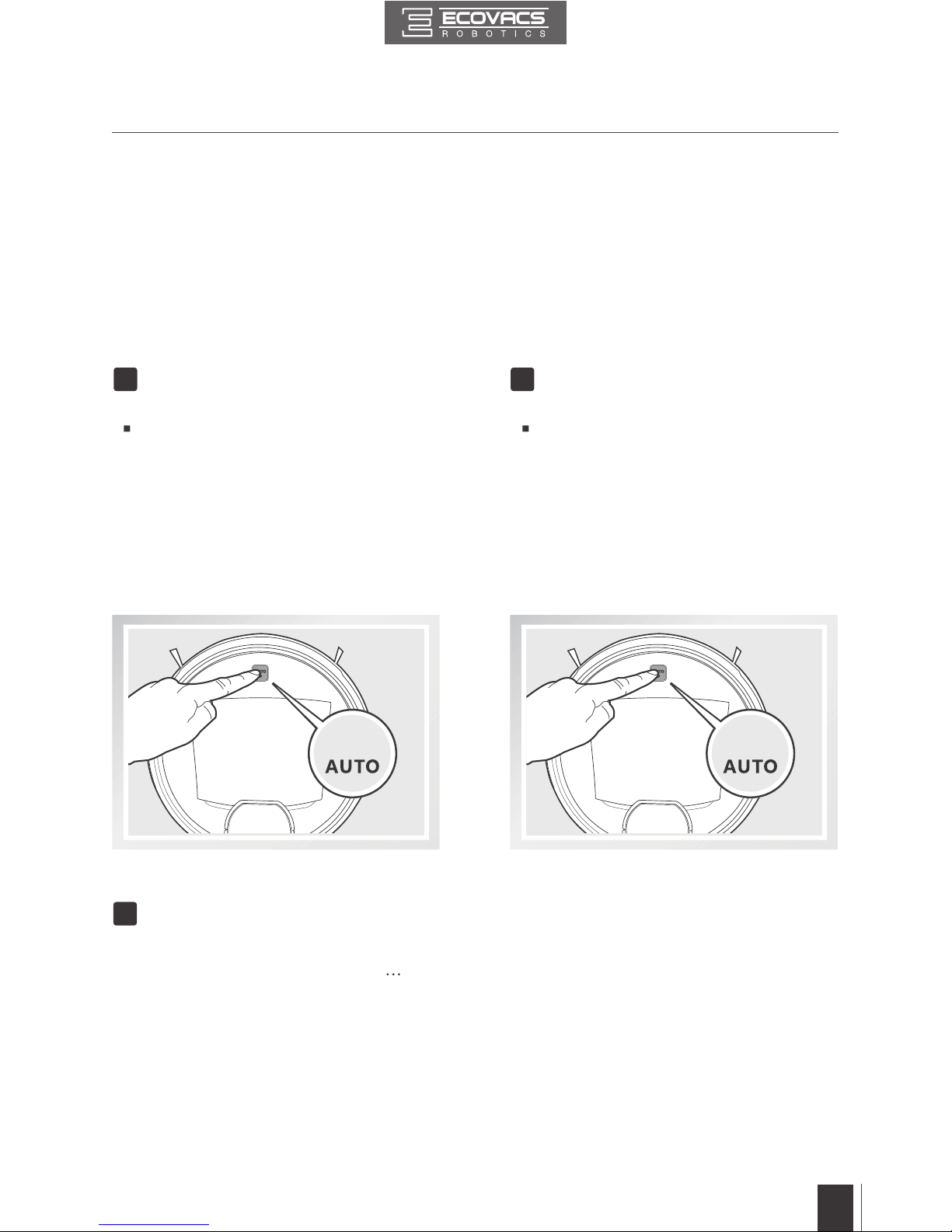

Schedule the Cleaning Time
Using Intelligent Scheduling
Cancel the Cleaning Time Using
Intelligent Scheduling
1 2
Schedule the Cleaning Time
DEEBOT can be programmed weekly to clean once per day at specic times using the ECOVACS App.
Open the ECOVACS App. Press “ ” in top right corner on the App’s main screen. Set new
scheduled cleanings and cancel existing scheduled cleanings in “Time Scheduling.”
Schedule the Cleaning Time Using Time Scheduling
3

EN
16
3. Operating and Programming
For more settings, press “ ” in top right corner on the App’s main screen. Check cleaning
record, set Continued Cleaning function, schedule cleaning time, reset the map, set voice reporting
language and update rmware are located in this area.
To set a Virtual Boundary, press on the App’s map screen. Press and hold the Virtual
Boundary to delete.
3.5 Additional Settings
Virtual Boundary
A Virtual Boundary blocks DEEBOT from cleaning a specified area.
*
*
DEEBOT can be manually directed to blocked areas using in the App.
DEEBOT still returns to the Charging Dock if it is placed in the blocked area.
When Continued Cleaning function is turned on, once DEEBOT is fully recharged, it automatically
returns to and continues to clean the uncleaned area not completed during the last cleaning task.
User can set a Do Not Disturb time to forbid DEEBOT from coming out to continue cleaning during
the set time. Once Do Not Disturb function is set, “ ” will display on the main screen.
Continued Cleaning function is disabled during the Do Not Disturb time.
Continued Cleaning Function with Do Not Disturb Option

EN
17
3. Operating and Programming
*
*
*
*
DEEBOT has an optional mopping system that uses an Advanced Wet/Dry Cleaning Cloth
attached to the Advanced Wet/Dry Reservoir. The Advanced Wet/Dry Cleaning Cloth
automatically damp mops and then dries the floor to a spotless clean.
3.6 Optional Advanced Wet/Dry Mopping System
Do not use the mopping system on carpet.
When using the mopping system, fold area rug edges under themselves so DEEBOT will
avoid the rug.
When using the mopping system, do not stop the robot and allow it to stand still. This
prevents the Advanced Wet/Dry Reservoir from leaving water on the oor.
Remove the Advanced Wet/Dry Reservoir before charging DEEBOT.

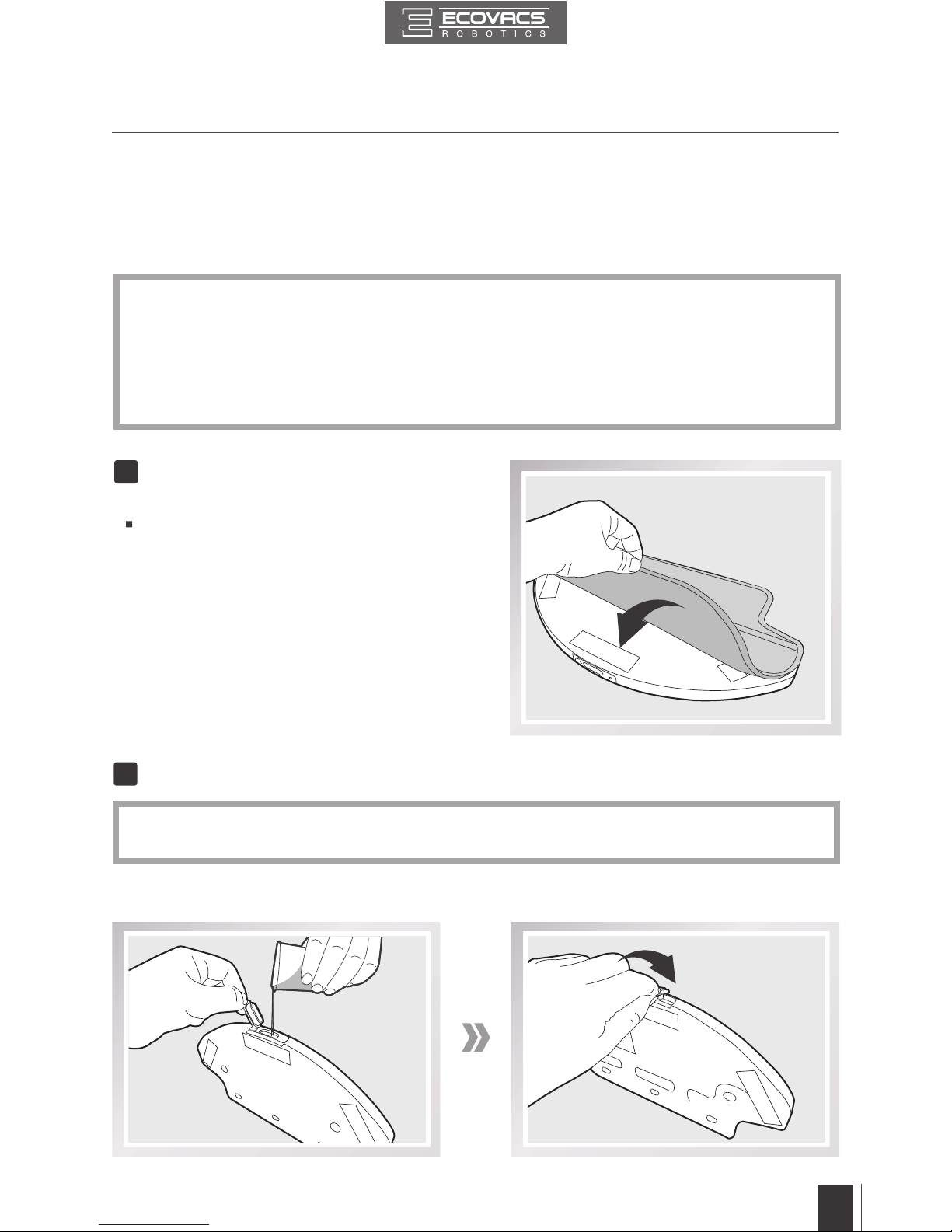

Attach Advanced Wet/Dry Cleaning
Cloth
Attach the Advanced Wet/Dry Cleaning Cloth to
the Advanced Wet/Dry Reservoir.
1
Fill the provided Measuring Cup with water. Open the lid of the Water Inlet on the Advanced Wet/Dry
Reservoir and slowly pour water from the Measuring Cup into the Reservoir. Close the Water Inlet lid.
Add Water to the Advanced Wet/Dry Reservoir
* Before adding water to the Advanced Wet/Dry Reservoir, remove the Advanced Wet/Dry
Reservoir from the bottom of the robot.
2

EN
18
3. Operating and Programming
Start Remove
Select the desired Cleaning Mode. DEEBOT
sweeps, lifts, vacuums, mops and dries in
the selected mode.
After DEEBOT nishes cleaning, remove the
Advanced Wet/Dry Reservoir from DEEBOT,
empty any remaining water, and remove the
Advanced Wet/Dry Cleaning Cloth.
Attach the Advanced Wet/Dry Reservoir to
the bottom of the robot. Insert the tabs on the
Advanced Wet/Dry Reservoir into the Advanced
Wet/Dry Reservoir Slots on the bottom of the
robot until you hear a click.
