KM 520 S
INSTRUCTION MANUAL
COFFEE MACHINE

Page 2
Read this manual before operation of the appliance!
Dear Customer,
Congratulations on the purchase of your new Defy appliance!
Please read this manual carefully before using your appliance for the first time and then store it
within easy reach for future reference. We trust you will enjoy years of trouble free use.
The user manual:
x This manual will provide you with information on how to safely operate and care for your
appliance in order that you gain the maximum benefit from it.
x Pay particular attention to any safety instructions.
Controls and parts
A Water tank cover
BRelease button for swivel filter
holder
C Swivel filter holder
D Water level indicator with MAX
marking
EWater tank
FDrip-stop
G Glass jug
HWarming plate
IOn/Off switch (with indicator light)
Accessories
JCoffee measuring spoon
If the appliance is damaged in any way do not use it. Report the damage to
your dealer who will take the necessary corrective action.
The manufacturer strives for continuous improvement. For this reason, the
text and illustrations in this manual are subject to change without notice.

Page 3
x Do not squeeze or bend the
power cord and do not rub it on
sharp edges in order to prevent
any damage.
x Keep the power cord away
from hot surfaces and open
flame.
x Do not use an extension cord
with the appliance.
x Never use the appliance if the
power cord or the appliance is
damaged.
x Our Household Appliances
meet applicable safety
standards, if the appliance or
power cord is damaged, it must
be repaired or replaced by an
authorised service centre to
avoid any dangers. Faulty or
unqualified repair work may be
dangerous and cause risk to
the user.
x Do not dismantle the appliance
under any circumstances. No
warranty claims are accepted
for damage caused by
improper handling.
x Always keep the appliance out
of the reach of children.
x This appliance is not intended
for use by persons (including
children) with reduced
physical, sensory or mental
capabilities or lack of
experience and knowledge,
unless they have been given
supervision or instruction
concerning the use of the
appliance by a person
responsible for their safety.
x Children should be supervised
to ensure that they do not play
with the appliance.
Safety and set-up
Please read this instruction
manual thoroughly prior to using
this appliance! Follow all safety
instructions in order to avoid
damage due to improper use!
Keep the instruction manual for
future reference. Should this
appliance be given to a third
party, then this instruction
manual must also be handed
over.
x This appliance is intended for
private domestic use only and
is not suitable for professional
catering purposes. It should
not be used for commercial
purposes.
x Do not use the appliance in the
bathroom.
x Check if the mains voltage on
the rating label corresponds to
your local mains supply. The
only way to disconnect the
appliance from the mains is to
pull out the plug.
x For additional protection, this
appliance must be connected
to a residual current protection
switch with more than 30 mA.
Please contact an electrician
for advice.
x Do not immerse the appliance,
power cord or power plug in
water or any other liquids. Do
not hold it under running water
and do not clean any parts in
the dishwasher. Only the filter
basket and glass jug can be
cleaned safely in the upper
shelf of the dishwasher or with
water and washing-up liquid.
x Disconnect the power plug
after using the appliance,
before cleaning the appliance,
before leaving the room, or if a
fault occurs. Do not disconnect
the plug by pulling on the cord.
1

Page 4
Safety and set-up
x Before using the appliance for
the first time, clean all parts
carefully which come into
contact with water or coffee.
Please see full details in the
“Cleaning and Care” section.
x Dry the appliance and all
accessories before connecting
it to mains supply and before
attaching any parts.
x Never operate or place any
part of this appliance on or
near hot surfaces such as a
gas burner, hotplate or heated
oven.
x Do not use the appliance for
anything other than its
intended use. The coffee
maker is designed for
preparing coffee. Do not use
the appliance to heat any other
liquids or tinned, jarred, and
bottled foods.
x Do not disconnect the plug by
pulling on the cord.
x Do not wrap the power cord
around the appliance.
x Never use the appliance in or
near to combustible or
inflammable places and
materials.
x Operate the appliance with the
delivered parts only.
x Do not use the appliance with
damp or wet hands.
x Always use the appliance on a
stable, flat, clean, dry, and non
slip surface.
x Make sure that there is no
danger that the power cord
could be accidentally pulled or
that someone could trip over it
when the appliance is in use.
x The appliance has to be
positioned in such a way that
the plug is always accessible.
x Avoid contact with hot surfaces
and hold the glass jug by the
handle only as there is the
danger of burning. The glass
jug becomes hot during use.
x Do not move the appliance
while there is hot liquid in the
glass jug or if the appliance is
still hot.
x Do not open the cover or
swivel filter holder during the
brewing process.
x Never fill the appliance above
the maximum level indicator. If
it is filled above the maximum
level, water flows out of the
appliance through safety
drainage.
x Never operate the appliance if
brewing or keeping the coffee
hot is not required.
x Fill the appliance with cold and
fresh drinking water only.
x Put water in the tank only
when the appliance has been
unplugged.
x The appliance should not be
operated with an external clock
timer or separate remote
control system.
x Pour water in the water tank
carefully.
x In case of any water splashes
during water pouring, ensure
that glass jug and heating
platform are dry.
x Do not place the glass jug on
the warm heating platform
when the jug is empty.
x Use the glass jug only with the
coffee maker.
x Never operate the appliance
without water inside.

Page 5
Caution:
If the swivel filter holder Cis not closed or
the glass jug Gis not properly seated, the
drip - stop function will not function properly.
It could cause hot water or hot coffee to
overflow.
9Connect the plug to the wall socket.
10 Turn the appliance on, by setting the On/
Off switch I to the “ON” position.
Operation
Preparation
Caution:
First time use: Run the appliance at least 4
times without adding coffee.
Please follow the steps 1 - 2 and 8 - 13 in
the “Brewing Coffee” section.
1Remove all packaging and stickers and
dispose of them according to applicable
legal regulations.
2
2Before using the appliance for first time,
clean all parts which come into contact with
water carefully. Please see full details in the
“Cleaning and Care” section.
3 Make sure that the appliance is placed in
an upright position and on a stable, flat,
clean, dry, and non-slip surface.
Brewing Coffee
1Open the water tank cover Aand use the
glass jug Gto fill the water tank Ewith the
required amount of water, but do not fill past
the “max” mark. The brewed amount of
coffee will be 10 % less than the filled water,
because it is absorbed by the coffee grounds
and the filter. The scale on the glass jug is
marked in coffee cups, e.g. 4 = 4 cups. For
best results it is suggested to operate the
appliance with at least a 4 cups coffee
serving.
Note
Use only clean, cold, and fresh drinking
water.
2 Close the water tank cover A.
3Press the release button Bfor the swivel
filter holder.
4 Open the swivel filter holder Cby swinging
it out to the left.
5Take a suitable paper filter (1 x 4) and
insert the paper filter into the swivel filter C.
Note
Use only one paper filter at a time. Make
sure that the paper filter does not bend or
fold.
6Fill the filter with the desired amount of
ground coffee. To do this, you may use the
supplied measuring spoon J.
7Close the swivel filter holder Cuntil it
clicks, which insures that it is closed
properly.
8Place the glass jug Gon the warming plate
H.
– The On/Off switch Iilluminates and the
brewing process begins.
Notes
The brewing process can be stopped at any
time by setting the On/Off switch Ito the
“OFF” position.
The appliance is equipped with a drip-stop F
located underneath the swivel filter holder C
and enables you to briefly remove the glass
jug Gto pour coffee before the water has
finished running through the machine.
Caution
Ensure that you place glass jug Gon the
warming plate Hquickly (max. 30 second
delay). Otherwise the brewed coffee from the
filter could overflow. If you want to use the
glass jug for more than 30 seconds, switch
off the appliance.
Never open the swivel filter holder Cduring
the brewing process, even if no water is
draining from the filter. Extremely hot water
or coffee can spill out from the swivel filter
holder and cause injury. If water or coffee is
not draining from the swivel filter holder,
immediately unplug the appliance and wait
10 minutes before opening and checking the
swivel filter holder.
When the brewing process ends and the
water level indicator with MAX marking Dis
empty, there will still be hot liquid in the
swivel filter holder C. Wait a few minutes for
the rest of the liquid to drip into glass jug G.
11 Remove the glass jug Gfrom the
warming plate H, as soon as the brewing
process has finished and the glass jug Gis
filled. The coffee is ready for use.
12 To turn the appliance off, set the On/Off
switch Ito the “OFF” position.
– On/Off switch I turns appliance on and off.
13 Disconnect the appliance from the wall
socket.

Page 6
Operation
Note
If you want to continue the brewing process,
repeat the procedure from 1 to 13. Let the
appliance cool down at least 15 minutes
between each brewing process.
Do not reuse the coffee sediment in the filter
since this will reduce the flavour.
Reheating coffee is not recommended as
coffee is at its peak flavour immediately after
brewing.
Hints and Tips
Use softened or filtered water to prevent lime
build-up. Store unused coffee in a cool, dry
place. After opening a package of coffee,
reseal it tightly to maintain its freshness.

Page 7

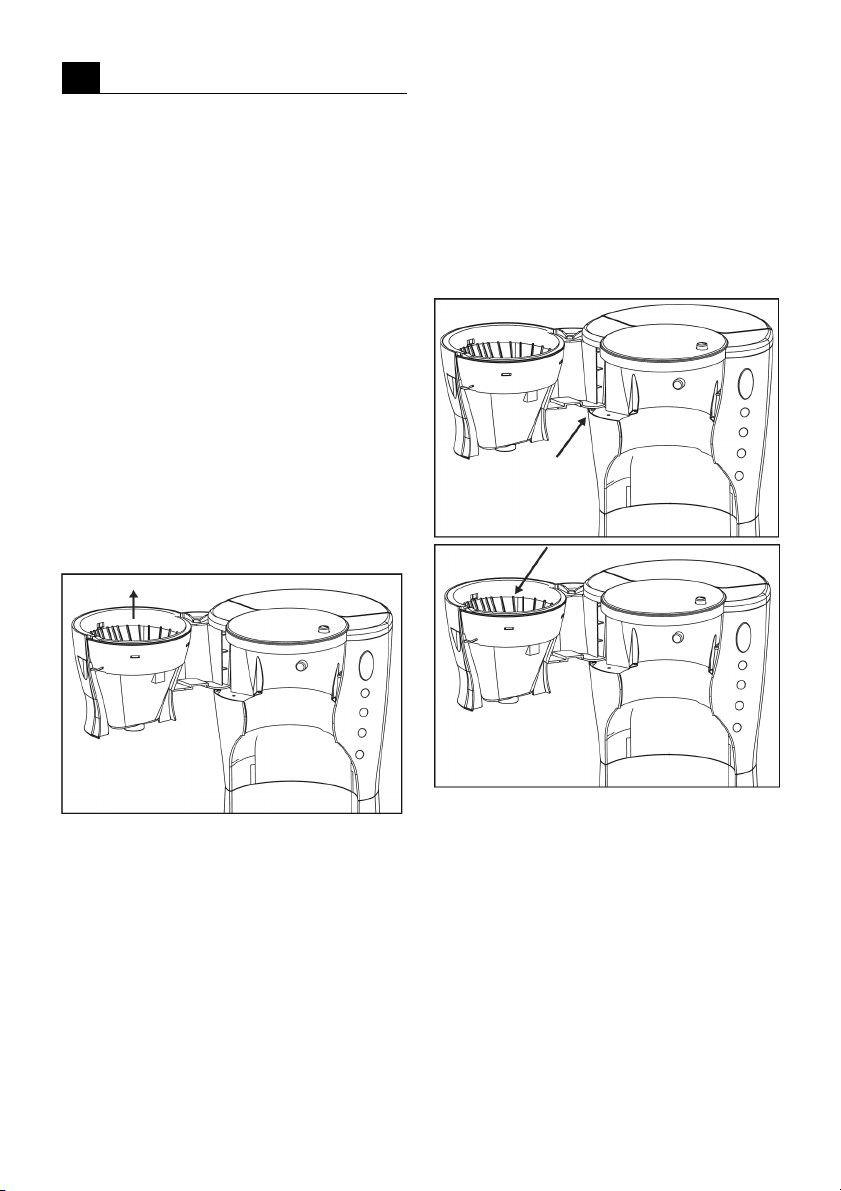

8To insert the swivel filter holder Cafter
cleaning, follow the instructions at step 5in
the reverse order. Make sure that the upper
hinge is placed into its seat properly.
9Place glass jug Gonto warming plate H.
Note
Before using the appliance after cleaning,
dry all parts carefully with a soft cloth or
paper towel.
Descaling the appliance
Descaling extends the life of your appliance.
Descale your coffee machine at least 4 times
per year. The period depends on the water
hardness in your area. The harder the water
is, the more often the appliance has to be
descaled.
1Purchase a suitable descaler from a
speciality store. Please ask naming the
device.
2Prior to commencing the descaling
process, thoroughly read the manufacturer’s
package insert for the descaler.
Information
Cleaning and care
Caution
Never use petrol, solvents, or abrasive
cleaners, or metal objects and hard brushes
to clean the appliance.
Never put the appliance or power cord in
water or any other liquid.
1Turn the appliance off and disconnect it
from the wall socket.
2 Allow the appliance to cool down.
3Remove the glass jug G.
4Press the release button Bfor swivel filter
holder and swing out the swivel filter holder
Cto far left position. Remove the paper filter
and dispose it with the coffee sediment.
5To remove the swivel filter holder C; grasp
it from the bottom and lift it slightly up. After
the bottom hinge is released from its place,
tilt the swivel filter holder slightly so that the
bottom hinge moves outwards from the
appliance. Then, hold down the swivel filter
holder, so that the upper hinge releases from
its place and the swivel filter holder detaches
from the appliance (see the figure below).
3
6Clean the swivel filter holder Cby placing
under running water and using a small
amount of mild cleanser. The swivel filter
holder Cand glass jug Gcan be cleaned in
the upper shelf of the dishwasher or under
running water.
7 Use a damp soft cloth and some mild
cleanser to clean the exterior of the
appliance.

Page 8
Record in the space below the listed information
for future reference.
SERIAL NUMBER……………………………..
DATE OF PURCHASE………………………..
PURCHASED FROM…………………………..
…………………………………………………...
Please register your product at
www.defy.co.za
DEFY APPLIANCES (PTY) LTD
P.O.BOX 12004
JACOBS
DURBAN
4026
SOUTH AFRICA
Storage
If you do not plan to use the appliance for a
long period of time, please store it carefully.
Make sure the appliance is unplugged and
completely dry. Store the appliance in a cool,
dry place. Make sure the appliance is kept
out of the reach of children.
Environmental note
This appliance has been made from high
quality materials and parts which can be
reused and are suitable for recycling.
Do not dispose of the appliance with normal
household waste at the end of its service life.
Consult your local authorities for disposal
information and facilities available.
Help protect the environment by
recycling used appliances.
Technical data
This product conforms to the
European directives 2004/108/
EC, 2006/95/EC and
2009/125/EC.
Power supply: 230 V~, 50/60 Hz
Power: 950 W
Max. water volume: 1.8 L
Technical and design modifications
Should the manufacturer’s instructions differ
from the ones listed below, then follow the
manufacturer’s instructions.
Note
You can also use white vinegar and lemon
juice instead of a commercially available
descaler.
3 Fill the water tank to the MAX marking and
add descaler.
Mixing ratio: 4 parts water to 1 part descaler.
4 Turn the appliance ON and allow approxi-
mately one large coffee cup to run through
the appliance.
5 Turn the appliance off.
6 Let the mixture soak for about 15 minutes.
7 Repeat steps 4 – 6.
8Now turn the appliance on and let the
entire mixture run through.
9Fill the water tank with cold, fresh drinking
water and run all the water through.
10 Repeat step 9 four times.
11 Now you may brew coffee again.
DANGER! Always disconnect
the plug from the wall socket
before any maintenance or
cleaning.
Warning: Repairs must be
carried out by authorised
persons only. Repairs carried out
by incompetent persons create a
user risk.

Page 9
Branches
If you have followed the instructions and still have a problem, contact the
customer care line on 086 100 3339. They will be able to advise you on any aspect
of the appliance.
4
South African Branches:
BLOEMFONTEIN
160 Long Street, Hilton, Bloemfontein 9301
Tel: [phone]
[email protected]
CAPE TOWN
5A Marconi Rd. Montague Gardens, 7441
Tel: [phone]
[email protected]
DURBAN
135 Teakwood Road, Jacobs,
Durban, 4052
Tel: [phone]
[email protected]
EAST LONDON
Robbie de Lange Road, Wilsonia,
East London, 5201
Tel: [phone]
[email protected]
JOHANNESBURG
Cnr. Mimetes & Kruger Sts. Denver ext.12
Johannesburg, 2094
Tel: [phone] or 011 621 0300
[email protected]
POLOKWANE
87 Nelson Mandela Drive, Superbia 0699
Tel: [phone] / 7 / 8 / 9
[email protected]
PORT ELIZABETH
112 Patterson Road, North End, Port Elizabeth
6001
Tel: [phone]
[email protected]
PRETORIA
Block A1 Old Mutual Industrial Park,
Cnr. D.F.Malan Drive & Moot Str. Hermanstad,
0082
Tel: [phone]
[email protected]
Sub-Saharan Africa Branches:
ZAMBIA: SOUTHGATE INVESTMENTS LTD
Plot 1606, Sheki Sheki Road
P.O. Box 33681
Lusaka, 10101, Zambia
Tel: [phone]
Fax: [phone]
[email protected]
NAMIBIA: ATLANTIC DISTRIBUTORS (PTY)
LTD
10 Tienie Louw Street, Northern Industrial Area
P.O. Box 21158, Windhoek, Namibia
Tel: [phone]
Fax: [phone]
[email protected]
ZIMBABWE: TRADECOMAFRICA
Trade Com Africa, 183 Loreley Crescent
Msasa, Harare, Zimbabwe
Tel: [phone]
Cell: [phone]
Cell: [phone]
BOTSWANA: RAY MORGAN AGENCIES
RMA Service Centre, Plot 48, East Gate
Gaborone International Commerce Park
Kgale View, Gaborone
Botswana
Tel: [phone]
Fax: [phone]
Cell: [phone]
[email protected]; [email protected]
SWAZILAND: LYNDS DISTRIBUTORS
P.O Box 716, Mbabane, Swaziland, H100
Tel: [phone]
Fax: [phone]
MOZAMBIQUE: COOL WORLD. LDA
Rua da Resistencia No. 97B R/C
Cell: [phone]
[email protected]
Nosso Show Room
Av: da Industrias, Parcela No.735 * 735A
Machava, Maputo
OTHER AREAS ARE SERVICED BY OVER 200 AUTHORISED SERVICE AGENTS.
PLEASE CONSULT THE CUSTOMER CARE LINE ON 086 100 3339 FOR DETAILS.

Page 10
Warranty
5
This certificate is issued by DEFY APPLIANCES (PTY) LIMITED manufacturers of Defy
and Ocean products, hereinafter the Company, to the original purchaser only, of the
appliance described on the certificate and shall constitute the only warranty given in
respect of this appliance.
The Company warrants to the original purchaser that for a period of ONE YEAR from date
of purchase the appliance is free from defect under normal domestic use, both in
workmanship and material, subject to the following conditions.
1. Carry-in service. Small appliances are repaired in our service centres and are not
collected from the customers home. Faulty units must be delivered to the purchasing
dealer or to the nearest Company Service Centre for warranty repairs.
2. Vitreous enamelware, fuses and lamps are specifically excluded from these warranties. It
is an express condition of these warranties that the purchaser takes due care and
attention in the use and maintenance of the appliance. Abuse, misuse in conflict with
operating instructions, connection to incorrect voltages and subjection to commercial use
shall release the Company from its obligations.
3. This warranty shall become void and cease to operate if the appliance is dismantled by,
or any repairs to the appliance are effected by any persons not duly authorised by the
Company, or if substitute parts not approved by the Company are used in the appliance,
or if the serial number of the appliance is removed.
4. The Company shall not be responsible for damages resulting from fire, flood, civil
disturbances or any Act of God. The Company shall not, in terms of these warranties be
responsible nor held liable for any consequential loss or damage of any kind caused by or
due to the failure or malfunction of the appliance. The Company shall not be responsible
for damages caused by insect and/or animal infestation.
5. The Company shall not be responsible for transportation or other costs other than those
incurred within the provisions of Point 1 of this Certificate.
6. For warranties in the Republic of South Africa and Sub-Saharan Africa, please
contact your nearest Defy office. Please refer to the previous page for respective
South African branches and Sub-Saharan Africa branches.
7. Where service is requested under warranty and no fault or defect can be found by the
Company, all costs incurred will be for the purchaser's account.
8. This Certificate as well as your invoice will serve as proof of purchase. For the purpose
of warranty, it will be essential to produce this Certificate and invoice. Failure to do so, will
render the purchaser liable for service costs.
KEEP THIS CERTIFICATE AND SALES INVOICE AS PROOF OF
PURCHASE FOR WARRANTY PURPOSES.
