Defy DDW172 User manual

Page 1
DDW172
8 PROGRAMME
DISHWASHER
Record in the space below the listed information for f t re reference.
The serial n mber is on the serial label located on the inside of the door on the dishwasher.
SERIAL NUMBER..
DATE OF PURCHASE...
PURCHASED FROM..
.
The man fact rer strives for contin o s improvement. For this reason, the text and
ill strations in this man al are s bject to change witho t notice.

Page 2
INDEX
Introduction
Explanation of symbols
Register your product
Important safety precautions
Get to now your dishwasher
Before use
Unpac ing
Report damage
Preparation
Installation
Electrical installation
Water connection
Drain requirements
Adding water softener
Adding rinse aid
Adding detergent
Loading dishes, cutlery & pots
Loading options
Loading options continued
Bas et adjustment
Ceiling silverware bas et
Storage
Cutlery bas et
How not to load
The control panel
Description of controls
On / Off
Start / Pause / Cancel
Programme selector
Half load
Tablet detergent
Delayed start
Adding functions
Progress indicators
Cancelling a programme
Changing a programme
Salt indicator
Rinse aid indicator
Operating the dishwasher
Programme table
Cleaning the cabinet
Cleaning the filters
Cleaning the spray arms
Upper spray arm
Ceiling spray arm
Trouble shooting
Technical specifications
Owners responsibility
Service Centres
Warranty
Introd ction
Dear c stomer,
Yo r new Defy dishwasher was
man fact red in a state of the art facility
and has passed the strictest q ality
control proced res.
Please read this man al caref lly before
sing yo r dishwasher for the first time
and then store it within easy reach for
f t re reference.
This man al will provide yo with
information on how to operate and care
for yo r dishwasher to gain the maxim m
benefit from it.
We tr st yo will enjoy years of tro ble
free se.
EXPLANATION OF SYMBOLS
Important information
Warning—Hazardo s sit ations
Warning—Electric shock
PLEASE REGISTER YOUR PRODUCT AT
www.defy.co.za
DEFY APPLIANCES (PTY) LTD
P.O.BOX 12004
JACOBS
DURBAN
4026
SOUTH AFRICA
1
PAGE
2
2
2
3
4
5
5
5
5
5
5
5
5
6
7
8
9
10
11
12
13
13
13
13
14
15
15
15
15
15
15
15
16
16
16
16
16
16
17
18
19
19
19
20
20
20
22
22
23
24

Page 3
CHILDREN
This dishwasher is not intended for se by persons (incl ding children) with red ced physical,
sensory or mental capabilities or lack of experience and knowledge nless they have been
given s pervision or instr ction concerning the se of the dishwasher by a person responsible
for their safety. Children sho ld be s pervised to ens re that they do not play with the
dishwasher.
• Keep detergents o t of reach. Only p t them into the machine j st before starting a wash.
• Dishwasher water is not s itable for drinking.
• Never allow children to play on or sit on the door when it is open.
• Please ens re that packaging material is disposed of in a responsible manner. Plastic bags
sho ld be c t p to prevent children playing with them and accidentally s ffocating.
SAFETY
• The dishwasher m st be installed and connected in accordance with the man fact rer’s
instr ctions.
• Never place the dishwasher on a carpeted floor. Lack of airflow beneath the dishwasher
co ld ca se overheating.
• The dishwasher m st only be sed domestically and for the p rposes for which it was
designed.
• Do not leave the dishwasher exposed to direct s nlight or rain.
• Never add chemical solvents or flammable liq ids to the tank as they constit te a fire
hazard.
• Only se detergents and water softeners specifically man fact red for se in dishwashers.
• The door of the dishwasher has been designed to s pport the weight of a f lly loaded lower
rack. Never place any other load on the door as the dishwasher may then tip forwards.
• Sho ld yo at any time in the f t re scrap the dishwasher, c t the power cord and take
meas res to render the door lock inoperative thereby preventing children, when playing,
getting trapped inside.
• In case of malf nction or maintenance work, disconnect the dishwasher from the electrical
mains immediately.
ENVIRONMENTAL CARE
Yo can save water by observing these simple g idelines:
• Remove bones and pips from dirty dishes.
• Avoid partial loads and only start the dishwasher when it is f lly loaded.
• Only se the pre-wash programme for very dirty dishes.
• Select the programme according to the dirt level of the load.
DISHWARE GUIDE Ascertain that yo r dinnerware and c tlery is dishwasher compatible.
The following should not be washed in a dishwasher:
R st sensitive steel items. C tlery with wooden or horn handles.
Non heat resistant plastic items.
No gl ed dishes or c tlery.
No items made o t of copper or tin.
Al mini m and silver tends to discolo r.
Sensitive decorated glasses and porcelain parts.
Lead crystal glassware may lose its shine over time.
Art and craft items.
Sponges and dishcloths.
Do not wash articles soiled with cigarette ash, candle wax, varnish, paints or chemicals.
Important safety instructions
2

Page 4
1. Upper bas et with rac
2. Upper spray arm
3. Lower spray arm
4. Filters
5. Lower bas et
6. Control panel
7. Door
8. Detergent dispenser
9. Silverware bas et
10. Lower spray arm slot
11. Salt reservoir lid
12. Upper bas et rail
13. Ceiling silverware bas et
14. Table top (depends on the model)
15. Ceiling spray arm
16. Fan drying system (depends on the model)

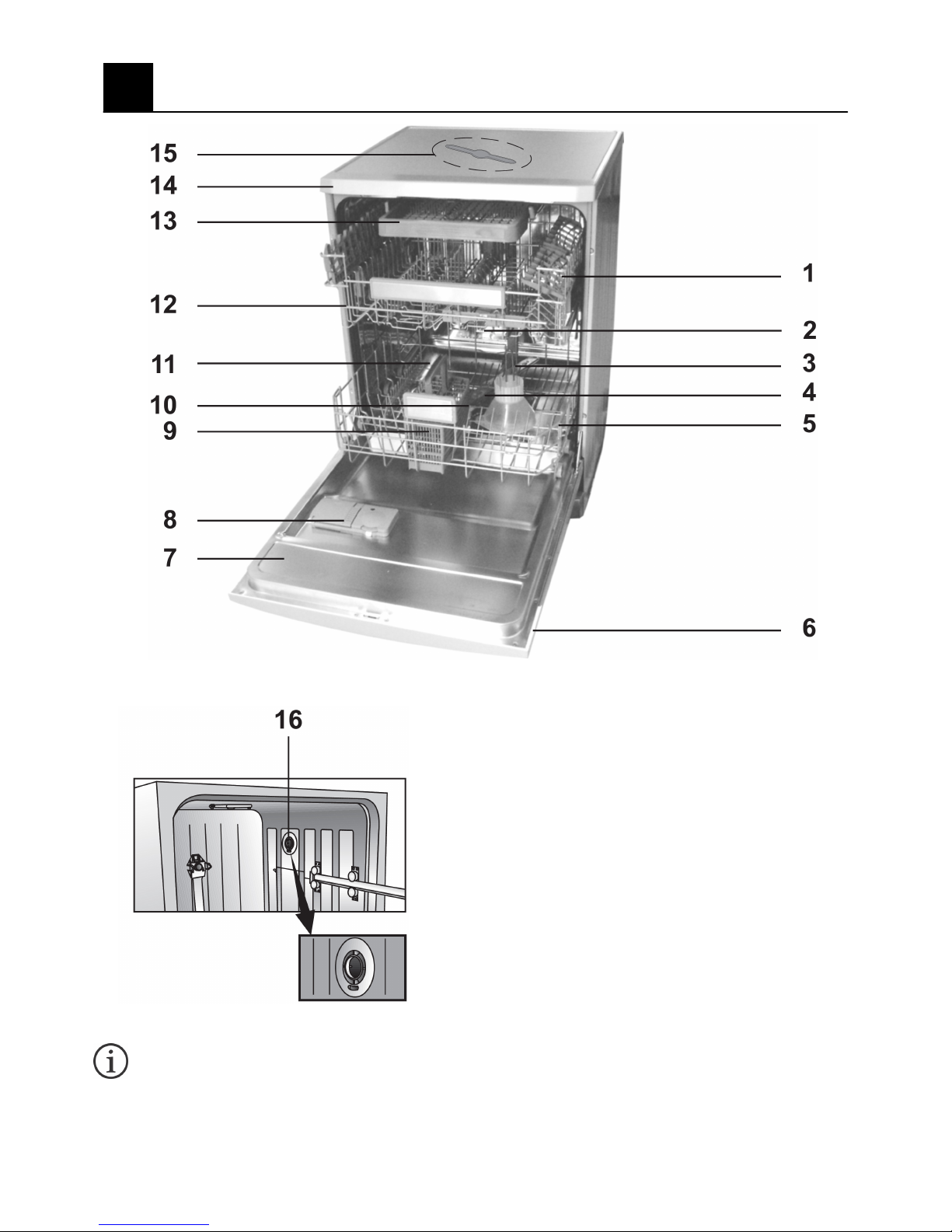

Get to now your dishwasher
