Delfield Specification Line SAF1-S User manual

October 2005
Delfield 980 S. Isabella Rd., Mt. Pleasant, MI 48858
[phone] or [phone] • Fax [phone]
www.delfield.com
Please read this
manual completely
before attempting to
install or operate
this equipment!
Notify carrier of
damage. Inspect all
components imme-
diately. See page 6.
INSTALLATION &
OPERATION
MANUAL
Specification Line®

2
Delfield
IMPORTANT WARNING AND SAFETY INFORMATION
WARNING
Read this manual thoroughly before operating, installing, or performing maintenance
on the equipment.
FAILURE TO FOLLOW INSTRUCTIONS IN THIS MANUAL CAN CAUSE PROPERTY
DAMAGE, INJURY OR DEATH.
DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS OR LIQUIDS IN
THE VICINITY OF THIS OR ANY OTHER APPLIANCE.
UNLESS ALL COVER AND ACCESS PANELS ARE IN PLACE AND PROPERLY SE-
CURED, DO NOT OPERATE THIS EQUIPMENT.
DAMP OR WET HANDS MAY STICK TO COLD SURFACES.
ALLOW HEATED EQUIPMENT TO COOL DOWN BEFORE ATTEMPTING TO CLEAN OR
SERVICE.
CAUTION
Observe the following:
• Minimum clearances must be maintained.
• Keep the equipment area free and clear of combustible material.
• Allow adequate clearance for air openings.
• Operate equipment only on the type of electricity indicated on the specification plate.
• Unplug the unit before making any repairs.
• Retain this manual for future reference.

3
Specification Line
SAFETY PRECAUTIONS.................................................................... 2
INTRODUCTION ................................................................................. 5
General .......................................................................................... 5
Heating System ............................................................................. 5
Refrigeration System ..................................................................... 5
Freezer Refrigeration System ........................................................ 5
Dual Temperature Refrigeration/Freezer ....................................... 5
SERIAL NUMBER ............................................................................... 6
RECEIVING AND INSPECTING THE EQUIPMENT ........................... 6
SPECIFICATIONS .............................................................................. 7
INSTALLATION ................................................................................. 17
REACH-INS AND PASS-THRUS ...................................................... 17
Location ....................................................................................... 17
Inside Cabinet .............................................................................. 17
Outside Cabinet ........................................................................... 17
Leg and Caster Installation .......................................................... 17
Utility Base ................................................................................... 17
Leveling ....................................................................................... 18
Stabilizing..................................................................................... 18
Electrical Connection ................................................................... 18
Table of Contents

4
Delfield
Table of Contents – Continued
ROLL-INS AND ROLL-THRUS ........................................................ 18
Location ................................................................................................. 18
Inside Cabinet .............................................................................. 18
Outside Cabinet ........................................................................... 18
Leveling ....................................................................................... 19
Stabilizing..................................................................................... 19
Electrical Connection ................................................................... 19
OPERATION INFORMATION ........................................................... 19
HEATED MODELS ............................................................................ 19
REFRIGERATION MODELS ............................................................. 20
OPTIONAL ERC CONTROL ............................................................. 23
OPTIONAL ERC CONTROL PROGRAMMING ................................ 24
TIMER CONTROL OPERATION ...................................................... 25
TIMER CONTROL PROGRAMMING................................................ 25
AIROTRONICS TIMER OPERATION ............................................... 26
STANDARD LABOR GUIDELINES ................................................... 27
STANDARD TWO YEAR WARRANTY ............................................. 28
ADDITIONAL THREE YEAR WARRANTY........................................ 29
NOTES .............................................................................................. 30

5
Specification Line
INTRODUCTION
General
Model numbers starting with the letters “SS” have a
stainless steel exterior and interior. Model numbers
starting with the letters “SA” have an aluminum interior
and a stainless steel exterior. Door gaskets are magnetic
and mount to the door, snapping in place and are
removable without tools. Keyed door lock is mounted in
the door next to the handle.
Doors can be removed from the cabinet without the use
of tools. Each door has two edge mount, self-closing,
cam lift style hinges.
Model Number
The following chart (see below) describes the model
number system used in this manual.
Heating System
Heating system cabinets are designed to maintain tem-
peratures between 120°F and 200°F. Heating elements
are helical shaped, with tubular fins. A circulating fan
provides uniform airflow in the cabinet. The entire heating
system is mounted to the exterior of the cabinet ceiling,
outside the food zone. It is assembled as one piece and
can be removed as one piece. An adjustable electronic
thermostat controls temperature. The system ON/OFF
switch is located on the front exterior of the cabinet.
Refrigeration System
All components are mounted to the exterior cabinet
ceiling, outside the food zone and are assembled as one-
piece and can be removed as one-piece. Environmen-
tally friendly R404A refrigerant is used. The system has
the capability of maintaining between 27°F and 44°F in
heavy use food service operations. Refrigerant is me-
tered using a highly responsive thermostatic expansion
valve. System is controlled using Delfield’s ACT-Ad-
vanced Control Technology electronic temperature con-
trol, which provides improved pull down times, reducing
compressor cycling and longer compressor life with
lower energy consumption. Control system uses adap-
tive defrost to assure evaporator coil is free of ice and
operating at optimum efficiency. Evaporator condensate
is eliminated using an energy efficient hot gas system.
Freezer Refrigeration System
All components are mounted to the exterior cabinet ceiling,
outside the food zone and are assembled as one-piece and
can be removed as one-piece. Environmentally friendly
R404A refrigerant is used. The system has the capability
of maintaining between -5°F and 0°F in heavy use food
service operations. Refrigerant is metered using a highly
responsive thermostatic expansion valve. Evaporator de-
frost is automatic using a time initiated, time/temperature
terminated system with electric heaters. Evaporator con-
densate is eliminated using an energy efficient hot gas
system.

6
Delfield
RECEIVING AND INSPECTING
THE EQUIPMENT
Care should be taken during unloading so the equipment
is not damaged while being moved into the building.
1. Visually inspect the exterior of the package and
skid or container. Any damage should be noted
and reported to the delivering carrier immedi-
ately.
2. If damaged, open and inspect the contents with
the carrier.
3. In the event that the exterior is not damaged,
yet upon opening, there is concealed damage
to the equipment notify the carrier. Notification
should be made verbally as well as in written
form.
4. Request an inspection by the shipping com-
pany of the damaged equipment. This should
be done within 10 days from receipt of the
equipment.
5. Also inspect the heating package on heated
units and the compressor compartment hous-
ing and the refrigeration package on refrigera-
tor and freezer units. Be sure lines are secure
and base is still intact.
7. Freight carriers can supply the necessary dam-
age forms upon request.
8. Retain all shipping material until an inspection
has been made or waived.
Dual Temperature Refrigeration/Freezer
Each compartment has its own separate refrigeration system.
Condensing units are located on top of the cabinet, outside the
food zone, behind the removable upper shroud. Evaporator
coils are located inside the cabinet mounted to the interior
ceiling of each compartment. Defrost is automatic. Conden-
sate travels down a tube in the cabinet sidewall to a receptacle
mounted to the exterior bottom of the cabinet where it evapo-
rates with the aid of an electric heater. Each compartment’s
temperature is individually monitored and controlled. Two
exterior digital thermometers monitor temperature. Refrigera-
tor compartment maintains temperature between 33°F and
41°F. Freezer compartment maintains temperature between
+5°F and -5°F. Refrigerant is metered using a highly respon-
sive thermostatic expansion valve.
SERIAL NUMBER
Always have the serial number of your unit available
when calling for parts or service. The serial number is on
the identification plate that also includes the model
number. A typical identification plate is shown below. On
refrigeration and freezer unit the identification plate is
located inside the right most door (the only door on one-
door unit), near the top front corner of the right interior
wall. On heated units, the identification plate is located in
the shroud area on the right side panel. For parts and
services go to www.delfield.com.

7
Specification Line
SPECIFICATIONS
HEATED ROLL-THRU
MODEL VOLTAGE AMPS STORAGE SHELVES NO. OF UNIT BTU/HR BTU/HR SHIP NEMA
NUMBER CU. FT. SQ. FT. SHELVES H.P. CAB SYSTEM WGT PLUG
LOAD CAP
SSHRT1-S, SAHRT1-S 120/208-240 9.0 38.58 N/A N/A N/A N/A N/A 504 N/A
SSHRT2-S, SAHRT2-S 120/208-240 16 79.74 N/A N/A N/A N/A N/A 806 N/A
SSHRT3-S, SAHRT3-S 120/208-240 17.8 120.90 N/A N/A N/A N/A N/A 940 N/A
SSHRT1-GS, SAHRT1-GS 120/208-240 9.0 38.58 N/A N/A N/A N/A N/A 519 N/A
SSHRT2-GS, SAHRT2-GS 120/208-240 16 79.74 N/A N/A N/A N/A N/A 836 N/A
SSHRT3-GS, SAHRT3-GS 120/208-240 17.8 120.90 N/A N/A N/A N/A N/A 985 N/A
SOLID DOOR HOT FOOD CABINET REACH-IN
MODEL VOLTAGE AMPS STORAGE SHELVES NO. OF UNIT BTU/HR BTU/HR SHIP NEMA
NUMBER CU. FT. SQ. FT. SHELVES H.P. CAB SYSTEM WGT PLUG
LOAD CAP
SSH1-S, SSH1-SH,
SAH1I-S, SAH1-SH 120/208-240 9.0 24.96 12.81 3 N/A N/A N/A 420 N/A
SSH2-S, SSH2-SH,
SAH2-S, SAH2-SH 120/208-240 16.0 51.92 27.54 6 N/A N/A N/A 562 N/A
SSH3-S, SSH3-SH,
SAH3-S, SAH3-SH 120/208-240 17.8 78.89 42.47 9 N/A N/A N/A 782 N/A
SELF CONTAINED SOLID DOOR HEATED ROLL-IN
MODEL VOLTAGE AMPS STORAGE SHELVES NO. OF UNIT BTU/HR BTU/HR SHIP NEMA
NUMBER CU. FT. SQ. FT. SHELVES H.P. CAB SYSTEM WGT PLUG
LOAD CAP
SSHRL1-S, SAHRL1-S, 120/208-240 9.0 36.15 12.81 N/A N/A N/A N/A 459 N/A
SSHRL2-S, SAHRL2-S, 120/208-240 12.2 74.72 12.81 N/A N/A N/A N/A 704 N/A
SSHRL3-S, SAHRL3-S, 120/208-240 10 113.28 12.81 N/A N/A N/A N/A 1008 N/A
SELF CONTAINED GLASS DOOR HEATED ROLL-IN
MODEL VOLTAGE AMPS STORAGE SHELVES NO. OF UNIT BTU/HR BTU/HR SHIP NEMA
NUMBER CU. FT. SQ. FT. SHELVES H.P. CAB SYSTEM WGT PLUG
LOAD CAP
SSHRL1-S, SAHRL1-S, 120/208-240 9.0 36.15 N/A N/A N/A N/A N/A 465 N/A
SSHRL2-S, SAHRL2-S, 120/208-240 16.0 74.72 N/A N/A N/A N/A N/A 7284 N/A
SSHRL3-S, SAHRL3-S, 120/208-240 17.8 113.28 N/A N/A N/A N/A N/A 1041 N/A

8
Delfield
SOLID DOOR NARROW HOT FOOD CABINET REACH-IN
MODEL VOLTAGE AMPS STORAGE SHELVES NO. OF UNIT BTU/HR BTU/HR SHIP NEMA
NUMBER CU. FT. SQ. FT. SHELVES H.P. CAB SYSTEM WGT PLUG
LOAD CAP
SSH2N-S SAH2N-S 115/208-240 16 51.92 27.54 6 N/A N/A N/A 596 N/A
GLASS DOOR HOT FOOD CABINET REACH-IN
MODEL VOLTAGE AMPS STORAGE SHELVES NO. OF UNIT BTU/HR BTU/HR SHIP NEMA
NUMBER CU. FT. SQ. FT. SHELVES H.P. CAB SYSTEM WGT PLUG
LOAD CAP
SSH1-G, SSH1-GH,
SAH1-G, SAH1-GH, 115/208-240 9.0 24.96 12.81 3 N/A N/A N/A 438 N/A
SSH2-G, SSH2-GH,
SAH2-G, SAH2-GH 115/208-240 16.0 51.92 27.54 6 N/A N/A N/A 569 N/A
SSH3-G, SSH3-GH,
SAH3G, SAH3GH 115/208-240 17.8 78.89 42.47 9 N/A N/A N/A 812 N/A
SELF CONTAINED SOLID DOOR WINE CABINET REACH-IN
MODEL VOLTAGE AMPS STORAGE SHELVES NO. OF UNIT BTU/HR BTU/HR SHIP NEMA
NUMBER CU. FT. SQ. FT. SHELVES H.P. CAB SYSTEM WGT PLUG
LOAD CAP
SSW1-S, SSW1-SH,
SAW1-S, SAW1-SH 115 8.5 24.96 12.81 3 ¼ 758 2015 418 5-15P
SSW1-S, SSW1-SH,
SAW1-S, SAW1-SH 115 12.8 51.92 27.54 6 1/3 1374 2522 650 5-20P
SSW1-S, SSW1-SH,
SAW1-S, SAW1-SH 115 8.9 78.89 42.47 9 ½ 1971 3637 830 5-15P
SELF CONTAINED SOLID DOOR READY THAW CABINET REACH-IN
MODEL VOLTAGE AMPS STORAGE SHELVES NO. OF UNIT BTU/HR BTU/HR SHIP NEMA
NUMBER CU. FT. SQ. FT. SHELVES H.P. CAB SYSTEM WGT PLUG
LOAD CAP
SST2-S, SST2-SH 115 12.8 51.92 27.54 6 1/3 1374 2522 650 5-20P
SELF CONTAINED GLASS DOOR WINE CABINET REACH-IN
MODEL VOLTAGE AMPS STORAGE SHELVES NO. OF UNIT BTU/HR BTU/HR SHIP NEMA
NUMBER CU. FT. SQ. FT. SHELVES H.P. CAB SYSTEM WGT PLUG
LOAD CAP
SSW1-G, SSW1-GH,
SAW1-G, SAW1-GH 115 8.5 24.96 12.81 3 ¼ 758 2015 418 5-15P
SSW2-G, SSW2-GH,
SAW2-G, SAW2-GH 115 12.8 51.92 27.54 6 1/3 1374 2522 650 5-20P
SSW3-G, SSW3-GH,
SAW3-G, SAW3-GH 115 8.9 78.89 42.47 9 1/2 1971 3637 830 5-15P

9
Specification Line
SELF CONTAINED SHALLOW SOLID DOOR REACH-IN REFRIGERATOR
MODEL VOLTAGE AMPS STORAGE SHELVES NO. OF UNIT BTU/HR BTU/HR SHIP NEMA
NUMBER CU. FT. SQ. FT. SHELVES H.P. CAB SYSTEM WGT PLUG
LOAD CAP
SSR1S-S, SSR1S-SH,
SAR1S-S, SAR1S-SH 115 8.5 24.96 12.81 3 ¼ 758 2015 418 5-15P
SSR2S-S, SSR2S-SH,
SAR2S-S, SAR2S-SH 115 12.8 51.92 27.54 6 1/3 1374 2522 650 5-20P
SSR3S-S, SSR3S-SH,
SAR3S-S, SAR3S-SH 115 8.9 78.89 42.47 9 ½ 1971 3637 830 5-15P
SELF CONTAINED SHALLOW HINGED GLASS DOOR REACH-IN REFRIGERATOR
MODEL VOLTAGE AMPS STORAGE SHELVES NO. OF UNIT BTU/HR BTU/HR SHIP NEMA
NUMBER CU. FT. SQ. FT. SHELVES H.P. CAB SYSTEM WGT PLUG
LOAD CAP
SSR1S-G, SSR1S-GH,
SAR1S-G, SAR1S-GH 115 8.5 24.96 12.81 3 ¼ 758 2015 418 5-15P
SSR2S-G, SSR2S-GH,
SAR2S-G, SAR2S-GH 115 12.8 51.92 27.54 6 1/3 1374 2522 650 5-20P
SSR3S-G, SSR3S-GH,
SAR3S-G, SAR3S-GH 115 8.9 78.89 42.47 9 ½ 1971 3637 830 5-15P
SELF CONTAINED SOLID DOOR ROLL-THRU REFRIGERATOR
MODEL VOLTAGE AMPS STORAGE SHELVES NO. OF UNIT BTU/HR BTU/HR SHIP NEMA
NUMBER CU. FT. SQ. FT. SHELVES H.P. CAB SYSTEM WGT PLUG
LOAD CAP
SSRRT1, SARRT1-S 115 10.3 38.58 N/A N/A ½ 1706 3120 494 5-15P
SSRRT2-S, SARRT2-S 115/208-230 10.1 79.74 N/A N/A ¾ 3263 69.20 736 N/A
SSRRT3-S, SARRT3-S 115/208-230 11.3 120.9 N/A N/A ¾ 4815 7569 1056 N/A
SELF CONTAINED GLASS DOOR ROLL-IN REFRIGERATOR
MODEL VOLTAGE AMPS STORAGE SHELVES NO. OF UNIT BTU/HR BTU/HR SHIP NEMA
NUMBER CU. FT. SQ. FT. SHELVES H.P. CAB SYSTEM WGT PLUG
LOAD CAP
SSRRL1-G, SARRL1-G 115 9.0 36.15 N/A N/A 1/3 1331 2614 487 5-15P
SSRRL2-G, SARRL2-G 115 12.2 74.72 N/A N/A ½ 2512 4046 798 5-15P
SSRRL3-G, SARRL3-G 115/208-230 10 113.28 N/A N/A ¾ 3687 7569 1152 N/A

10
Delfield
SELF CONTAINED HINGED GLASS DOOR PASS-THRU REFRIGERATOR
MODEL VOLTAGE AMPS STORAGE SHELVES NO. OF UNIT BTU/HR BTU/HR SHIP NEMA
NUMBER CU. FT. SQ. FT. SHELVES H.P. CAB SYSTEM WGT PLUG
LOAD CAP
SSRPT1-G, SSRPT1-GH,
SARPT1-G, SARPT-GH 115 12.8 26.64 12.81 3 1/3 1537 2614 476 5/20P
SSRPT2-G, SSRPT2-GH,
SARPT2-G, SARPT2-GH 115 11.2 55.42 27.54 6 ½ 3001 4096 740 5-15P
SSRPT3-G, SSRPT3-GH,
SARPT3-G, SARPT3-GH 115/208-230 12.4 84.19 42.27 9 ¾ 4451 7569 1032 14-20P
SELF CONTAINED SOLID DOOR ROLL-IN REFRIGERATOR
MODEL VOLTAGE AMPS STORAGE SHELVES NO. OF UNIT BTU/HR BTU/HR SHIP NEMA
NUMBER CU. FT. SQ. FT. SHELVES H.P. CAB SYSTEM WGT PLUG
LOAD CAP
SSRRL1-S, SARRL1-S 115 9.0 36.15 N/A N/A 1/3 1207 2354 476 5-15P
SSRRL2-S, SARRL2-S 115 12.2 74.72 N/A N/A ½ 2221 3637 768 5-15P
SSRRL3-S, SARRL3-S 115/208-230 10 113.28 N/A N/A ¾ 3229 6744 1044 N/A
SELF CONTAINED SOLID DOOR REACH-IN REFRIGERATOR
MODEL VOLTAGE AMPS STORAGE SHELVES NO. OF UNIT BTU/HR BTU/HR SHIP NEMA
NUMBER CU. FT. SQ. FT. SHELVES H.P. CAB SYSTEM WGT PLUG
LOAD CAP
SSR1-S, SSR1-SH,
SAR1-S, SAR1-SH 115 8.5 24.96 12.81 3 ¼ 758 2015 418 5-15P
SSR2-S, SSR2-SH,
SAR2-S, SAR2-SH 115 12.8 51.92 27.54 6 1/3 1374 2522 650 5-20P
SSR3-S, SSR3-SH,
SAR3-S, SAR3-SH 115 8.9 78.89 42.47 9 ½ 1971 3637 830 5-15P
SELF CONTAINED SHALLOW SOLID DOOR PASS-THRU REFRIGERATOR
MODEL VOLTAGE AMPS STORAGE SHELVES NO. OF UNIT BTU/HR BTU/HR SHIP NEMA
NUMBER CU. FT. SQ. FT. SHELVES H.P. CAB SYSTEM WGT PLUG
LOAD CAP
SSRPT1S, SARPT1S 115 12.8 26.64 12.81 3 1/3 968 2354 455 5-20P
SSRPT12S, SARPT2SS 115 11.2 55.42 27.54 6 ½ 1843 3637 700 5-15P

11
Specification Line
SELF CONTAINED NARROW HINGED GLASS DOOR REACH-IN REFRIGERATOR
MODEL VOLTAGE AMPS STORAGE SHELVES NO. OF UNIT BTU/HR BTU/HR SHIP NEMA
NUMBER CU. FT. SQ. FT. SHELVES H.P. CAB SYSTEM WGT PLUG
LOAD CAP
SSR1N-G, SSR1N-GH,
SAR1N-G, SAR1N-GH 115 8.5 20.97 10.59 3 ¼ 713 2015 398 5-15P
SSR2N-G, SSR2N-GH,
SAR21N-G, SAR21N-GH 115 12.8 43.94 23.10 6 1/3 1285 2522 856 5-20P
SELF CONTAINED SOLID DOOR PASS-THRU REFRIGERATOR
MODEL VOLTAGE AMPS STORAGE SHELVES NO. OF UNIT BTU/HR BTU/HR SHIP NEMA
NUMBER CU. FT. SQ. FT. SHELVES H.P. CAB SYSTEM WGT PLUG
LOAD CAP
SSRPT1, SARPTS 115 8.5 24.96 12.81 3 ¼ 758 2015 418 5-15P
SSRPT2, SARPT2 115 12.8 51.92 27.54 6 1/3 1374 2522 650 5-20P
SSRPT3, SARPT3 115 8.9 78.89 42.47 9 ½ 1971 3637 830 5-15P
SELF CONTAINED SOLID DOOR PASS-THRU REFRIGERATOR
MODEL VOLTAGE AMPS STORAGE SHELVES NO. OF UNIT BTU/HR BTU/HR SHIP NEMA
NUMBER CU. FT. SQ. FT. SHELVES H.P. CAB SYSTEM WGT PLUG
LOAD CAP
SSR1N-S, SSR1N-SH,
SAR1N-S, SAR1N-SH 115 8.5 24.96 12.81 3 ¼ 758 2015 418 5-15P
SSR2N-SG, SSR2N-SH,
SAR21N-S, SAR21N-SH 115 12.8 51.92 27.54 6 1/3 1374 2522 650 5-20P
SELF CONTAINED HINGED GLASS DOOR REACH-IN REFRIGERATOR
MODEL VOLTAGE AMPS STORAGE SHELVES NO. OF UNIT BTU/HR BTU/HR SHIP NEMA
NUMBER CU. FT. SQ. FT. SHELVES H.P. CAB SYSTEM WGT PLUG
LOAD CAP
SSR1-G, SSR1-GH,
SAR1-G, SAR1-GH 115 8.5 24.96 12.81 3 ¼ 758 2015 418 5-15P
SSR2-G, SSR2-GH,
SAR2-G, SAR2-GH 115 12.8 51.92 27.54 6 1/3 1374 2522 650 5-20P
SSR3-G, SSR3-GH,
SAR3-G, SAR3-GH 115 8.9 78.89 42.47 9 ½ 1971 3637 830 5-15P

12
Delfield
SELF CONTAINED SOLID DOOR ROLL-IN REFRIGERATOR
MODEL VOLTAGE AMPS STORAGE SHELVES NO. OF UNIT BTU/HR BTU/HR SHIP NEMA
NUMBER CU. FT. SQ. FT. SHELVES H.P. CAB SYSTEM WGT PLUG
LOAD CAP
SSR1-S, SSR1-SH,
SAR1-S, SAR1-SH 115 8.5 24.96 12.81 3 ¼ 758 2015 418 5-15P
SSR2-S, SSR2-SH,
SAR2-S, SAR2-SH 115 12.8 51.92 27.54 6 1/3 1374 2522 650 5-20P
SSR3-S, SSR3-SH,
SAR3-S, SAR3-SH 115 8.9 78.89 42.47 9 ½ 1971 3637 830 5-15P
SELF CONTAINED FISH DRAWER REACH-IN REFRIGERATOR
MODEL VOLTAGE AMPS STORAGE SHELVES NO. OF UNIT BTU/HR BTU/HR SHIP NEMA
NUMBER CU. FT. SQ. FT. SHELVES H.P. CAB SYSTEM WGT PLUG
LOAD CAP
SSRFF1 115 8.5 24.96 N/A N/A ¼ 758 2015 418 5-15P
SSRFF2 115 12.8 51.92 N/A N/A 1/3 1374 2522 650 5-20P
SELF CONTAINED SLIDING DOOR SHALLOW REACH-IN REFRIGERATOR
MODEL VOLTAGE AMPS STORAGE SHELVES NO. OF UNIT BTU/HR BTU/HR SHIP NEMA
NUMBER CU. FT. SQ. FT. SHELVES H.P. CAB SYSTEM WGT PLUG
LOAD CAP
SSR2S-SL, SAR2S-SL 115 11.2 51.92 27.54 6 1/3 1853 2801 670 5-15P
SELF CONTAINED SLIDING DOOR REACH-IN REFRIGERATOR
MODEL VOLTAGE AMPS STORAGE SHELVES NO. OF UNIT BTU/HR BTU/HR SHIP NEMA
NUMBER CU. FT. SQ. FT. SHELVES H.P. CAB SYSTEM WGT PLUG
LOAD CAP
SSR2-SL, SAR2-SL 115 11.2 51.92 27.54 6 1/3 1853 2801 670 5-15P
SELF CONTAINED SHALLOW SOLID DOOR REACH-IN FREEZER
MODEL VOLTAGE AMPS STORAGE SHELVES NO. OF UNIT BTU/HR BTU/HR SHIP NEMA
NUMBER CU. FT. SQ. FT. SHELVES H.P. CAB SYSTEM WGT PLUG
LOAD CAP
SSF1S-S, SSF1S-SH,
SAF1S-S, SAF1S-SH 115 11.4 18.25 8.98 3 ½ 1102 16.29 406 5-15P
SSF2S-S, SSF2S-SH,
SAF2S-S, SAF2S-SH 115 16 37.96 19.04 6 ¾ 2064 3326 676 5-20P
SSF3S-S, SSF3S-SH,
SAF3S-S, SAF3S-SH 115 11.4 57.67 29.10 9 1 2995 4253 909 14-20P

13
Specification Line
SELF CONTAINED SOLID DOOR ROLL-IN FREEZER
MODEL VOLTAGE AMPS STORAGE SHELVES NO. OF UNIT BTU/HR BTU/HR SHIP NEMA
NUMBER CU. FT. SQ. FT. SHELVES H.P. CAB SYSTEM WGT PLUG
LOAD CAP
SSFRL1-S, SAFRL1-S 115 13.7 36.15 N/A N/A ½ 1516 2094 497 5-20P
SSFRL1-S, SAFRL1-S 115/208-230 9.3 74.72 N/A N/A 1 2714 3494 824 N/A
SSFRL1-S, SAFRL1-S 115/208-230 11.8 113.28 N/A N/A 1 ½ 3901 5394 1128 N/A
SELF CONTAINED SOLID DOOR NARROW REACH-IN FREEZER
MODEL VOLTAGE AMPS STORAGE SHELVES NO. OF UNIT BTU/HR BTU/HR SHIP NEMA
NUMBER CU. FT. SQ. FT. SHELVES H.P. CAB SYSTEM WGT PLUG
LOAD CAP
SSF1N-S, SSF1N-SH,
SAF1N-S, SAF1N-SH 115 11.4 20.97 10.59 3 ½ 1166 1629 408 5-15P
SSF2N-SG, SSF2N-SH,
SAF21N-S, SAFR21N-SH 115 16 43.94 23.10 6 ¾ 2101 3326 680 5-20P
SELF CONTAINED SOLID DOOR TWO SECTION DUAL TEMP
REFRIGERATOR/FREEZER PASS-THRU
MODEL DESCRIPTION VOLTAGE AMPS STORAGE SHELVES NO. OF UNIT BTU/HR BTU/HR SHIP NEMA
NUMBER CU. FT. SQ. FT. SHELVES H.P. CAB SYSTEM WEIGHT PLUG
LOAD CAP
SSDRLPT2, LEFT DR REF 115 8.5 24.96 12.81 3 ¼ 758 2015 730 5-15P
SADRLPT2 RIGHT DR FRZ 115 11.4 24.96 12.81 3 ½ 1239 1868 730 5-15P
SSDFLPT2, LEFT DR FRZ 115 11.4 24.96 12.81 6 ½ 1239 1868 730 5-15P
SADFLPT2 RIGHT DR REF 115 8.5 24.96 12.81 6 ¼ 758 2015 730 5-15P
GLASS DOOR SINGLE SECTION DUAL TEMP REFRIGERATOR/FREEZER REACH-INS
MODEL VOLTAGE AMPS STORAGE NO. OF UNIT BTU/HR BTU/HR SHIP NEMA
NUMBER CU. FT. SHELVES H.P. CAB SYSTEM WEIGHT PLUG
LOAD CAP
SSDTR1-GH/ SADTR1-GH
Refrigerator 115/60/1 12.19 2 1/5 550 1725
Freezer 115/60/1 12.19 2 1/3 910 1380
SSDBR1-GH/ SADBR1-GH
Freezer 115/60/1 12.19 2 1/3 910 1380
Refrigerator 115/60/1 12.19 2 1/5 550 1725
14 TOTAL
14 TOTAL 545 LBS. TOTAL 5-20P
545 LBS. TOTAL 5-20P

14
Delfield
SOLID DOOR SINGLE SECTION DUAL TEMP REFRIGERATOR/FREEZER
PASS-THRU UNITS
MODEL VOLTAGE AMPS STORAGE NO. OF UNIT BTU/HR BTU/HR SHIP NEMA
NUMBER CU. FT. SHELVES H.P. CAB SYSTEM WEIGHT PLUG
LOAD CAP
SSDTPT1-SH/ SADTPT1-SH
Refrigerator 115/60/1 12.19 2 1/5 563 1543
Freezer 115/60/1 12.19 2 1/3 921 1260
SSDBT1-SH/ SADPT1-SH
Freezer 115/60/1 12.19 2 1/3 921 1260
Refrigerator 115/60/1 12.19 2 1/5 563 1543
SELF CONTAINED SOLID DOOR PASS-THRU FREEZER
MODEL VOLTAGE AMPS STORAGE SHELVES NO. OF UNIT BTU/HR BTU/HR SHIP NEMA
NUMBER CU. FT. SQ. FT. SHELVES H.P. CAB SYSTEM WGT PLUG
LOAD CAP
SSFPT1, SAFPT1 115 13.7 26.64 12.81 3 ½ 1583 2467 672 5-20P
SSFPT2, SAFPT2 115/208-230 7.0 55.42 27.54 6 1 3013 3497 1001 14-20P
SSFPT3, SAFPT3 115/208-230 10.0 84.19 42.27 9 1 ½ 4412 5185 1268 14-20P
SELF CONTAINED SOLID DOOR TWO SECTION DUAL TEMP
REFRIGERATOR/FREEZER REACH-INS
MODEL DESCRIPTION VOLTAGE AMPS STORAGE SHELVES NO. OF UNIT BTU/HR BTU/HR SHIP NEMA
NUMBER CU. FT. SQ. FT. SHELVES H.P. CAB SYSTEM WEIGHT PLUG
LOAD CAP
SSDRL1, SADRL1 LEFT DR REF 115 8.5 24.96 12.81 3 ¼ 758 2015 730 5-15P
RIGHT DR FRZ 115 11.4 24.96 12.81 3 ½ 1239 1868 730 5-15P
SSDFL2, SADFL2 LEFT DR FRZ 115 11.4 24.96 12.81 6 ½ 1239 1868 730 5-15P
RIGHT DR REF 115 8.5 24.96 12.81 6 ¼ 758 2015 730 5-15P
14 TOTAL
14 TOTAL 545 LBS. TOTAL 5-20P
545 LBS. TOTAL 5-20P

15
Specification Line
SOLID DOOR SINGLE SECTION DUAL TEMP REFRIGERATOR/FREEZER REACH-INS
MODEL VOLTAGE AMPS STORAGE NO. OF UNIT BTU/HR BTU/HR SHIP NEMA
NUMBER CU. FT. SHELVES H.P. CAB SYSTEM WEIGHT PLUG
LOAD CAP
SDTR1-SH/ SADTR1-SH
Refrigerator 115/60/1 11.52 2 1/5 455 1543
Freezer 115/60/1 11.52 2 1/3 744 1260
SDBR1-SH/ SADBR1-SH
Freezer 115/60/1 11.52 2 1/3 744 1260
Refrigerator 115/60/1 11.52 2 1/5 455 1543
SELF CONTAINED HINGED GLASS DOOR REACH-IN FREEZER
MODEL VOLTAGE AMPS STORAGE SHELVES NO. OF UNIT BTU/HR BTU/HR SHIP NEMA
NUMBER CU. FT. SQ. FT. SHELVES H.P. CAB SYSTEM WGT PLUG
LOAD CAP
SSF1-G, SSF1-GH,
SAF1-G, SAF1-GH 115 13.7 24.96 12.81 3 ½ 1605 2300 450 5-20P
SSF2-G, SSF2-GH,
SAF2-G, SAF2-GH 115 9.3 51.92 27.54 6 1 3009 3843 730 14-20P
SSF3-G, SSF3-GH,
SAF3-G, SAF31-GH 115 10.0 78.89 42.47 9 1 ½ 4386 5940 990 14-20P
SELF CONTAINED SOLID DOOR REACH-IN FREEZER
MODEL VOLTAGE AMPS STORAGE SHELVES NO. OF UNIT BTU/HR BTU/HR SHIP NEMA
NUMBER CU. FT. SQ. FT. SHELVES H.P. CAB SYSTEM WGT PLUG
LOAD CAP
SSF1-S, SSF1-SH,
SAF1-S, SAF1-SH 115 11.4 24.96 12.81 3 ½ 1239 1868 440 5-15P
SSF2-S, SSF2-SH,
SAF2-S, SAF2-SH 115 16 51.92 27.54 6 ¾ 2247 3326 710 5-20P
SSF3-S, SSF3-SH,
SAF3-S, SAF31-SH 115/208-230 11.4 78.89 42.47 9 1 3222 4136 960 14-20P
14 TOTAL
14 TOTAL 545 LBS. TOTAL 5-20P
545 LBS. TOTAL 5-20P

16
Delfield
SELF CONTAINED SOLID DOOR CONVERT-A-TEMP REACH-IN
MODEL VOLTAGE AMPS STORAGE SHELVES NO. OF UNIT BTU/HR BTU/HR SHIP NEMA
NUMBER CU. FT. SQ. FT. SHELVES H.P. CAB SYSTEM WGT PLUG
LOAD CAP
SSR1-S, SAR1-S 115 11.4 24.96 12.81 3 ½ 1239 1868 440 5-15P
SSR2-S, SAR2-S 115 16 51.92 27.54 6 ¾ 2247 3326 710 5-20P
GLASS DOOR SINGLE SECTION DUAL TEMP REFRIGERATOR/FREEZER
PASS-THRU UNITS
MODEL VOLTAGE AMPS STORAGE NO. OF UNIT BTU/HR BTU/HR SHIP NEMA
NUMBER CU. FT. SHELVES H.P. CAB SYSTEM WEIGHT PLUG
LOAD CAP
SSDTPT1-GH/ SADTPT1-GH
Refrigerator 115/60/1 12.19 2 1/5 830 1725
Freezer 115/60/1 12.19 2 1/3 1329 1380
SSDBPT1-GH/ SADBPT1-GH
Freezer 115/60/1 12.19 2 1/3 1329 1380
Refrigerator 115/60/1 12.19 2 1/5 830 1725
14 TOTAL
14 TOTAL 545 LBS. TOTAL 5-20P
545 LBS. TOTAL 5-20P

17
Specification Line
INSTALLATION
REACH-INS AND PASS-THRUS
Location
Cabinetsrepresented in thismanualareintended for indoor
use only. Be sure the location chosen has a floor strong
enough to support the total weight of the cabinet, 1000 lbs.
per door section. Reinforce the floor if necessary to provide
for maximum loading. For the most efficient operation, be
sure to provide good air circulation inside and out. The
location should be selected so that the power cord can be
connected without any extensions.
Inside Unit
Take care not to block airflow to the fans or heating
elements and allow space along the front, back and
sides.
Outside Unit
Be sure that the unit has access to ample air; avoid hot
corners and locations near stoves and ovens. Provide a
minimum clearance of 12” (30.5 cm) above the unit that
is open to the front.
Leg and Caster Installation
WARNING:
Some cabinets may weigh over 1000 lbs (450 kg).
Use a lifting device capable of supporting the unit
when removing skid or installing legs or casters.
To install the legs, refer to Figure 1 and proceed as
follows:
1. Remove unit from skid.
2. Raise unit to access leg/caster mounting holes
on bottom of unit.
3. Attach the legs with the four hex head bolts.
To install the casters, refer to Figure 1 and proceed as
follows:
1. Remove unit from skid.
2. Raise unit to access leg/caster mounting holes
on bottom of unit.
3. Attach the casters with the four hex head bolts.
Utility Base
WARNING:
Some cabinets may weigh over 1000 lbs (450 kg).
Use a lifting device capable of supporting the unit
when removing skid or installing legs or casters.
Figure 1. Leg or Caster Installation
To install the utility base, refer to Figure 2 and proceed as
follows:
1. Remove unit from skid.
2. Raise unit to access leg/caster mounting holes
on bottom of unit.
3. Attach the utility base to bottom of cabinet
using the leg/caster mounting screws.
Leveling
After the cabinet has been placed in the desired location,
cabinets with legs must be leveled. Level units from front
to back and from side to side. Leveling will insure proper
door operation and removal of condensate. Cabinets
with casters must have the caster brake set so the
cabinet cannot move.
Figure 2. Utility Base Installation

18
Delfield
Stabilizing
It is very important that all legs are properly adjusted to
keep the cabinet level, evenly distribute the weight and to
make sure the unit will not rock, lean or be unstable.
Electrical Connection
DANGER
Refer to the amperage data list in the SPECIFICA-
TIONS or the serial tag data and your local code or
the National Electrical Code to be sure the unit is
connected to the proper power source. A protected
circuit of the correct voltage and amperage must be
run for connection of the supply cord or permanent
connection to the unit. The power must be turned
off and disconnected whenever performing mainte-
nance or repair functions.
CAUTION
Permanently connected units must be connected in
accordance with NEC Article 422 Appliances, C-Dis-
connecting means. It is the responsibility of the end user
to provide the disconnect means to satisfy the authority
having jurisdiction.
The power cords supplied with this equipment are three-
pronged plugs and must be connected to a three-pronged
wall outlet for proper grounding. Do not use an adapter
to connect to a two-pronged outlet. The three pronged-
outlet provides a ground connection which must be
used to prevent a shock hazard.
CAUTION
Have the wall outlet checked by a qualified electrician to
be sure a proper ground is present and that the outlet
provides the correct voltage and required amperage to
match the rating plate.
Any power cord that is frayed or damaged should be
replaced. When disconnecting the unit from the power
source, do not pull on the wire. Firmly grip the plug and
remove from outlet.
The plugs shown in Figure 3 are used on the various models.
ROLL-INS AND ROLL-THRU MODELS
Location
Cabinets represented in this manual are intended for
indoor use only. Be sure the location chosen has a floor
strong enough to support the total weight of the cabinet.
Allow for a total load of approximately 1000 pounds
(450 kg) per door section. Reinforce the floor if necessary
to provide for maximum loading. For the most efficient
operation, be sure to provide good air circulation inside
and out. The location should be selected so that the
power cord can be connected without any extensions.
Inside Cabinet
Take care not to block airflow to the fans or heating
elements and allow space along the front, back and sides.
Outside Cabinet
Be sure that the unit has access to ample air; avoid hot
corners and locations near stoves and ovens. Provide a
minimum clearance of 12" (30.5 cm) above the unit that
is open to the front.
Door Removal
If the doors need to be removed during installation,
proceed as follows:
1. Remove top hinge cover from hinge as shown
in Figure 4.
2. Remove door from unit by lifting door up a few
inches and pulling away from unit.
Figure 3. Plug Configurations
Figure 4. Door Hinge Cover
Door
hinge
cover

19
Specification Line
Leveling
After the cabinet has been placed in the desired location,
cabinets with legs must be leveled. Level units from front
to back and from side to side. Leveling will insure proper
door operation and removal of condensate. Cabinets with
casters must have the caster brake set so the cabinet
cannot move.
Stabilizing
It is very important that all legs are properly adjusted to
keep the unit level, to evenly distribute the weight and to
make sure the unit will not rock, lean or be unstable.
Electrical Connection
DANGER
Refer to the amperage data list in the SPECIFICA-
TIONS or the serial tag data and your local code or
the National Electrical Code to be sure the unit is
connected to the proper power source. A protected
circuit of the correct voltage and amperage must be
run for connection of the supply cord or permanent
connection to the unit. The power must be turned
off and disconnected whenever performing mainte-
nance or repair functions.
CAUTION
Permanently connected units must be connected in
accordance with NEC Article 422 Appliances, C-Dis-
connecting means. It is the responsibility of the end user
to provide the disconnect means to satisfy the authority
having jurisdiction.
The power cords supplied with this equipment are three-
pronged plugs and must be connected to a three-pronged
wall outlet for proper grounding. Do not use an adapter
to connect to a two-pronged outlet. The three pronged-
outlet provides a ground connectio0n which must be
used to prevent a shock hazard.
CAUTION
Have the wall outlet check by a qualified electrician to be
sure a proper ground is present and that the outlet
provides the correct voltage and required amperage to
match the rating plate.
Any power cord that is frayed or damaged should be
replaced. When disconnecting the unit from the power
source, do not pull on the wire. Firmly grip the plug and
remove from outlet.

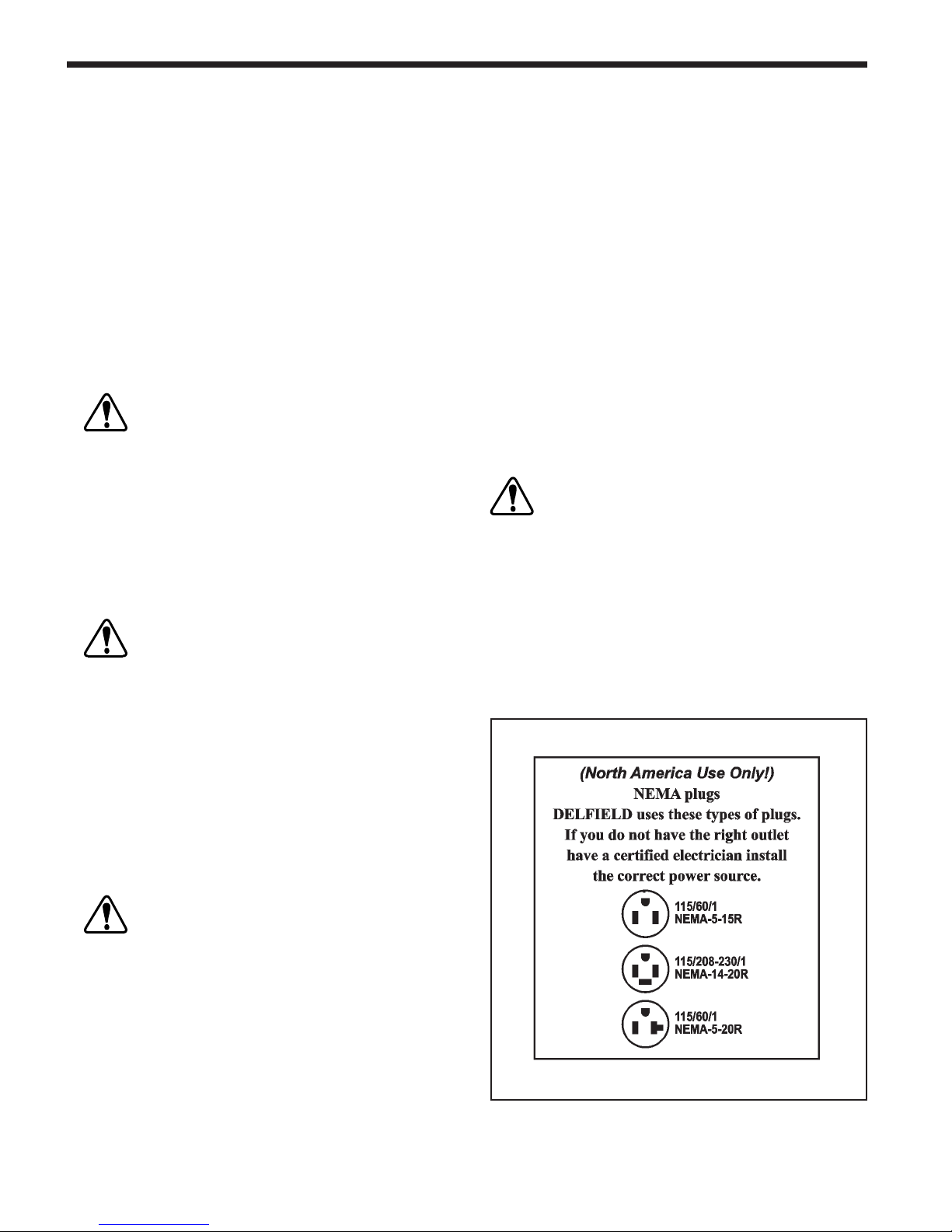

The plugs shown in Figure 5 are used on the various
models.
OPERATION
HEATED CABINETS
The Heated units have a POWER ON/OFF switch lo-
cated behind the flip up shroud at the front top of the unit
for controlling power to the unit and an electronic thermo-
stat for setting the temperature. A circulating fan pro-
vides uniform airflow in the cabinet. Refer to Figure 6 for
location of operating controls and proceed as follows:
1. Check that unit is properly connected to the
power source.
2. Raise the shroud to access the controls.
3. Set the Main POWER ON/OFF switch, to the
ON position.
4. Adjust the electronic thermostat to the desired
temperature.
5. Allow unit to warm-up before use.
DANGER
The unit surface is very hot! Avoid direct contact
with skin; use appropriate protective apparel, such
as gloves.
6. Turn the unit off by setting the POWER ON/
OFF switch to the OFF position
7. After use, allow unit to cool down.
8. Clean equipment as discussed in the MAINTE-
NANCE section of this manual.
Figure 5. Plug Configurations

20
Delfield
Operating Controls
REFRIGERATED WINE CABINETS
Refrigerated wine cabinet units have a POWER ON/OFF
switch located on the front of the unit for controlling power
to the unit and a Delfield’s ACT-Advanced Control Tech-
nology electronic temperature control for setting the
temperature. The temperature control holds the tem-
perature between 50°F and 60°F and provides improved
pull down times, reducing compressor cycling and longer
compressor life with low energy consumption. Refriger-
ant is metered using a highly responsive thermostatic
expansion valve. The control system uses adaptive
defrost to assure evaporator coil is free of ice and
operating at optimum efficiency. Evaporator condensate
is eliminated using an energy efficient hot gas system. An
exterior digital thermostat monitors cabinet temperature.
To operate the refrigerated wine cabinet unit, refer to
Figure 6 for location of operating controls and proceed as
follows:
1. Check that unit is properly connected to the
power source.
2. Raise the shroud to access the controls.
3. Set the main POWER ON/OFF switch to the
ON position.
4. Adjust the electronic temperature control to the
desired temperature.
5. Turn the unit off by placing the POWER ON/
OFF switch in the OFF position.
6. Clean equipment as discussed in the mainte-
nance section of this manual.
REFRIGERATED THAW CABINETS
Refrigerated thaw cabinet units have a POWER ON/OFF
switch located on the front of the unit for controlling power
to the unit and a Delfield’s ACT-Advanced Control Technol-
ogy electronic temperature control for setting the tempera-
ture. The temperature control holds the temperature be-
tween 27°F and 44°F and provides improved pull down
times, reducing compressor cycling and longer compres-
sor life with low energy consumption. Refrigerant is me-
tered using a highly responsive thermostatic expansion
valve. The control system uses adaptive defrost to assure
evaporator coil is free of ice and operating at optimum
efficiency. Evaporator condensate is eliminated using an
energy efficient hot gas system. An exterior digital thermo-
stat monitors cabinet temperature. Thawing is aided by
mullion mounted heater and fan system. To operate the
refrigerated thaw cabinet unit, refer to Figure 6 for location
of operating controls and proceed as follows:
1. Check that unit is properly connected to the
power source.
2. Raise the shroud to access the controls.
3. Set the main POWER ON/OFF switch, to the
ON position
4. Adjust the electronic temperature control to the
desired temperature.
5. Turn the unit off by placing the POWER ON/
OFF switch in the OFF position.
6. Clean equipment as discussed in the mainte-
nance section of this manual.
Shroud (lift to access controls)
Operating controls (behind shroud) Digital thermometer
Figure 6. Operating Controls and Indicator Location
