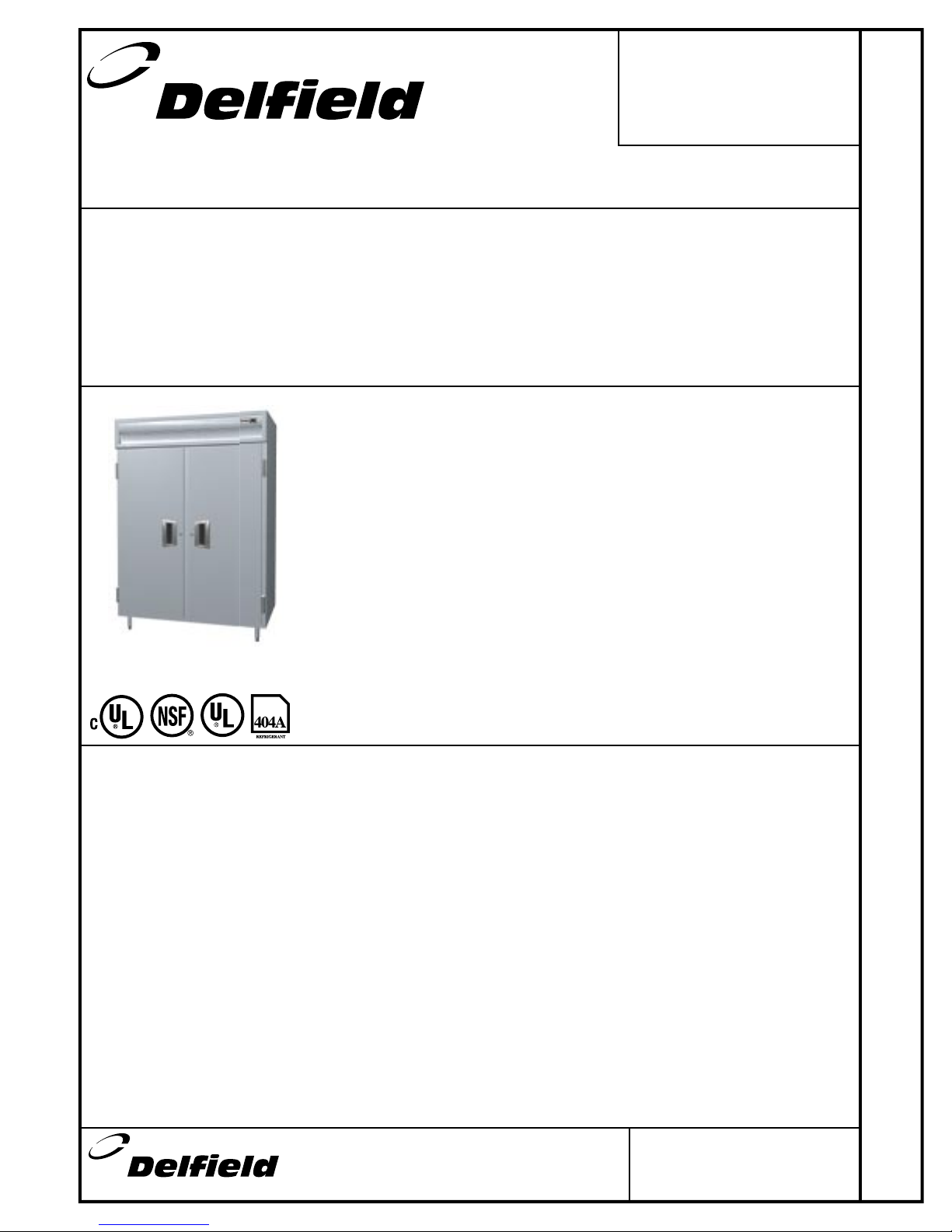

SPECIFICATION LINE: SELF-CONTAINED SOLID DOOR TWO-SECTION DUAL TEMP REFRIGERATOR/HEATED REACH-INS
Project __________________________
Item ____________________________
Quantity _________________________
CSI Section 11400
Specifi cation Line
Self-Contained Solid Door Two-Section Dual Temp Refrigerator/Heated Reach-Ins
980 S. Isabella Road
Mt. Pleasant, MI 48858
www.delfi eld.com
Phone: [phone]
Fax: [phone]
Email: info@delfi eld.com
Approval _________________
Date ____________________
SSDHL2-S
SPECIFICATIONS
Exterior: Cabinet exterior sides, front and shroud shall be
22-gauge, corrosion resistant stainless steel. Upper shroud
shall be hinged, with stay-open feature to provide easy access
to refrigeration system.
Interior: Cabinet interior shall be 22-gauge, corrosion
resistant stainless steel (SS models) or heavy gauge aluminum
(SA models). Bottom and top surfaces are die stamped to
provide radius corners and recessed fl oor. Three chrome
plated wire shelves are provided per section. Shelves rest
on clips which are adjustable in 1” increments on stainless
steel pilasters affi xed to the cabinet interior. Pilasters are
removable without tools for cleaning. Interior light mounted
to the interior ceiling is controlled automatically through
a switch mounted in the hinge assembly to protect against
breakage. Door openings are protected with heavy gauge
stainless steel breaker strips. An air duct is mounted to the
ceiling assuring low velocity, even air movement throughout
the cabinet interior.
Doors: Exterior shall be 22-gauge, corrosion resistant
stainless steel. Interior liner shall be resilient high impact
ABS material, formed to protrude beyond the door gasket to
protect the gasket from tearing. Each door has two edge mount,
self closing, cam lift style hinges. Doors can be removed from
cabinet without the use of tools. Metal door handle is recessed into
the door for easy grip without impacting aisle space. Keyed door
lock is mounted in the door next to the handle. Lock engages into
a heavy duty strike mounted to the cabinet face. Door gaskets
are magnetic and mount to the door snapping in place and are
removable without tools.
Refrigeration system:
Refrigerator Section: All components are mounted to the
exterior cabinet ceiling, outside the food zone and are assembled
as one piece and can be removed as one piece. Environmentally
friendly R404A refrigerant is used. System has the capability of
maintaining between 27˚F and 40˚F in heavy use food service
operations. Refrigerant is metered using a highly responsive
thermostatic expansion valve. System is controlled using Delfi eld’s
ACT-Advanced Control Technology electronic temperature control,
which provides improved pull down times, reducing compressor
cycling and longer compressor life with lower energy consumption.
Control system uses adaptive defrost to assure evaporator coil
is free of ice and operating at optimum effi ciency. Evaporator
condensate is eliminated using an energy effi cient hot gas
system.
Heating System: Cabinets are designed to maintain
temperatures between 120˚F and 200˚F. Heating elements are
helical shaped, with tubular fi ns. High speed blower provides
uniform airfl ow in the cabinet. Entire heating system is
mounted to the exterior of the cabinet ceiling, outside the food
zone. It is assembled as one piece and can be removed as one
piece. Temperature is controlled by an adjustable electronic
thermostat. System on/off switch is located on the front
exterior of the cabinet.
Refrigerator Electrical: Standard electrical connections shall
be 115V, 60Hz, single phase. A 10’ cord and plug is supplied
attached to a junction box mounted on the exterior top of the
cabinet.
Heated Electrical: Standard electrical is 120/208-240 volt,
60Hz, single phase. Connection must be hard wired to junction
box on exterior top of the cabinet.
MODELS
❑ SSDHL2-S 2 section heated left hand stainless
interior full doors
❑ SSDHL2-SH 2 section heated left hand stainless
interior half height doors
❑ SSDHRL2-S 2 section refrigerator left hand stainless
interior full doors
❑ SSDHRL2-SH 2 section refrigerator left hand stainless
interior half height doors
❑ SADHL2-S 2 section heated left hand aluminum
interior full doors
❑ SADHL2-SH 2 section heated left hand aluminum
interior half height doors
❑ SADHRL2-S 2 section refrigerator left hand aluminum
interior full doors
❑ SADHRL2-SH 2 section refrigerator left hand aluminum
interior half height doors
STANDARD FEATURES
• Stainless steel interior and exterior (SS)
• Stainless steel exterior, aluminum interior (SA)
• Built in door locks with heavy duty strikes
• Recessed metal door handle
• Exterior digital thermometer
• Easy to use electronic control
• Easy access “fl ip up” shroud
• Three chrome plated wire shelves per section
• Tough ABS interior door liners (metal on heated)
• 10’ attached cord and plug standard on 115V units
(refrigerator)
• 6” adjustable stainless steel legs
• Stainless steel breaker strips
• Energy savings door heater switch (refrigerator)
• Two year parts & labor warranty
OPTIONS AND ACCESSORIES
❑ Security package
❑ 6” polyurethane casters
❑ Door fi eld rehingability
❑ Stainless steel interior door liner
❑ Additional shelves
❑ Tray slides
❑ Stainless steel back
❑ Laminate on front, sides and back
❑ Bottom mount electrical
❑ Stainless steel banking strip
❑ Heat shield end
❑ Stainless steel kick plate
❑ Laminate kick plate
❑ 4” stainless steel utility base
❑ 220-60-1 electrical
❑ 220-50-1 electrical
❑ Alarm control display











 



 










  

Specification Line: Self-Contained Solid Door Two-Section Dual Temp Refrigerator/Heated Reach-Ins
Model #__________
CSI Section 11400
Printed in the USA.
11/05
DSSSHRDT
980 S. Isabella Road
Mt. Pleasant, MI 48858
www.delfield.com
Phone: [phone]
Fax: [phone]
Email: info@delfield.com
Delfield reserves the right to make changes in design or specifications without prior notice.
Mechanical Data
MODEL
NUMBER DESCRIPTION VOLTAGE AMPS STORAGE SHELVES SQ.FT.
NO. OF
SHELVES
UNIT
H.P.
BTU/HR CAB
LOAD
BTU/HR
SYSTEM CAP
SHIP
WEIGHT
NEMA
PLUG
SSDHL2-S. SSDHL2-SH
SADHL2-S, SSDHL2-SH
LEFT DR REF
RIGHT DR HTD
115
115/205/240
8.5
9.0
24.96
24.96
12.81
12.81
3
3
1/4
N/A
758
N/A
2015
N/A 730 5/15P N/A
SSDHRL2-S, SSDHRL2-SH
SADHRL2-S, SADHRL2-SH
LEFT DR HTD
RIGHT DR REF
115/205/240
115
9.0
8.5
24.96
24.96
12.81
12.81
6
6
N/A
1/4
N/A
758
N/A
2015 730 N/A 5-15P
END SECTION VIEW
ALL MODELS
ELEVATION VIEW
SSDHL2-S, SADHL2-S
SSDHRL2-S, SADHRL2-S
ELEVATION VIEW
SSDHL2-SH, SADHL2-SH
SSDHRL2-SH, SADHRL2-SH
PLAN VIEW
SSDHL2-S, SADHL2-S
SSDHRL2-S, SADHRL2-S
PLAN VIEW
SSDHL2-SH, SADHL2-SH
SSDHRL2-SH, SADHRL2-SH






