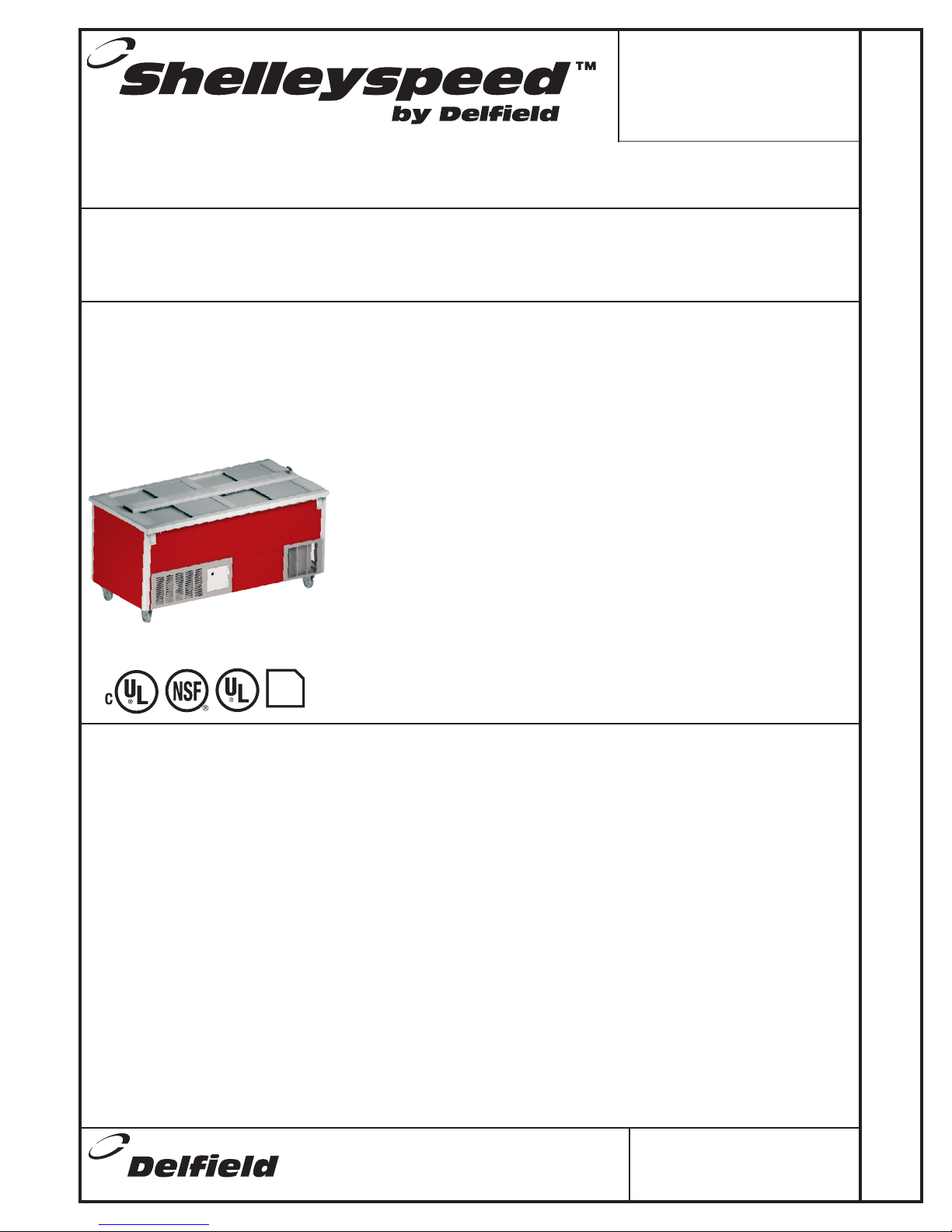

Delfield Shelleyspeed SPRH-EW User manual

SPRH-EW SHELLEYSPEED™ REFRIGERATOR/HEATED MODULE, 30”HEIGHT, 35” DEPTH
Project __________________________
Item ____________________________
Quantity _________________________
CSI Section 11400
SPRH-EW
Refrigerator/Heated Combination Module, 30” height, 35” depth
980 S. Isabella Road
Mt. Pleasant, MI 48858
www.delfield.com
Phone: [phone]
Fax: [phone]
Email: info@delfield.com
Approval _________________
Date ____________________
MODELS
❑ SPRH-68EW 68” length, refrigerator/heated module, 30” height, 35” depth
SPRH-68EW
STANDARD FEATURES
• 14-gauge stainless steel top standard
• 30” counter height, 35” depth
• 9’ long cord and plug are supplied standard
• Two separate systems, one heated, one refrigerated
• 18-gauge stainless steel exterior standard
• Electrical: 120 volt, 60 cycle, single phase
• R134A refrigerant
• Removable sliding lids (two per unit) standard
• Standard on 5” diameter polyurethane swivel casters
• Stainless steel fully retractable interlock provided as
standard
• Basket rack system is standard
• A wide selection of laminate colors available at no
additional charge
• Heated portion has stay cool surface, top is designed
to stay below 90˚
• Laminate selection has 18-gauge galvanized base,
16-gauge coved corner supports to protect laminate
• Meets NSF2, NSF7, UL and CEC standards
• One-year parts and 90 day labor standard warranty.
Additional warranties available
• Holds baskets size, 13.25” x 26.13” x 2.5” or
13.25” x 26.13” 4.75”
OPTIONS AND ACCESSORIES
❑ Single tier merchandiser (Unheated)
❑ Double tier merchandiser (Unheated)
❑ 16”x35” Stainless steel drop tray shelf
❑ Stainless steel cash self
❑ Tray slides
• V-style
• Tubular bar
❑ 2” Wire basket (13.25”x26.13”x2.5”)
❑ 4” Wire basket (13.25”x26.13”x4.75”)
❑ Decal package
❑ Canopy
134a
REFRIGERANT
SPECIFICATIONS
Exterior: Exterior body is constructed of 18-gauge stainless
steel side panels or 18-gauge galvanized reinforced laminate
panels. 14-gauge galvanized bottom. All exterior side panels
are reinforced with overlapping corners and are welded
in place. All insert cutouts are reinforced with 14-gauge
galvanized channel supports.
Exterior top is constructed of 14-gauge stainless steel, welded,
ground and polished into one integral unit. Top is fabricated
with square exterior corners with fully hemmed nosing on all
sides. Stainless steel fully retractable interlocks are installed
on opposing corners and locks units into a complete serving
system.
Interior, Refrigerated Section: Refrigerated cold pan is
10” deep one-piece constructed stainless steel tank. Louvered
front and rear sides are for re-circulated forced air-cooling.
The tank is separated from the top by a polycarbonate
thermal break and is fully insulated with foamed in place
high-density polyurethane foam. A stainless steel access panel
is located in bottom of tank, allowing complete access to the
evaporator coil and fan package.
On/Off switch is located on the operator side in a recessed
panel with a hinged cover plate.
Refrigerated tank maintains NSF7 temperature requirements.
Interior, Heated Section: Heated pan is 10” deep one-piece
constructed stainless steel tank. Louvered front and rear sides
are for re-circulated forced air heating. The tank is separated
from the top by a polycarbonate thermal break keeping
surface temperatures below 90 degrees. Entire tank is fully
insulated with foamed in place high-density polyurethane
foam.
Lid: Lids are constructed of stainless steel and are foamed with
polyurethane insulation. The lid thickness is 3/4”. Lid handle
shall be black, recessed ABS. Lids are removable without the
use of tools. Stainless steel lid locking bar is standard. Bar
has locking handle at one end and mounts to clips, which are
bolted to the top of the cabinet. The locking bar extends the
length of the unit. Entire assembly can be removed during the
serving period.
Refrigeration: Refrigeration system uses R134A refrigerant
and has a self-contained 120 volt, 60 Hertz, single phase
hermetically sealed condensing unit. The system utilizes and
evaporator coil and fan package for re-circulated forced air-
cooling of product. Unit is supplied with an expansion valve
and hot gas condensate evaporator.
Heating System: Convected air type heating system with
squirrel cage blower and on/off switch. Components include
high limit protection circuit, (2) 900-watt fin style heating
elements and a night switch.
A stainless steel access panel is located in the bottom of the
unit allowing complete access to the heating elements. The
fan is accessible through the operator side of the control panel.
Units meet NSF 4 temperature requirements.
Night switch is located on the operator side in the upper right
corner behind a spring-hinged cover. On/off switch and
adjustable range thermostat is located on the operator side in a
recessed panel with a hinged cover plate.
Electrical: Electrical connections shall be 120 volt, 60 Hertz,
single phase. Unit shall have a 9’ long electrical cord and
NEMA 5-30 plug. Cord is standard on the operator right side
of equipment. Double cord hook is located on the bottom of
the unit.
Casters: Unit is mounted on 5” (12.7cm) diameter swivel
polyurethane casters with non-marking tires and plate brakes.
Casters are bolted directly to the 14-gauge bottom of the base.
Overall height of caster assembly is 6.00” (15.2cm).
Styling: Units are standard with 18-gauge stainless steel
exterior sides. Laminate is an option available at no additional
charge. Decal packages and canopies are also available.

Model #__________
CSI Section 11400
Printed in the USA.
06/05
SSSPRHEW
980 S. Isabella Road
Mt. Pleasant, MI 48858
www.delfield.com
Phone: [phone]
Fax: [phone]
Email: info@delfield.com
SPRH-EW - Refrigerator/Heated Combination Module, 30” height, 35” depth
Plan View SPRH-68EW
End View
All Models
Elevation View SPRH-68EW
35.00”
88.9cm
68.00”
172.72cm
30.00”
76.2cm
Delfield reserves the right to make changes in design or specifications without prior notice.
Basket Detail

68.00”
172.72cm

 









MODEL NUMBER TYPE BASKET CAPACITY
STORAGE
CAPACITY VOLTAGE AMPS HP WATTS NEMA PLUG SHIP WEIGHT
SPRF-68 REFRIGERATOR
SIDE
8 (13.25X26.13X2.5)
4 (13.25X26.13X4.75) 4.15 CU FT. 120 15.0 1/5 NA 5-20P 550
HEATED SIDE
8 (13.25X26.13X2.5)
4 (13.25X26.13X4.75) 4.15 CU FT. 120 15.0 NA 1800 5-20P
MECHANICAL DATA:
18.5 5-30P 550SPRH-68EW
