This section provides information about
setting up your Inspiron™desktop.
WARNING: Before you begin any of the
procedures in this section, read the
safety information that shipped with
your computer. For additional safety best
practices information, see the Regulatory
Compliance Homepage at
www.dell.com/regulatory_compliance.
Before Setting Up Your
Computer
When positioning your computer, ensure that
you allow easy access to a power source,
adequate ventilation, and a level surface to
place your computer.
Restricting airflow around your computer may
cause it to overheat. To prevent overheating
ensure that you leave at least 10.2 cm (4 inches)
at the back of the computer and a minimum of
5.1 cm (2 inches) on all other sides. You should
never place your computer in an enclosed
space, such as a cabinet or drawer when it is
powered on.
Setting Up Your Inspiron Desktop
INSPIRON

6
Setting Up Your Inspiron Desktop
Connect the Display
Your computer has integrated VGA and HDMI
video connectors.
NOTE: A DVI connector may be available if
you purchased a discrete graphics card.
You can purchase the HDMI‑to‑DVI adapter and
additional HDMI or DVI cables at
www.dell.com.
Use the appropriate cable based on the
connectors available on your computer and
display. Refer to the following table to identify
the connectors on your computer and display.
NOTE: When connecting to a single display,
connect the display to ONLY ONE of the
connectors on your computer.

7
Setting Up Your Inspiron Desktop
Connection Type Computer Cable Display
VGA‑to‑VGA
(VGA cable)
DVI‑to‑DVI
(DVI cable)
HDMI‑to‑HDMI
(HDMI cable)
HDMI‑to‑DVI
(HDMI‑to‑DVI
adapter + DVI cable)

8
Setting Up Your Inspiron Desktop
Connect the Keyboard and
Mouse

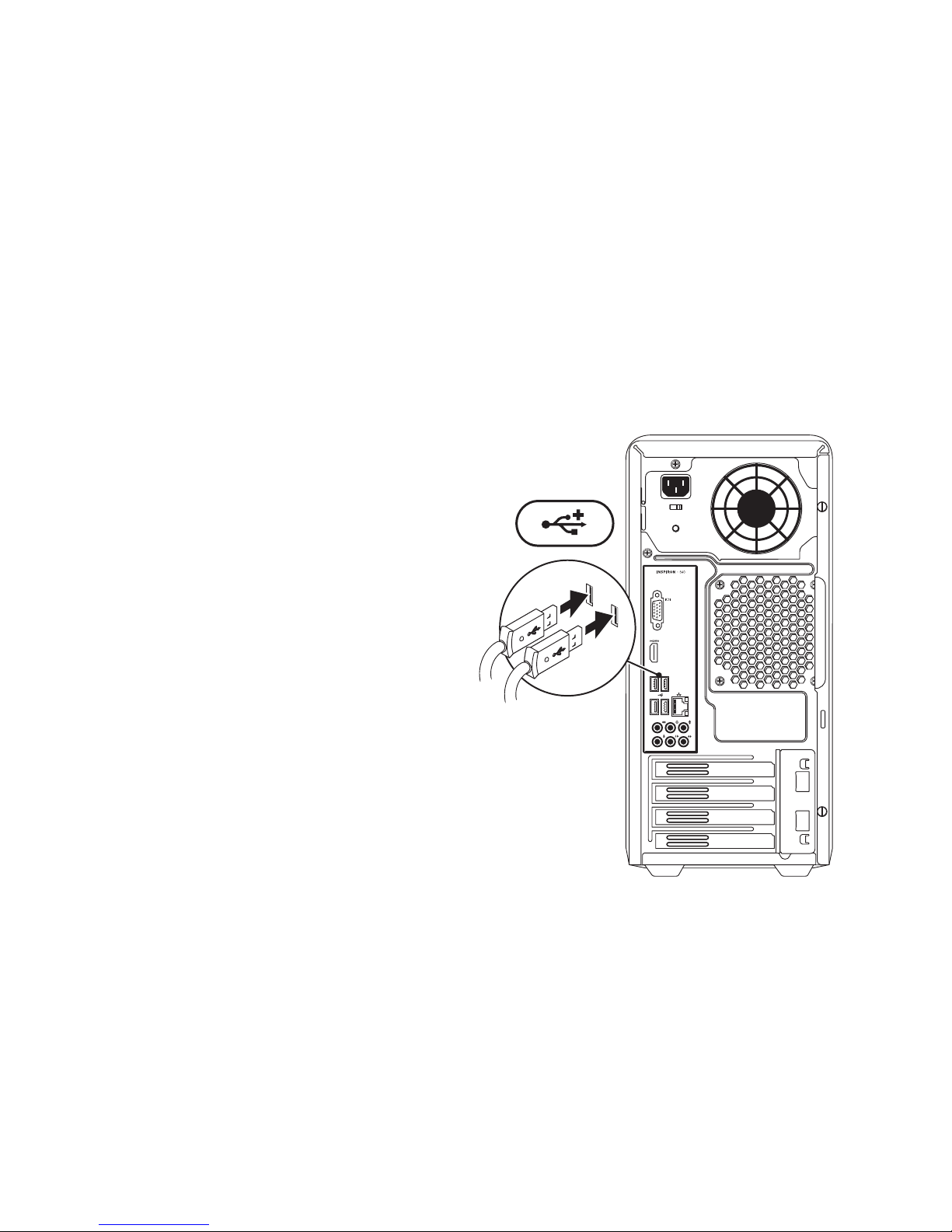

Connect the USB keyboard and mouse to the USB
connectors on the back panel of your computer.

9
Setting Up Your Inspiron Desktop
Connect the Network Cable
(Optional)
A network connection is not required to
complete your computer setup, but if you have
an existing network or Internet connection that
uses a cable connection (such as a broadband
device or Ethernet jack), you can connect
it now.
NOTE: Use only an Ethernet cable to
connect to the network connector
(RJ45 connector). Connect the telephone
cable only to the modem connector
(RJ11 connector) and not to the network
connector (RJ45 connector).
To connect your computer to a network or a
broadband device, connect one end of the
network cable to the network port or the
broadband device. Connect the other end of
the network cable to the network connector
(RJ45 connector) on the back panel of your
computer. A click indicates that the network
cable has been securely attached.

10
Setting Up Your Inspiron Desktop
Connect the Power Cable
CAUTION: To help avoid damaging your
computer, ensure that the voltage selector
switch is set for the voltage that most
closely matches the AC power available in
your location.
To locate the voltage selector switch, see “Back
View Features” on page 18.

11
Setting Up Your Inspiron Desktop
Press the Power Button

12
Setting Up Your Inspiron Desktop
Set Up Microsoft Windows
Your Dell computer is preconfigured with
Microsoft®Windows®operating system. To
set up Windows for the first time, follow the
instructions on the screen. These steps are
mandatory and may take some time to complete.
The Windows setup screens will take you
through several procedures including accepting
license agreements, setting preferences, and
setting up an Internet connection.
CAUTION: Do not interrupt the operating
system’s setup process. Doing so may
render your computer unusable and you
will need to reinstall the operating system.
NOTE: For optimal performance of your
computer, it is recommended that you
download and install the latest BIOS and
drivers for your computer available at
support.dell.com.
NOTE: For more information on the
operating system and features, see
support.dell.com/MyNewDell.
Create System Recovery
Media (Recommended)
NOTE: It is recommended that you create a
system recovery media as soon as you set
up Microsoft Windows.
The system recovery media can be used to
restore your computer to the operating state it
was in when you purchased the computer, while
preserving data files (without the need of the
Operating System disc). You can use the system
recovery media if changes to the hardware,
software, drivers, or other system settings have
left the computer in an undesirable operating
state.
You will require the following to create the
system recovery media:
Dell DataSafe Local Backup•
USB key with a minimum capacity of 8 GB or•
DVD‑R/DVD+R/Blu‑ray Disc™

13
Setting Up Your Inspiron Desktop
NOTE: Dell DataSafe Local Backup does
not support rewritable discs.
To create a system recovery media:
Ensure that the power cable is connected1.
and the computer is turned on.
Insert the disc or USB key in the computer.2.
Click3. Start → Programs→Dell DataSafe
Local Backup.
Click4. Create Recovery Media.
Follow the instructions on the screen.5.
NOTE: For information on using the system
recovery media, see “System Recovery
Media” on page 44.
Connect to the Internet
(Optional)
To connect to the Internet, you need an external
modem or network connection and an Internet
service provider (ISP).
If an external USB modem or WLAN adapter is
not part of your original order, you can purchase
one at www.dell.com.
Setting Up a Wired Connection
If you are using a dial‑up connection, connect•
the telephone cable to the optional modem
and to the telephone wall jack before you set
up your Internet connection.
If you are using a DSL or cable/satellite•
modem connection, contact your ISP
or cellular telephone service for setup
instructions.
To complete setting up your wired Internet
connection, follow the instructions in “Setting Up
Your Internet Connection” on page 14.

14
Setting Up Your Inspiron Desktop
Setting Up a Wireless Connection
NOTE: To set up your wireless router, see the
documentation that shipped with your router.
Before you can use your wireless Internet
connection, you need to connect to your
wireless router.
To set up your connection to a wireless router:
Windows Vista
®
Save and close any open files, and exit any1.
open programs.
Click2. Start →Connect To.
Follow the instructions on the screen to3.
complete the setup.
Windows
®
7
Save and close any open files, and exit any1.
open programs.
Click2. Start →Control Panel.
In the search box, type3. network, and
then click Network and Sharing Center→
Connect to a network.
Follow the instructions on the screen to4.
complete the setup.
Setting Up Your Internet Connection
ISPs and ISP offerings vary by country. Contact
your ISP for offerings available in your country.
If you cannot connect to the Internet but have
successfully connected in the past, the ISP
might have a service outage. Contact your ISP
to check the service status, or try connecting
again later.
Have your ISP information ready. If you do not
have an ISP, the Connect to the Internet wizard
can help you get one.

15
Setting Up Your Inspiron Desktop
To set up your Internet connection:
Windows Vista
Save and close any open files, and exit any1.
open programs.
Click2. Start →Control Panel.
In the search box, type3. network, and then
click Network and Sharing Center→ Set up
a connection or network→Connect to the
Internet.
The Connect to the Internet window appears.
NOTE: If you do not know which type of
connection to select, click Help me choose
or contact your ISP.
Follow the instructions on the screen and4.
use the setup information provided by your
ISP to complete the setup.
Windows 7
Save and close any open files, and exit any1.
open programs.
Click2. Start →Control Panel.
In the search box, type3. network, and then
click Network and Sharing Center→Set up
a new connection or network→Connect to
the Internet.
The Connect to the Internet window appears.
NOTE: If you do not know which type of
connection to select, click Help me choose
or contact your ISP.
Follow the instructions on the screen and4.
use the setup information provided by your
ISP to complete the setup.

16
Using Your Inspiron Desktop
This section provides information about the
features available on your Inspiron™desktop.
Front View Features
1Optical drive eject buttons (2) — Eject the
optical drive tray when pressed.
2USB 2.0 connectors (2) — Connect
to USB devices that are connected
occasionally such as memory keys, digital
cameras, and MP3 players.
3Headphone connector — Connects
to headphones.
NOTE: To connect to a powered
speaker or sound system, use the audio
connectors on the back of your computer.
9
7
10
8
1
2
3
5
6
4
INSPIRON

17
Using Your Inspiron Desktop
4Line-in or microphone connector —
Connects to a microphone for voice or to
an audio cable for audio input.
5Power button — Turns the
computer on or off when pressed. The
light in the center of this button indicates
the power state.
NOTE: For information on power
problems, see “Power Problems” on
page 27.
6Hard-drive activity light — Turns
on when the computer reads or writes
data. A blinking white light indicates
hard‑drive activity.
CAUTION: To avoid loss of data,
never turn off the computer while
the hard-drive activity light is
blinking.
7FlexBay cover — Covers the FlexBay
slot.
8FlexBay slot — Can support an optional
Media Card Reader or an additional hard
drive.
9Optical drives (2) — Play or record
CDs, DVDs, and Blu‑ray Discs (optional).
Ensure that the side with print or writing
is facing up when placing the disc on the
optical drive tray.
10 Service Tag and Express Service
Code (located on top of the chassis
towards the back) — Helps to identify
your computer when you access the
Dell Support website or call technical
support.

18
Using Your Inspiron Desktop
Back View Features
1
2
4
5
3
6
