Dell Inspiron 620 User manual

Dell™Inspiron™620ServiceManual
Notes, Cautions, and Warnings
Information in this document is subject to change without notice.
©2011DellInc.Allrightsreserved.
Trademarksusedinthistext:Dell™,theDELLlogo,andInspiron™aretrademarksofDellInc.;Microsoft®, Windows®, and the Windows start button logo are either
trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries.
Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.
Regulatorymodel:D11MseriesRegulatorytype:D11M001
2011 -05Rev.A00
Technical Overview
Before You Begin
Computer Cover
Memory Module(s)
Front Bezel
Card Retention Bracket
PCI Express Cards
Drives
Front I/O Panel
Power Button Module
Fans
Processor
Coin-Cell Battery
Power Supply
System Board
System Setup
Flashing the BIOS
NOTE: A NOTE indicates important information that helps you make better use of your computer.
CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.
WARNING: A WARNING indicates a potential for property damage, personal injury, or death.

Back to Contents Page
Before You Begin
Dell™Inspiron™620ServiceManual
Technical Specifications
Recommended Tools
Turning Off Your Computer
Safety Instructions
This manual provides instructions for removing and installing the components in your computer. Unless otherwise noted, each procedure assumes that the
following conditions exist:
lYou have performed the steps in Turning Off Your Computer and Safety Instructions.
lYou have read the safety information that shipped with your computer.
lA component can be replaced or—if purchased separately—installed by performing the removal procedure in reverse order.
Technical Specifications
For information on technical specifications of your computer, see the Setup Guide at support.dell.com/manuals.
Recommended Tools
The instructions in this document may require the following tools:
lSmall flat-blade screwdriver
lSmall Phillips screwdriver
lPlastic scribe
lBIOS executable update program available at support.dell.com
Turning Off Your Computer


1. Save and close all open files and exit all open programs.

2. To shut down the operating system, click Start and then click Shut Down.

3. Ensure that the computer is turned off. If your computer did not automatically turn off when you shut down the operating system, press and hold the
power button until the computer turns off.
Safety Instructions
Use the following safety guidelines to help protect your computer from potential damage and to help ensure your own personal safety.




1. Ensure that the work surface is flat and clean to prevent the computer cover from being scratched.

CAUTION: To avoid losing data, save and close all open files and exit all open programs before you turn off your computer.
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at dell.com/regulatory_compliance.
CAUTION: Only a certified service technician should perform repairs on your computer. Damage due to servicing that is not authorized by Dell is
not covered by your warranty.
CAUTION: When you disconnect a cable, pull on its connector or on its pull-tab, not on the cable itself. Some cables have connectors with locking
tabs; if you are disconnecting this type of cable, press in on the locking tabs before you disconnect the cable. As you pull connectors apart, keep
them evenly aligned to avoid bending any connector pins. Also, before you connect a cable, ensure that both connectors are correctly oriented
and aligned.
CAUTION: To avoid damaging the computer, perform the following steps before you begin working inside the computer.

2. Turn off your computer (see Turning Off Your Computer) and all attached devices.


3. Disconnect all telephone or network cables from the computer.

4. Disconnect your computer and all attached devices from their electrical outlets.

5. Disconnect all attached devices from your computer.

6. Press and eject any installed cards from the Media Card Reader.

7. Press and hold the power button to ground the system board.

Back to Contents Page

CAUTION: To disconnect a network cable, first unplug the cable from your computer and then unplug the cable from the network device.
CAUTION: Before touching anything inside your computer, ground yourself by touching an unpainted metal surface, such as the metal at the back
of the computer. While you work, periodically touch an unpainted metal surface to dissipate static electricity, which could harm internal
components.

Back to Contents Page
Front Bezel
Dell™Inspiron™620ServiceManual
Removing the Front Bezel
Replacing the Front Bezel

Removing the Front Bezel

1. Follow the instructions in Before You Begin.

2. Remove the computer cover (see Removing the Computer Cover).

3. Place the computer in an upright position.

4. Grasp and release the front bezel tabs sequentially, one at a time by moving them outward from the front panel.

5. Rotate and pull the front bezel away from the front of the computer to release the front bezel clamps from the front panel slots.

6. Set aside the front bezel in a secure location.
Replacing the Front Bezel

WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at dell.com/regulatory_compliance.
WARNING: To guard against electrical shock, always unplug your computer from the electrical outlet before removing the cover.
WARNING: Do not operate your computer with any cover(s) (including computer covers, front bezels, filler brackets, front-panel inserts, etc.)
removed.
CAUTION: Only a certified service technician should perform repairs on your computer. Damage due to servicing that is not authorized by Dell is
not covered by your warranty.

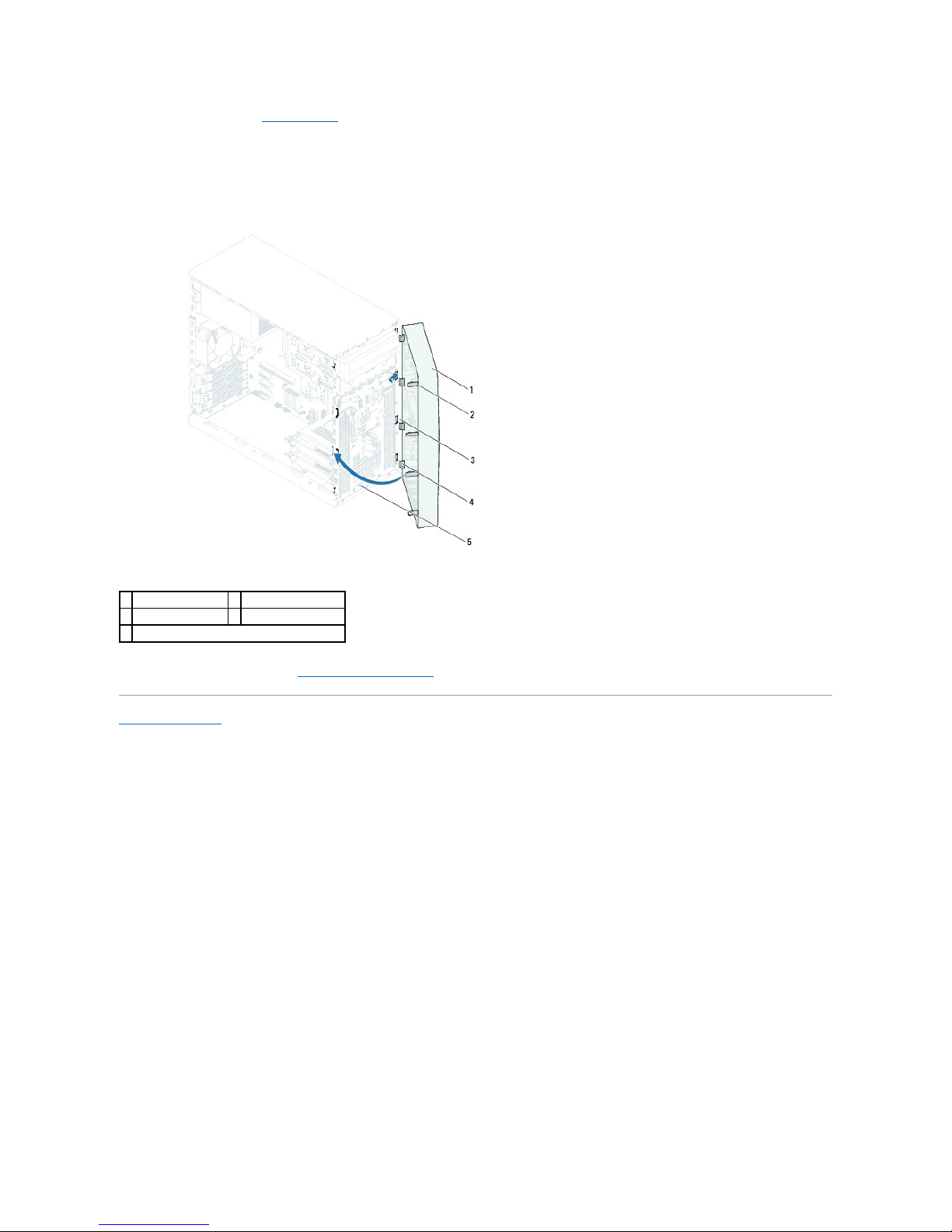

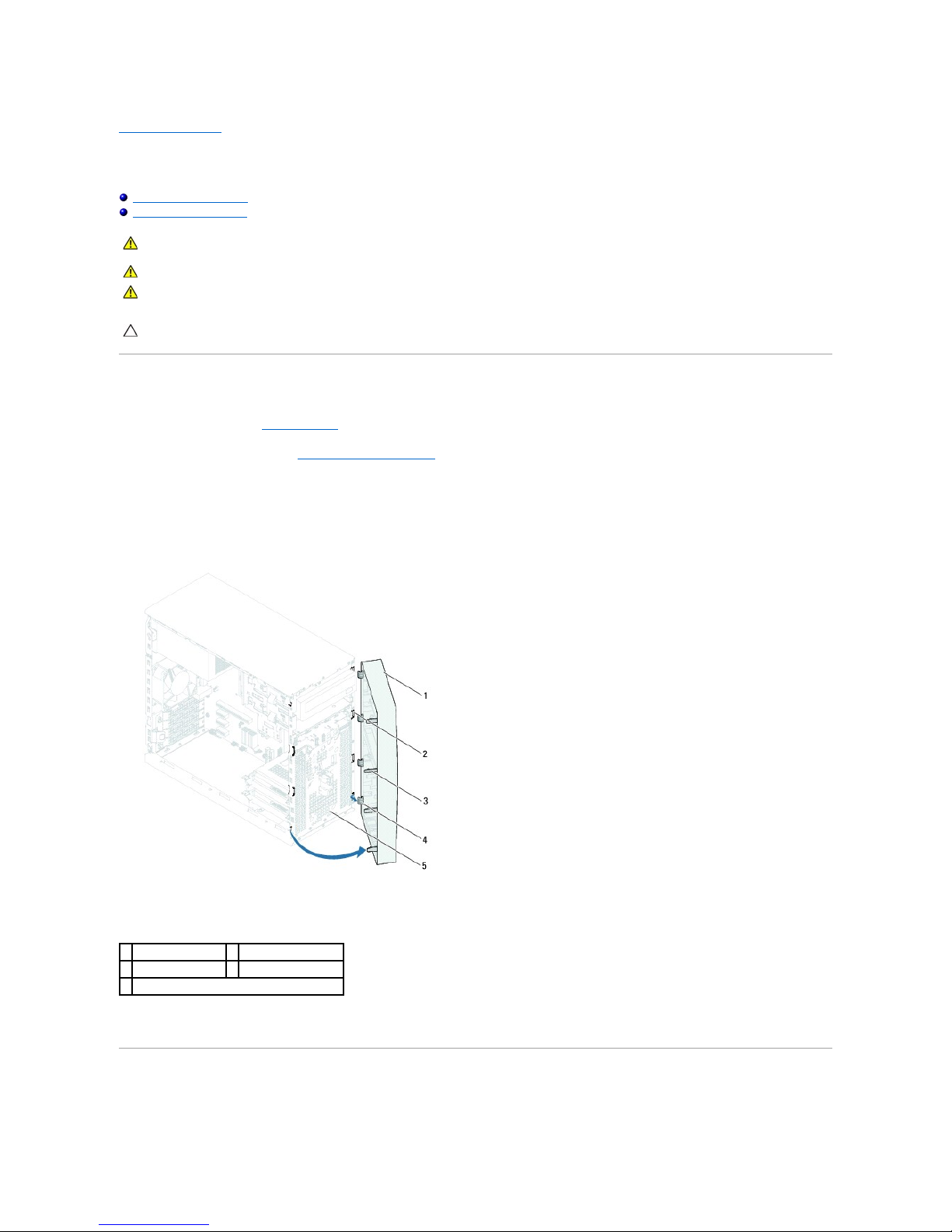

1
front bezel
2
front panel slots (4)
3
front bezel tabs (4)
4
front bezel clamps (4)
5
front panel

1. Follow the instructions in Before You Begin.

2. Align and insert the front bezel clamps into the front panel slots.

3. Rotate the front bezel towards the computer until the front bezel tabs snap into place.

4. Replace the computer cover (see Replacing the Computer Cover).
Back to Contents Page

1
front bezel
2
front bezel tabs (4)
3
front panel slots (4)
4
front bezel clamps (4)
5
front panel

Back to Contents Page
Flashing the BIOS
Dell™Inspiron™620ServiceManual
The BIOS may require flashing when an update is available or when replacing the system board. To flash the BIOS:

1. Turn on the computer.

2. Go to support.dell.com/support/downloads.

3. Locate the BIOS update file for your computer.
If you have your computer's Service Tag:
a. Click Enter a Tag.
b. Enter your computer's Service Tag in the Enter a service tag field, click Go, and proceed to step 4.
If you do not have your computer's Service Tag:
a. Click Select Model.
b. Select the type of product in the Select Your Product Family list.
c. Select the product brand in the Select Your Product Line list.
d. Select the product model number in the Select Your Product Model list.
e. Click Confirm.

4. A list of results appears on the screen. Click BIOS.

5. Click Download Now to download the latest BIOS file. The File Download window appears.

6. Click Save to save the file on your desktop. The file downloads to your desktop.

7. Click Close if the Download Complete window appears. The file icon appears on your desktop and is titled the same as the downloaded BIOS update
file.

8. Double-click the file icon on the desktop and follow the instructions that appear on the screen.
Back to Contents Page

NOTE: The Service Tag for your computer is located on a label on the top of your computer.
NOTE: If you have selected a different model and want to start over again, click Start Over on the top right of the menu.

Back to Contents Page
PCI Express Cards
Dell™Inspiron™620ServiceManual
Removing PCI Express Cards
Replacing PCI Express Cards
Configuring Your Computer After Removing or Installing the PCI Express Card

Removing PCI Express Cards

1. Follow the instructions in Before You Begin.

2. Remove the computer cover (see Removing the Computer Cover).

3. Remove the card retention bracket (see Removing the Card Retention Bracket).

4. Disconnect any cables connected to the card, if applicable.

5. Remove the PCI Express card from the card slot:
PCI Express x1 card —Grasp the card by its top corners, and ease it out of its connector.
PCI Express x16 card —The securing tab on the PCI Express x16 card slot may vary based on your computer model. Perform one of the following
instructions based on the type of securing tab on the PCI Express x16 card slot.
lPush the securing tab to the side, grasp the card by its top corners, and then ease it out of the connector.
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at dell.com/regulatory_compliance.
WARNING: To guard against electrical shock, always unplug your computer from the electrical outlet before removing the cover.
WARNING: Do not operate your computer with any cover(s) (including computer covers, bezels, filler brackets, front-panel inserts, etc.)
removed.
CAUTION: Only a certified service technician should perform repairs on your computer. Damage due to servicing that is not authorized by Dell is
not covered by your warranty.

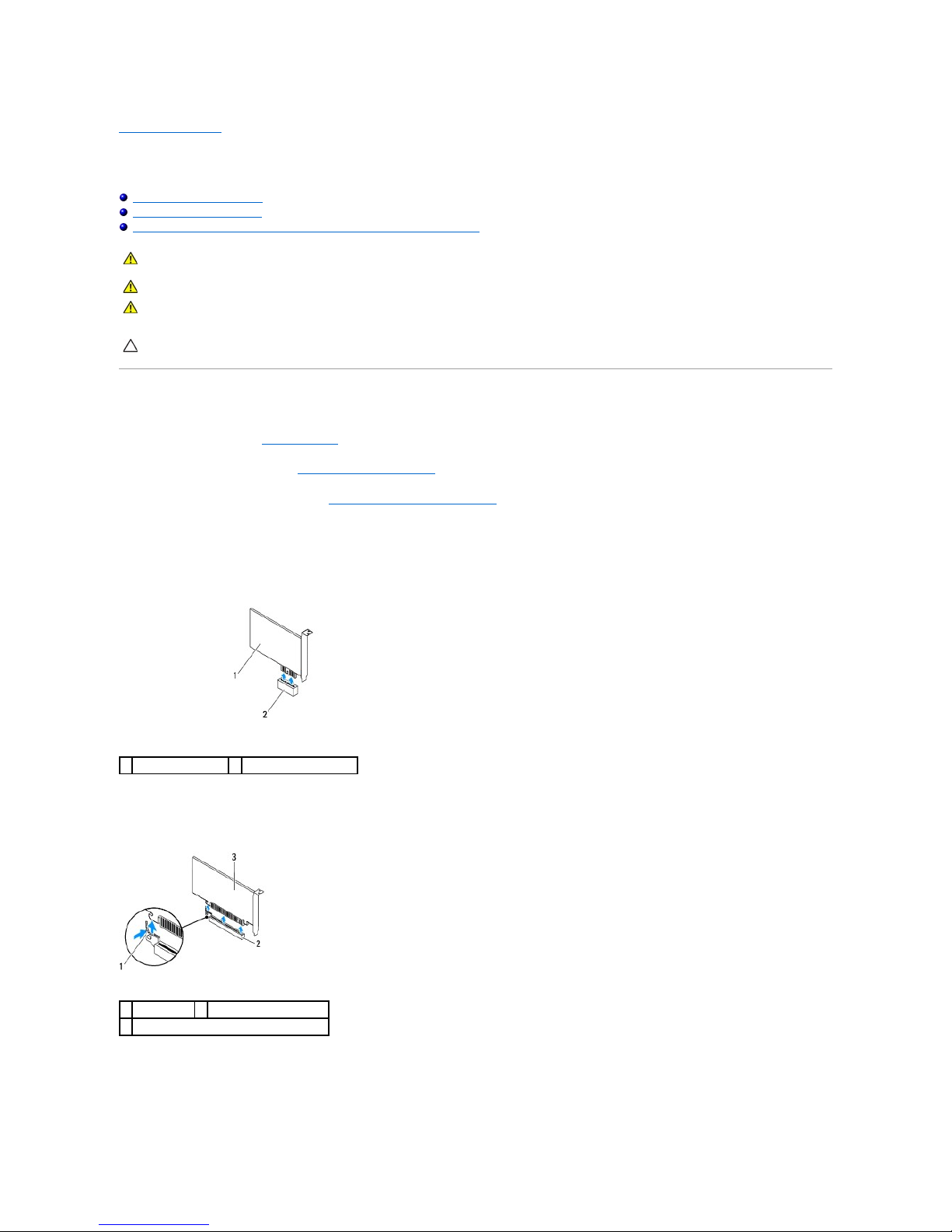

1
PCI Express x1 card
2
PCI Express x1 card slot
1
securing tab
2
PCI Express x16 card slot
3
PCI Express x16 card

lPress the securing tab down, grasp the card by its top corners, and then ease it out of the connector.

6. If you are removing the card permanently, install a filler bracket in the empty card-slot opening.
Replacing PCI Express Cards

1. Follow the instructions in Before You Begin.

2. Prepare the card for installation.
See the documentation that shipped with the card for information on configuring the card, making internal connections, or otherwise customizing it for
your computer.

3. Connect the PCI Express card to the card slot:
PCI Express x1 card —Place the PCI Express card in the slot on the system board and press down firmly. Ensure that the PCI Express card is fully
seated in the slot.
1
securing tab
2
PCI Express x16 card slot
3
PCI Express x16 card
1
securing tab
2
PCI Express x16 card slot
3
PCI Express x16 card
1
securing tab
2
PCI Express x16 card slot
3
PCI Express x16 card
NOTE: Installing filler brackets over empty card-slot openings is necessary to maintain FCC certification of the computer. The brackets also keep dust
and dirt out of your computer.

PCI Express x16 card —The securing tab on the PCI Express x16 card slot may vary based on your computer model. Perform one of the following
instructions based on the type of securing tab on the PCI Express x16 card slot.
lPush the securing tab to the side and place the PCI Express card in the slot on the system board and press down firmly. Ensure that the PCI
Express card is fully seated in the slot.
lPlace the PCI Express card in the slot on the system board and press down firmly. Ensure that the PCI Express card is fully seated in the slot.
1
PCI Express x1 card
2
PCI Express x1 card slot
1
securing tab
2
PCI Express x16 card slot
3
PCI Express x16 card
1
securing tab
2
PCI Express x16 card slot
3
PCI Express x16 card
1
PCI Express x16 card slot
2
PCI Express x16 card


4. Replace the card retention bracket (see Replacing the Card Retention Bracket).

5. Connect any cables that should be attached to the card.
See the documentation that shipped with the card for information about the card's cable connections.


6. Replace the computer cover (see Replacing the Computer Cover).

7. Reconnect the computer and devices to electrical outlets, and then turn them on.

8. To complete the installation, see Configuring Your Computer After Removing or Installing the PCI Express Card.
Configuring Your Computer After Removing or Installing the PCI Express Card
Back to Contents Page

1
PCI Express x16 card slot
2
PCI Express x16 card
CAUTION: Do not route card cables over or behind the cards. Cables routed over the cards can prevent the computer cover from closing properly
or cause damage to the equipment.
NOTE: For information about the location of external connectors, see the Setup Guide. For information on installing drivers and software for your card,
see the documentation that shipped with the card.

Installed
Removed
Sound
card
1. Enter system setup (see
System Setup).
2. Go to Onboard Audio
Controller and then
change the setting to
Disabled.
3. Connect the external
audio devices to the
sound card's connectors.
1. Enter system setup (see
System Setup).
2. Go to Onboard Audio
Controller and then
change the setting to
Enabled.
3. Connect the external
audio devices to the
computer's back panel
connectors.
Network
card
1. Enter system setup (see
System Setup).
2. Go to Onboard LAN
Controller and then
change the setting to
Disabled.
3. Connect the network
cable to the network
card's connector.
1. Enter system setup (see
System Setup).
2. Go to Onboard LAN
Controller and then
change the setting to
Enabled.
3. Connect the network
cable to the integrated
network connector.

Back to Contents Page
Card Retention Bracket
Dell™Inspiron™620ServiceManual
Removing the Card Retention Bracket
Replacing the Card Retention Bracket

Removing the Card Retention Bracket

1. Follow the instructions in Before You Begin.

2. Remove the computer cover (see Removing the Computer Cover).

3. Push the release tab to release the card retention bracket from the chassis.
Replacing the Card Retention Bracket

1. Follow the instructions in Before You Begin.

2. Rotate and push the card retention bracket towards the computer until it snaps into place.

3. Replace the computer cover (see Replacing the Computer Cover).
Back to Contents Page

WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at dell.com/regulatory_compliance.
WARNING: To guard against electrical shock, always unplug your computer from the electrical outlet before removing the cover.
WARNING: Do not operate your computer with any cover(s) (including computer covers, bezels, filler brackets, front-panel inserts, etc.)
removed.
CAUTION: Only a certified service technician should perform repairs on your computer. Damage due to servicing that is not authorized by Dell is
not covered by your warranty.
1
release tab
2
card retention bracket

Back to Contents Page
Coin-Cell Battery
Dell™Inspiron™620ServiceManual
Removing the Coin-Cell Battery
Replacing the Coin-Cell Battery

Removing the Coin-Cell Battery

1. Record all the screens in system setup (see System Setup) so that you can restore the correct settings after the new coin-cell battery has been
installed.

2. Follow the instructions in Before You Begin.

3. Remove the computer cover (see Removing the Computer Cover).

4. Locate the battery socket on the system board (see System Board Components).


5. Press the battery-release lever to remove the coin-cell battery.

6. Set aside the battery in a secure location.
Replacing the Coin-Cell Battery

1. Follow the instructions in Before You Begin

2. Insert the new coin-cell battery (CR2032) into the socket with the side labeled "+" facing up, and press the coin-cell battery into place.
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at dell.com/regulatory_compliance.
WARNING: A new battery can explode if it is incorrectly installed. Replace the battery only with the same or equivalent type recommended by the
manufacturer. Discard used batteries according to the manufacturer's instructions.
WARNING: To guard against electrical shock, always unplug your computer from the electrical outlet before removing the cover.
WARNING: Do not operate your computer with any cover(s) (including computer covers, bezels, filler brackets, front-panel inserts, etc.)
removed.
CAUTION: Only a certified service technician should perform repairs on your computer. Damage due to servicing that is not authorized by Dell is
not covered by your warranty.
CAUTION: If you pry the battery out of its socket with a blunt object, be careful not to touch the system board with the object. Ensure that the
object is inserted between the battery and the socket before you attempt to pry out the battery. Otherwise, you may damage the system board by
prying off the socket or by breaking circuit traces on the system board.
1
battery-release lever
2
coin-cell battery
3
battery socket


3. Replace the computer cover (see Replacing the Computer Cover).

4. Connect your computer and devices to electrical outlets, and then turn them on.

5. Enter system setup (see System Setup) and restore the settings you recorded in step 1.
Back to Contents Page


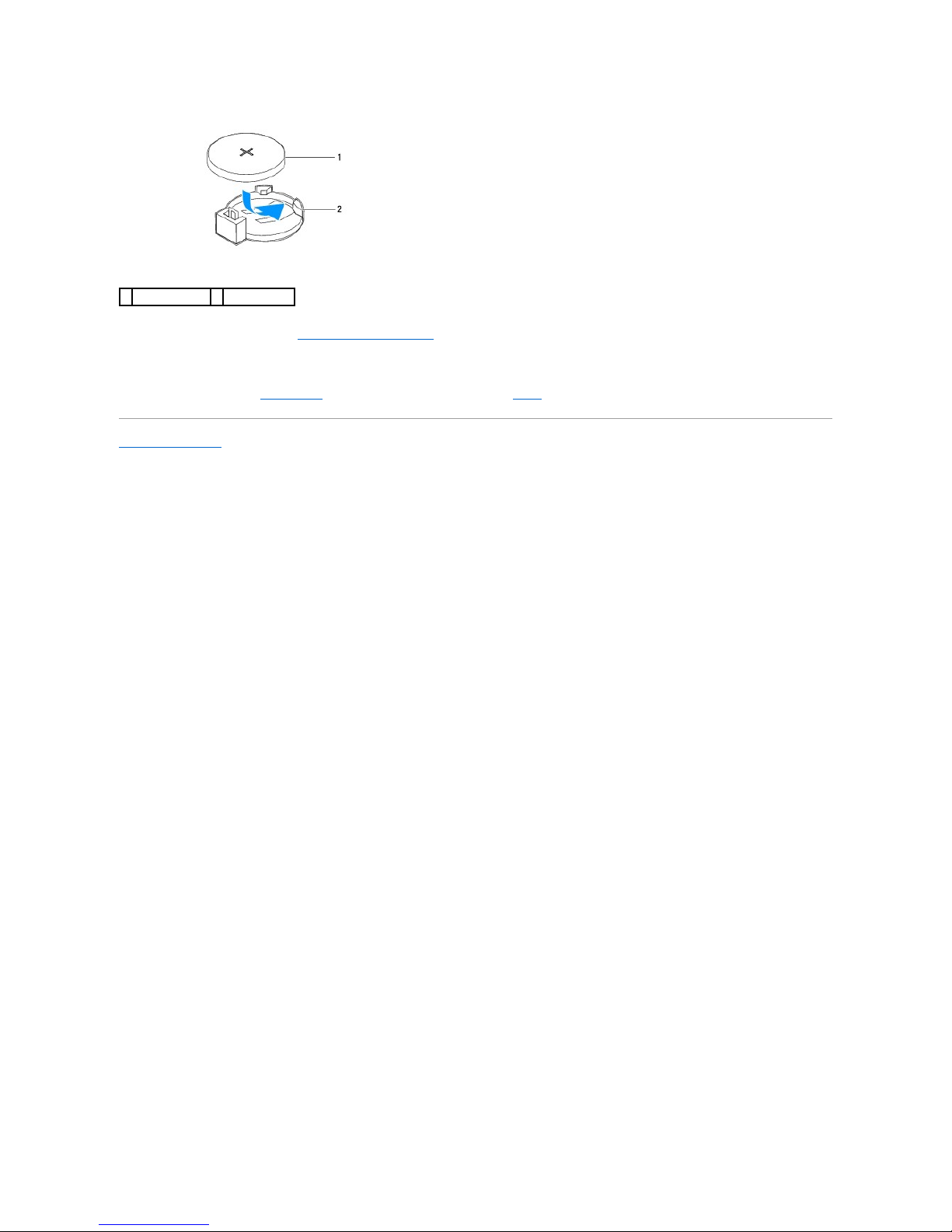

1
coin-cell battery
2
battery socket

Back to Contents Page
Computer Cover
Dell™Inspiron™620ServiceManual
Removing the Computer Cover
Replacing the Computer Cover


Removing the Computer Cover

1. Follow the instructions in Before You Begin.

2. Lay the computer on its side with the computer cover facing up.

3. Using a screwdriver, remove the two screws that secure the computer cover to the chassis.

4. Release the computer cover by sliding it away from the front of the computer.

5. Lift the cover away from the computer and set it aside in a secure location.
Replacing the Computer Cover

1. Follow the instructions in Before You Begin.

2. Connect all the cables and fold the cables out of the way.

3. Ensure that no tools or extra parts are left inside the computer.

4. Align the tabs at the bottom of the computer cover with the slots located along the edge of the chassis.

5. Press the computer cover down and slide it towards the front of the computer.

WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at dell.com/regulatory_compliance.
WARNING: To guard against likelihood of electric shock, laceration by moving fan blades, or other unexpected injuries, always unplug your
computer from the electrical outlet before removing the cover.
WARNING: Do not operate your computer with any cover(s) (including computer covers, bezels, filler brackets, front-panel inserts, etc.)
removed.
CAUTION: Only a certified service technician should perform repairs on your computer. Damage due to servicing that is not authorized by Dell is
not covered by your warranty.
CAUTION: Ensure that sufficient space exists to support the computer with the cover removed—at least 30 cm (1 ft.) of desk top space.
1
screws (2)
2
computer cover

6. Using a screwdriver, replace the two screws that secure the computer cover to the chassis.

7. Place the computer in an upright position.
Back to Contents Page

1
screws (2)
2
computer cover

Back to Contents Page
Processor
Dell™Inspiron™620ServiceManual
Removing the Processor
Replacing the Processor


Removing the Processor

1. Follow the instructions in Before You Begin.

2. Remove the computer cover (see Removing the Computer Cover).


3. Remove the processor fan and heat-sink assembly (see Removing the Processor Fan and Heat-Sink Assembly).

4. Press the release lever down and then pull it outwards to release it from the tab that secures it.

5. Extend the release lever completely to open the processor cover.


6. Gently lift the processor to remove it from the socket.
Leave the release lever extended in the release position so that the socket is ready for the new processor.
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at dell.com/regulatory_compliance.
WARNING: To guard against electrical shock, always unplug your computer from the electrical outlet before removing the cover.
WARNING: Do not operate your equipment with any cover(s) (including computer covers, bezels, filler brackets, front-panel inserts, etc.)
removed.
CAUTION: Only a certified service technician should perform repairs on your computer. Damage due to servicing that is not authorized by Dell is
not covered by your warranty.
CAUTION: Do not perform the following steps unless you are familiar with hardware removal and replacement. Performing these steps
incorrectly could damage your system board. For technical service information, see the Setup Guide.
CAUTION: Despite having a plastic shield, the heat-sink assembly may be very hot during normal operation. Ensure that it has had sufficient time
to cool before you touch it.
NOTE: Unless a new heat-sink is required for the new processor, reuse the original heat-sink assembly when you replace the processor.

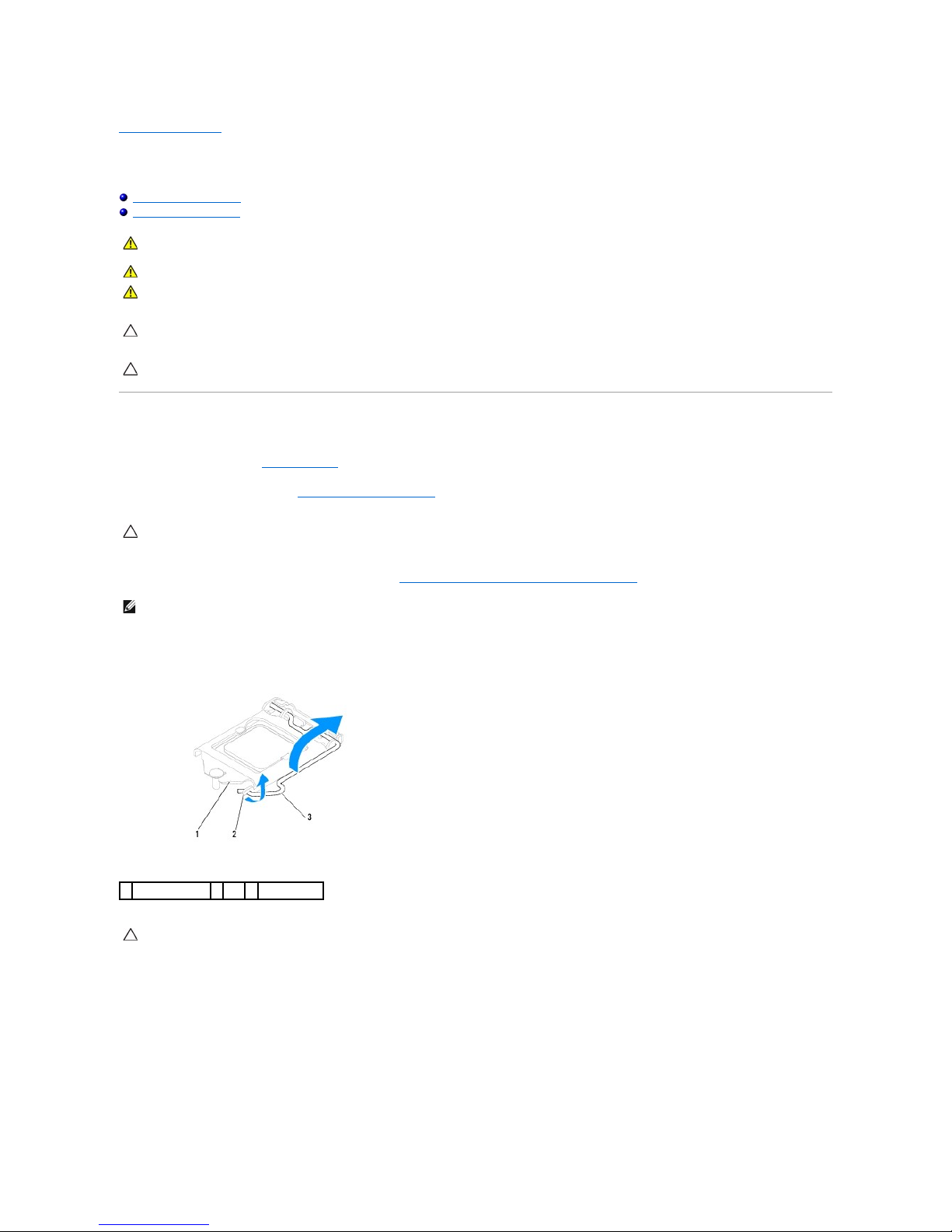

1
processor cover
2
tab
3
release lever
CAUTION: When removing the processor, do not touch any of the pins inside the socket or allow any objects to fall on the pins in the socket.

Replacing the Processor



1. Follow the instructions in Before You Begin.

2. Unpackthenewprocessor,beingcarefulnottotouchtheundersideoftheprocessor.


3. If the release lever on the socket is not fully extended, move it to that position.

4. Orient the alignment notches on the processor with the alignment tabs on the socket.

5. Align the pin-1 corners of the processor and socket.

Set the processor lightly in the socket and ensure that the processor is positioned correctly.


6. When the processor is fully seated in the socket, close the processor cover.

7. Pivot the release lever down and place it under the tab on the processor cover.
1
processor
2
socket
CAUTION: Ground yourself by touching an unpainted metal surface on the back of the computer.
CAUTION: When replacing the processor, do not touch any of the pins inside the socket or allow any objects to fall on the pins in the socket.
CAUTION: You must position the processor correctly in the socket to avoid permanent damage to the processor and the computer when you turn
on the computer.
CAUTION: To avoid damage, ensure that the processor aligns properly with the socket, and do not use excessive force when you install the
processor.
1
socket
2
processor
3
alignment tabs (2)
4
alignment notches (2)
5
processor pin-1 indicator


CAUTION: Ensure that the processor cover notch is positioned underneath the alignment post.


8. Clean the thermal grease from the bottom of the heat-sink.


9. Apply the new thermal grease to the top of the processor.

10. Replace the processor fan and heat-sink assembly (see Replacing the Processor Fan and Heat-Sink Assembly).


11. Replace the computer cover (see Replacing the Computer Cover).

12. Connect your computer and devices to electrical outlets, and turn them on.
Back to Contents Page


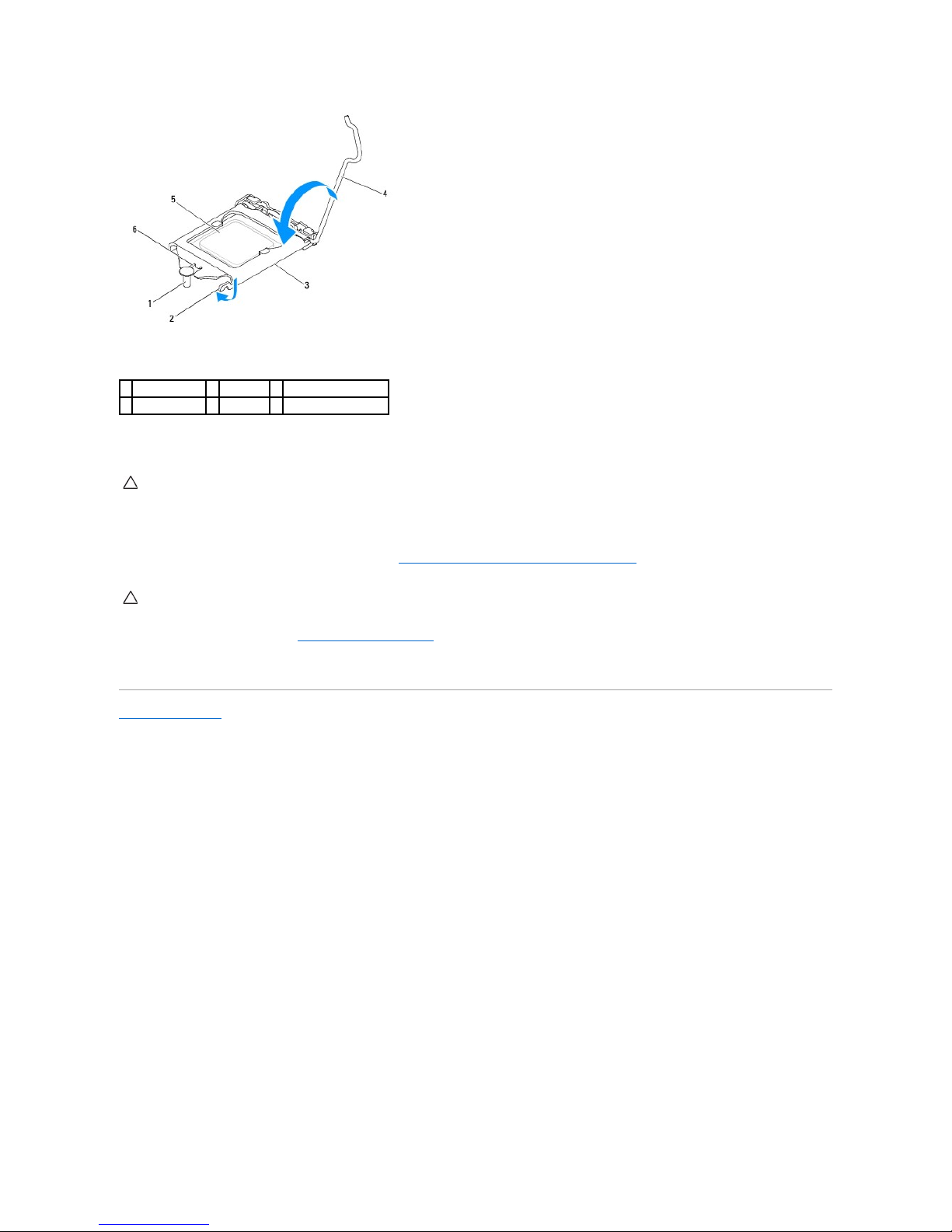

1
alignment post
2
tab
3
processor cover
4
release lever
5
processor
6
processor cover notch
CAUTION: Ensure that you apply new thermal grease. New thermal grease is critical for ensuring adequate thermal bonding, which is a
requirement for optimal processor operation.
CAUTION: Ensure that the processor fan and heat-sink assembly is correctly seated and secure.

Back to Contents Page
Drives
Dell™Inspiron™620ServiceManual
Hard Drive(s)
Optical Drive

Hard Drive(s)

Removing Hard Drive(s)


1. Follow the instructions in Before You Begin.

2. Remove the computer cover (see Removing the Computer Cover).

3. If you are removing the primary hard-drive, disconnect the power and data cables from the primary hard-drive.

4. If you are removing the secondary hard-drive:
a. Disconnect the power cable from the primary and secondary hard-drives.
b. Disconnect the data cable from the secondary hard-drive.

5. Remove the two screws that secure the hard-drive assembly to the drive panel.


6. Lift the hard-drive assembly away from the computer.
Primary Hard Drive
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at dell.com/regulatory_compliance.
WARNING: To guard against electrical shock, always unplug your computer from the electrical outlet before removing the cover.
WARNING: Do not operate your computer with any cover(s) (including computer covers, bezels, filler brackets, front-panel inserts, etc.)
removed.
CAUTION: Only a certified service technician should perform repairs on your computer. Damage due to servicing that is not authorized by Dell is
not covered by your warranty.
CAUTION: If you are replacing a hard drive that contains data you want to keep, back up your files before you begin this procedure.
NOTE: If you are not replacing the hard drive at this time, disconnect the other end of the data cable from the system board connector and set it aside.
You can use the data cable to install a hard drive at a later time.
CAUTION: Ensure that you do not scratch the hard drive's circuit board, while removing or replacing the hard drive.

Secondary Hard Drive

7. Remove the two screws (one on each side) that secure the hard-drive brackets to the hard-drive.

8. Remove the hard-drive brackets off the hard drive.

9. If removing the hard drive changes the drive configuration, ensure that you reflect these changes in the system setup (see System Setup).

Replacing the Hard Drive

1. Follow the instructions in Before You Begin.

2. Check the documentation that shipped with the hard drive to verify that it is configured for your computer.

3. Place the hard-drive brackets in position.

4. Replace the two screws (one on each side) that secure the hard-drive brackets to the hard drive.

5. Slide the hard-drive assembly into the hard-drive bay.

6. Replace the two screws that secure the hard-drive assembly to the drive panel.

7. If you are replacing the primary hard-drive, connect the power and data cables to the primary hard drive.

1
primary hard-drive assembly
2
data cable
3
power cable
4
screws (2)
1
secondary hard-drive assembly
2
data cable
3
power cable
4
screws (2)
1
hard drive
2
screws (2)
3
hard-drive bracket
