This section provides information about setting
up your Studio 1745/1747 laptop.
Before Setting Up Your
Computer
When positioning your computer, ensure that
you allow easy access to a power source,
adequate ventilation, and a level surface to
place your computer.
Restricting airflow around your Studio
laptop may cause it to overheat. To prevent
overheating ensure that you leave at least
10.2 cm (4 inches) at the back of the computer
and a minimum of 5.1 cm (2 inches) on all other
sides. You should never place your computer in
an enclosed space, such as a cabinet or drawer
when it is powered on.
WARNING: Do not block, push objects
into, or allow dust to accumulate in the air
vents. Do not place your Dell™ computer
in a low-airflow environment, such as a
closed briefcase, while it is powered on.
Restricting the airflow can damage the
computer or cause a fire. The computer
turns on the fan when the computer gets
hot. Fan noise is normal and does not
indicate a problem with the fan or the
computer.
CAUTION: Placing or stacking heavy or
sharp objects on the computer may result
in permanent damage to the computer.
Setting Up Your Studio Laptop

6
Setting Up Your Studio Laptop
Connect the AC Adapter
Connect the AC adapter to the computer and then plug it into a wall outlet or surge protector.
WARNING: The AC adapter works with electrical outlets worldwide. However, power
connectors and power strips vary among countries. Using an incompatible cable or
improperly connecting the cable to a power strip or electrical outlet may cause fire or
permanent damage to your computer.
NOTE: Connect the power cord to the adapter firmly and ensure that the light on the adapter is
on when you turn on power.
NOTE: Use only Dell AC adapter family PA-3E, PA-10, and PA-12 with your computer.

7
Setting Up Your Studio Laptop

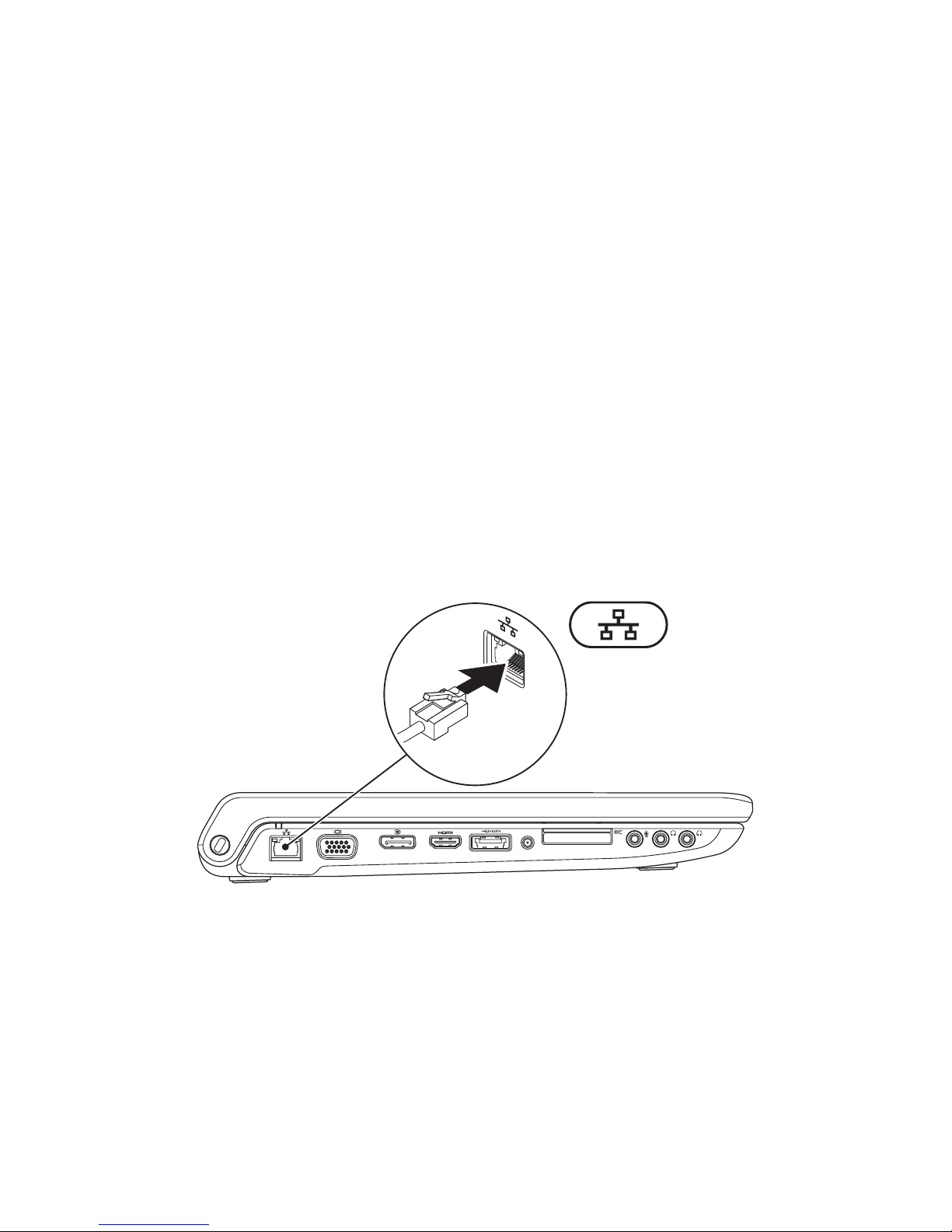

Connect the Network Cable (Optional)
To use a wired network connection, connect the network cable.

8
Setting Up Your Studio Laptop
Press the Power Button

9
Setting Up Your Studio Laptop
Set Up Microsoft Windows
Your Dell computer is preconfigured with Microsoft®Windows®operating system. To set up
Windows for the first time, follow the instructions on the screen. These steps are mandatory and
may take some time to complete. The screens will take you through several procedures including
accepting license agreements, setting preferences, and setting up an Internet connection.
CAUTION: Do not interrupt the operating system’s setup process. Doing so may render your
computer unusable and you will need to reinstall the operating system.
NOTE: It is recommended that you download and install the latest BIOS and drivers for your
computer available on the Dell Support website at support.dell.com.

10
Setting Up Your Studio Laptop
Install the SIM (Optional)
Installing a Subscriber Identity Module (SIM) card on your computer allows you to connect to the
Internet. To access the Internet you must be within the network of your cellular service provider.
NOTE: Only GSM (HSDPA) type cards need a SIM. EVDO cards do not use a SIM.
To install the SIM:
Turn off your computer.1.
Remove the battery (see “Removing and Replacing the Battery” on page2. 38).
In the battery bay, slide the SIM into the SIM card slot.3.
Replace the battery (see “Removing and Replacing the Battery” on page4. 38).
Turn on your computer.5.

11
Setting Up Your Studio Laptop
1SIM card
2SIM card slot
3battery bay
1
23

12
Setting Up Your Studio Laptop
Enable or Disable Wireless (Optional)

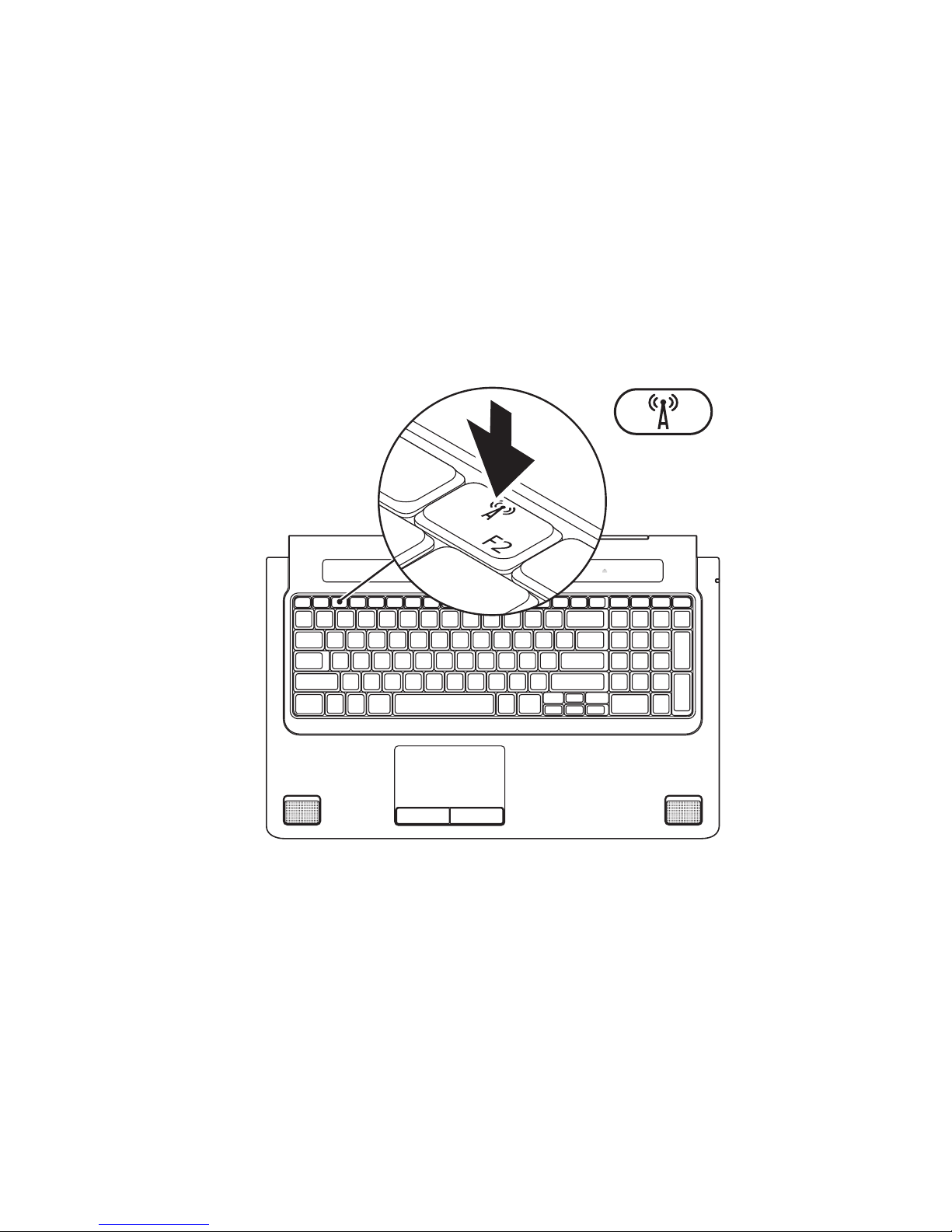

Press the key or press the <Fn><F2> keys on the keyboard to enable or disable wireless. The
wireless on or off icons appear on the screen to indicate the status.
Wireless on:
Wireless off:
For information on changing the behavior of the Fn key, see “Media Controls” on page 30.

13
Setting Up Your Studio Laptop

14
Setting Up Your Studio Laptop
Connect to the Internet
(Optional)
To connect to the Internet, you need an external
modem or network connection and an Internet
Service Provider (ISP).
If an external USB modem or WLAN adapter
is not a part of your original order, you can
purchase one from the Dell website at
www.dell.com.
Setting Up a Wired Connection
If you are using a dial-up connection,•
connect the telephone line to the external
USB modem (optional) and to the telephone
wall connector before you set up your
Internet connection.
If you are using a DSL or cable/satellite•
modem connection, contact your ISP
or cellular telephone service for setup
instructions.
To complete setting up your wired internet
connection, follow the instructions in “Setting
Up Your Internet Connection” on page 16.

15
Setting Up Your Studio Laptop
Setting Up a Wireless Connection
NOTE: To set up your wireless router, see
the documentation that shipped with your
router.
Before you can use your wireless Internet
connection, you need to connect to your
wireless router.
To setup your connection to a wireless router:
Windows Vista
®
Ensure that wireless is enabled on your1.
computer (see “Enable or Disable Wireless”
on page 12).
Save and close any open files, and exit any2.
open programs.
Click3. Start →Connect To.
Follow the instructions on the screen to4.
complete the setup.
Windows
®
7
Ensure that wireless is enabled on your1.
computer (see “Enable or Disable Wireless”
on page 12).
Save and close any open files, and exit any2.
open programs.
Click3. Start →Control Panel→ Network
and Sharing Center→ Connect to a network.
Follow the instructions on the screen to4.
complete the setup.

16
Setting Up Your Studio Laptop
Setting Up Your Internet Connection
ISPs and ISP offerings vary by country. Contact
your ISP for offerings available in your country.
If you cannot connect to the Internet but have
successfully connected in the past, the Internet
Service Provider (ISP) might have a service
outage. Contact your ISP to check the service
status, or try connecting again later.
Have your ISP information ready. If you do not
have an ISP, the Connect to the Internet wizard
can help you get one.
Windows Vista
®
NOTE: The following instructions are
applicable to the Windows default view,
so they may not apply if you set your Dell™
computer to the Windows Classic view.
Save and close any open files, and exit any1.
open programs.
Click2. Start →Control Panel.
Click3. Network and Internet→ Network and
Sharing Center→ Set up a connection or
Network→Connect to the Internet.
The Connect to the Internet window appears.
NOTE: If you do not know which type of
connection to select, click Help me choose
or contact your ISP.
Follow the instructions on the screen and4.
use the setup information provided by your
ISP to complete the setup.

17
Setting Up Your Studio Laptop
Windows
®
7
Save and close any open files, and exit any1.
open programs.
Click2. Start →Control Panel→ Network
and Sharing Center→ Set up a new
connection or network→ Connect to the
Internet.
The Connect to the Internet window appears.
NOTE: If you do not know which type of
connection to select, click Help me choose
or contact your ISP.
Follow the instructions on the screen and3.
use the setup information provided by your
ISP to complete the setup.

18
Using Your Studio Laptop
Your Studio 1745/1747 laptop has indicators and buttons that provide information and enable you to
perform common tasks. The connectors on your computer provide the option of attaching additional
devices.

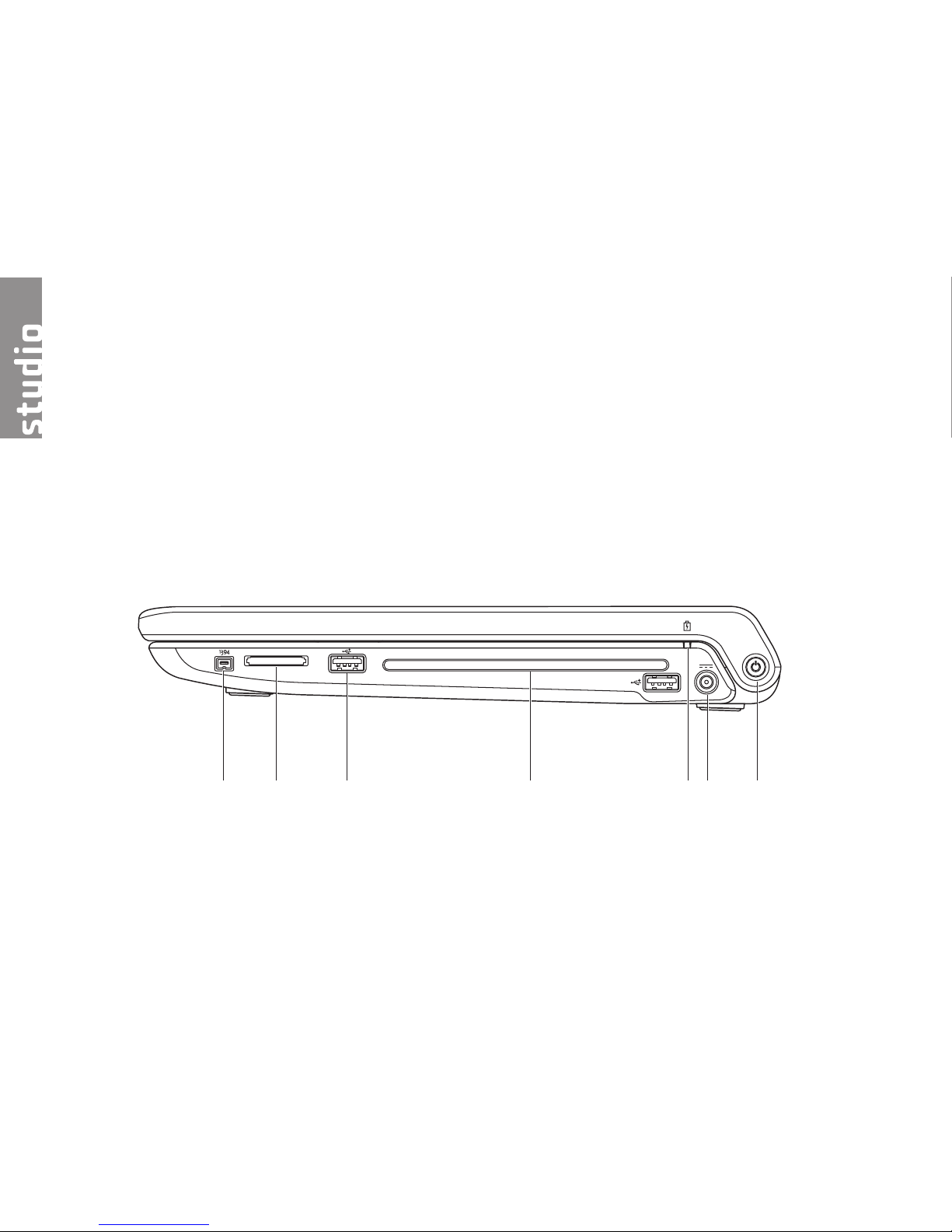

Right Side Features
12 3 46
57
